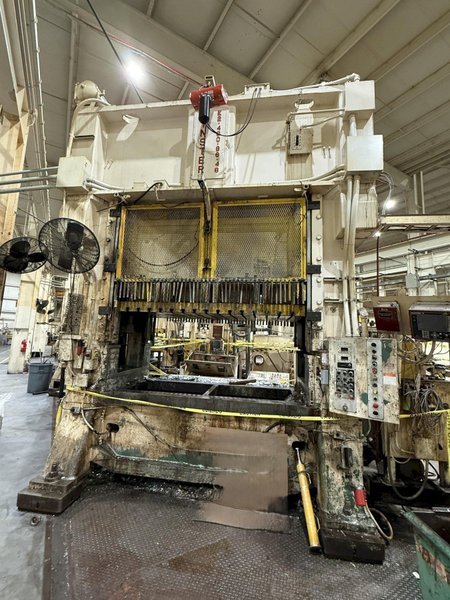

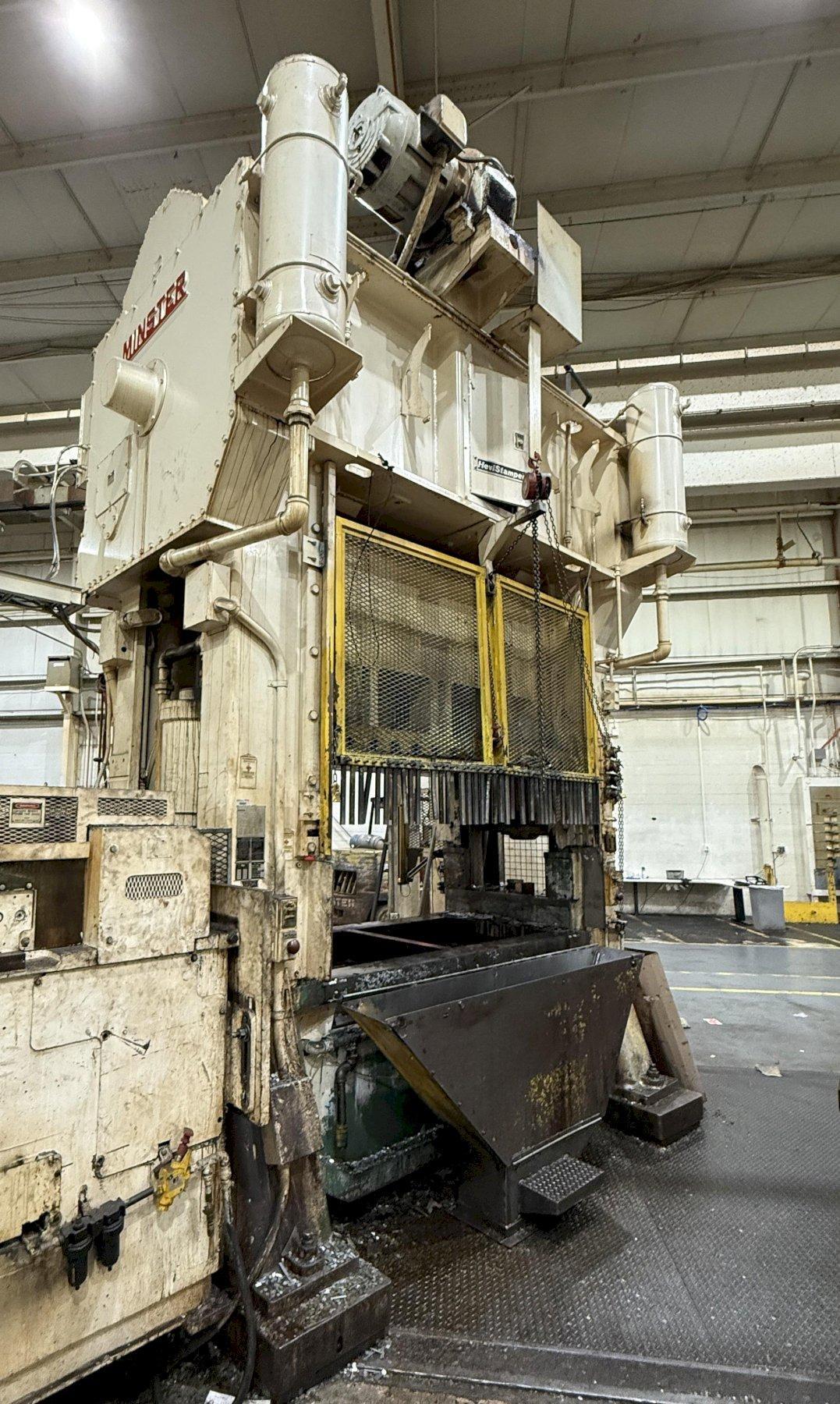

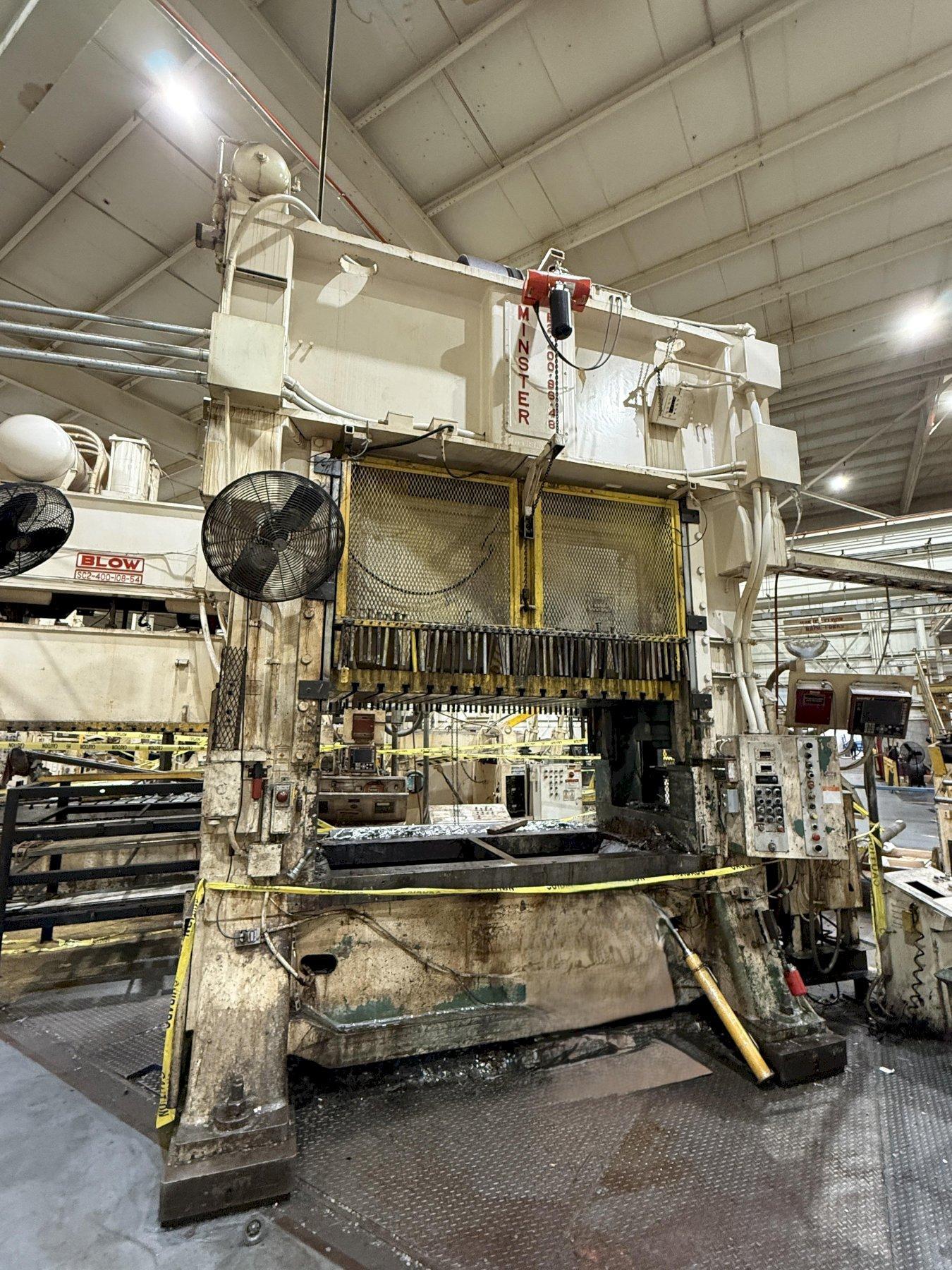

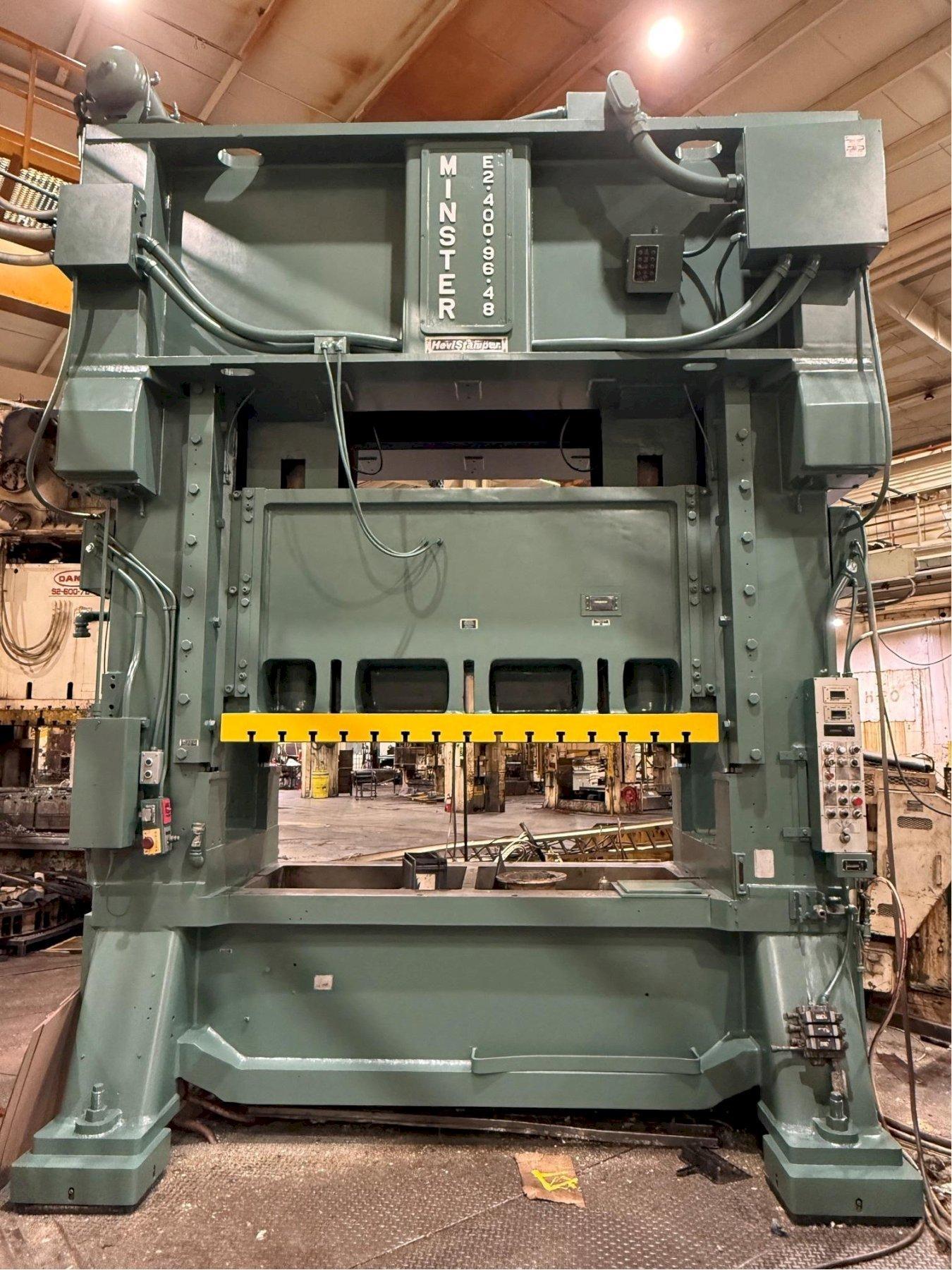

1986 MINSTER E2-400-96-48 Hevi-Stamper Double Crank Press - 400 Ton Capacity

1986 MINSTER E2-400-96-48 Hevi-Stamper Double Crank Press - 400 Ton Capacity

Name: 1986 MINSTER E2-400-96-48 Hevi-Stamper Double Crank Press - 400 Ton Capacity
Brand: MINSTER
SKU: 2997
Availability: PreOrder

Brand

MINSTER

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Tonnage	400
Stroke	12 inches
Shut Height	32 inches
Adjustment	6 inches
Bed Size	96 x 48
Ram Area	96 x 48
SPM	35-70 VSPM

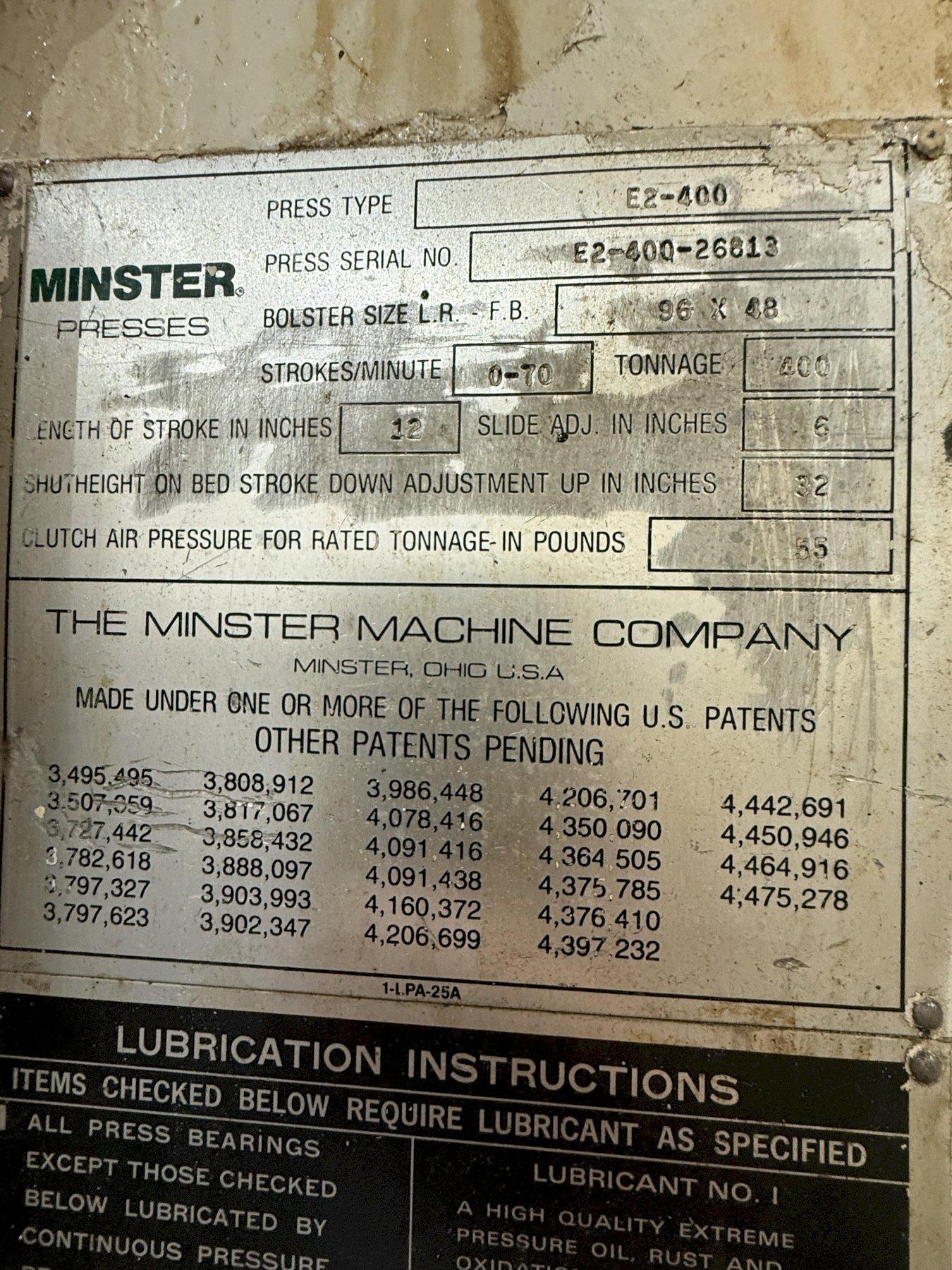

400-ton Minster Hevi-Stamper Model E2-400-96-48 Straight Side Mechanical Stamping Press 400-ton Capacity 12" Stroke 32" Shut Height On Bed 25" Shut Height Over Bolster 6" Motorized Adjustment 96" LR x 48" FB Bed Area 96" LR x 48" FB Slide Area 0-70 Variable Strokes Per Minute Equipment and Features Minster Pneumatic Clutch and Brake Air Counterbalances Minster Monitor Flow Lubrications System T-Slotted Ram and Bolster Plate 7" Thick Bolster Plate Wintriss Smart Pak 2 Press Controls 33" Wide Windows Vibro Dynamic Floor Pads 8-Point Adjustable Gibbing Single Geared - Twin End Drive Floor Standing This 400-ton Minster can be seen in operation at the plant upon request. Boost your shop’s productivity with this elite 400-ton Minster Hevi-Stamper (E2-400-96-48), the industry benchmark for high-speed straight side mechanical presses. Engineered for precision metal stamping, this 1985 workhorse features a generous 96" x 48" bed area and a versatile 12" stroke, making it the ideal solution for complex progressive die applications. Equipped with Wintriss Smart Pak 2 controls, 8-point gibbing, and a variable speed drive reaching 0-70 SPM, this Minster E2 press ensures unmatched rigidity and tool life. This floor-standing, high-capacity mechanical press includes a Monitor Flow lubrication system, a T-slotted bolster and motorized adjustment for rapid setups. Don't miss this rare opportunity to acquire a legendary Minster stamping press—available for immediate inspection under power! Watch the 400-Ton Minster in Action – Click Here!
