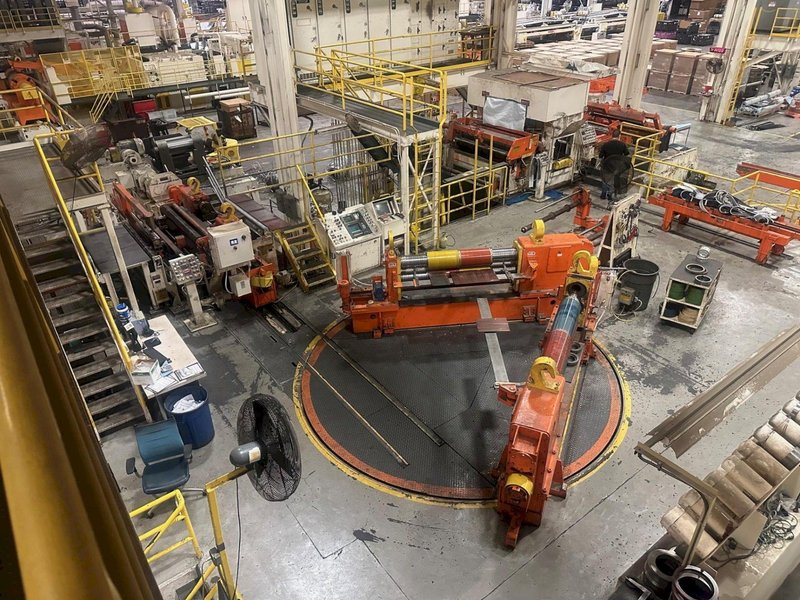

GENERAL SPECIFICATIONS:
MANUFACTURER – STAMCO
YEAR – 1992
LINE DIRECTION – LEFT to RIGHT (TURNSTILES LOAD AND UNLOAD ON DRIVE SIDE)
MATERIALS – C.R.S, HRP&O, HOT DIP GALV., ELECTRO GALV., PRE-PAINTED
THICKNESS – .015” MIN., .134” MAX.
SHEAR STRENGTH – 40,000 PSI MIN., 90,000 PSI MAX.
YIELD STRENGTH – 35,000 PSI MIN., 90,000 PSI MAX.
COIL WIDTH – 12” MIN., 72” MAX. (74” UNTRIMMED)
COIL WEIGHT – 65,000# MAX. (ENTRY & EXIT)
COIL OUTSIDE DIAMETER – 36” MIN., 80” MAX. (ENTRY & EXIT)
COIL INSIDE DIAMETER (ENTRY) – 20” TO 24” (28” TO 32” w/ FILLER PLATES)
COIL INSIDE DIAMETER (EXIT) – 20” or 24” (VIA QUICK CHANGE “QUILL” TYPE DRUMS)
SLITTER ARBOR DIAMETER – 8.000”
NUMBER OF (PACKED ARBOR) SLITTER HEADS – TWO (2)
NUMBER OF EDGE TRIMMER HEADS – ONE (1)
SLITTER HEAD EXCHANGE STYLE – INJECTOR w/ ROTATING CAROUSEL TRAY
LINE SPEED – 500 FPM MAX. (LOW GEAR), 1000 FPM MAX. (HIGH GEAR)
UNCOILER DRIVE – 200 HP DC FEED-UP DRIVE / DRAG GENERATOR BRAKE
SLITTER DRIVE – 125 HP DC
SCRAP BALLER DRIVE – AC MOTOR
ROLL TENSION STAND DRIVE – 125 HP DC FEED-UP DRIVE / DRAG GENERATOR BRAKE
RECOILER DRIVE – 200 HP DC
LINE COMPONENTS:
FOUR ARM ENTRY STORAGE TURNSTILE
FLOOR LEVEL COIL LOADING CAR
CANTILEVERED MANDREL UNCOILER w/ 20” / 24” HYDRAULIC DRUM, SLIDE BASE, HOLD-DOWN ROLL AND 125 HP FEED-UP DRIVE / DRAG GENERATOR BRAKE
UNCOILER OUTBOARD SUPPORT
BOLT-ON PLASTIC UNCOILER FILLER PLATES FOR 28” TO 32” ID COILS
“NORTH AMERICAN” ELECTRONIC EDGE CONTROL SYSTEM
DUAL PIVOTING AND TELESCOPING PEELER BLADES TO ACCOMMODATE UNDER AND OVER WINDING FROM UNCOILER
ENTRY PINCH ROLLS
ENTRY CROP SHEAR w/ THREADING TABLE AND SCRAP CART
“LORAL” NON-CONTACT THICKNESS MEASUREMENT SYSTEM
ROLLER TYPE SIDE GUIDES
PIVOTING SLITTER ENTRY BRIDLE ROLL
SLITTER BASE AND 125 HP DC DRIVE
TWO (2) PACKED ARBOR INJECTOR SLITTER HEADS w/ 8.000” ARBORS
ONE (1) SIDE TRIMMING INJECTOR HEAD
POWERED SLITTER HEAD INJECTOR SYSTEM
SLITTER HEAD STORAGE TRAY w/ THREE (3) STORAGE POSITIONS
ONE (1) LOT of SLITTER AND SEPARATOR TOOLING w/ CABINETS
HEAVY-DUTY EDGE TRIM SCRAP BALLER SYSTEM
PIVOTING PIT THREADING TABLES
DUAL STRIP SEPARATOR SPINDLES w/ QUICK CHANGE TOOLING SYSTEM AND STRIP SNUBBER ROLL
ROLL TYPE TENSION STAND w/ 125 HP DC FEED-UP DRIVE / DRAG GENERATOR BRAKE
TAIL CLAMPING PAD
THIRTEEN (13) ROLL SHAPE CORRECTION LEVELER w/ QUICK CHANGE CASSETTE
EXIT CROP SHEAR AND SCRAP CART
PIVOTING SCRAP / STRIP INSPECTION TABLE w/ OVERHEAD LIGHTS
EXIT PASS LINE ROLL
PIVOTING RECOILER THREADING TABLE w/ PIVOTING STRIP HOLD-DOWN CLAMP
20” / 24” QUILL TYPE DRUM TURRET RECOILER DRIVE BASE w/ SLIDING COUPLING AND 200 HP DC DRIVE
TURRET RECOILER ROTATING BASE w/ TWO (2) HOLLOW-BORE DRUM FRAMES, TWO (2) PIVOTING OVERARM SEPARATORS AND TWO (2) COIL PUSHERS
FLOOR LEVEL COIL UNLOADING CAR w/ POWERED COIL STABILIZING CLAMP
“IN-FLOOR” POWERED TURNTABLE TO ROTATE COIL CAR NINETY (90) DEGREES
“IN-FLOOR” SCALE TO MEASURE EXIT COIL WEIGHT
FOUR (4) ARM EXIT STORAGE TURNSTILE
OPERATOR CONTROL STATIONS
AC CONTROLS
VARIABLE SPEED DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
