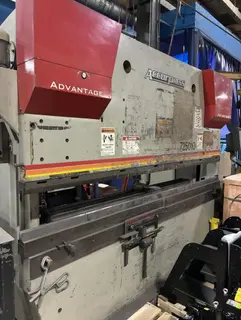

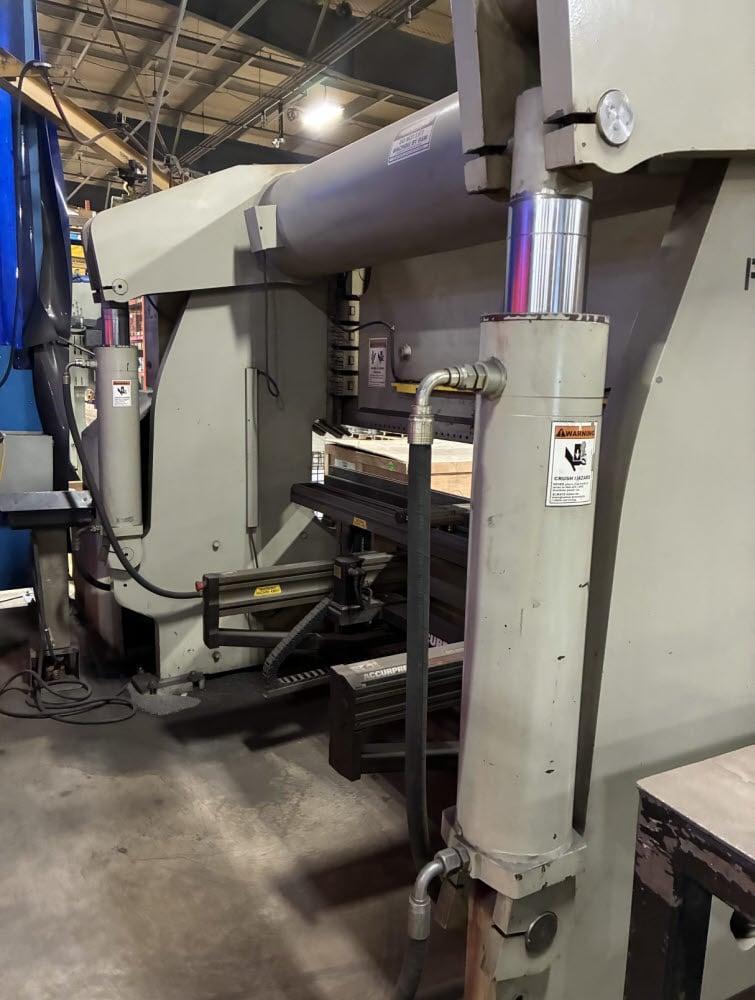

250 Tons X 10’ Hydraulic Press Brake with ETS-3000 2 - Axis CNC Backgauge System and ETS-100 Operators Console with Display and Palm Buttons.

GENERAL SPECIFICATIONS
Capacity:                        250 Tons
Overall Bending Length:                120”
Distance Between Housings:            100”
Bed Height:                        36”
Top Bed Width:                    6”
Length of Ram Stroke:                8”
Open Height:                        16”
Closed Height:                    8”
Throat Depth:                    10”
Approximate Speed
Approach:                    65 IPM
Bend:                        19 IPM
Return:                    140 IPM
Standard Cycles Per Minute:            11
Hi-Speed Cycles Per Minute:            15
Approx Motor Power:                20 HP
Overall Dimensions:                    144” X 60” X 98”
Approx. Weight:                    22,000 Lbs

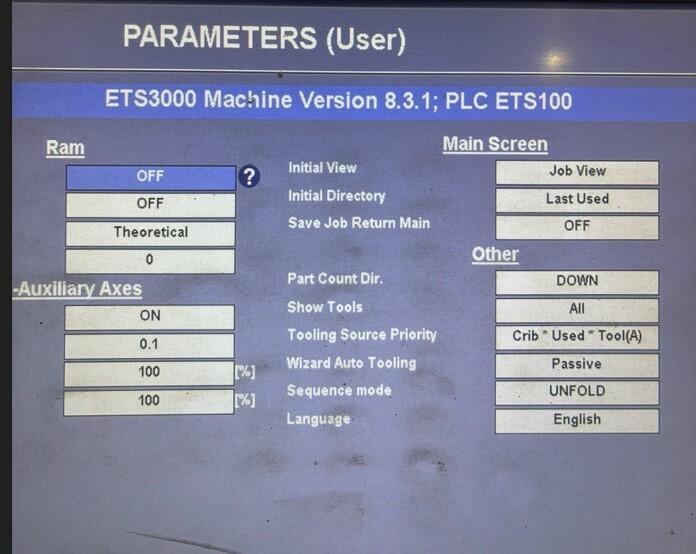

INCLUDES: ETS-3000 2 - Axis CNC Backgauge System and ETS-100 Operators Console with Display and Palm Buttons.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
