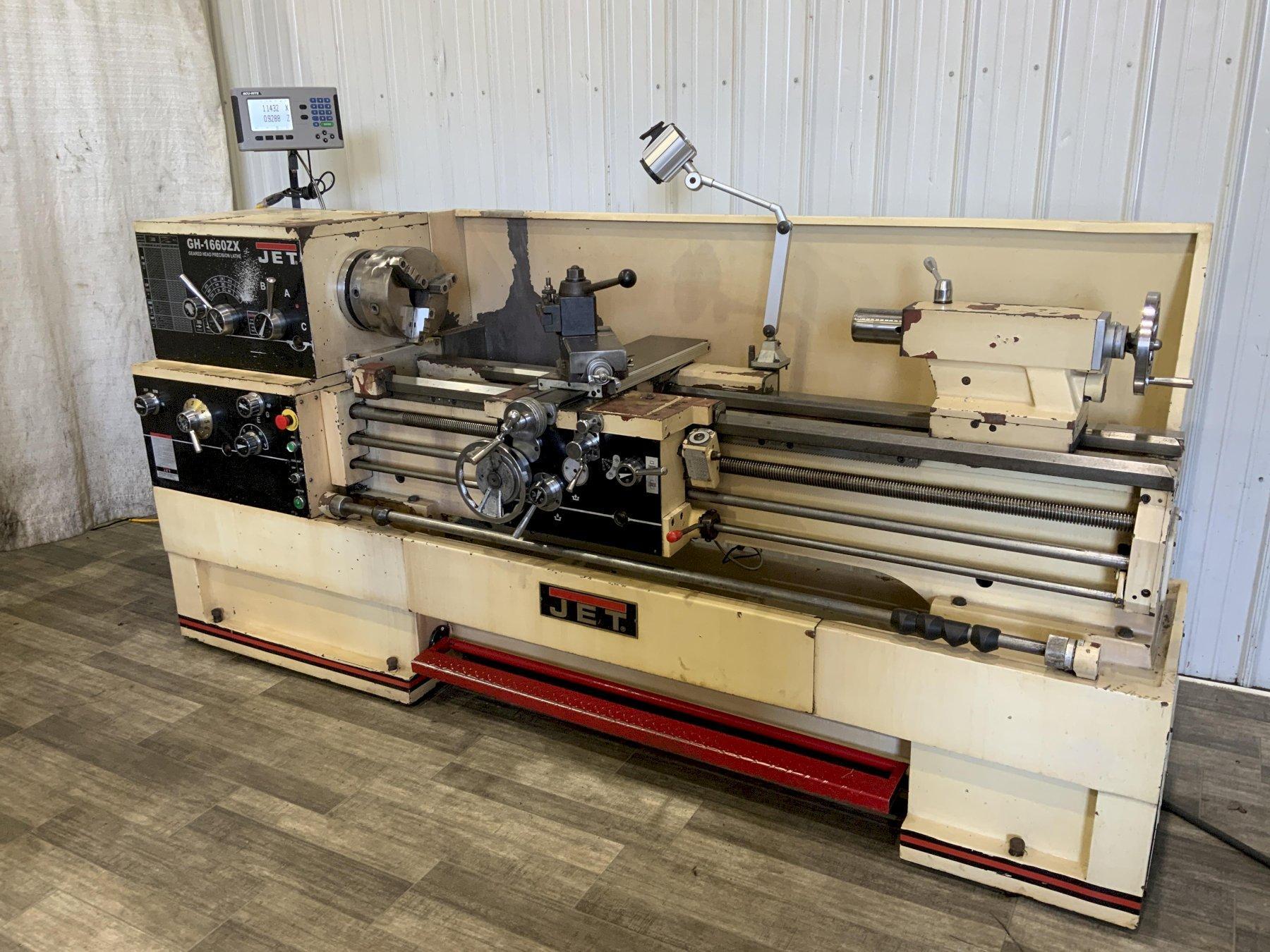

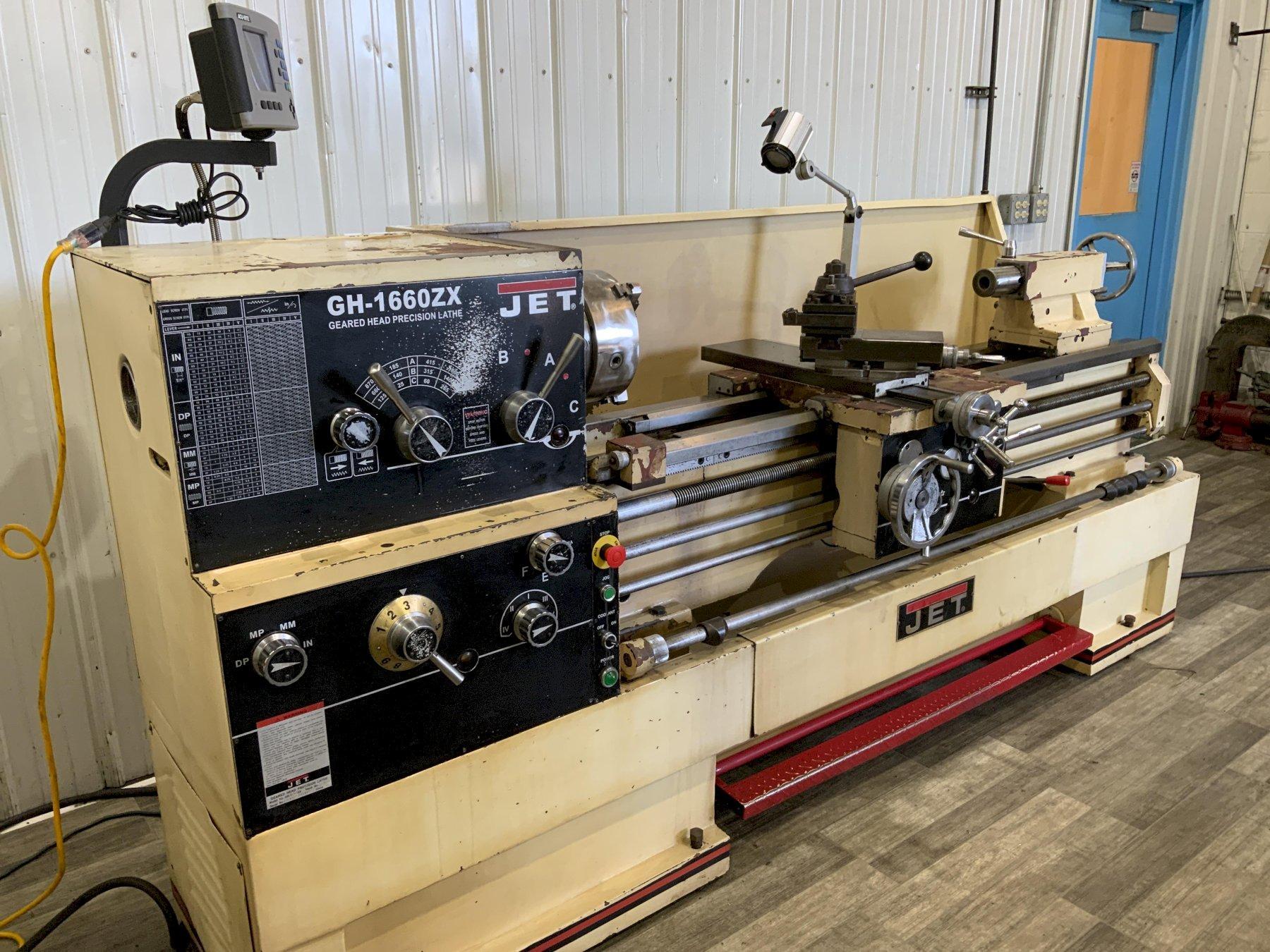

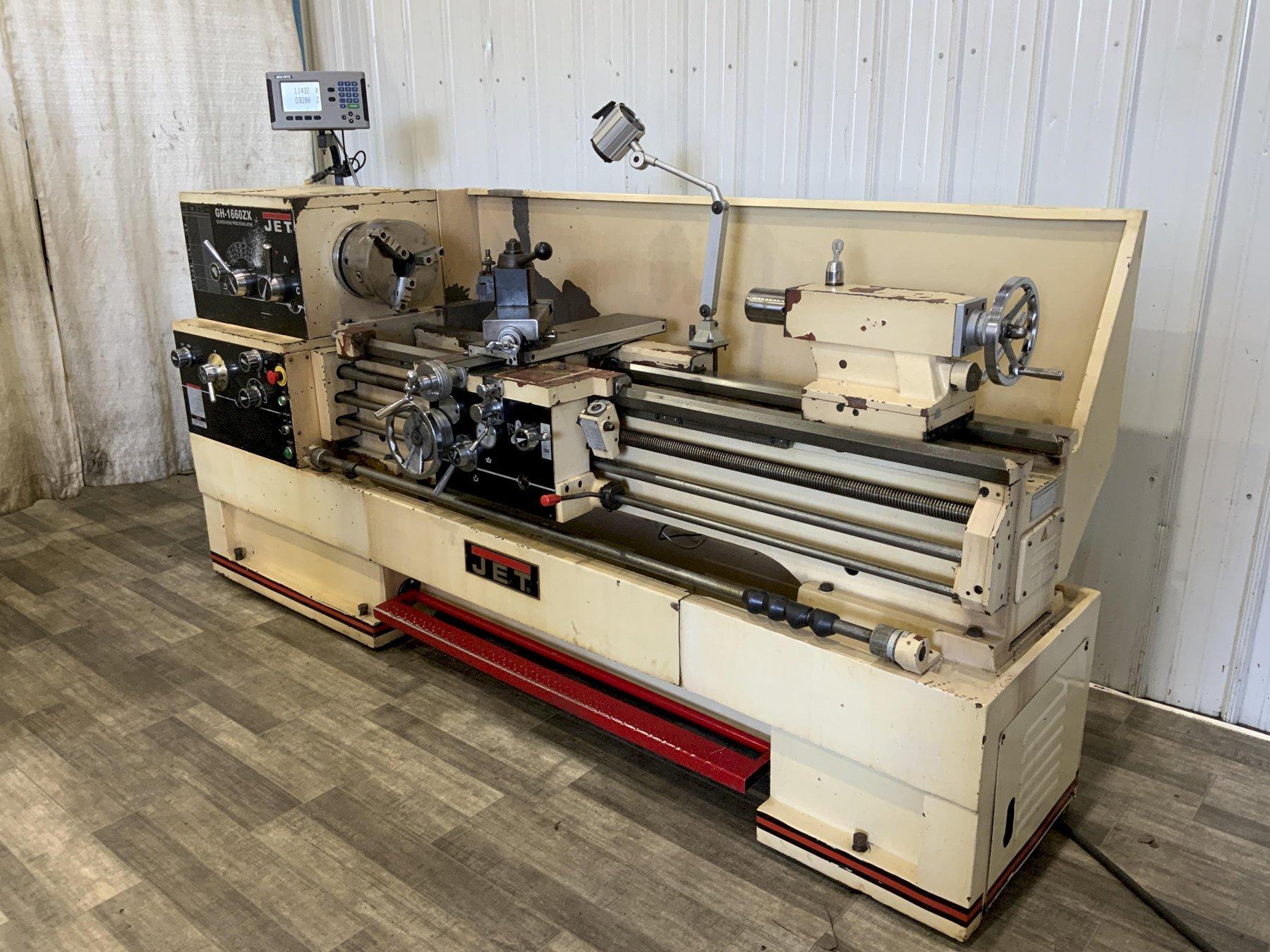

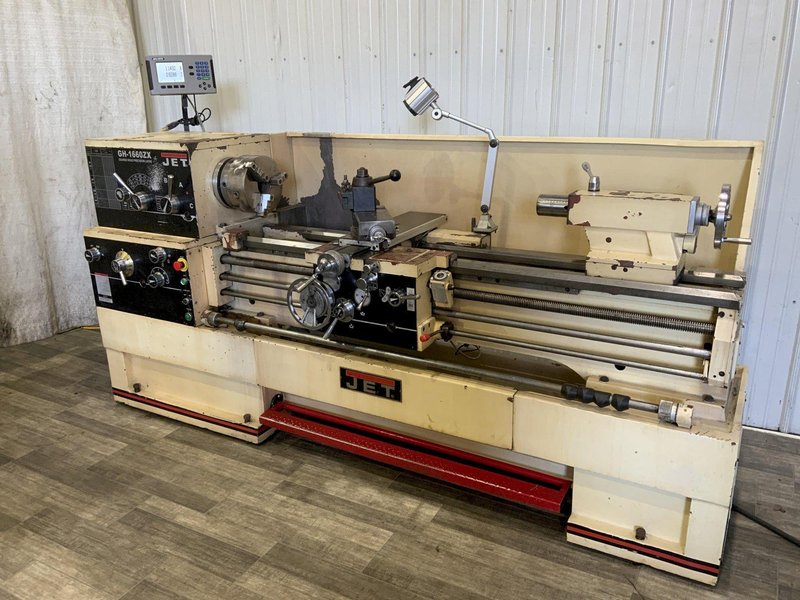

16" X 60" JET MODEL GH-166ZX ENGINE LATHE: STOCK #80878

SERIAL ..................... 0912282X2146

MODEL ...................... GH-1660ZX

YEAR NEW ................... 2009

SWING OVER WAYS ............ 16"

SWING IN GAP ............... 25-1/2"

LENGTH OF GAP .............. 12"

SWING OVER CROSS SLIDE ..... 9"

DISTANCE BETWEEN CENTERS ... 60"

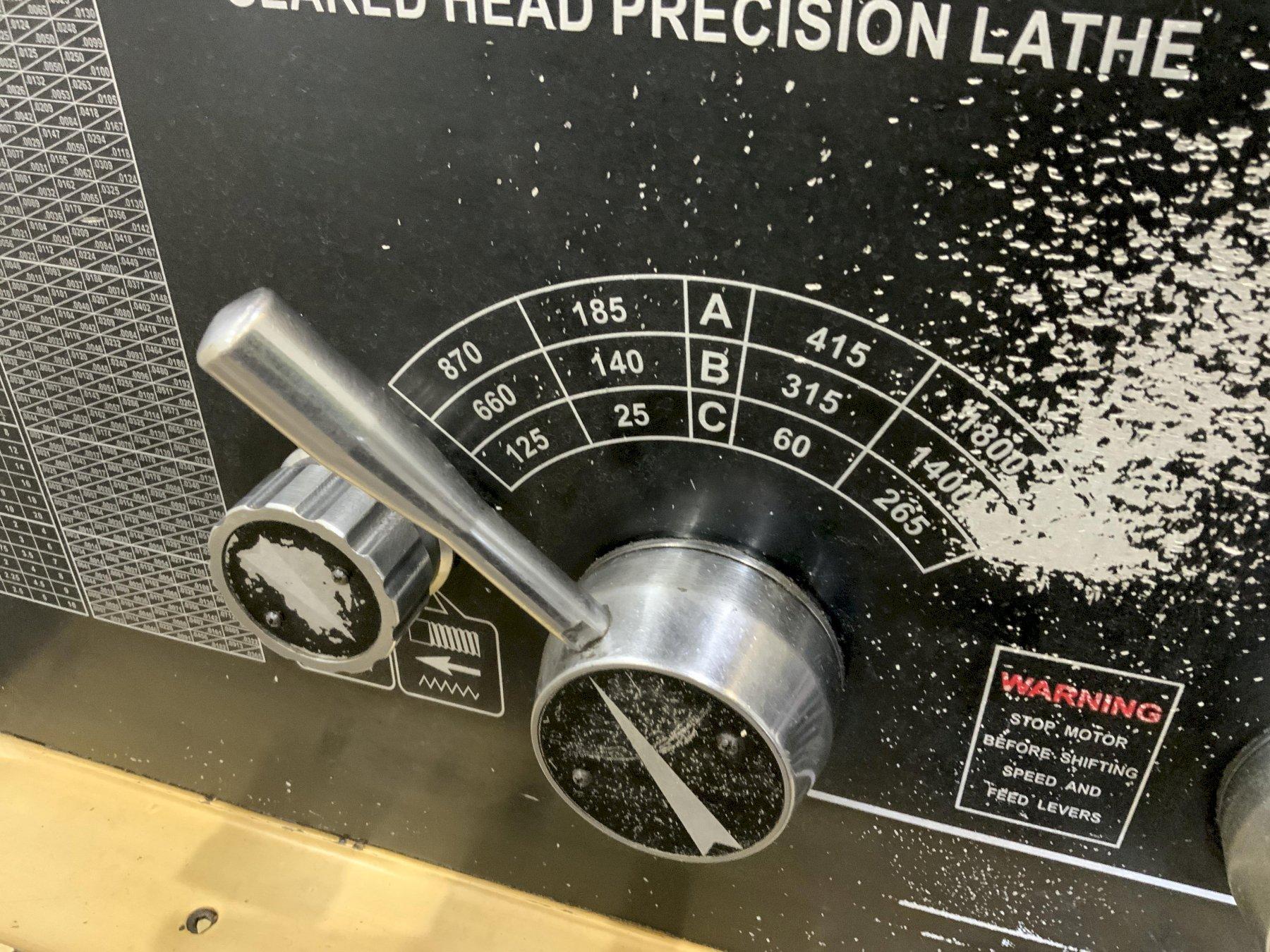

SPINDLE SPEEDS ............. (12) 25 TO 1800

DIAMETER OF SPINDLE HOLE ... 3-1/8"

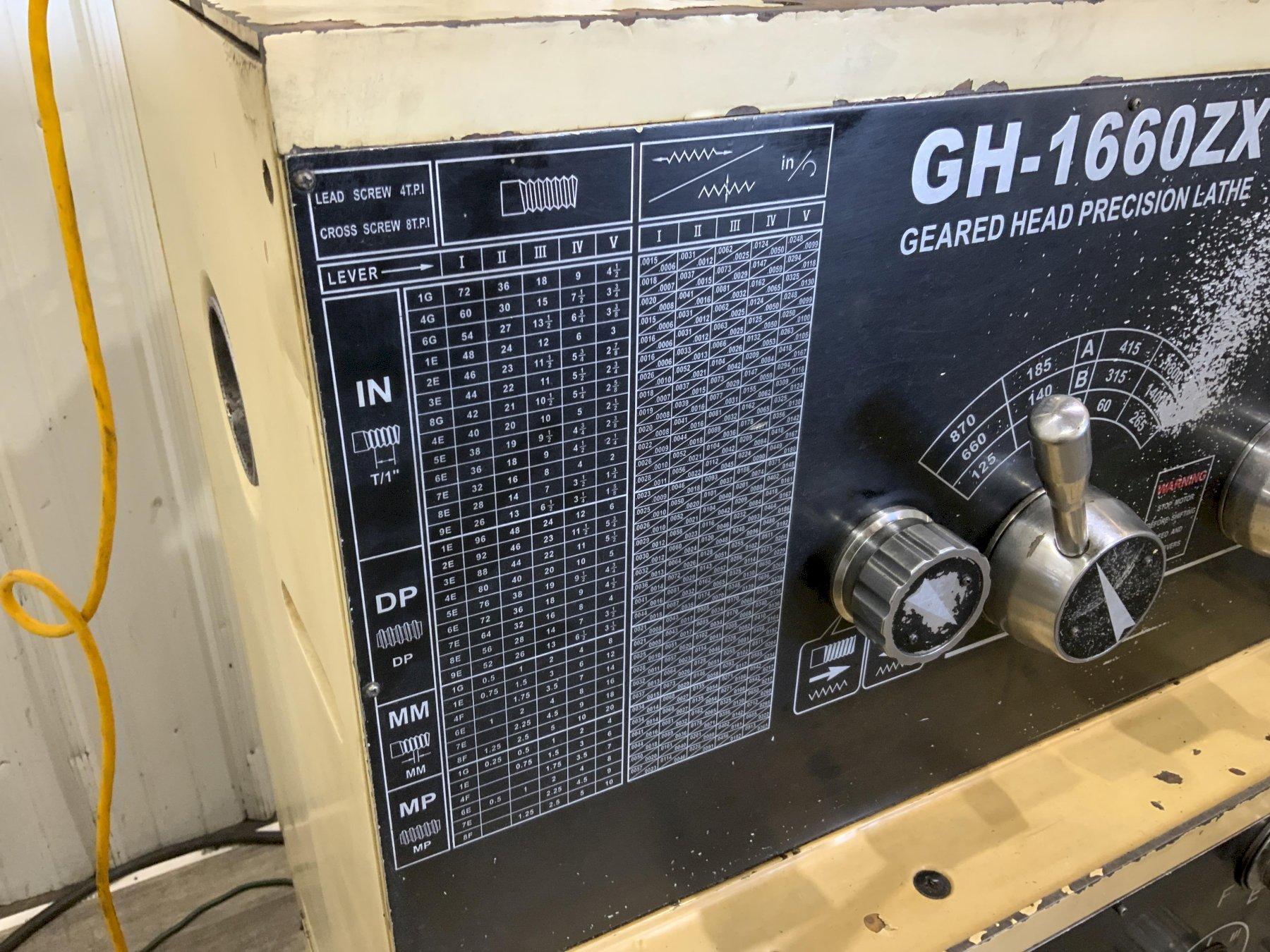

ENGLISH THREADS ............ (40) 1-5/8 TO 112 TPI

METRIC THREADS ............. (27) 0.2 TO 6 TPMM

FEEDS LONGITUDINAL ......... (40) 0.0015 TO 0.0913 IPR

FEED CROSS ................. (40) 0.0006 TO 0.0365 IPR

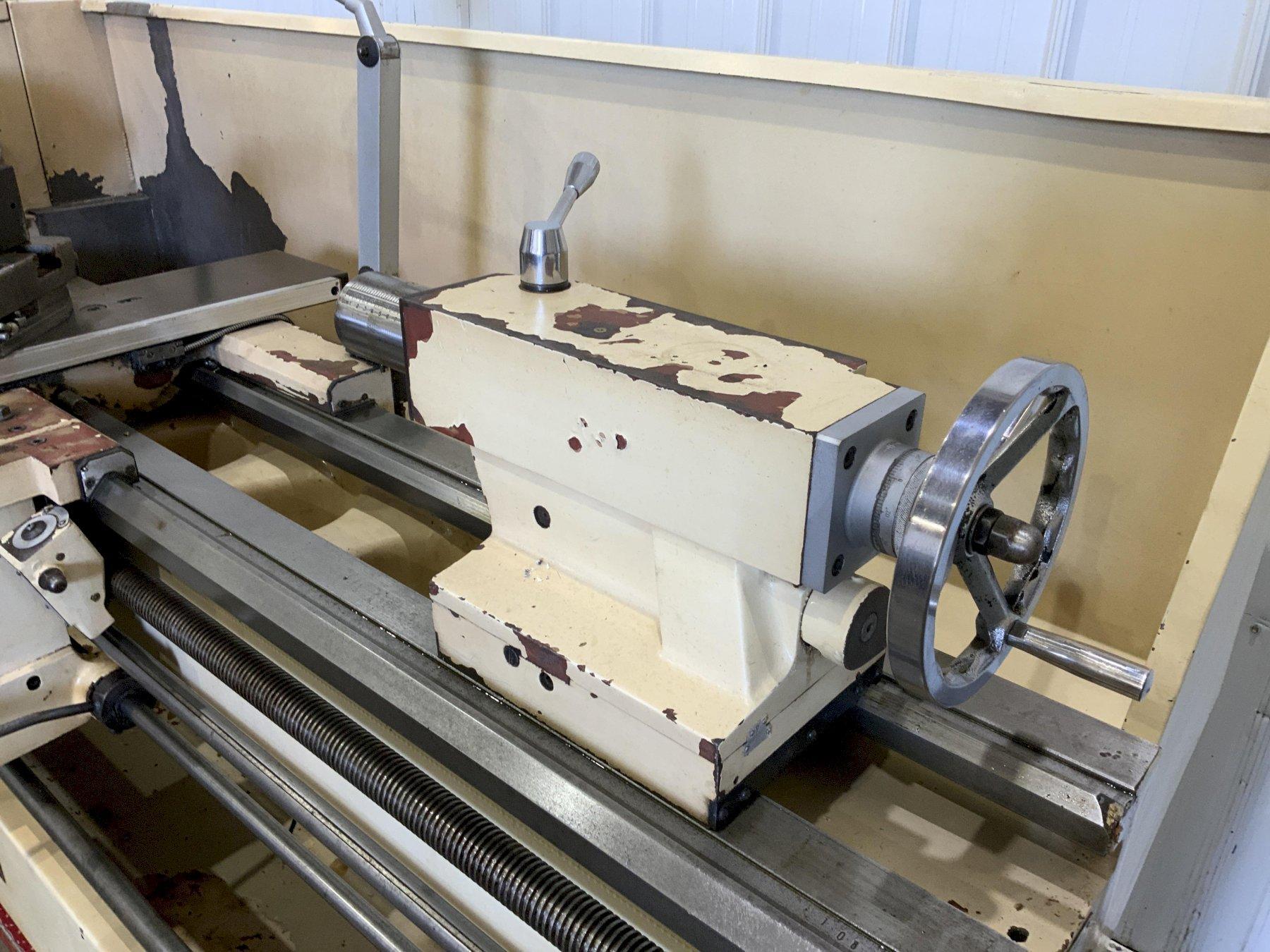

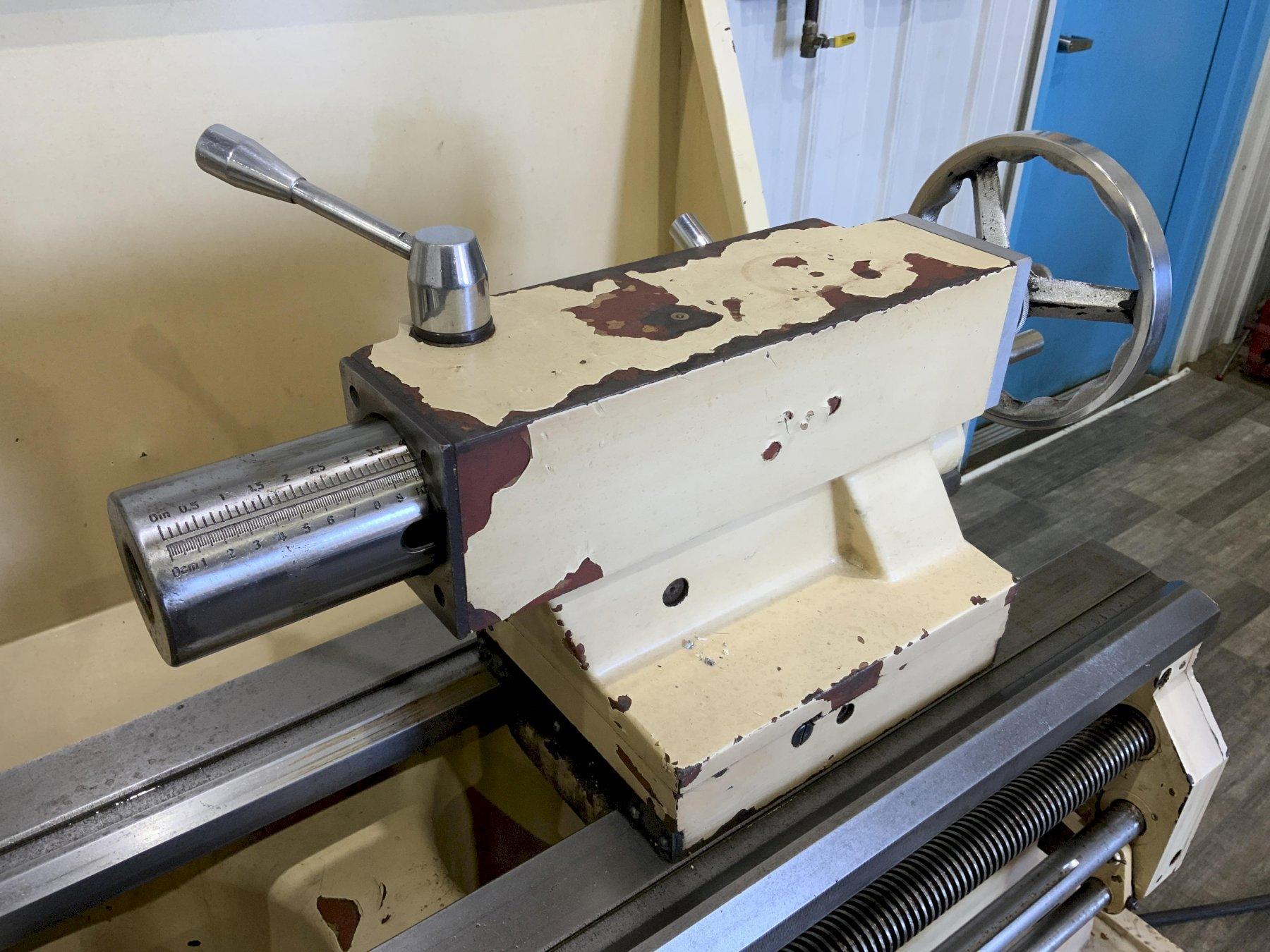

TAPER IN TAILSTOCK ......... #4 MT

CHIP PAN ................... YES

HARDEN WAYS ................ YES

FOOT BRAKE ................. YES

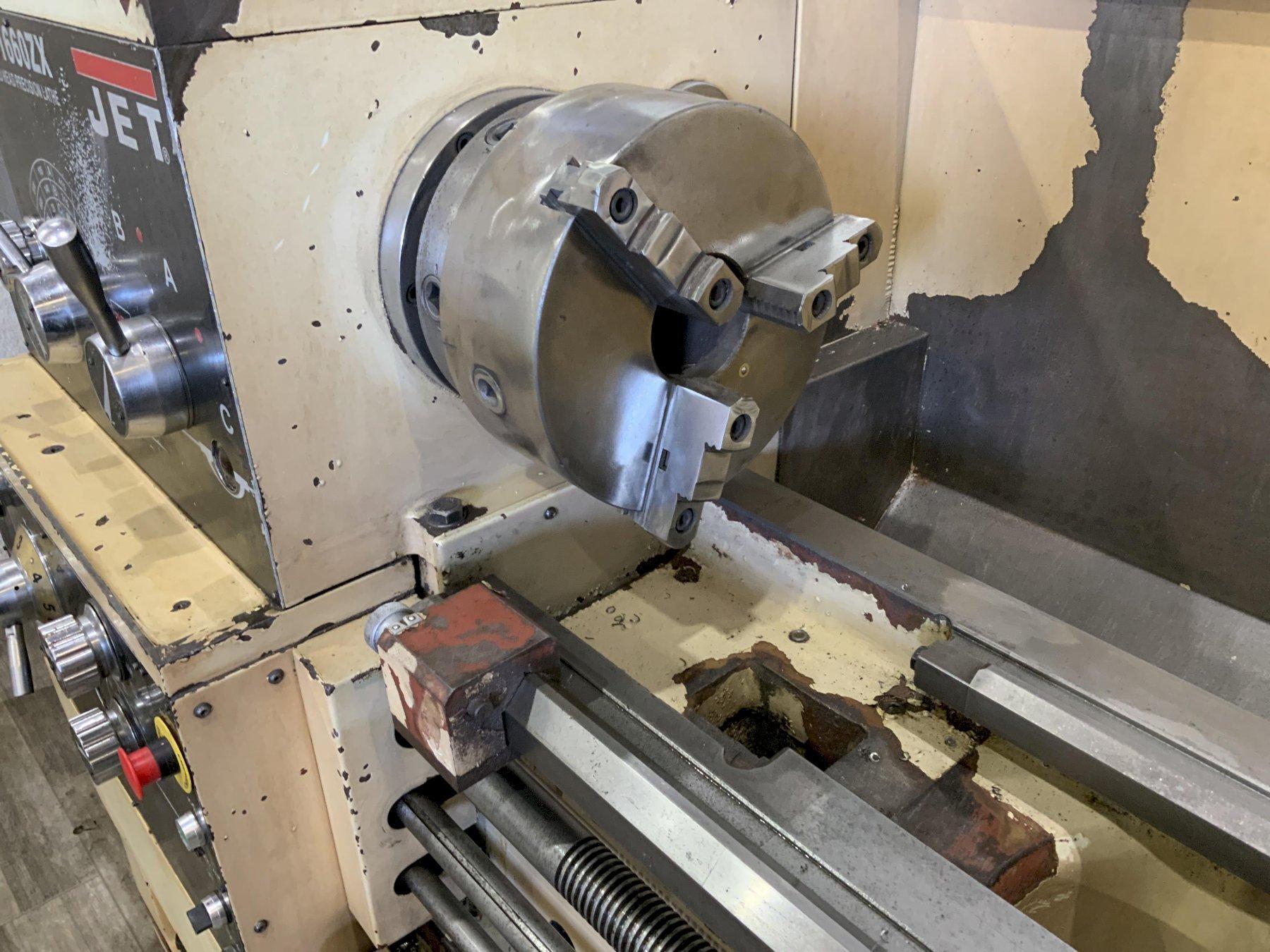

CHUCK 3 JAW ................ 10"

MOTOR ...................... 7-1/2 HORSEPOWER
