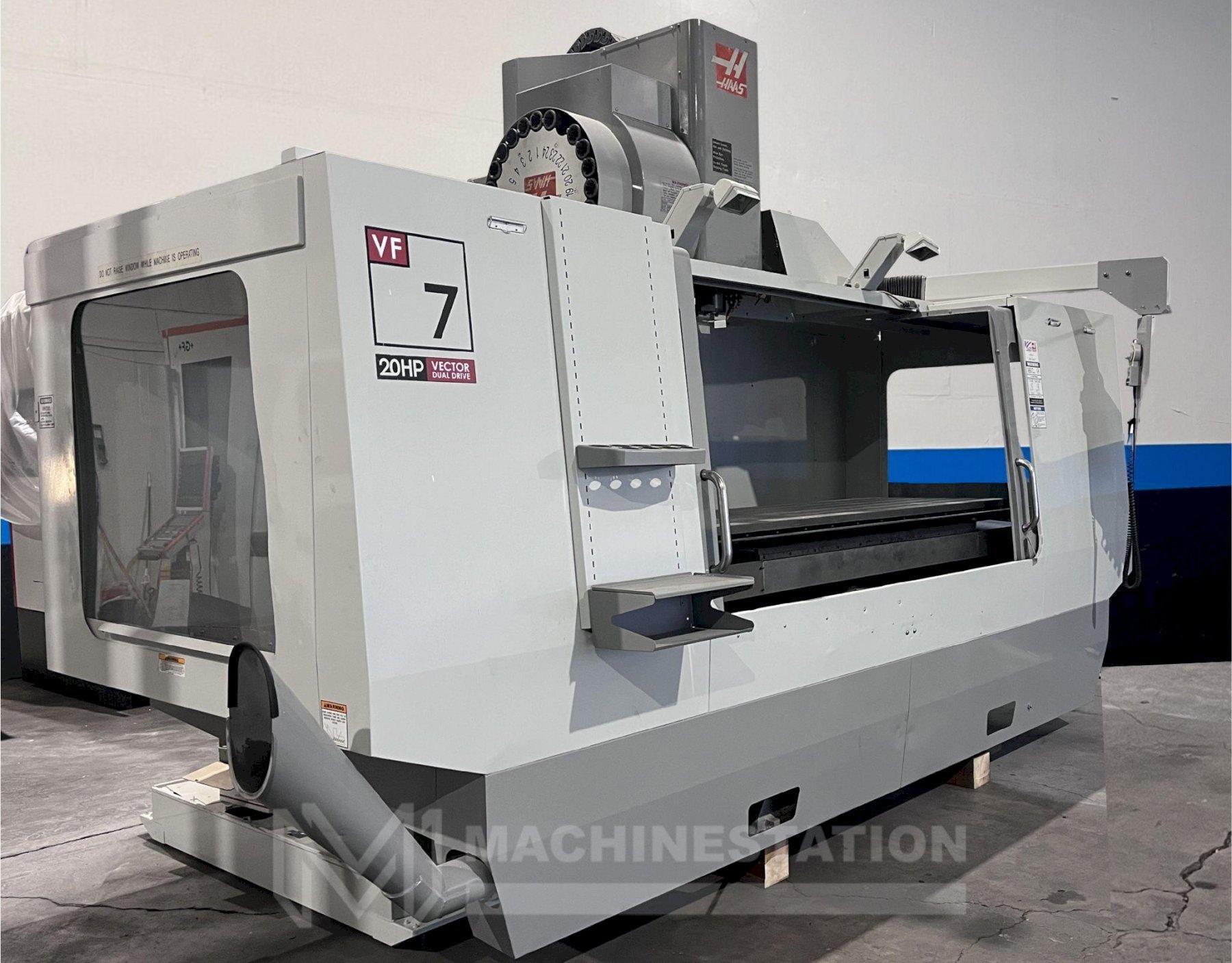

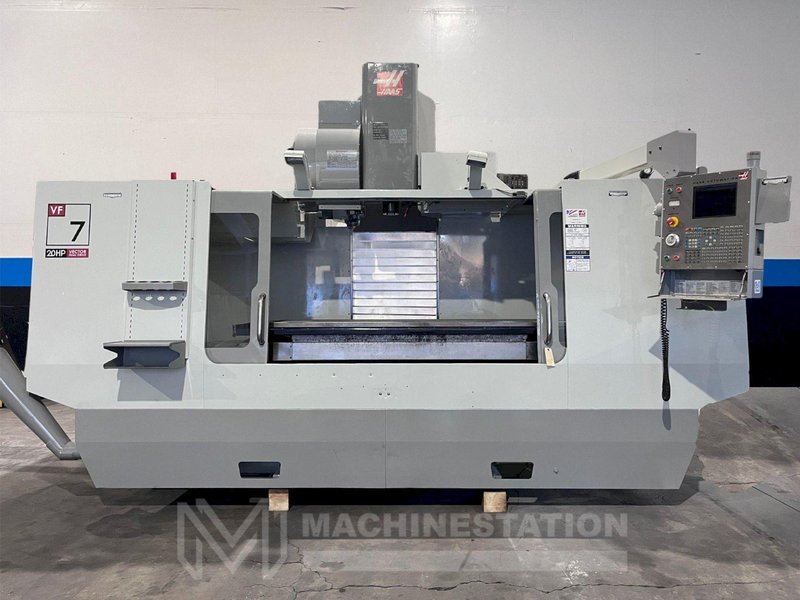

Haas VF-7D/40 CNC Vertical Machining Center – Mill

Haas VF-7D/40 CNC Vertical Machining Center – Mill

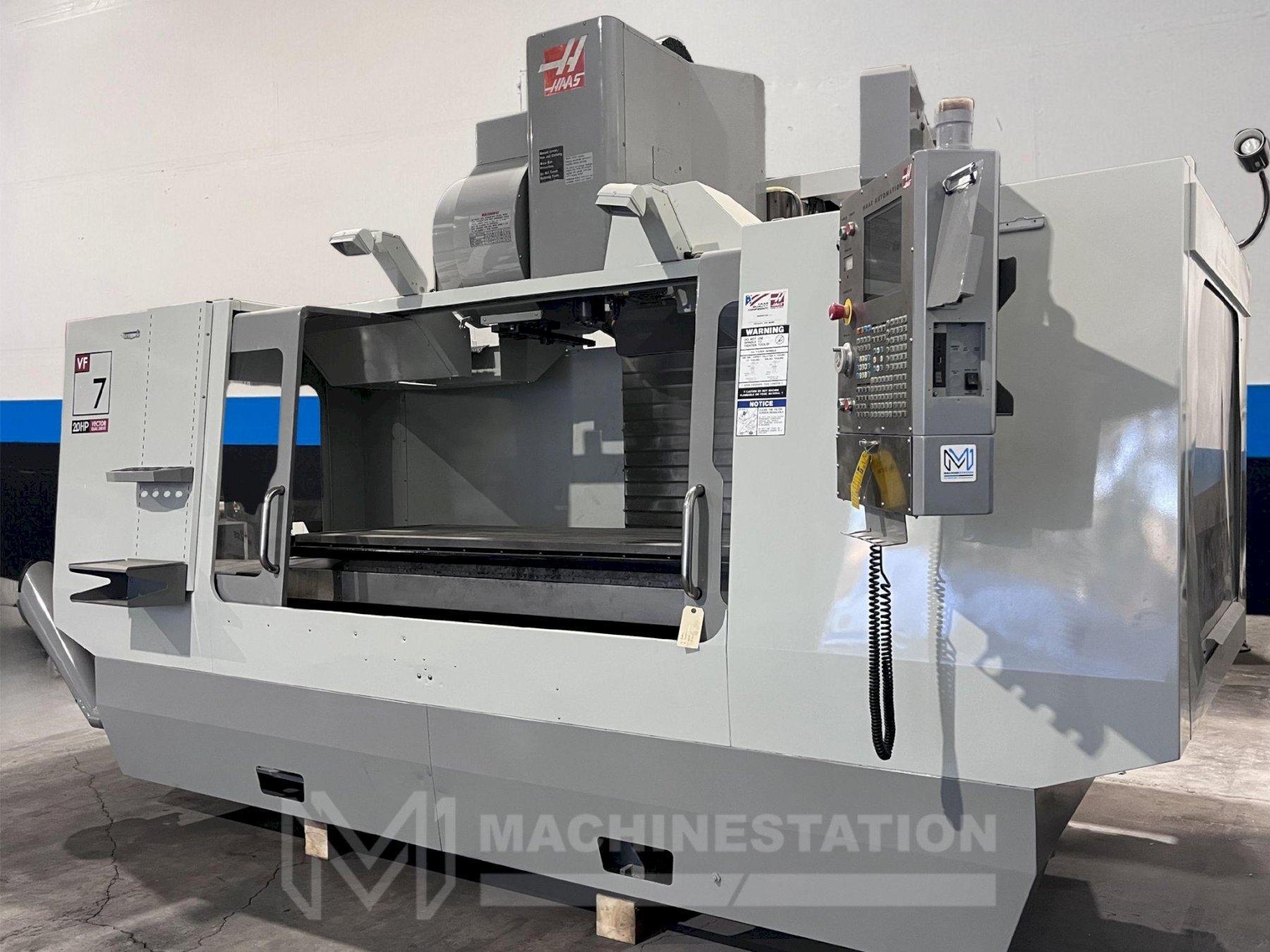

Name: Haas VF-7D/40 CNC Vertical Machining Center – Mill
Brand: HAAS
SKU: 113545
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	113545

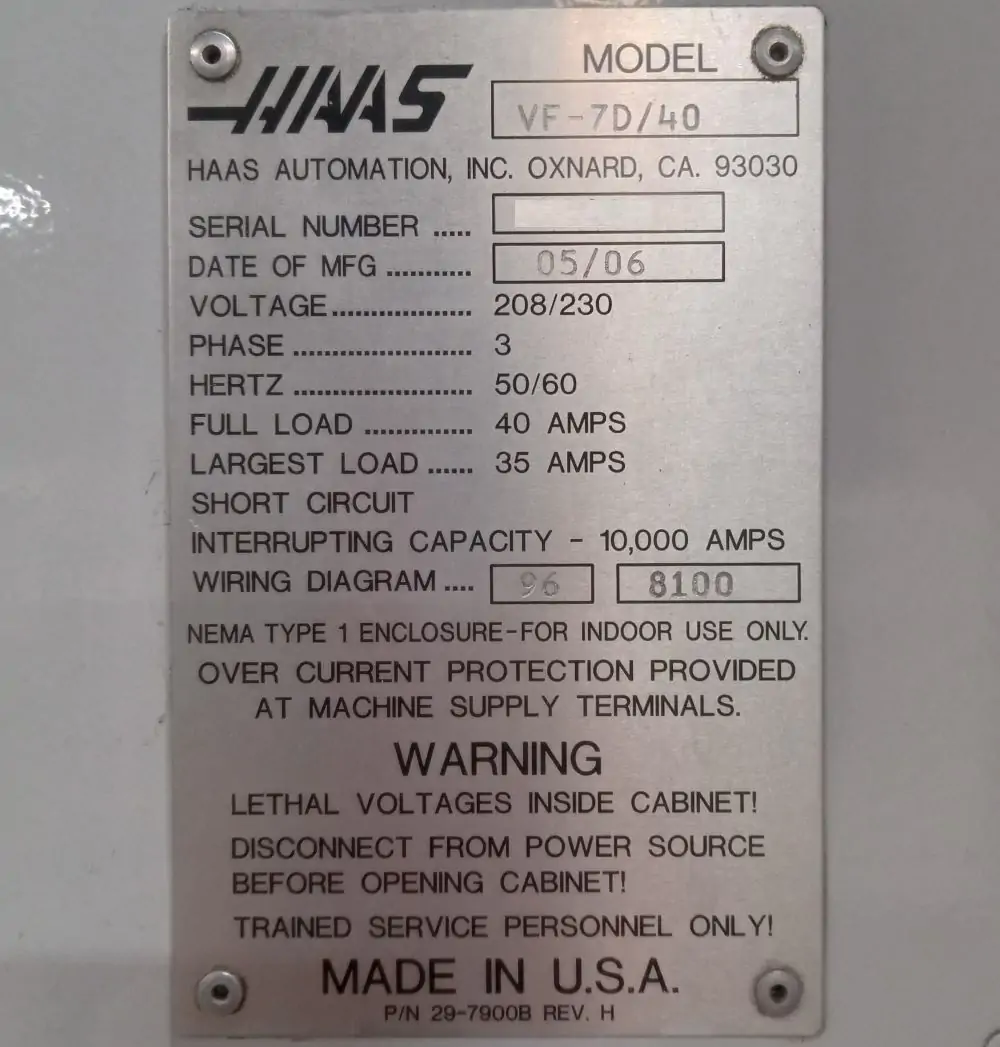

Make:	Haas
Model:	VF7/40
Year of Manufacture:	2006
Condition:	Used – Good

Equipped With:

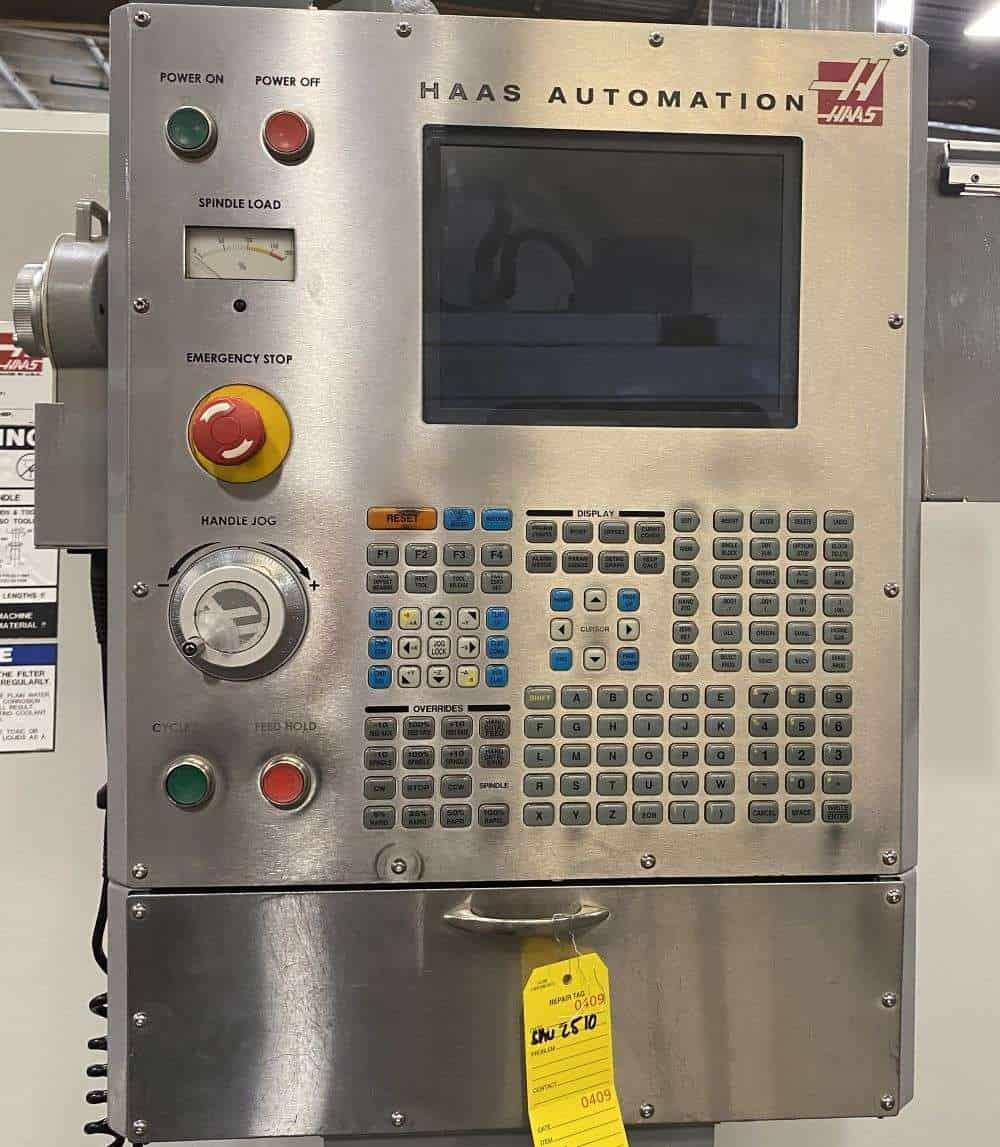

Haas CNC Control
7500 RPM High Torque Spindle
20 HP Spindle Motor
24 Station Automatic Tool Changer
USB Drive
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Programmable Coolant
Coolant System
Telescopic Way Covers

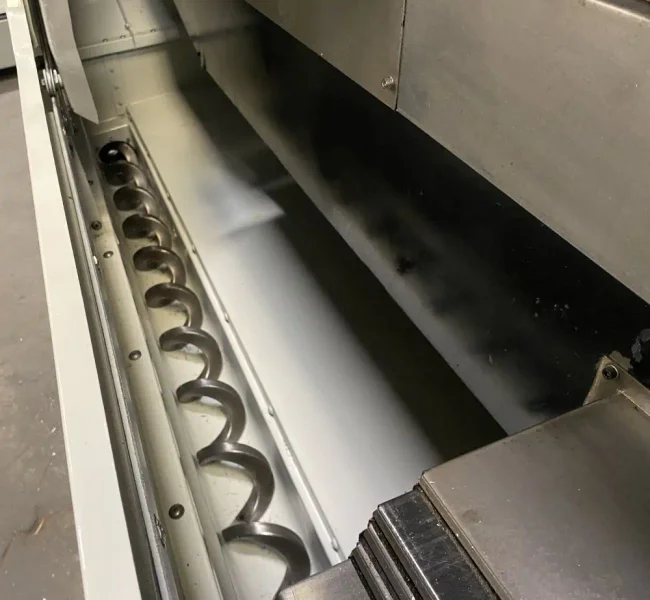

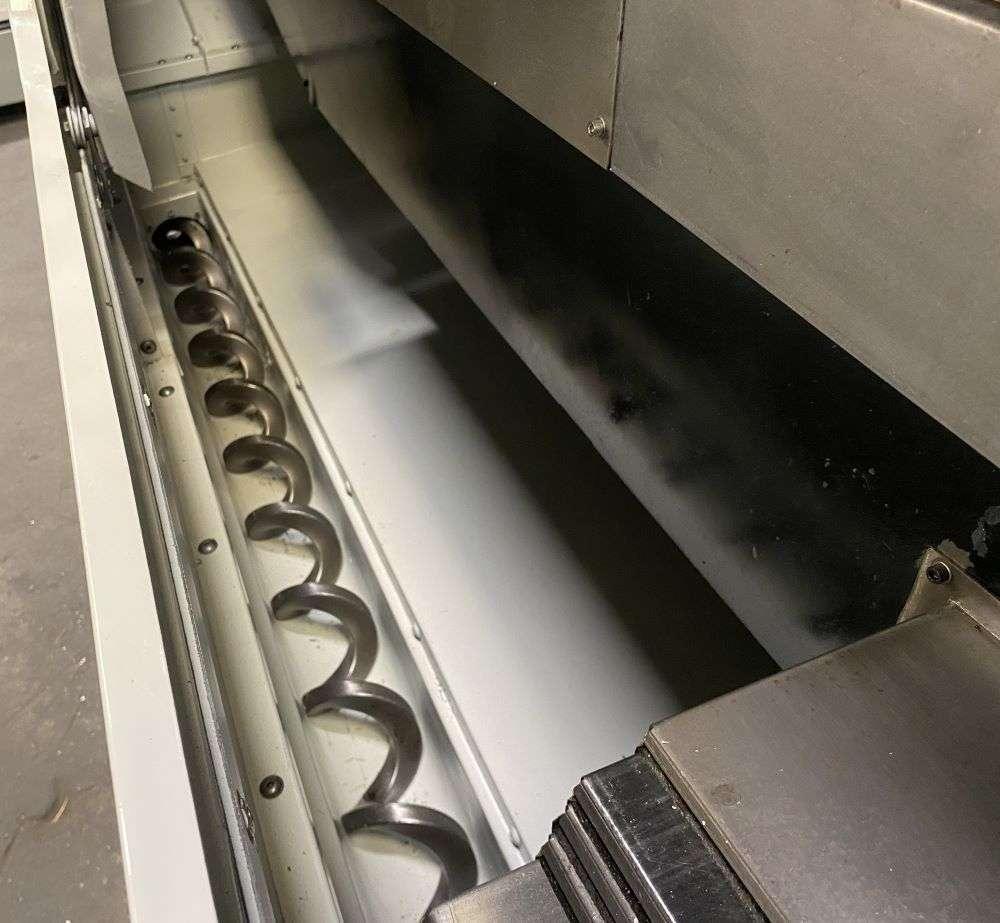

Chip Auger

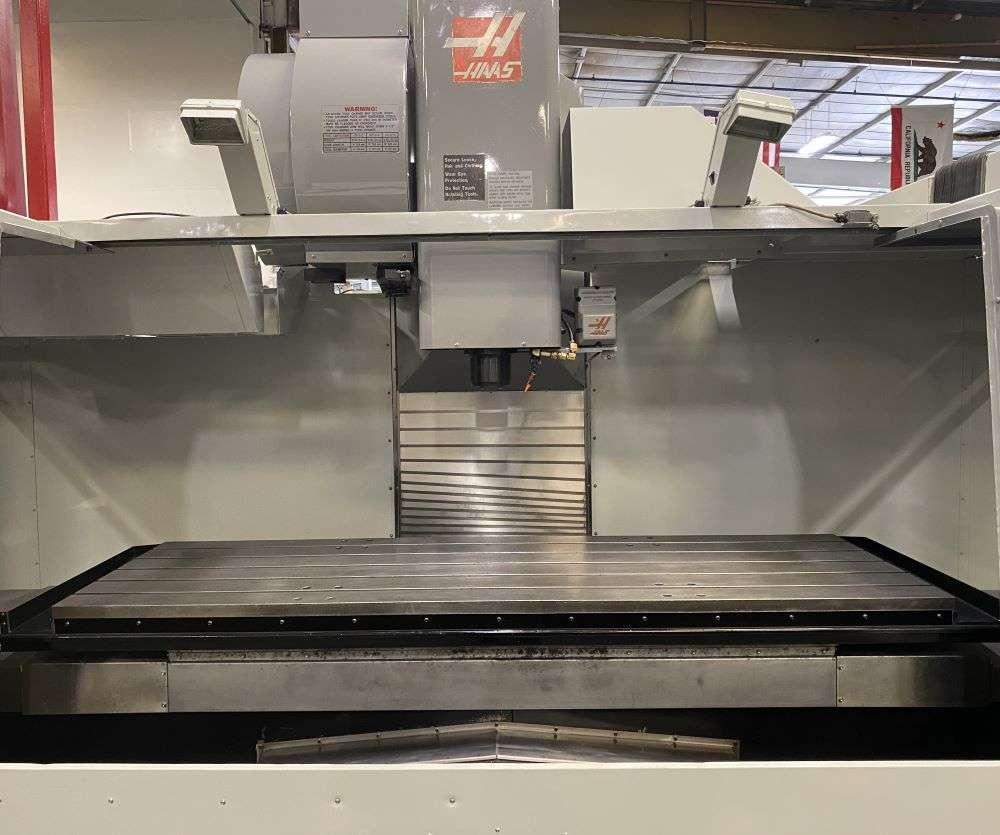

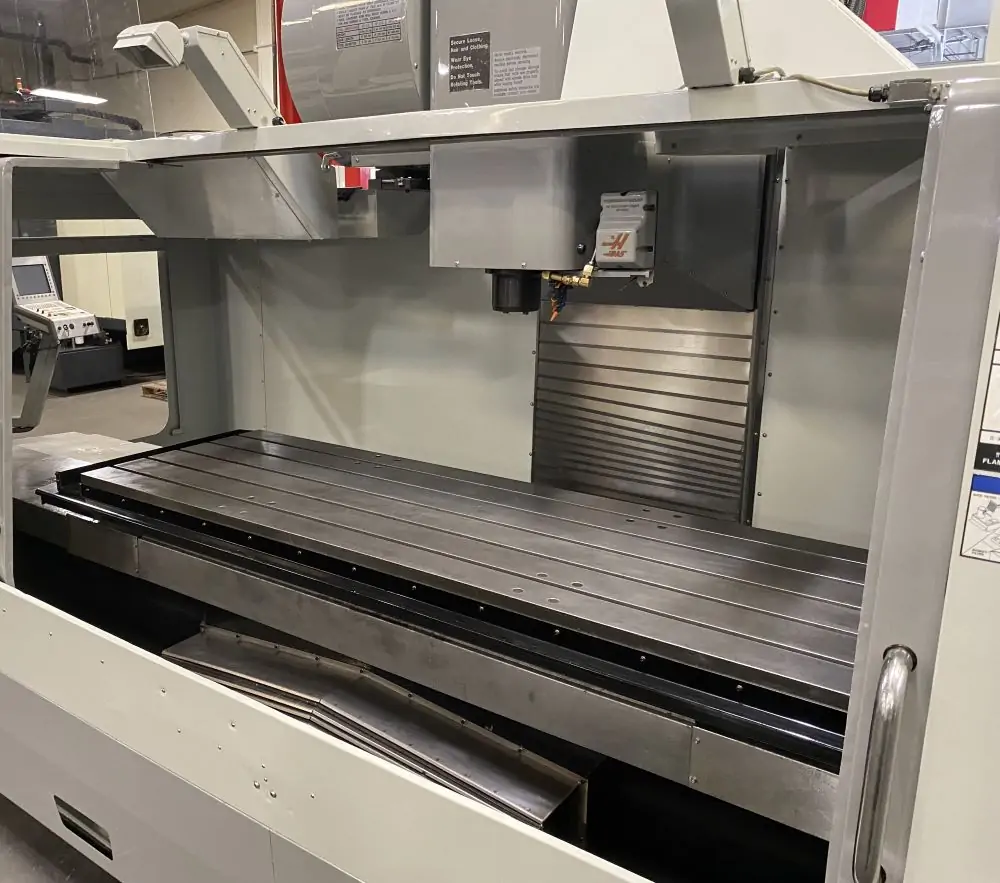

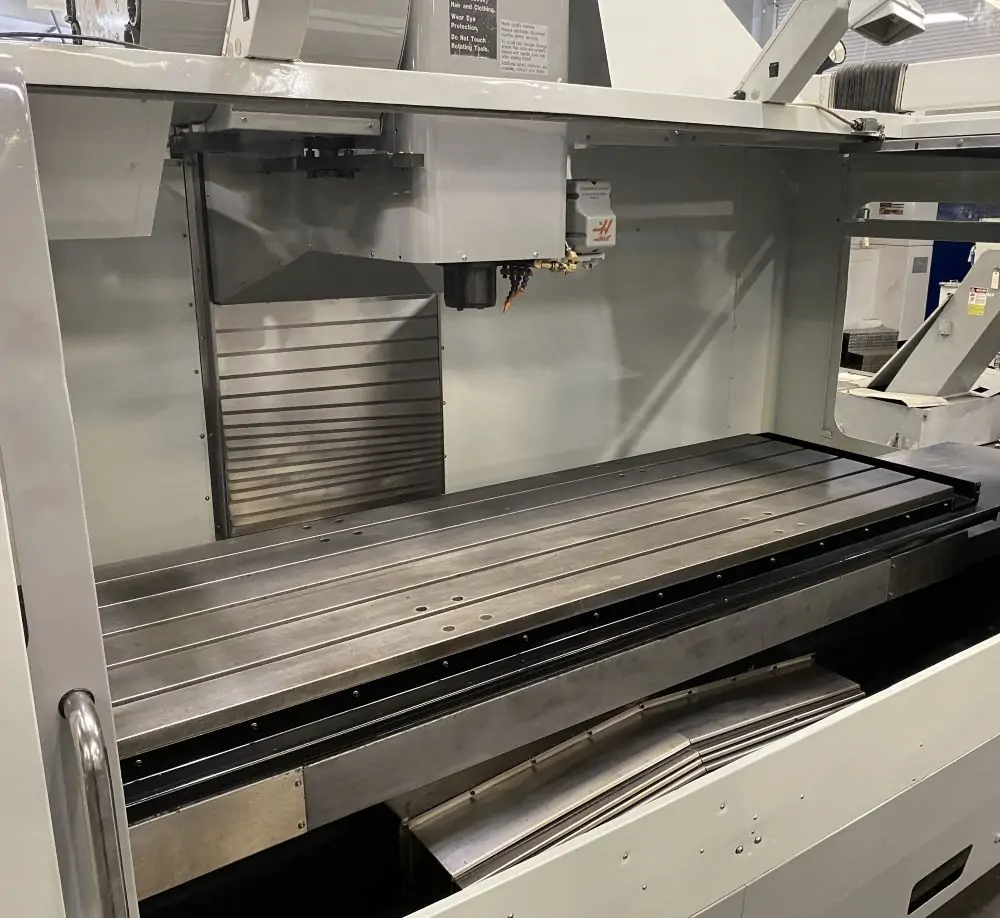

Table:
Length: 84″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

Travels:
X-Axis: 84″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5″ – 34″

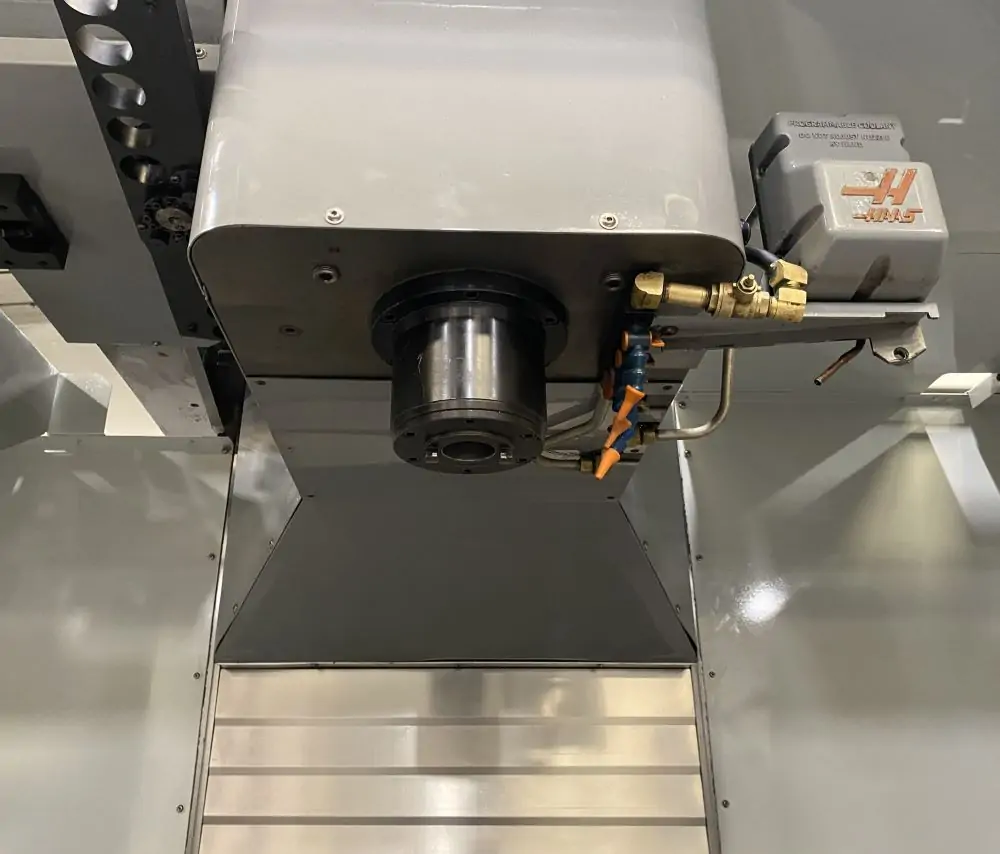

Spindle:
Taper Size: 40
Speed Range: 7500 RPM
Spindle Power: 20 HP

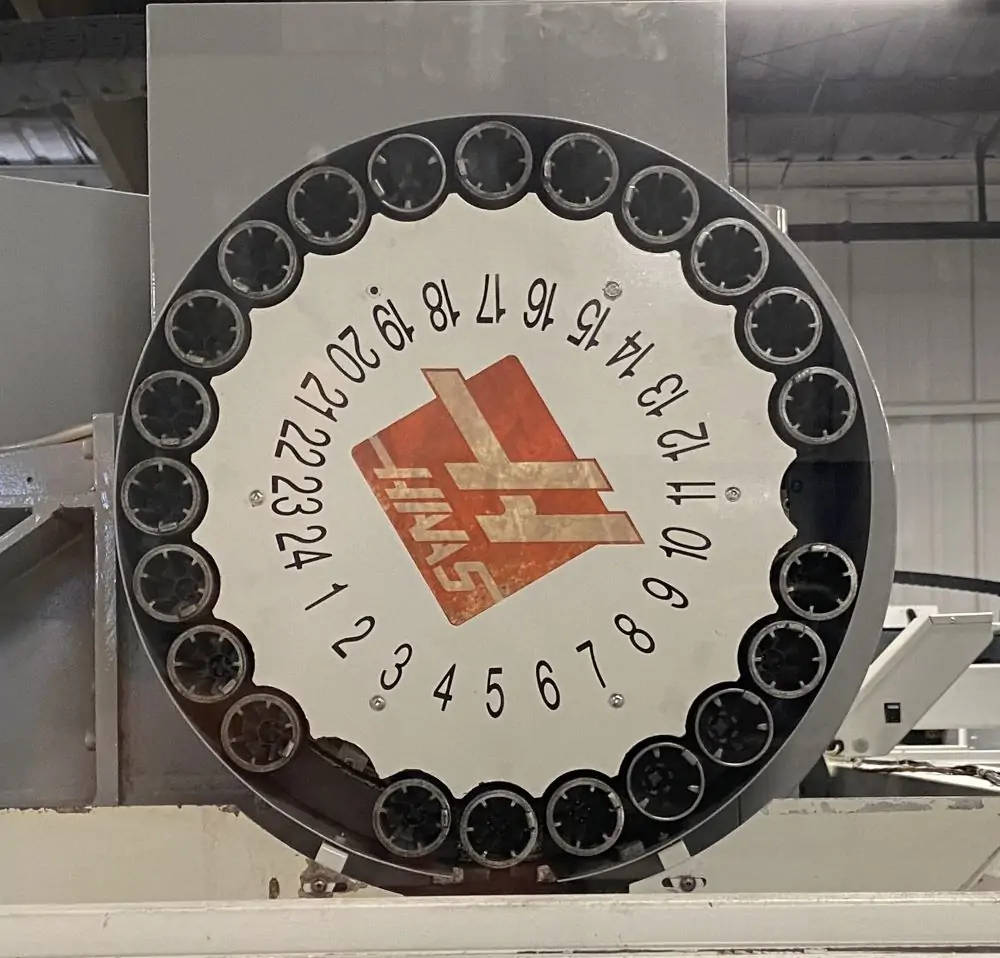

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 6″
Max Tool Length: 16″
Tool Changing Time: 3.6 Seconds
