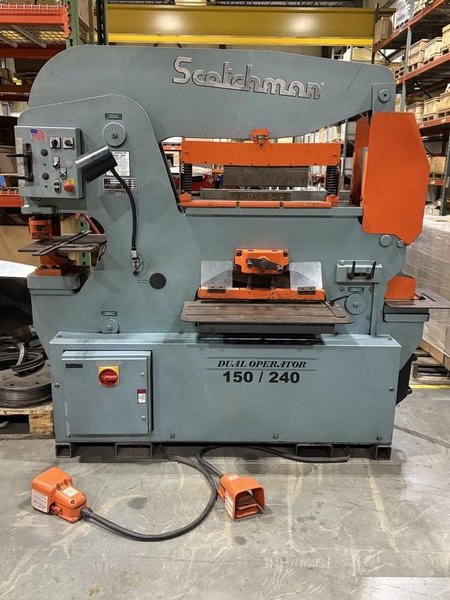

150 Ton Scotchman Dual Operator 150/240 Ironworker – Tooling included

Punch Capacity: – 150 Ton – Maximum Hole Size: 1-7/8″ in 1″ Mild Steel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Throat Depth: 12″ Maximum Tooling Diameter: 4″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Flat Bar Shear Capacity: – 1″ x 14″ Mild Steel – 3/4″ x 24″ Mild Steel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Shear Length: 24″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Angle Shear Capacity: – 6″ x 6″ x 1/2″ at 90° – 4″ x 4″ x 1/2″ at 45°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Notcher Capacity: – Rectangle Notcher: 3″ x 5-3/4″ x 1/2″ – V-Notcher: 6″ x 6″ x 5/16″ – Pipe Notcher: Up to 2″ Schedule 40

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rod and Bar Capacity: – Round Rod: 1-1/4″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Square Bar: 1″ – Square Tube: 2″ (12 Gauge)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hydraulic and Electrical – Motor: 10 HP – Voltage: 208 / 230 / 460 Volt, 3 Phase – Hydraulic Pressure: 3,500 PSI

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions and Weight – Length: 83″ – Width: 38.5″ – Height: 77.25″ – Weight: Approx. 6,400 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
