420MM x 4MM x 5 TON BKM LOOPING PIT SLITTING LINE

420MM x 4MM x 5 TON BKM LOOPING PIT SLITTING LINE

Name: 420MM x 4MM x 5 TON BKM LOOPING PIT SLITTING LINE
Brand: Unknown
SKU: 117192
Availability: PreOrder

Brand

Not specified

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Max Width Of Workpiece	420 millimeters
Max Thickness Of Workpiece (in.)	4 millimeters

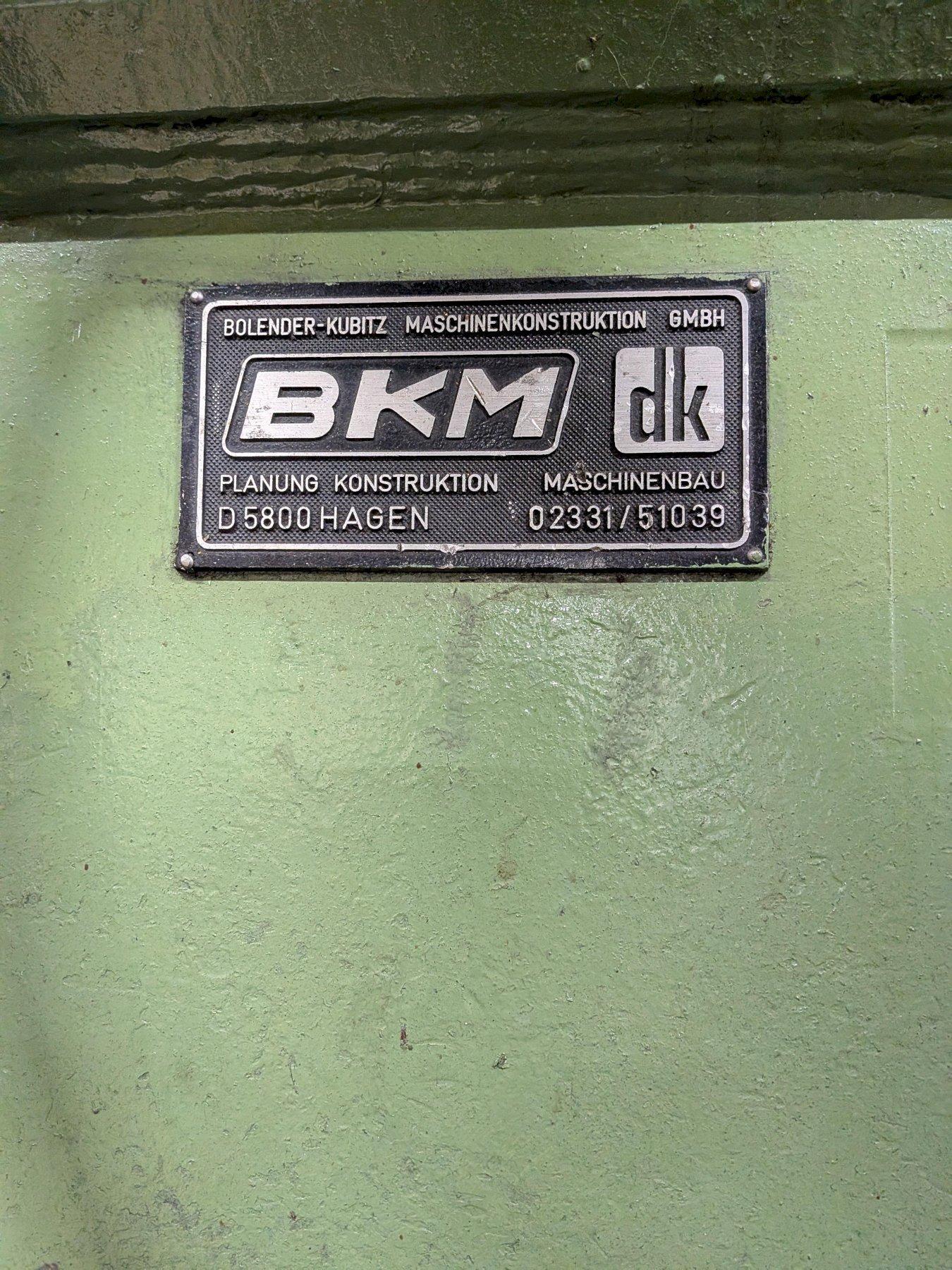

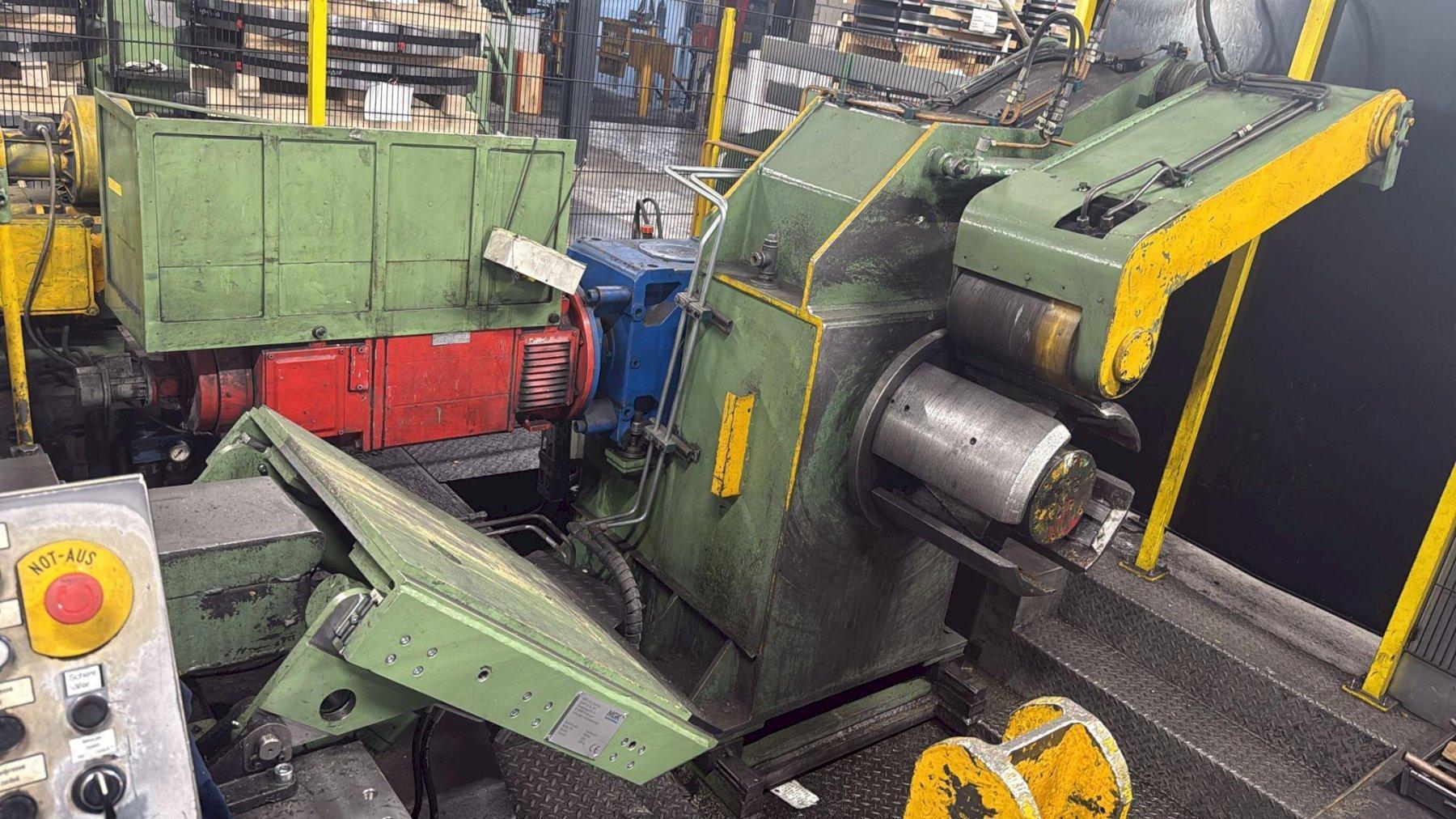

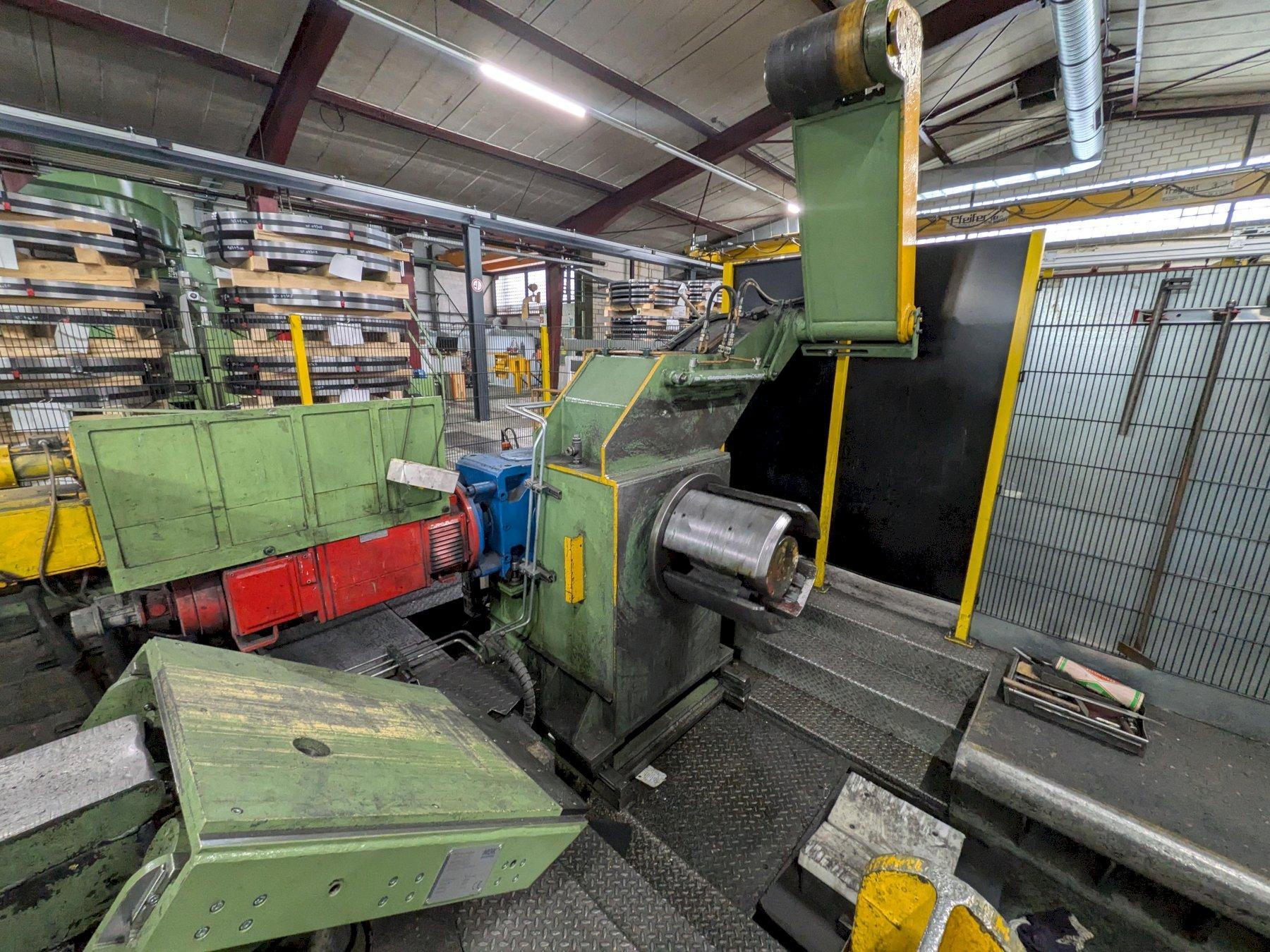

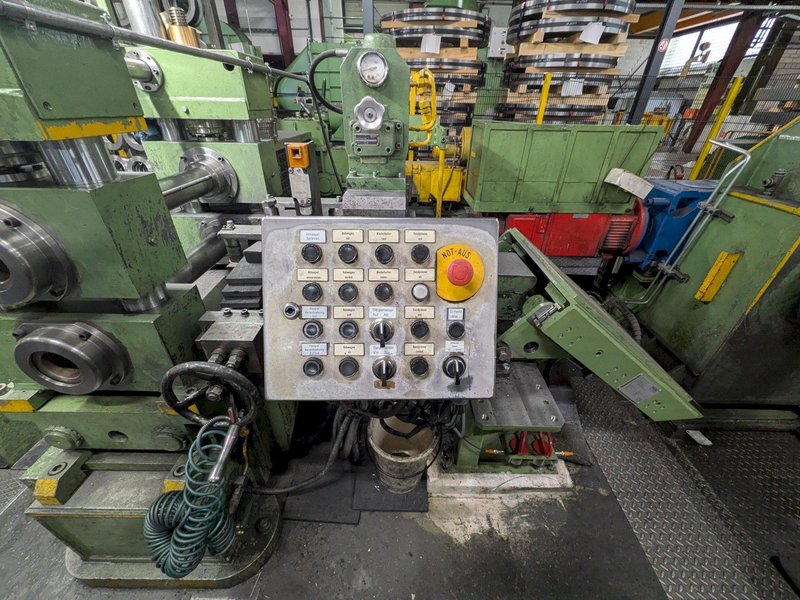

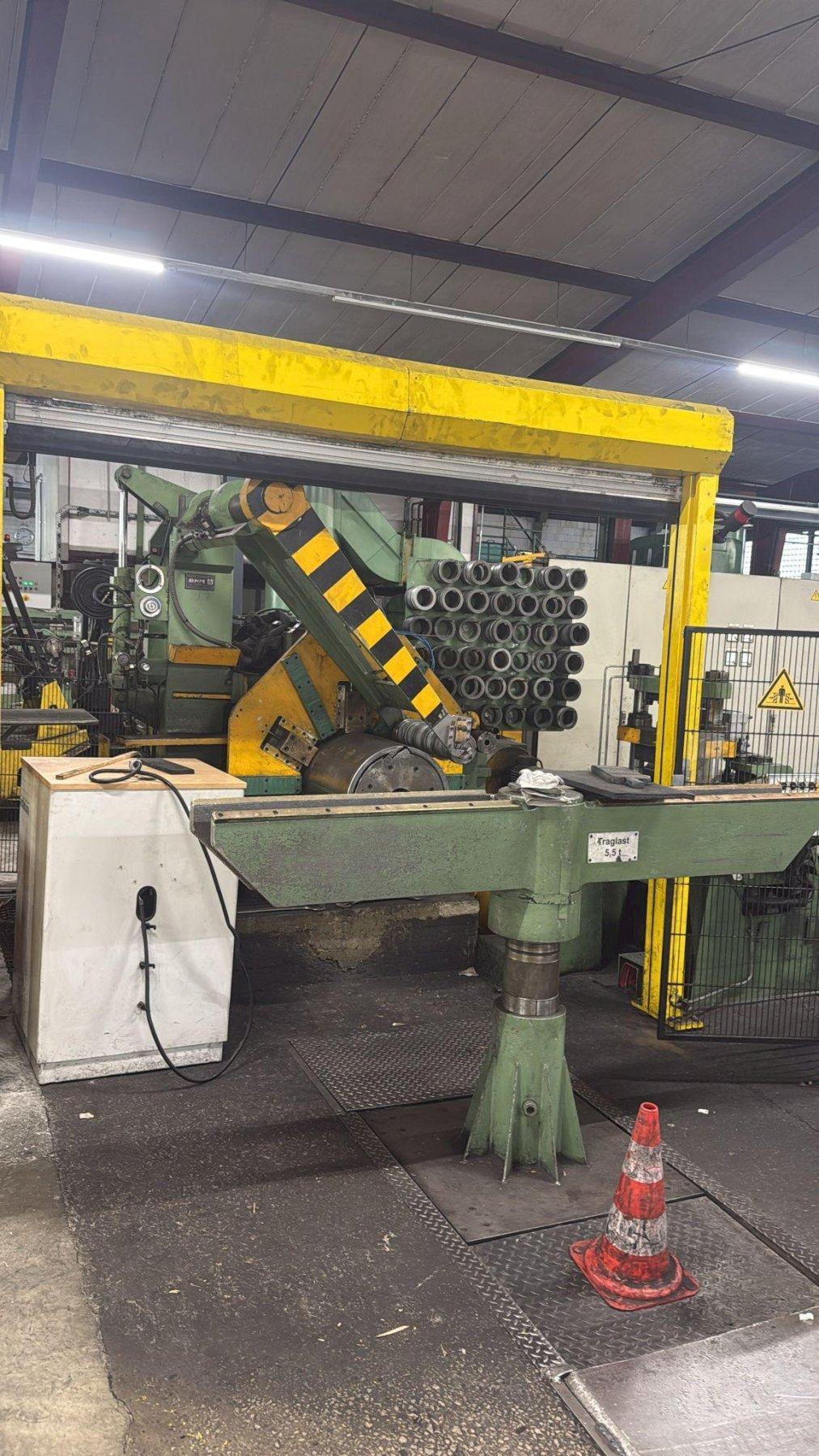

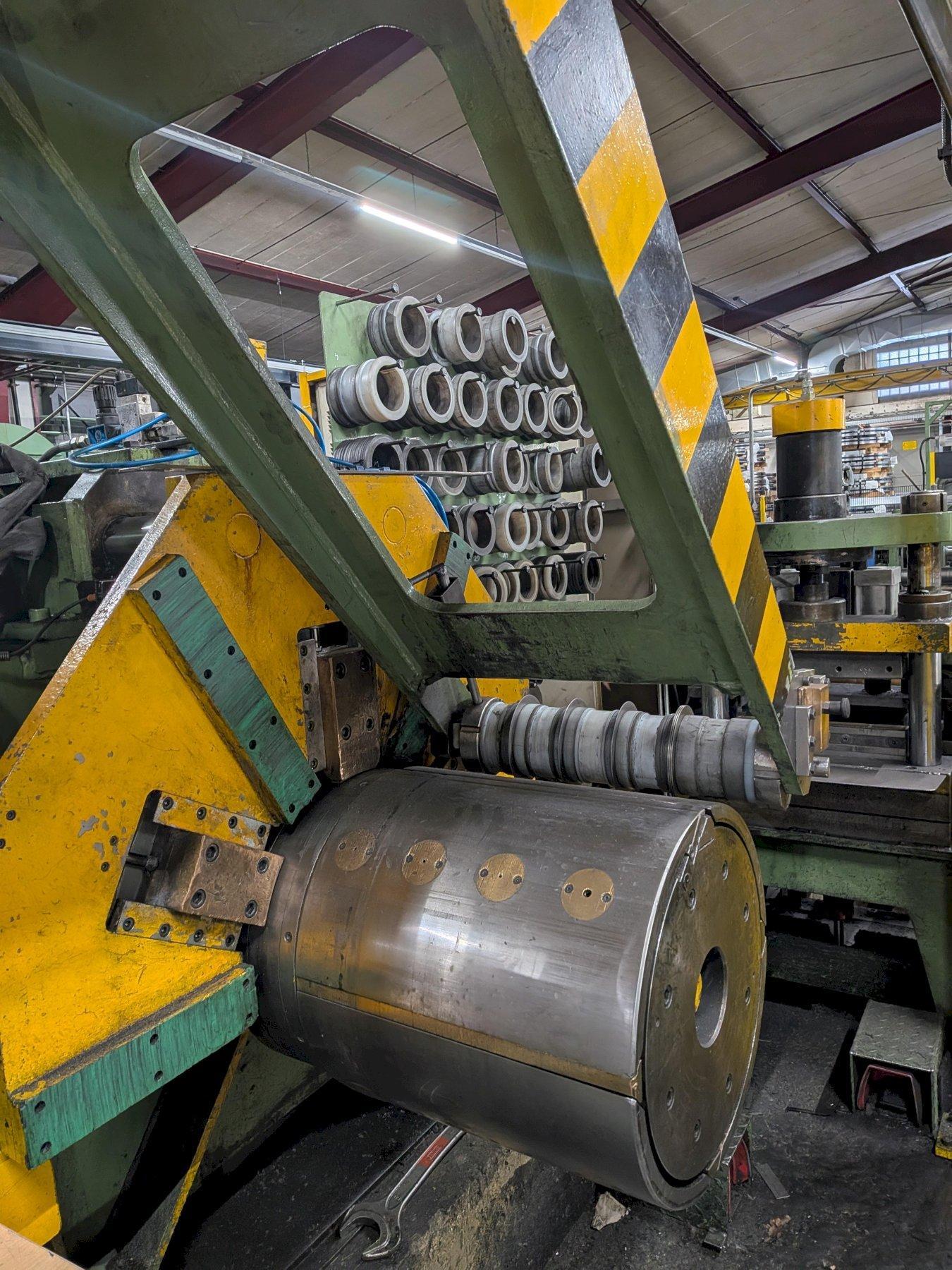

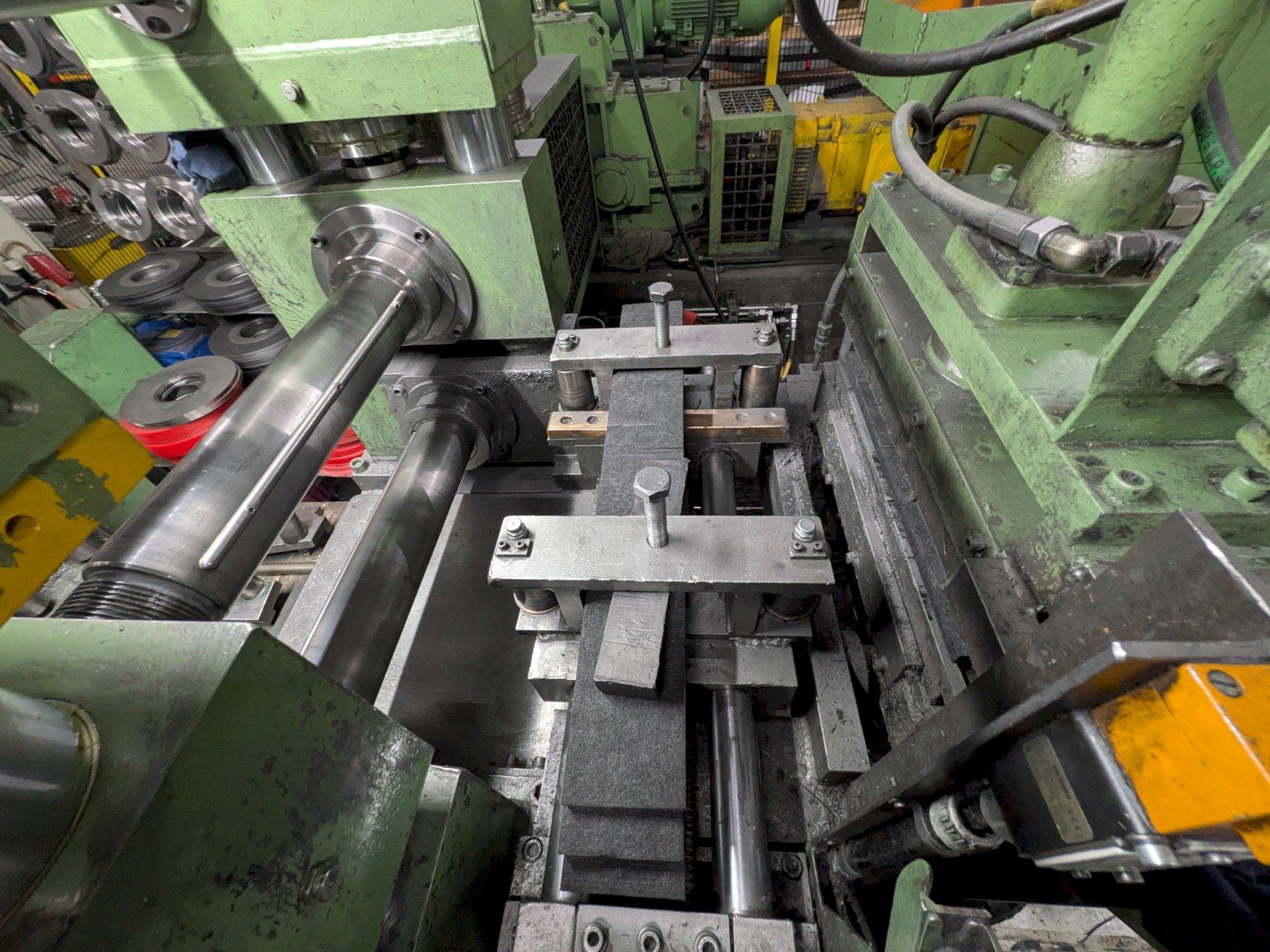

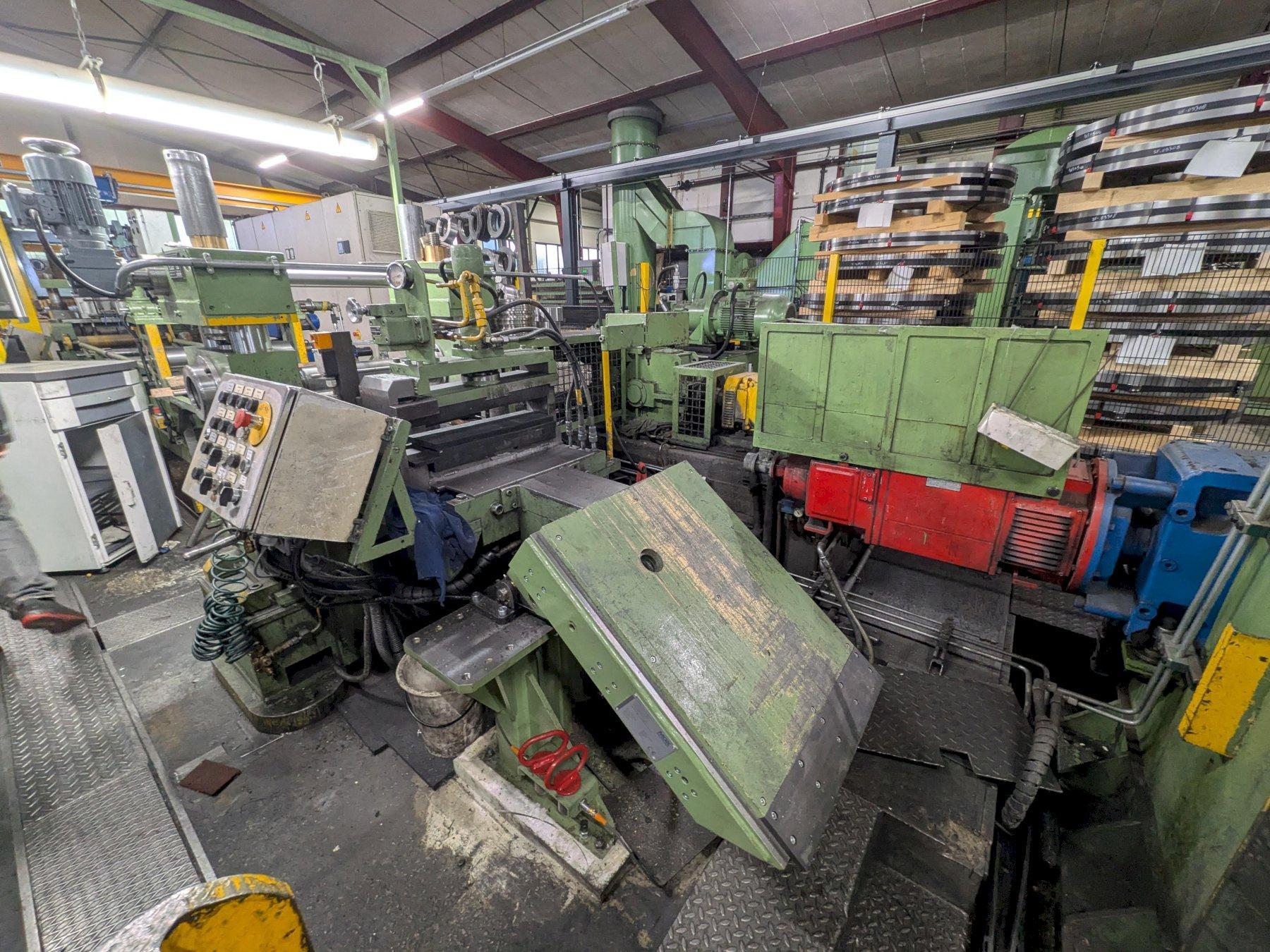

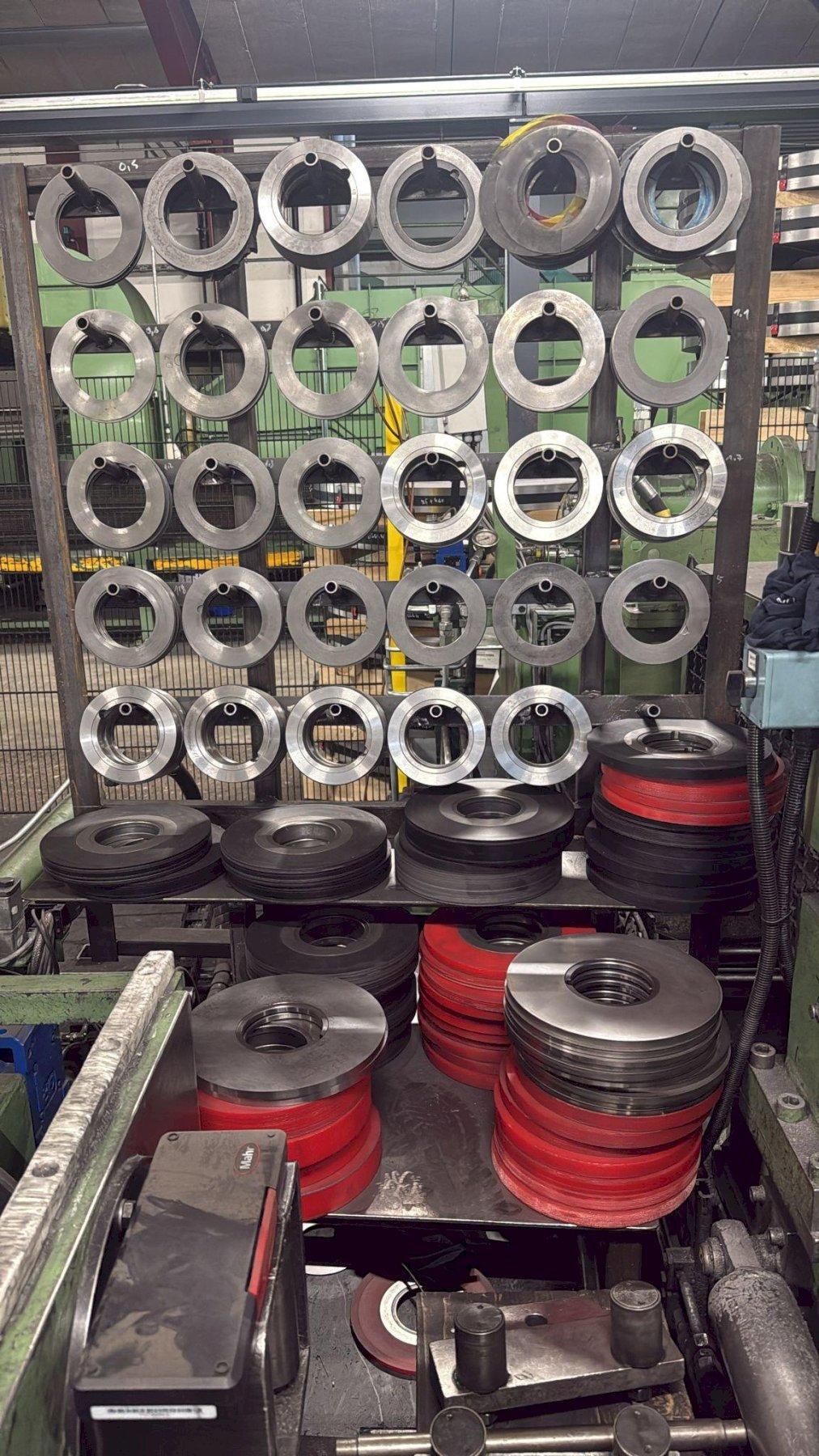

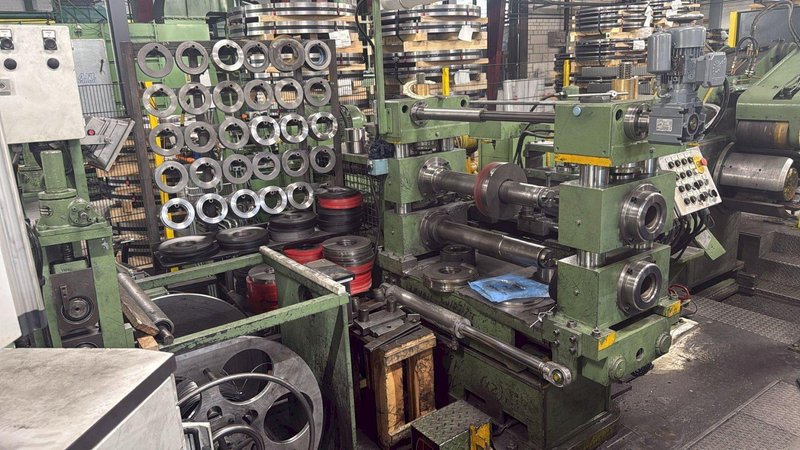

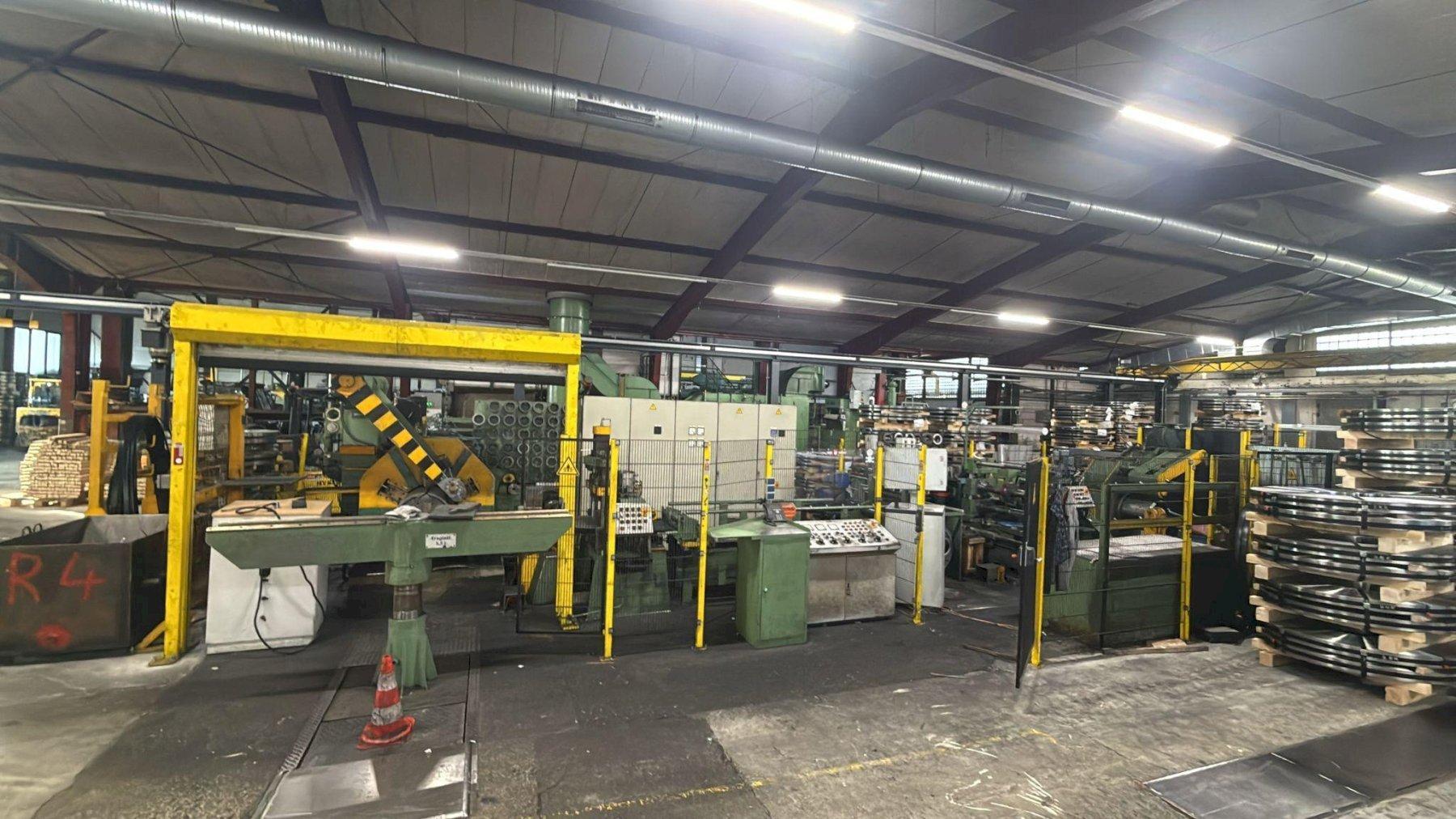

420MM x 4MM (16.5" x 0.157") x 5 TON BKM LOOPING PIT SLITTING LINE Manufacturer: BKM (Germany) Line Direction: Right to left Line Speed Range: 0 - 200mpm (656fpm) - continuously adjustable Strip width Range: 15 - 420mm (0.595 - 16.5") Thickness Range: 0.3 - 4mm (0.01181 - 16.5") Material Specifications: Cold Rolled Steel Yield Strength: >750 N/mm² Complete Line with the Following Components: Entry Pit Type Coil Car 6 Ton Max Coil Weight Mandrel Uncoiler 40KW DC drive Coil ID: 500mm (20") Coil OD: 1950mm (77") 6 Ton Max Coil Weight Hydraulic Expansion Hydraulic Pinch Roll Arm Peeler Table NEW 2024 (MGK-Maschinenbau, Germany) Entry Felt Brake, Hydraulic Entry Double Sided Edge Guides, manually adjustable Slitting Head 58KW DC Drive Hydraulic Opening/Closing system Height Adjustment via Electric Spindle Drive 100mm (3.937") Shaft OD Tooling OD Range: 262.00mm - 223.00mm (10.315" - 8.778") Cutting Chart: Thickness.....No. Cuts@ >400 N/mm².....No. cuts@ >750 N/mm² 1mm..............................15....................................13 2mm..............................11......................................9 3mm...............................3.......................................2 Scrap Guiding Rolls at Slitting Head Exit Scrap Winder 1 Set of Deburring Rolls - Driven/Non-Driven Pit after Deburring Rolls - 3m deep Tension Stand with Entry Roller Table, Driven Deflector Roll, Pneumatic Felt Brake and Hydraulic Crop Shear Recoiler 75KW DC Drive 5.5 Ton Max Coil Weight 400 + 500mm Mandrels (15.748" - 19.685") Max. Coil OD: 1550mm (61.023") Over Arm Separator Full Hydraulic Drum Push Off Plate Exit 2-Arm Turnstyle Type Coil Car 5.5 Ton Max Coil Weight Machine Installed and under power!!! Complete Line with Hydraulics, Electrics , Controls, Drawings, Tools
