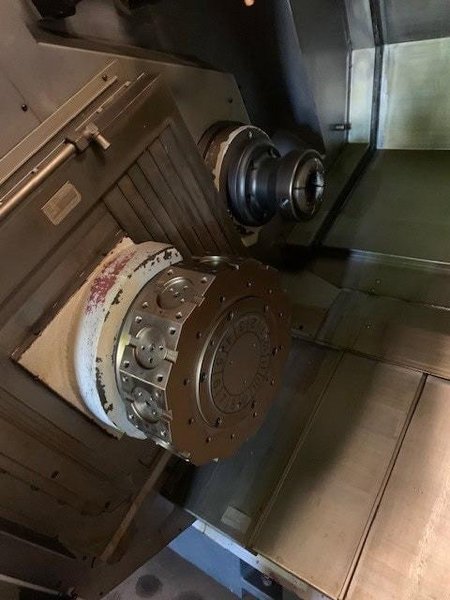

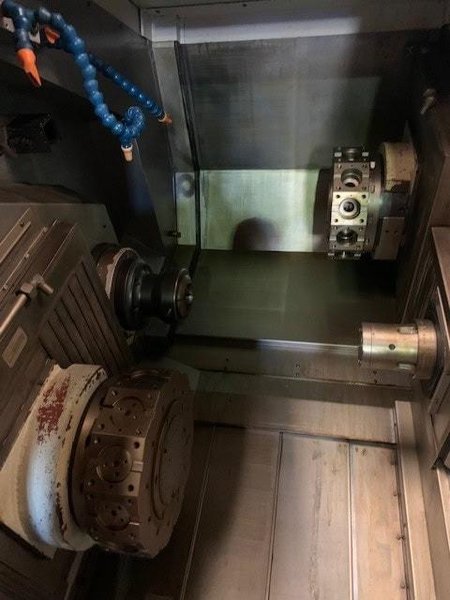

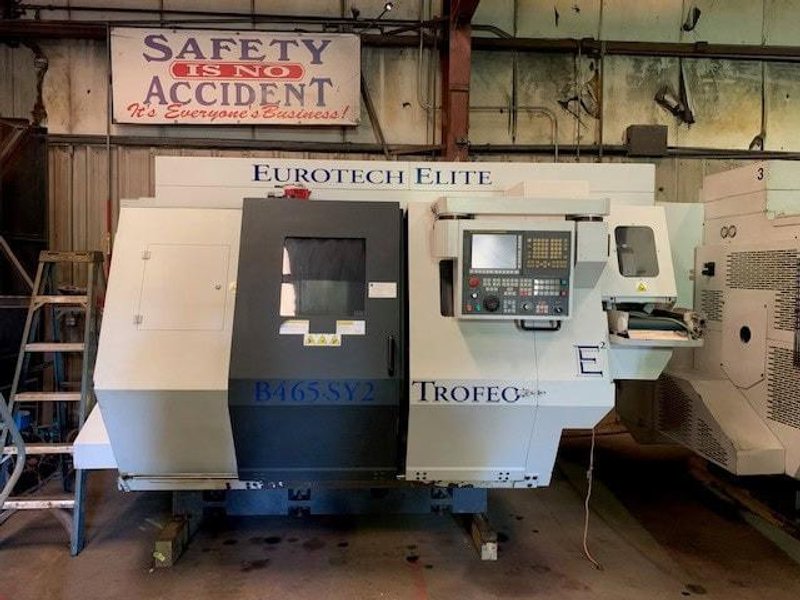

Eurotech B465/Y2 CNC Multi-Axis Lathe, 2012 – Live Tooling, Sub Spindle, Dual Turret
Brand
Category
Model
B465/Y2
Stock #
624605
Year
2012
Condition
Not specified
Location
Not specified
|
Bar Capacity: 2.625″
Chuck Size: 8″
Main Spindle Power: 20 hp
Main Spindle Speed: 5,000 rpm
Sub Spindle Speed: 5,000 rpm
Max. Turning Diameter: 13.4″
Max. Turning Length: 37.5″
X-Axis Travel: 6.7″
X2-Axis Travel: 7.08″
Z-Axis Travel: 25″
Z2-Axis Travel: 21.25″
Y-Axis Travel: +/- 3.54″
C-Axis: 0.001 degrees
Turret Stations / Max Number of Tools: 12 / 192

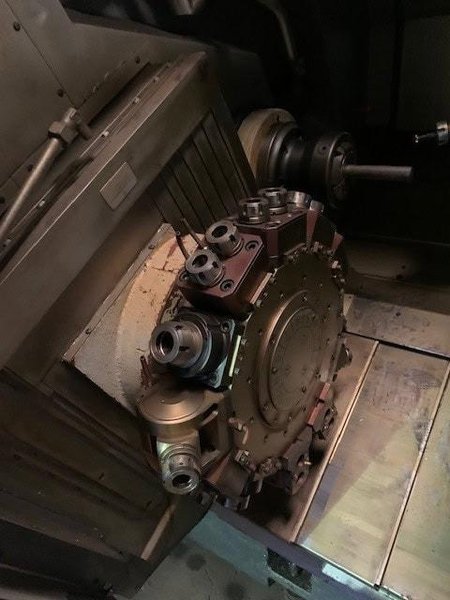

Live Tooling: 4,000 rpm for milling, drilling & tapping
Approx. Dimensions: 173″ x 85″ x 89″.
Approx. Weight: 18,000 lbs

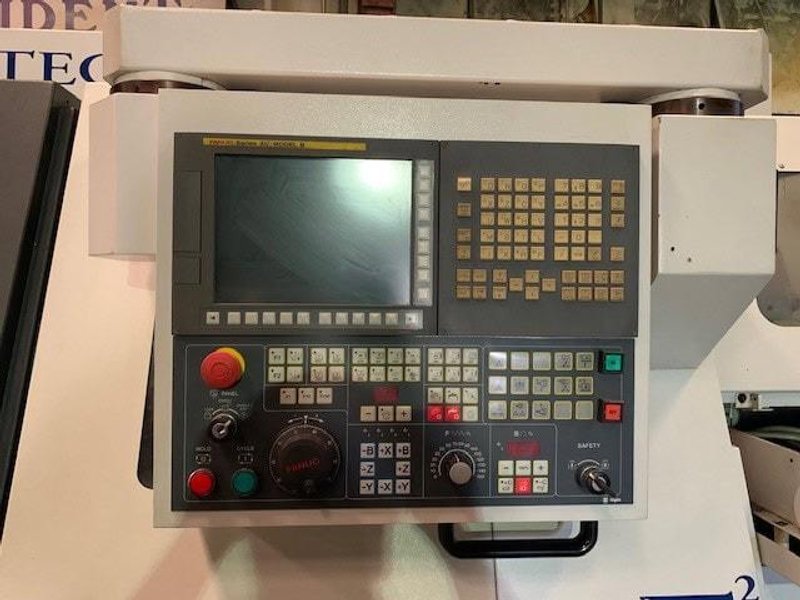

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 31i-B Control Live Tooling Dual Turrets Sub-Spindle Y-Axis C-Axis All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
