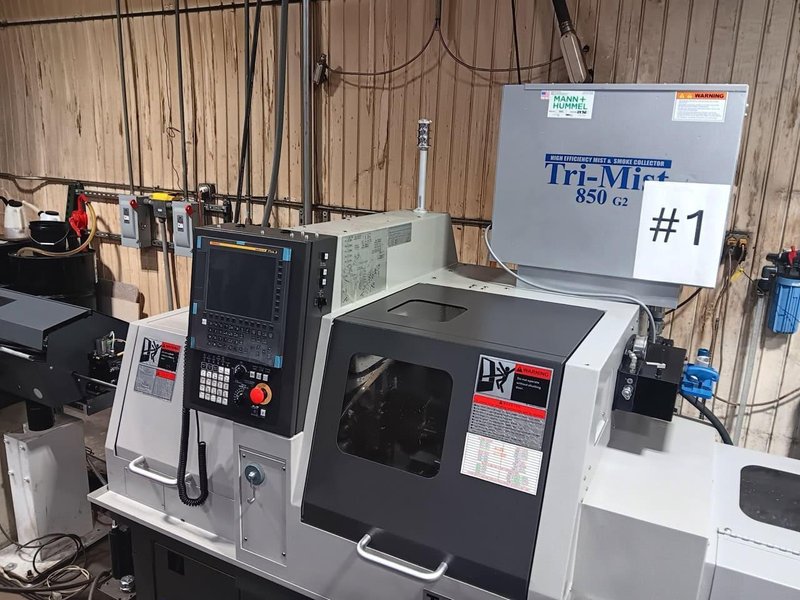

Tsugami B206-V CNC Swiss Lathe, 2024 – Bar Feeder, Mist Collection, Chip Conveyor

Maximum Machining Diameter: 0.787″ (20mm) Maximum Headstock Stroke (Guide Bushing): 6.69″ (170mm) Maximum Headstock Stroke (Chucker): 1.771″ (45mm) Maximum Main Spindle Speed: 10,000 rpm Live Tool Spindle Speed: 8,000 rpm Sub Spindle Maximum Machining Diameter: 0.787″ (20mm) Sub Spindle Front Ejection Max Length: 3.15″ (80mm) Sub Spindle Speed: 12,000 rpm Max Tool Spindle Slotting Cutter Diameter: 1.1811″ (30mm) Max Rapid Traverse Rate: 36 M/min Input Power: 11.0 KVA Compressed Air Requirements: 60 psi Coolant Tank Capacity: 180L (47 Gal.) Main Spindle: 7.5 hp (3.7/5.5 kW) Sub Spindle: 5 hp (2.2/3.7 kW)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 0i-TF Plus Control Tri Mist 850 Mist Collection System Henning Pureflow Chip Conveyor MP System 1,000 PSI Pressure Coolant System 12′ Magazine Bar Feeder Stack 3 Red/Yellow/Green Patrol Light System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
