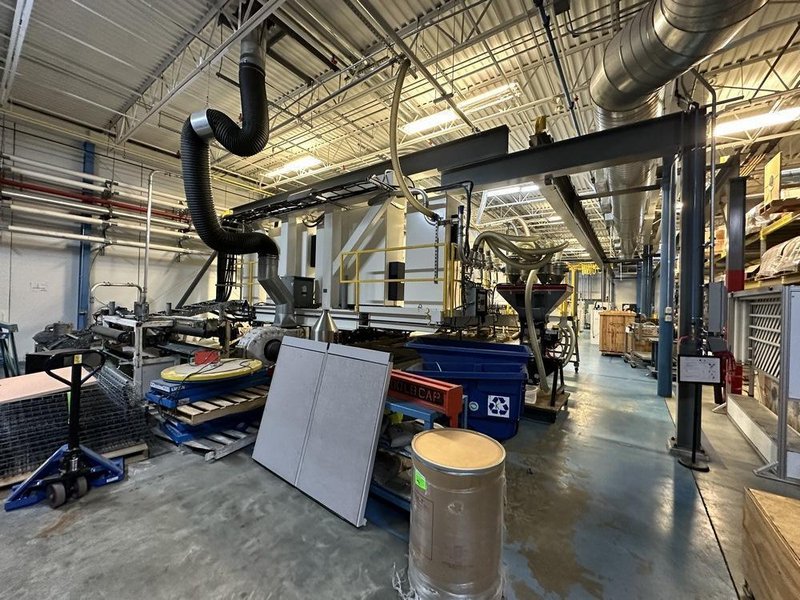

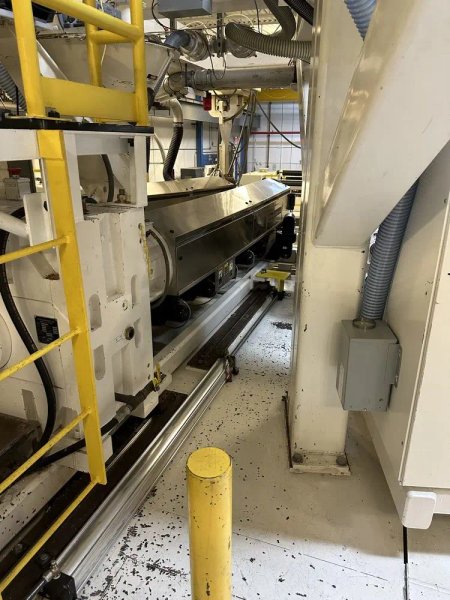

Davis-Standard / Black Clawson 4.5″ Plastic Extruder – Model EXTR-B, 2009, Single Screw, Heavy-Duty, High Output

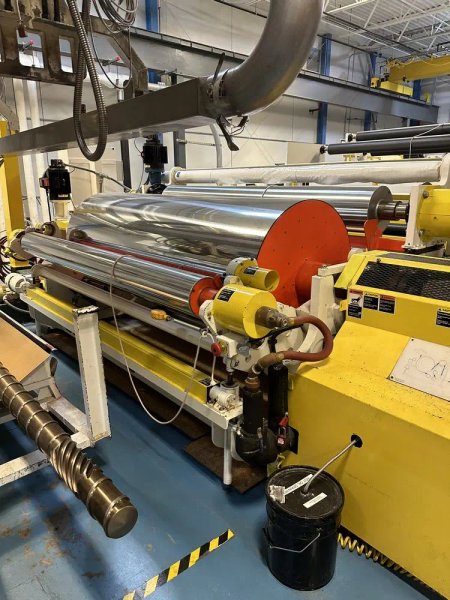

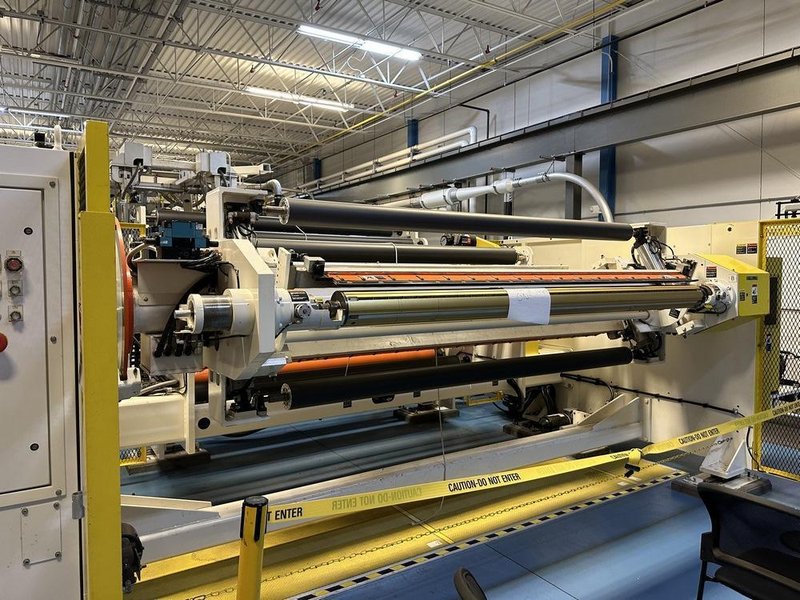

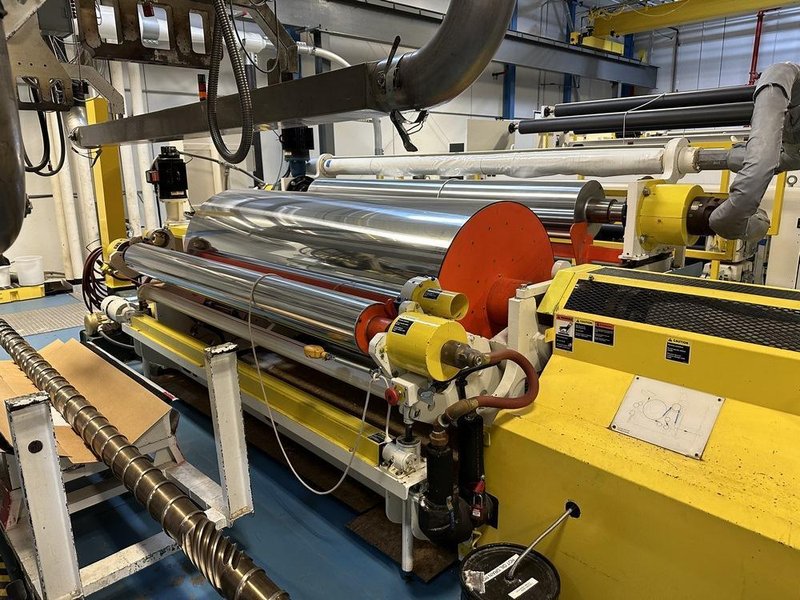

Extruder #1: 2.5″, 30:1 L/D Ratio Process Tension Ranges *1: Low Range 5 – 50 Lbs. / High Range 50 – 150 Lbs. Extruder #2: 2.5″, 30:1 L/D Ratio Hand of Machine Except Winder/Drive Side *4: Right Side Extruder #1 & #2 Throughput: 90-100 Lbs/Hr (Approx) Hand of Winder Only: Left Extruder #3: 4.5″, 30:1 L/D Ratio Slitters: Edge Trim Razor Blade (3 Pairs) Extruder #3 Throughput: 1,000 lbs. / Hr. (approx) Max Roll Diameter (Winder): 26″ Material Processed: Fluoro Polymers (Pellet Form) Max Roll Weight (Winder): 3,500 Lbs. Maximum Web Width *1: 84″ Trimmed Finished / 92″ Untrimmed Core Size Shafted *5: 6″ ID, 6 1⁄2″ OD Maximum Web Width *2: 56″ Trimmed Core Material: Fibre Nominal Machine Roll Face: 96″ / 102″ at Winder (For Oscillation) Web Tension Range *1: Low Range 5 – 50 Lbs. / High Range 50 – 150 Lbs. Machine Line Speed *1 *2: 10-250 FPM Idler Rolls: 6″ O.D. Live Shaft Carbon Fiber Gear-In Speed: 250 FPM

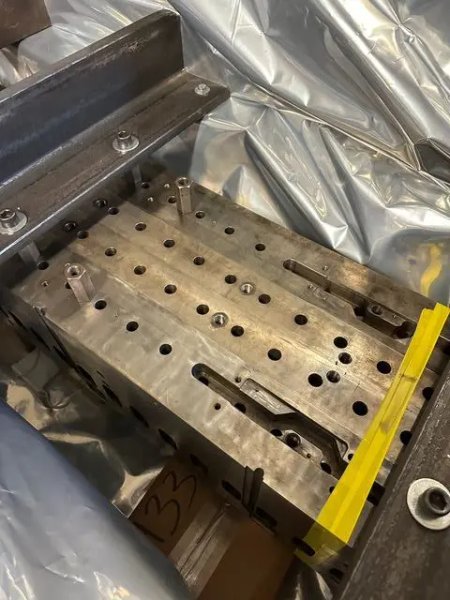

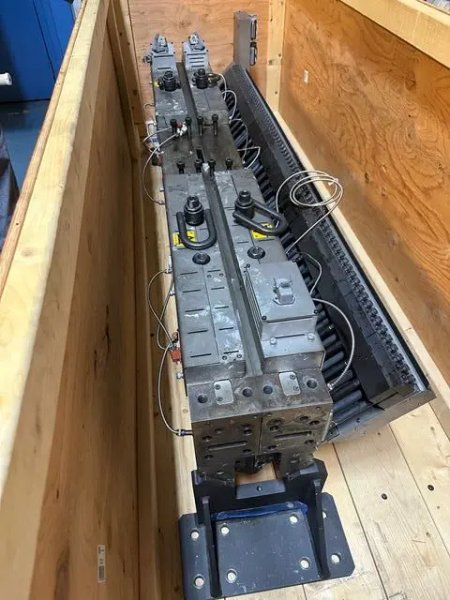

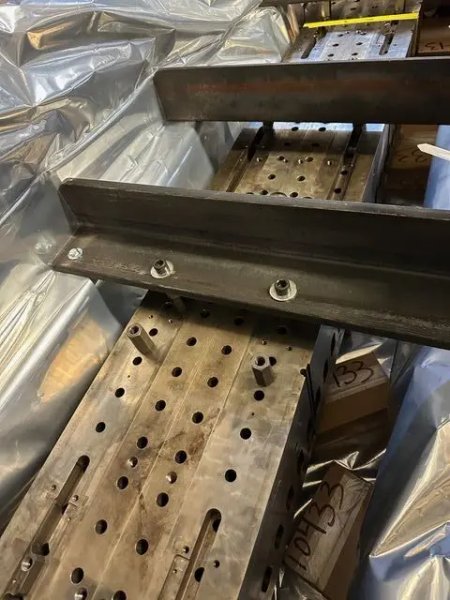

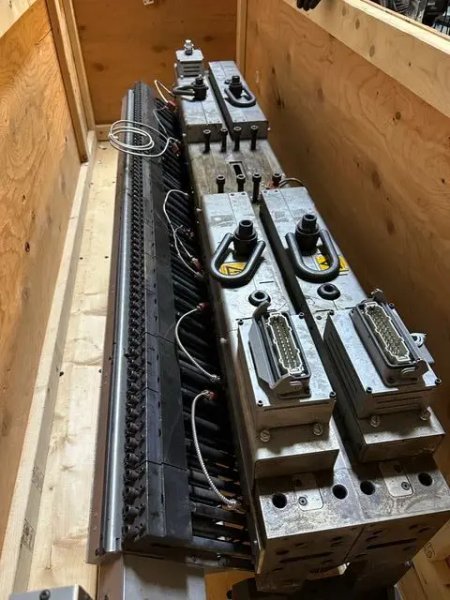

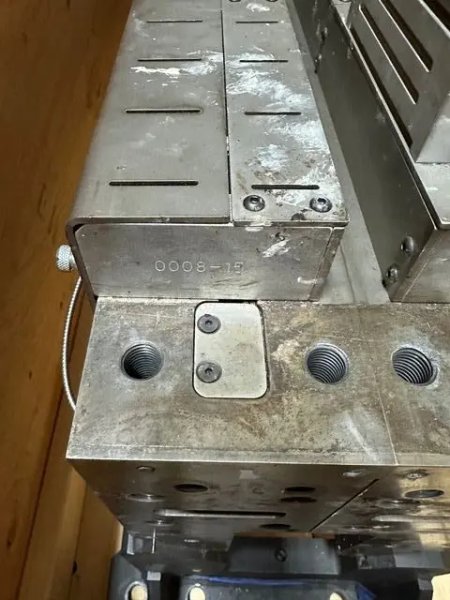

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Note: Very Low Hours;Sri-Air Model HP4-X 750 FM system – NOT INCLUDED;System can also run TPU (Thermoplastic Polyurethane) 96″ Multi-Manifold Die…….New Replacement Cost – $1.0 mil. Adjustable Thread Speed: Up to 50 FPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
