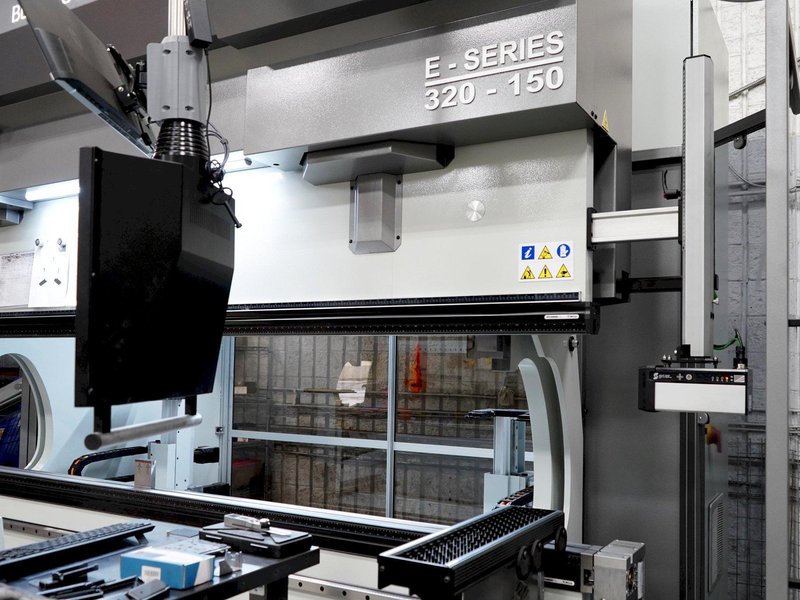

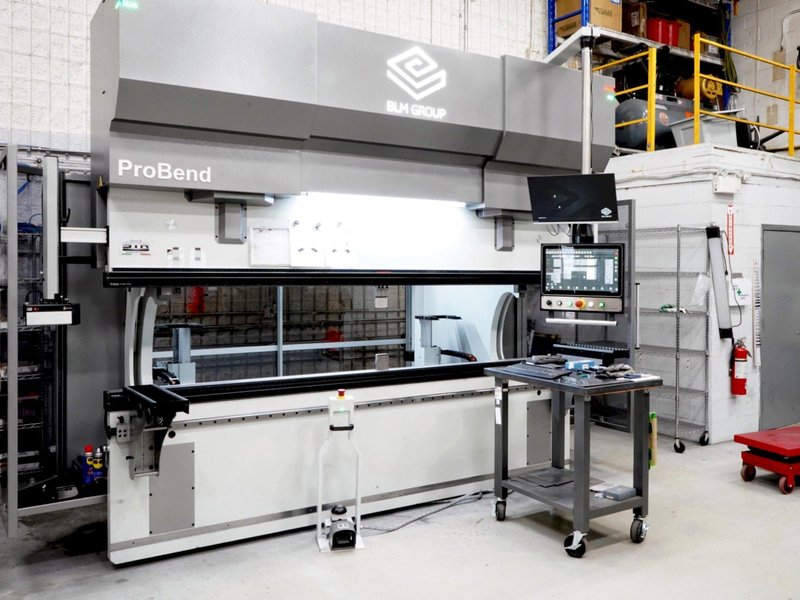

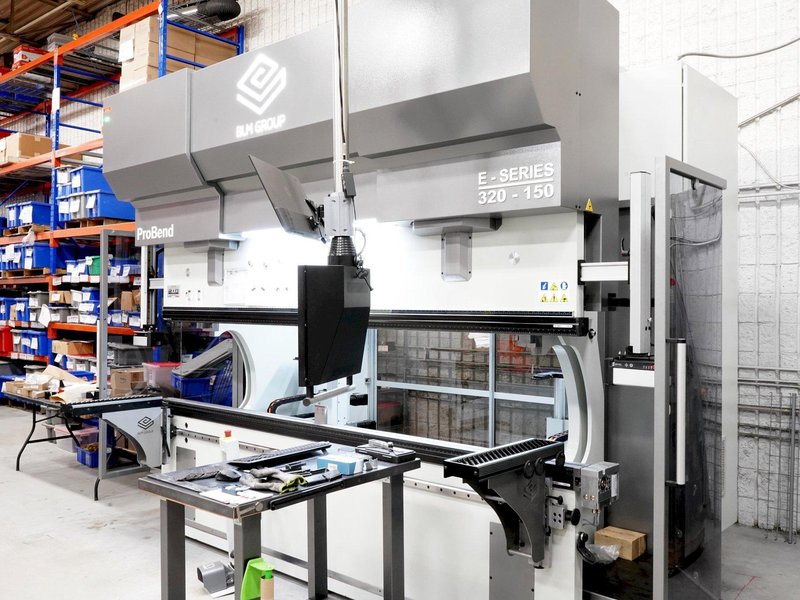

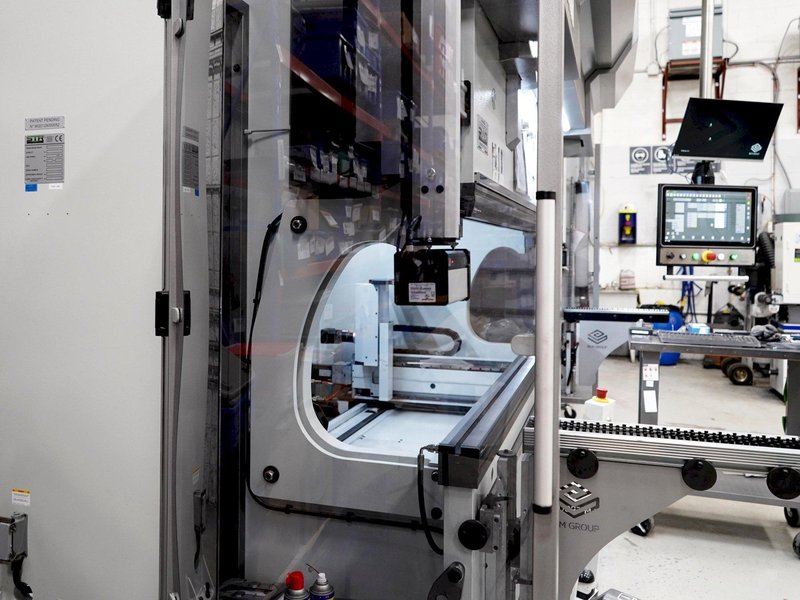

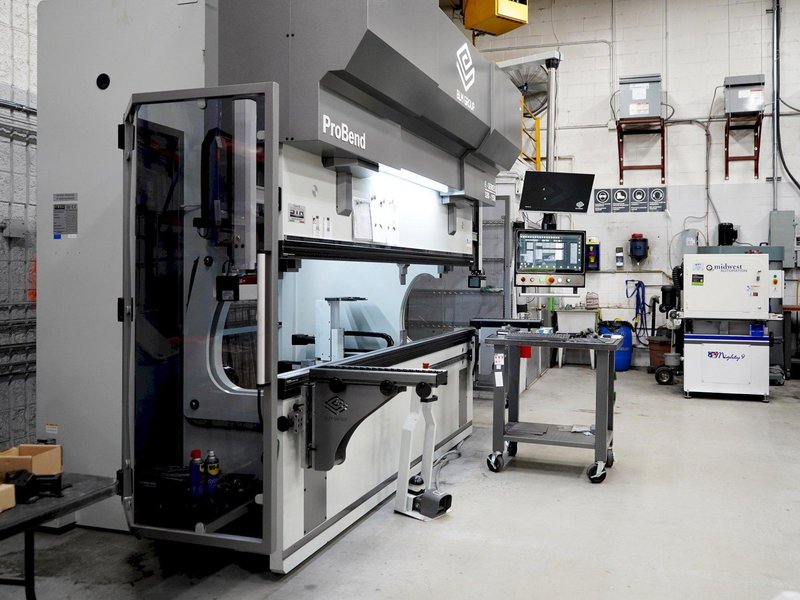

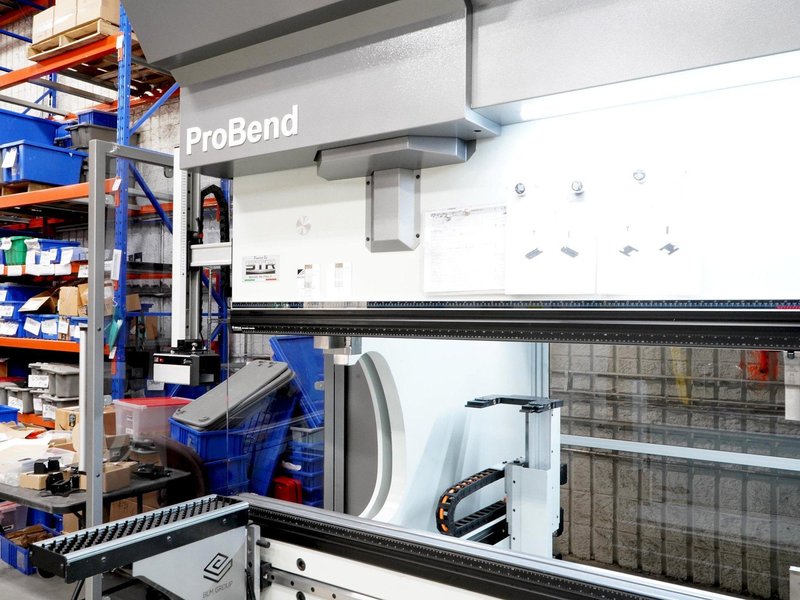

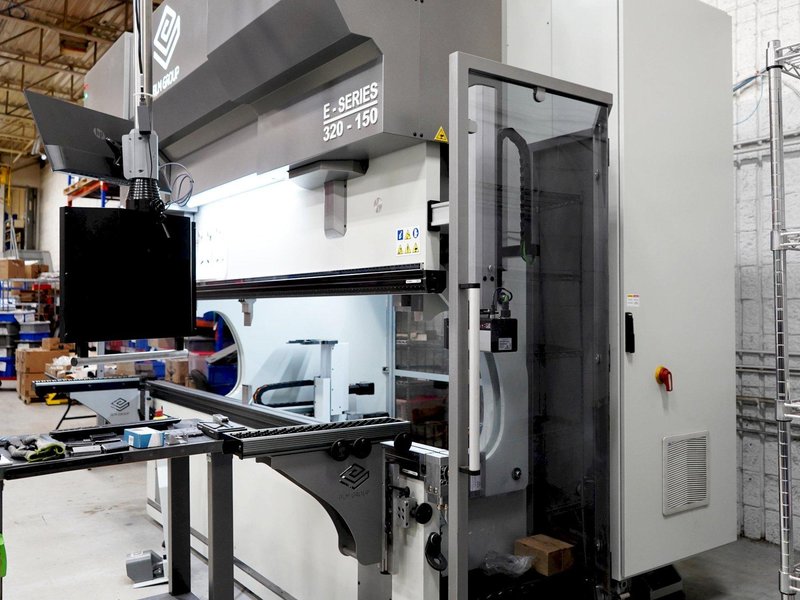

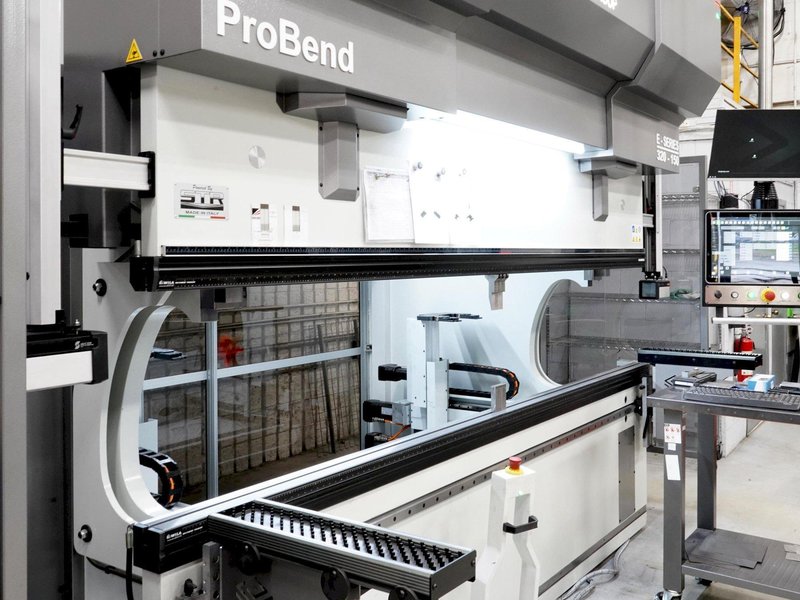

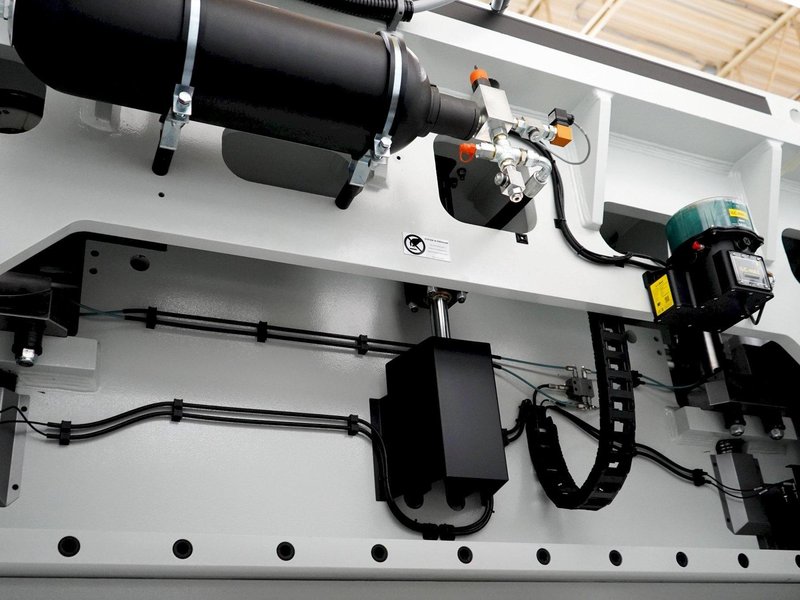

BLM ProBend E-Series 320-150
Brand
Category
Type
Model
ProBend E-Series 320-150
Stock #
100618
Year
2021
Condition
Like New
Location
Not specified
| Capacity | 165 Ton |
| Overall Length Of Bed | 10.5' |

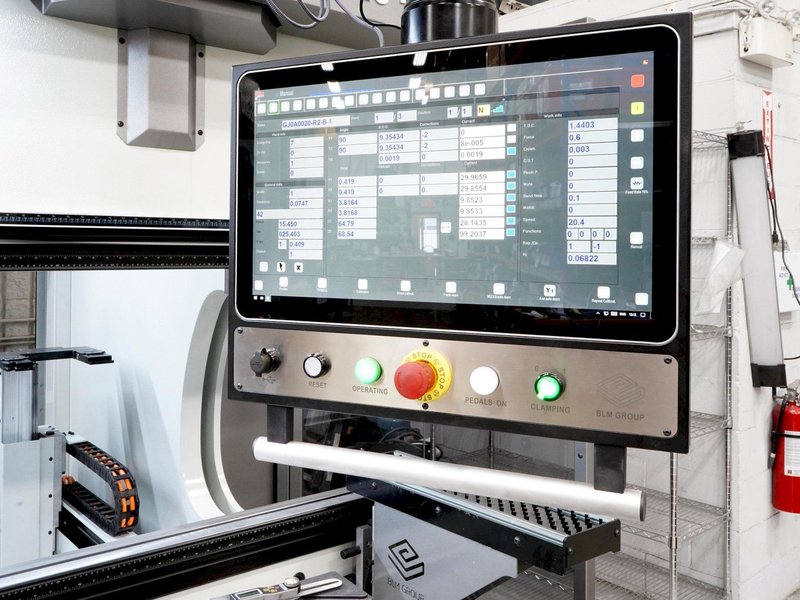

| Control | ESA S 675 W 21'' Touch Screen |
| Distance Between Housings | 100" |
| Stroke | 14" |
| Throat Depth | 20" |
| Open Height | 29" |
| Ram Closed Height | 15" |
| Approach Speed | 354 IPM |
| Y Return Speed | 354 IPM |
| Bending Speed | 2 - 59 IPM |
| Number Of Axis | 8 |

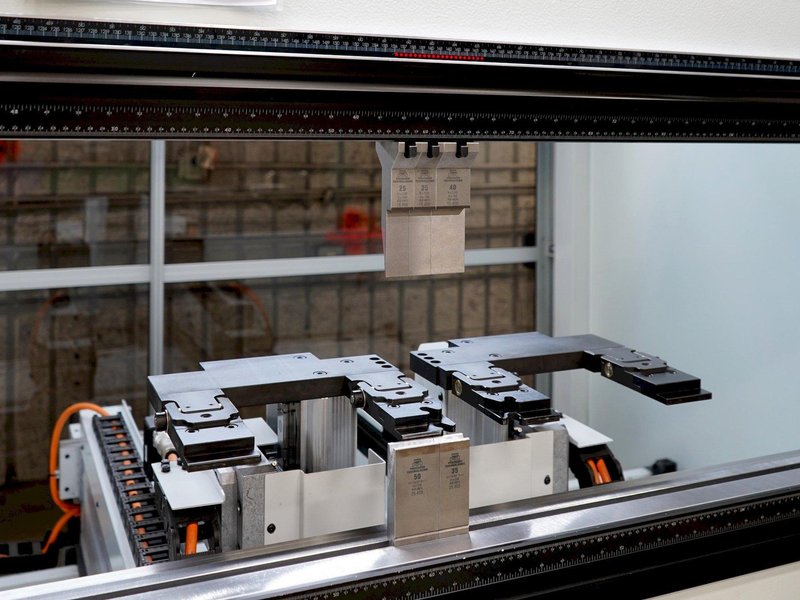

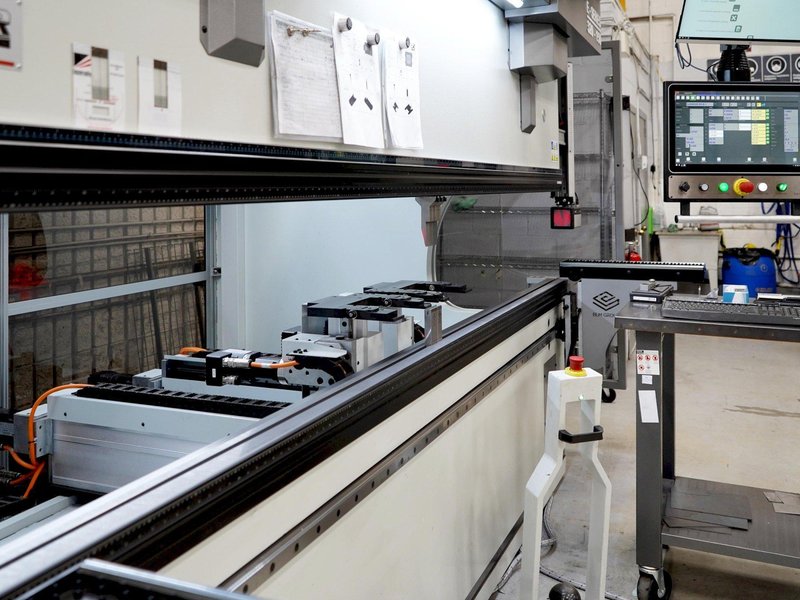

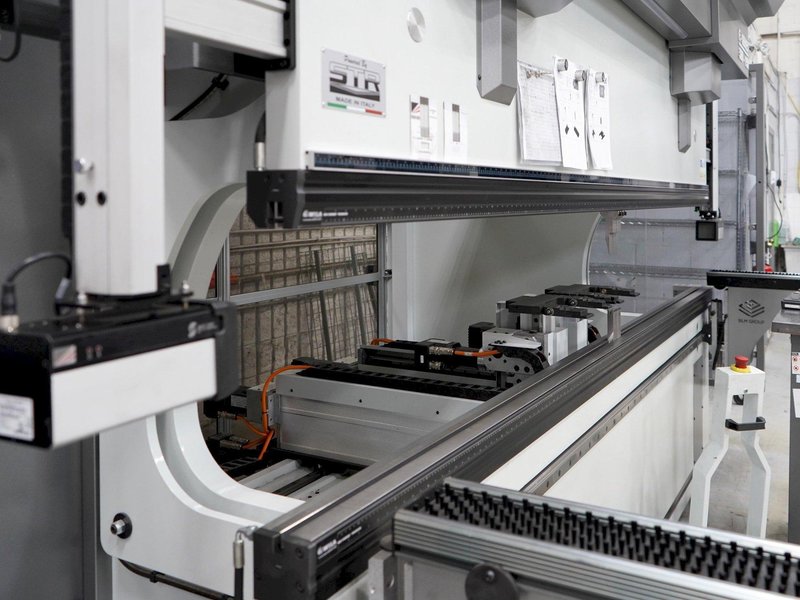

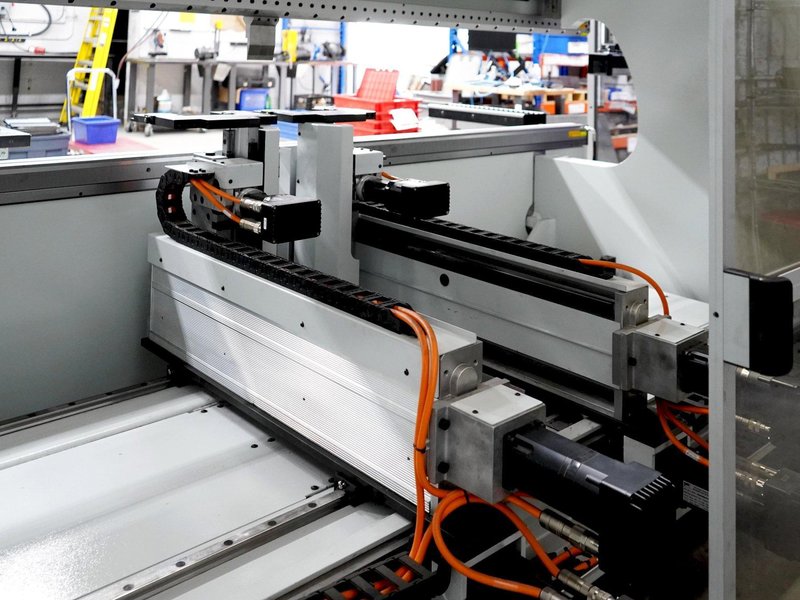

| Backgauge | 6-Axis |
| Motor | 30 HP |
| Transformer | 600/400v 3PH |
| Weight (Approx.) | 25,824 Lbs. |
| Dimensions | 209" x 96" x 117" H |
|

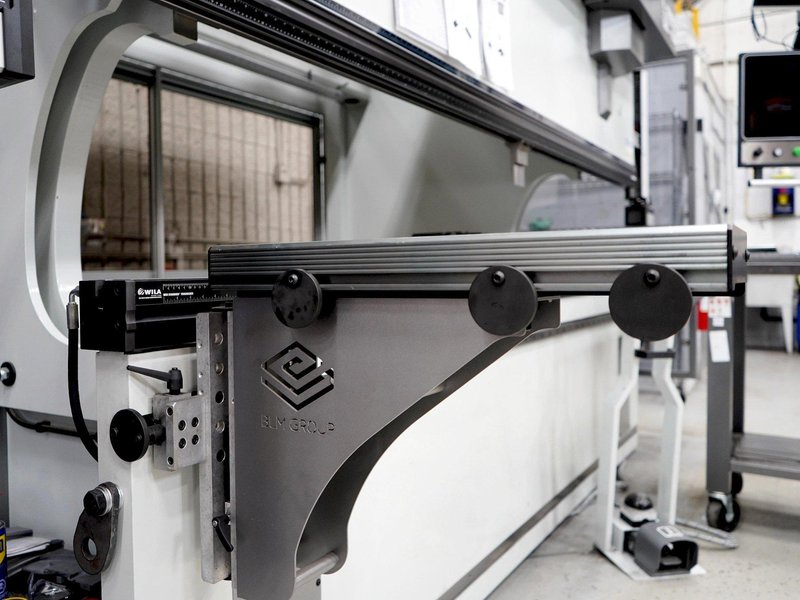

Equipped With: ATF-L 6-Axis Backgauge Auto Lubrication System for Ball Screws and Bearings (Y1/Y2) Database Self-Learning Angle Correction IRIS Lazer Safe & Measuring with Angle Correction Wila CNC Crowning Wila NSCL-I-HC/UPB New Standard Pro Hydraulic Ram & Die Clamping (2) Sheet Supports ESA Guide Light Ban LaserSafe IRIS PLUS for angle control Rear And Lateral Gates |
|
