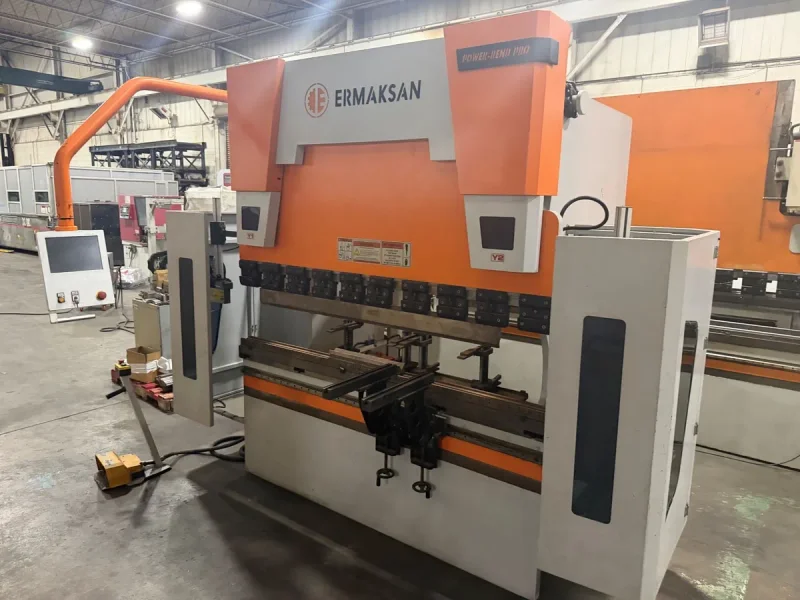

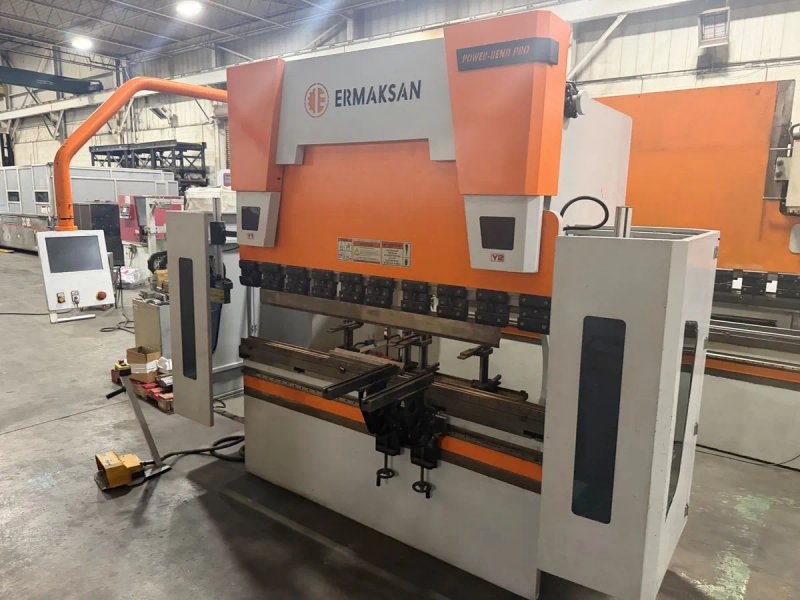

USED ERMAK POWER BEND PRO 83" X 66 TON HYDRAULIC 3 AXIS CNC PRESS BRAKE

Brand
Not specified
Category
Bending & Forming Equipment
Type
Press Brakes
Model
POWER BEND PRO 2100 x 66
Stock #
11284
Year
Not specified
Condition
Not specified

Location

Not specified

Overview

Type:
Brakes, Press
Manufacturer:
ERMAK
Model:
POWER BEND PRO 2100 x 66
Stock #:
11284
Status:
For Sale
Serial #:
22770

Description

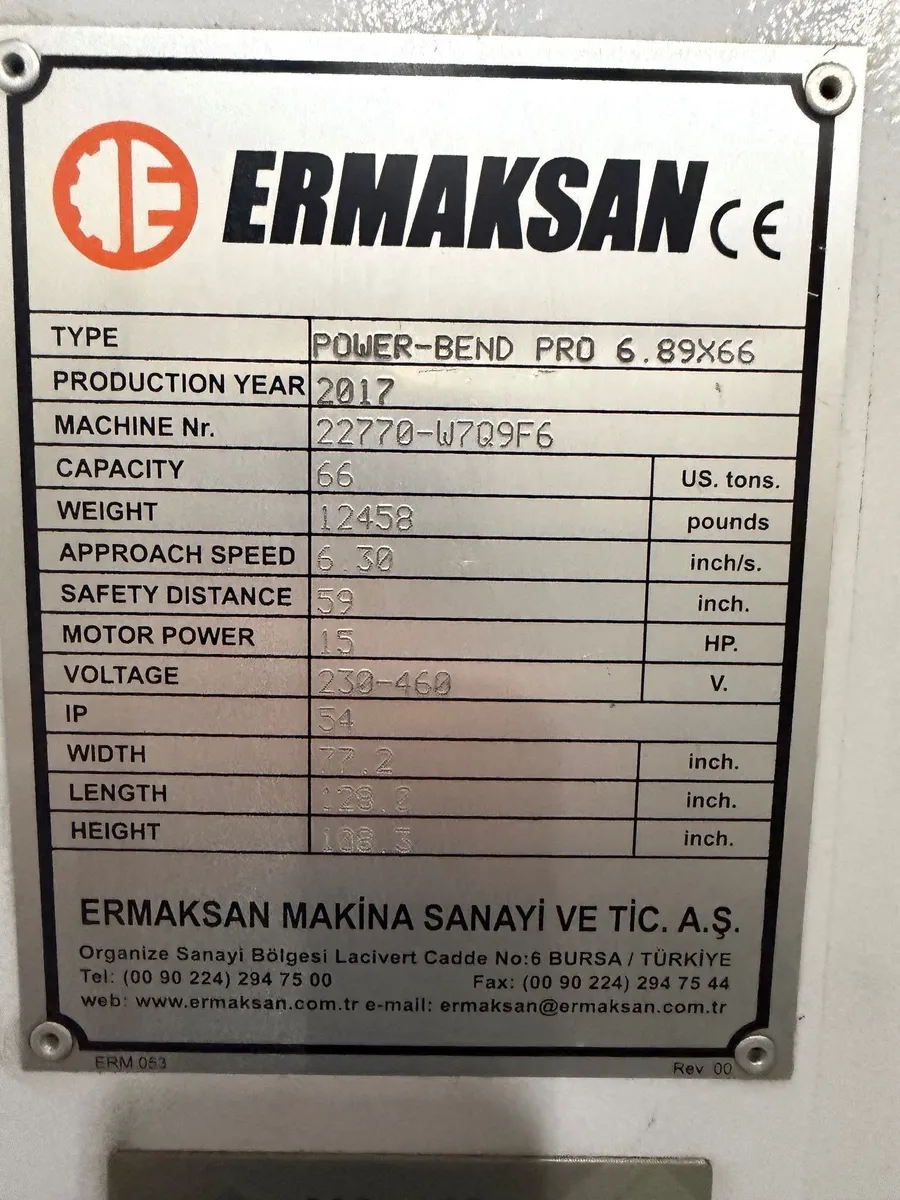

2017 Ermak Power Bend Pro 83" x 66-ton CNC Press Brake. Features 3-axis CNC, Cybelec CybTouch 12, Heidenhein scales, and Siemens electronics. Includes synchronized hydraulics, safety systems, and tooling.

Tonnage66 T59.874 t
TypeHYDHYD
Overall Length83"2.1 m
Between Housings66.9"1.7 m
Stroke10.8"274.32 mm
# Axis33
ControlCNC (Cybelec)CNC (Cybelec)
Dimensions128" x 77" x 109"128" x 77" x 109"
Weight12,458 Lbs.12,458 Lbs.

Brand: Ermak
Model: Power Bend Pro 2100 x 66

Specifications:
Bending length: 83"
Tonnage: 66 Tons
Distance between housings: 66.9"
Free down speed: 6.30 IPS
Bending speed: .55 IPS
Return speed: 6.5 IPS
Stroke: 10.8"
Throat depth: 16.1"
Working height: 35.4"

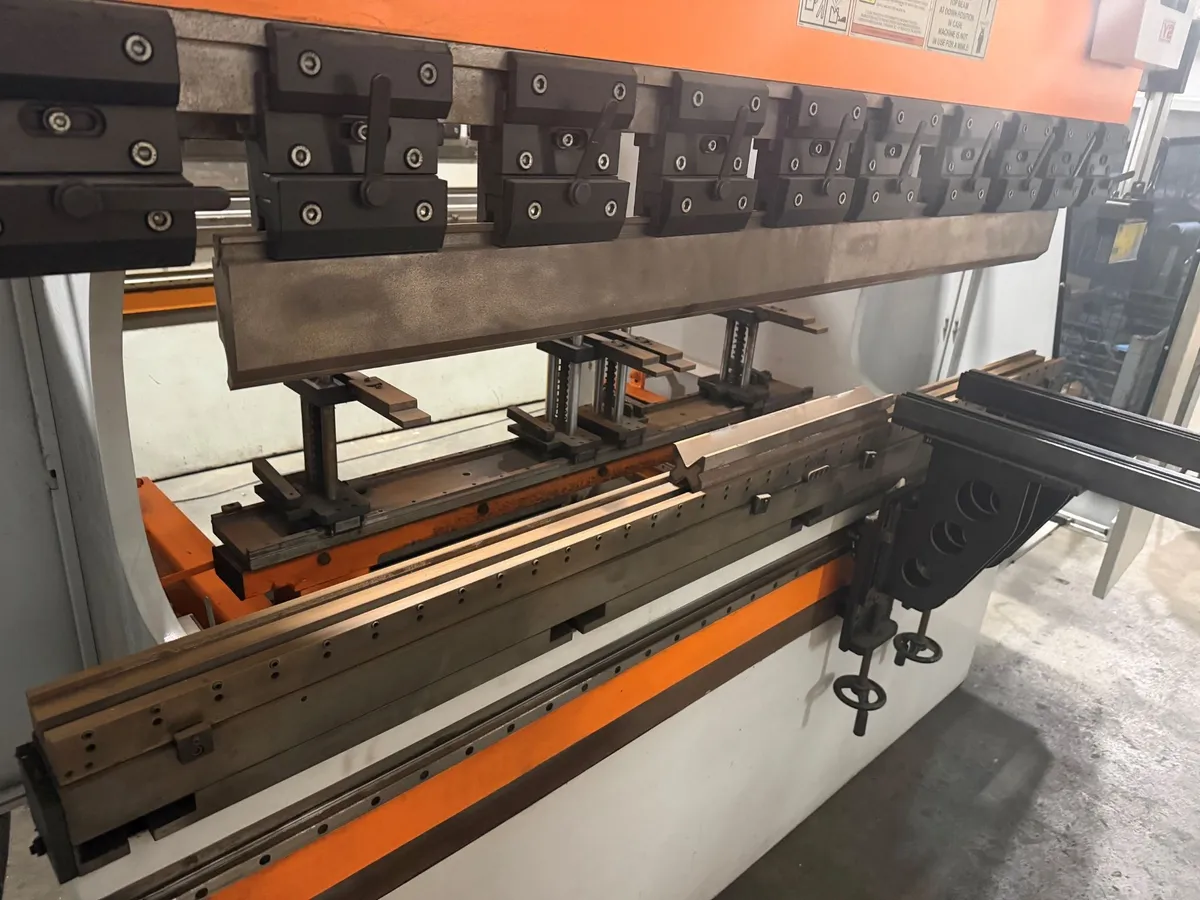

Ram clamps: sectionalized quick clamps

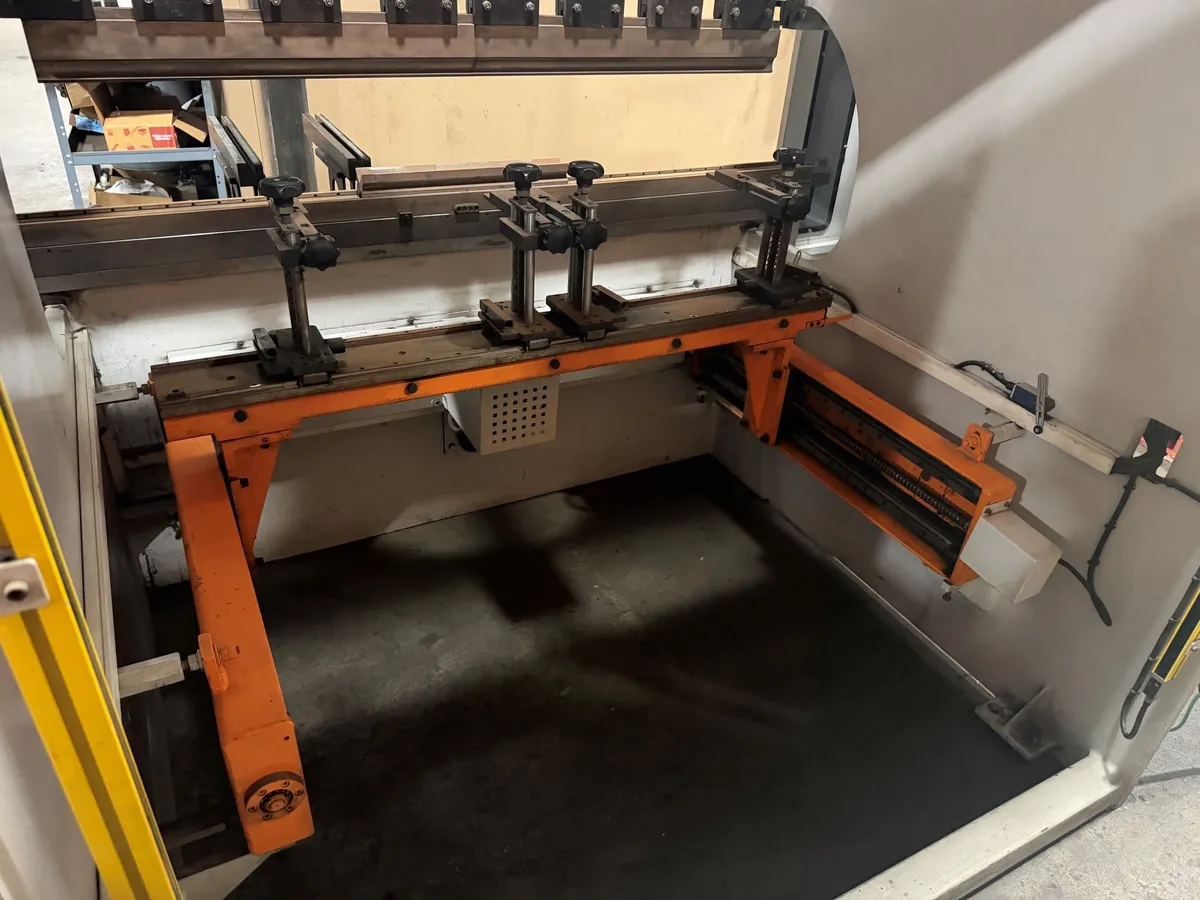

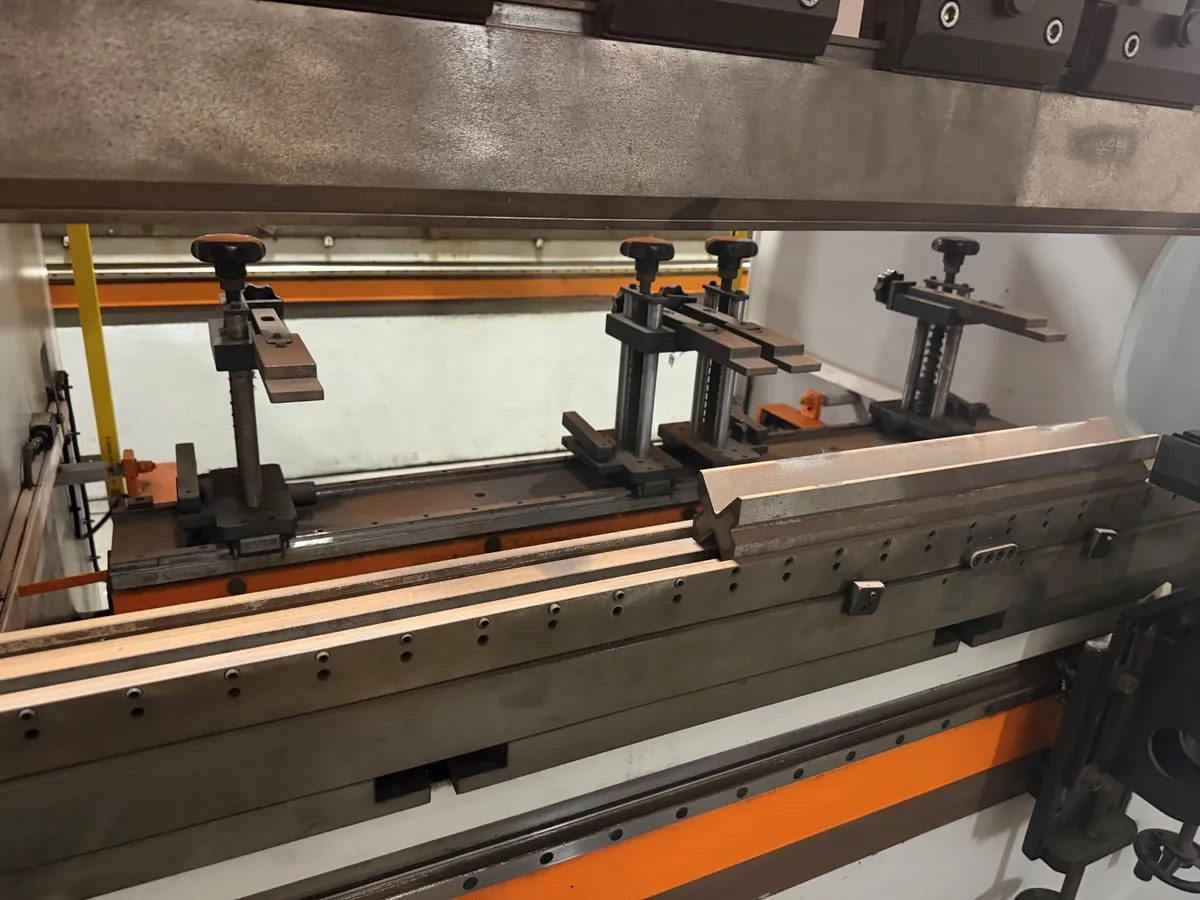

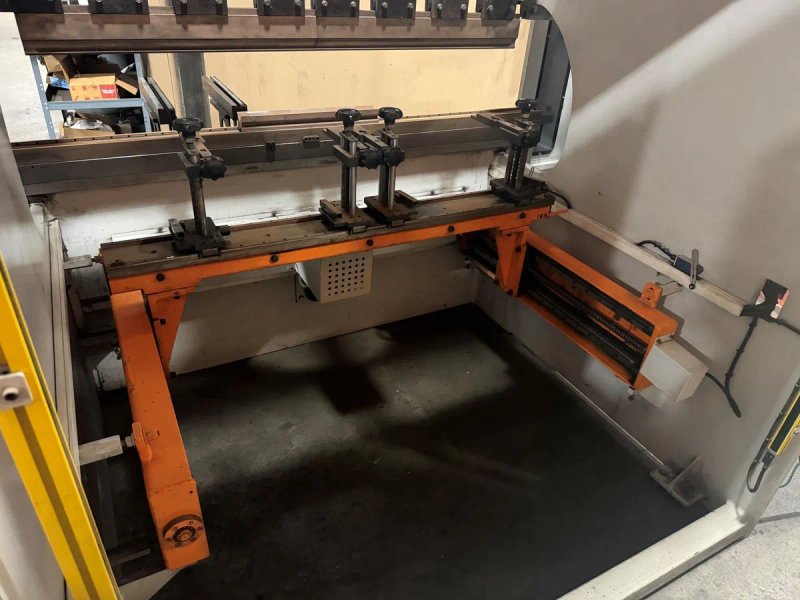

Backgauge stroke: 31.5"
Number of backgauge fingers: 4
Main motor: 15 H.P.
Voltage: 220 / 440 volt 3 phase
Dimensions: 128" x 77" x 109"
Weight: 12,458 Lbs.

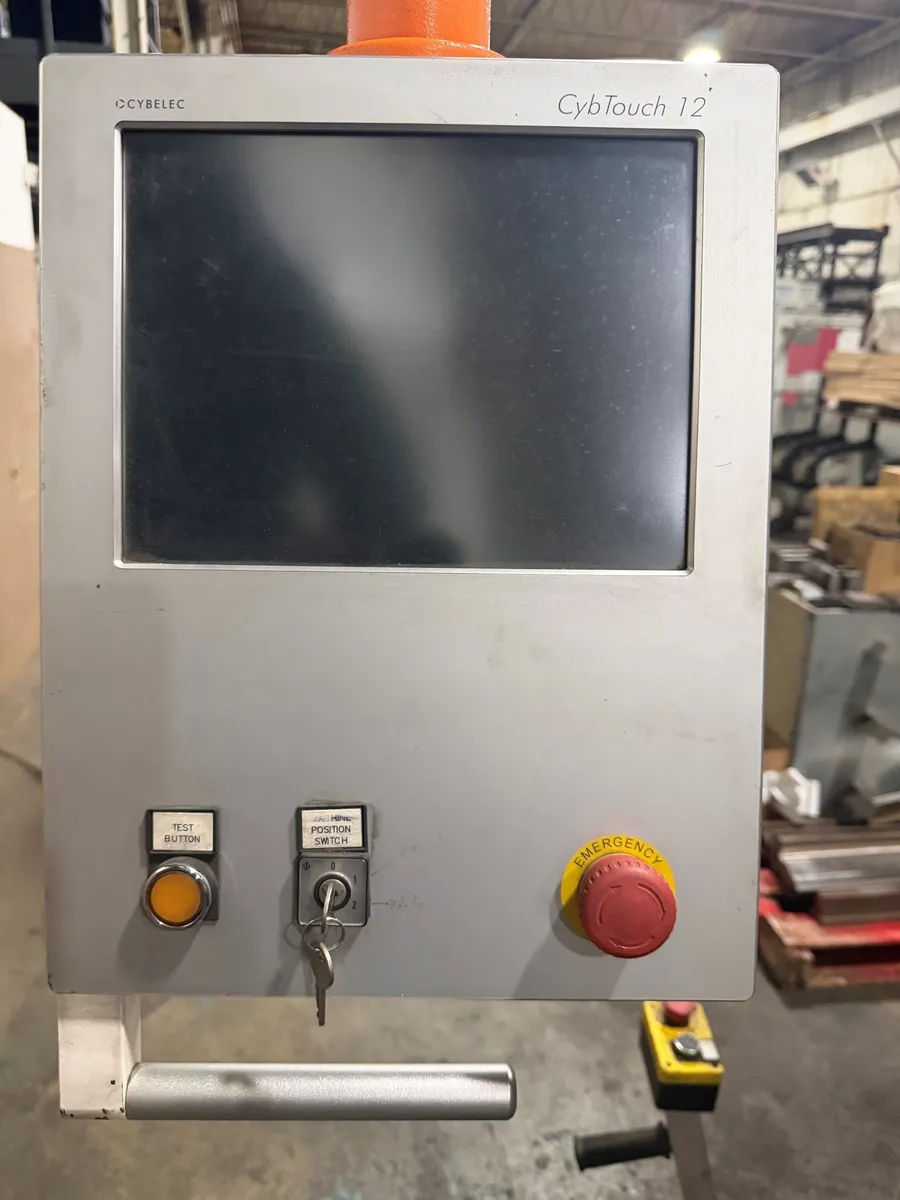

Cybelec CybTouch 12 touchscreen CNC control
3-axis CNC (Y1, Y2, X)
Heidenhein linear scales

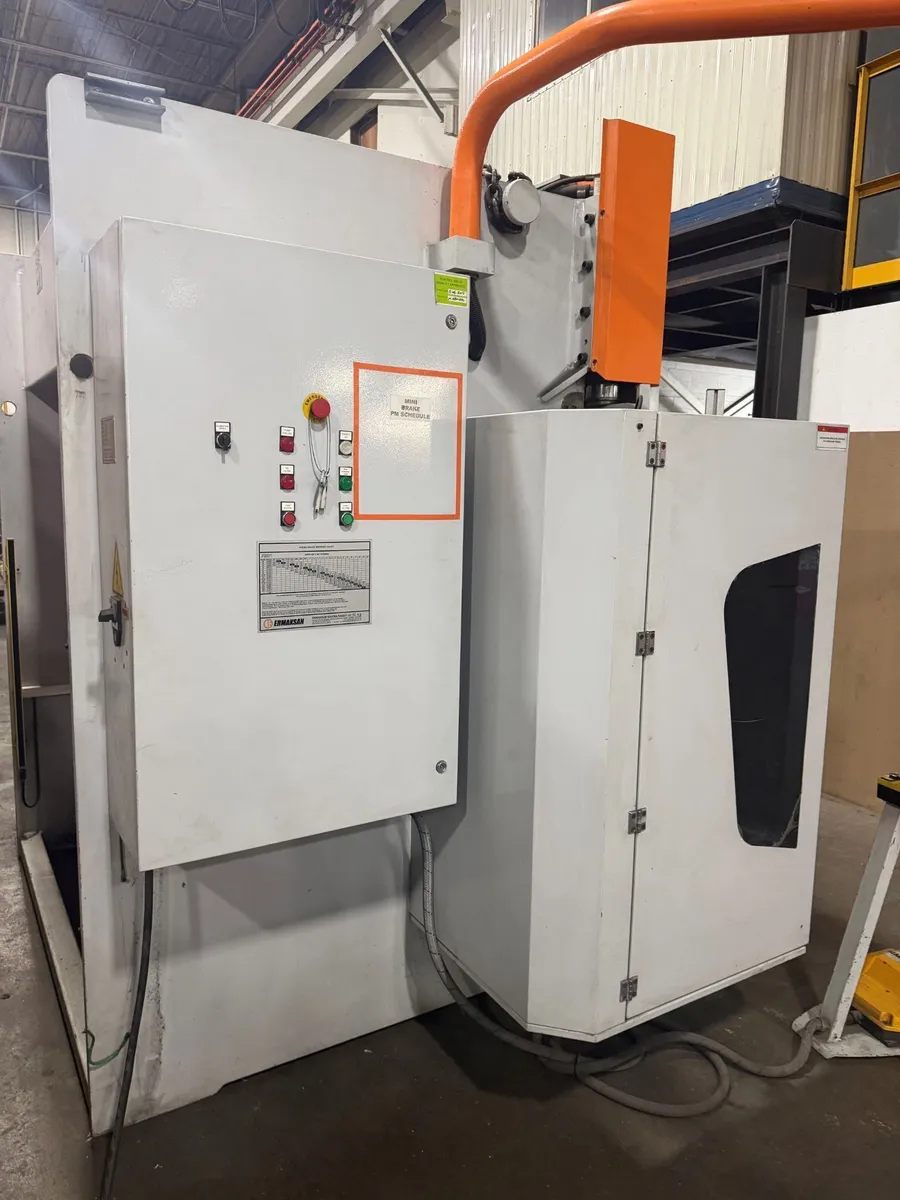

Siemens electronics
Synchronized hydraulic system

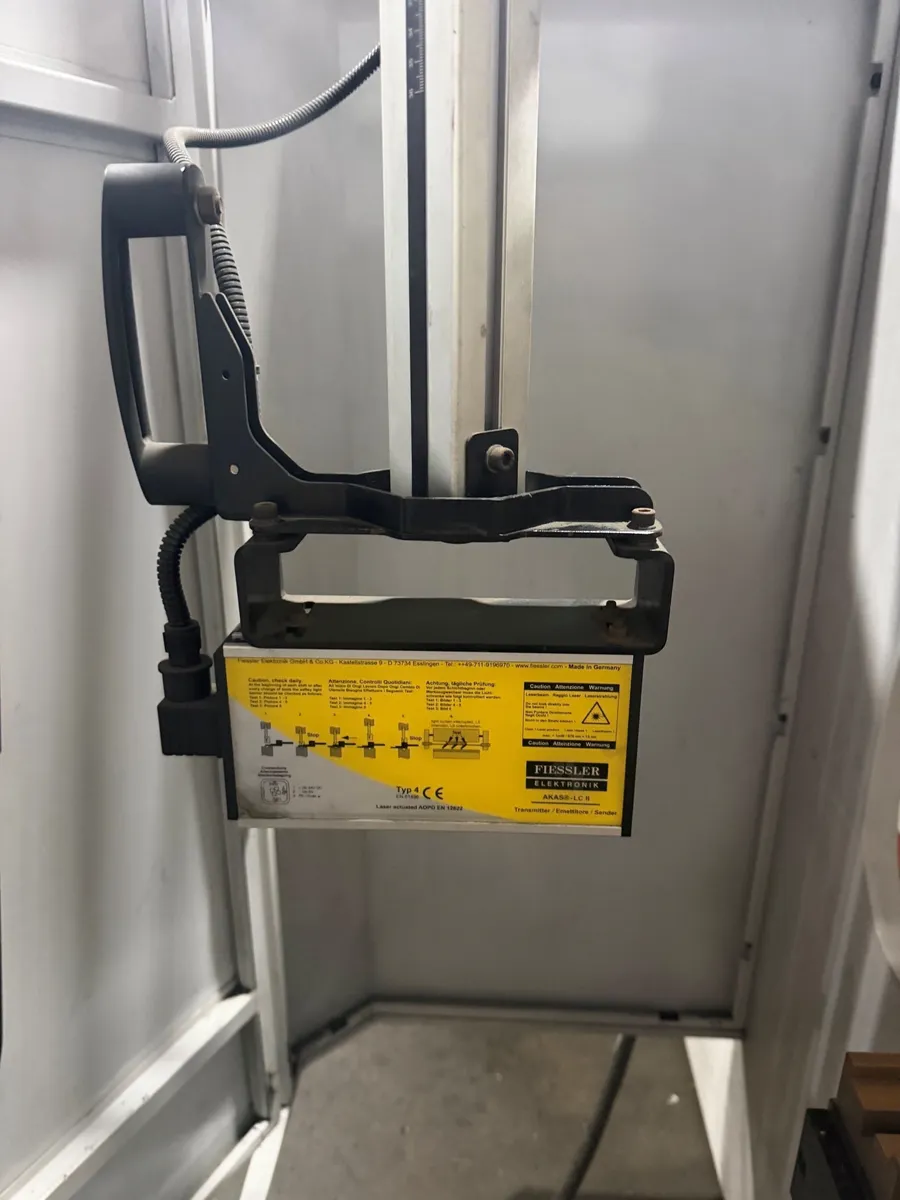

Fiessler laser safety system
Portable foot pedal

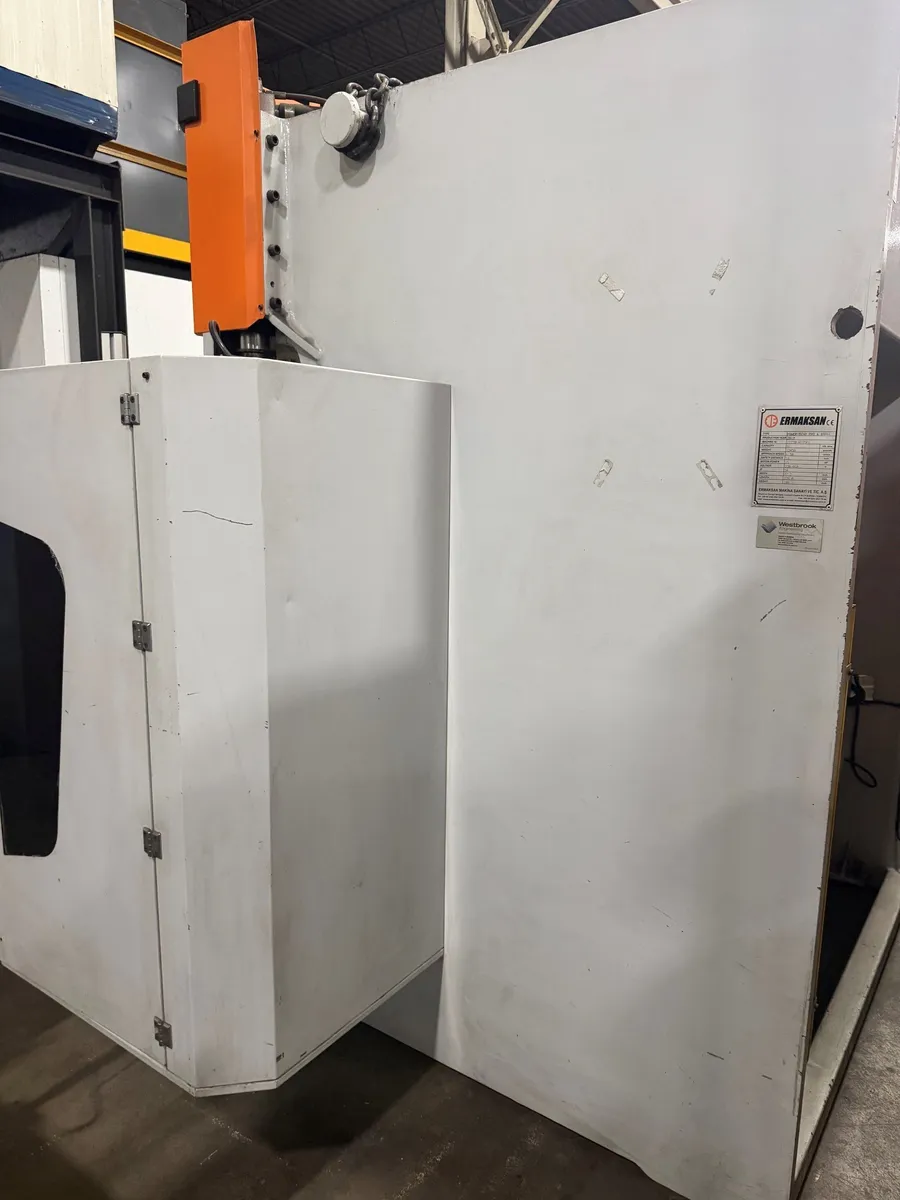

Rear and side safety guards

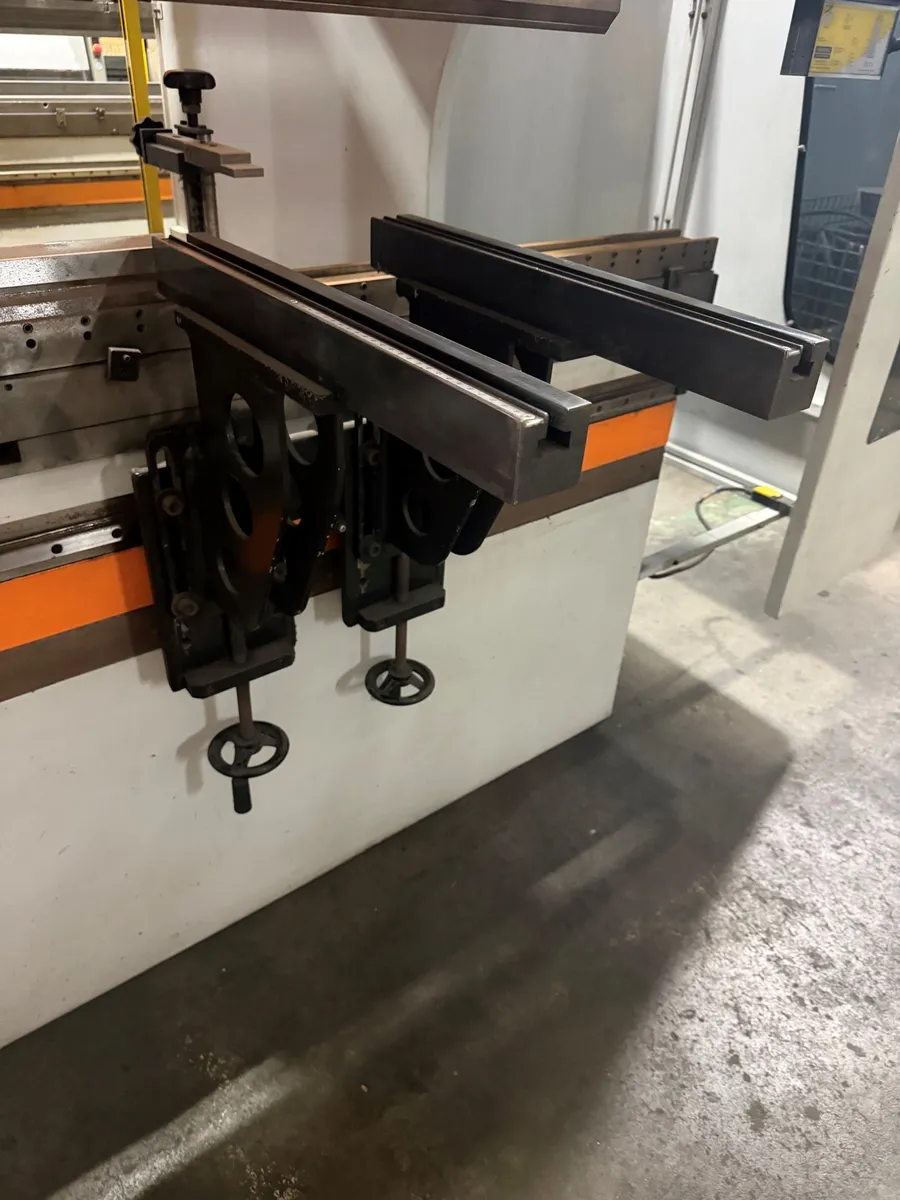

2 adjustable front support arms with scales
Manual R-axis
Manual X-prime axis
Die risor

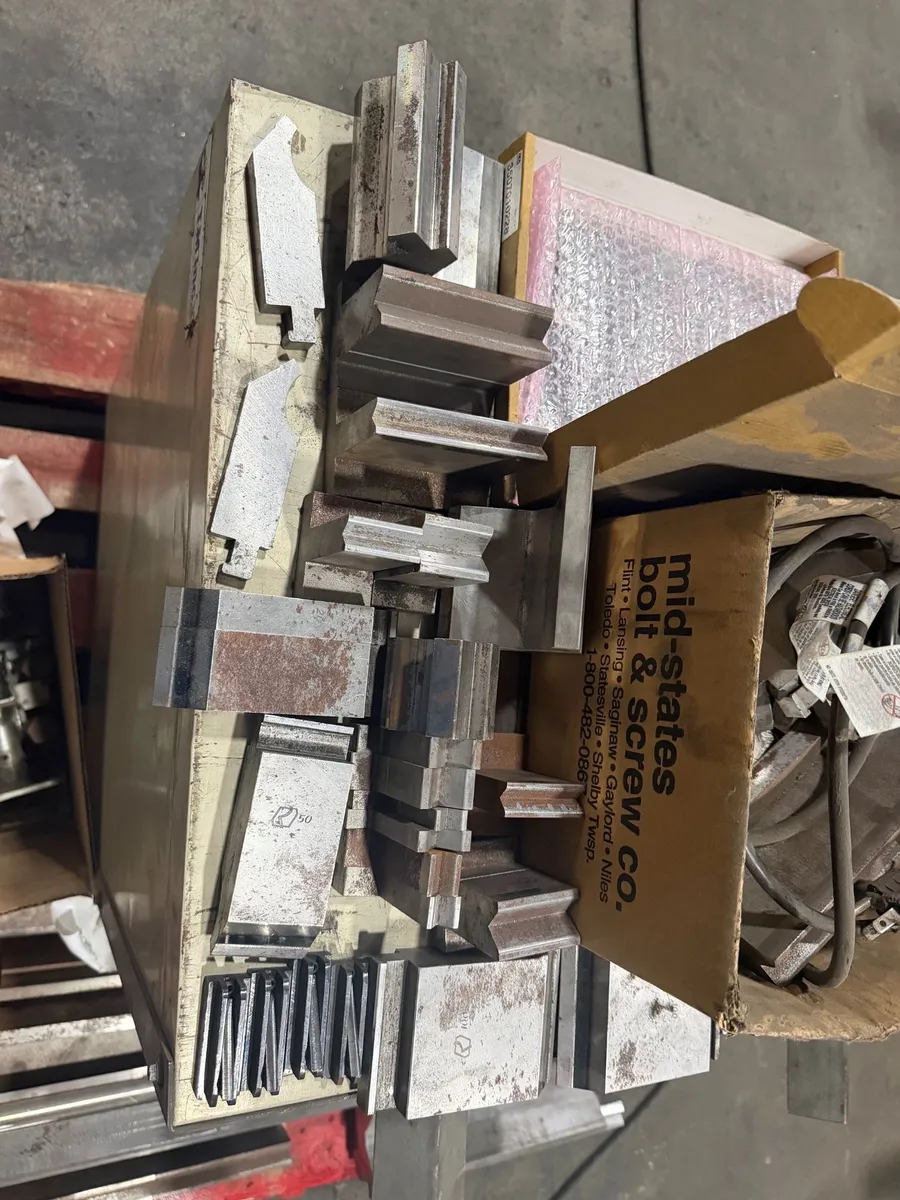

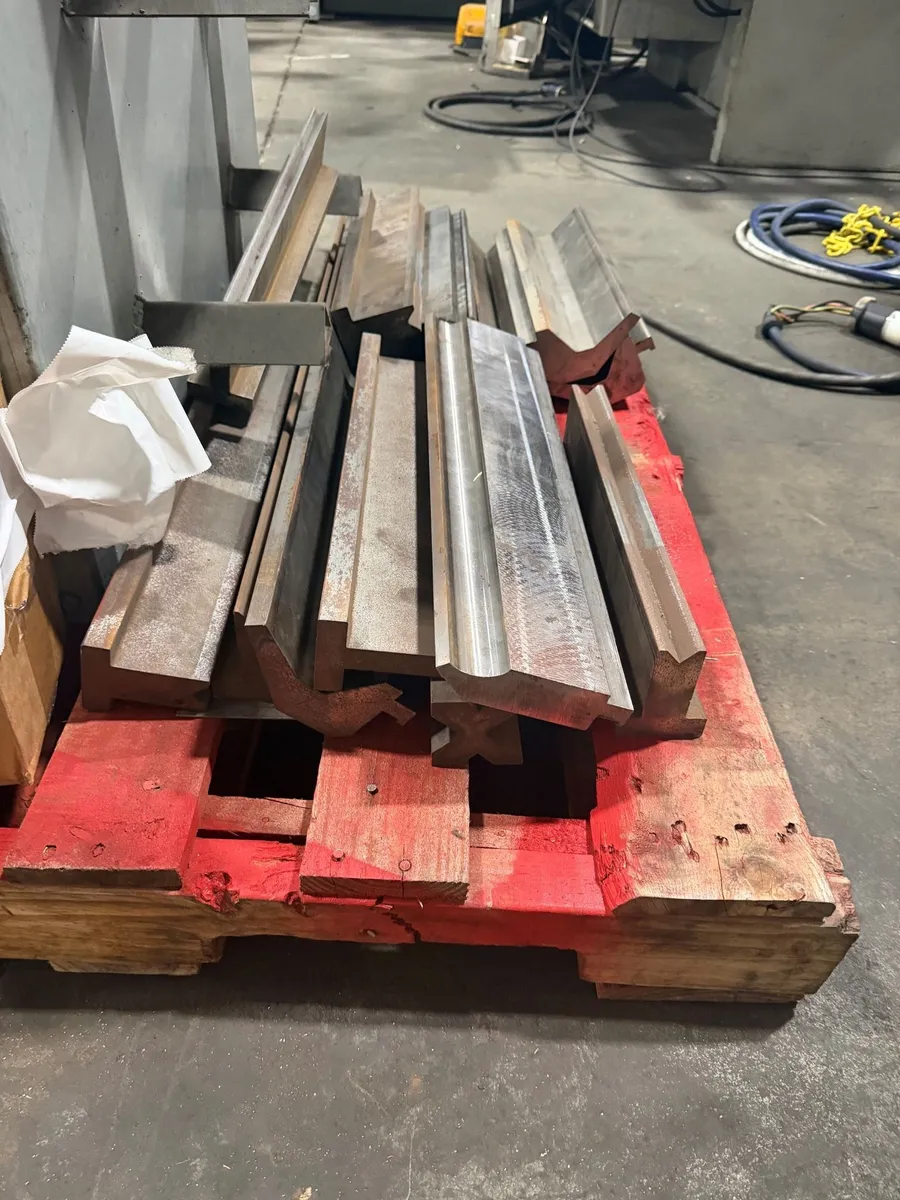

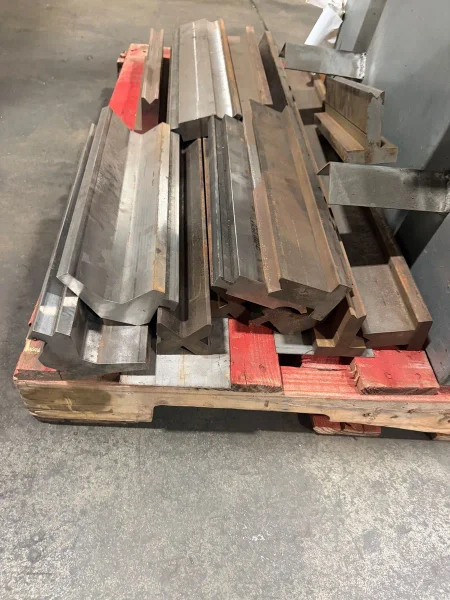

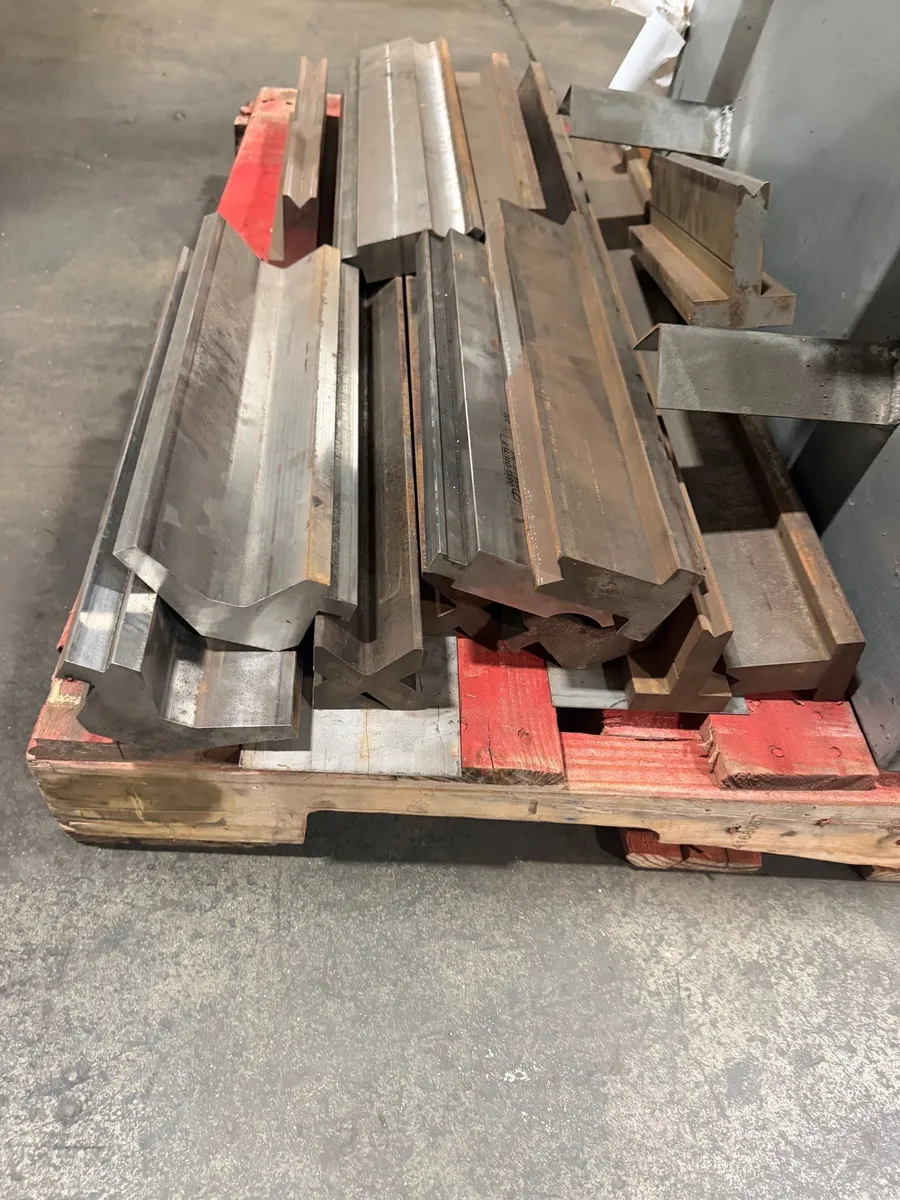

Large assortment of sectionalized tooling including a 4-way die
