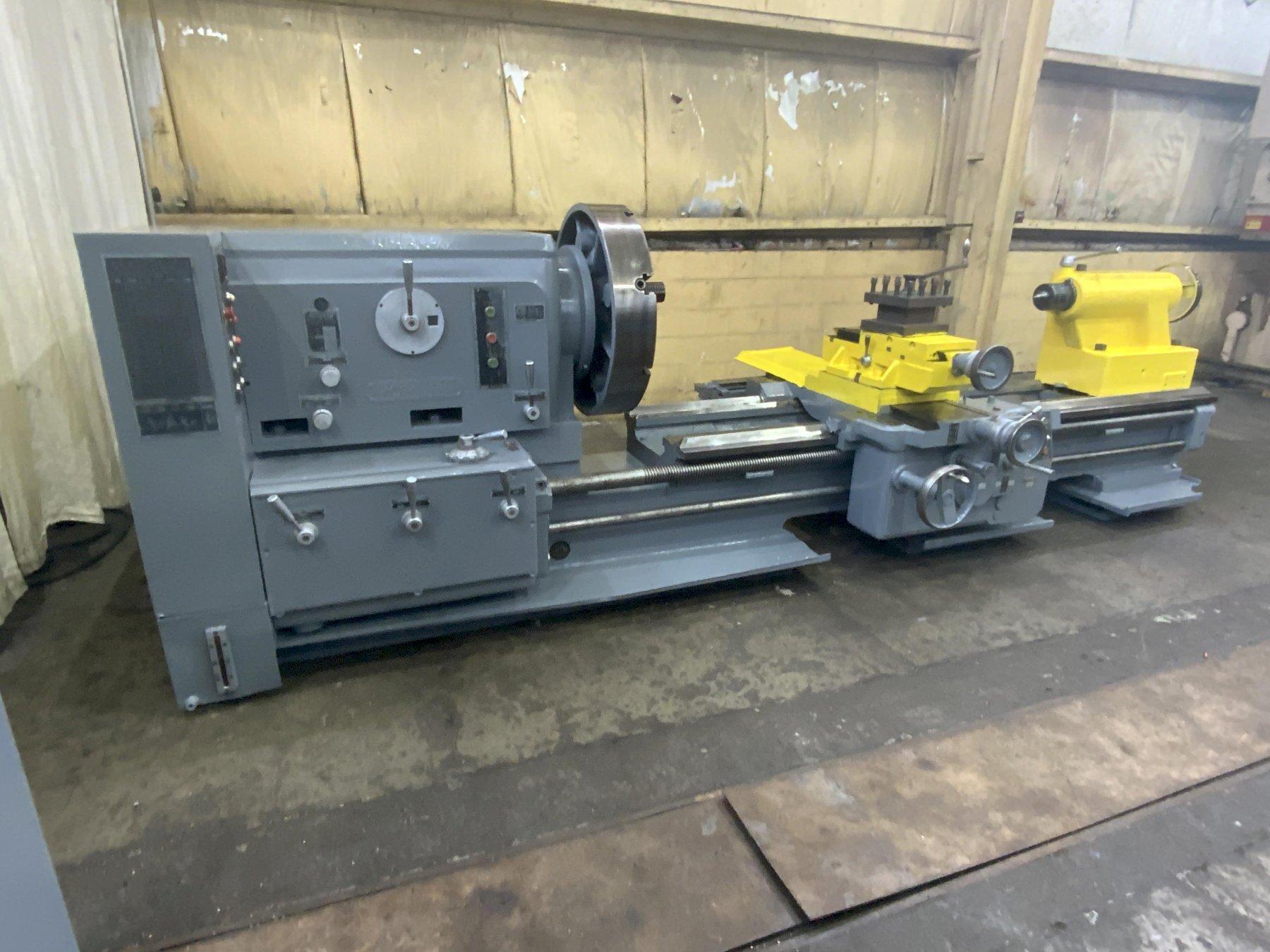

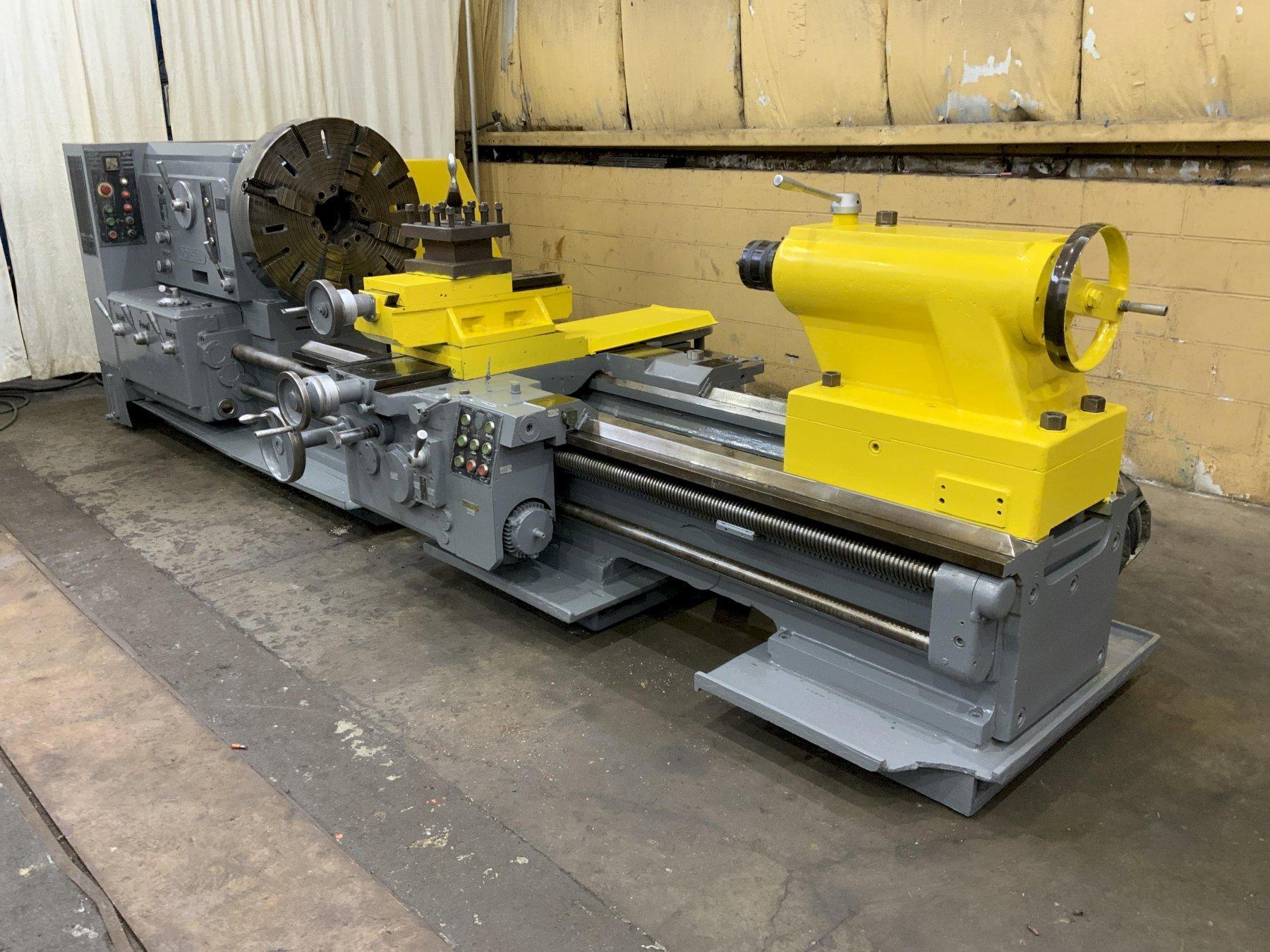

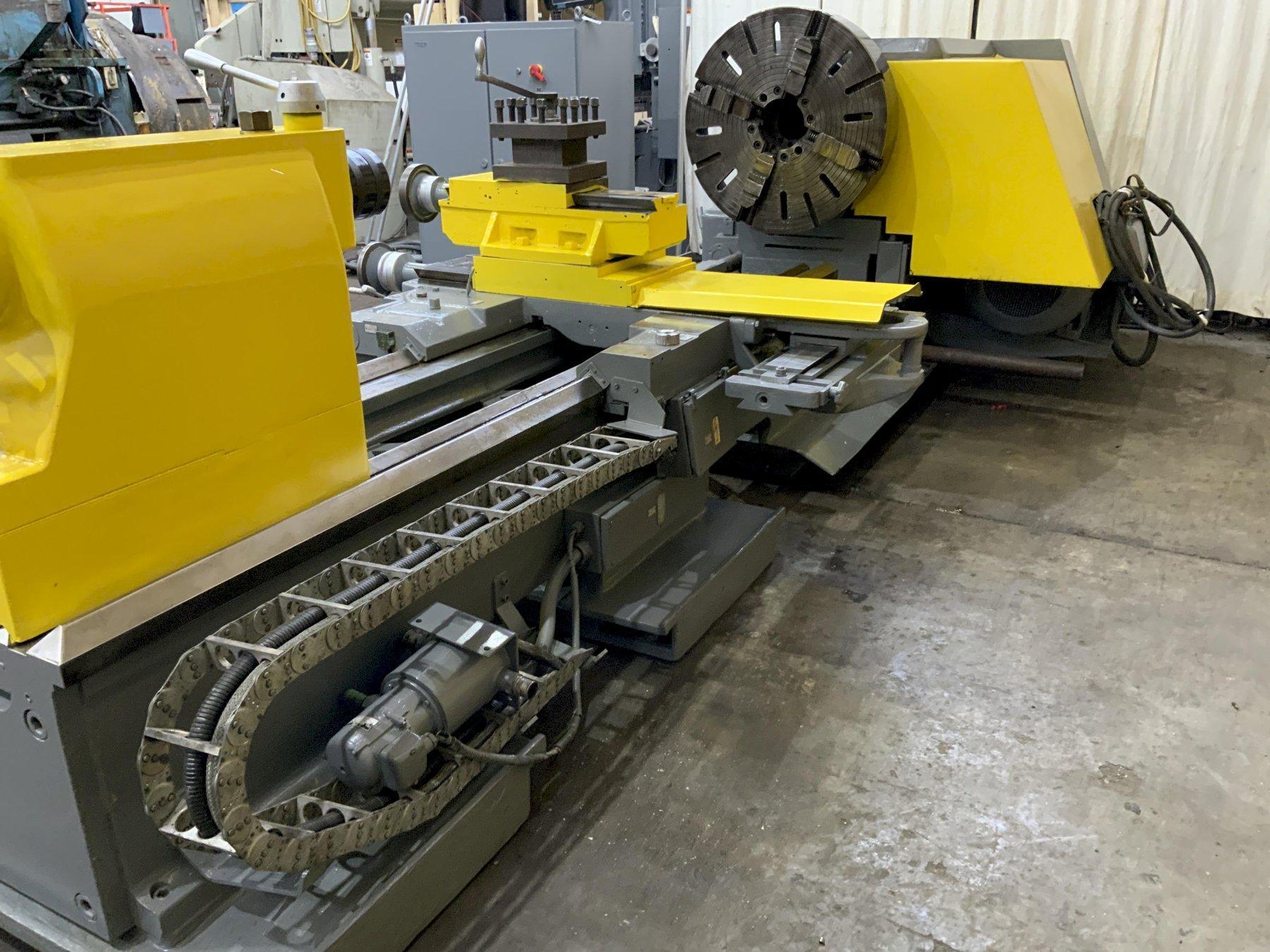

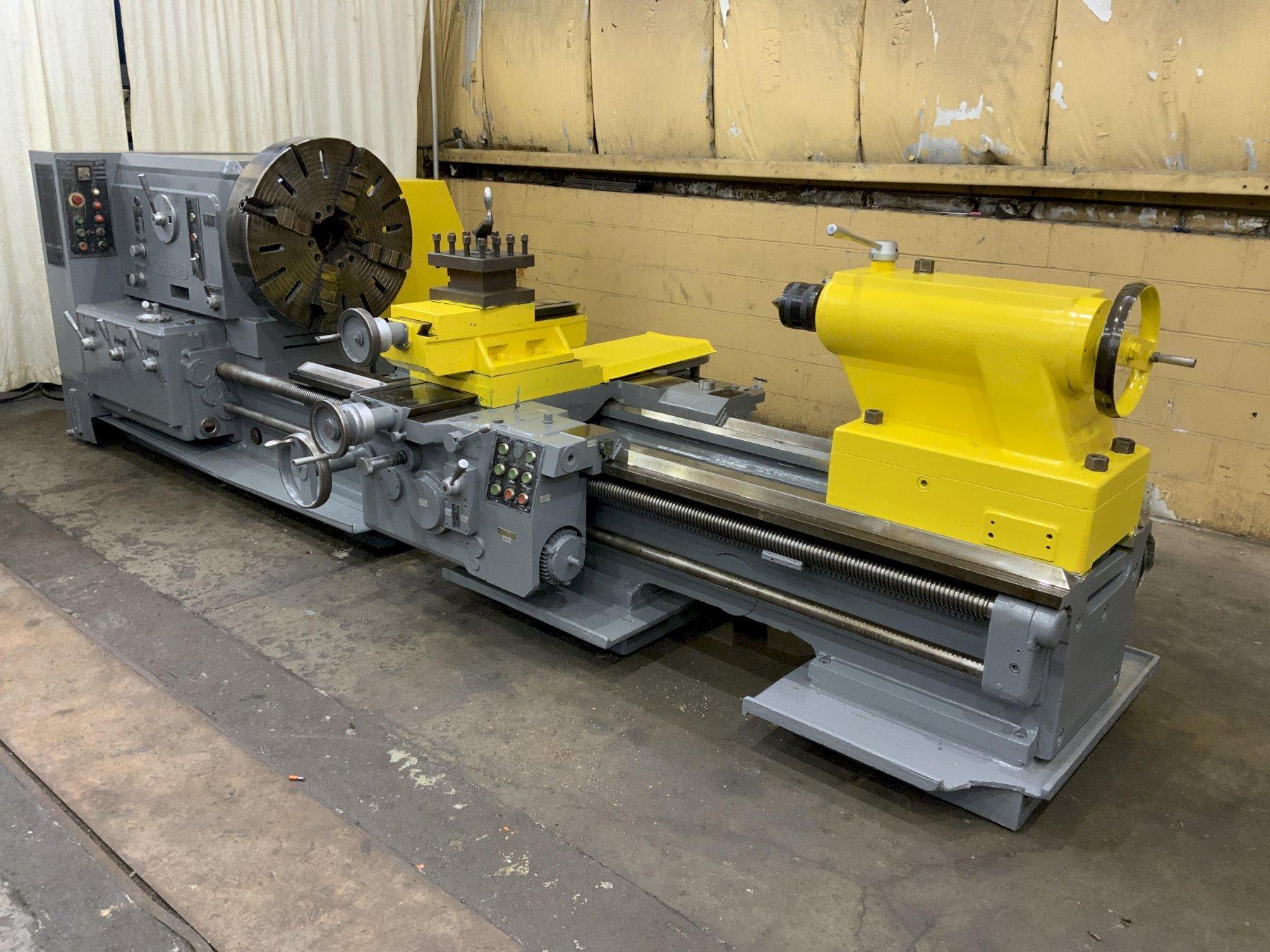

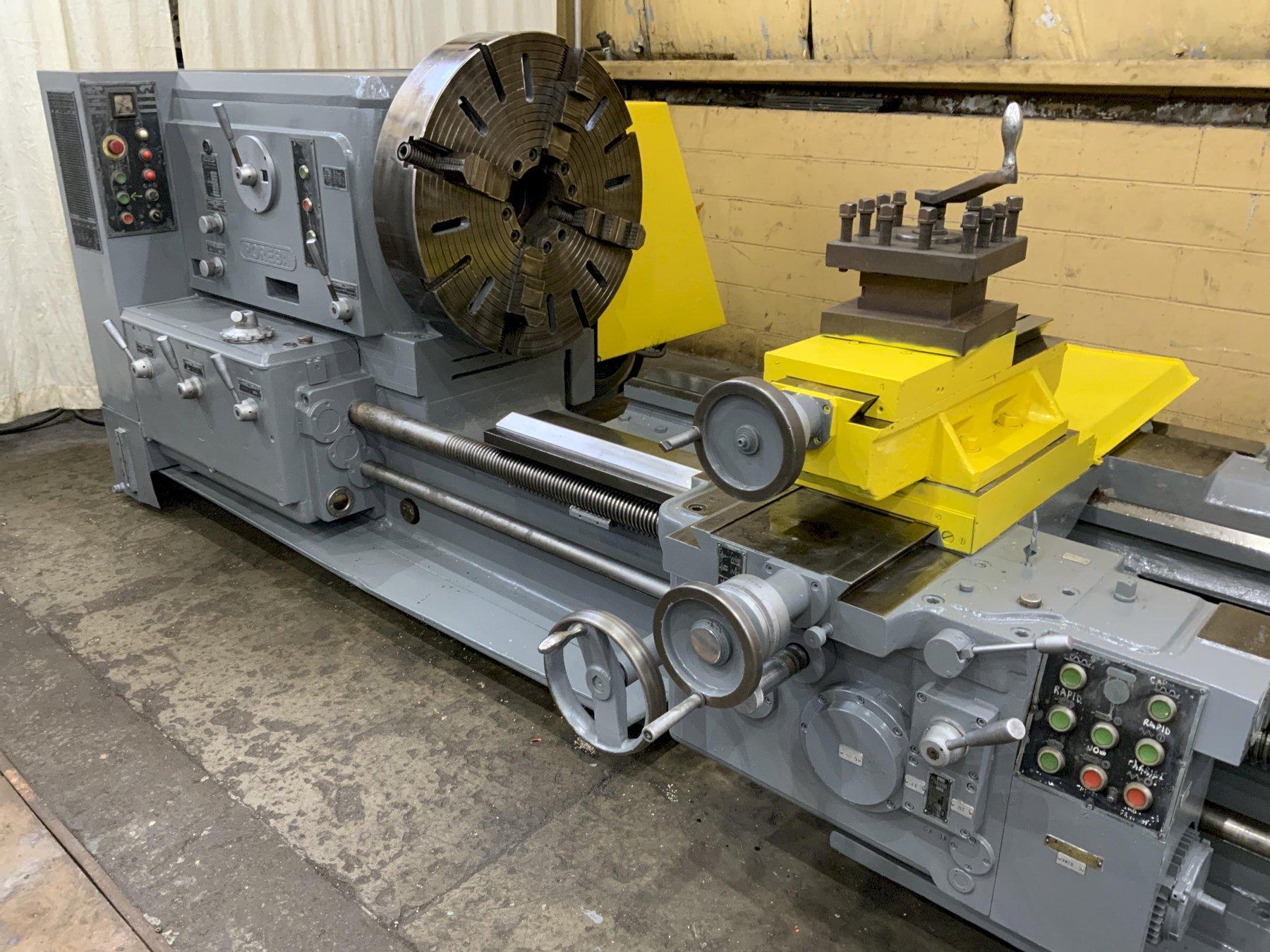

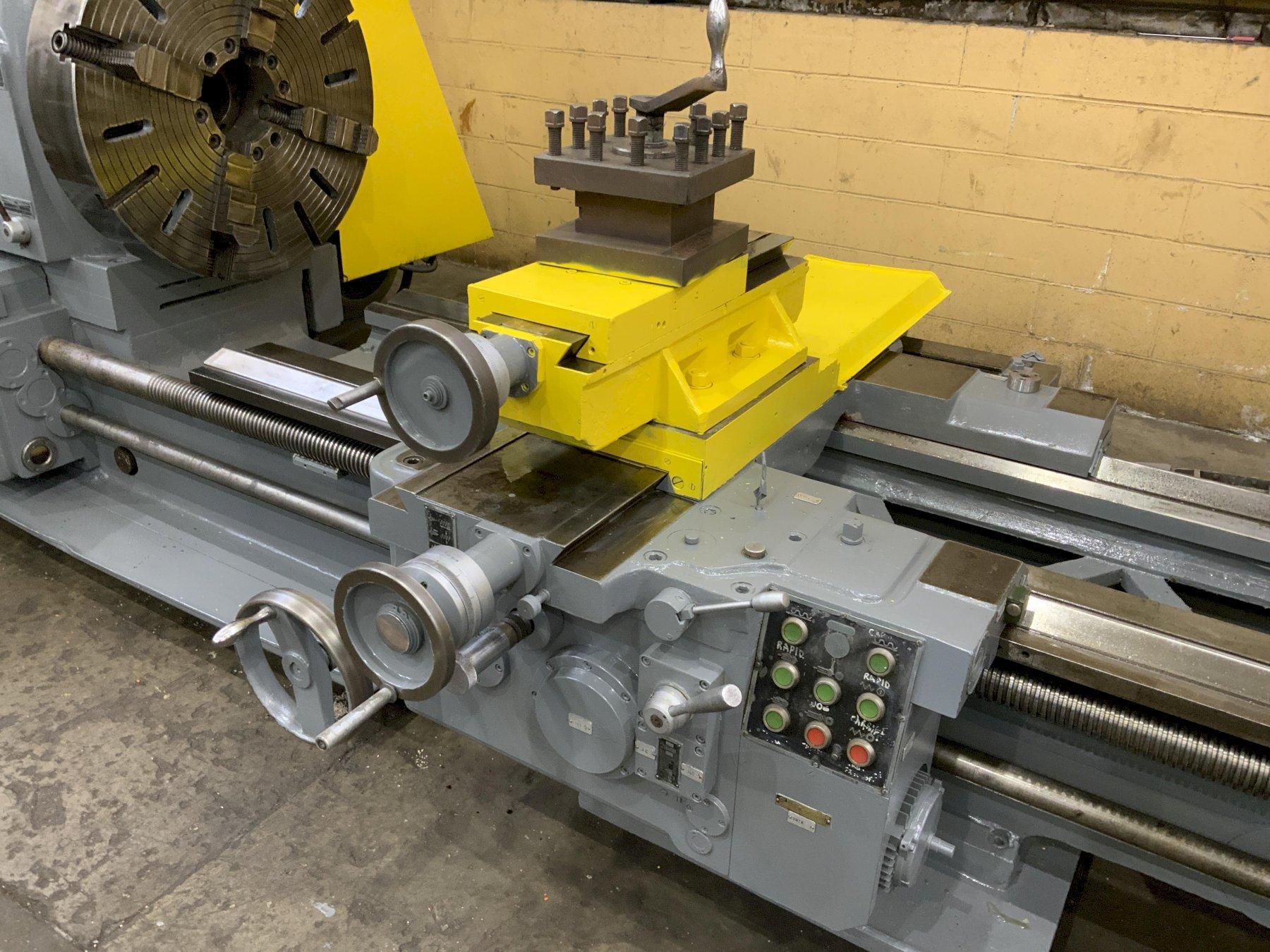

38" X 92" POREBA GAP BED ENGINE LATHE: STOCK #80622

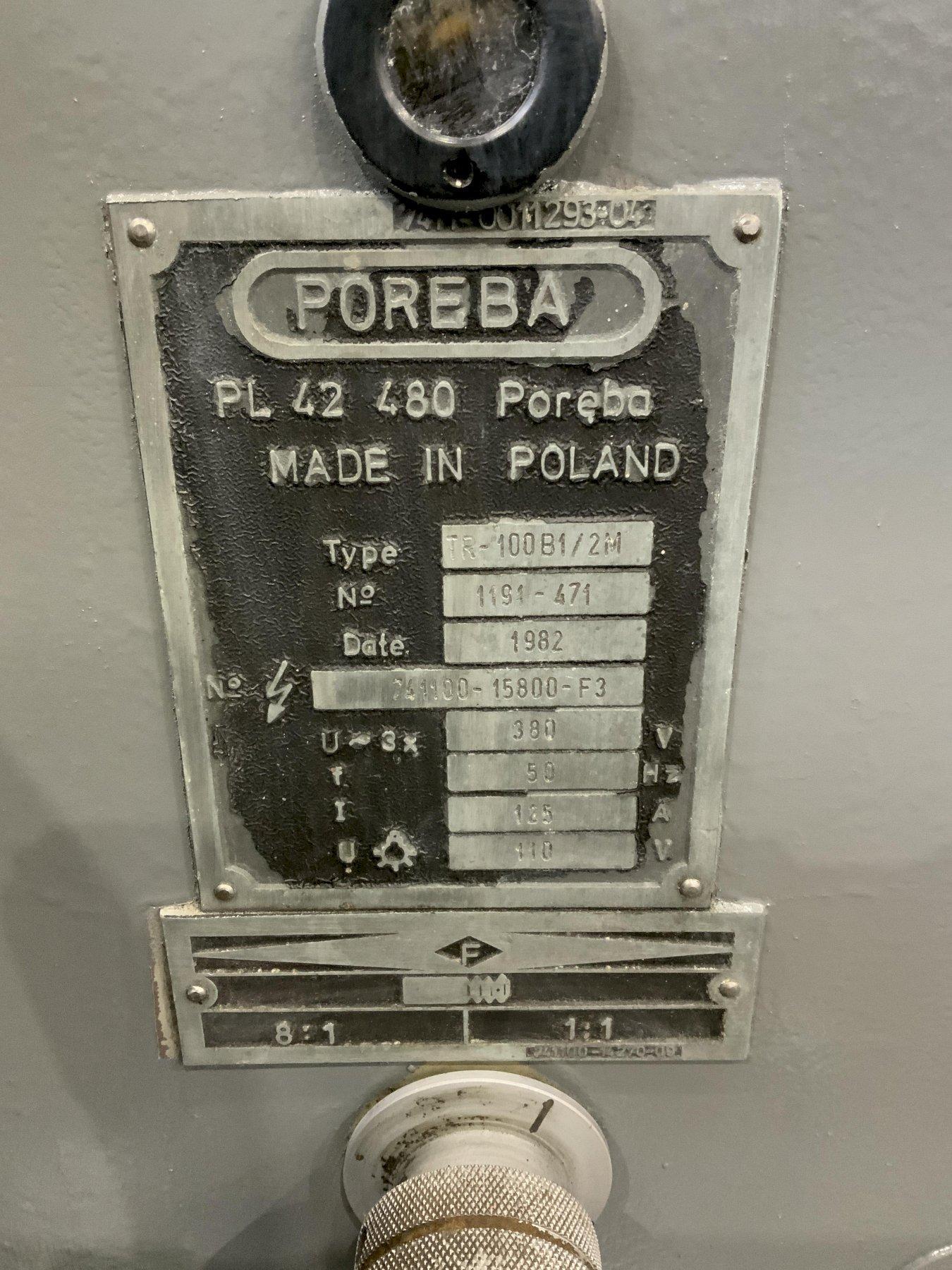

SERIAL .................................. 1191-471

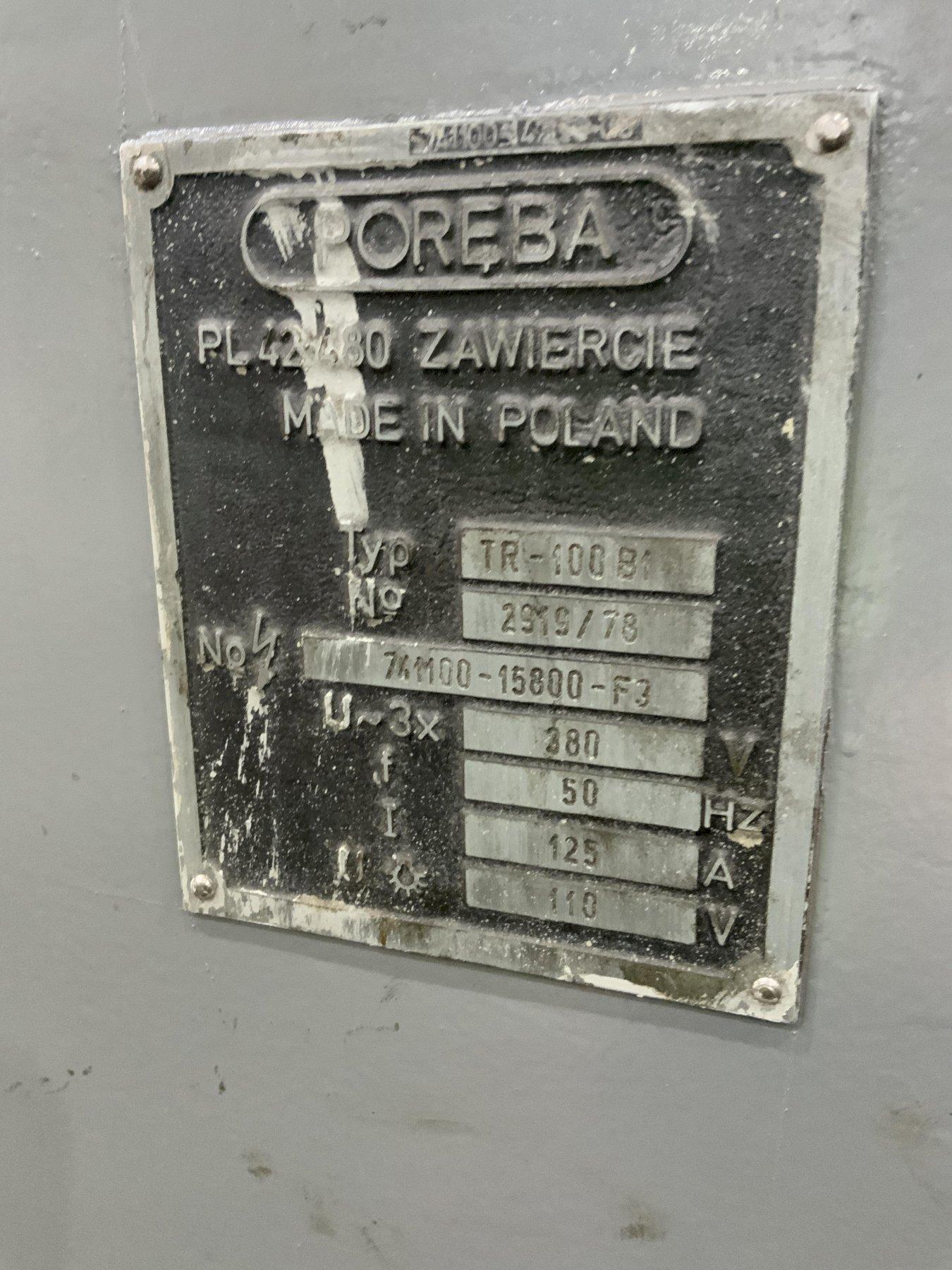

MODEL ................................... TR-100BI/2M

NEW IN .................................. 1982

SWING OVER WAYS ......................... 38"

SWING OVER CROSS SLIDE .................. 25-1/2"

SWING IN GAP ............................ 48"

DISTANCE BETWEEN CENTERS ................ 92"

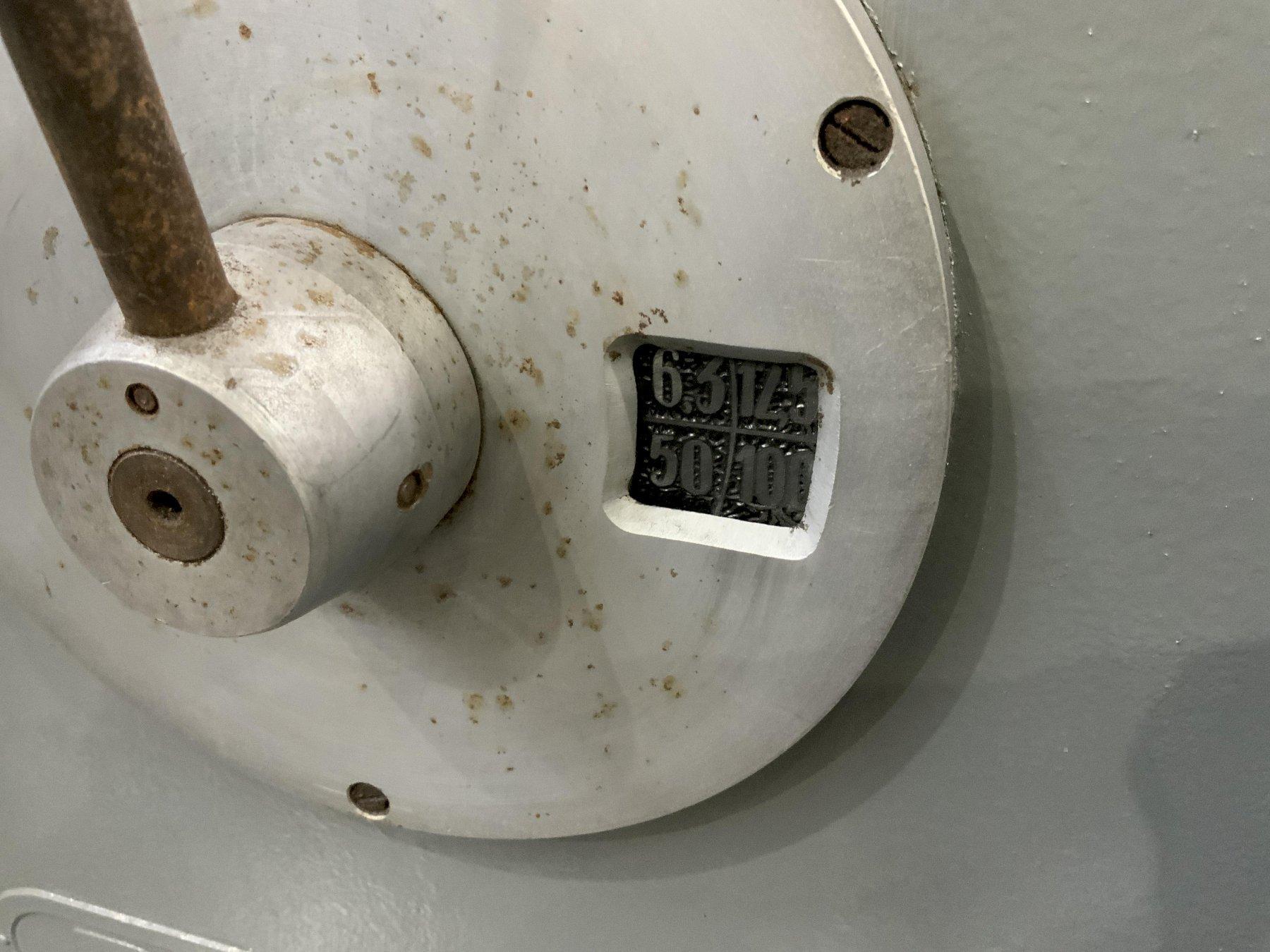

SPINDLE SPEEDS .......................... 160 TO 1500 RPM

FEEDS ................................... (80) .0043 TO .498 IPR

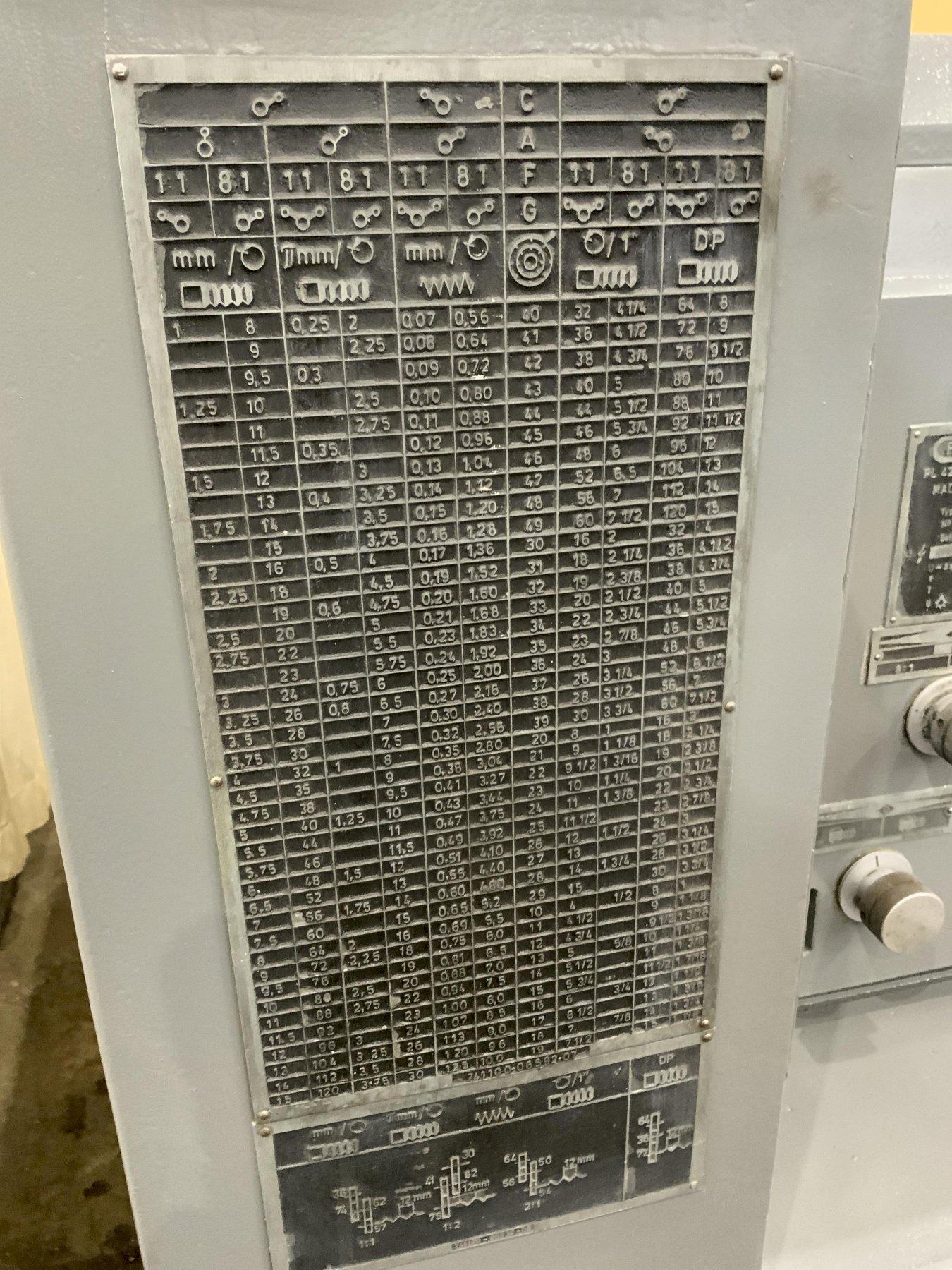

THREADS ................................. 3/8 TO 30 TPI

METRIC THREADS .......................... 1 TO 120 MM PITCH

DIAMETER OF SPINDLE HOLE ................ 4-3/4"

POWER COMPOUND FEED ..................... YES

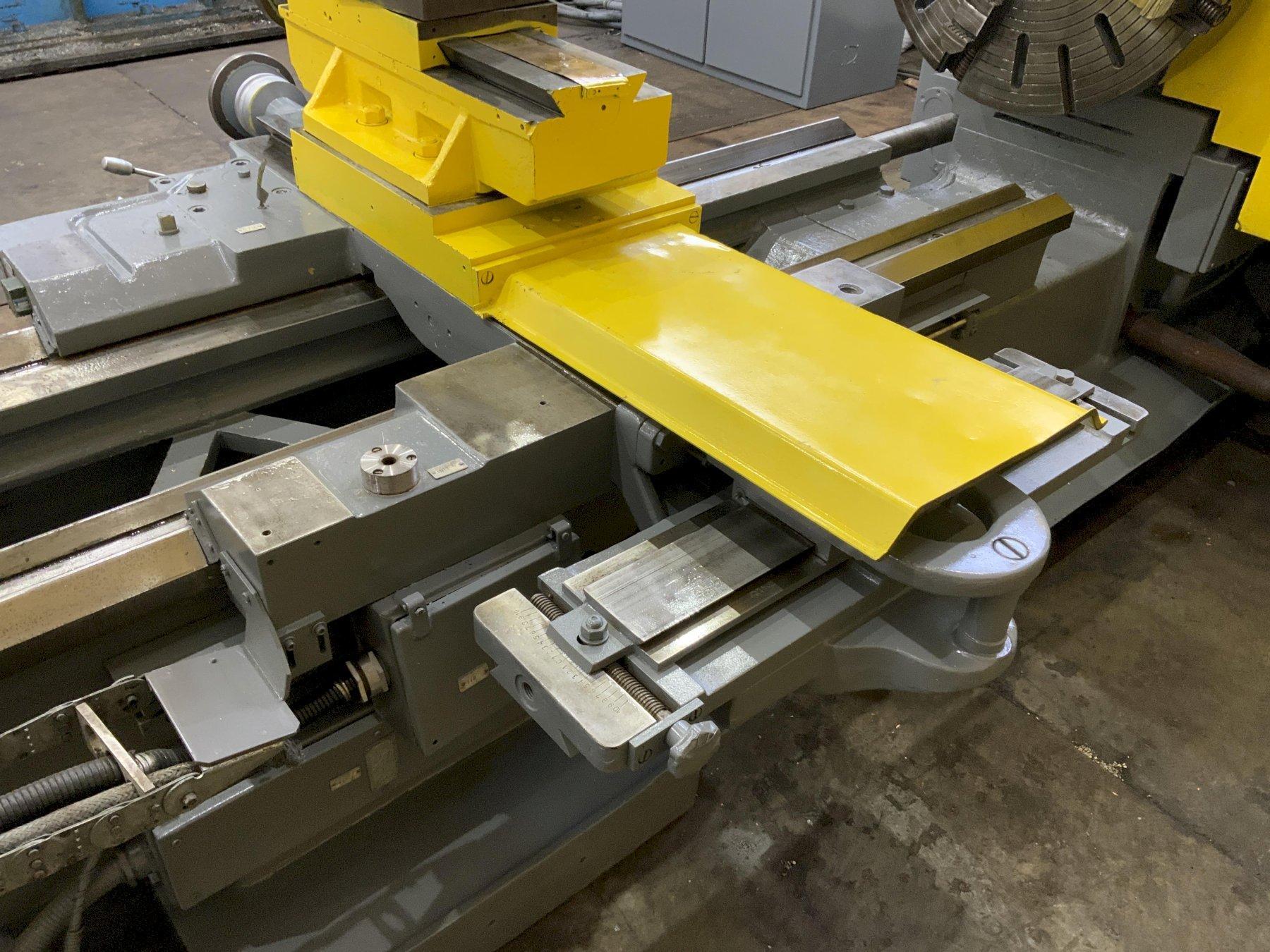

TAPER ATTACHMENT ........................ YES

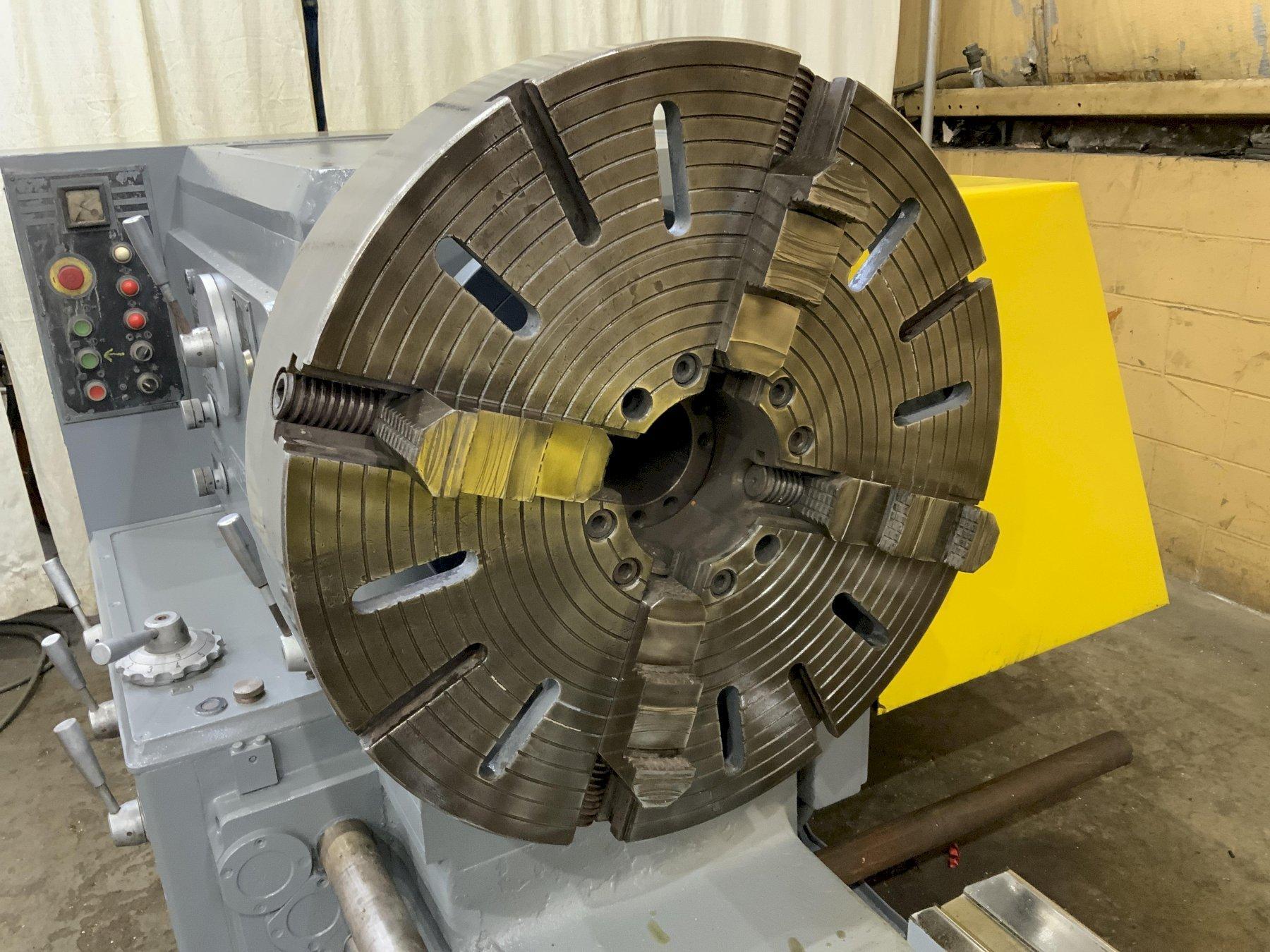

CHUCK ................................... 31" 4-JAW CHUCK

THREAD DIAL ............................. YES

6-WAY RAPID TRAVERSE .................... YES

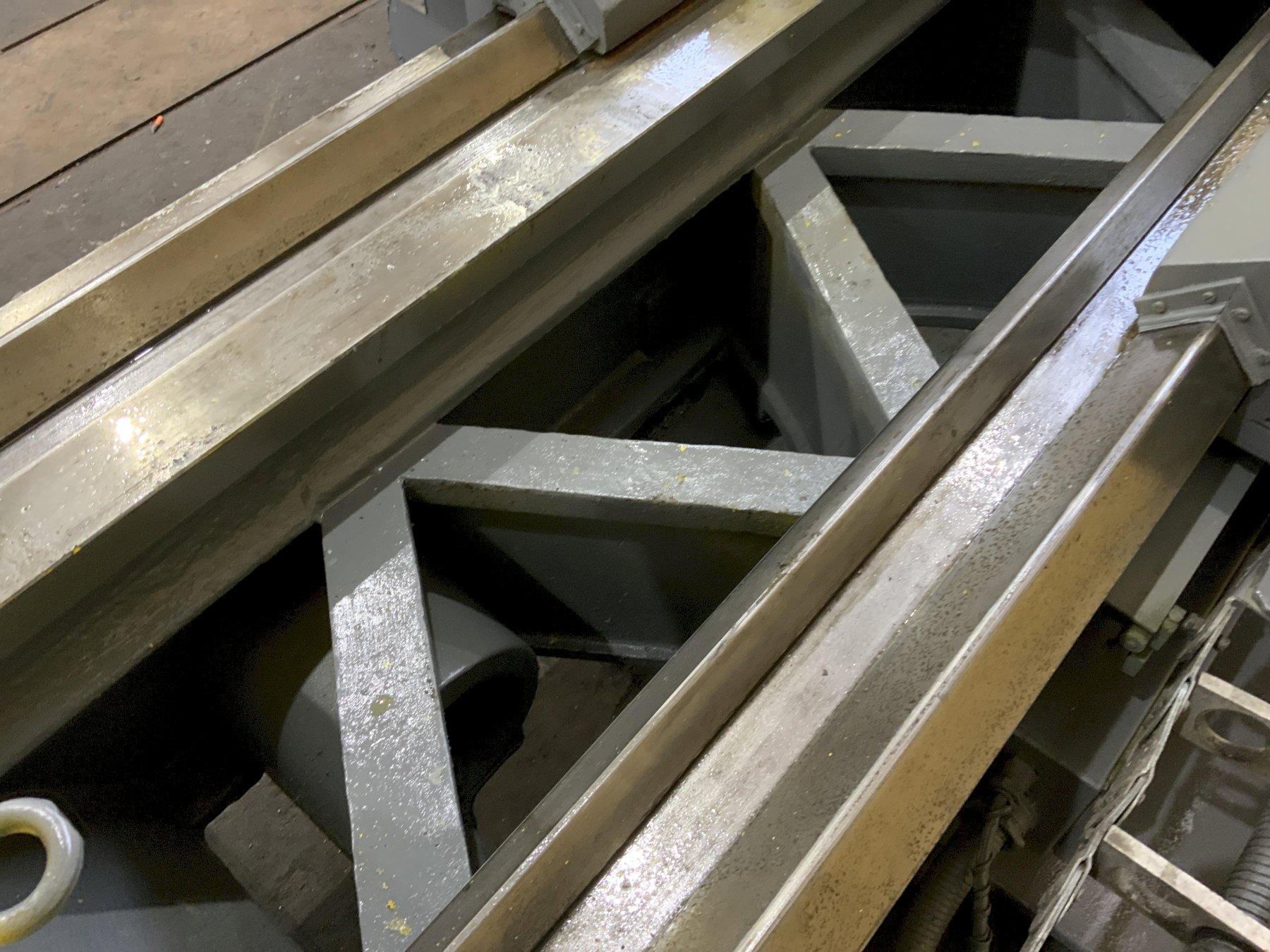

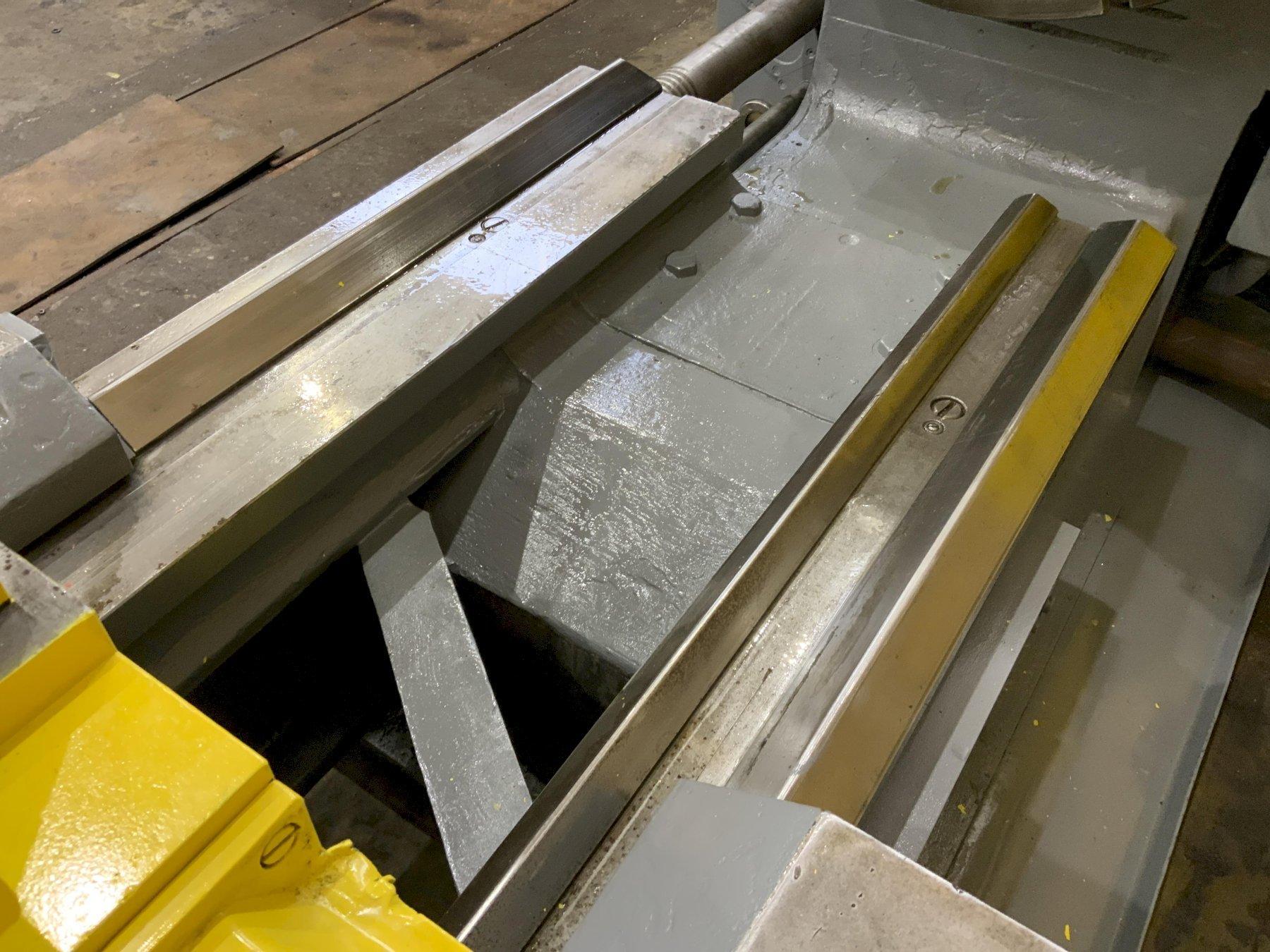

HARDEN WAYS ............................. YES

SPINDLE DRIVE MOTOR ..................... 25 HORSEPOWER
