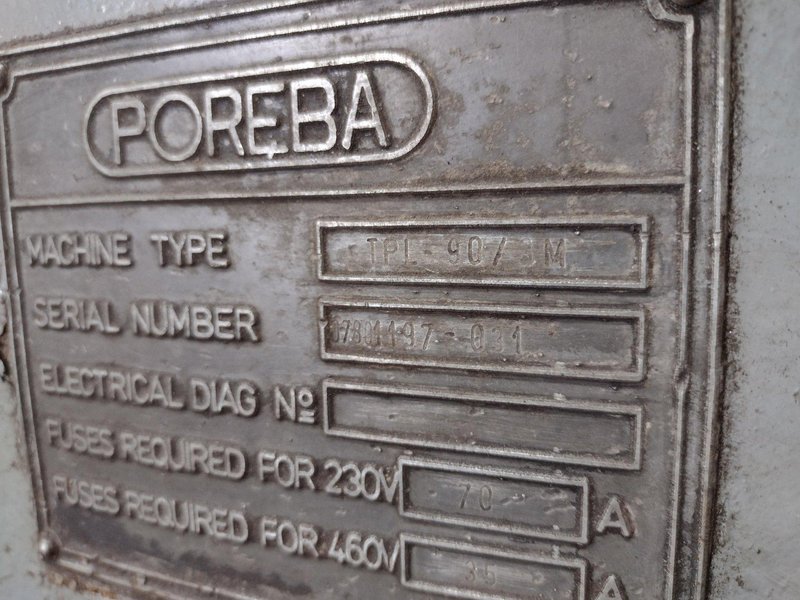

Serial ...................... 0781197-031
Model ....................... TPK-90/3M
Swing Over Bed .............. 38"
Swing Over Carriage ......... 25-1/2"
Distance Between Centers .... 120"

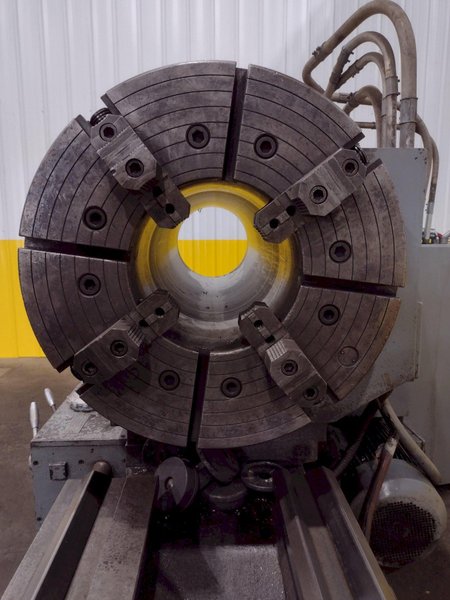

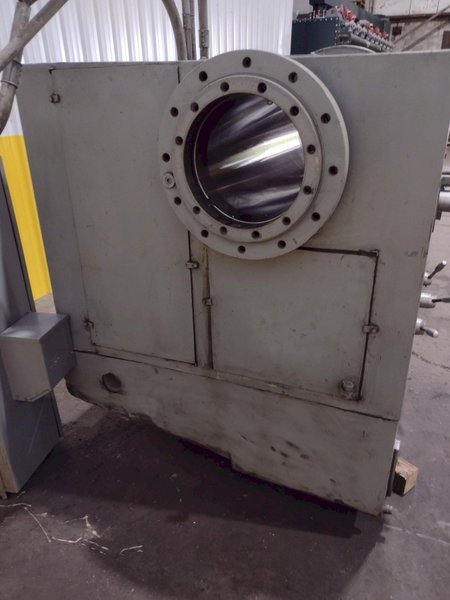

*** Spindle Hole *** ........ 12 1/2"
Spindle Nose ................ A1-20"

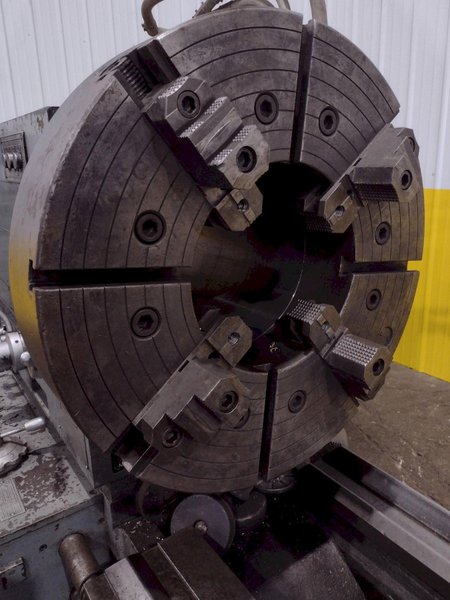

Chucks, Front & Rear ........ 28" - 4-Jaw

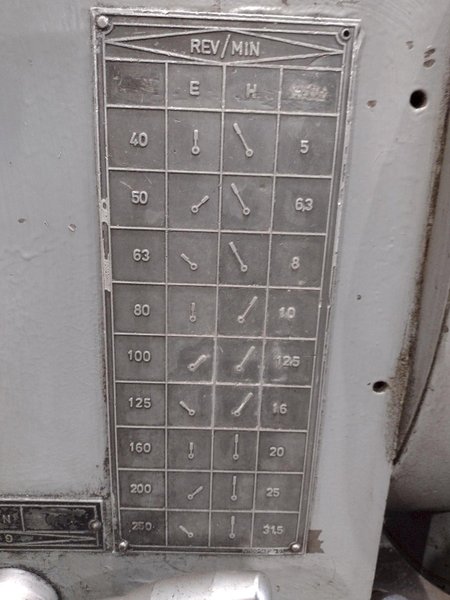

Spindle Speeds .............. (18) 5 - 250 RPM

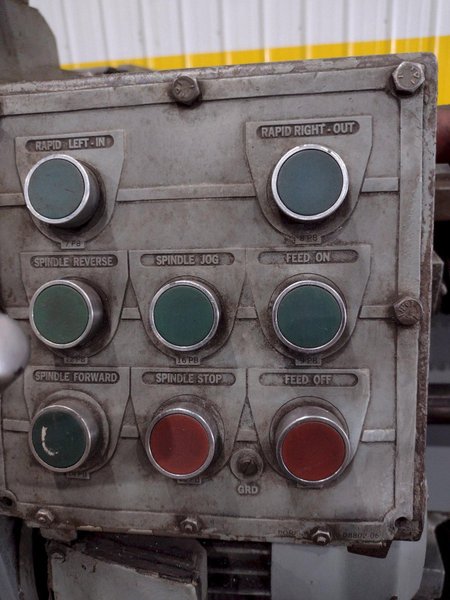

Spindle Jog Button .......... Yes, Forward & Reverse
Spindle Stop Button ......... Yes
Longitudinal Feeds, U.S ..... .0043 - .248 IPR
Longitudinal Feeds, Metric .. .11 - 6.4 mm/rev
Cross Feeds, U.S. ........... .0021" - .124 IPR
Cross Feeds, Metric ......... .05 - 3.20 mm/rev

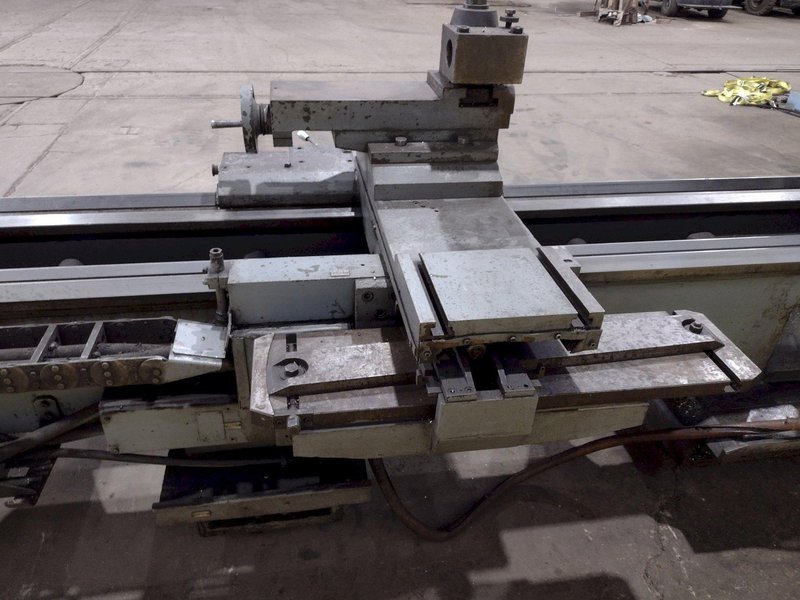

Cross Slide Travel .......... 18-1/2"
Top Slide Travel ............ 11-3/4"

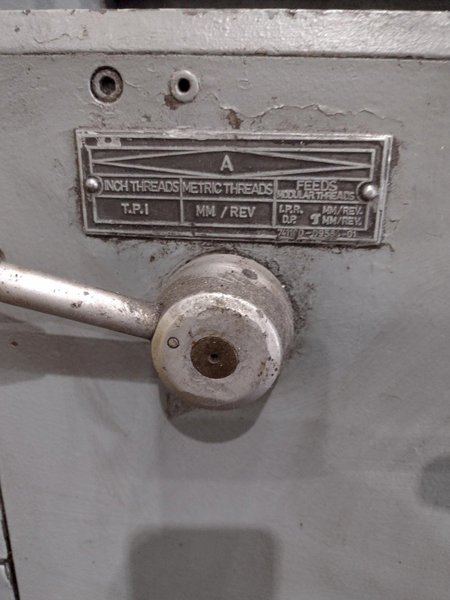

Threads, Inch ............... (54) 1/2 - 16 TPI
Threads, Metric ............. (72) 1 - 60 mm
Threads, D.P. ............... 1 - 60
Threads, Modular ............ .25 - 15 mm

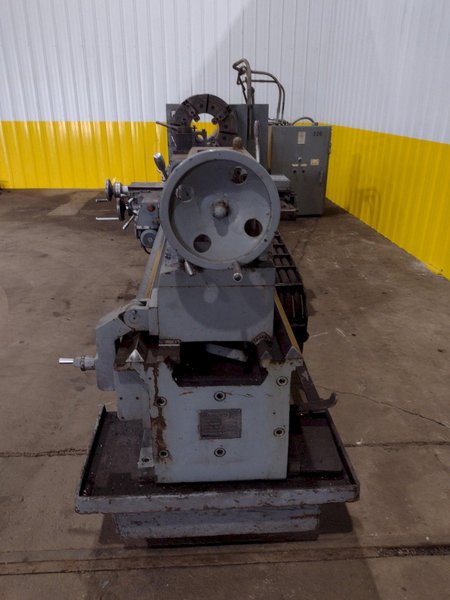

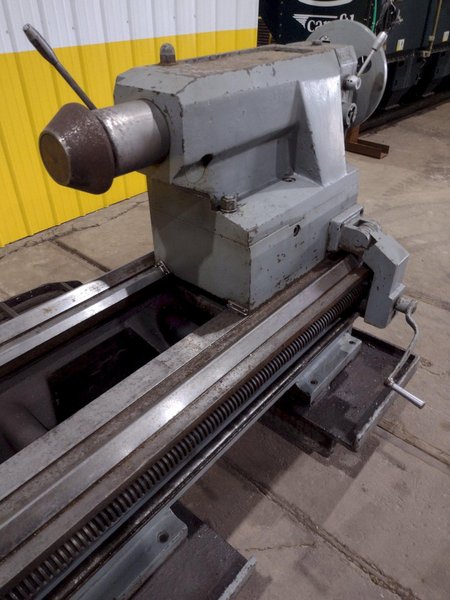

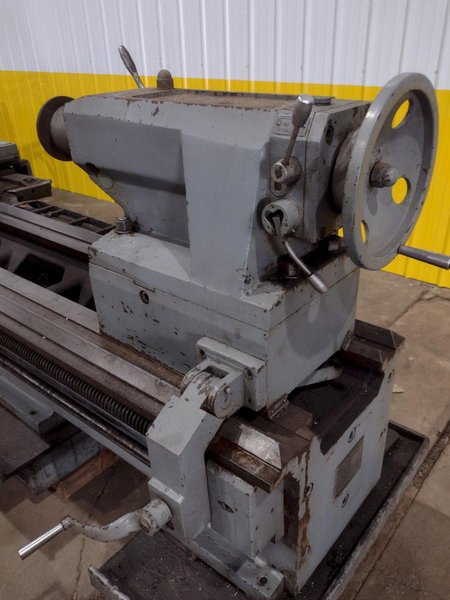

Tailstock Spindle Diameter .. 5"
Tailstock Spindle Travel .... 11-3/4"
Tailstock Spindle Taper ..... 6 MT
Steady Rest ................. Yes
Taper Attachment ............ Yes
Four Way Rapid Traverse ..... Yes
Coolant ..................... Yes

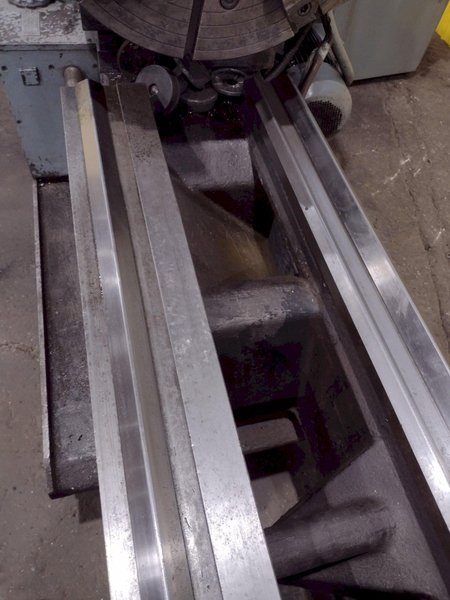

Hardened and Ground Ways .... Yes
Main Motor .................. 30 HP
