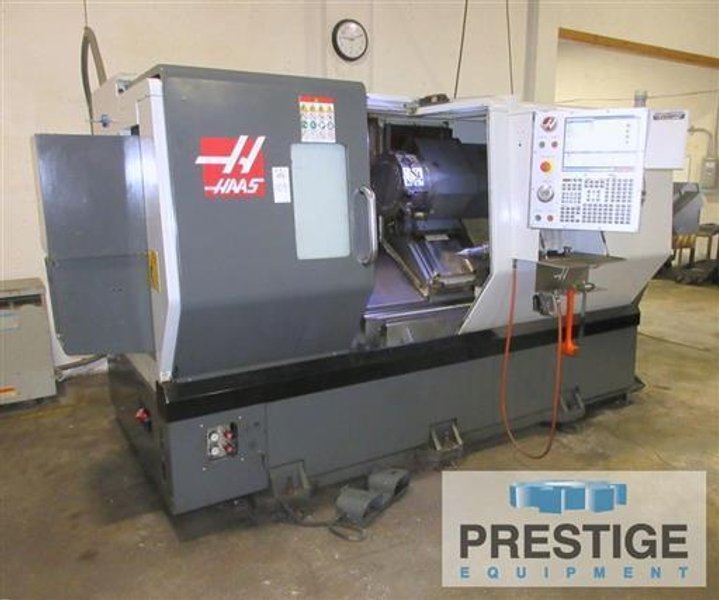

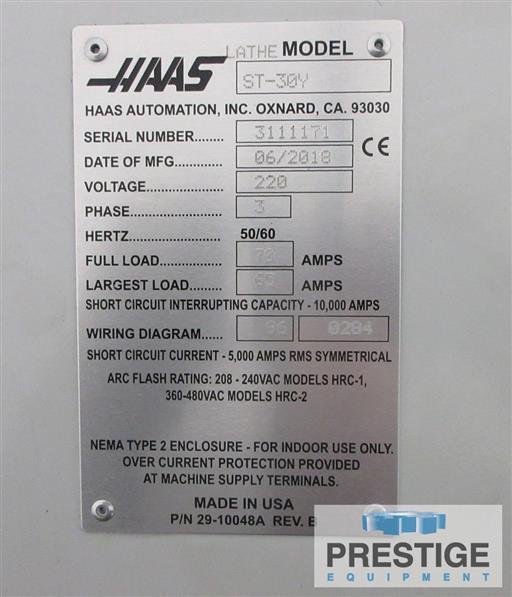

Haas ST 30Y CNC Lathe

CAPACITY:
Maximum Part Swing 21"
Maximum Cutting Diameter 13.75"
Maximum Cutting Length 32.5"
Spindle Speeds 3,400 RPM
Spindle Motor 30 HP
Spindle Nose A2-6
Spindle Bore 3.5"
Bar Capacity 3"
X-Axis Travel 9.4"
Y-Axis Travel +/- 2"
Z-Axis Travel 32.5"
C-Axis Positioning 0.01 Deg.
Live Milling Speed 4,000 RPM
Rapids(X/Y Axis) 472 IPM
Rapids(Z-Axis) 945 IPM



Equipped With:

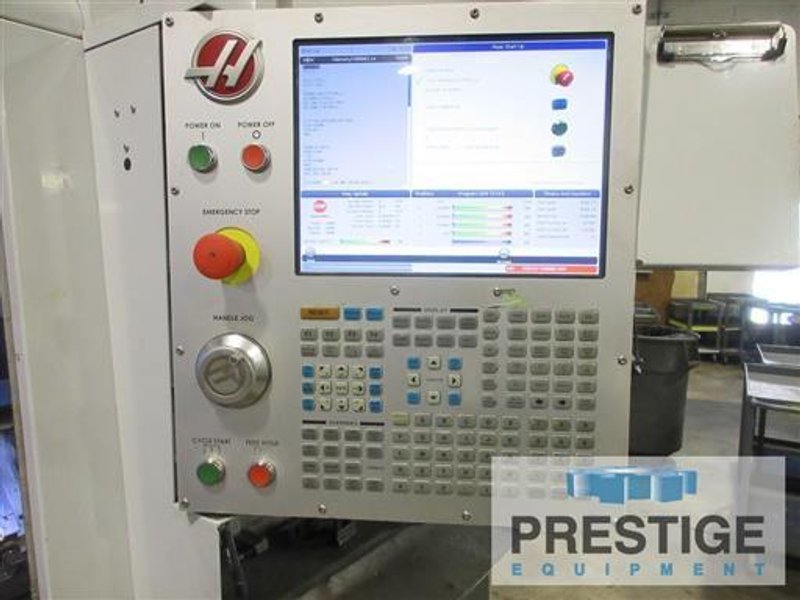

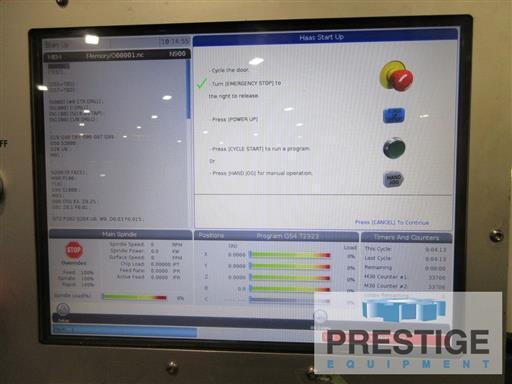

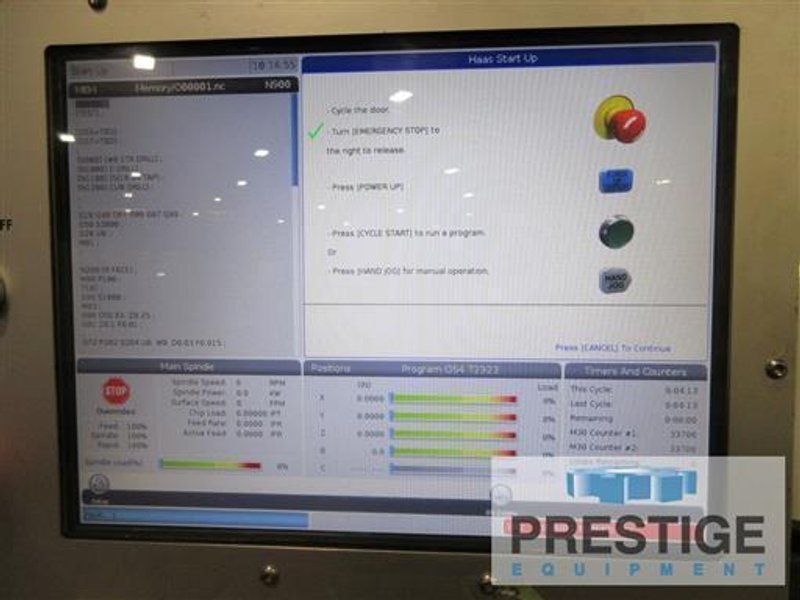

Haas CNC Control with 15" Color LCD Monitor

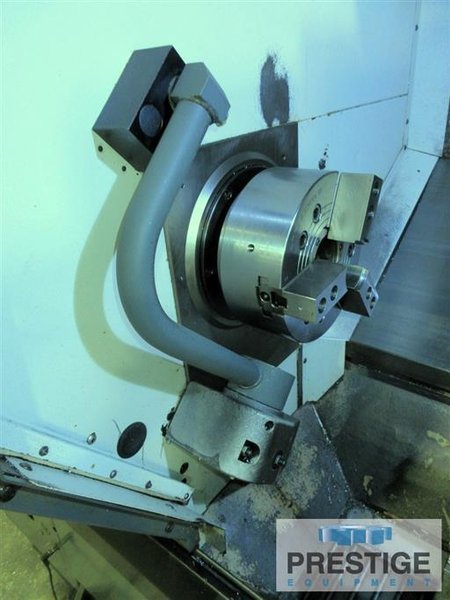

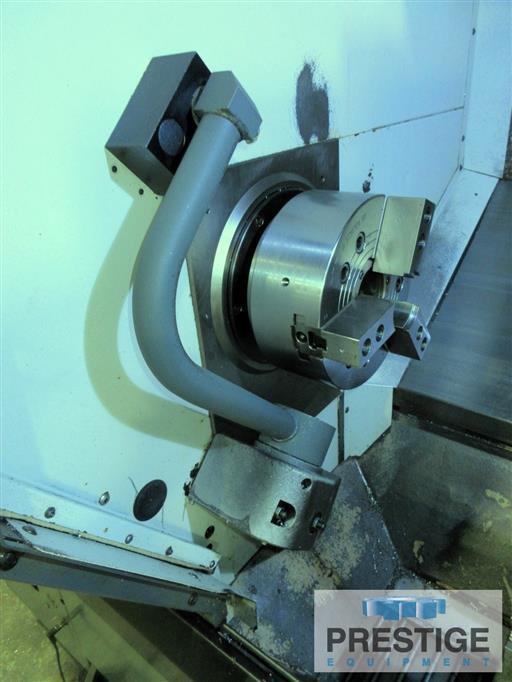

10" 3-Jaw Hydraulic Chuck
Live Tooling
Servo Driven C-Axis

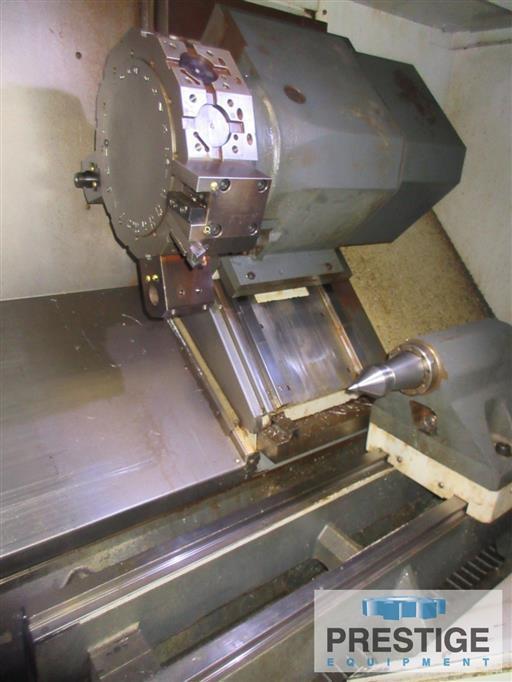

24-Station Turret
Spindle Orientation
Rigid Tapping
Automatic Tool Pre-Setter
Tailstock

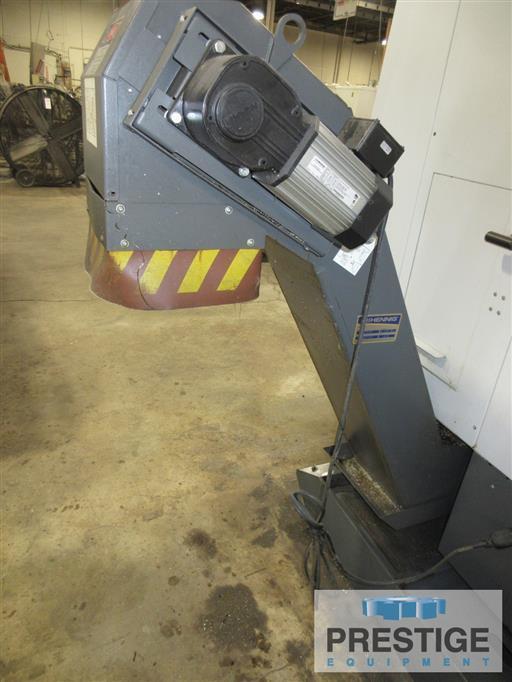

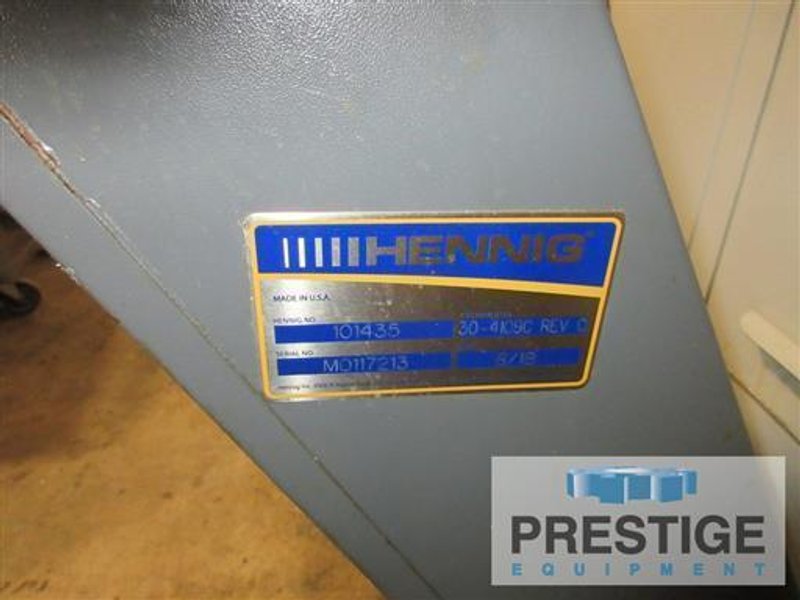

Belt Type Chip Conveyor
Coolant Tank Oil Skimmer


NOTE: Inspect In Plant Under power


Auction Message:
To be sold at auction March 5th, Convertech, Manufacturer of Air Shafts & Chucks




View The Auction
