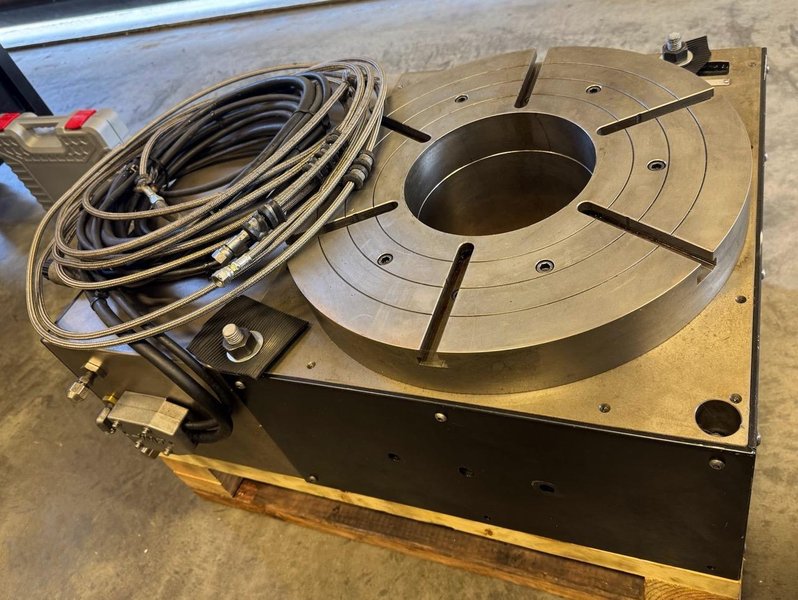

Platter Size: 17.7″ (450 mm)
Max Weight on Platter: 450 lbs unsupported, 850 lbs with support
Max Torque: 400 ft-lb
Max Speed: 50 °/sec
Through-Hole Diameter: 7.500″ (190.5 mm)
T-Slot Mounting: 6 T-slots for chuck and fixture mounting
Dimensions: 38″ x 19″ x 33″ (965 mm x 483 mm x 838 mm)
Weight: 930 lbs (422 kg)
Control System: CNC (Haas Servo Control)
Required Software: Haas mill with software version 18.00 or later
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
