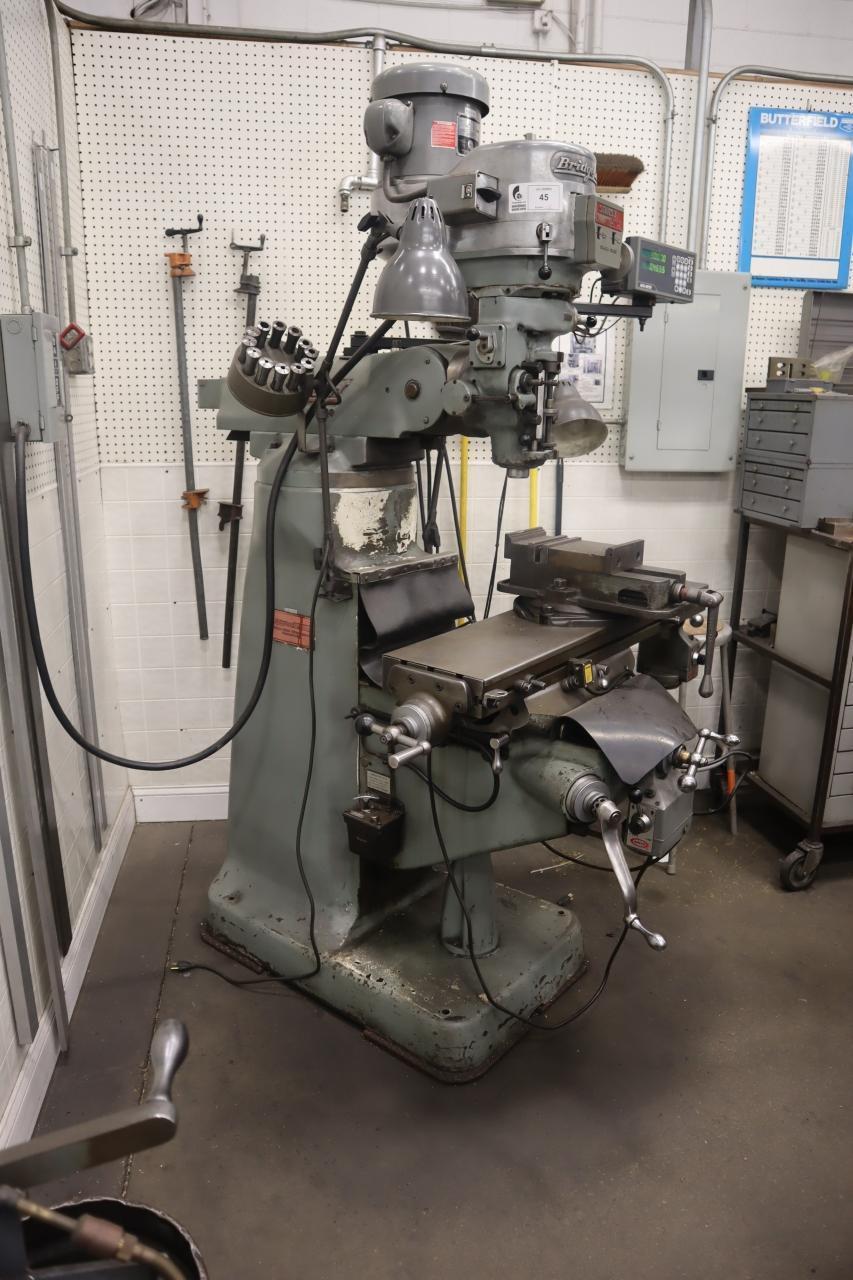

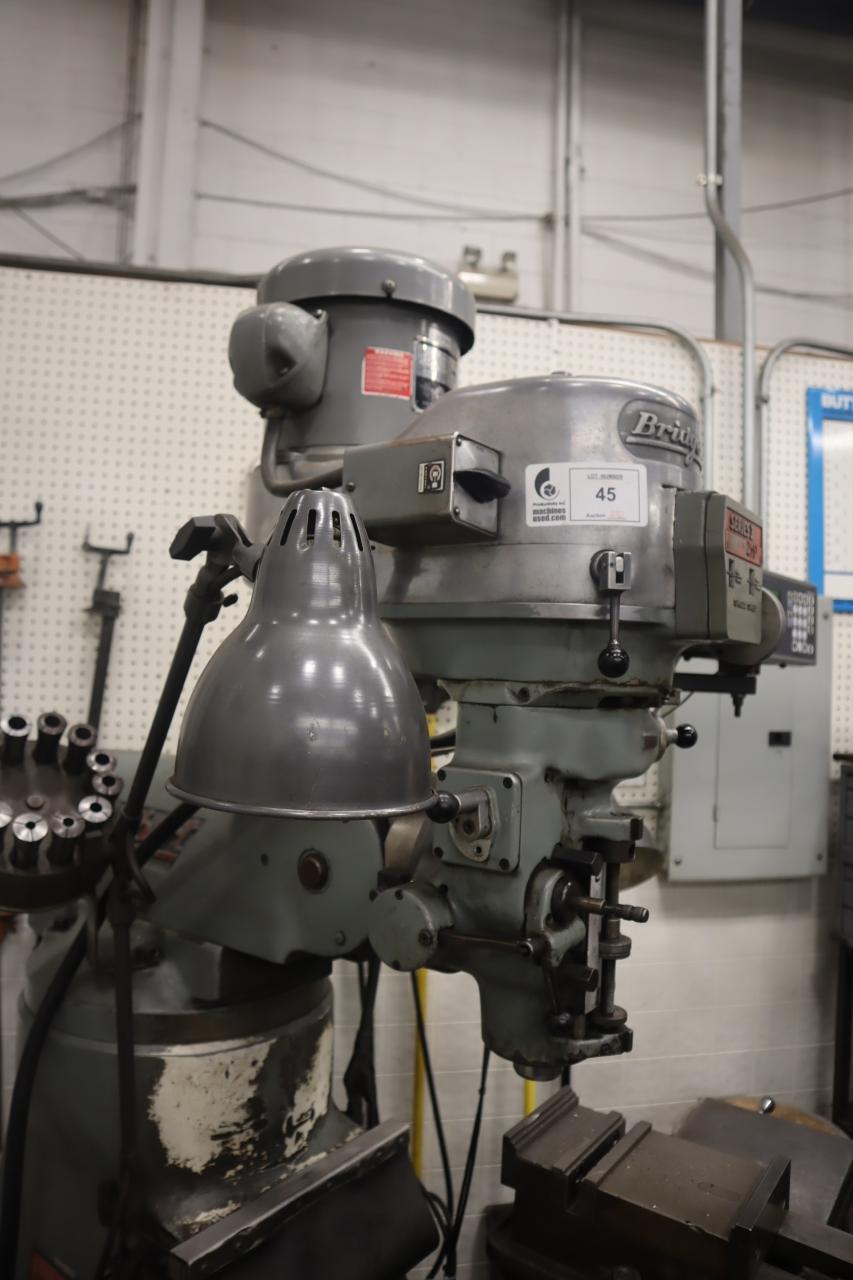

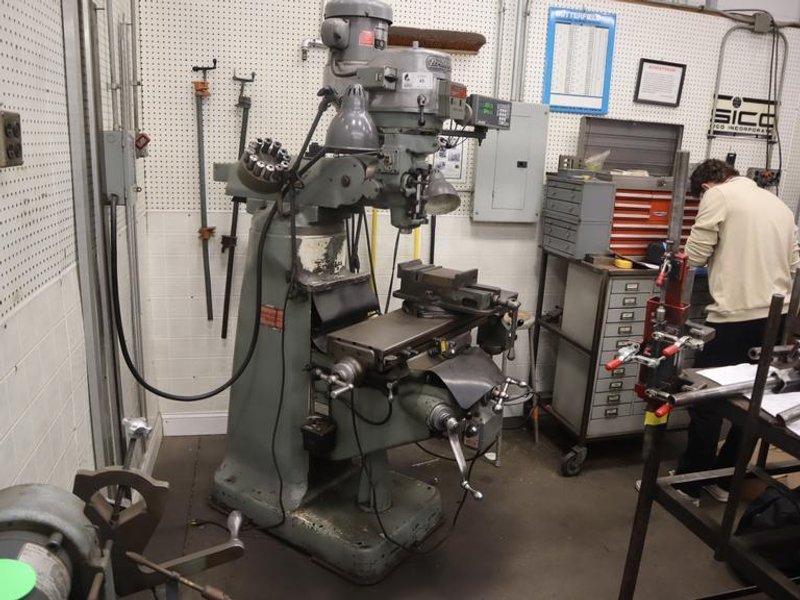

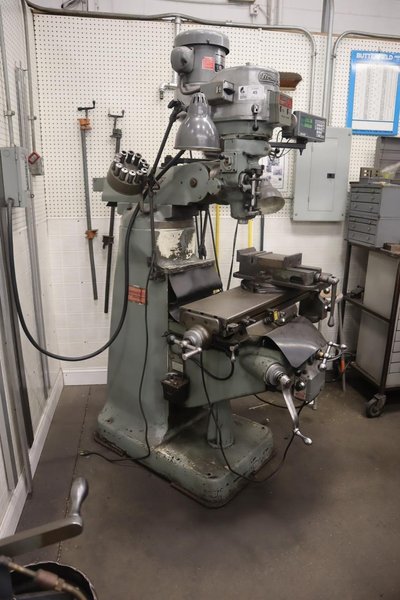

Lot 45: Bridgeport Series I Vertical Knee Mill, X & Y-Axis Servo Power Feeds, 2-Axis Acu-Rite DRO

Equipped With:

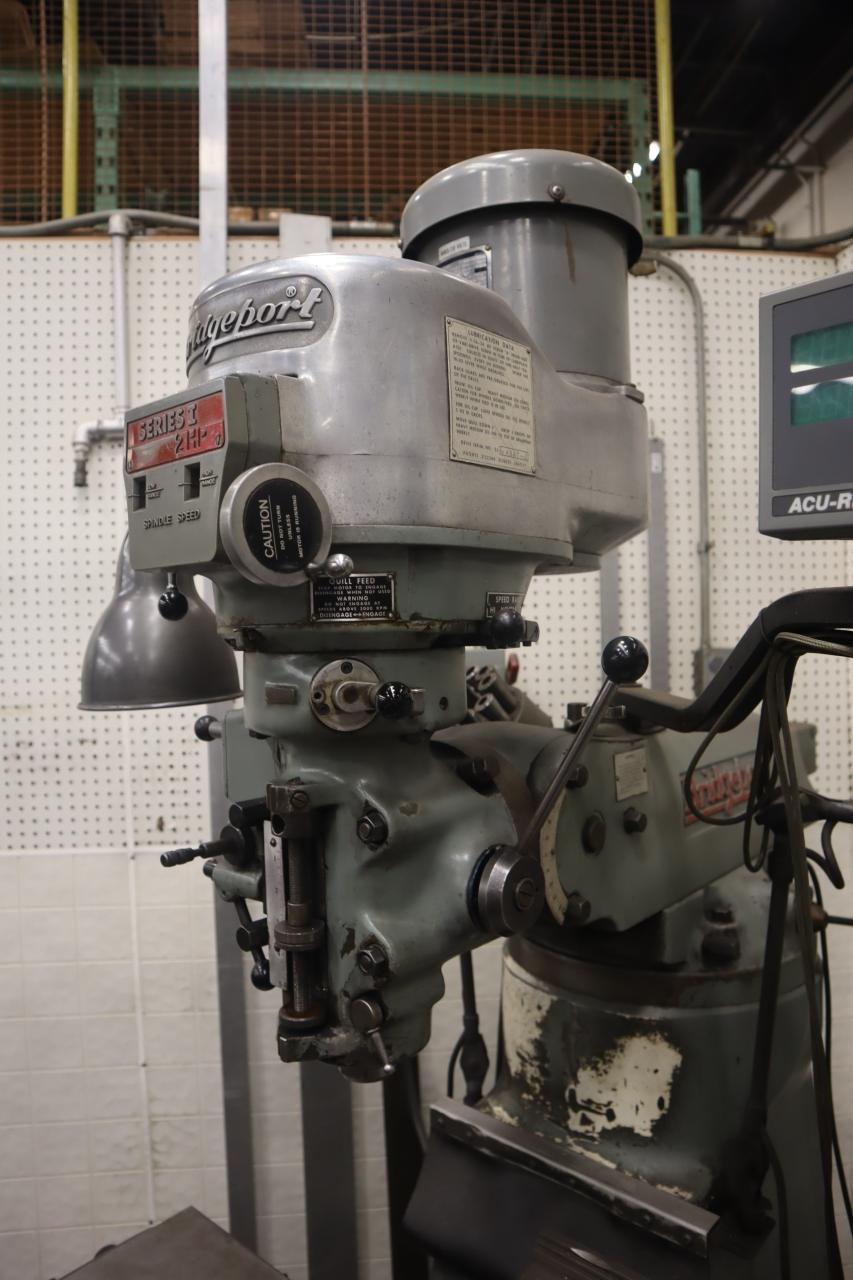

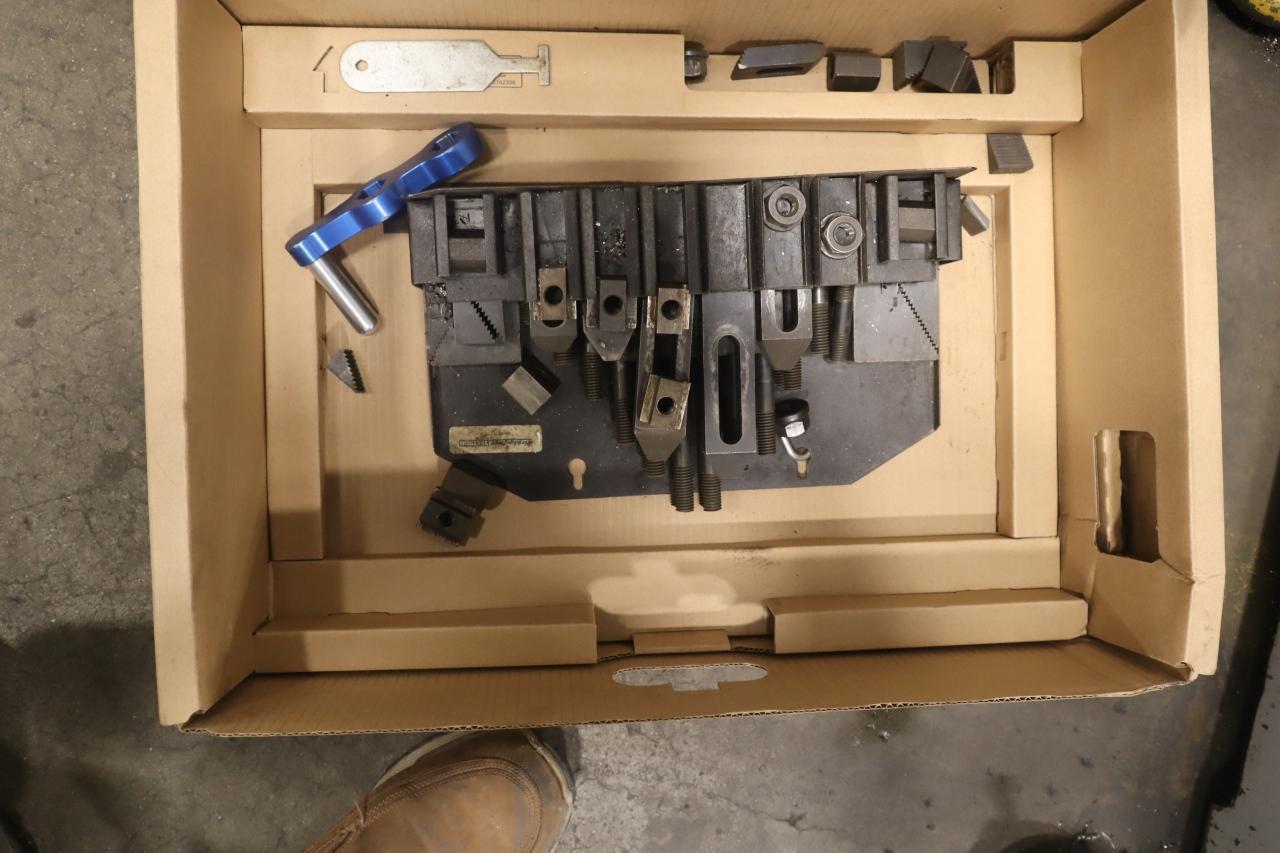

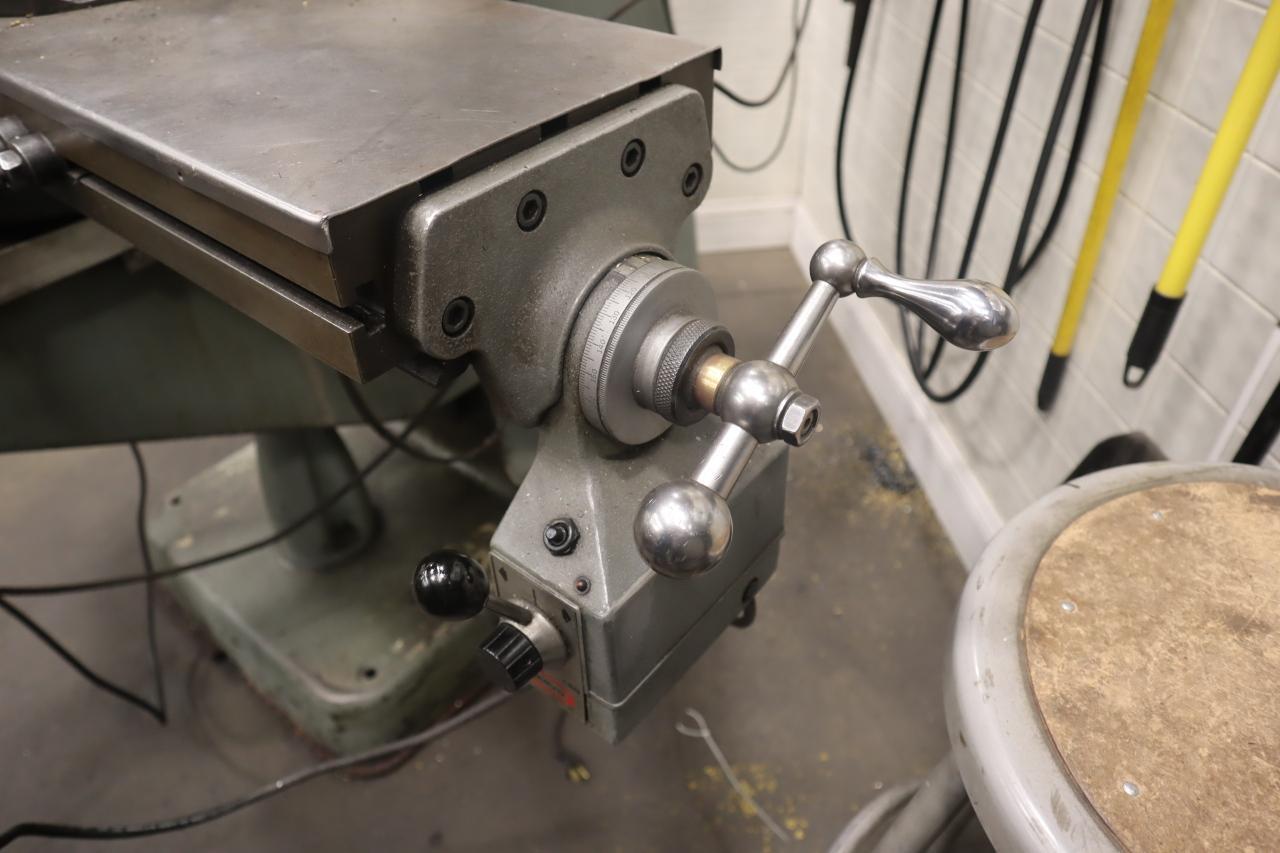

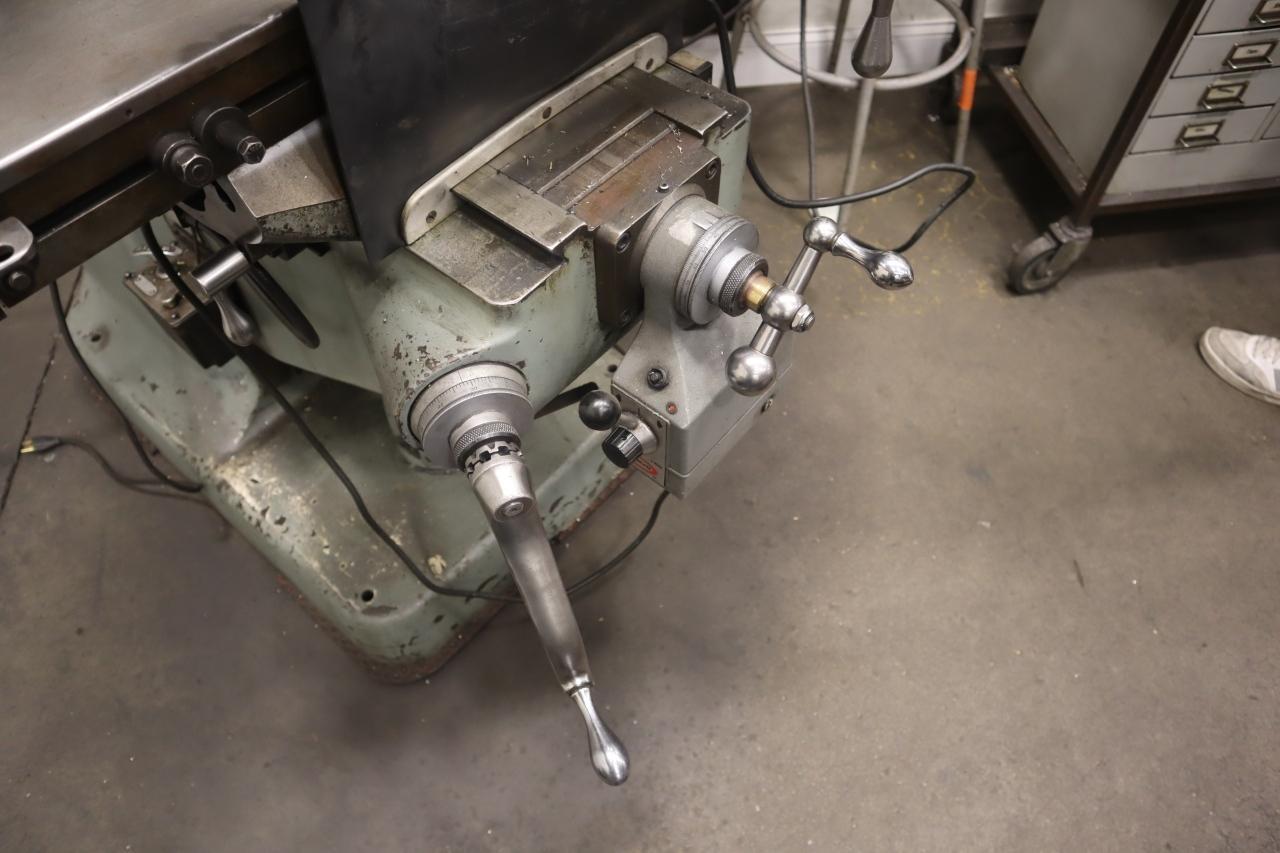

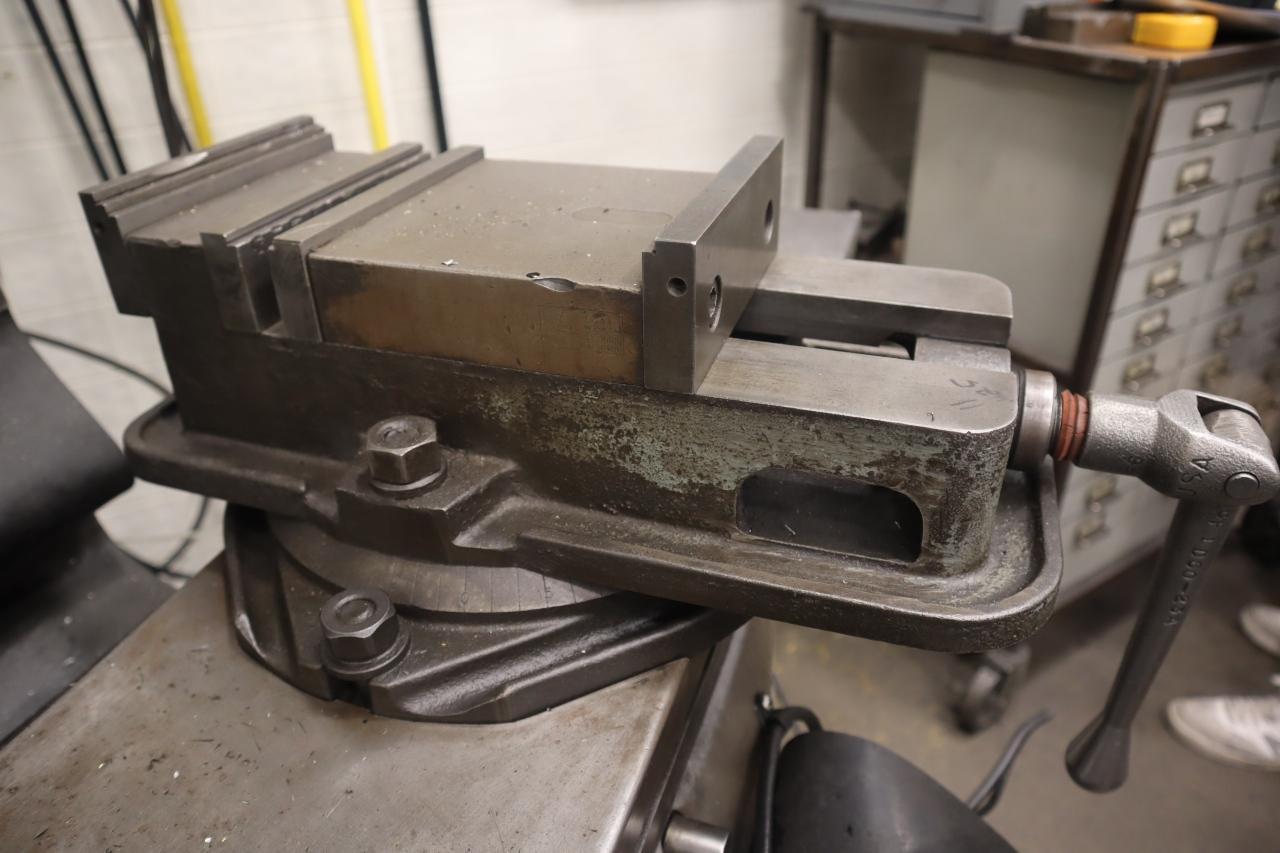

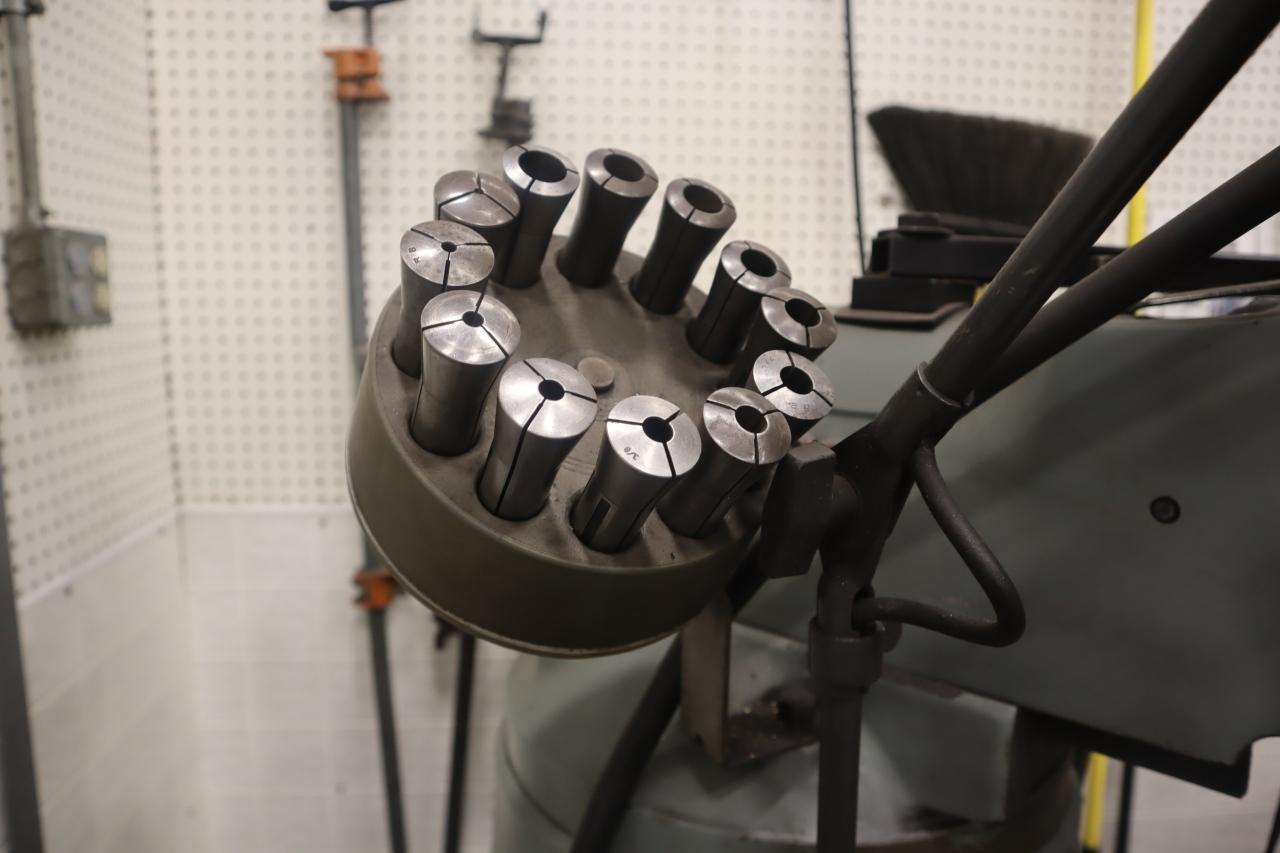

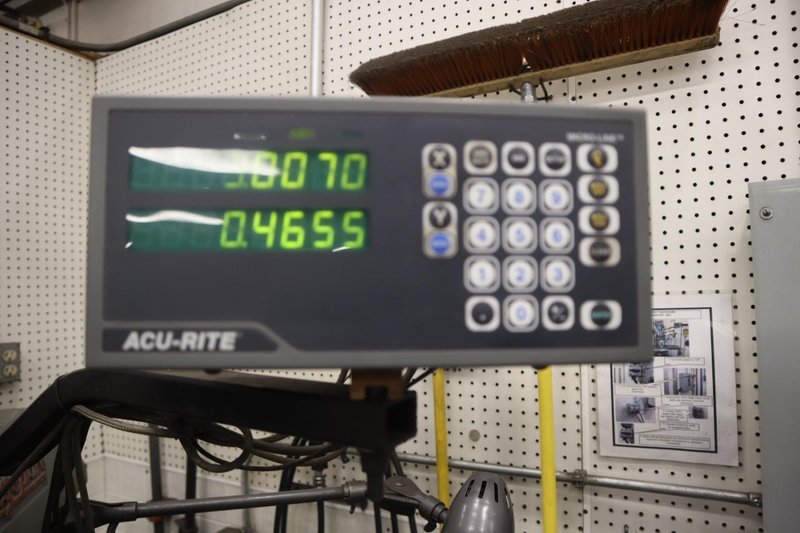

9"x42" Table, Collet Racks with R8 Collets, One-Shot Lube, X & Y axis Servo Power Feeds, Knee Handle, Worklights, 2- Axis Acu-Rite Digital Readout, 6" Kurt Vise on Swivel Base, Hold Down Gear, Manuals/NOTE: Power Quill Feed Currently Non-Operational

Electrics:

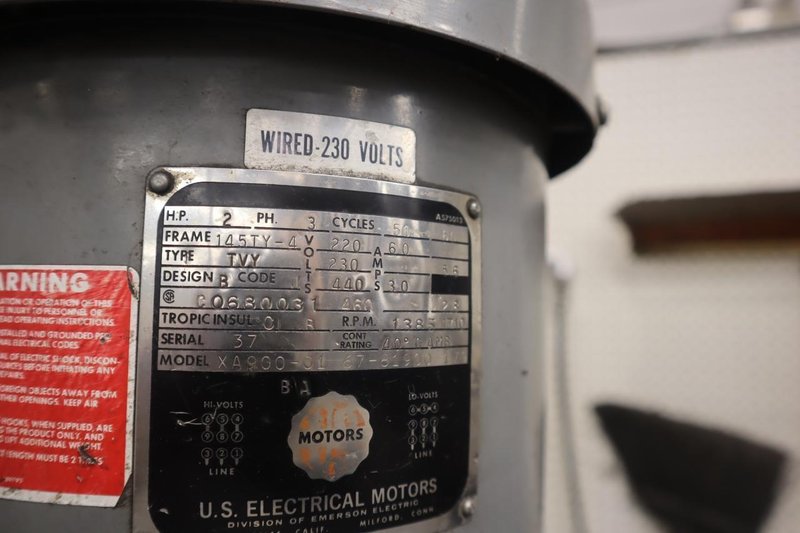

220/230/440/460 Volt, 3 Phase

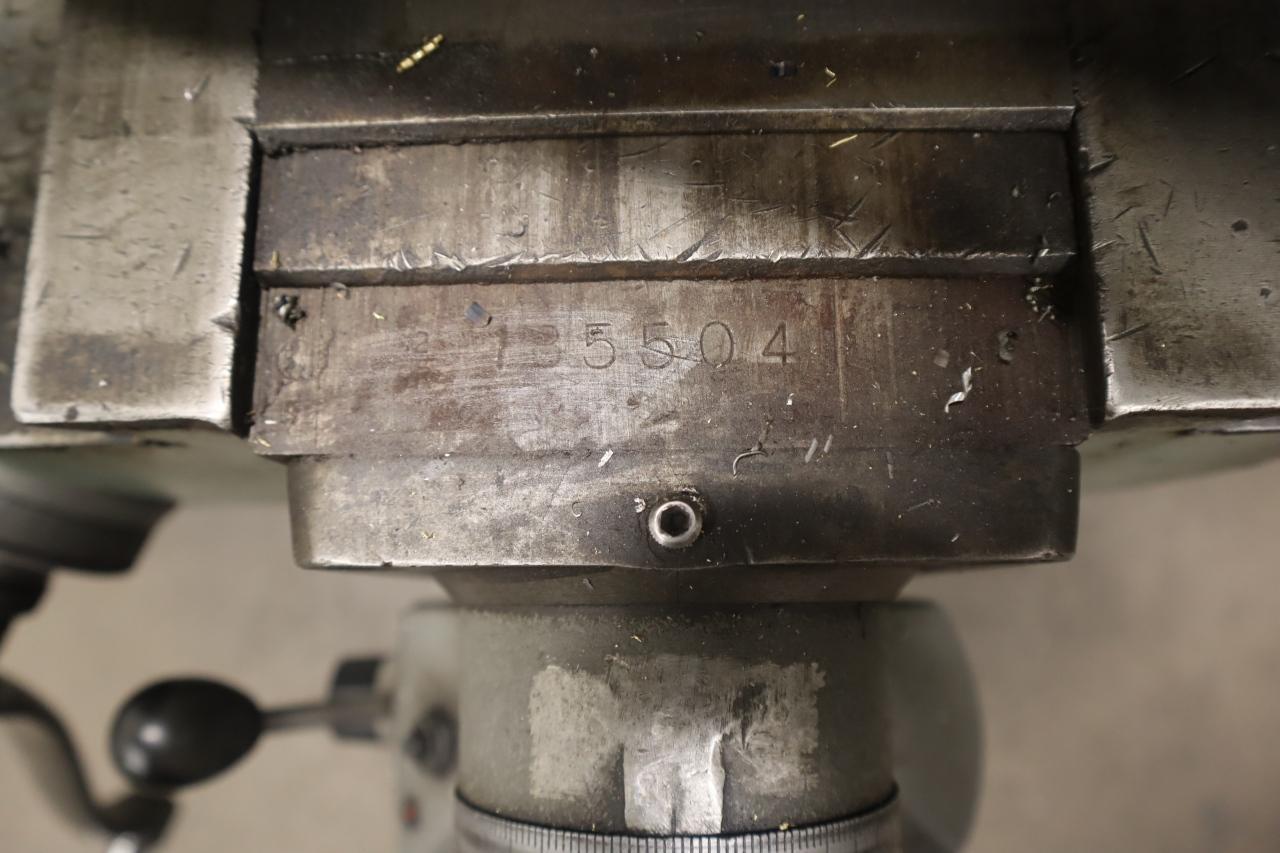

Manufacturer: Bridgeport Model: Series I Year: 1977 Serial Number: 185504

Main Unit Approx Weight: 2500.00 lbs

Main Unit Dimensions (in inches): Length: 58.00" Width: 50.00" Height: 78.00"

Specs:

Table Size: 9" x 42

Longitudinal Travel: 30" for 42" Table / 36" for 48" Table

Cross Travel: 12"

Quill Travel: 5" Hand or Power Feed

Knee Travel: 16"

Power Quill Feeds: (3) .0015 / .003 / .006 IPR

Spindle Taper: R-8

Spindle Speeds: 60-4200 RPM Variable

Spindle Nose to Table Min-Max: 2.5" - 18.75"

Spindle Drive: 2 HP

Spindle Center to Column Distance: 6.75" - 18.75"

Overarm Ram Adjustment: 12" Manual Adjustment

Max Table Load: 750 Lbs.

Head Swivel Left to Right: +/- 90 Degrees

Head Tilt Front to Back: +/- 45 Degrees

Seller Company: Sico North America Inc

Seller Contact: John Ihrke Phone: (952) 941-1700

Item Location: Sico North America Inc, 7525 Cahill Rd, Edina, MN 55439

Location Contact: John Ihrke Phone: (952) 941-1700

Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday

Removal Dates and Times: This item must be removed between Tuesday, March 17, 2026 and Friday, March 27, 2026
