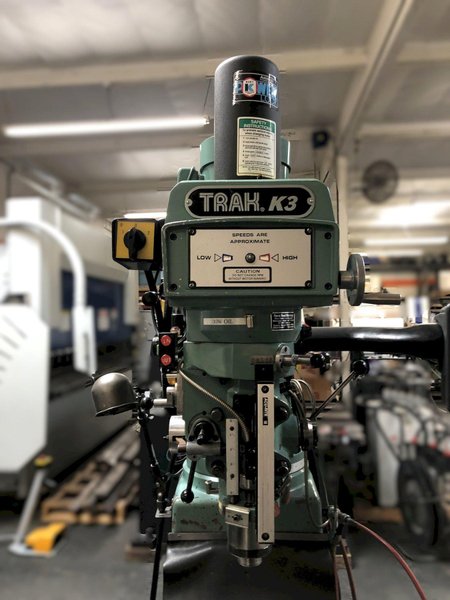

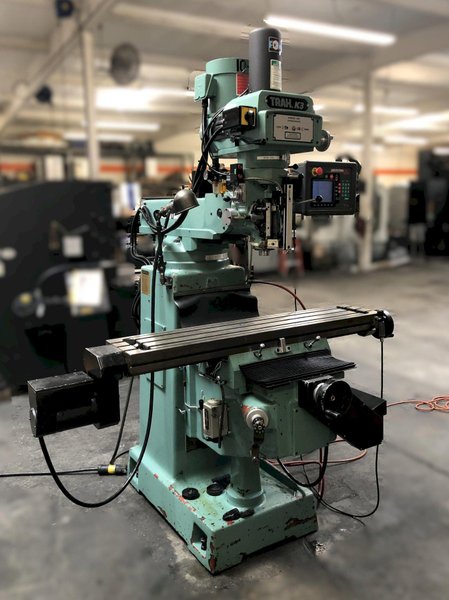

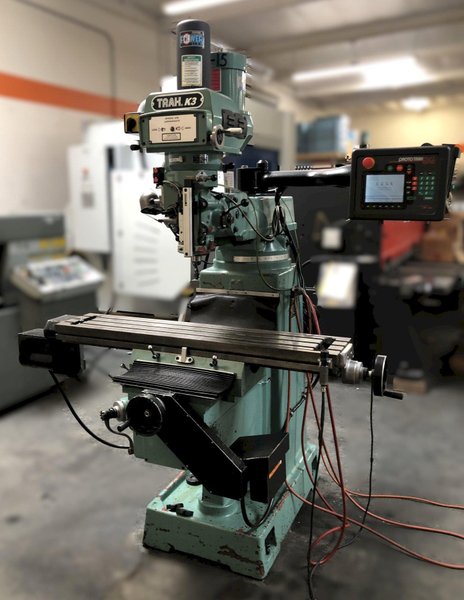

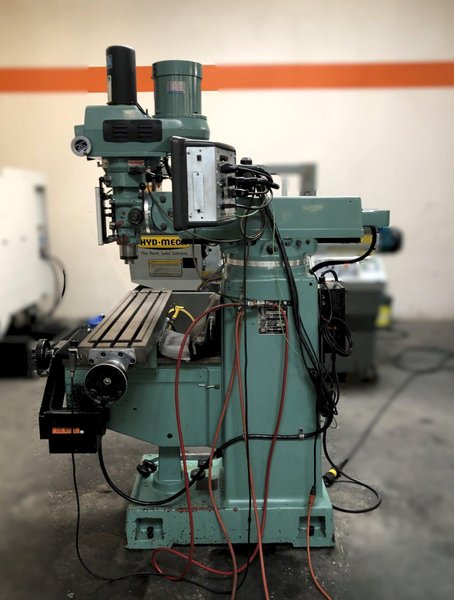

TRAK K3 EDGE 2 Axis CNC Knee Mill 2019 PROTO TRAK EDGE Control

Name: Used TRAK K3 Edge For Sale 7013
Brand: TRAK
SKU: 7013
Availability: PreOrder

Brand

TRAK

California

Model #	K3 2 Axis
Serial #	062AF14565
Year Of Manufacture	2019
Table Size	50” x 10”
T-Slots	(3) 5/8”
Table Travel Axis X	32”
Saddle Travel Axis Y	16’’
Knee Travel	16”
Ram Travel	15”
Quill Travel	5”
Quill Diameter	3-3/8”
Spindle Taper	R-8
Spindle Speeds	60 – 4200 RPM
Head Tilt	45° forward, 45°back, 90° left, 90° right
Maximum Table Weight	850 Lbs.
Maximum Rapid Feed Rate	100 IPM
Spindle Motor	3 HP
Motor Voltage	220V / 440V / 3 phase/ 60 HZ currently wired for 440V
Dimensions	71” L x 69” W x 86’’ H
Weight	2850 pounds
Machine Location	Fullerton, CA

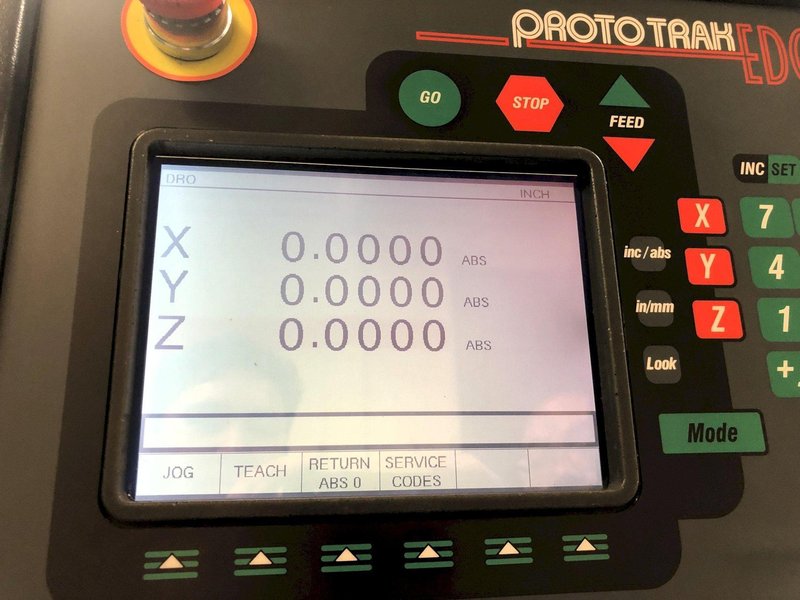

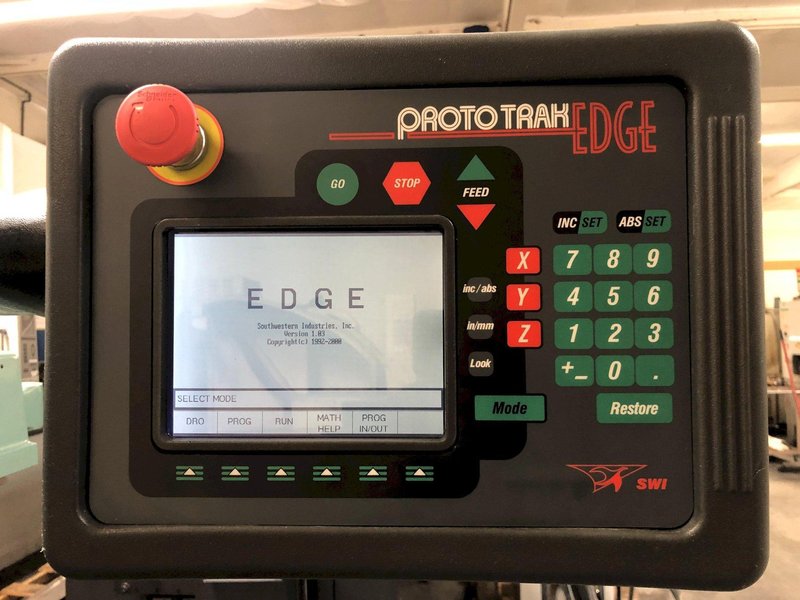

TRAK K3 EDGE 2 Axis CNC Knee Mill 2019 PROTO TRAK EDGE Control Equipped with Proto Trak EDGE CNC Control, (2-Axis CNC / 3-Axis readout), Kurt Pneumatic Drawbar Machine location- Fullerton, CA Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale. ACT Machinery 2424 Cypress Way Fullerton, Ca 92831 Financing Available / Se Habla Español
