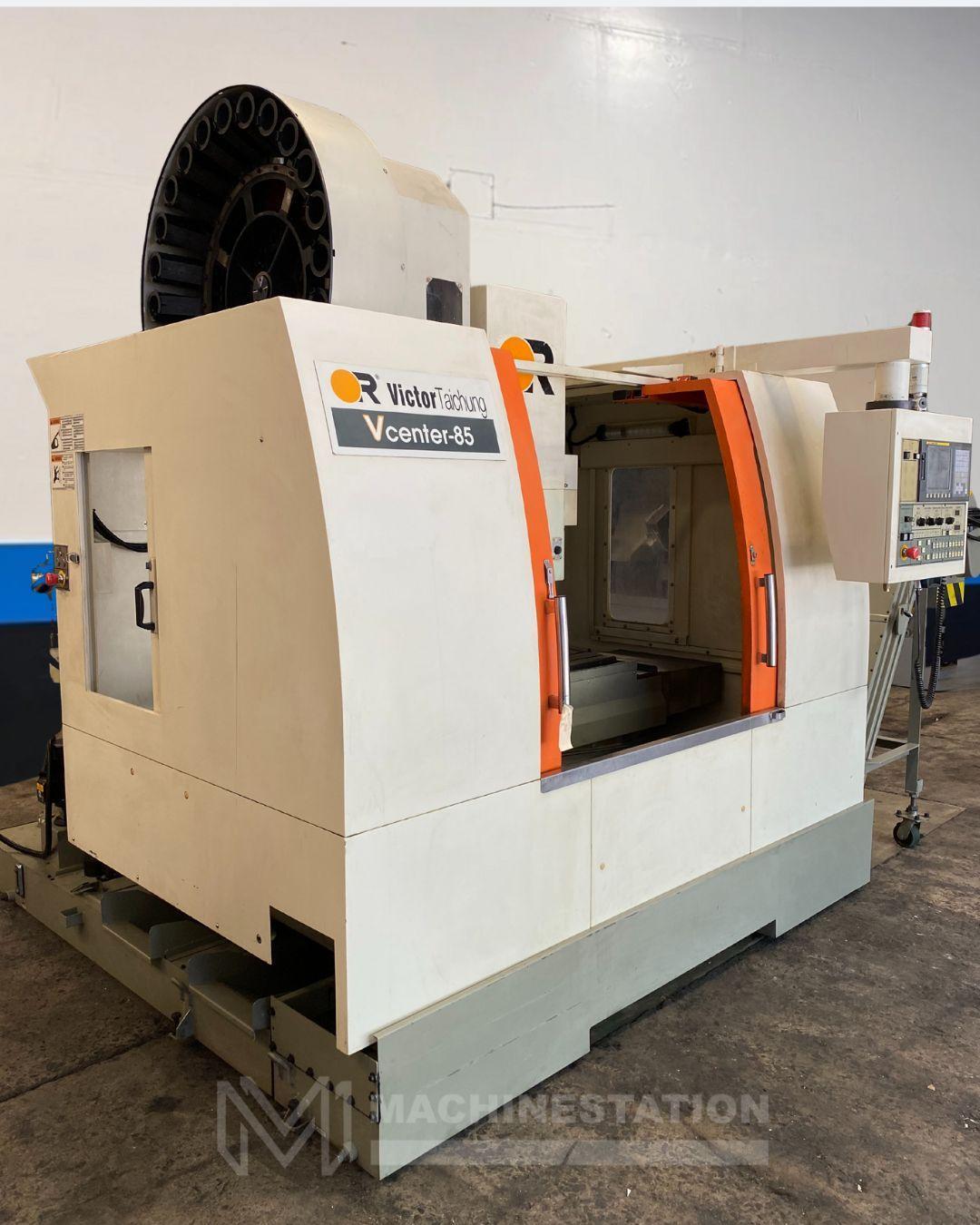

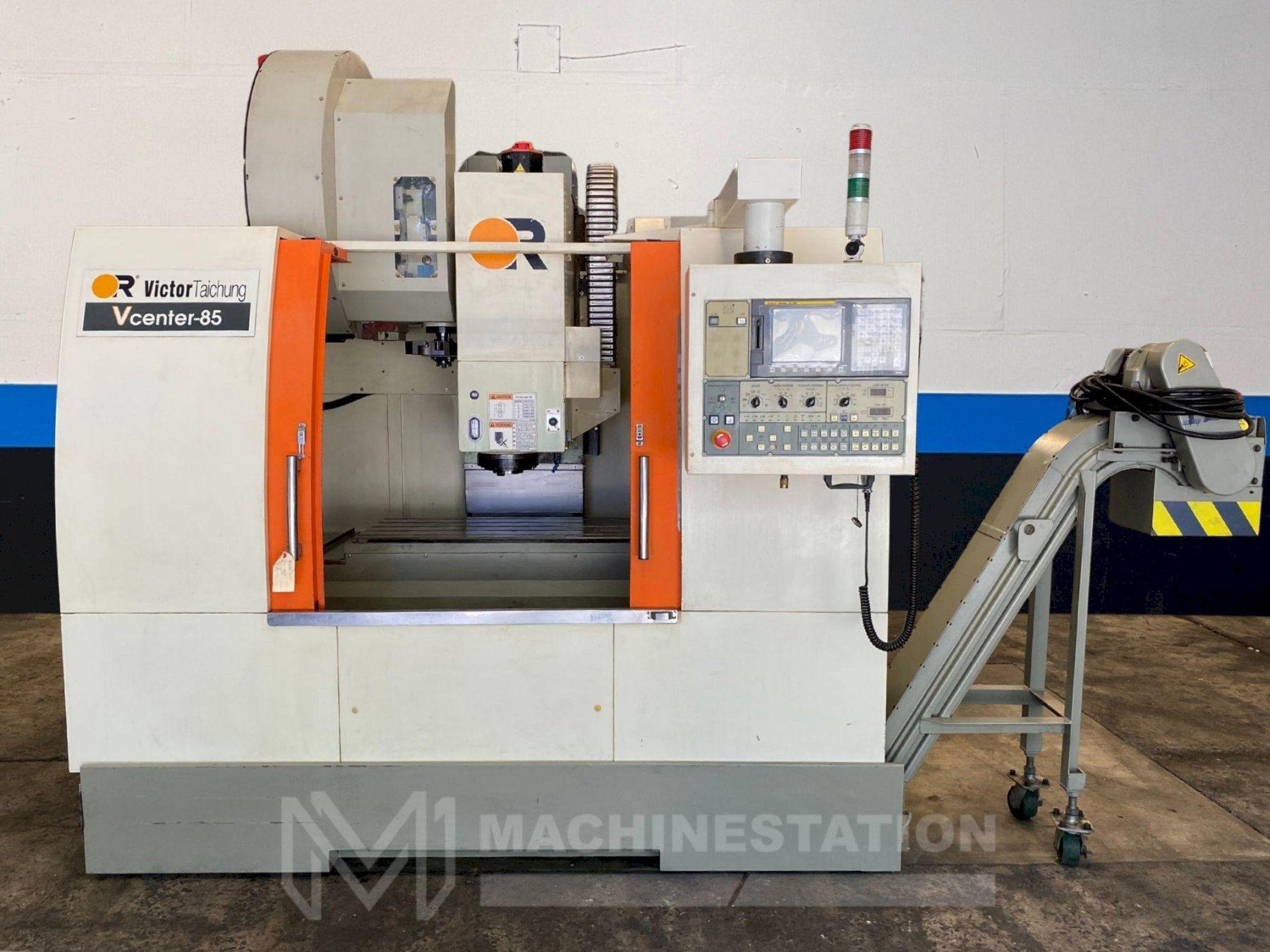

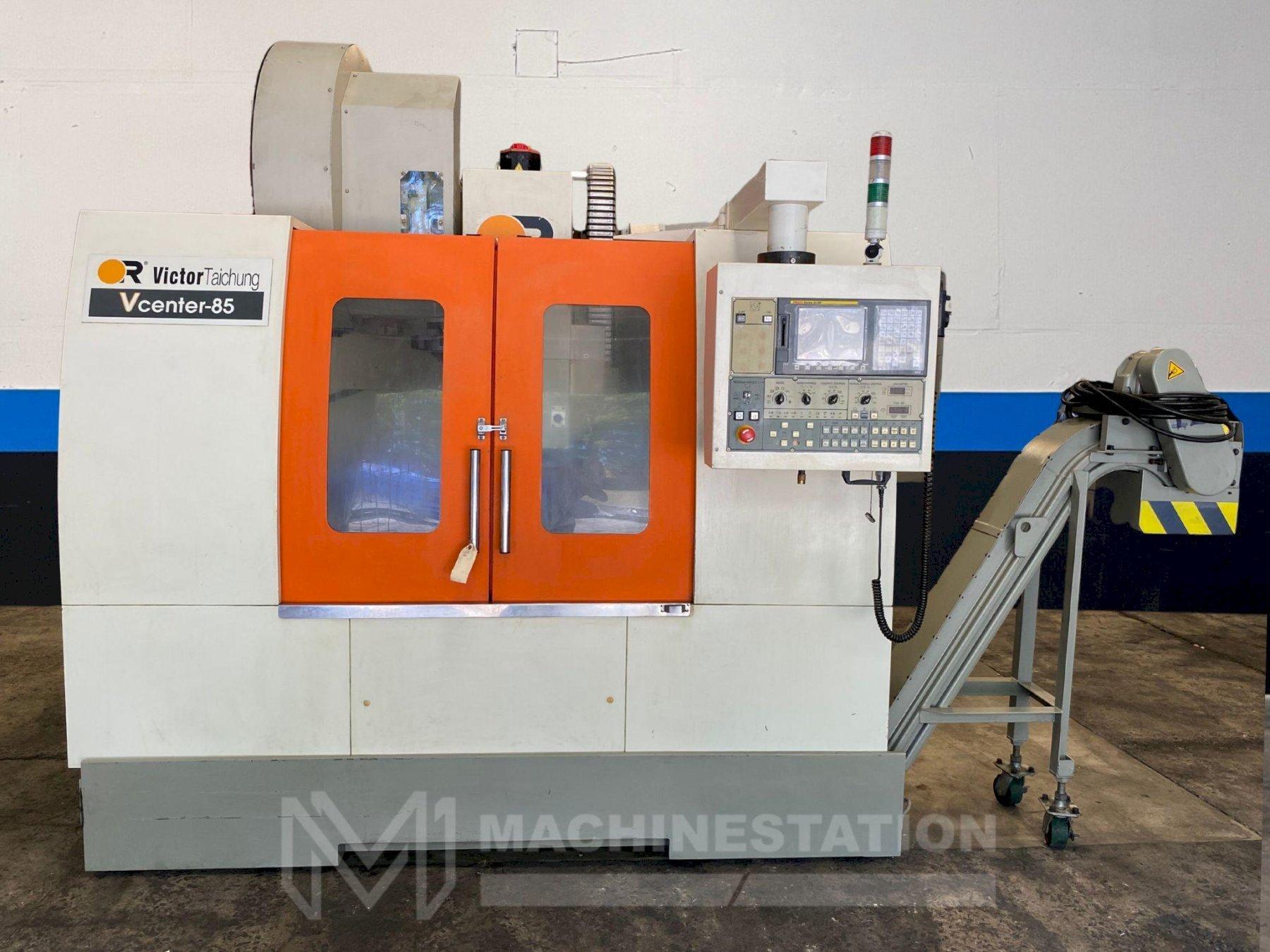

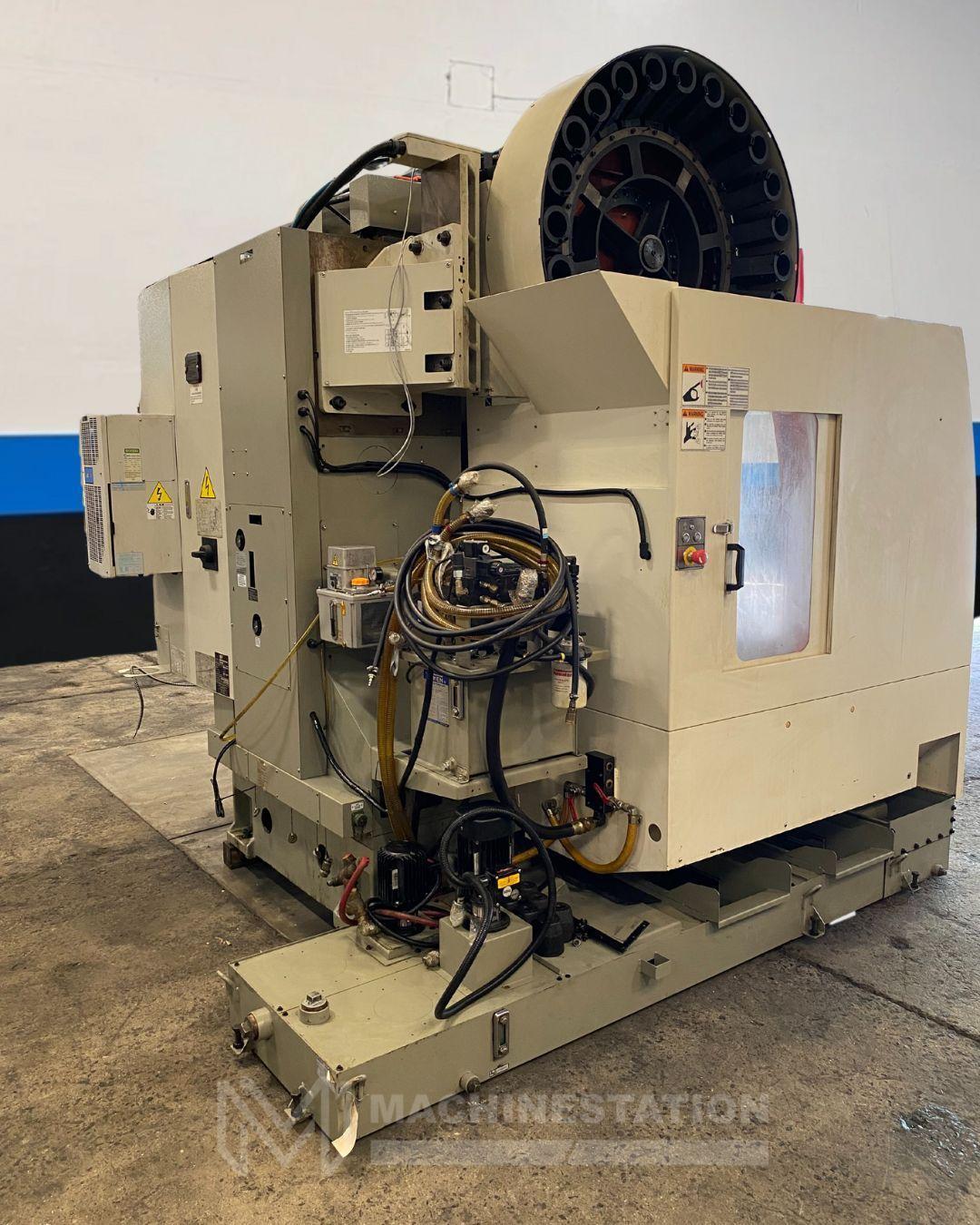

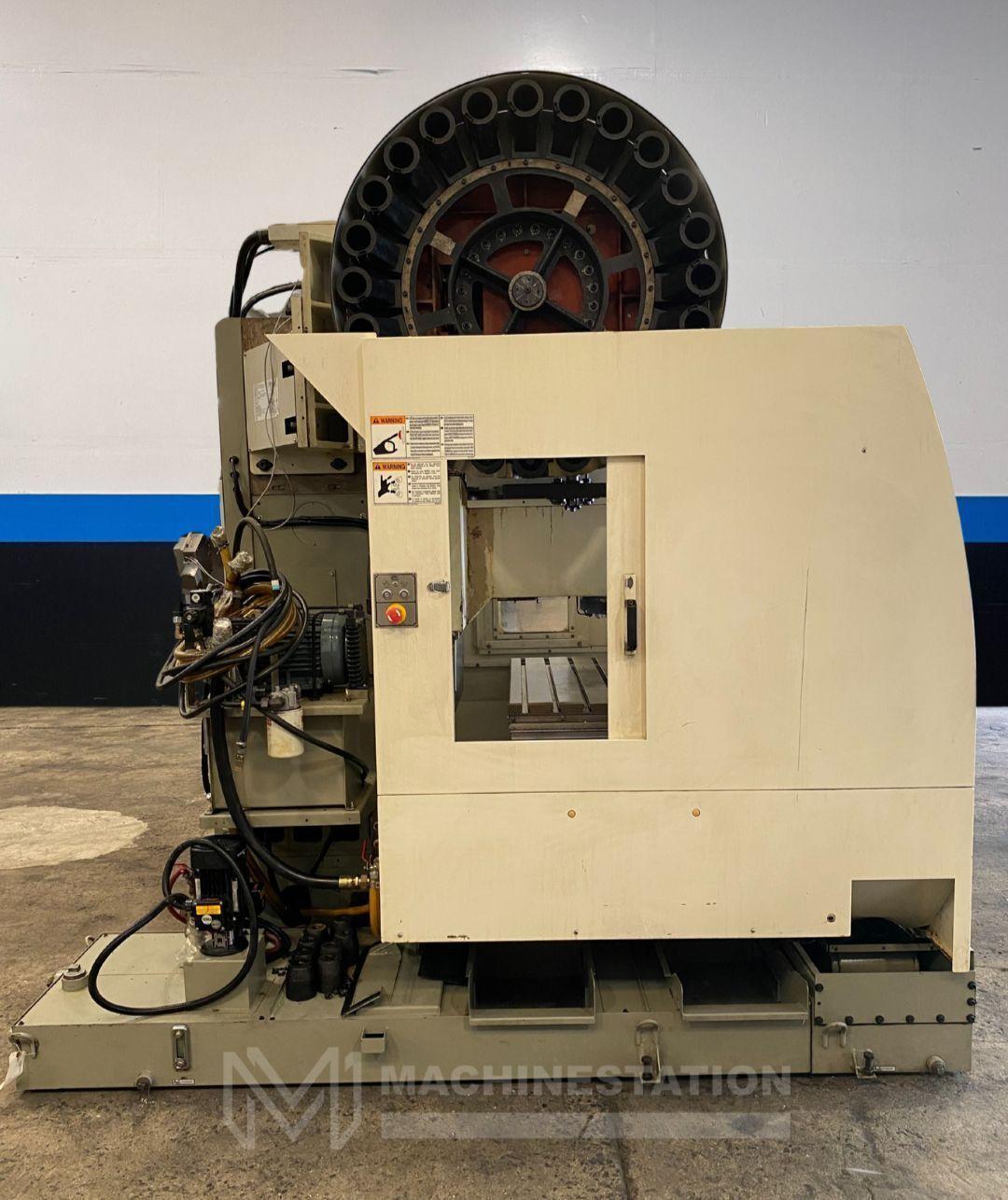

Victor Taichung Vcenter-85 CNC Vertical Machining Center – 50 Taper Mill

Brand
VICTOR
Category
Machining Centers
Type
Vertical Machining Centers
Model
VCENTER- 85
Stock #
113020
Year
Not specified
Condition
Not specified

Location

Not specified

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 113020
Make: Victor Taichung
Model No.: Vcenter-85
Year of Manufacture: 2016
Equipped With:

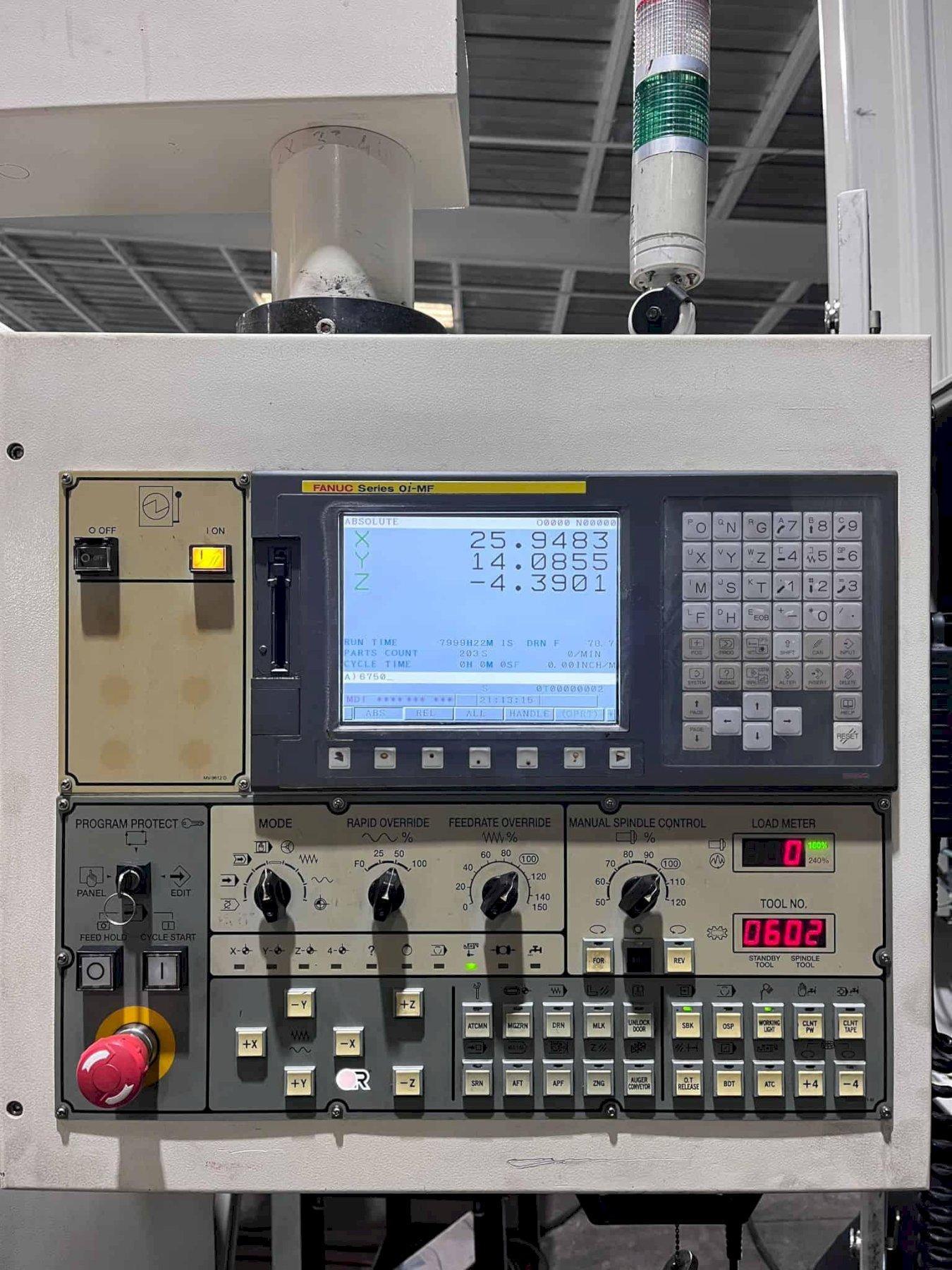

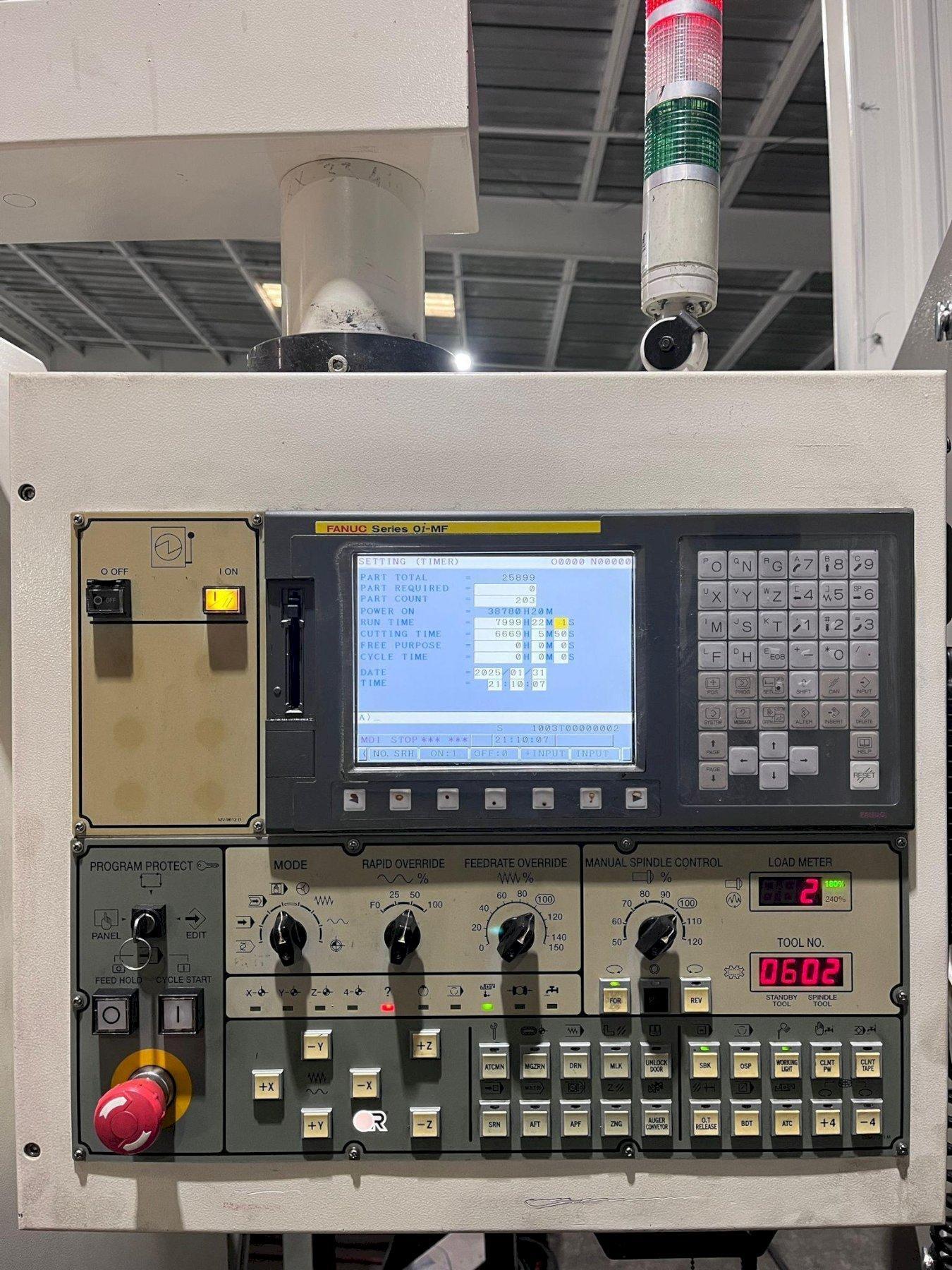

Fanuc Oi-MF CNC Control
Box Way Construction
CAT-50 Taper Spindle
6,000 RPM Spindle

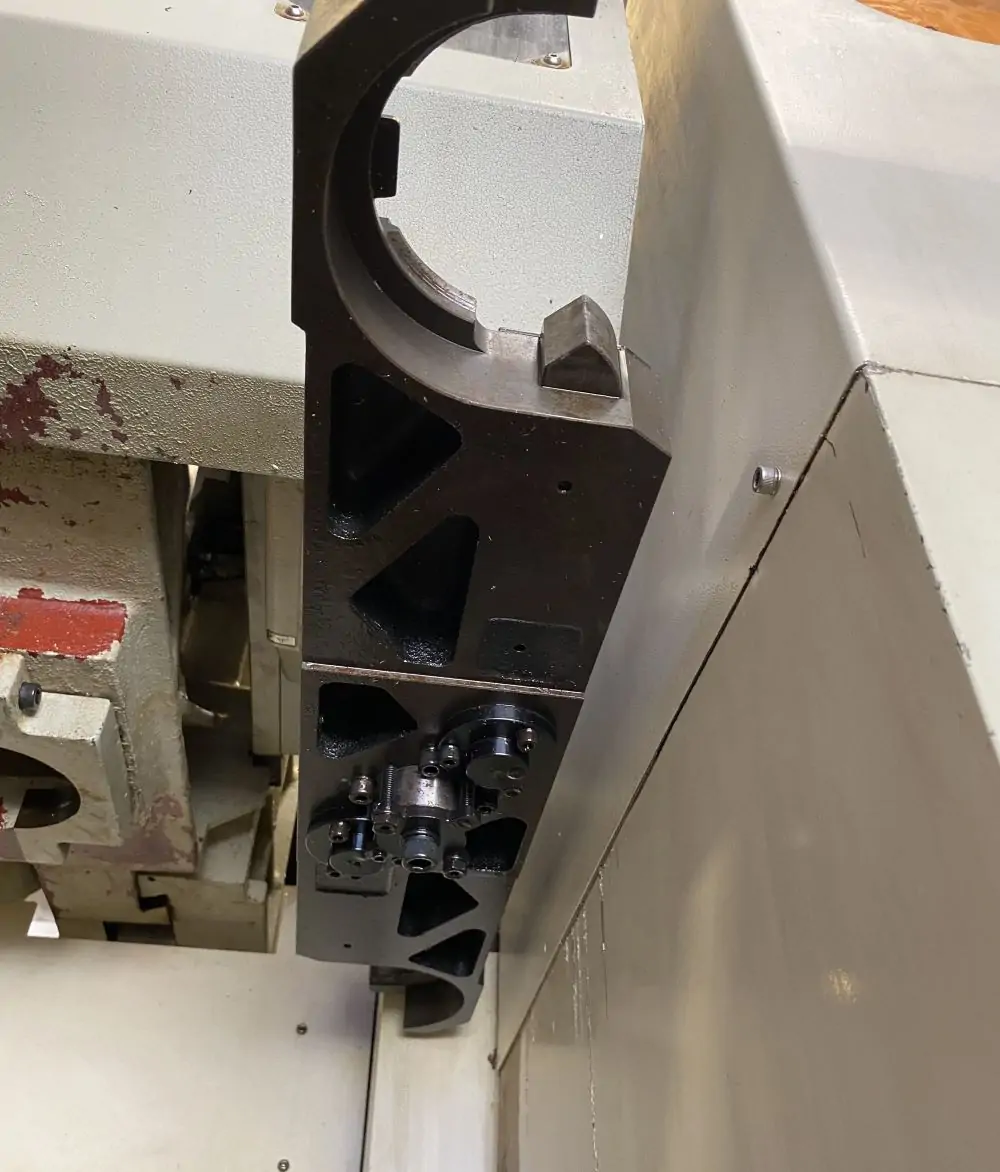

24 Station Automatic Tool Changer
PCMCIA Card Slot & RS-232 Port

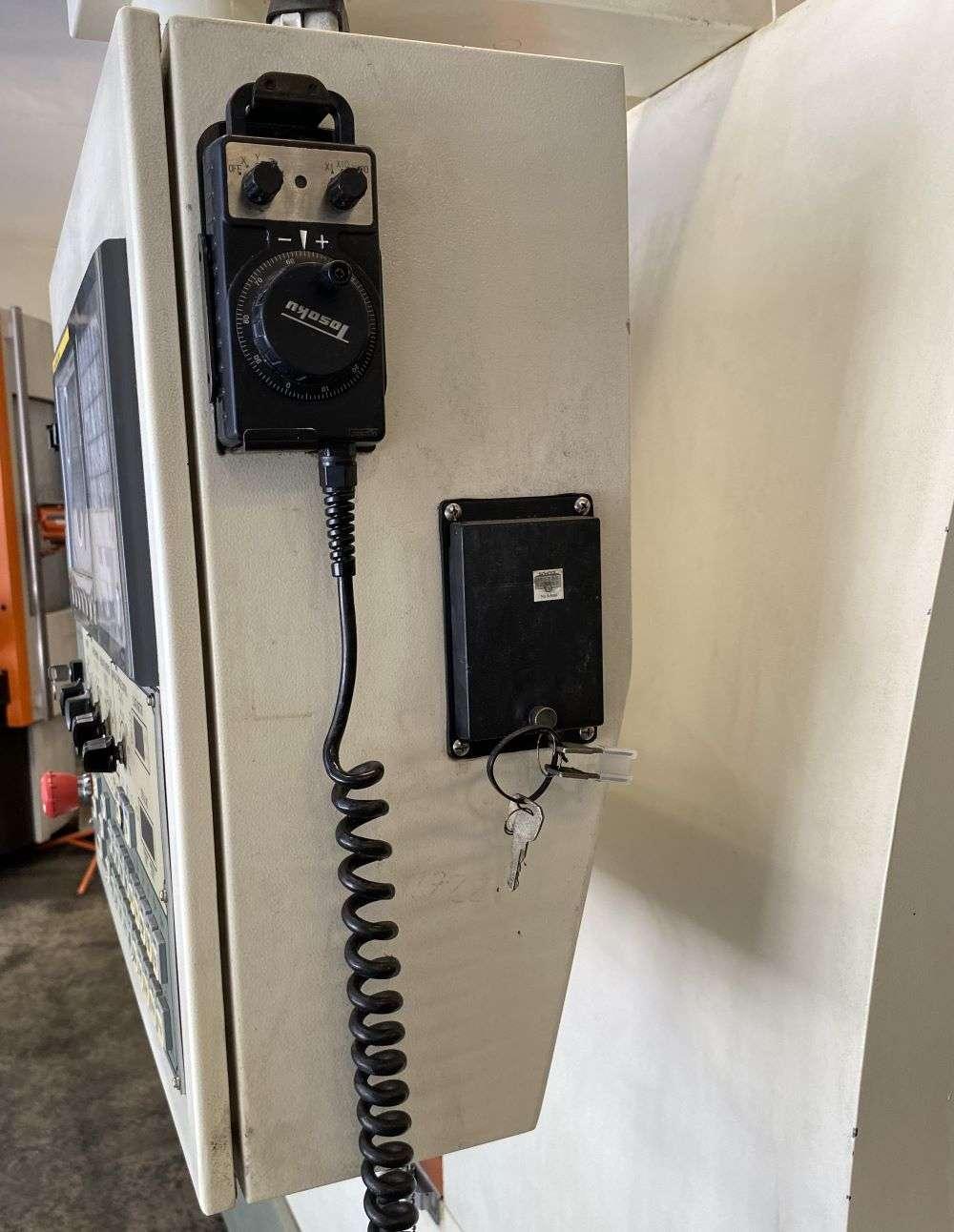

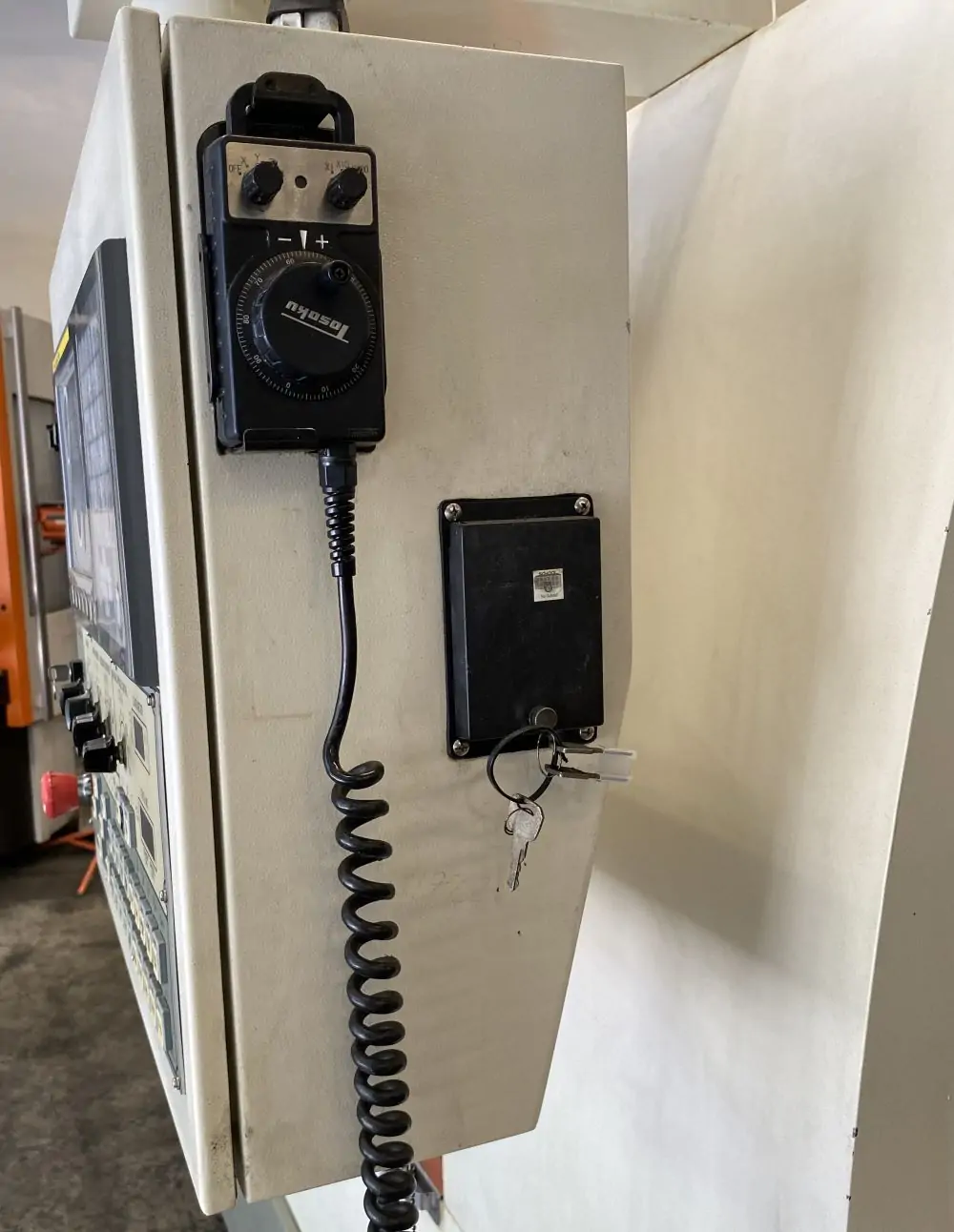

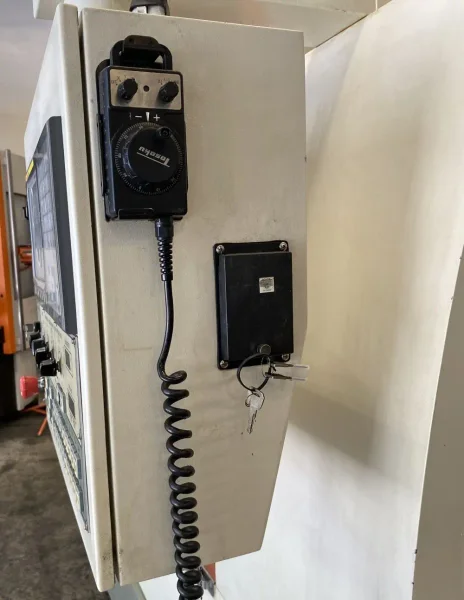

MPG Handwheel Control
Rigid Tapping
Spindle Orientation

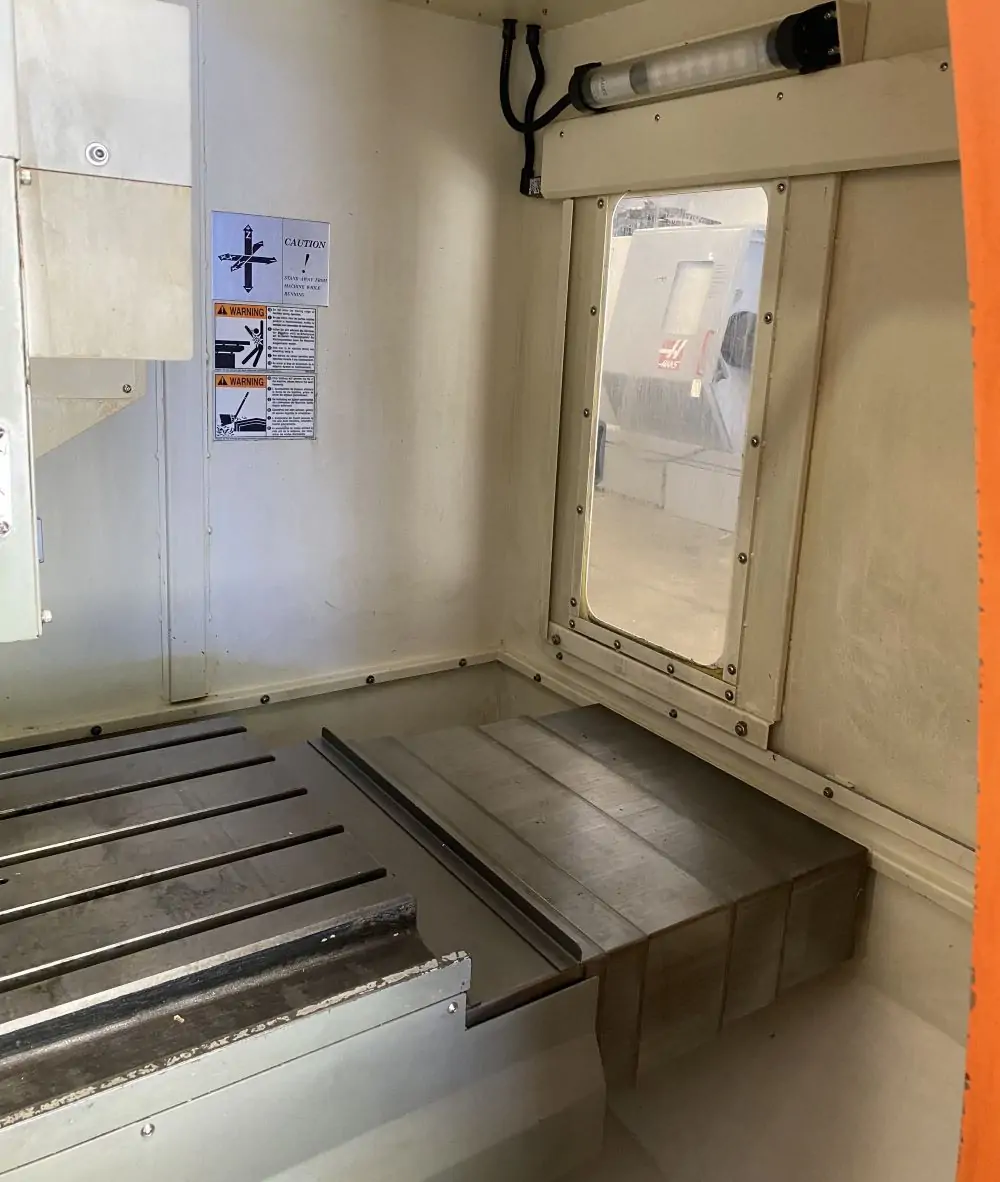

Telescopic way covers
Spindle Chiller Unit

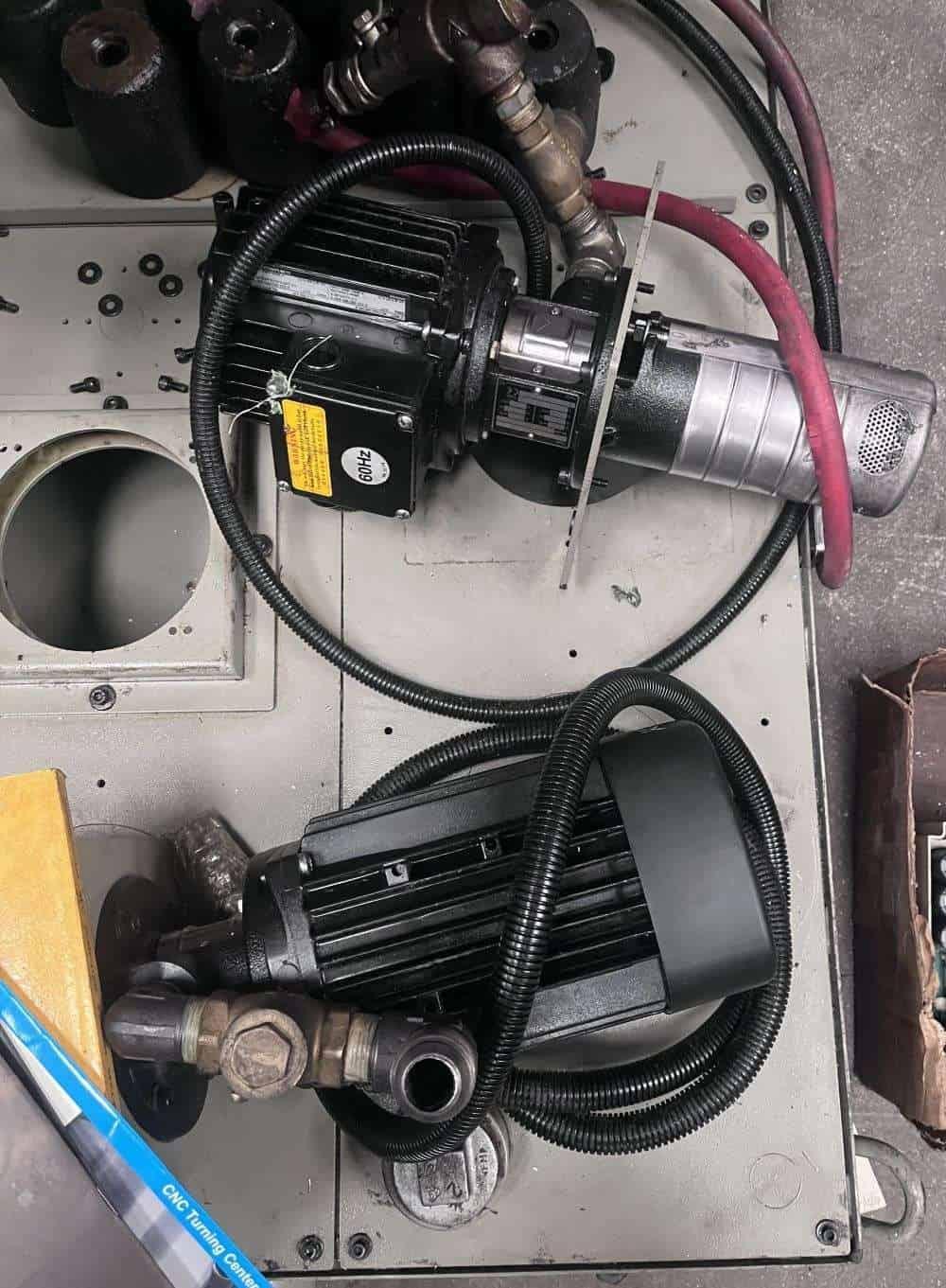

Flood Coolant system

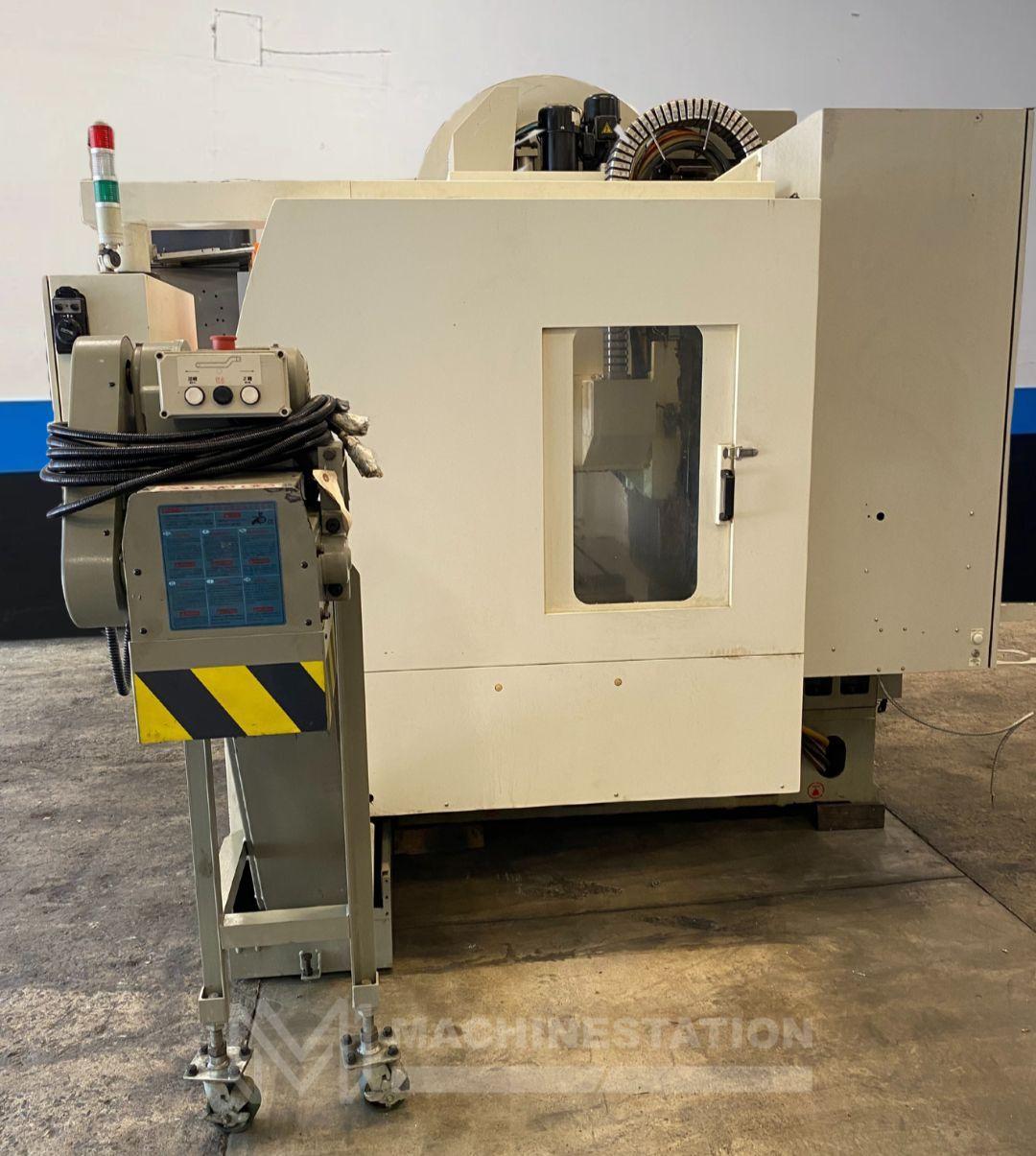

Chip Conveyor
Travel:
X-Axis: 33.46″
Y-Axis: 20.47″
Z-Axis: 22.05″
Rapid Traverse Rates X, Y Axis: 787 Inch Per Minute
Rapid Traverse Rates Z Axis: 787 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.90″ – 27.95″

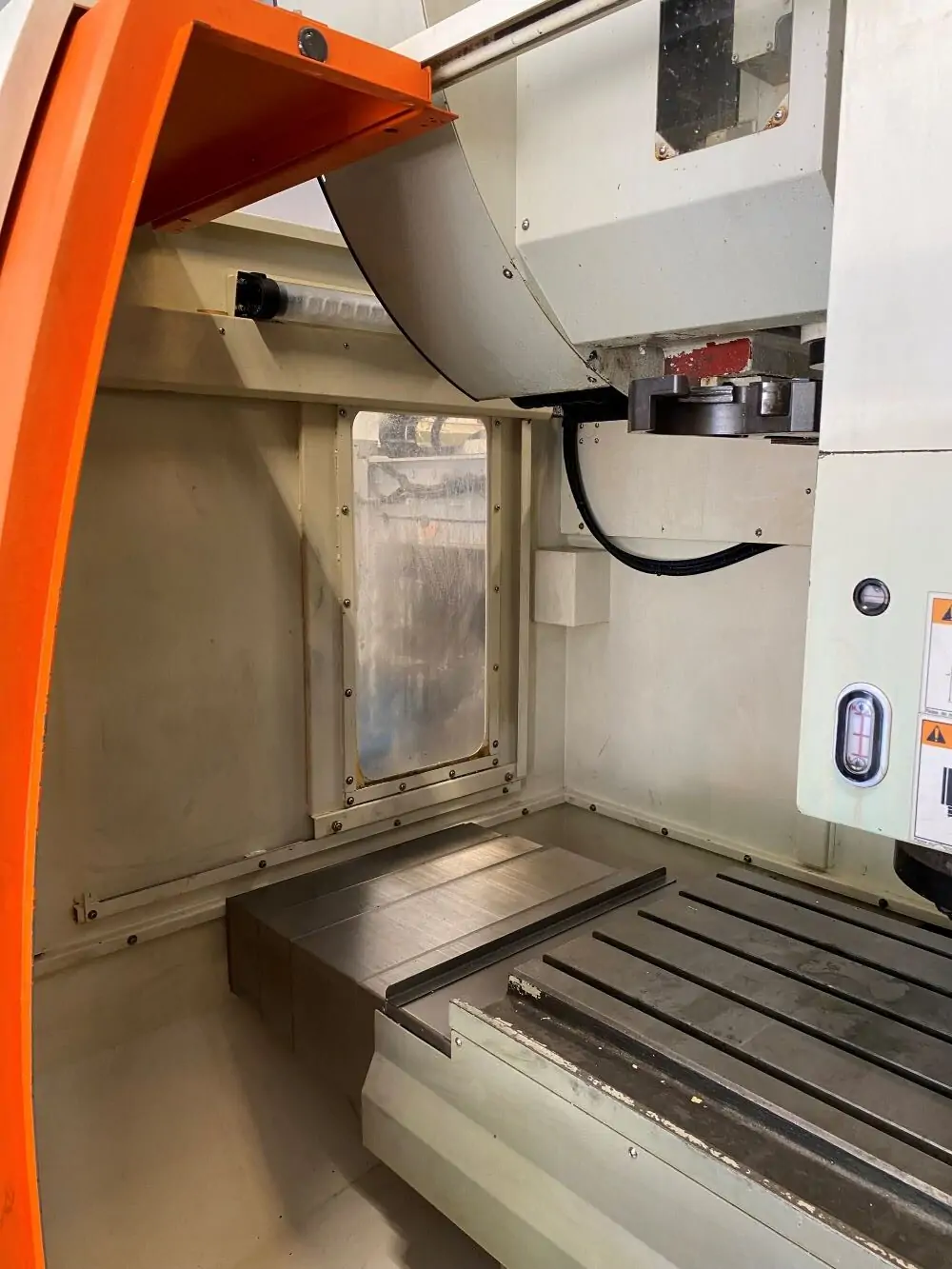

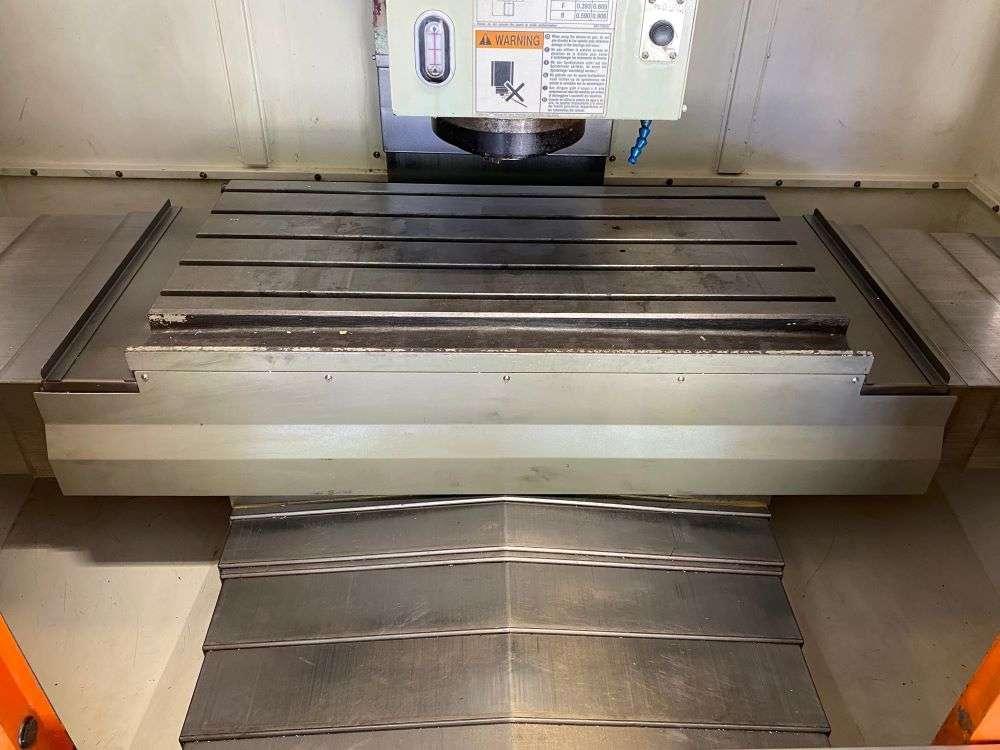

Table:
Length: 43.30″
Width: 20.07″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2204 lbs
Spindle:
Taper Size: CAT-50
Speed Range: 6000 RPM
Spindle Type: Gear Head
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.8″
Tool Changing Time: 1.3 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 23KVA / 3-Phase
Overall Dimensions: 96″ x 94″ x 110″ High
Weight: 14330 lbs
No files or videos to display

Want to request a quote from the owner of this listing?
