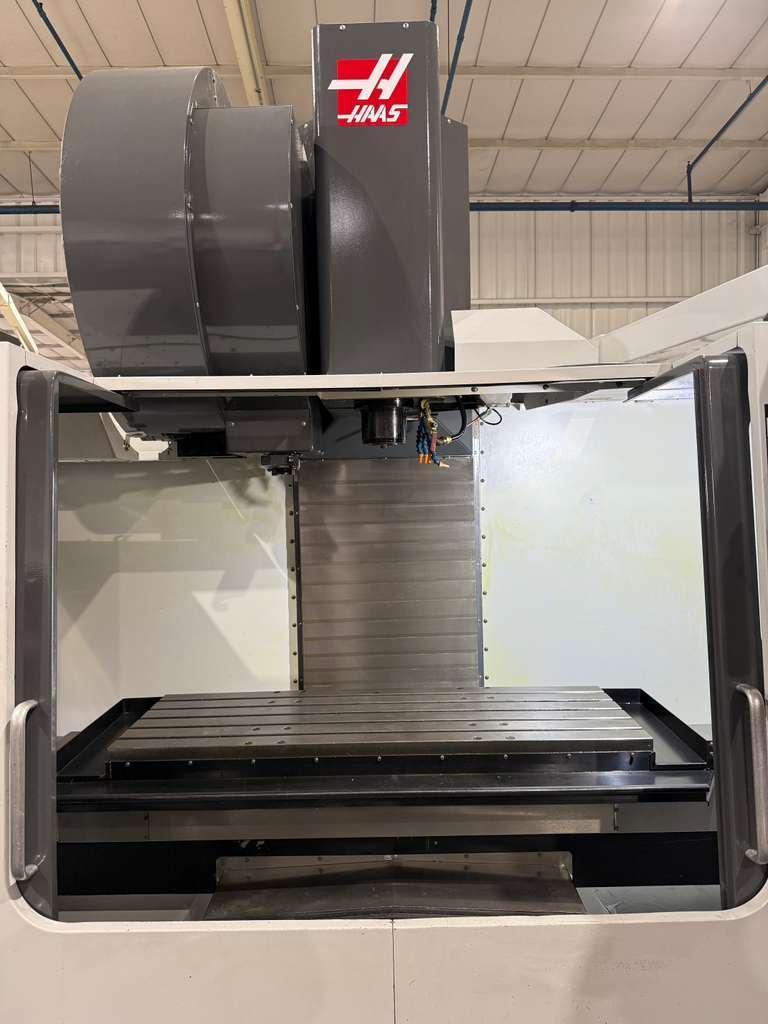

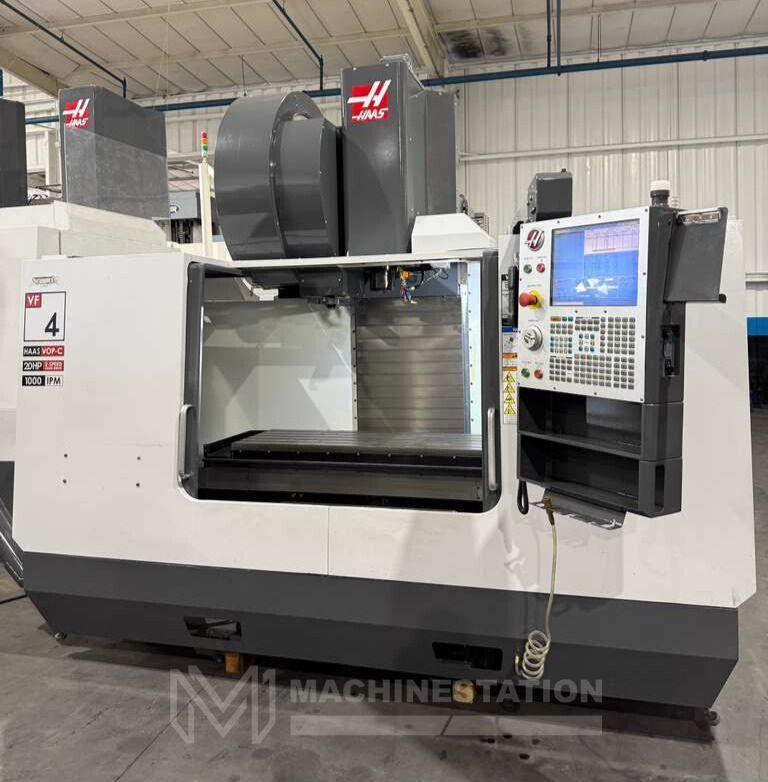

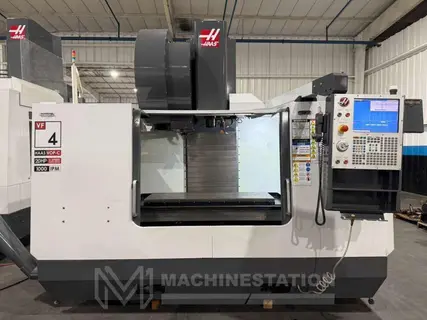

Haas VF-4B CNC Vertical Machining Center – 4th & 5th Axis Ready Mill

Brand
Not specified
Category
Machining Centers
Type
Machining Centers, Vertical
Model
Haas VF-4B
Stock #
112945
Year
2004
Condition
Not specified

Location

California
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:Haas
Model:VF-4B
Year:2004
Condition:Used – Good
Equipped With:

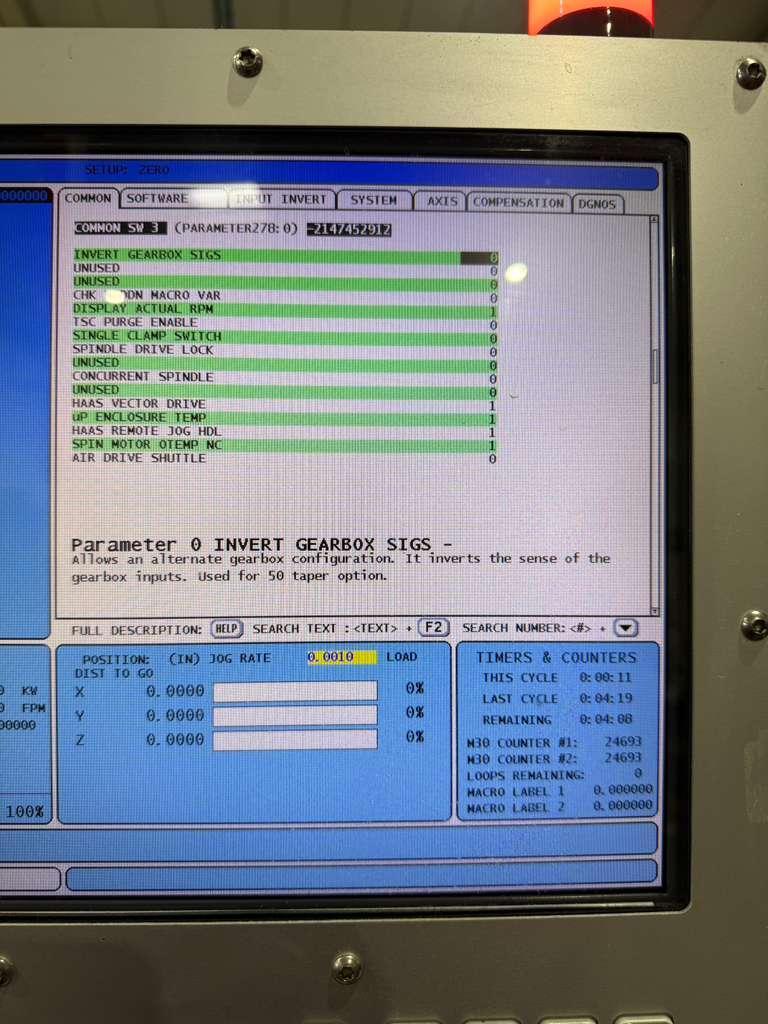

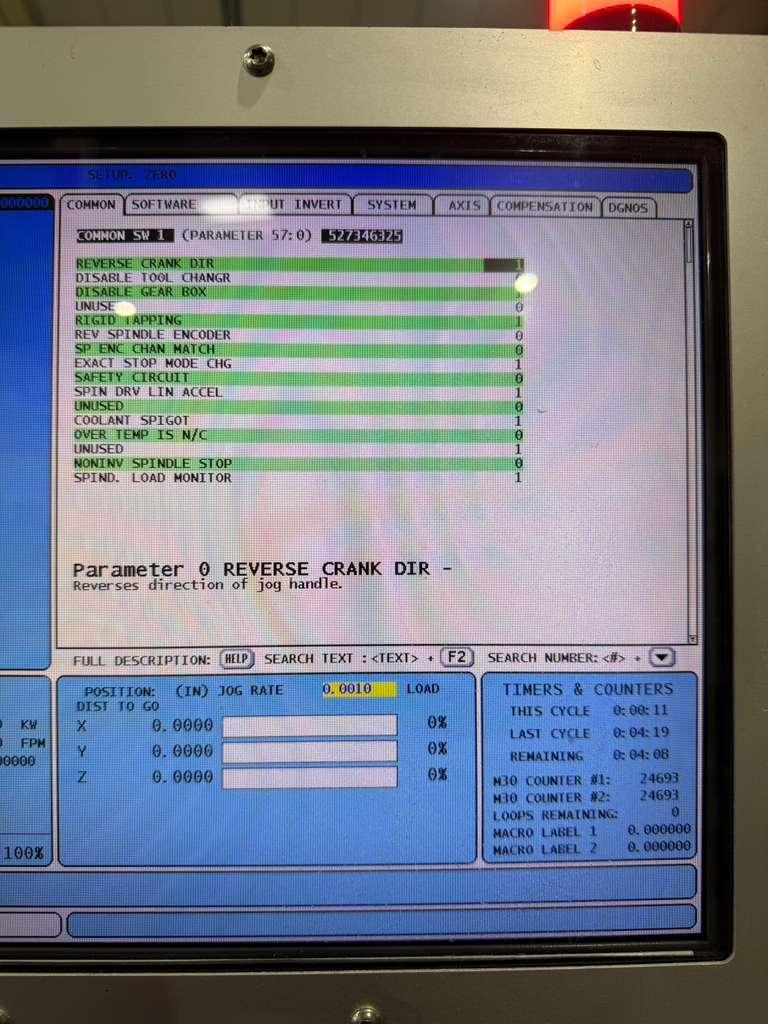

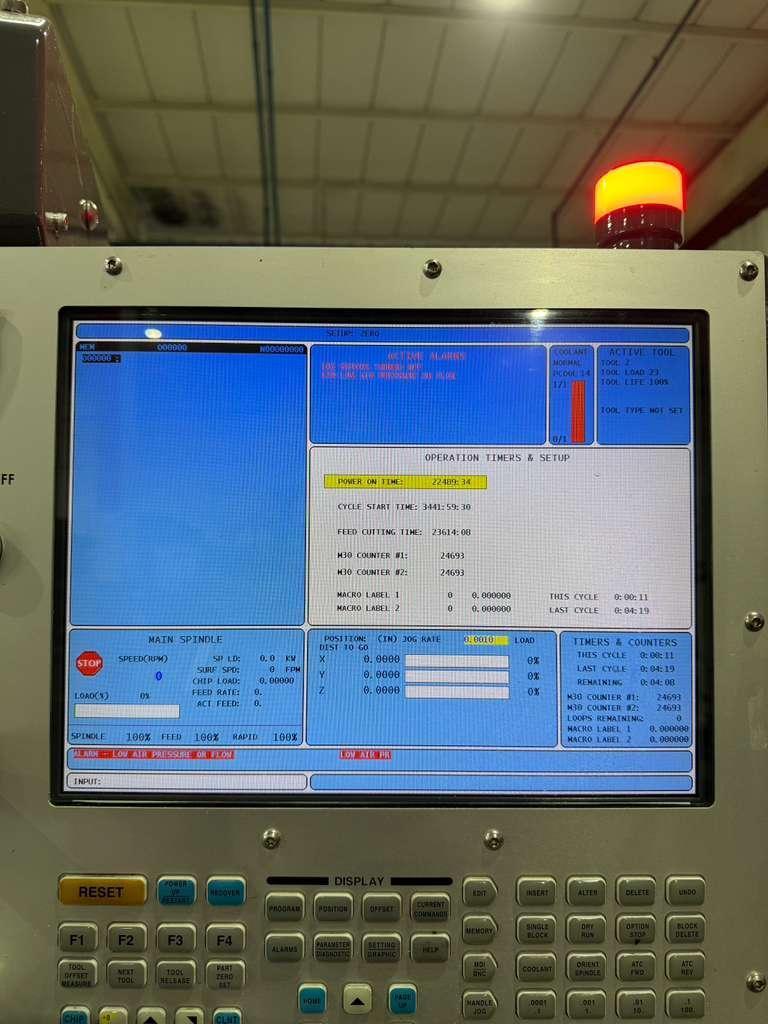

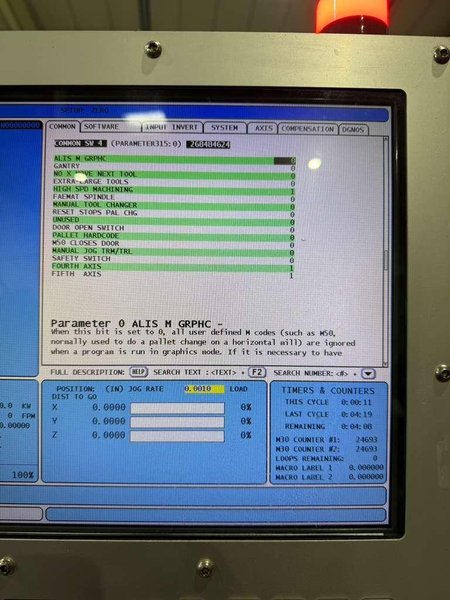

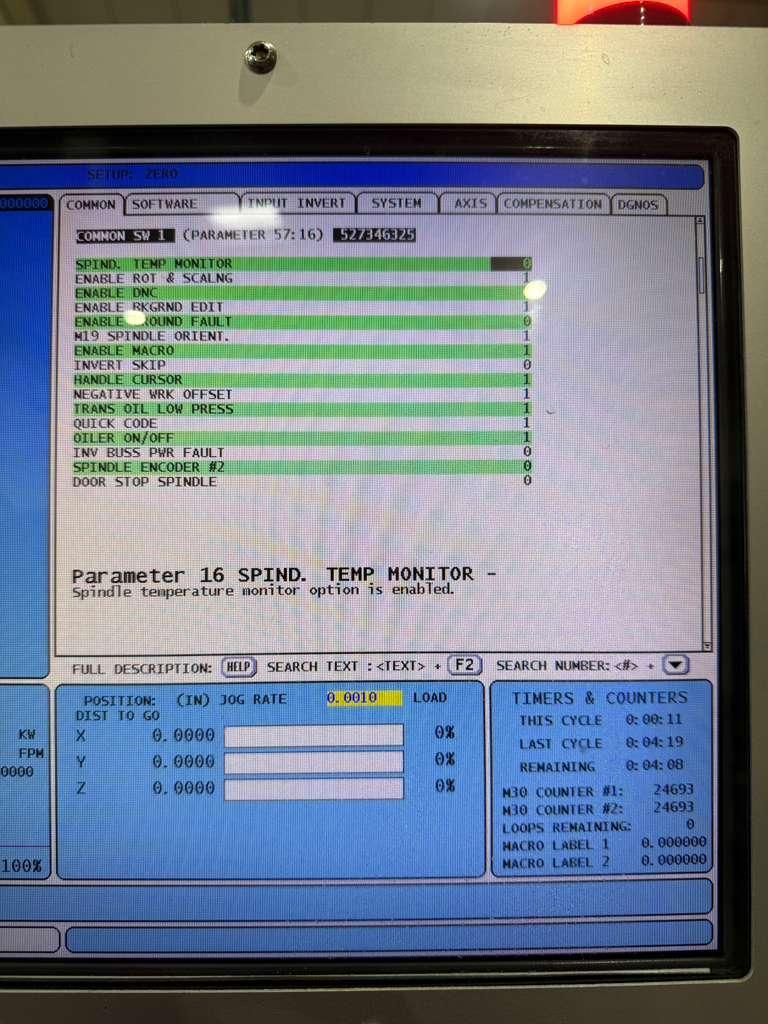

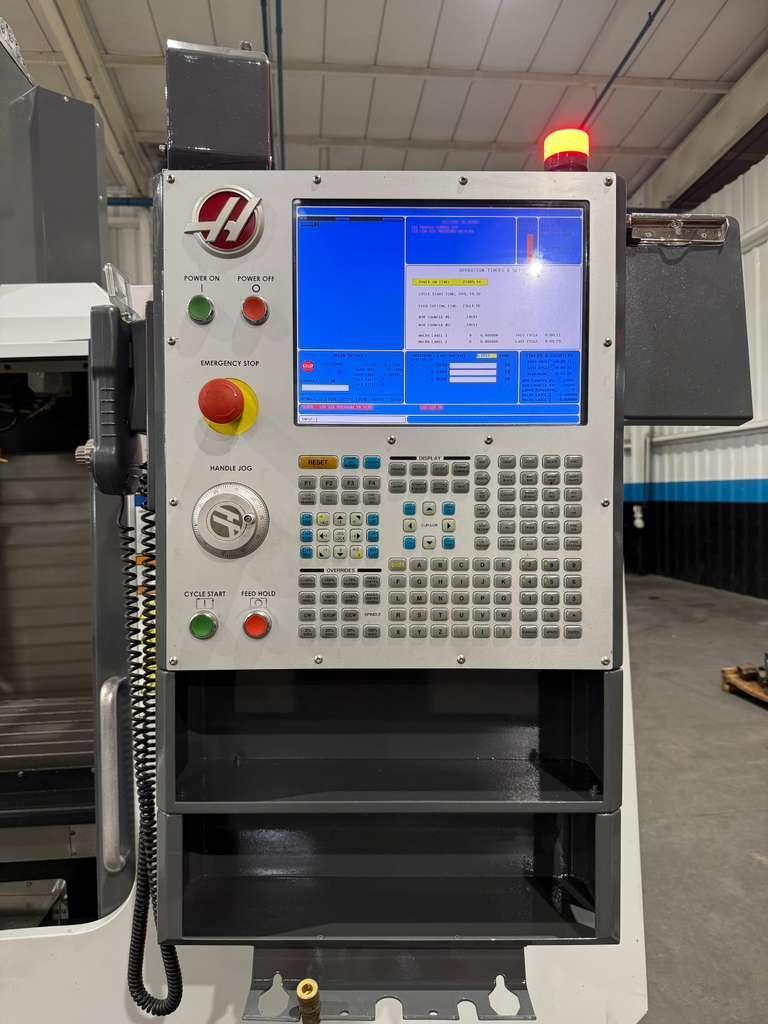

Haas CNC Control (Control was Upgraded in 2016)
5th Axis Drive and Wiring
5th Axis Drive and Wiring
Haas VOP-C Package
20 HP 2 Speed Gear Drive
1000 IPM
7500 RPM Spindle

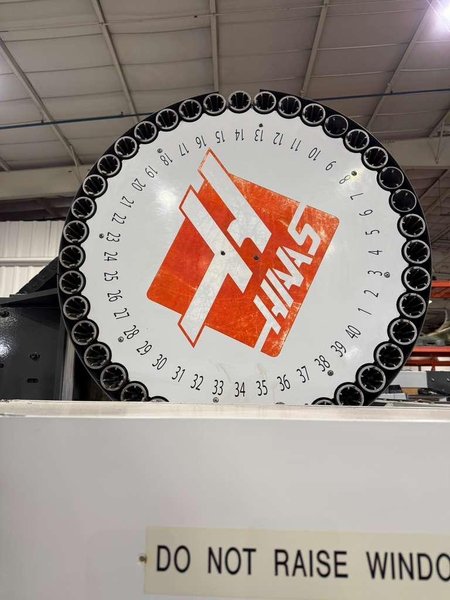

40 Station Automatic Tool Changer
High Speed Machining
Remote Jog Handle
Rigid Tapping
Spindle Orientation
Rotation and Scaling
Macros
Quick Code
Advace Tool Management
DNC Enabled
USB Port
Coolant System
Chip Auger
Travels:
X-axis: 50″
Y-Axis: 20″
Z-Axis: 25″
Rapid Traverse Rates: 1000 IPM
Cutting Feed Rates: 650 IPM
Spindle Nose To Table (Min.- Max.): 4.2″ – 29.2″

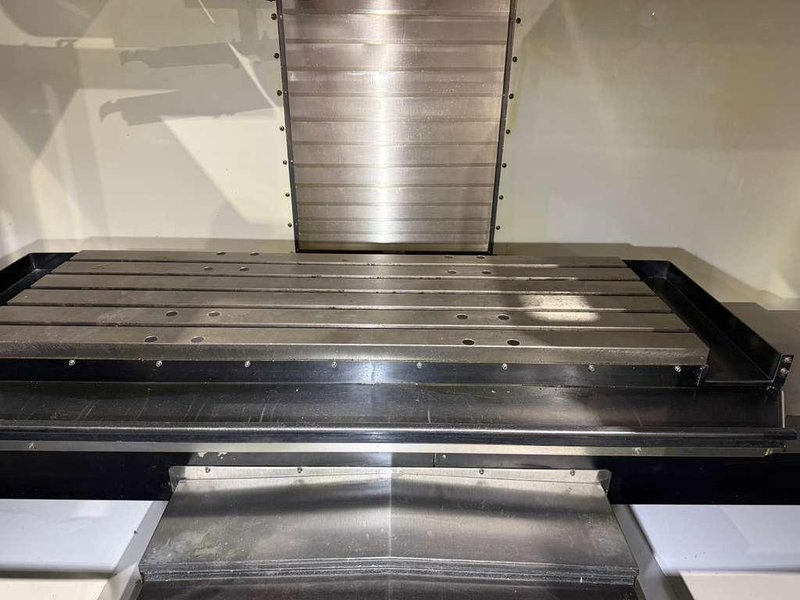

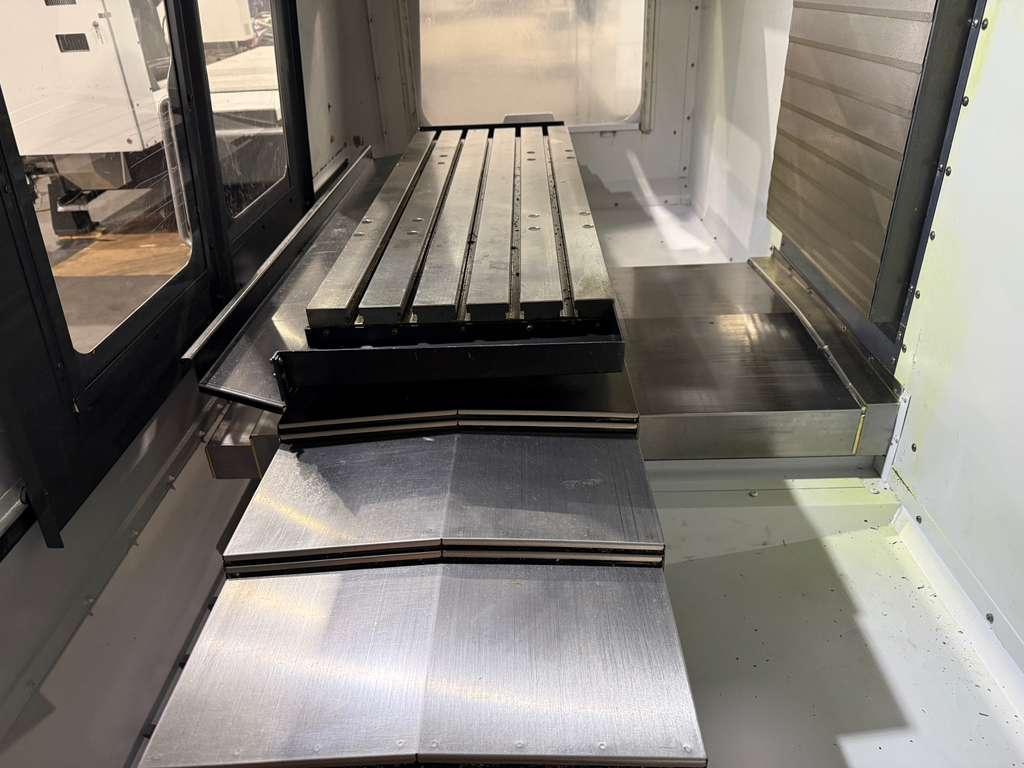

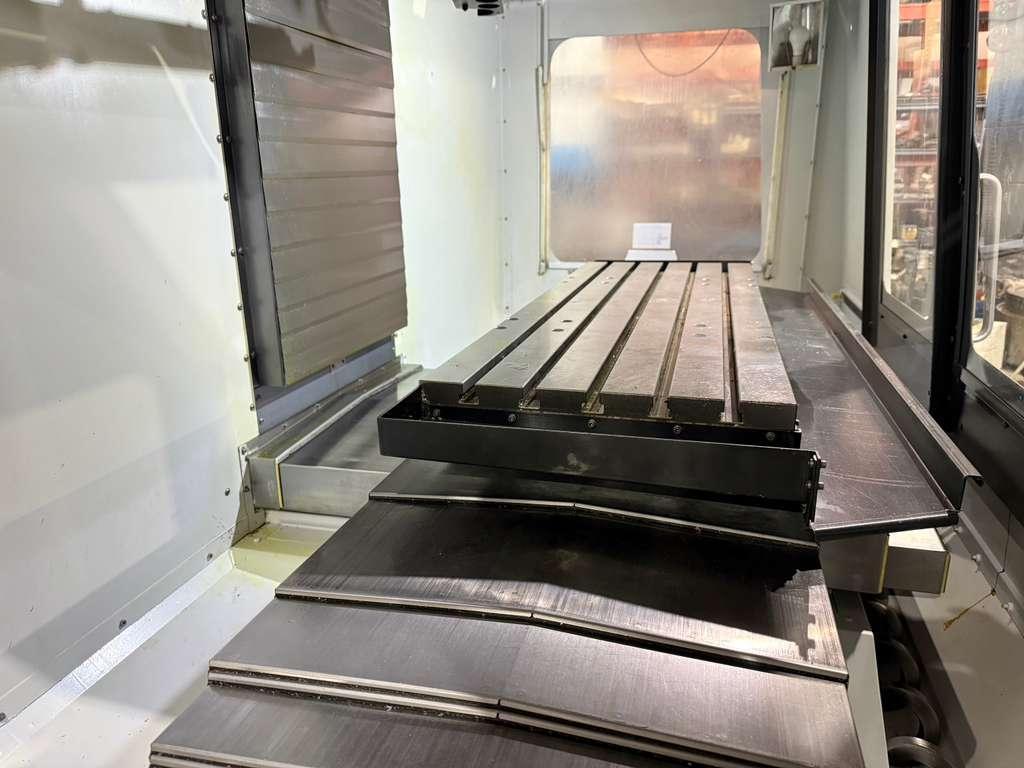

Table:
Length: 52″
Width: 19.5″
Number Of Std T-slots: 5
T-Slot Width: 5/8″
Max Weight On Table: 3500 Lbs

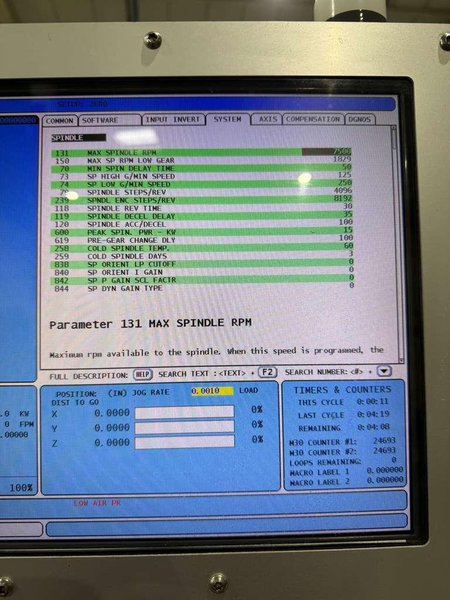

Spindle:
Taper Size: CAT-40
Speed Range: 7500 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 40 Station Side Mounted
Tool Weight: 12 Lbs
Max Tool Length: 13″
Max Tool Dia.: 3.5″
Tool Changing Time: 4.2 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 152″ x 99″ x 106″ High Approx.
Weight:  13,500 lbs Approx.
