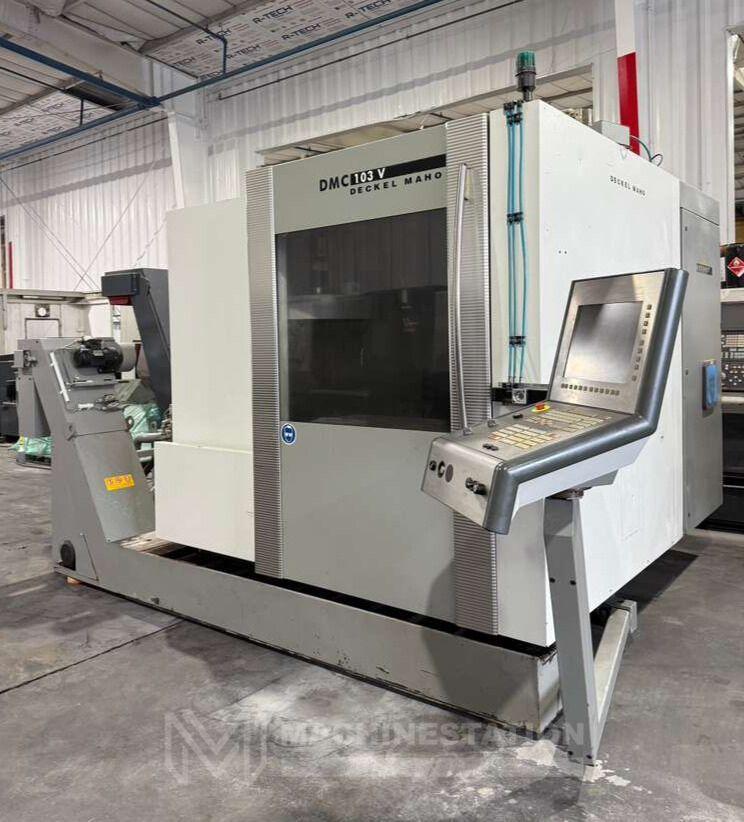

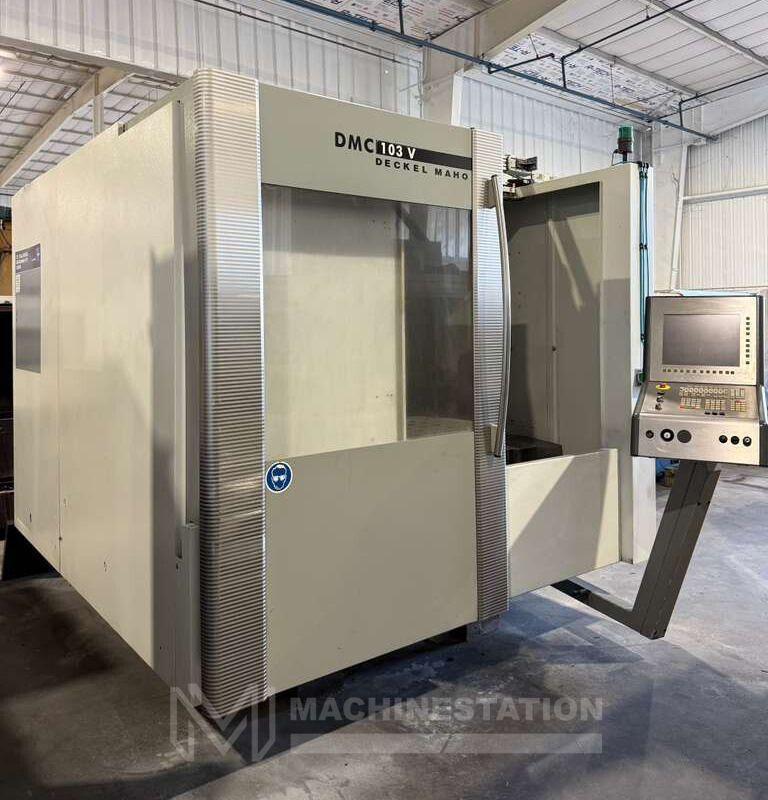

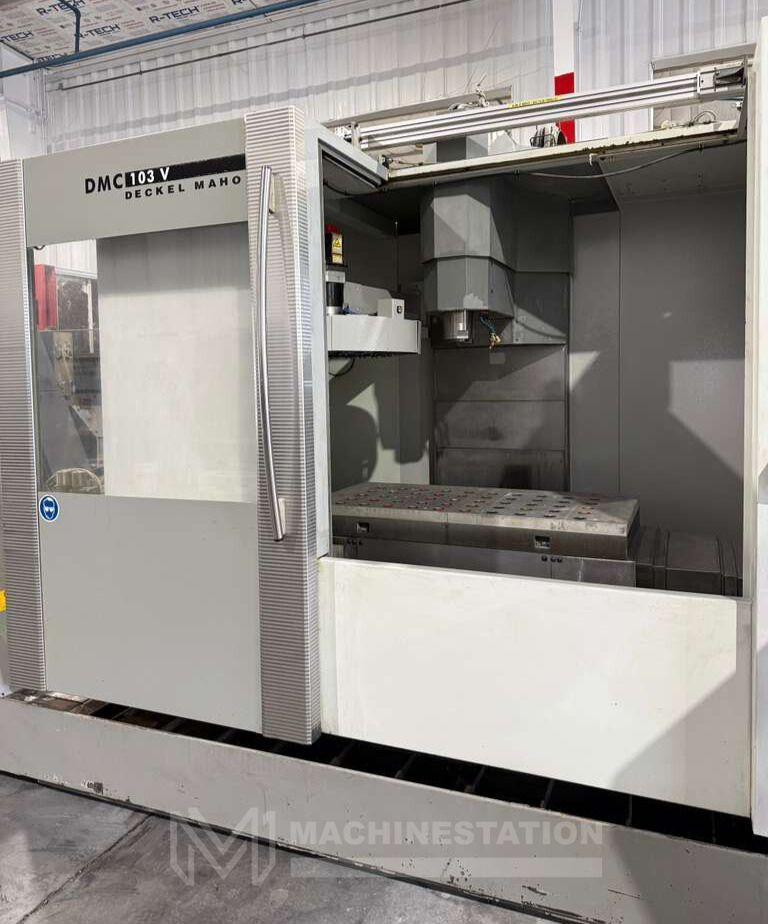

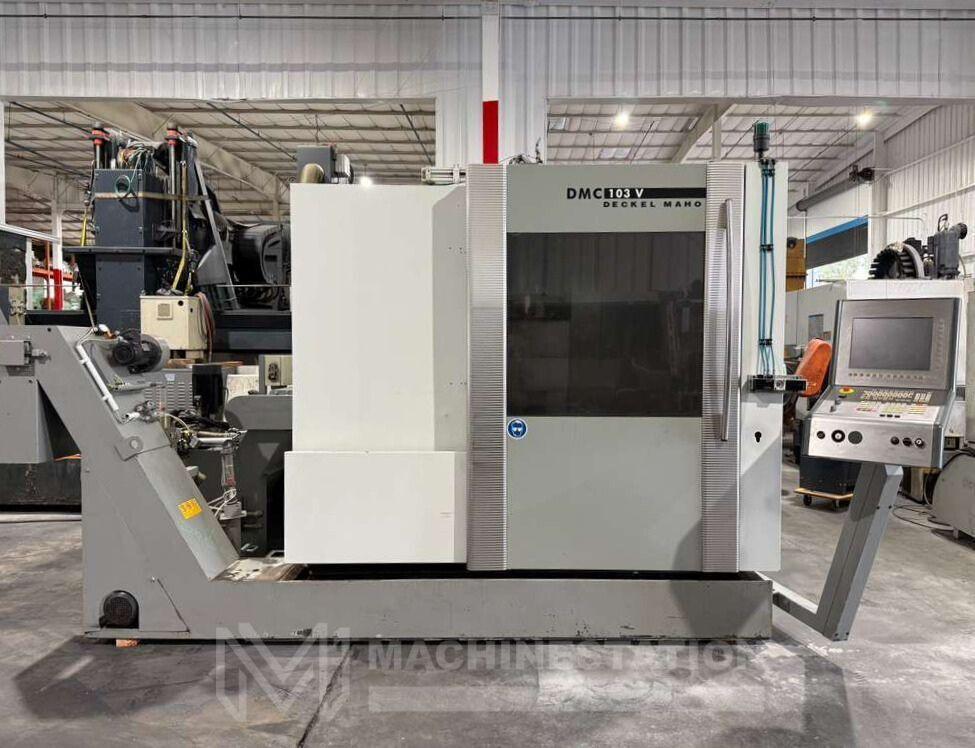

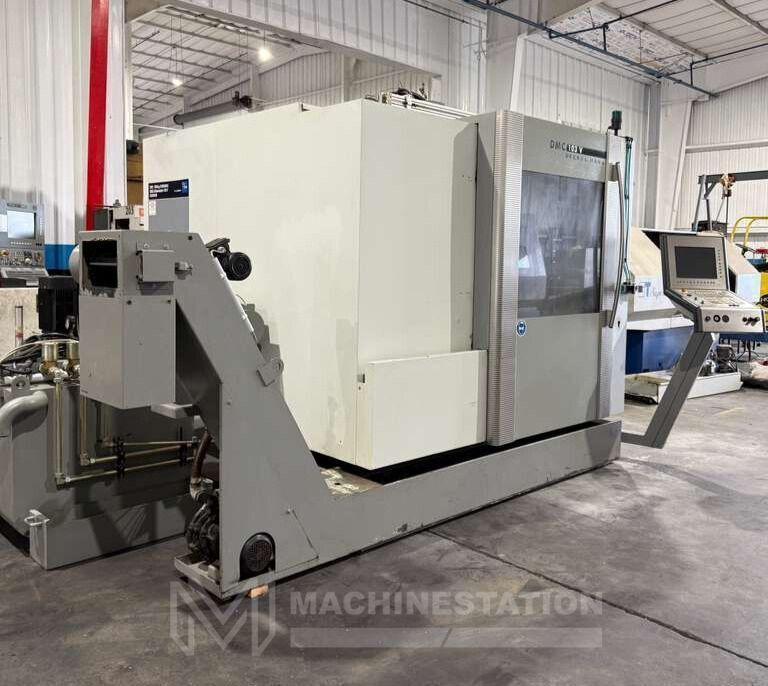

DMG DMC 103V CNC Vertical Machining Center – 10,000 RPM Mill

DMG DMC 103V CNC Vertical Machining Center – 10,000 RPM Mill

Name: DMG DMC 103V CNC Vertical Machining Center – 10,000 RPM Mill
Brand: Unknown
SKU: 112839
Availability: PreOrder

Brand

Not specified

Location

California

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112839
Make:	DMG
Model No.:	DMC 103V
Year of Manufacture:	2006
Condition	Used – Good

Equipped With:

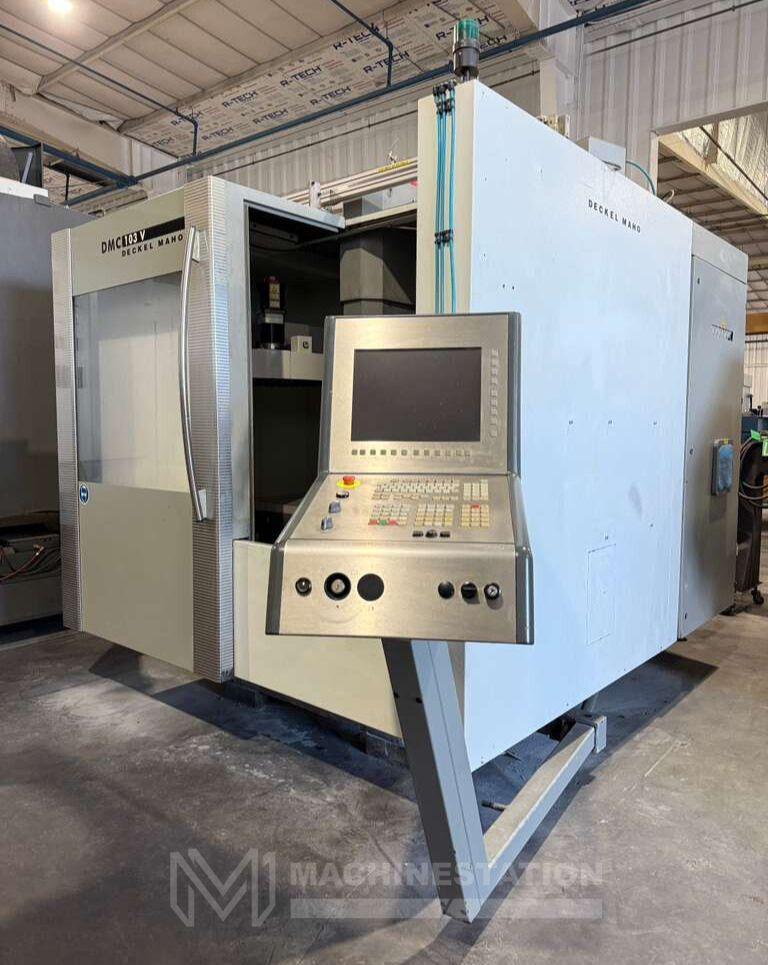

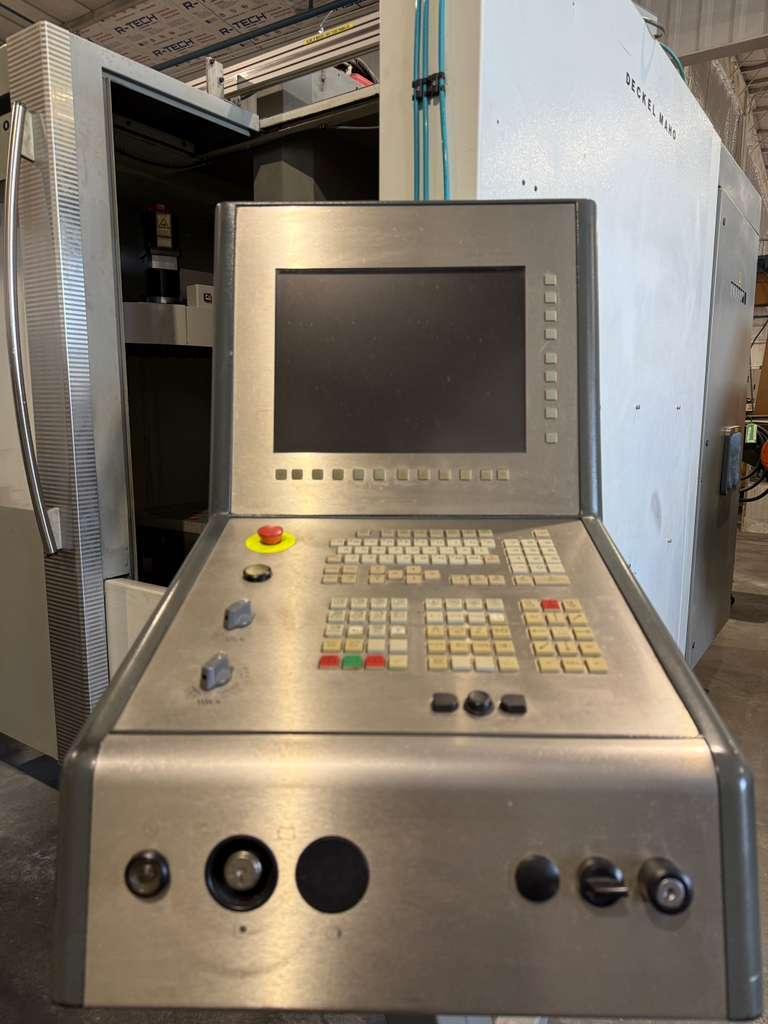

Fanuc 180i Series CNC Control
10,000 RPM Spindle

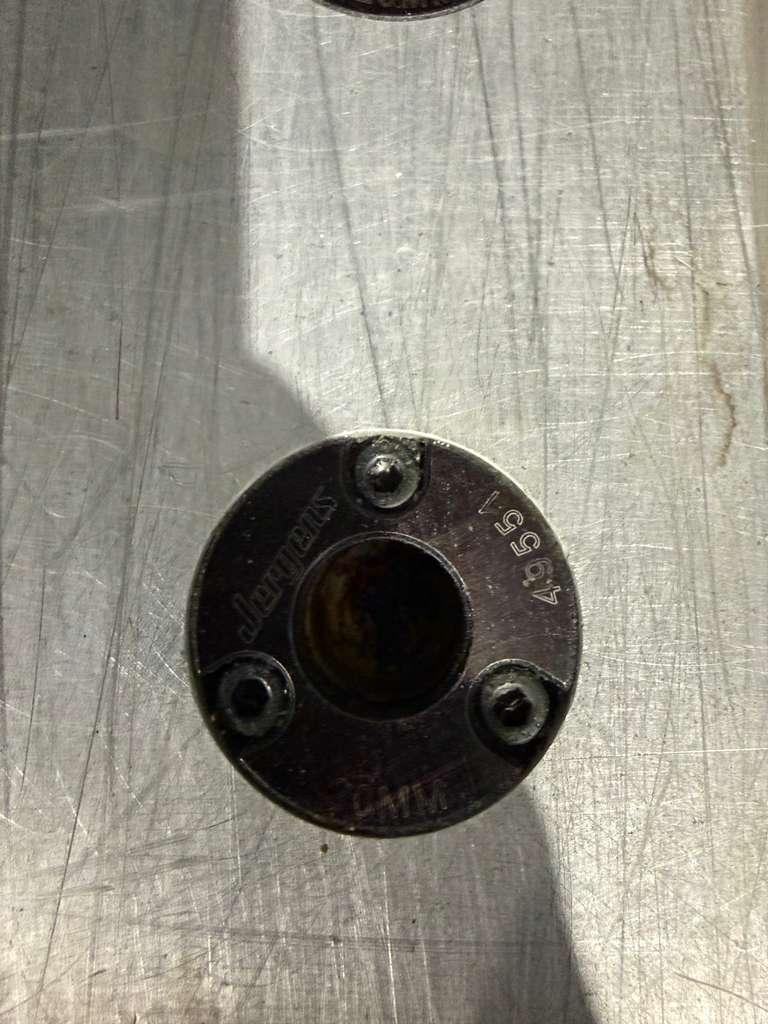

Through Spindle Coolant
24 Station Automatic Tool Changer
40 Taper Spindle
Rigid Tapping

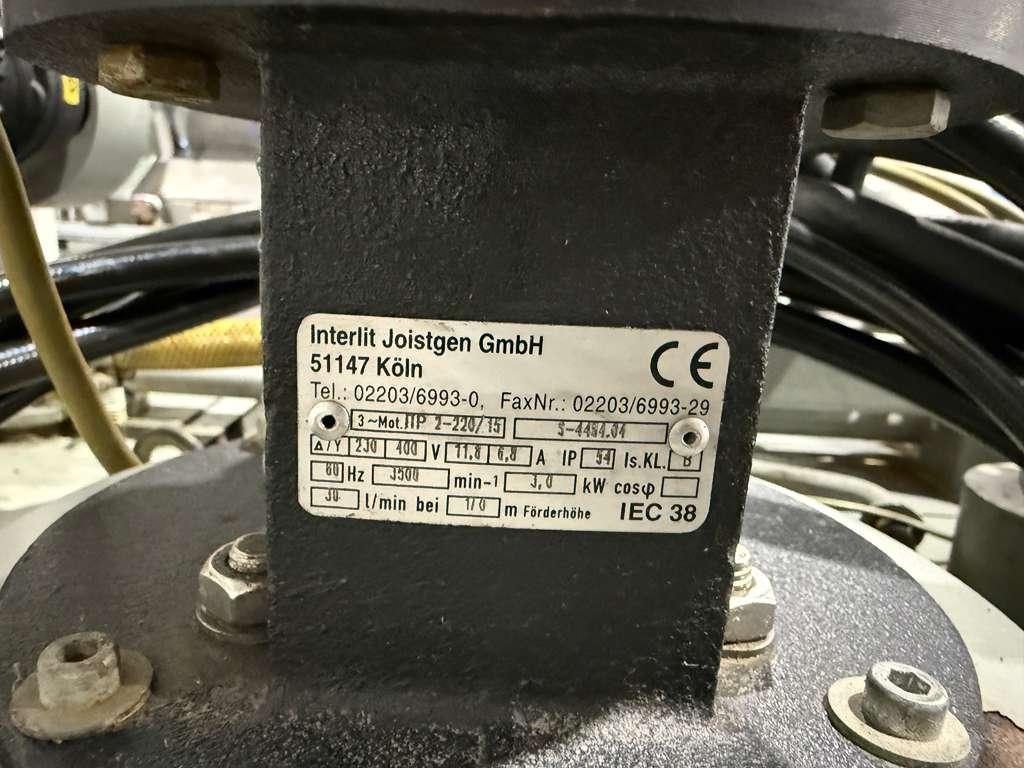

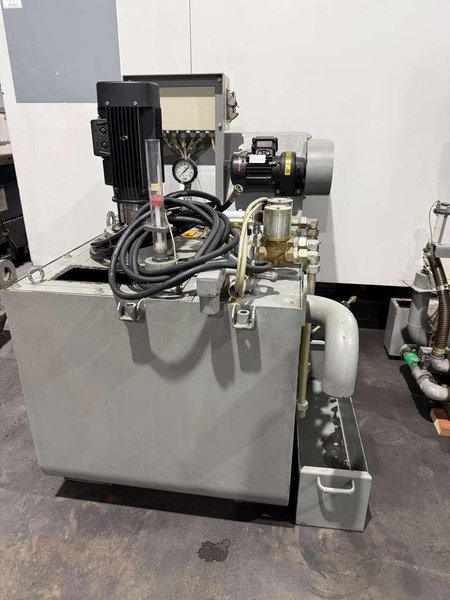

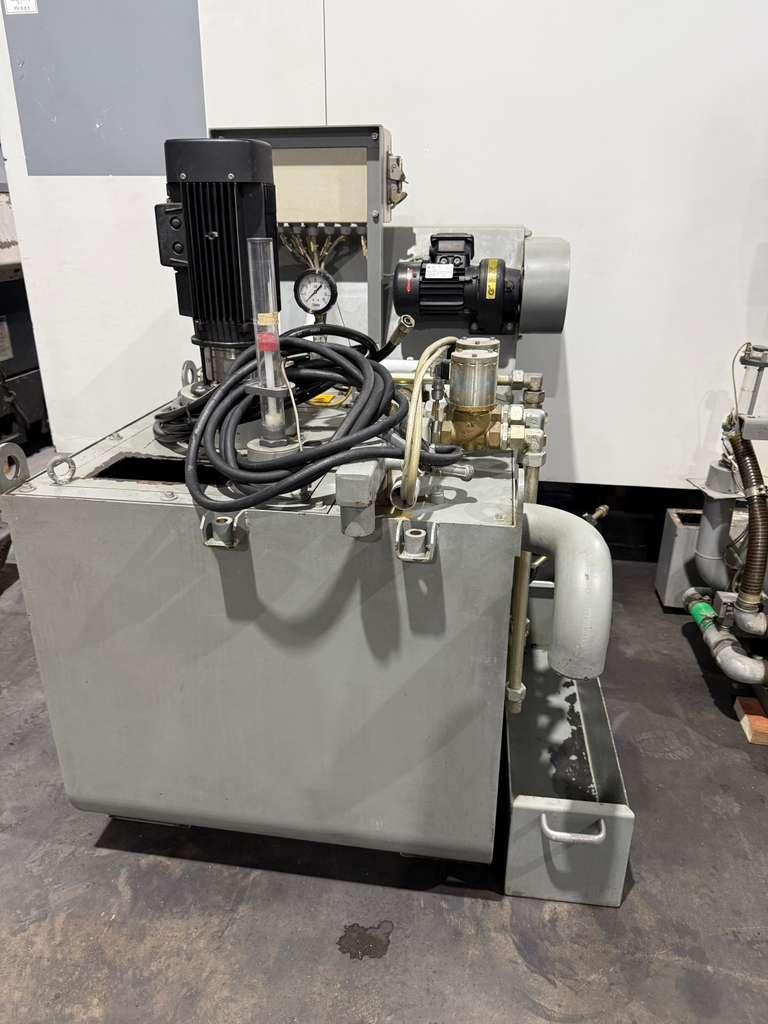

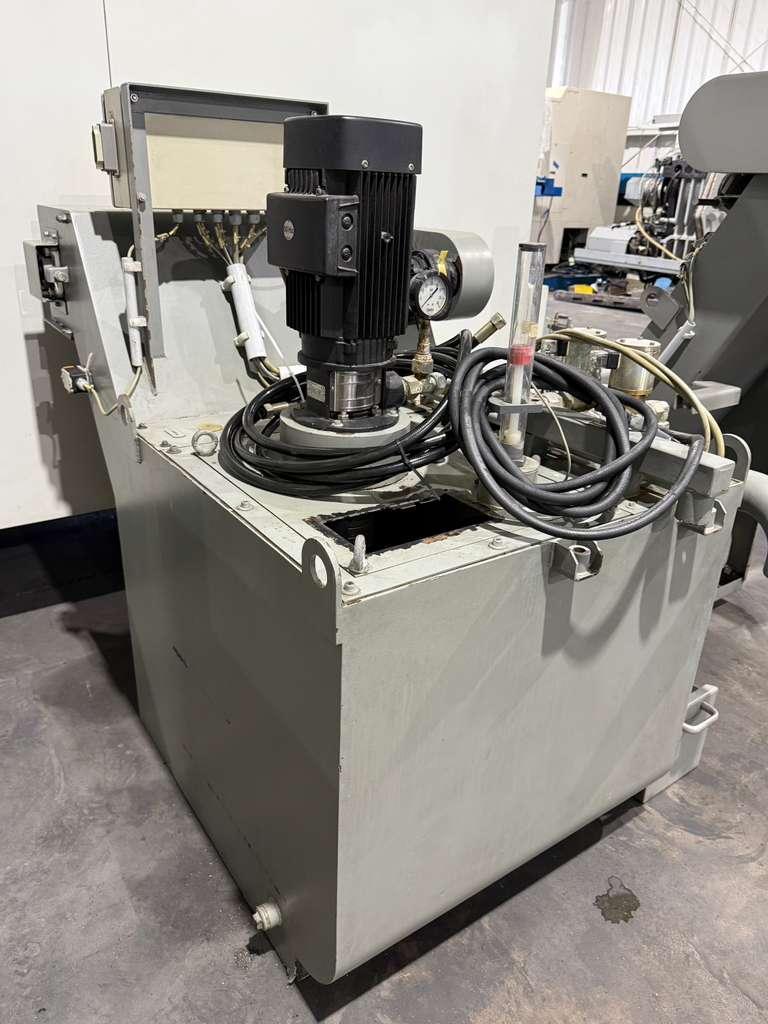

Coolant system

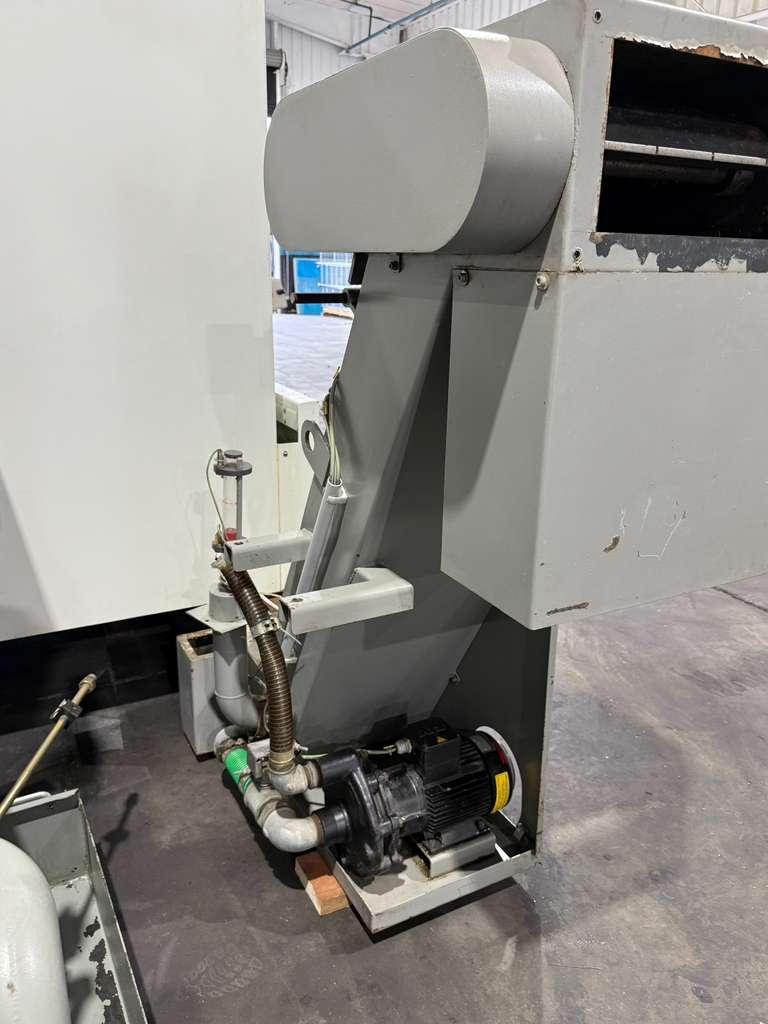

Chip Conveyor

Travels:
X-Axis: 39.37″
Y-Axis: 23.62″
Z-Axis: 23.62″
Rapid Traverse Rates: 1181 Inch Per Minute

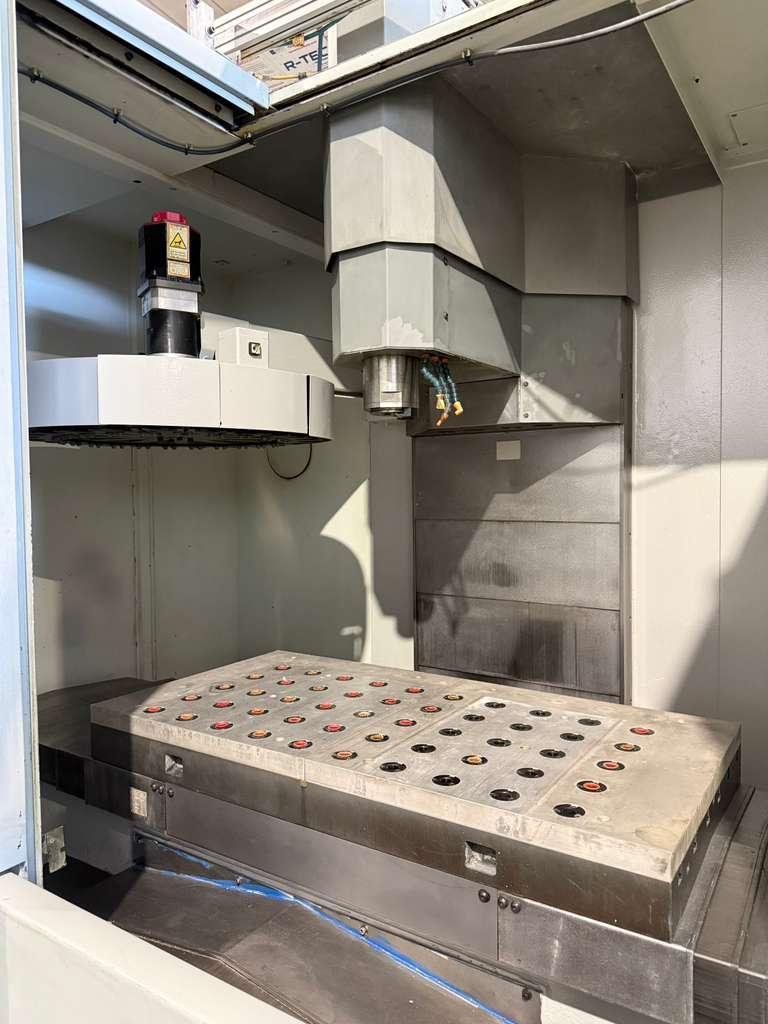

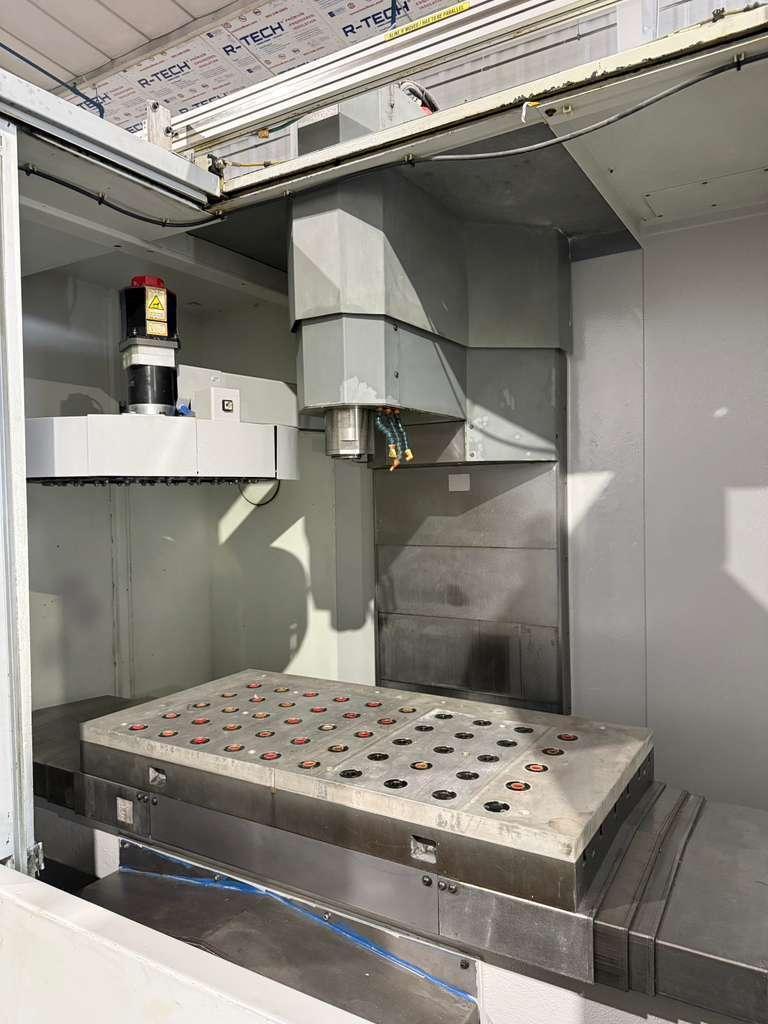

Table:
Length: 47.24″
Width: 23.62″
Max Weight on Table: 1103 lbs

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 20 HP

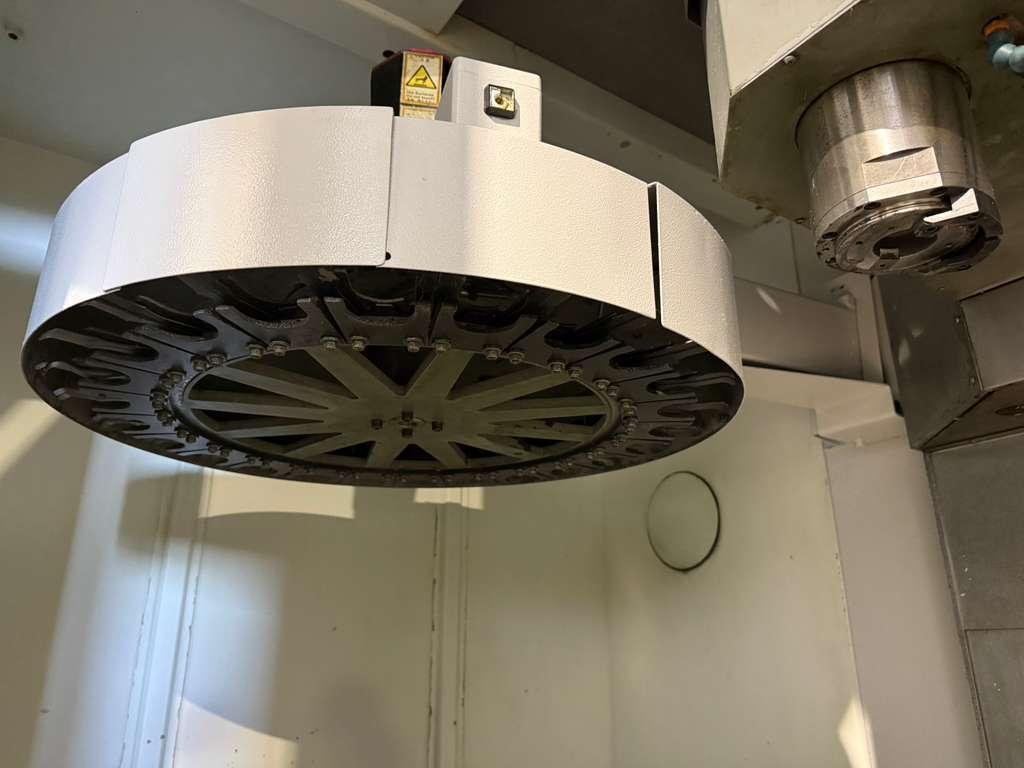

Automatic Tool Changer:
Capacity: 24 Station
Tool Weight: 15.43 lbs
Max Tool Dia: 3.14″

General:
Air Required: 80 psi 4 scfm
Power: 400v / 30 kva / 3-Phase / 50/60 Hz
Overall Dimensions: 118″ x 102″ x 110″ High Approx.
Weight: 14,330 lbs Approx.
