USED CLAUSING 21" X 80" MULTITURN 4000/80XS CNC LATHE

USED CLAUSING 21" X 80" MULTITURN 4000/80XS CNC LATHE

Name: USED CLAUSING 21" X 80" MULTITURN 4000/80XS CNC LATHE
Brand: Unknown
SKU: 11255
Availability: PreOrder

Brand

Not specified

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Lathes, CNC

Manufacturer:

CLAUSING

Model:

MultiTurn CNC 4000XS

Year:

2020

Stock #:

11255

Status:

For Sale

Description

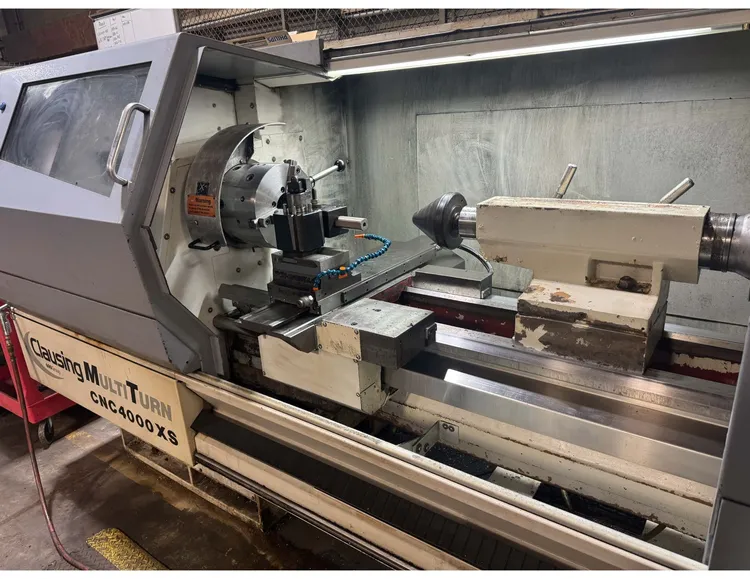

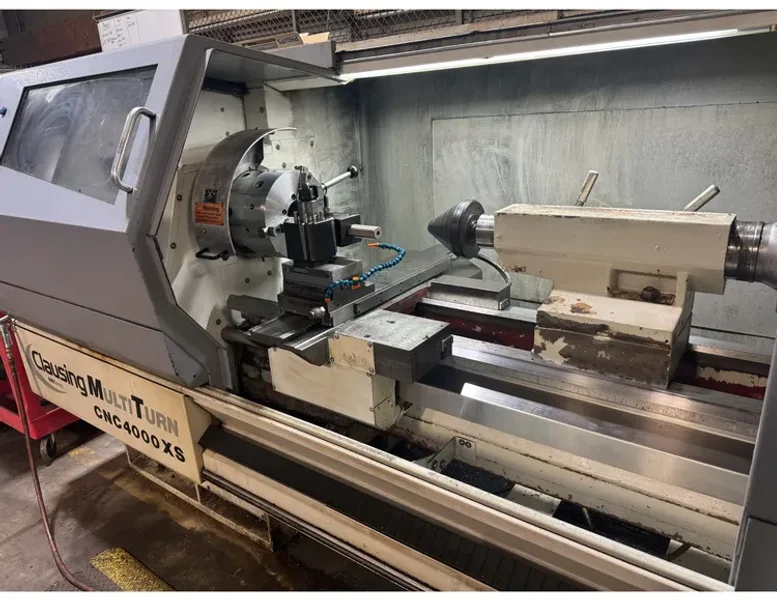

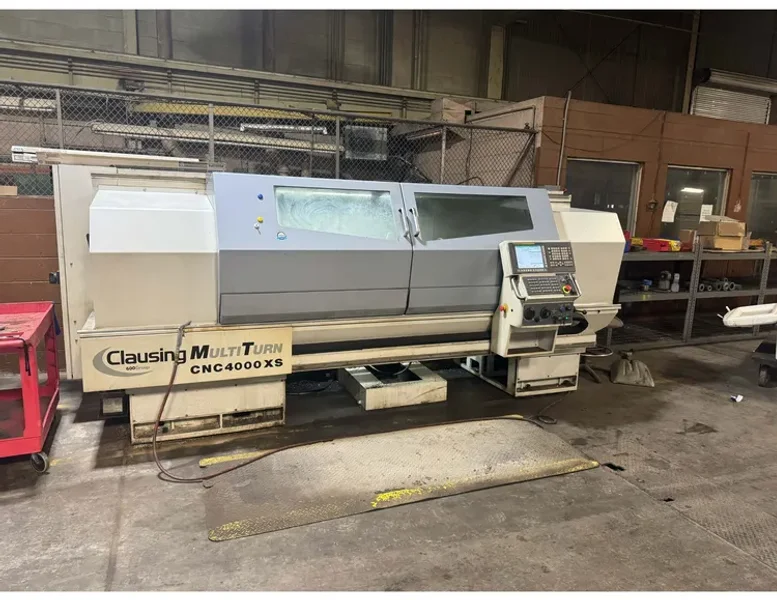

Used Clausing MultiTurn CNC 4000XS lathe, 2020 model, professional-grade 21" x 80" setup. Features Fanuc Oi-TF CNC control, 2000 RPM max, and 10HP power. Includes a 12" 3-jaw chuck, quick-change tool post, steady rest, and coolant system.

ImperialMetric

Swing	21.8"	553.72 mm
Machining Length	80"	2,032 mm
Chuck Size	12"	304.8 mm
Bar Capacity	4.09"	103.89 mm
Power	10 hp	7.5 kW
Max RPM	2,000 RPM	2,000 RPM
Control	CNC (Fanuc Oi-TF With Alpha)	CNC (Fanuc Oi-TF With Alpha)
Dimensions	161" x 77" x 69"	161" x 77" x 69"
Weight	8,060 Lbs.	8,060 Lbs.

Brand: Clausing
Model: MultiTurn CNC 4000/80XS

Specifications:
Swing Over Bed: 21.8"
Swing Over Cross slide: 14.5"
Swing in Gap: 32.7"
Distance Between Centers: 80"
Bed Width: 15.7"
Spindle Bore: 4.09"
Spindle Nose (camlock): D1-11
Spindle Nose Taper: 5 MT
Number of Spindle Speeds: 3 infinitely variable
Spindle Speed Range: 1 – 2000 RPM's
X-Axis Rapid Travers: 315 IPM
Z-Axis rapid Traverse: 394 IPM
X-Axis Thrust: 1,464 Lbs.
Z-Axis Thrust: 2,196 Lbs.
X-Axis Ballscrew: 25 x 4 mm
Z-Axis Ballscrew: 40 x 8 mm
Tailstock Quill Diameter: 3.7"
Tailstock Quill Travel: 5.7"
Tailstock Quill Taper: 6 MT
Coolant System: Yes
Spindle power: 10 H.P.
Voltage Required: 230/460 3 phase
Machine dimensions: 161" x 77" x 69"
Machine Weight: 8,060 Lbs.

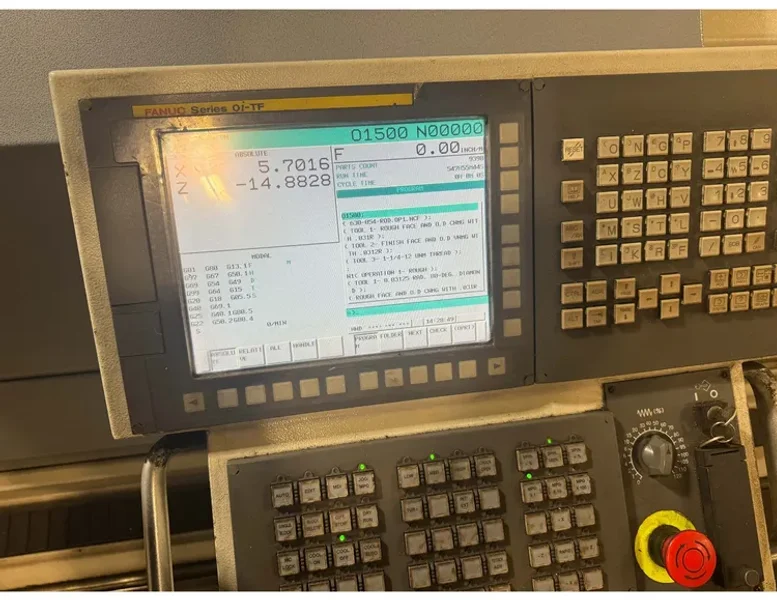

Fanuc Oi-TF CNC control with Alpha.
12" 3 jaw chuck, D1-11 mount, 4.06 bore.

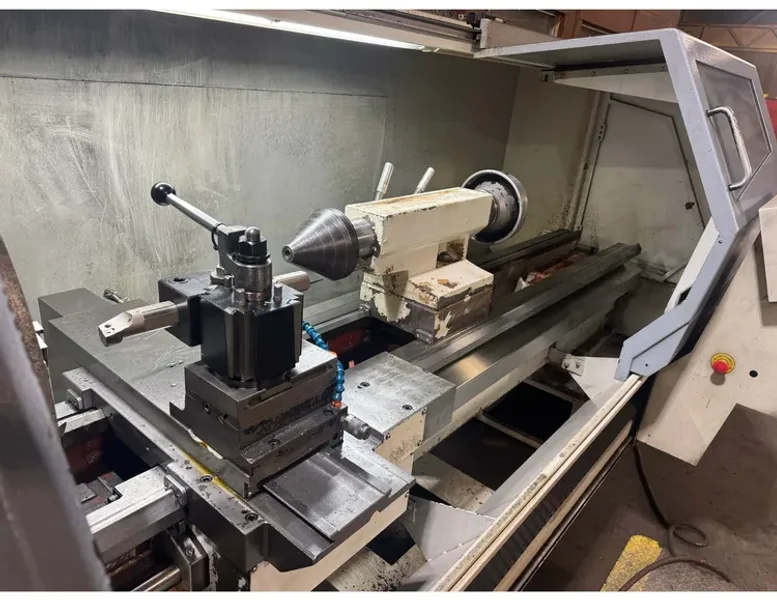

Aloris quick change tool post with 5 holders.
Steady rest.
All headstock gears are hardened and ground.
Headstock shafts are splined and turn on anti-friction bearings.
Spindle bearings, gears, and shafts are lubricated by a forced lubrication system.
Cross slide runs along a dovetail guide.
Precision tapered roller spindle bearings.
Bed wipers and apron mounted wipers with automatic lubrication system.
Cast Iron Plinths with full enclosure and interlocking sliding doors.
Pull out chip pan for easy chip removal.
Extra wide bed provides accuracy and minimal wear.

Machine sold As-Is loaded on truck
