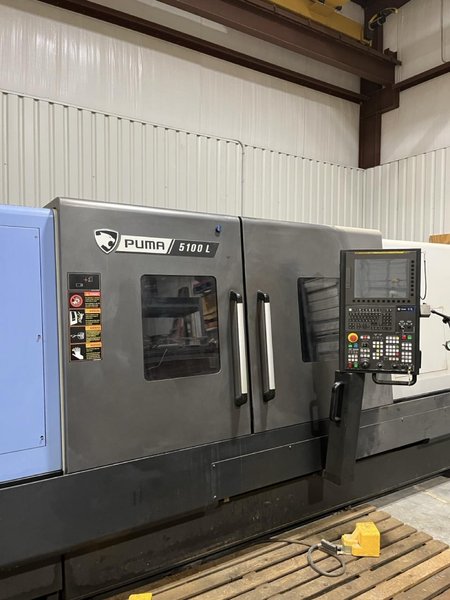

DN Solutions Puma 5100LC CNC Lathe, 2023 – 10.8″ Big Bore, Schunk Air Chuck, Chip Conveyor, Low Hours

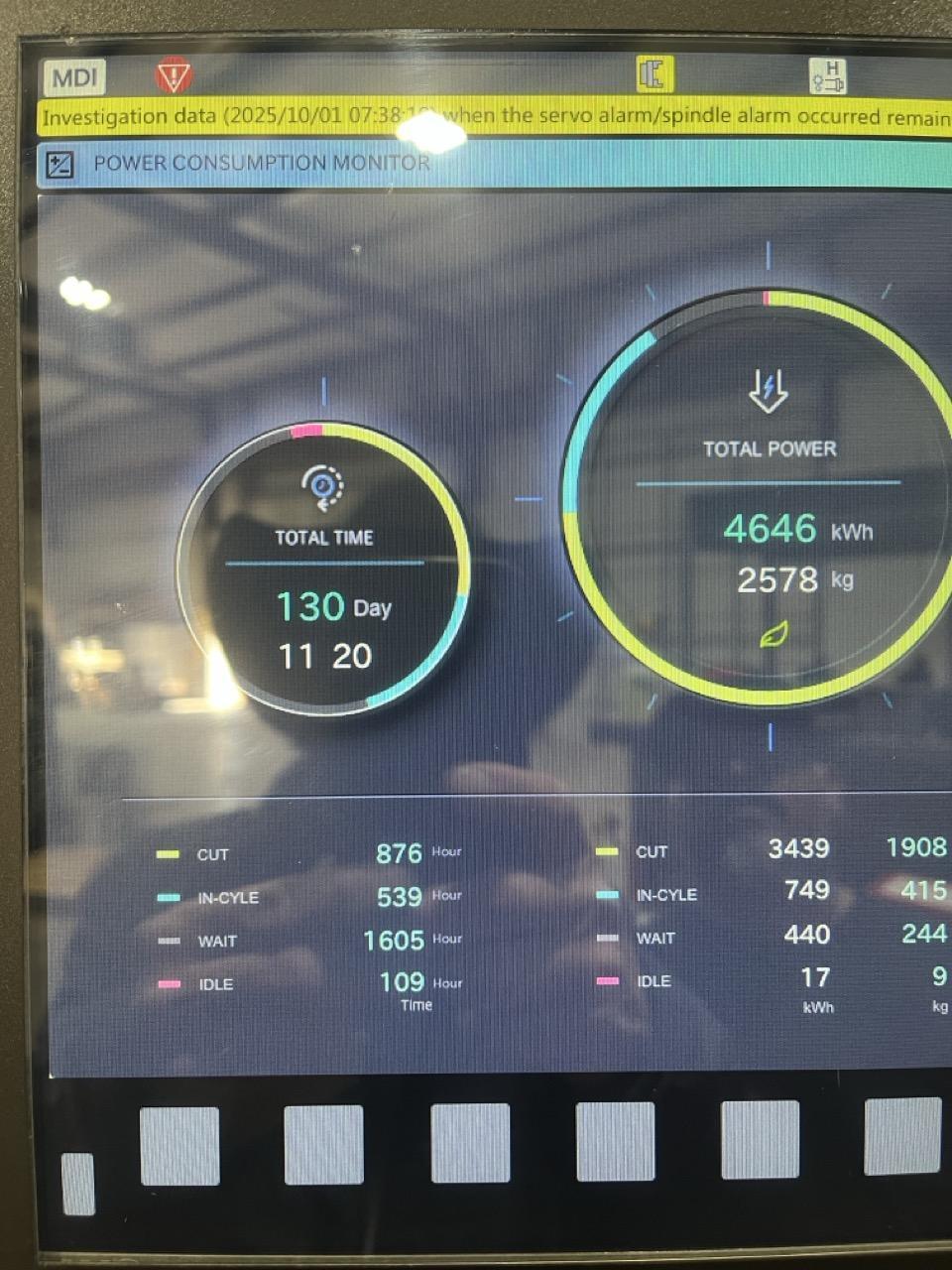

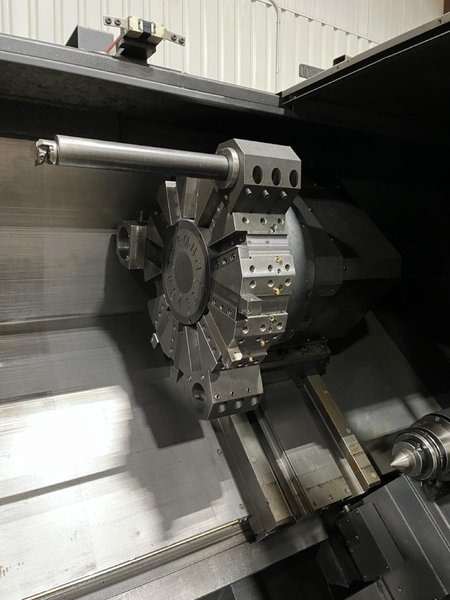

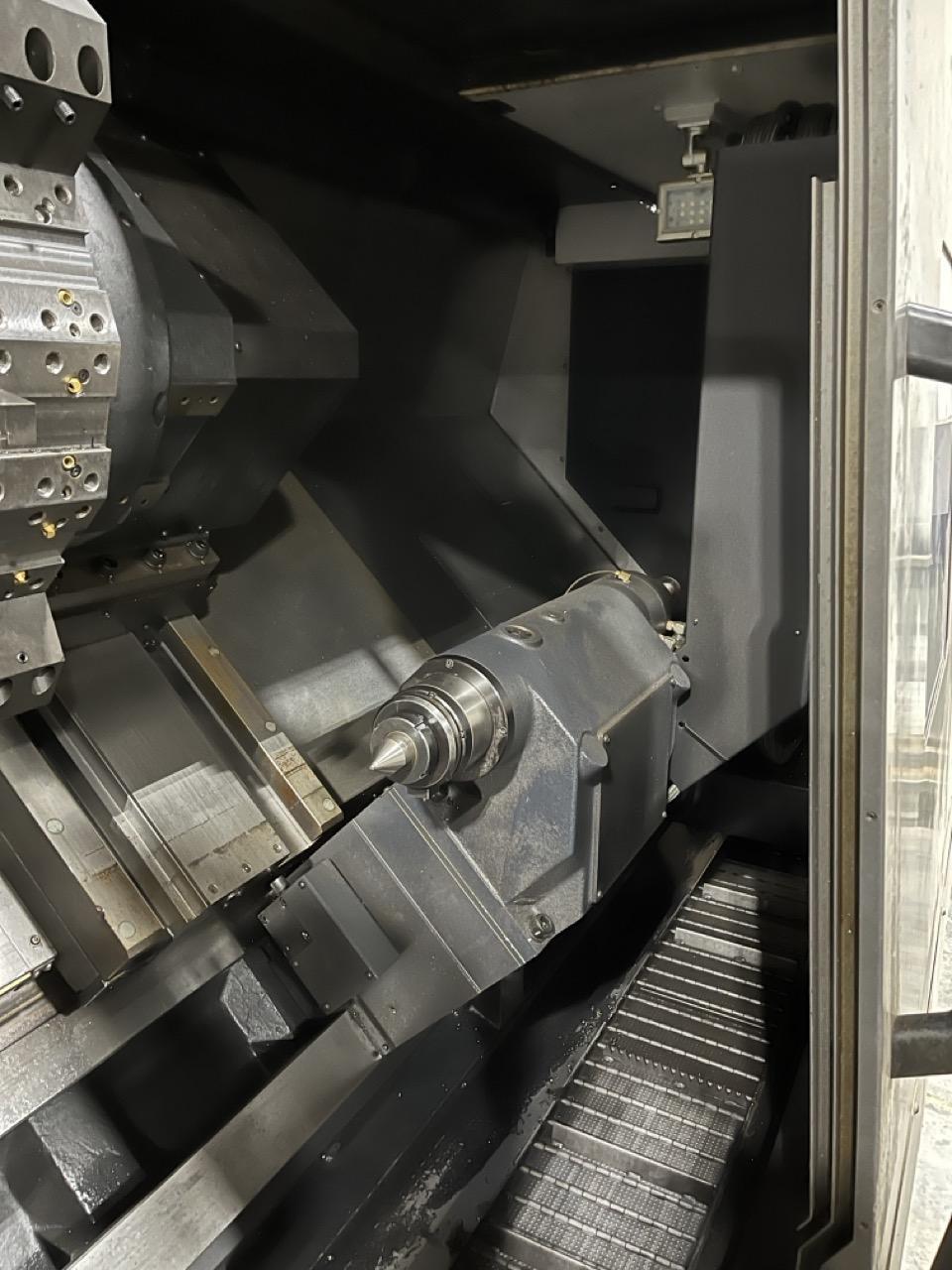

Swing over Bed: 35.4″ Swing over Carriage: 27.16″ Max. Turning Diameter: 25.6″ Max. Turning Length: 81.97″ Distance Between Spindle Nose and Tailstock: 90.98″ Spindle Speed: 1,000 RPM Spindle Nose: ISO 702-4 (#20) Spindle Bore: 10.82″ Spindle Speed Ranges: 2 X-Axis: 14.3″ Z-Axis: 84.8″ Turret Capacity: 12 Tailstock Quill Diameter: 4.7″ Quill Stroke: 4.7″ Machine Weight: 26,675 lbs. Dimensions w/Conveyor: 277″x90″x90″ Electrical: 205-235V 3 Phase Cutting Hours: 876

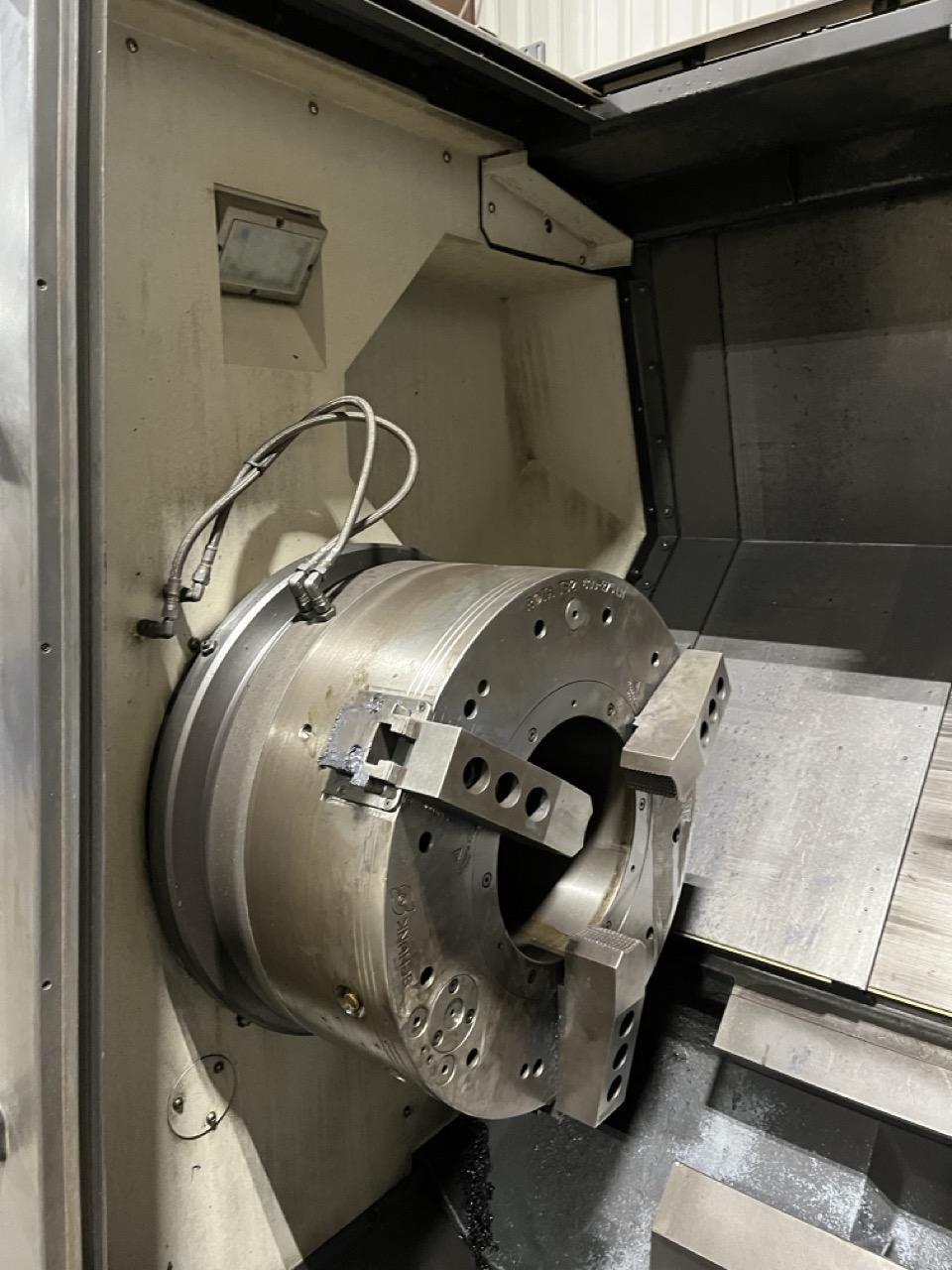

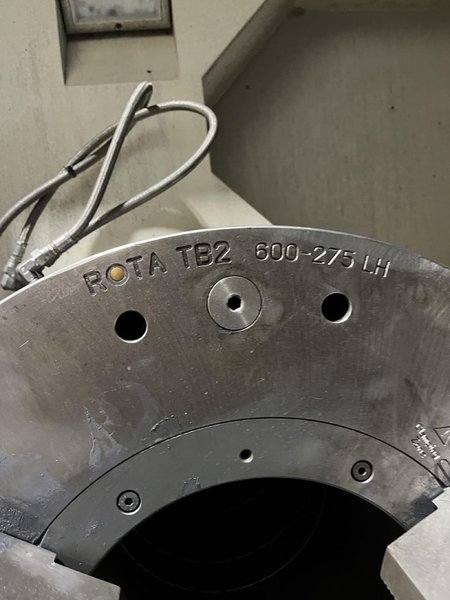

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 0i-Plus Control w/iHMi Touch Screen Turbo Side Discharge Chip Conveyor w/Variable Speed 145psi Coolant Pump Upgrade Schunk ROTA TB2 600-265 Pneumatic Air Chuck

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
