63" x 433" POREBA TCG-160 x 11M Heavy Duty Manual Lathe

SPECIFICATION:
Maximum Swing Over Bedways 62.99"
Maximum Swing Over Cross Slide 51.18"
Distance Between Centers 433.07"
Spindle Bore 4.13"
Spindle Speeds (24) 1.6-200 RPM
Diameter of Spindle Front Journal 10.25"
Longitudinal Feeds (20) 0.007-0.2 IPR
Cross Feeds (20) 0.0035-0.1 IPR
Rapid Traverse 158 IPM
Metric Threading 1 to 129
Weight Capacity Between Centers 66,000 lbs
Weight Capacity With One Steady Rest 77,000 lbs
Weight Capacity With Two Steady Rest 88,000 lbs



Equipped With:
63" Face Plate with 4 Jaws
Inch/Metric Threading
Power Compound
Pendant Station on Carriage
3-Roller Steady Rest, 15.7" Diameter
4-Roller Steady Rest, 31.4" Diameter
4-Roller Steady Rest, 43.3" Diameter
Power Tailstock Quill
Power Tailstock
100 HP Main Spindle Motor


NOTE: Machine to Be Refurbished. Delivery 6 - 7 Months from Time of Initial Order.

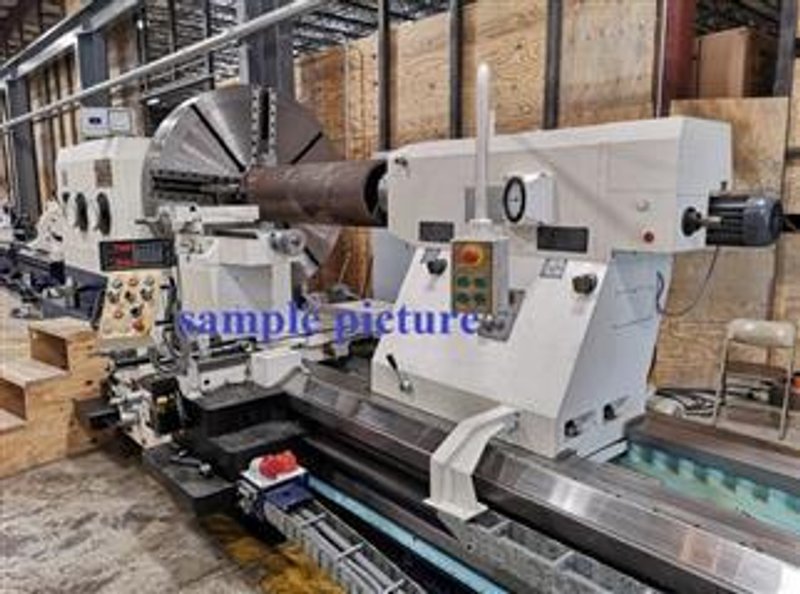

NOTE: Photo Representative of Completed Machine
