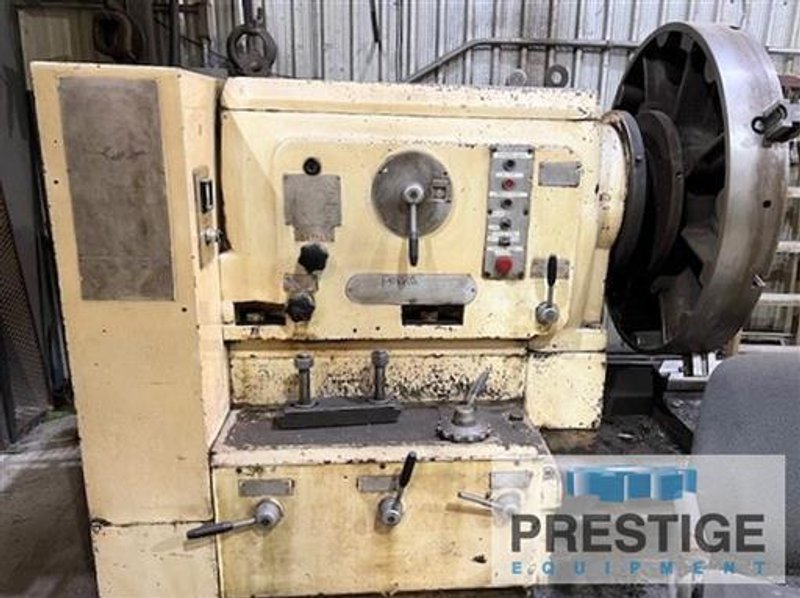

54" x 393" Poreba TR-135-B1/10M Heavy Duty Manual Lathe

SPECIFICATION:
Swing Over Bed 54"
Swing Over Cross Slide 41"
Swing in Gap 65"
Distance Between Centers 393"
Length of Gap 22"
Max. Workpiece Weight, Unsupported 20,000 Lbs
Max. Workpiece Weight, 1-Steady 22,100 Lbs
Max. Workpiece Weight, 2-Steadies 26,500 Lbs
Spindle Speeds, (24) 5 - 500 RPM
Spindle Bore 4.72"
Spindle Nose A1-15
Longitudinal Feed .0035 - .400 TPR
Cross Slide Feed .0017 - .200 TPR
Top Slide Feed .0008 - .100 TPR
Threading, Inch (61) .5 - 60 TPI
Threading, Metric (62) 1 - 120 mm/Rev
Cross Slide Travel 20.75"
Tailstock Quill Diameter 7.5"
Tailstock Quill Travel 12"
Tailstock Quill Taper MT #6
Main Motor 55 HP
Approx. Machine Dimensions 786" x 113"
Approx. Machine Weight 42,240 Lbs



Equipped With:
40" 4-Jaw Chuck

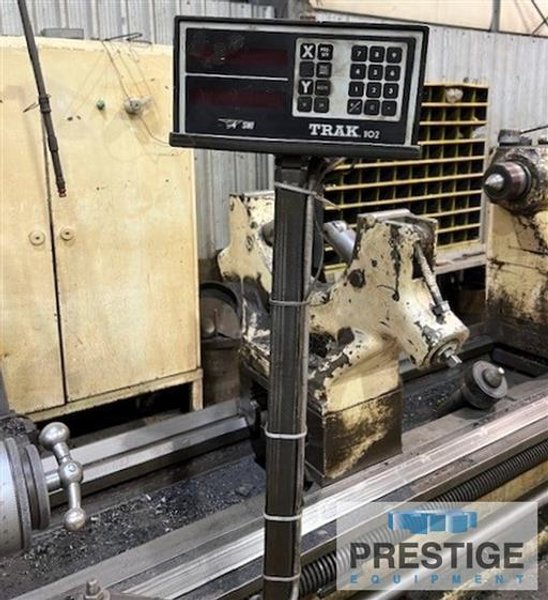

2-Axis Trak Digital Readout

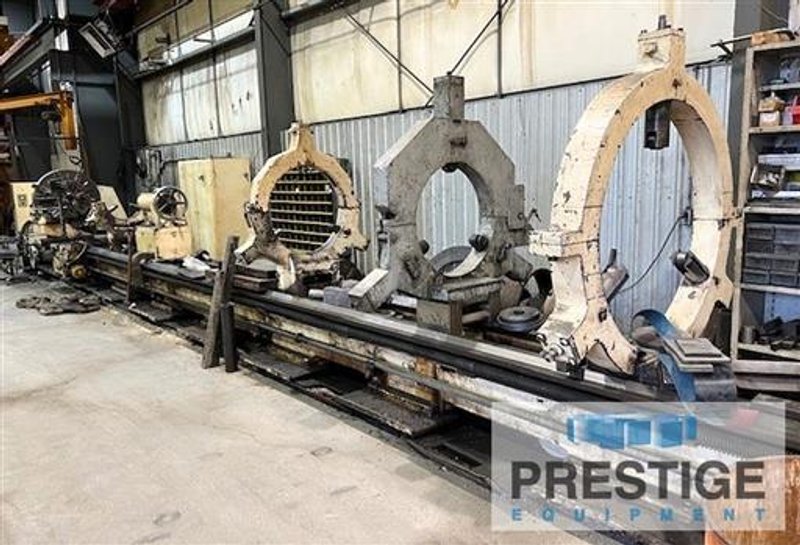

3 - Steady Rests

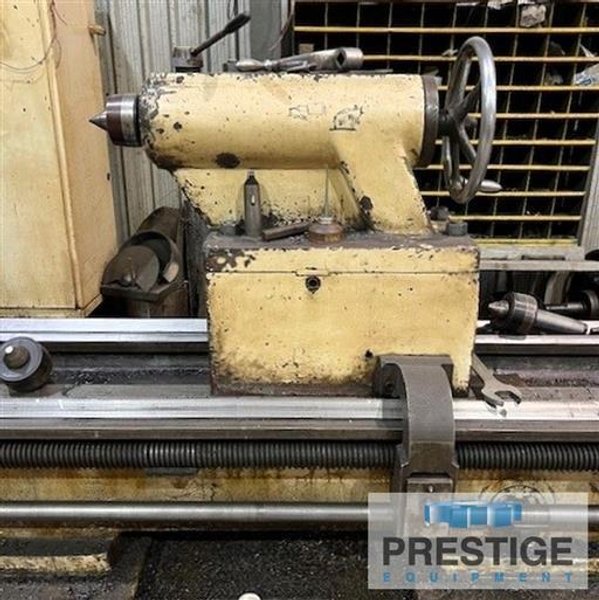

Tailstock with Live Center
Coolant
Power Rapid Traverse
