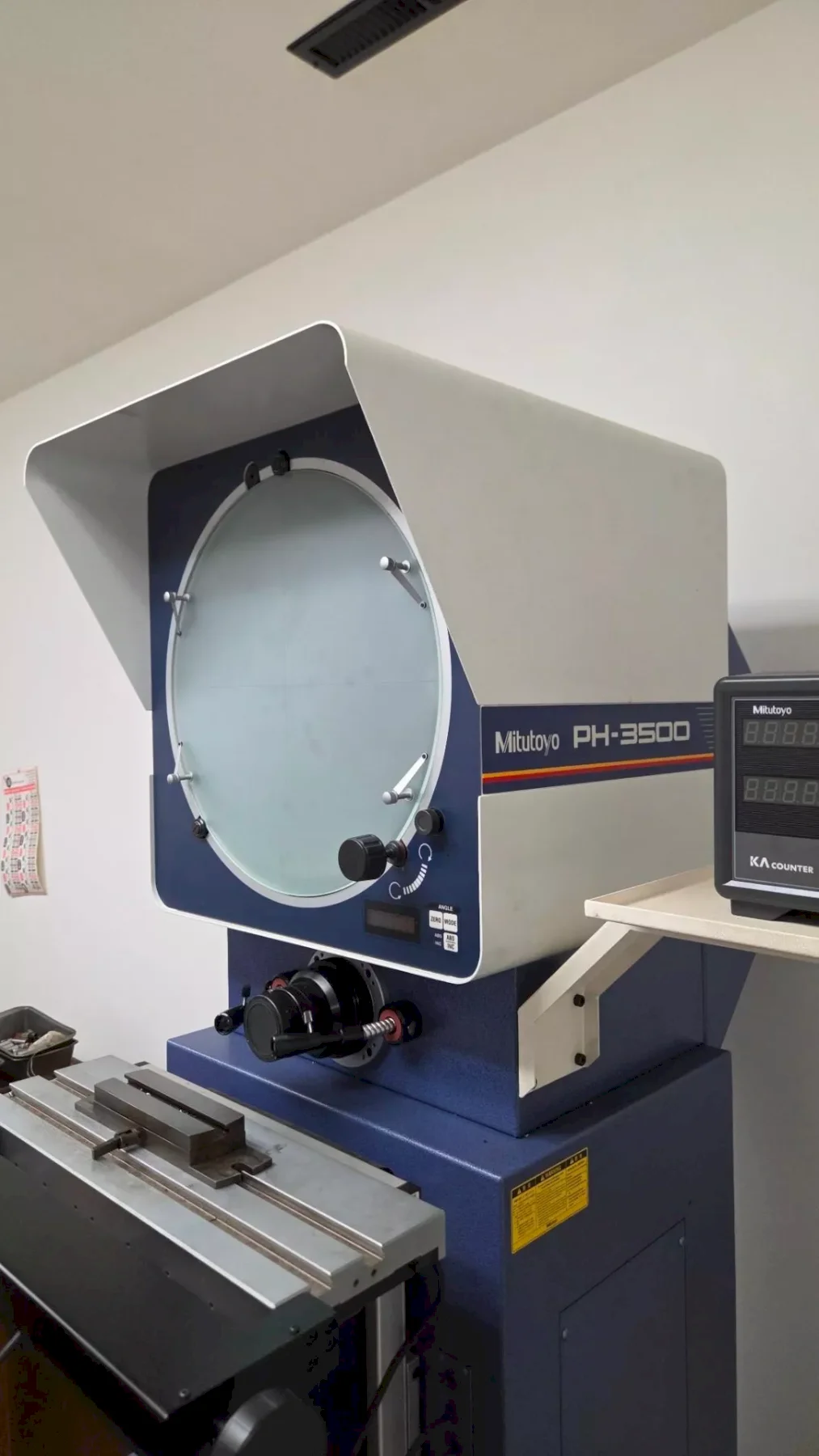

14" MITUTOYO Model PH-3515F Bench Top Comparator, s/n 000931412.

14" MITUTOYO Model PH-3515F Bench Top Comparator, s/n 000931412.

Name: 14" MITUTOYO Model PH-3515F Bench Top Comparator, s/n 000931412.
Brand: MITUTOYO
SKU: 34948
Availability: PreOrder

Brand

MITUTOYO

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

arrival and availability pending

Preliminary Specifications:
Screen Diameter - 14"
Table Size - 17.7" x 5.7"
Horizontal Travel - 10
Vertical Travel - 6"
Table Swivel - +/- 10 Degrees
Table Load Capacity - 100 Lbs.
Electrics - 1/60/120 Volt
Image Type - Erect
Projection Lamp - 24V, 150 W Halogen
Surface Lamp - 24V, 150 W Halogen
Lens Mount - Single
Dimensions (less side surface and dro) - 22" LR x 45" FB x 44.5" H
Net Weight (less cabinet), Approx - 340 Lbs.
Crated Shipping Weight, Approx - 700 Lbs.

Equipped with:

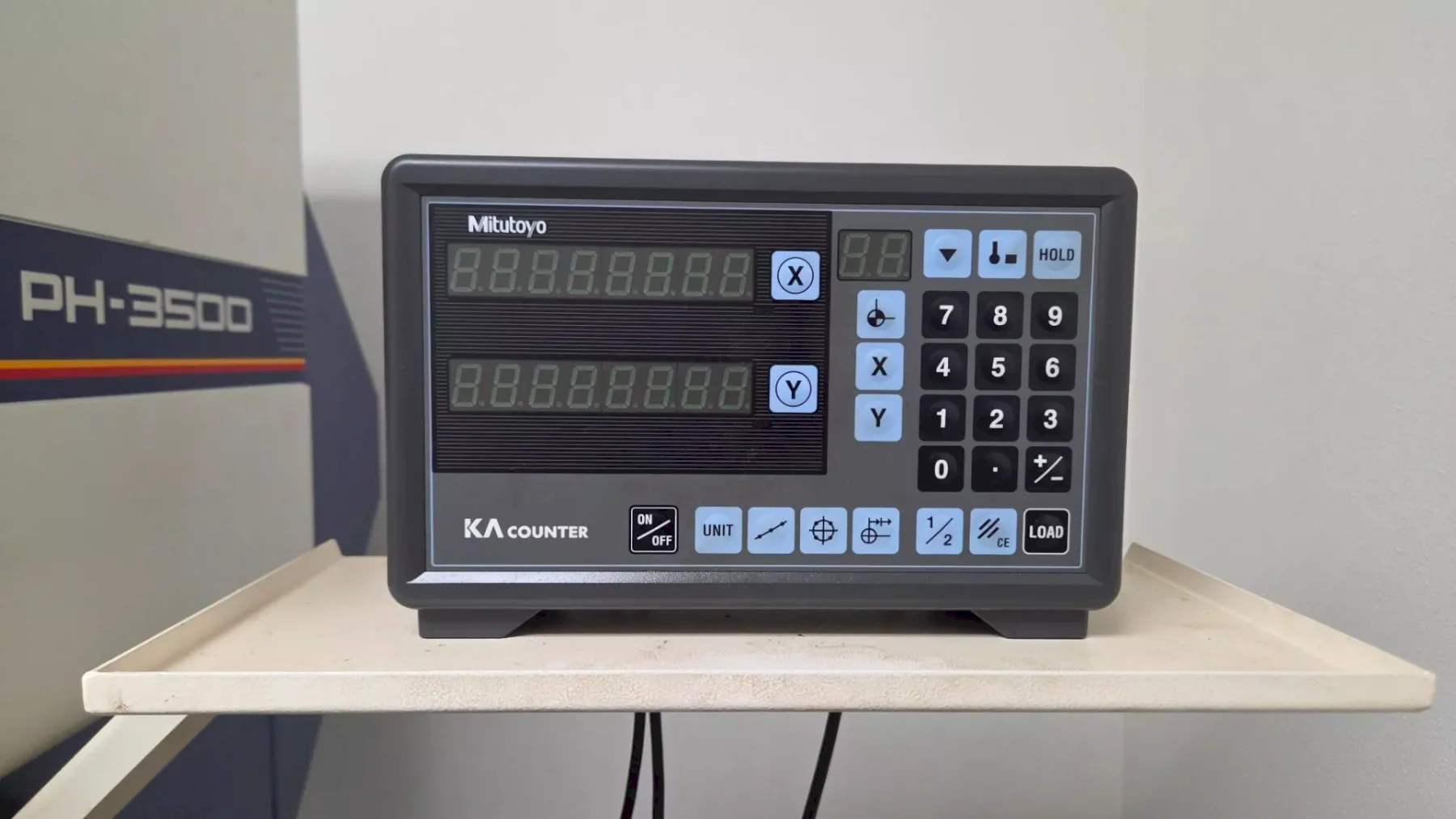

Mitutoyo KA Counter / Digital Readout (other dro options may be available)
Digital Angle Display
Dual Fiber Optic Surface Reflection
Single Lens Mount with 10X Lens (other lenses may be available for purchase)

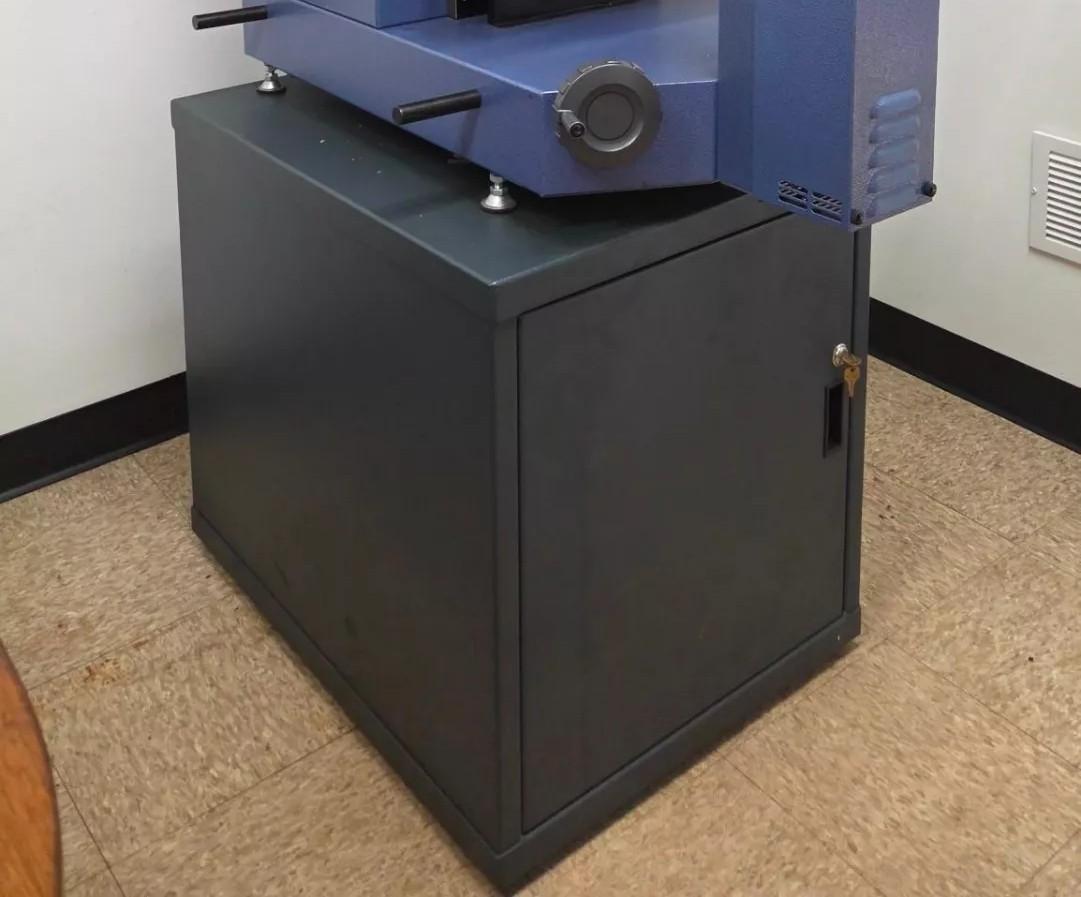

Cabinet Base

Notes:
- New arrival and availability pending.
- Excellent condition and appearance from prototype shop.
- Specifications subject to independent verification by the buyer.

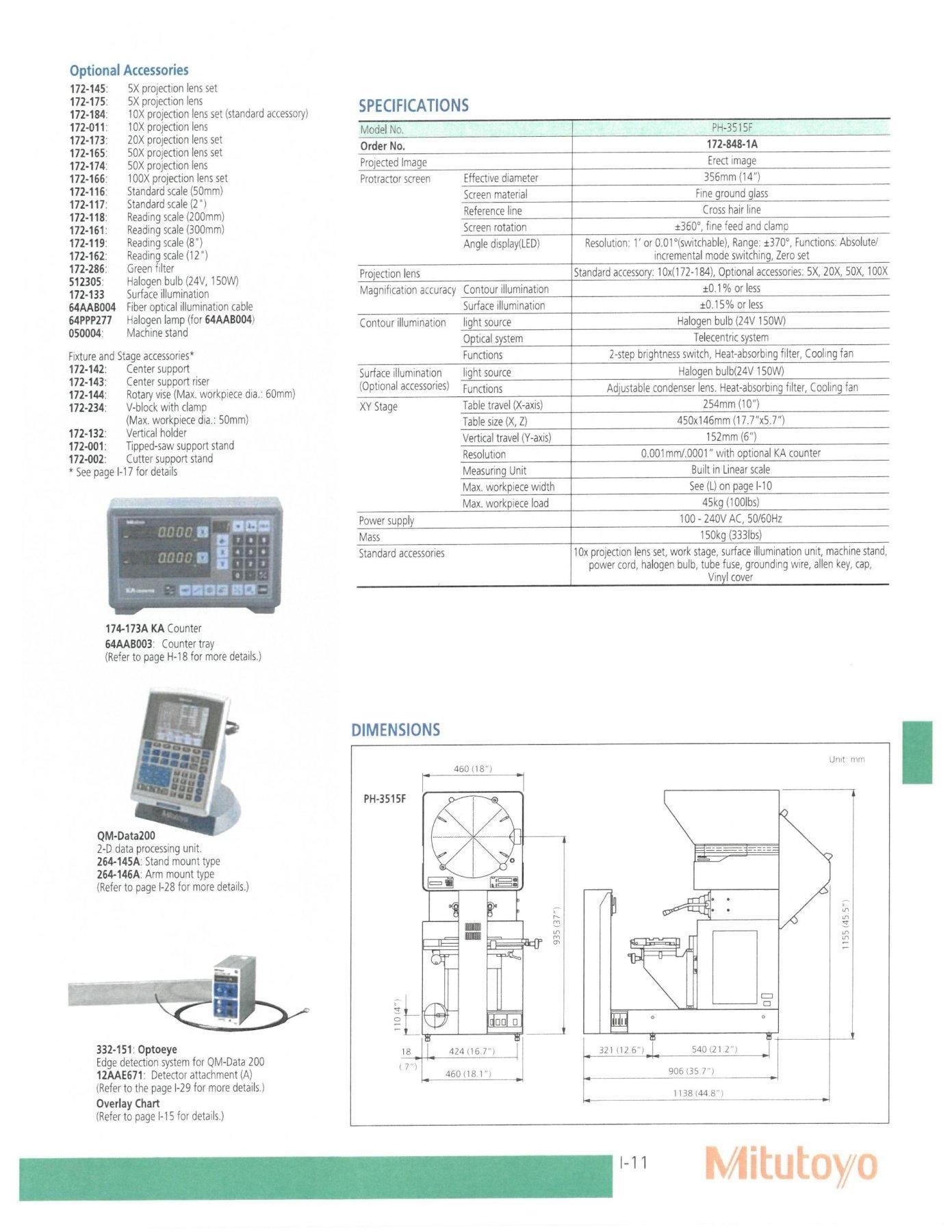

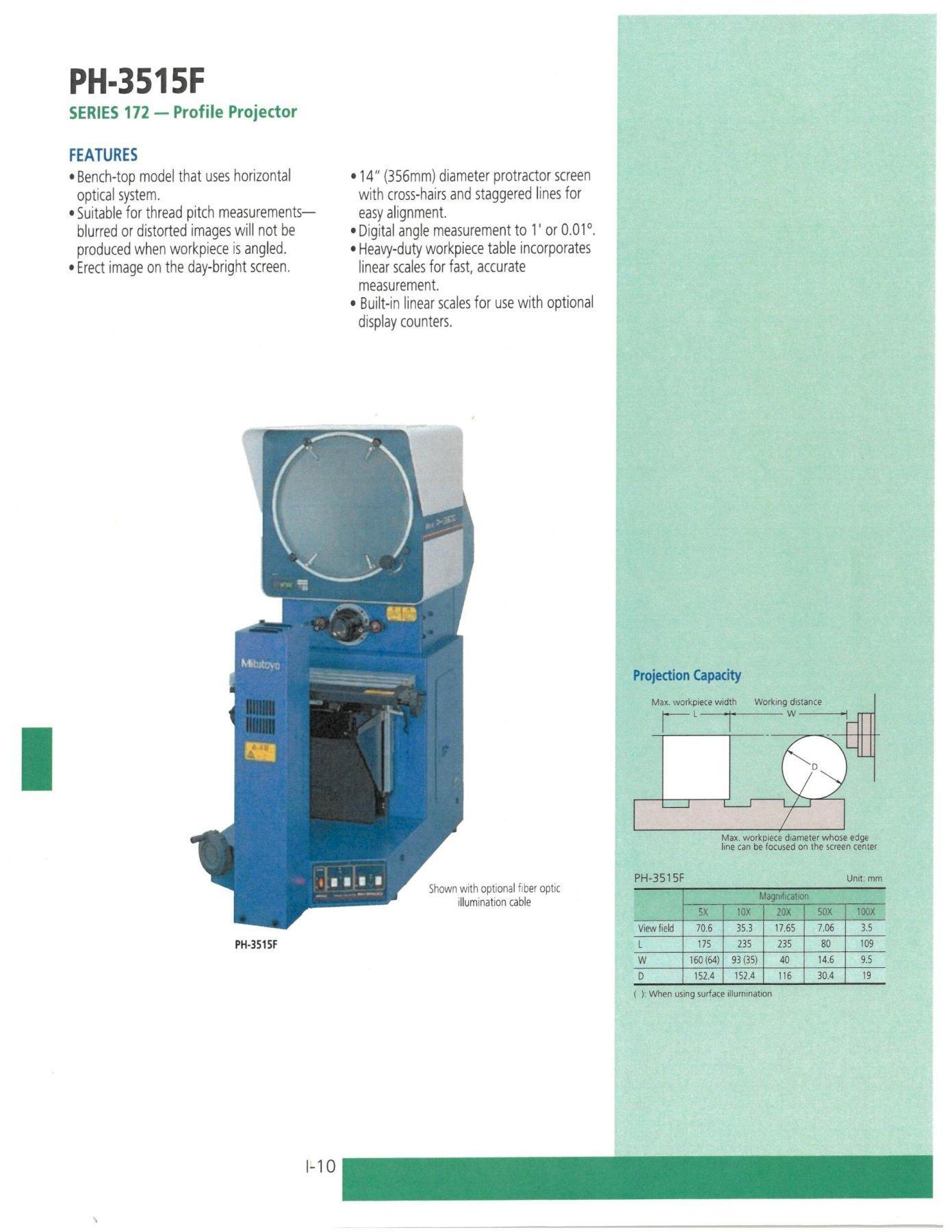

- Factory Literature is for reference only. There may be discrepancies.
- Buyer responsible for shipping. We can assist with quotes on request.
