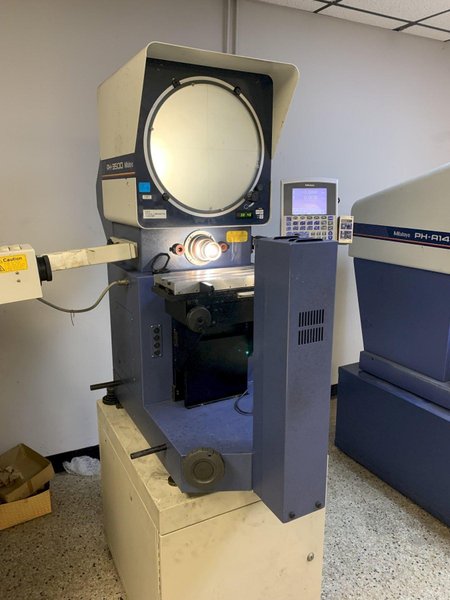

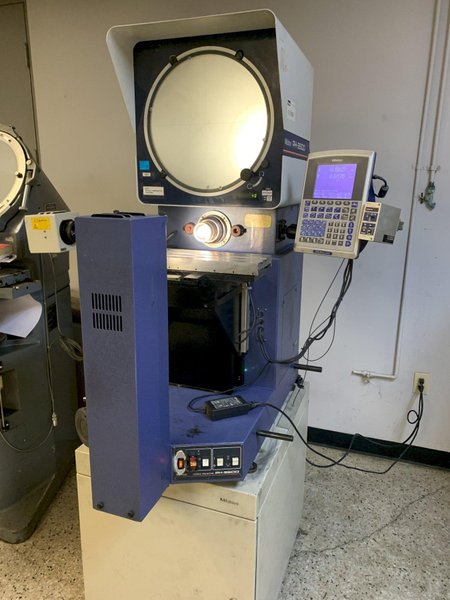

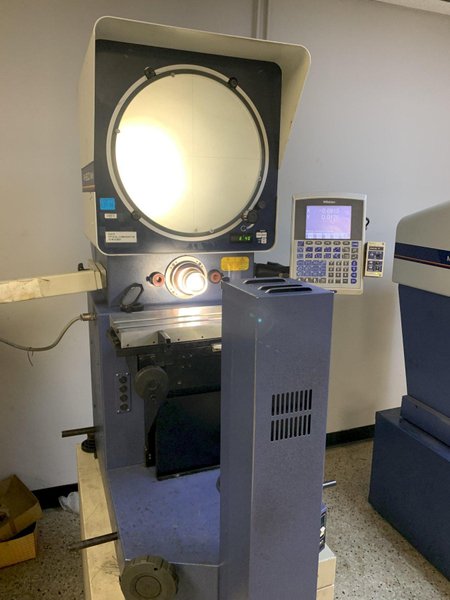

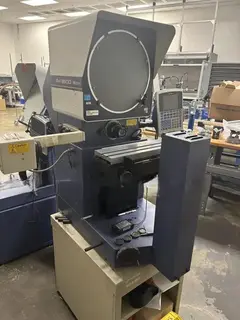

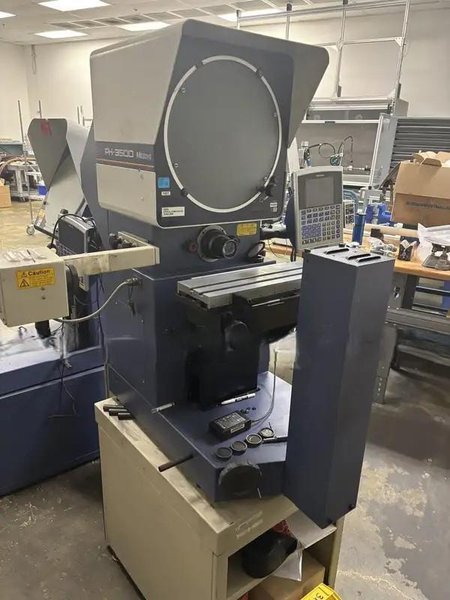

14" MITUTOYO Model PH3515 Bench Model Optical Comparator, S/N 3M0123.
Brand
Category
Type
Model
PH3515
Stock #
34913
Year
Not specified
Condition
Used
Location
Ohio
|
Specifications:
Screen Diameter - 14" Table Size - 17.7" x 5.7" Horizontal Travel - 10 Vertical Travel - 6" Table Swivel - +/- 10 Degrees Table Load Capacity - 99 Lbs. Electrics - 1/60/120 Volt Image Type - Erect Projection Lamp - 24V, 150 W Halogen Surface Lamp - 24V, 150 W Halogen Lens Mount - Single w/10X Lens Dimensions (less side surface and dro) - 22" LR x 45" FB x 44.5" H Net Weight, Approx - 341 Lbs. Shipping Weight, Approx - 600 Lbs. Equipped with: QM-Data 200 Computational Digital Readout Optoeye Edge Sensing Digital Angle Display Side Mount Surface Reflection Attachment Single Lens Mount with 10X Lens (includes half reflecting mirror attachment) Factory Base All Available Manuals Other Lenses may be available for substitution or purchase. Availability pending. Specifications subject to independent verification by the buyer. Buyer responsible for shipping. Seller can assist with rates on request. |
