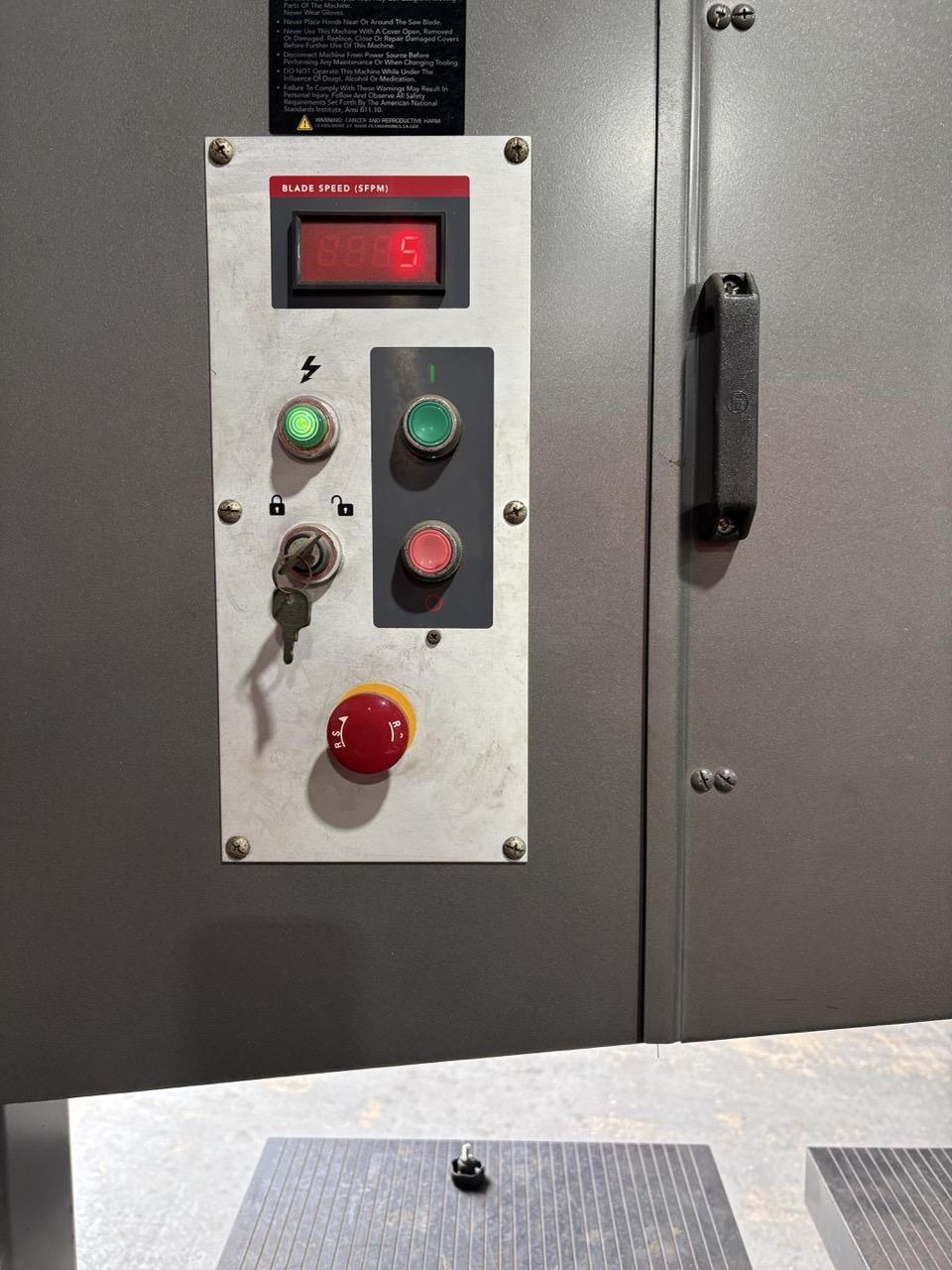

Blade Speeds Low 50–410 SFPM High 540–4925 SFPM
Maximum Cutting Height 12″
Throat Depth 36″
Main Table Size 23-5/8″ x 27-1/2″
Auxiliary Table Size 17-3/4″ x 27-1/2″
Table Height At 90 Degrees 40″
Table Tilt 10 Degrees Left 45 Degrees Right
Blade Length 195-1/4″ – 198-1/4″
Blade Width 1/8″ Minimum 1″ Maximum
Motor Horsepower 3 HP
Motor Type TEFC
Electrical 230/460V 3 Phase 60 Hz
Floor Space Required 69″ x 32″ x 81″
Net Weight 1760 Lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Variable Speed Drive Welded Steel Frame Blade Welder All Available Manuals All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
36" DOALL 3612-H VERTICAL BANDSAW. STOCK # 0217526.
