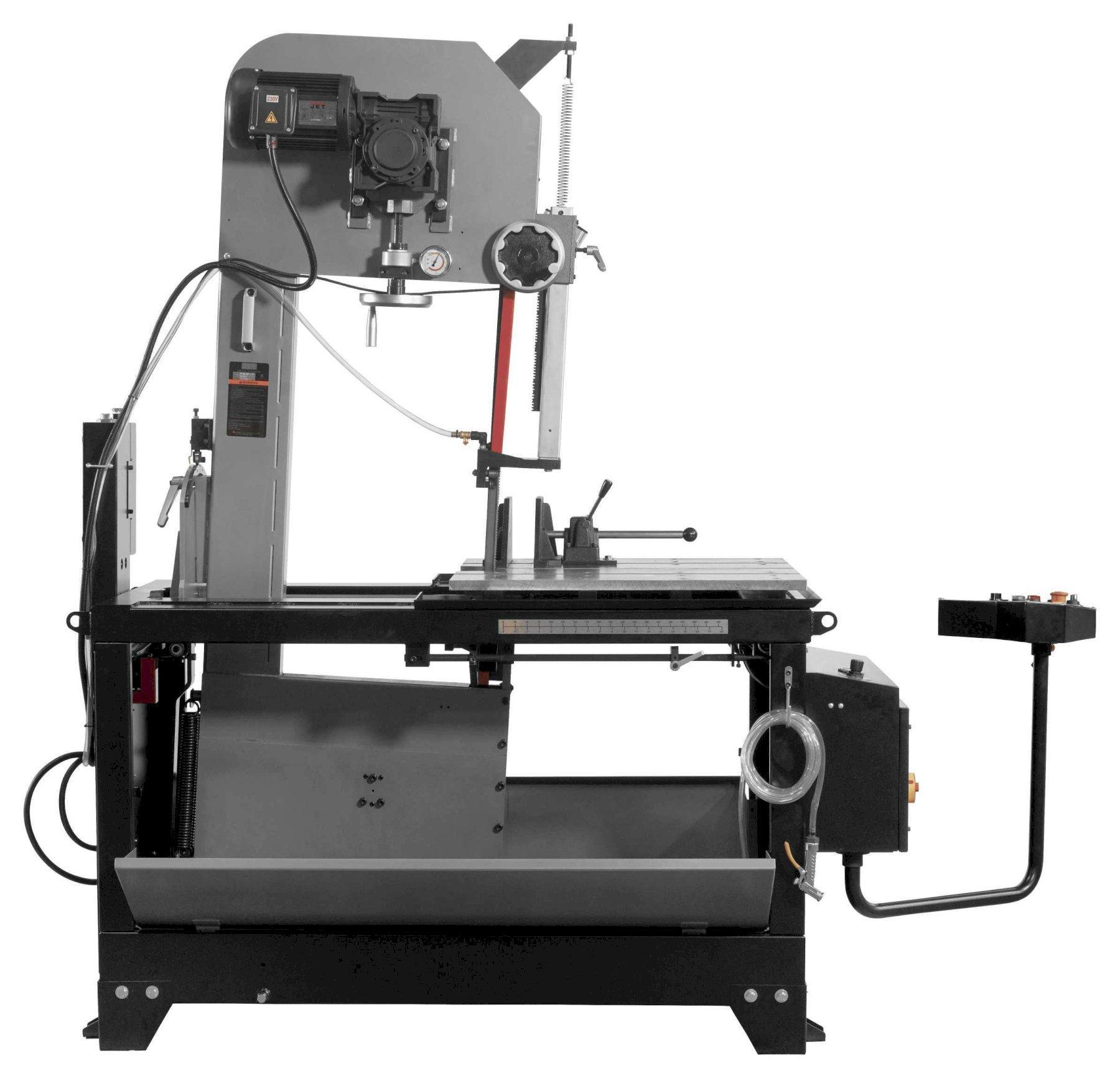

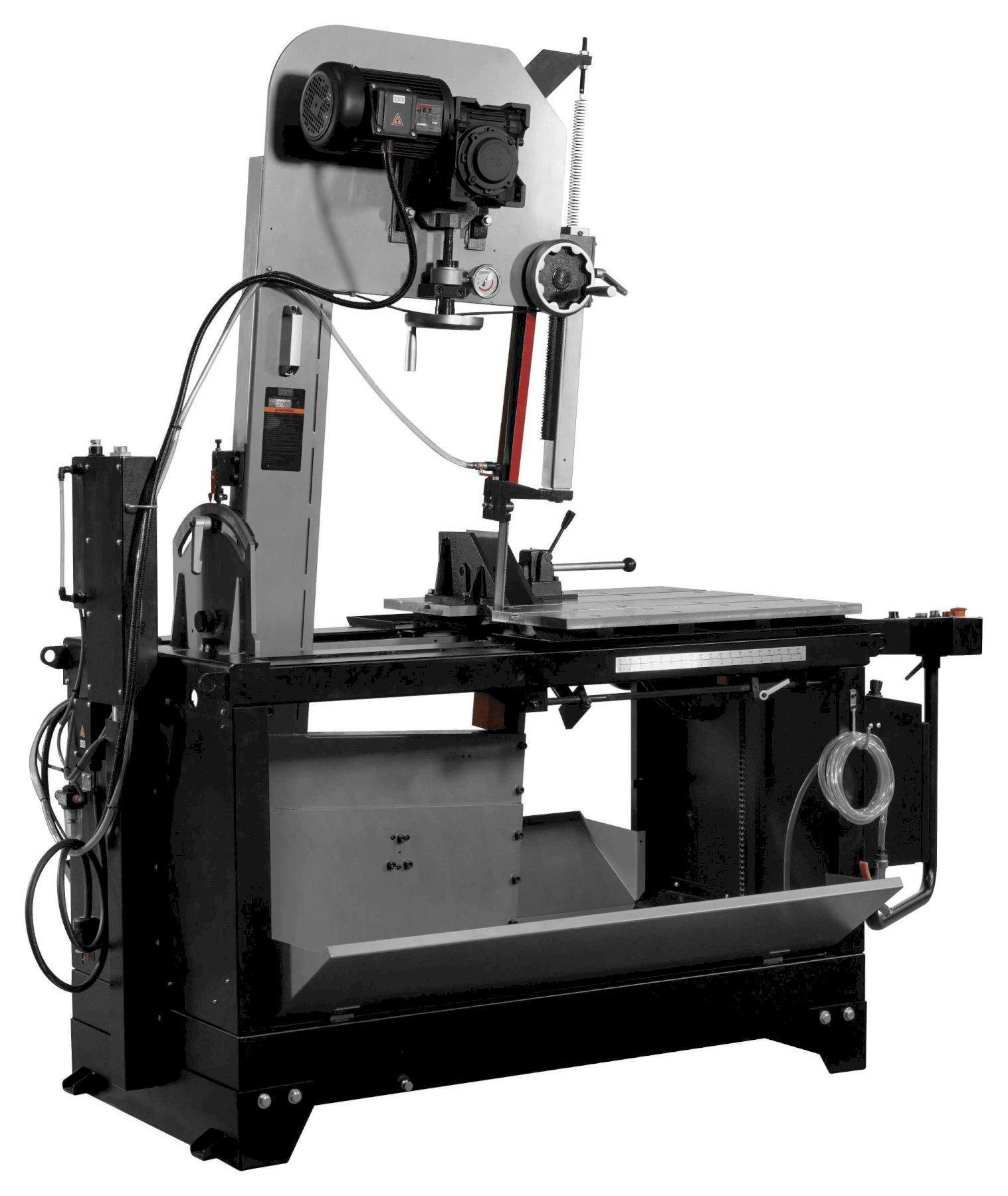

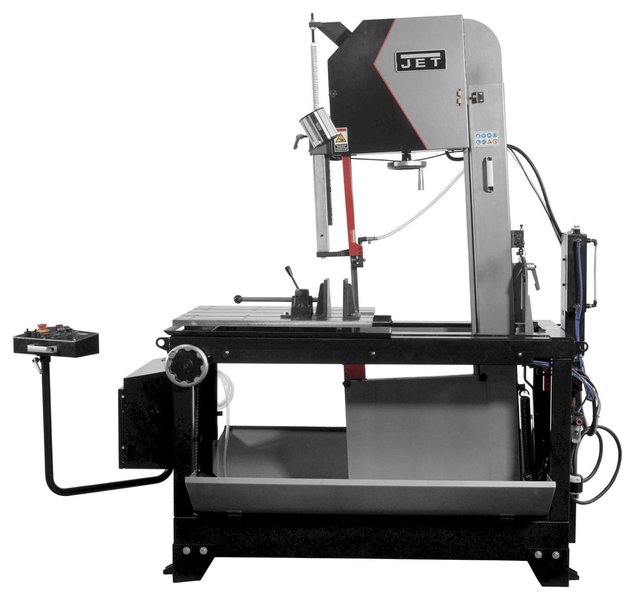

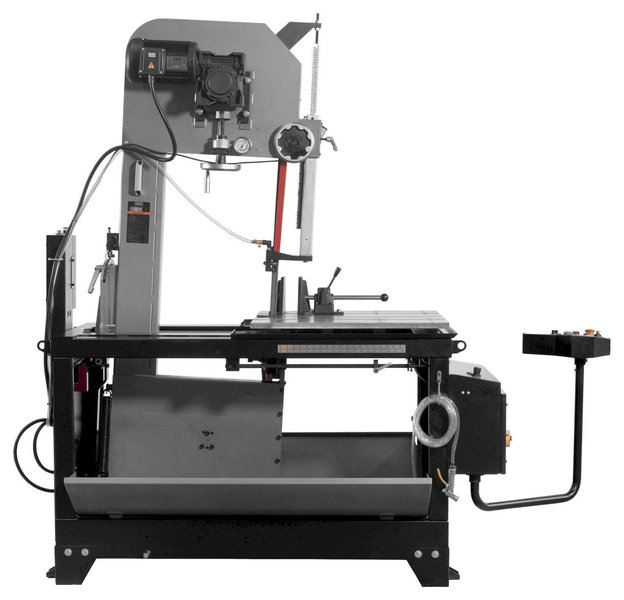

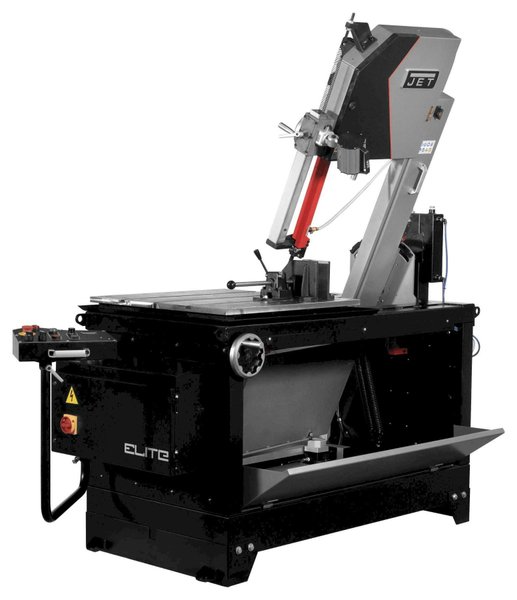

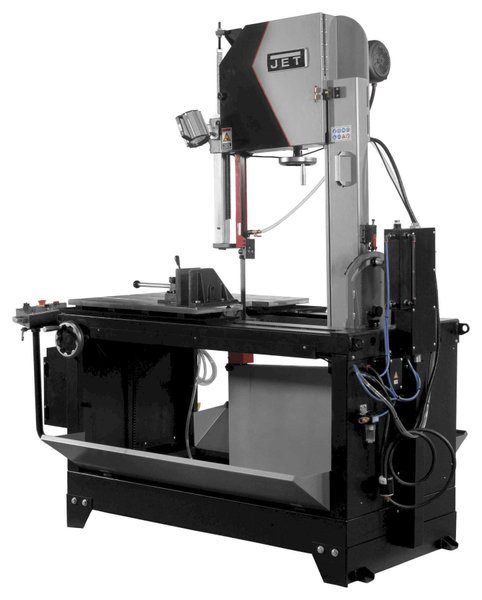

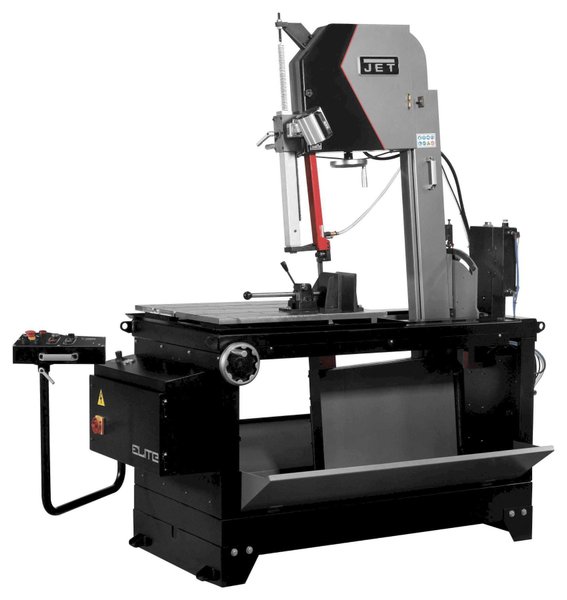

16″ x 16″ Jet EVS Elite EVTBS-16″ Vertical Tilt Frame Bandsaw, 2025 – Never Used, 460V, W/3-Year Warranty

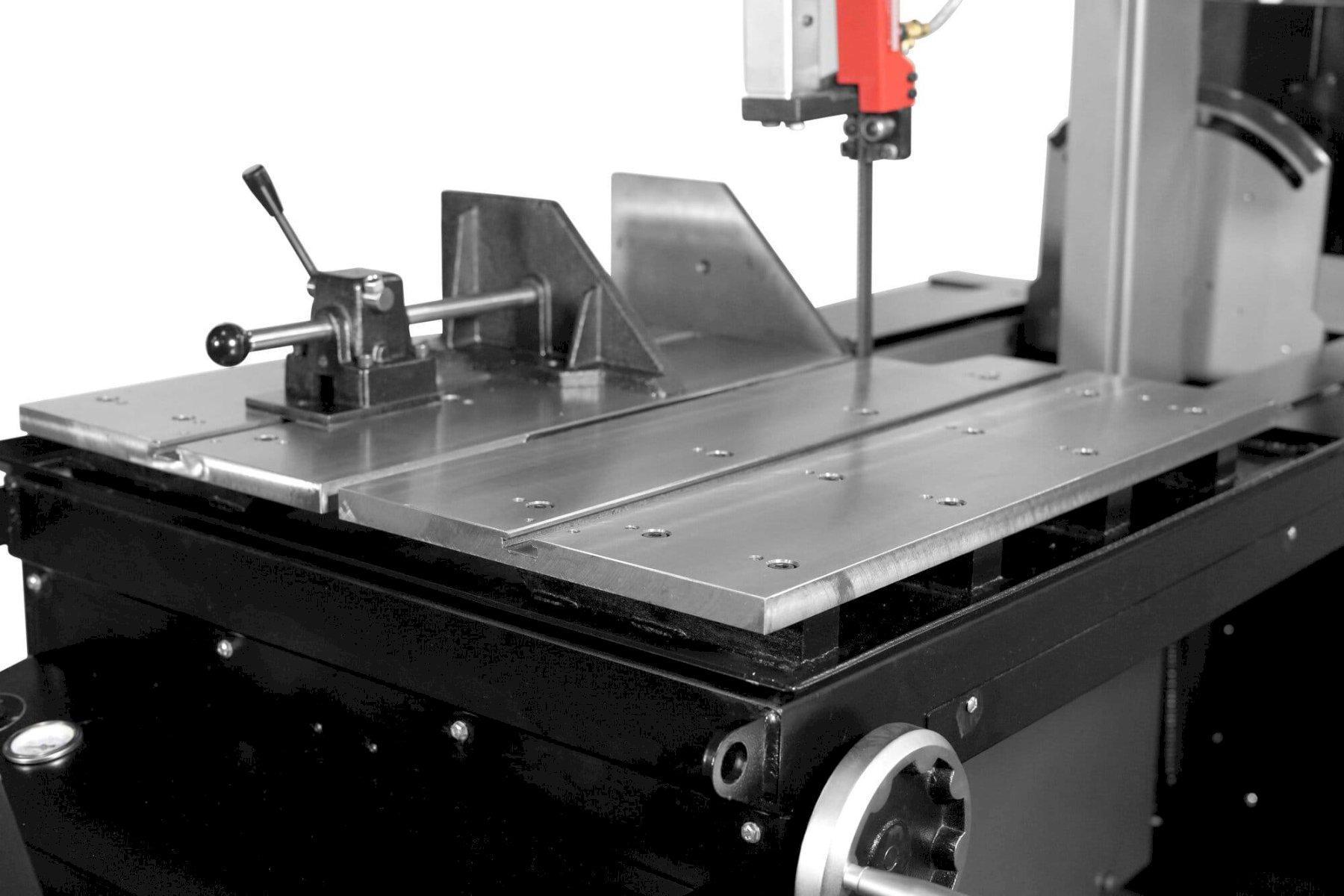

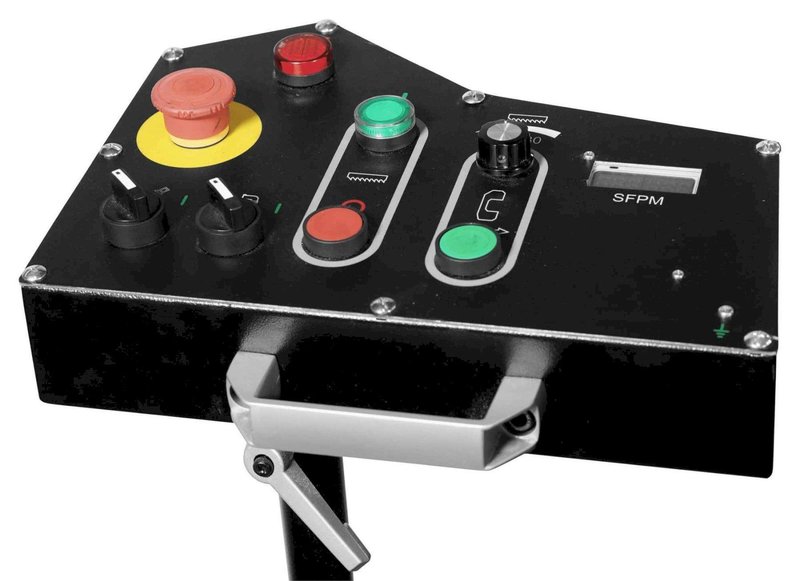

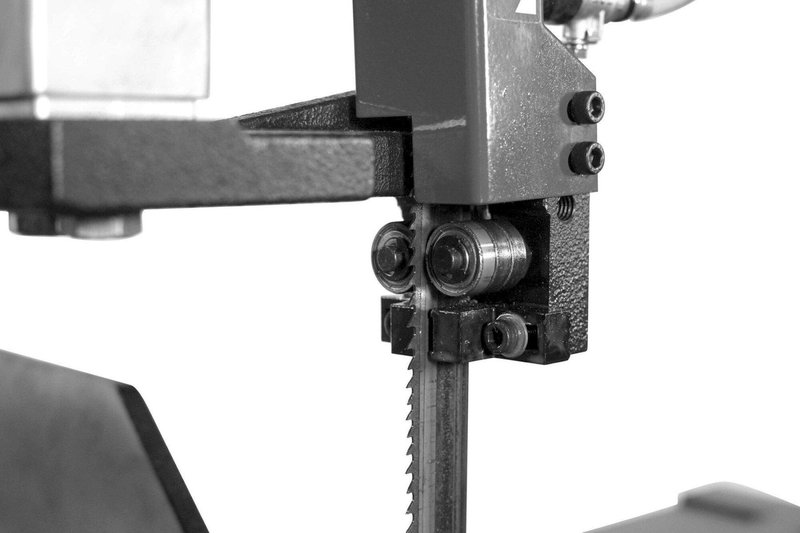

Blade Size (In.): 1-1/16 x 0.035 x 168-1/2 Blade Guide: Carbide & Roller Blade Length (In.): 168-1/2 Blade Speed (RPM): 76-430 Variable Blade Speeds (SFPM): 76-430 Blade Thickness: 0.035 Blade Width (In.): 0.035 Coolant Pump Motor: 32W Drive: EVS Drive Type: Inverter Driven Height (In.): 90.5 Input Power: 460V, 3Ph Maximum Vise Opening (In.): 17-1/2 Miter Angle Range (Deg.): 45 – 90 – 45 Model Number: EVTBS16V-460 Motor (HP): 2 HP, 460V, 3Ph Overall Dimensions (L x W x H) (In.): 94-1/2 x49-1/8 x 90-1/2 Prop 65: Cancer Rectangle at 45 Degrees (In.): 13-1/4 x 16 Round Stock Capacity (Max.) (In.): 16 Shipping Dimensions (L x W x H) (In.): 94-1/2 x 49-1/8 x 90-1/2 Speeds: Variable Table Length (In.): 29-1/2 Table Size (In.): 29-1/2 x 14-3/16 Table T-Slot (In.): 3/4 Table Width (In.): 14-3/16 Throat Depth (In.): 16 Weight (Lbs.): 1408 Work Height (In.): 39-3/8 Speed Control: Electronic Variable Speed Reservoir (Gal.): 60 Litter Blade Wheel Diameter (In.): 18.11 Round Capacity at 45° Right (in.): 13-1/4 Rectangle Capacity at 45° Left (in.) (HxW) :11-1/2 x 11-1/2 Rectangle Capacity at 45° Right (in.)(HxW): 13-1/4 x 13-1/4 Rectangle Capacity at 90° (in.): (HxW) 20 x 16 Round Capacity at 45° Left (in.): 11-1/2 Round Capacity at 90°(in.): 16 Square Capacity at 45° Left (in.) (H x W): 11-1/2 x 11-1/2 Square Capacity at 45° Right (in.) (HxW): 13-1/4 x 13-1/4 Square Capacity at 90° (in.) (HxW): 16 x 16

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*** Warranty 3 years PARTS AND LABOR from date of purchase ***
