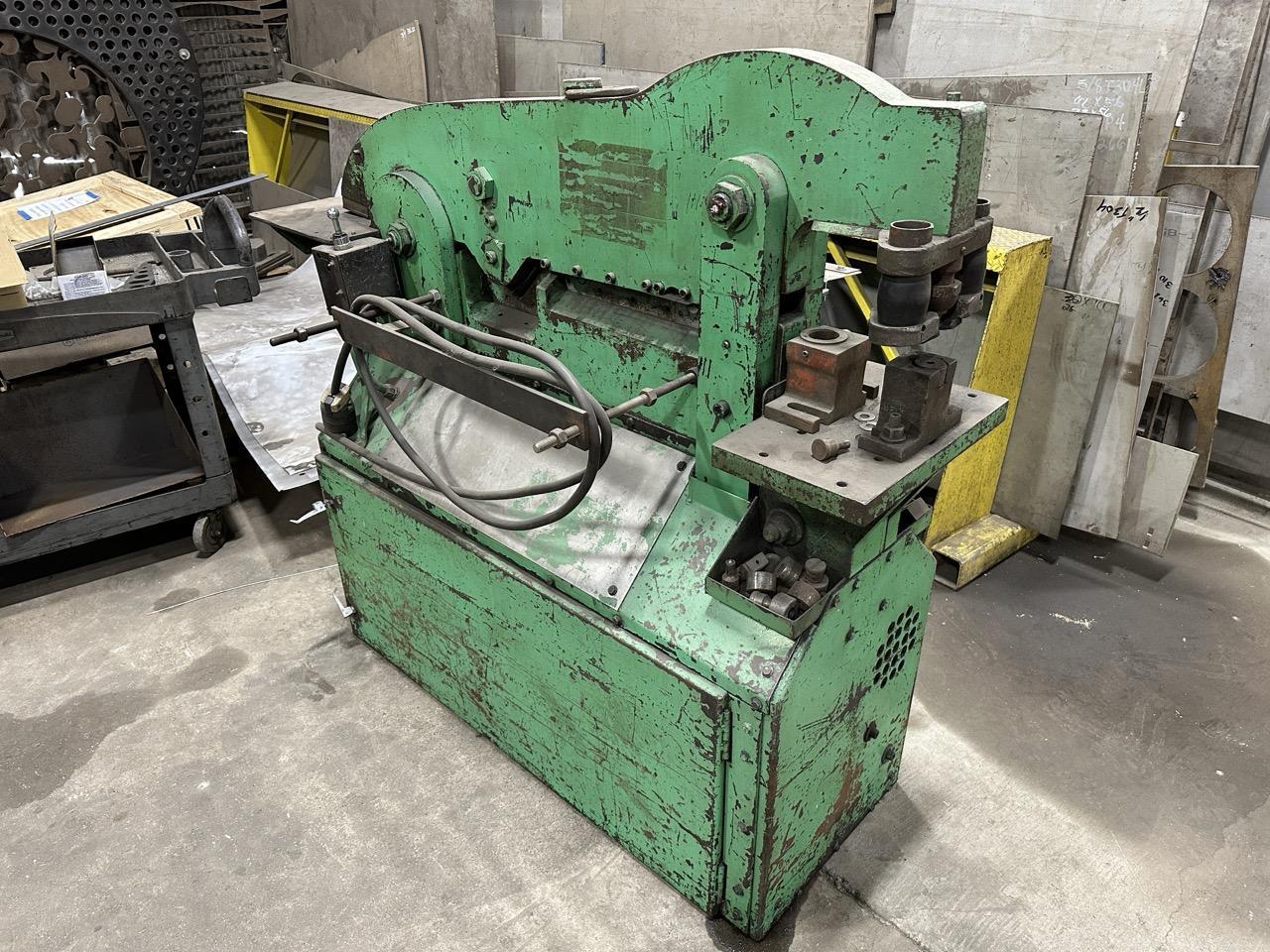

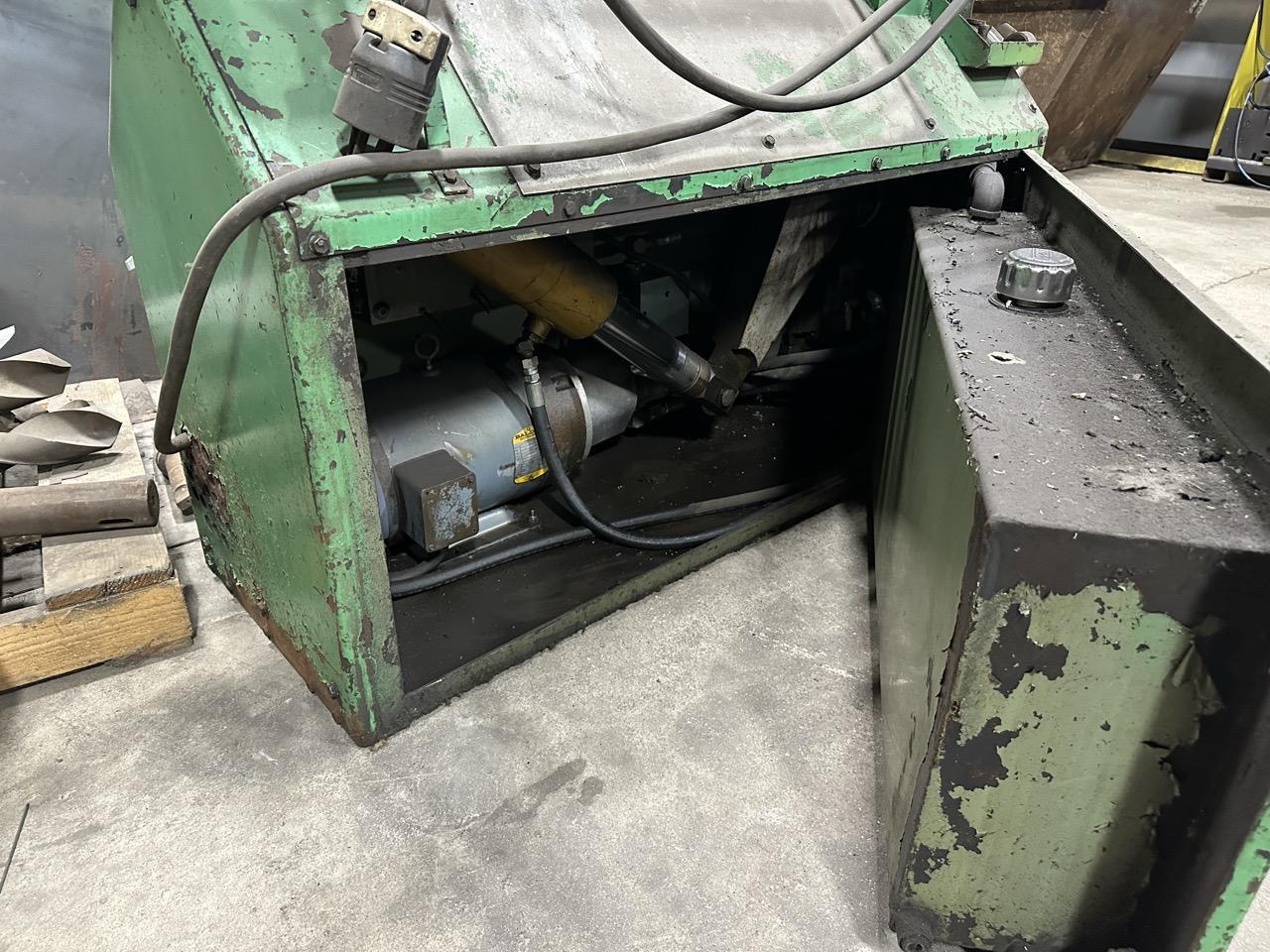

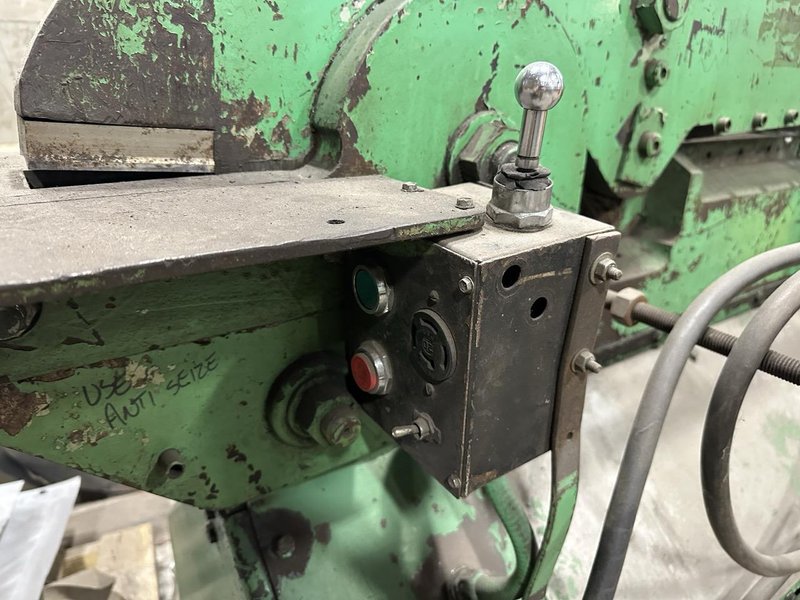

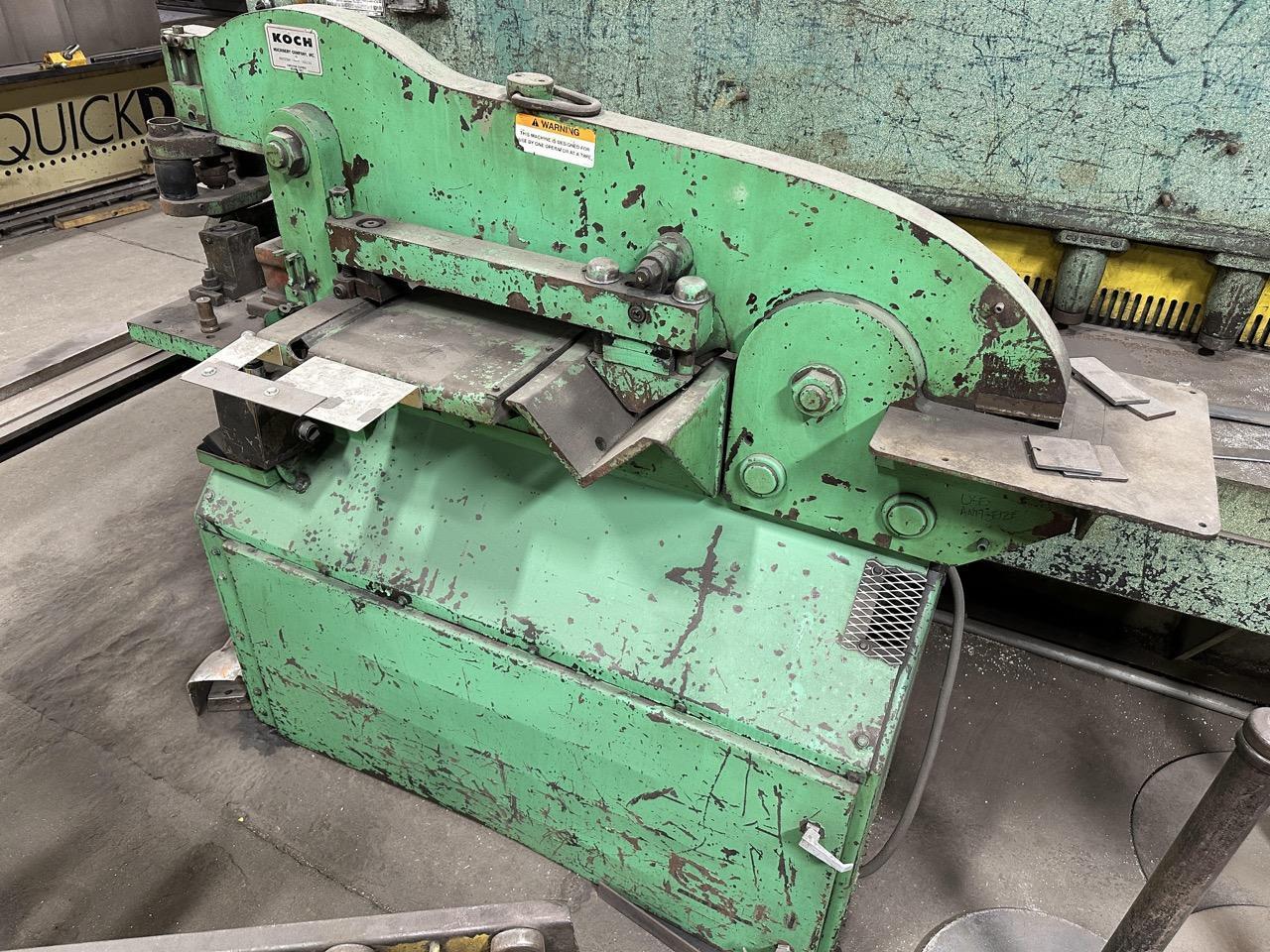

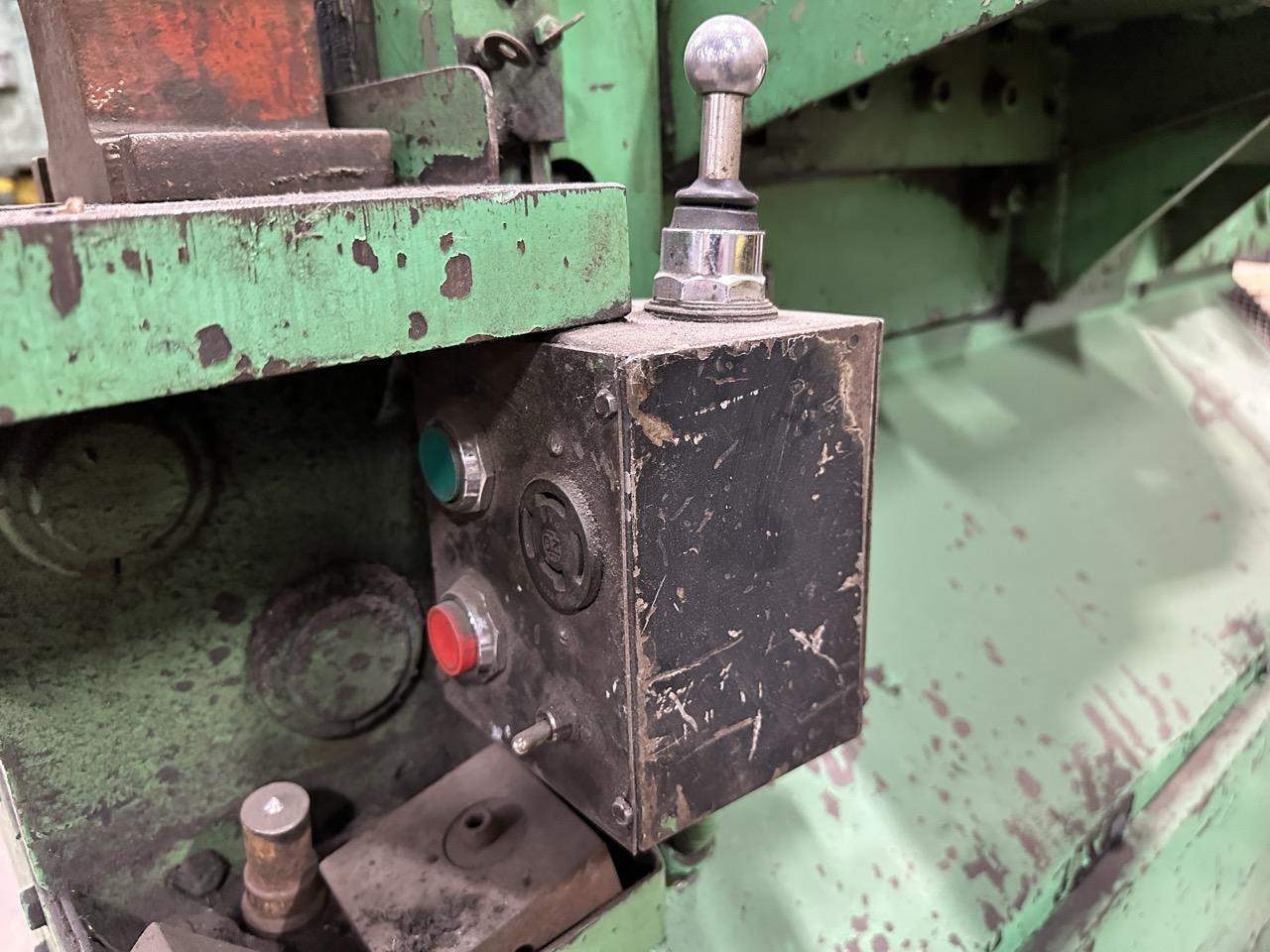

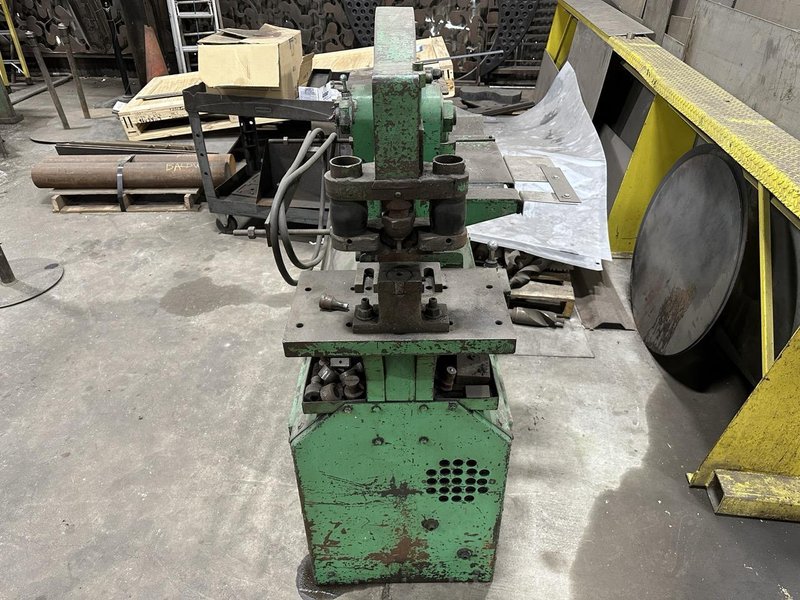

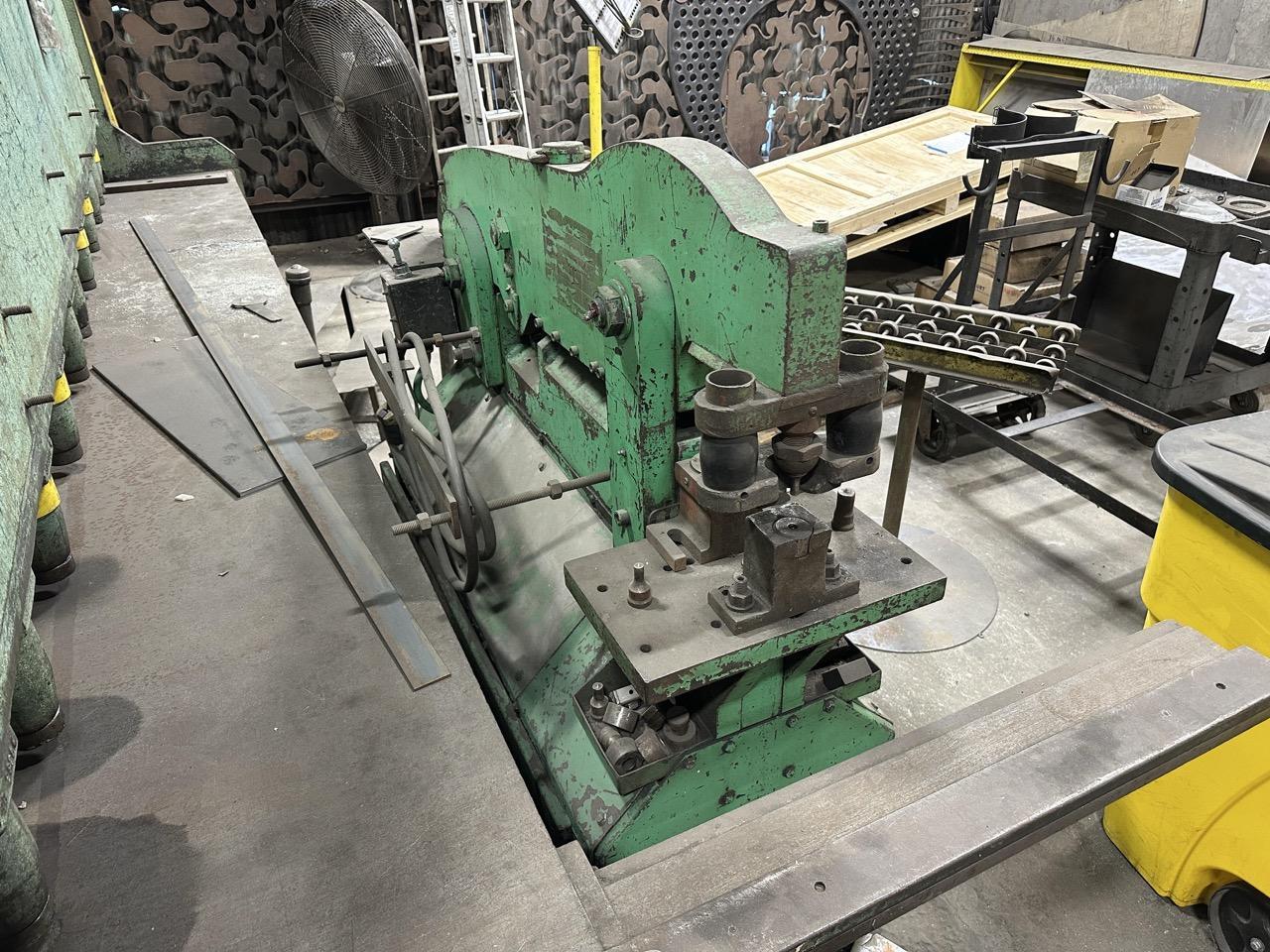

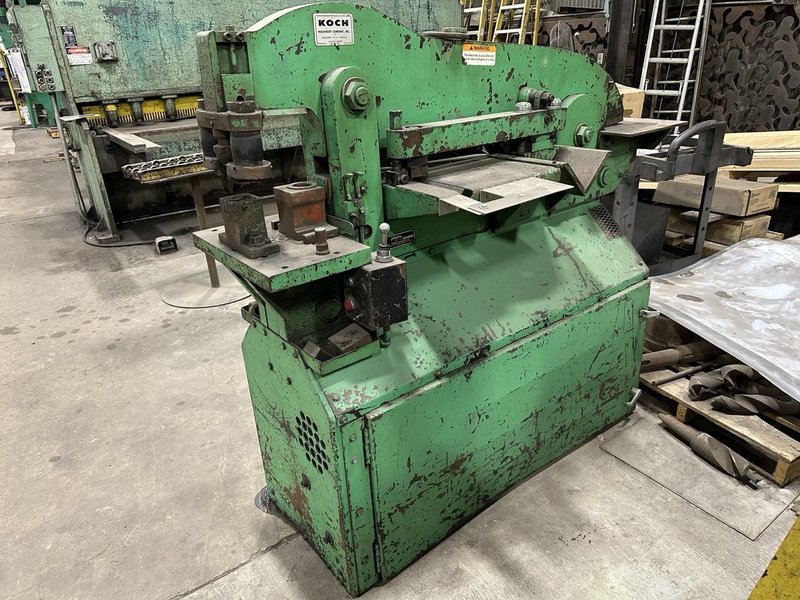

50 Ton Piranha P3-50 Hydraulic Ironworker, 1998 – Tooling

All capacities rated for mild steel (60,000 PSI tensile strength) Punch: Throat depth- 8” Closed height without die block- 13-1/2” Open height- 9-1/4” Stroke- 4-1/4” Speed @ 1/2″ stroke- 60 S.P.M. Table size- 10” x 17” Capacity in tons- 50 Hole capacities- 1-1/16” thru ½” / 13/16” thru ¾” Shear: Length- 15-1/2” Flat bar with fixed holddown- 1” x 4” Flat bar- 3/4″ x 10″, 5/8″ x 15″ Angle- 5″ x 5″ x 3/8″ Angle with special knives- 4″ x 4″ x 1/2″ Round bar- 1-1/2” Square bar- 1” Coper/Notcher: Capacity- 2-3/4″ x 4″ x 1/4″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

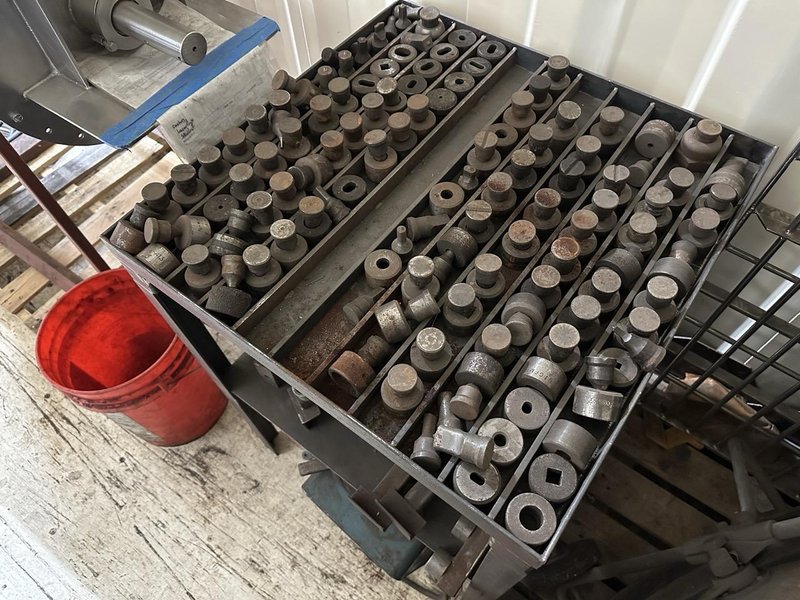

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Some Tooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
