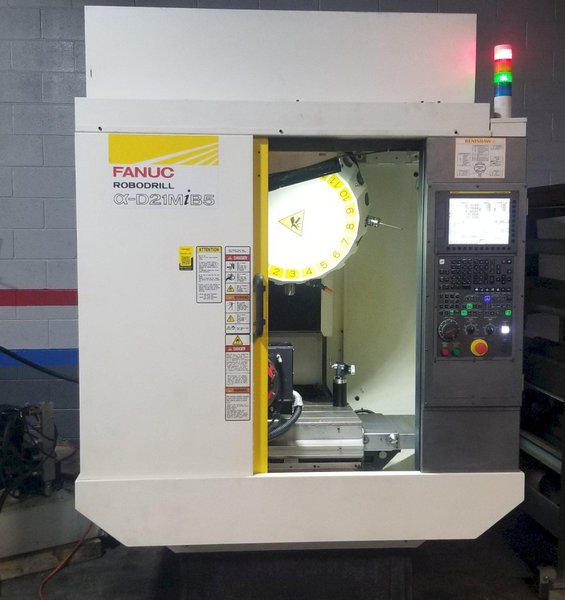

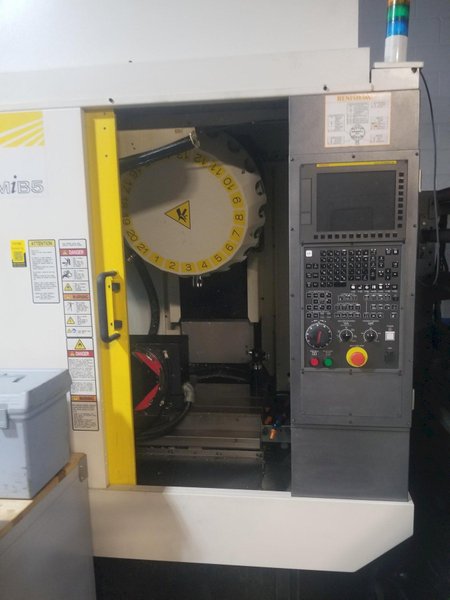

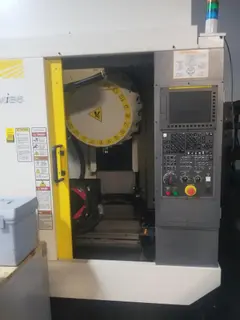

Fanuc Robodrill D21MiB5adv CNC Vertical Machining Centers, 5-Axis, 10K RPM, Rigid Tap, Fanuc 31iB5 Ctrl., 21 ATC, Robotic Loader System, New 2021

Fanuc Robodrill D21MiB5adv CNC Vertical Machining Centers, 5-Axis, 10K RPM, Rigid Tap, Fanuc 31iB5 Ctrl., 21 ATC, Robotic Loader System, New 2021

Name: Fanuc Robodrill D21MiB5adv CNC Vertical Machining Centers, 5-Axis, 10K RPM, Rigid Tap, Fanuc 31iB5 Ctrl., 21 ATC, Robotic Loader System, New 2021
Brand: FANUC
SKU: 56751
Availability: PreOrder

Brand

FANUC

Location

Missouri

REQUEST FINANCING

Specifications
Files & Videos

CNC Control	yes

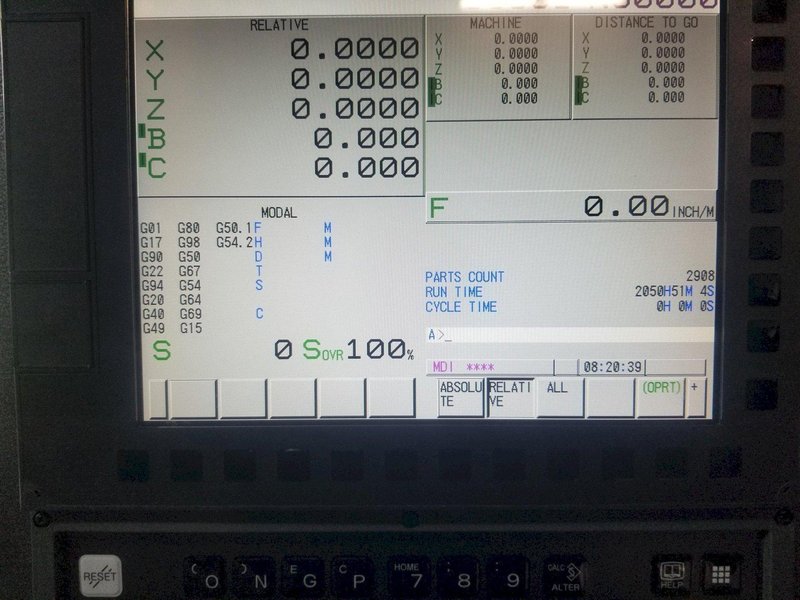

Type Of CNC Control	Fanuc 31iB5
# Controllable Axes	5
Table Size	25.6 x 15.7 (650 x 400)
Table Capacity	882 pounds
X-Axis Travel	19.7 inches
Y-Axis Travel	15.7 inches
Z-Axis Travel	15.7 inches
Spindle Speed	10000 RPM
Spindle Taper	BIG PLUS BBT-30
Tool Changer Capacity	21
X-Axis Rapid Traverse Rate	2,125 (54) in/min (m/min)
Y-Axis Rapid Traverse Rate	2,125 (54) in/min (m/min)
Z-Axis Rapid Traverse Rate	2,125 (54) in/min (m/min)
Coolant Thru Spindle	yes
Tool Change Time	Faster Tool Change Time 0.7 Tool-to-Tool 1.3 Chip-to-Chip
Floor Space	63.5 x 80.7 (1,615 x 2,050), Height: 63.5 x 80.7 (1,615 x 2,050) x 2
Weight Of Machine	4850 Lbs. or 2200 kg

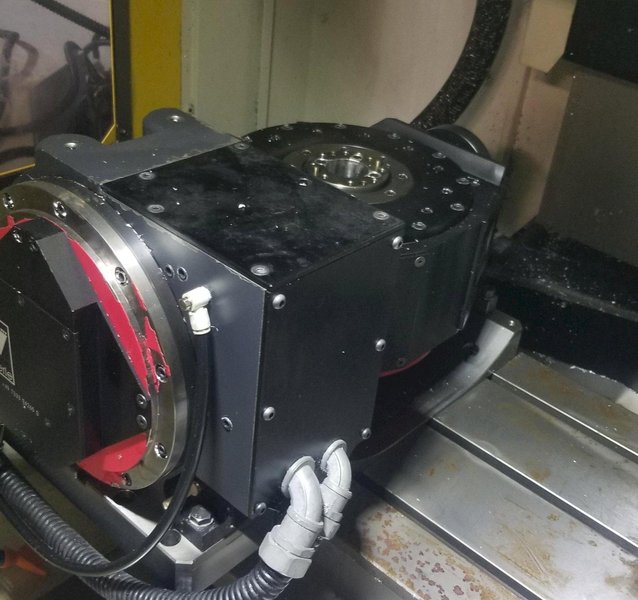

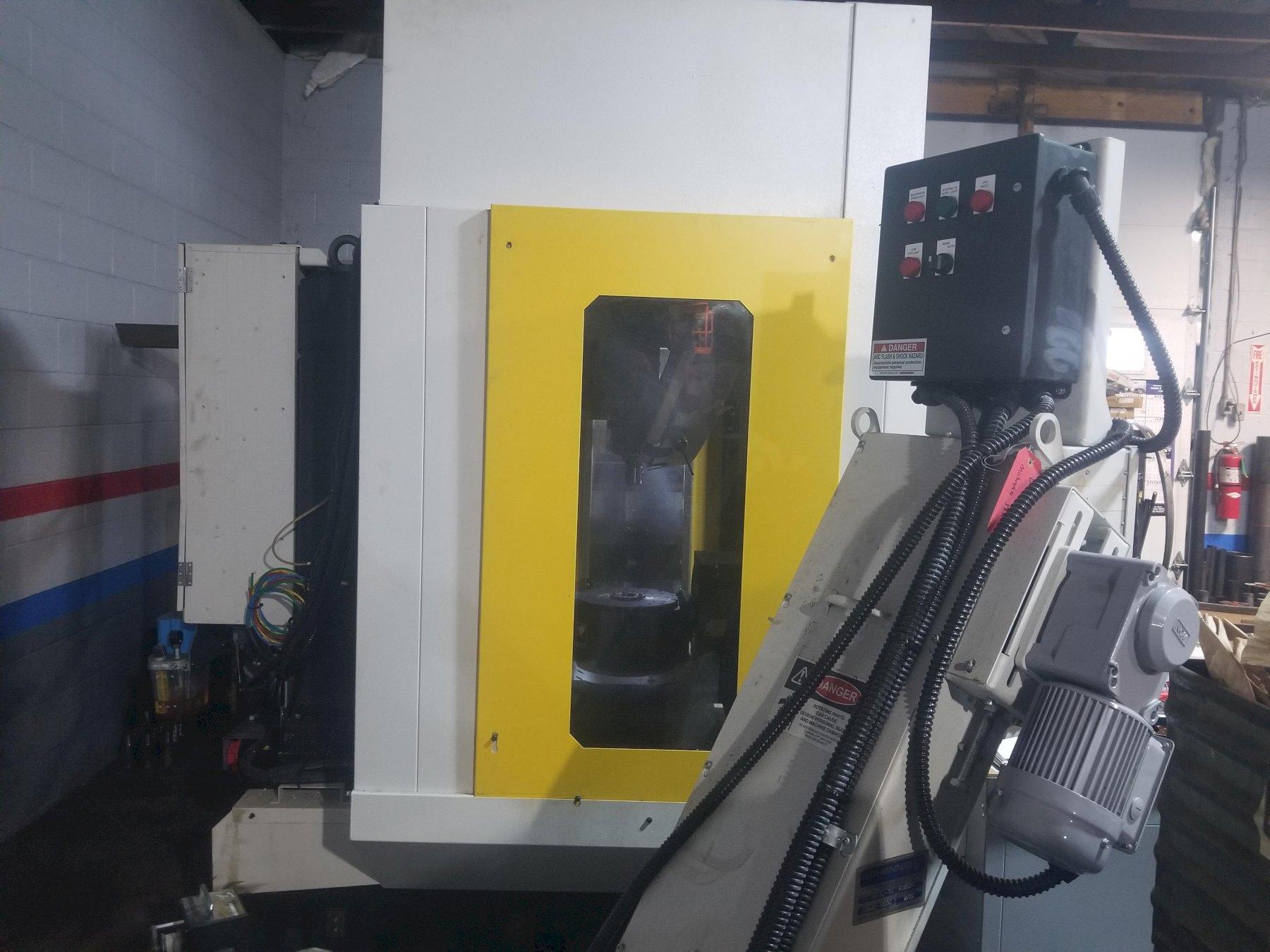

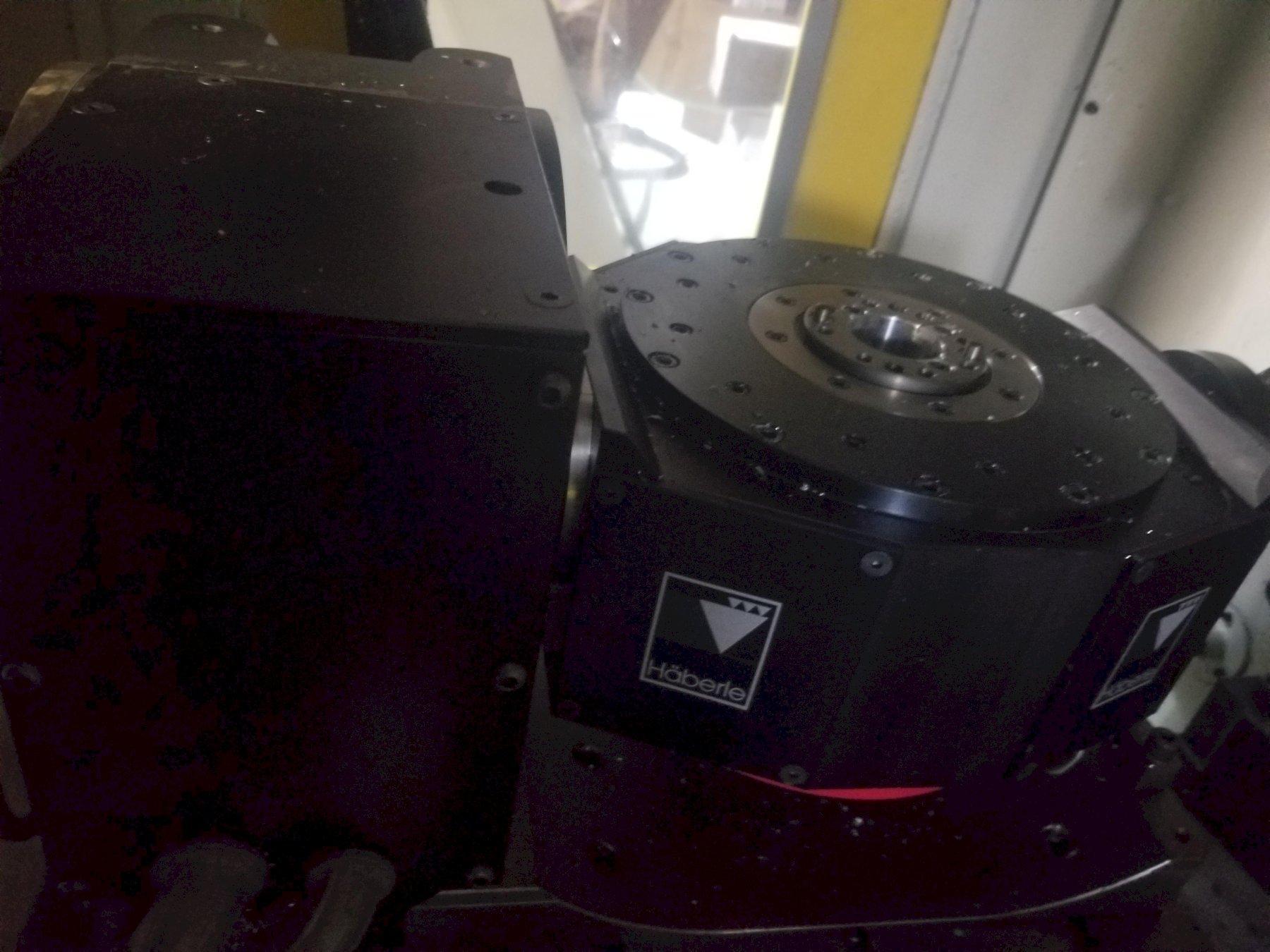

Features: Fanuc 31iB5 Control D21 Probe 5-Axis Rotary Tables - Haberle Trunnion Rotary Table Prepped for Coolant Thru (D21 Only) 1.6 second Chip to Chip ATC DDR / DDR-T Compatible 10K BT Spindle 21 Tool ATC 1,889 ipm Rapids Top Cover LNS Chip Conveyors Coolant System High Pressure Coolant Pumps 21 Position, Bi-Directional Tool Changer “Quick” ATC Recovery System Rigid Tapping up to 8,000 RPM “Quick” Tap Recovery System High Speed Reverse Tapping Thread Milling Helical and Linear Interpolation Simultaneous ATC / Table Positioning Multi Step Skip Ultra Precise 32,000,000 Pulses/Rev encoders 1.5 G Acceleration Thermal Growth Compensation Smart Backlash Compensation HRV3 Plus Tool Compensation Memory C Tool Offset Pairs 200 Pairs Part Program Storage 2 mb 6 + 48 Work Offsets Coordinate System Rotation (G68.G69) • Coordinate System Setting (G92) • Custom Macro B • Canned Cycles for Drilling (G73, G74, G81~G89/G80) Manual Handle Feed Coolant System - 200 liter coolant tank and Spindle Coolant Nozzle Coolant & Chip Splash Guard 1,000 psi coolant thru prepped spindle - (Except D14iB) Skip Function (G31) Background Editing Dynamic Graphic Display Dynamic Graphic Display On Screen Display of Spindle ‘rpm’ and ‘Load’ Meters including cutting time count down Alpha Numeric Keyboard Automatic Lubrication System Periodic Maintenance Management Quick Side (Operator Interface) Manual Guide for Milling (Shop Floor Programming System) Manuals (1) Each: Operators, Maintenance, Parts, Operators CNC, & Maintenance CNC Interior Work Light - LED STYLE 2nd Control Slot
