15" x 48" Cincinnati Hydrashift Lathe, 37-1470 RPM, Taper, 5 HP, Low Price
Brand
Category
Type
Model
15
Stock #
32095
Year
Not specified
Condition
Used
Location
Not specified
|

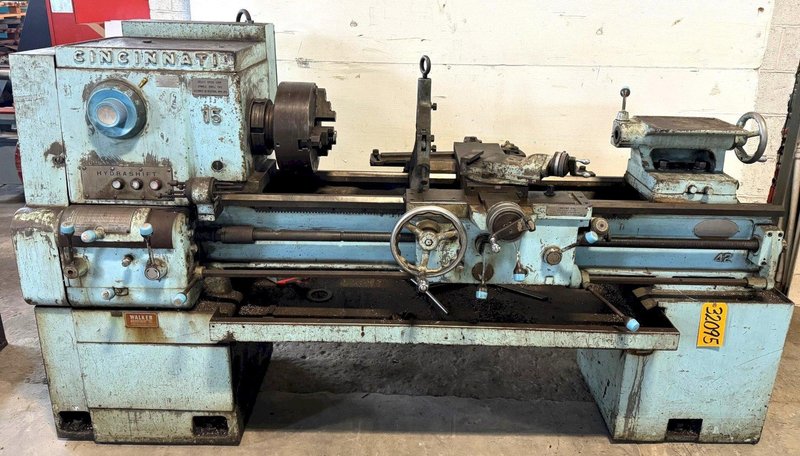

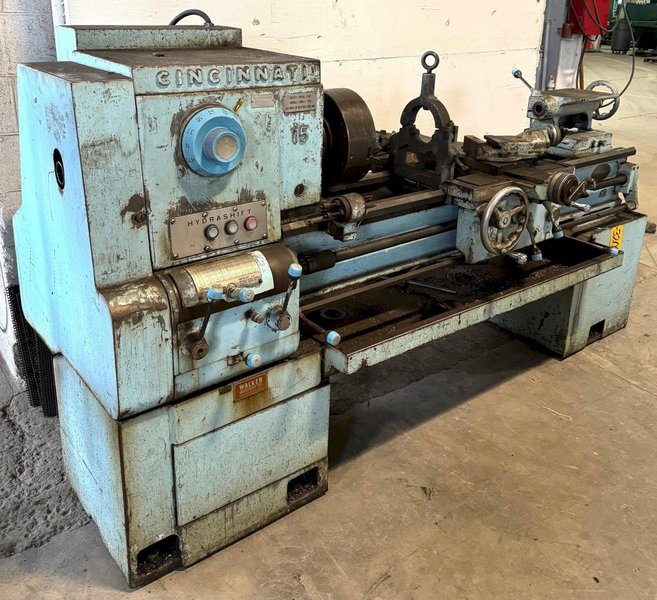

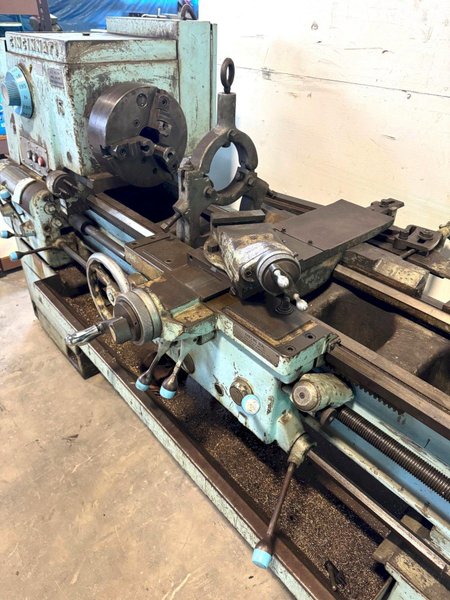

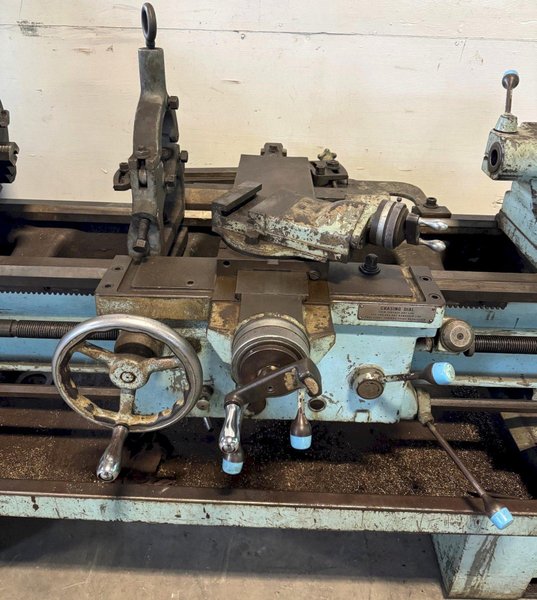

CINCINNATI HYDRASHIFT LATHE

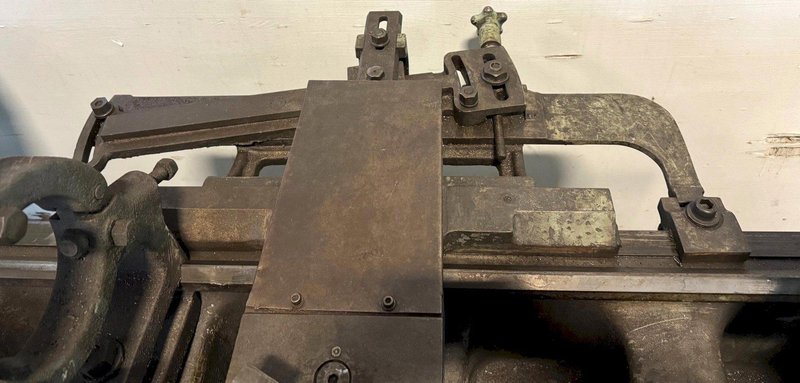

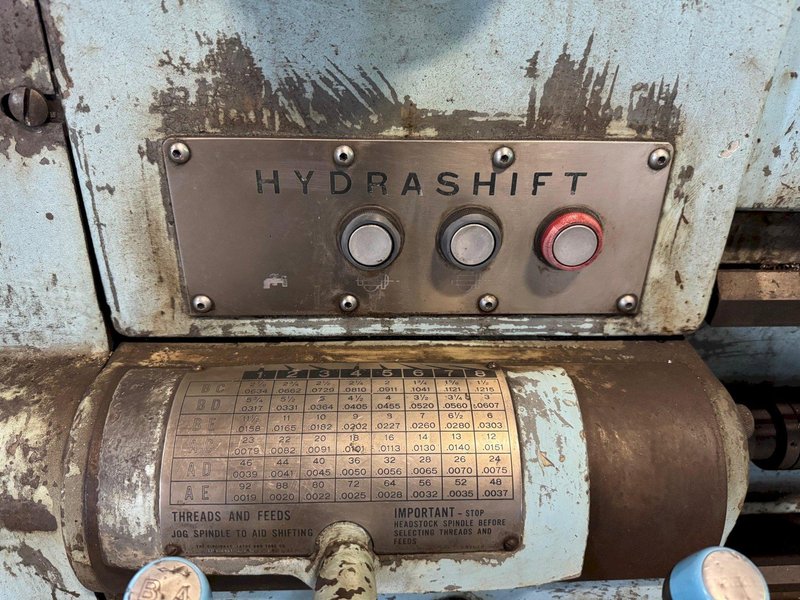

MODEL: 15 SERIAL NUMBER: IW3H5M-217 GENERAL SPECIFICATIONS Swing Over Bed: 16-7/8" Swing Over Cross Slide: 9-5/8" Distance Between Centers: 48" Spindle Speeds: (12) 37 - 1470 RPM Spindle Nose: L-1 Spindle Hole: 1-3/4" Number Of Thread and Feed Changes: 48 Thread Range: 1-1/2 to 92 TPI Feed Range: .0019" to .1215" Cross Slide Travel: 12" Top Slide Travel: 3-1/4" Tailstock Spindle Travel: 5" Tailstock Spindle Diameter: 2-1/4" EQUIPPED WITH 5 HP Motor, 220/440/60/3 12" 3-Jaw Chuck Taper Attachment Steady Rest Four-Position Length and Depth Stop Chip Pan Approximate Weight: 3200 Lbs. F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
