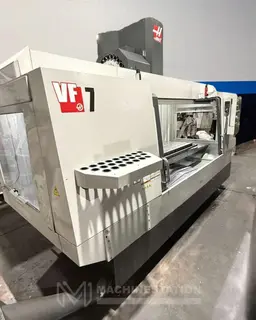

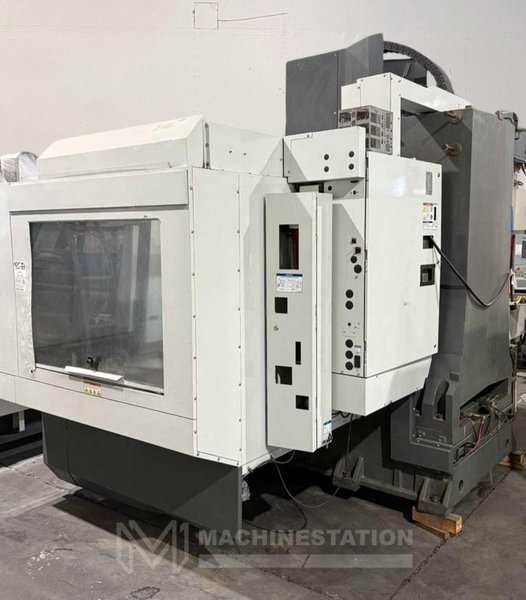

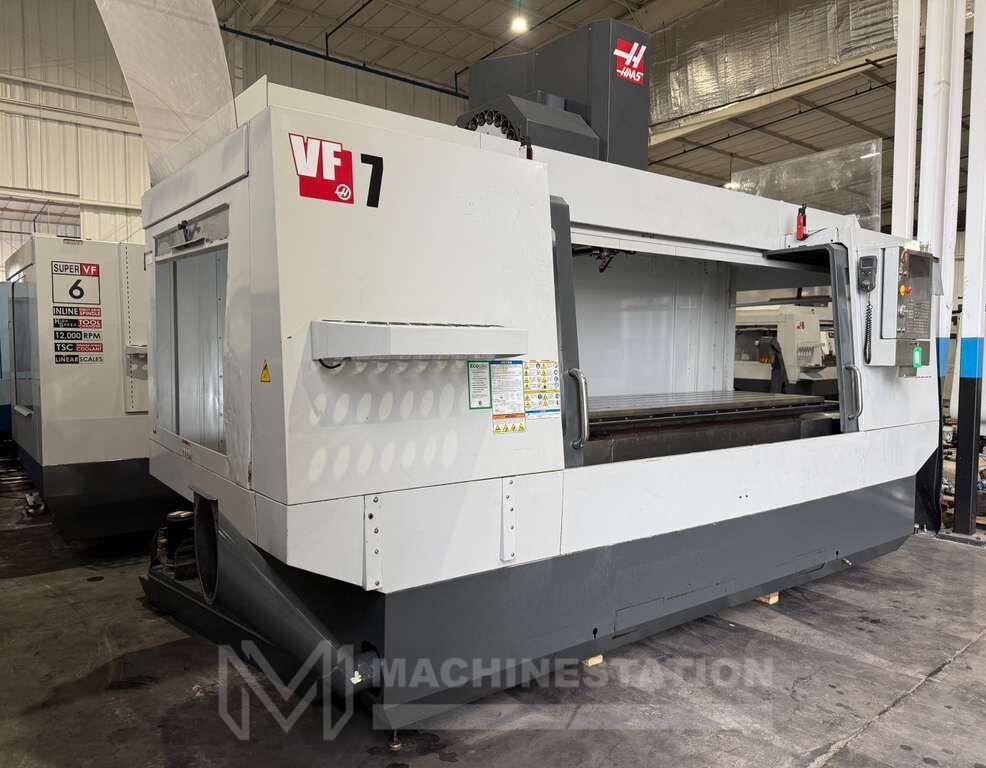

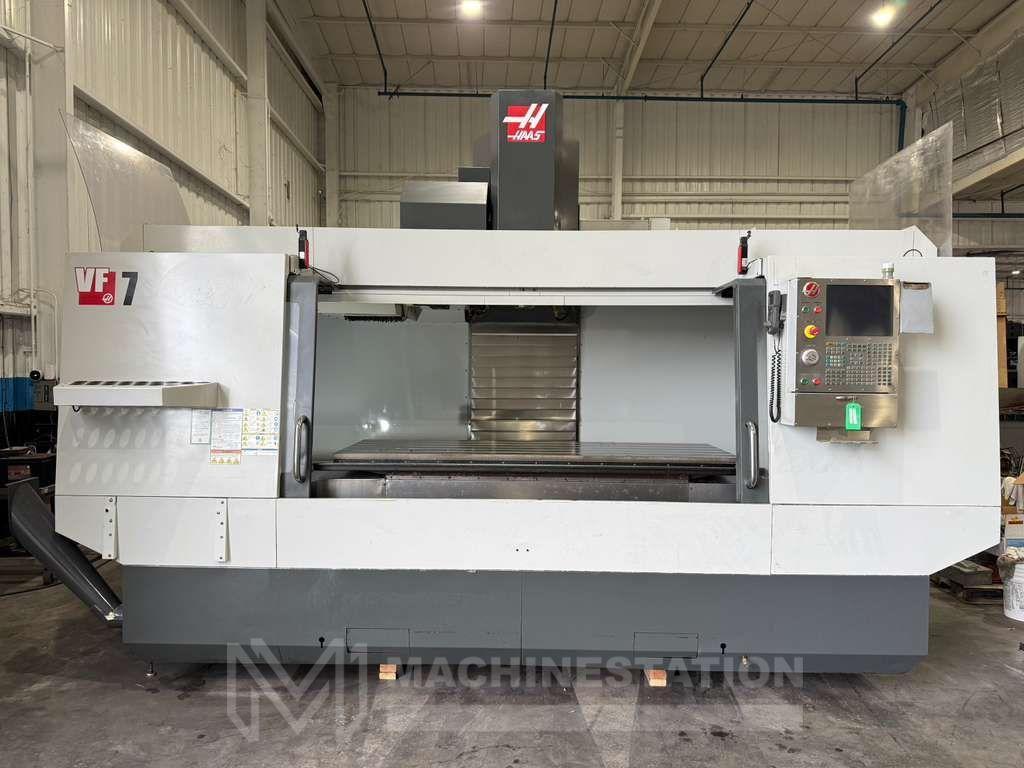

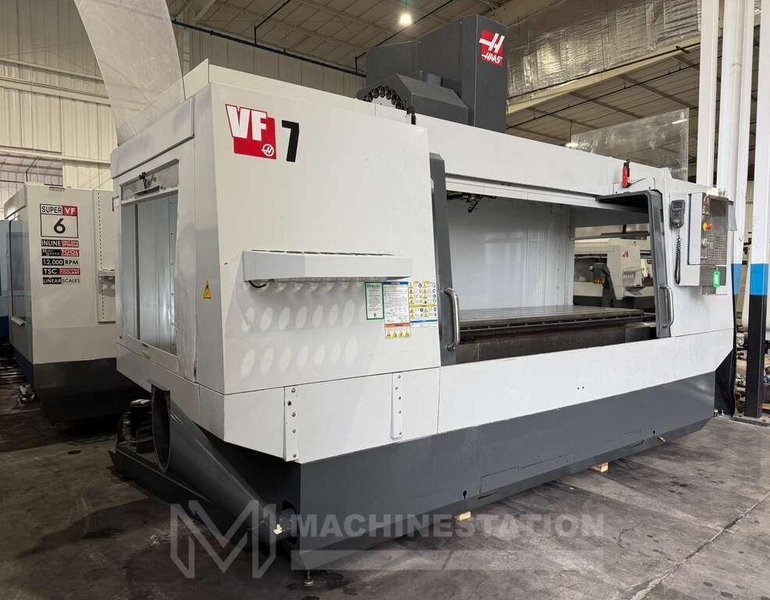

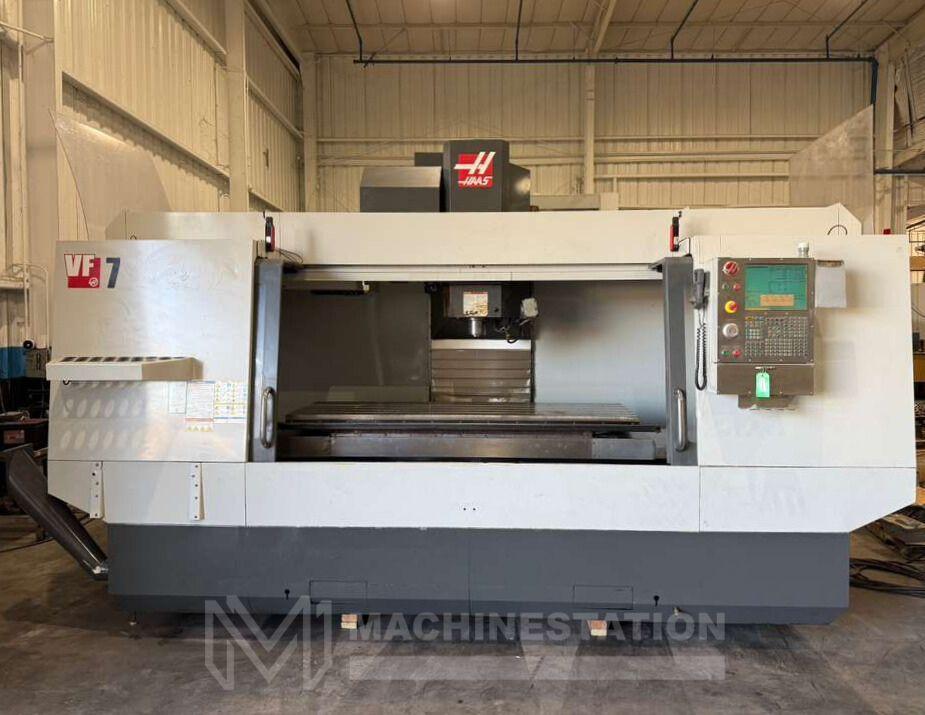

Haas VF-7/40 CNC Vertical Machining Center – 4th Axis Ready Mill

Haas VF-7/40 CNC Vertical Machining Center – 4th Axis Ready Mill

Name: Haas VF-7/40 CNC Vertical Machining Center – 4th Axis Ready Mill
Brand: HAAS
SKU: 112965
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112965
Make:	Haas
Model:	VF-7/40
Year of Manufacture:	2011
Condition:	Used – Good

Equipped With:

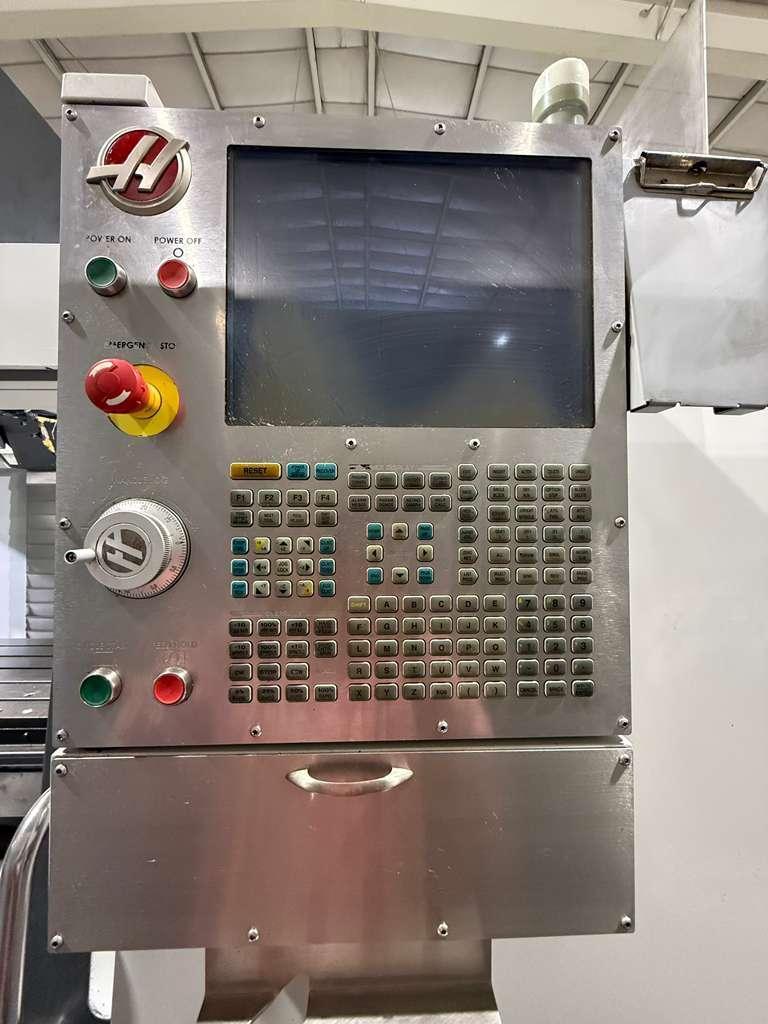

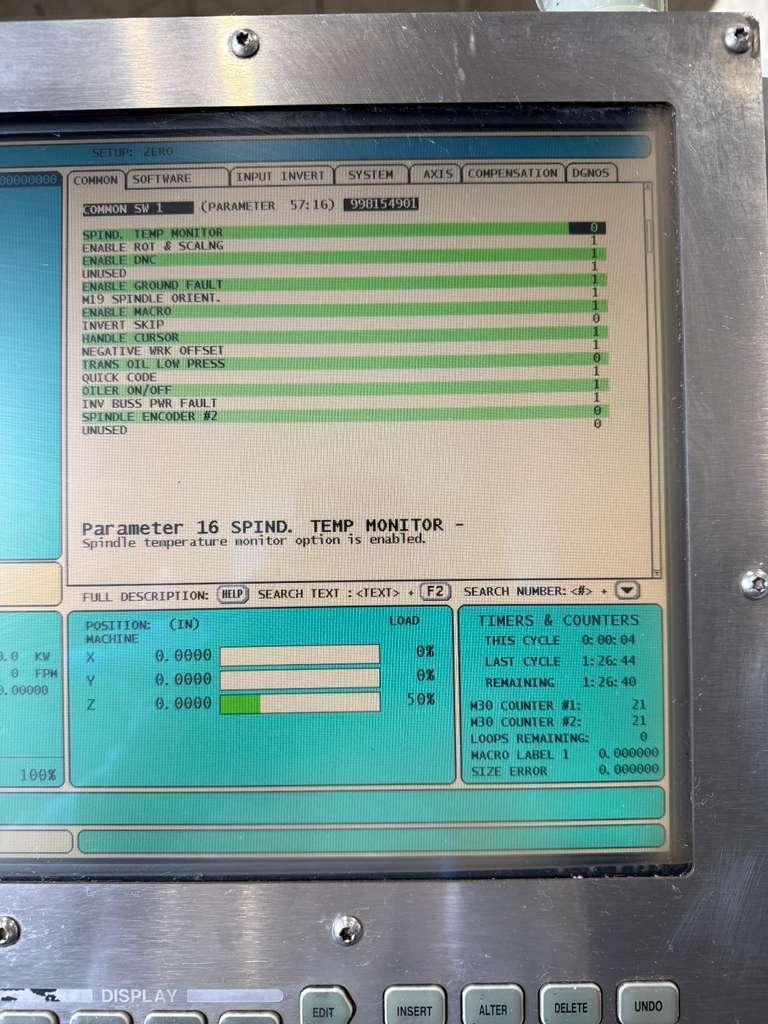

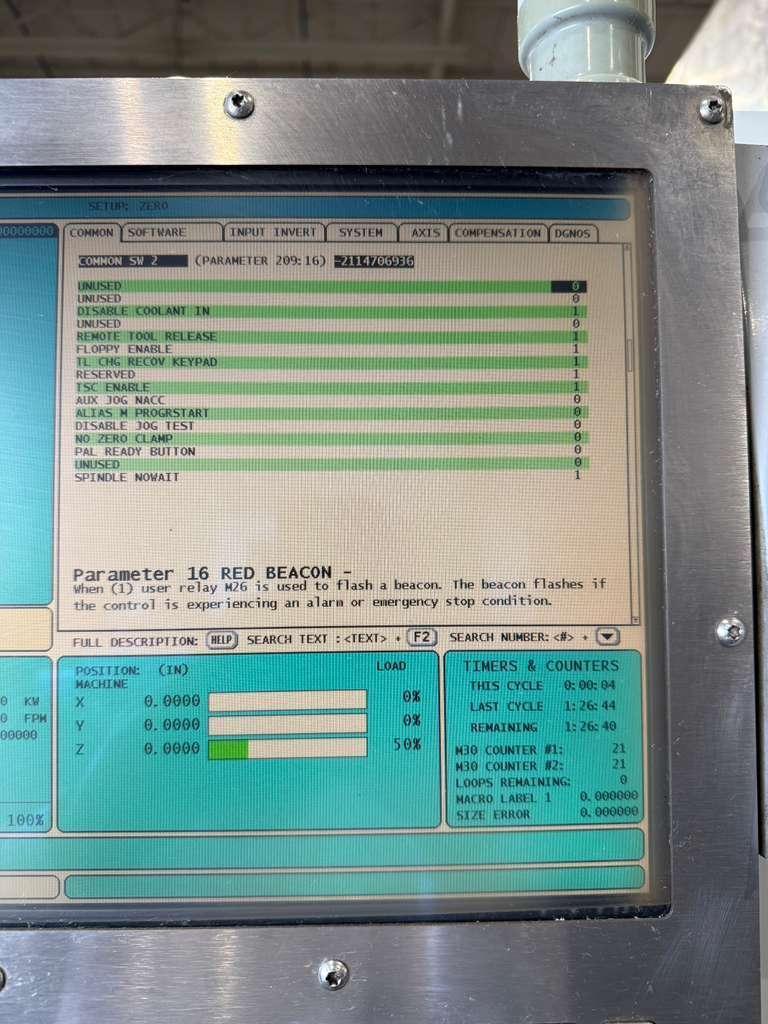

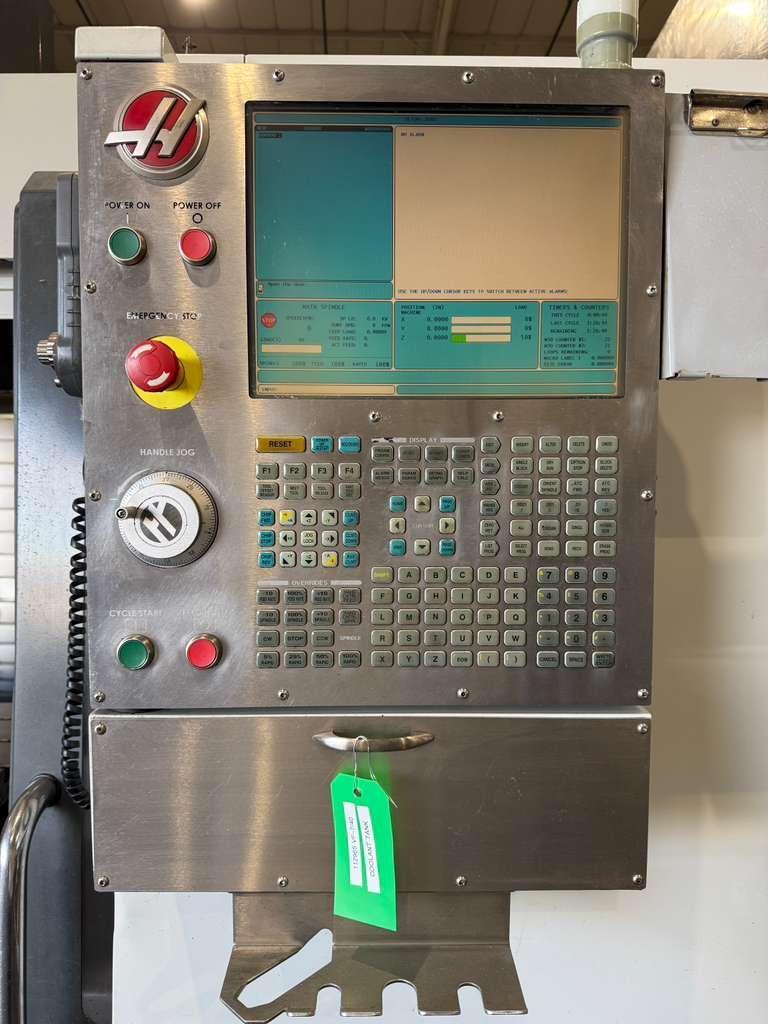

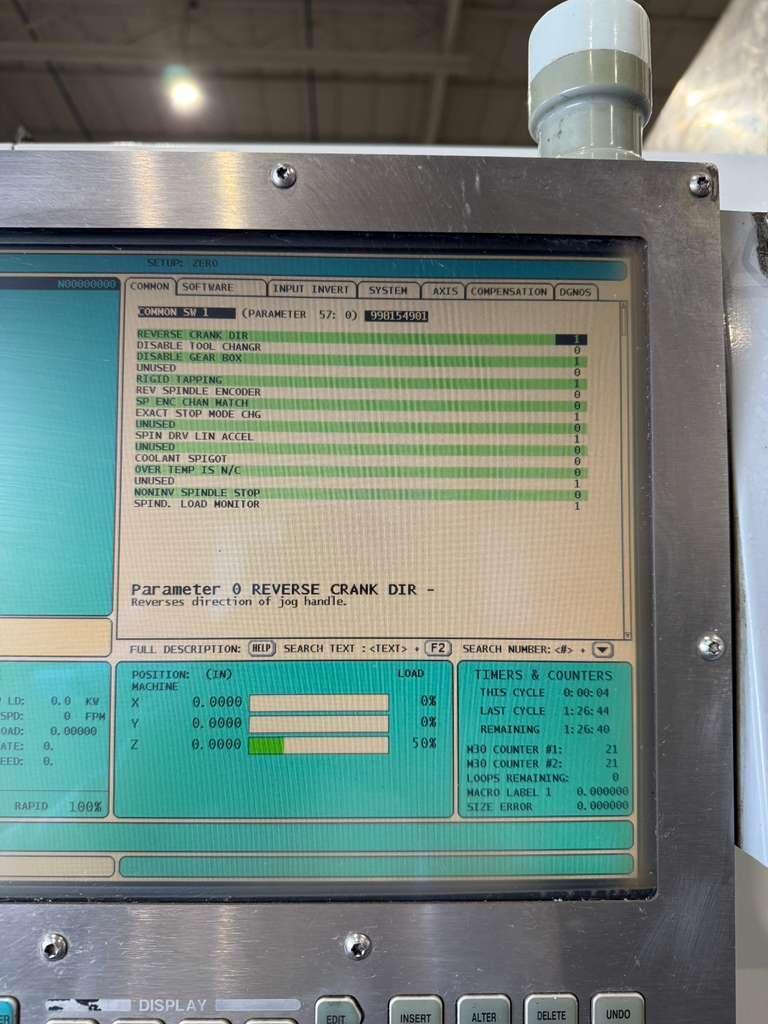

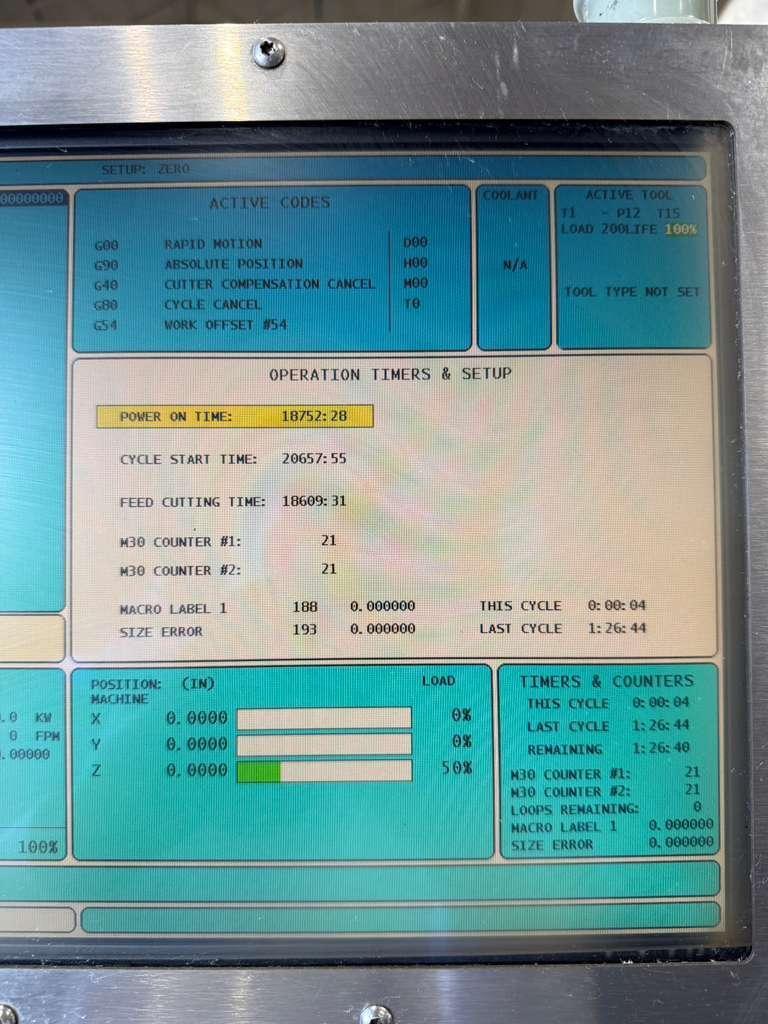

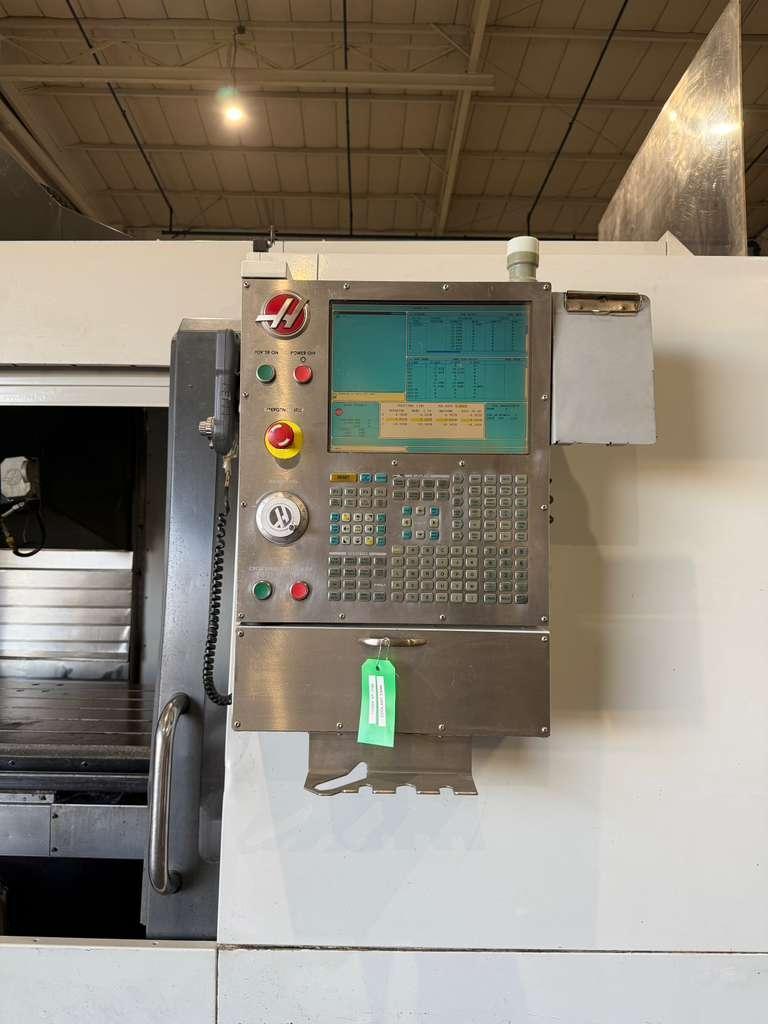

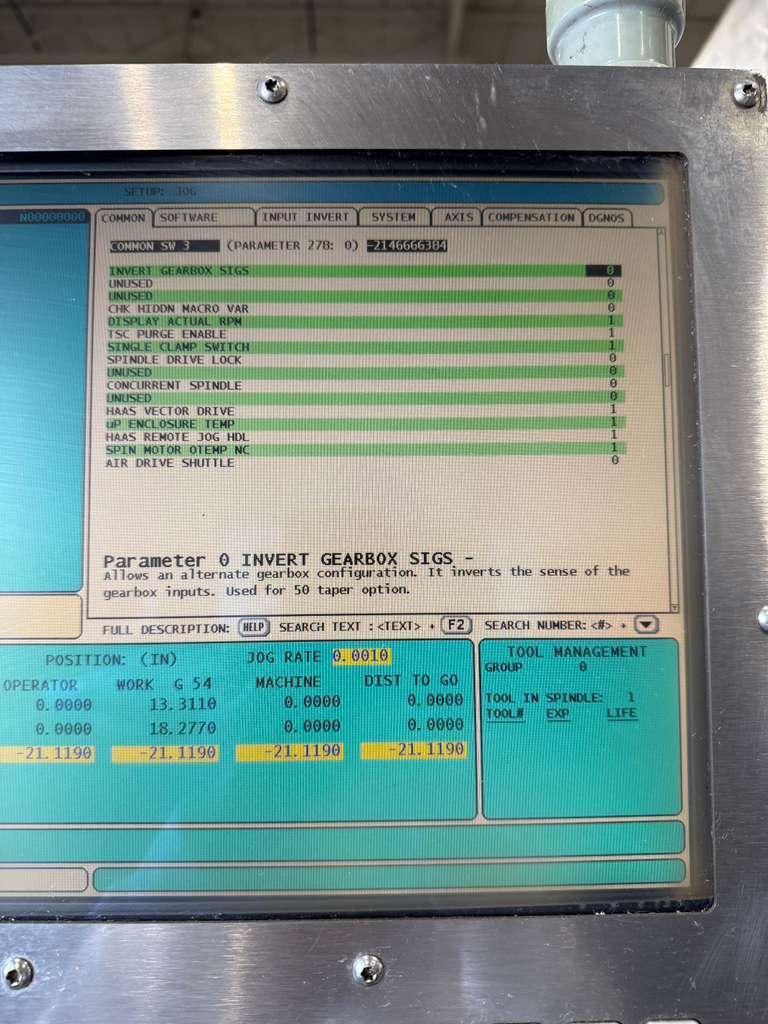

Haas CNC Control

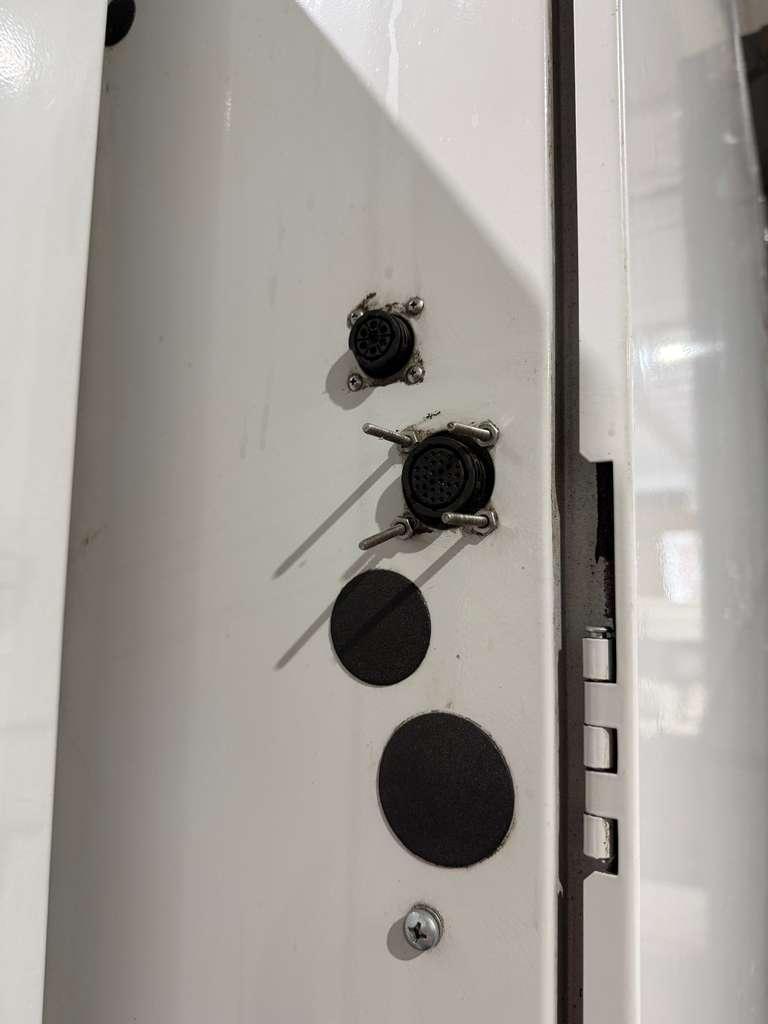

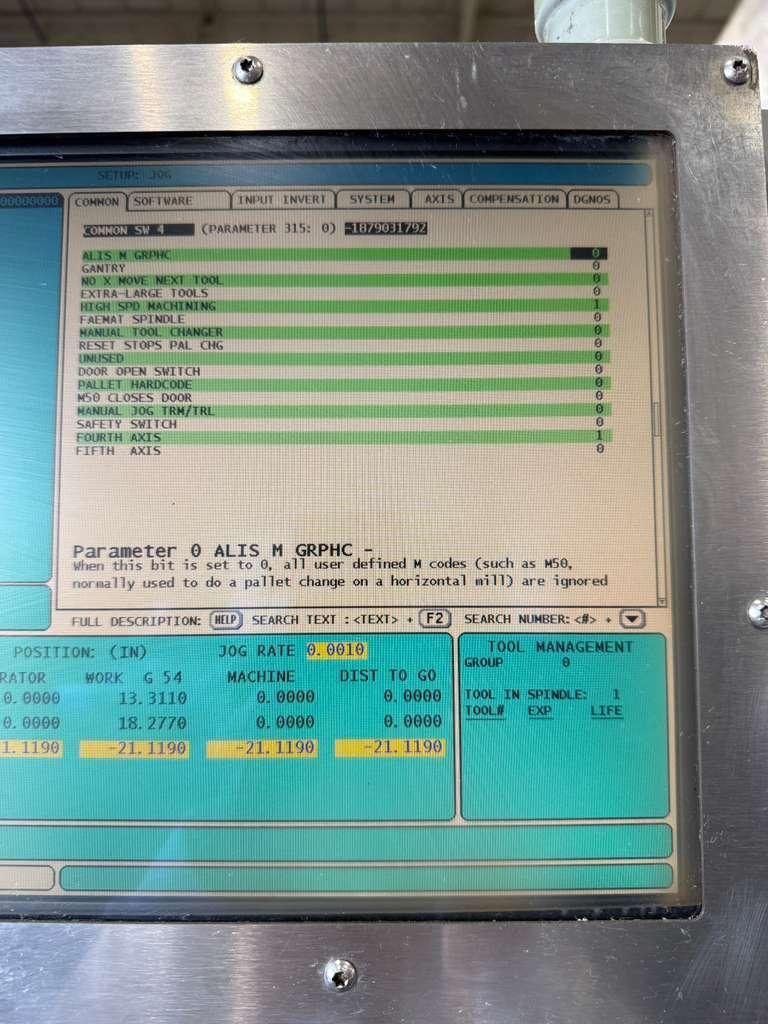

4th Axis Drive and Wiring (Upgraded $3,595 value Included)
7500 RPM High Torque Spindle
High Speed Machining (Upgraded $3,995 value Included)
Through Spindle Coolant Enabled
Intuitive Programming System Enabled (Probe and Receiver Needed)

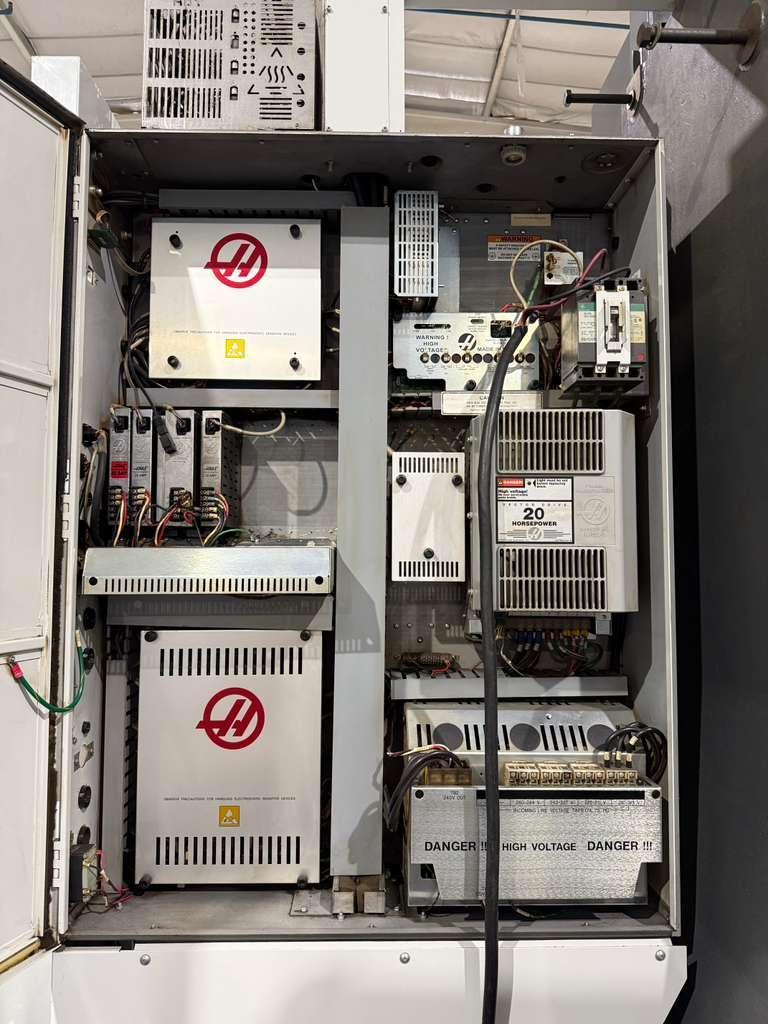

20 HP Vector Drive
24 Station Automatic Tool Changer
USB Port
Remote Jog Handle
Rigid Tapping
Spindle Orientation
Programmable Coolant Nozzle
Floppy Enabled
DNC Enabled

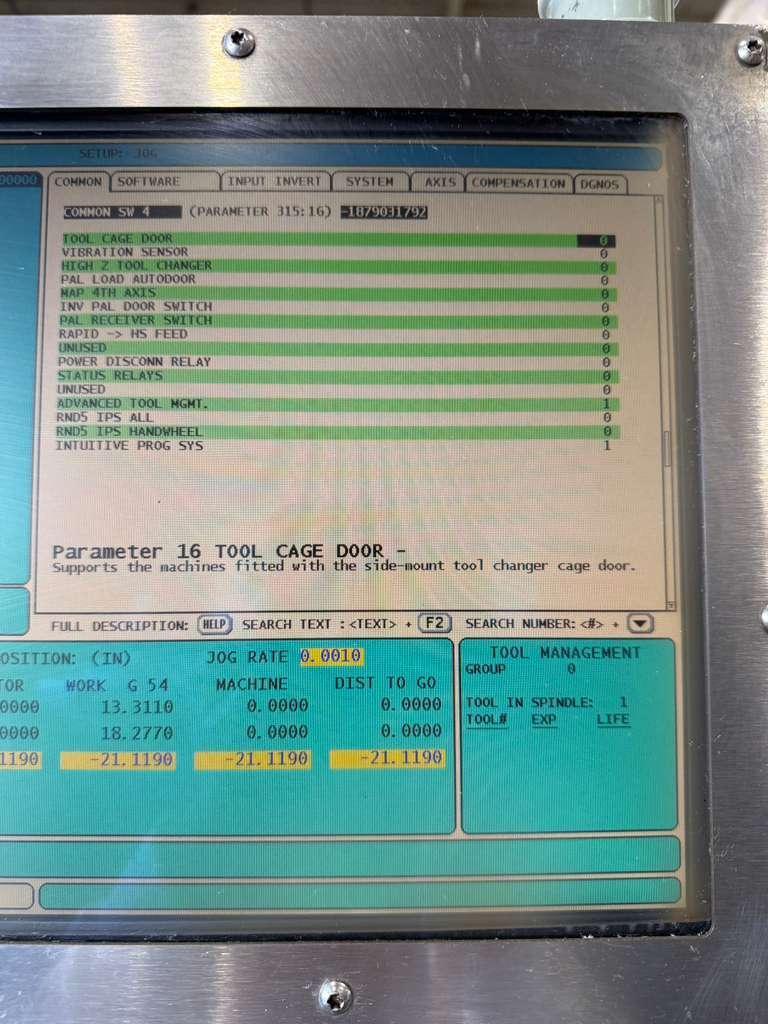

Advance Tool Management
Rotation & Scaling
Macros
Quick Code

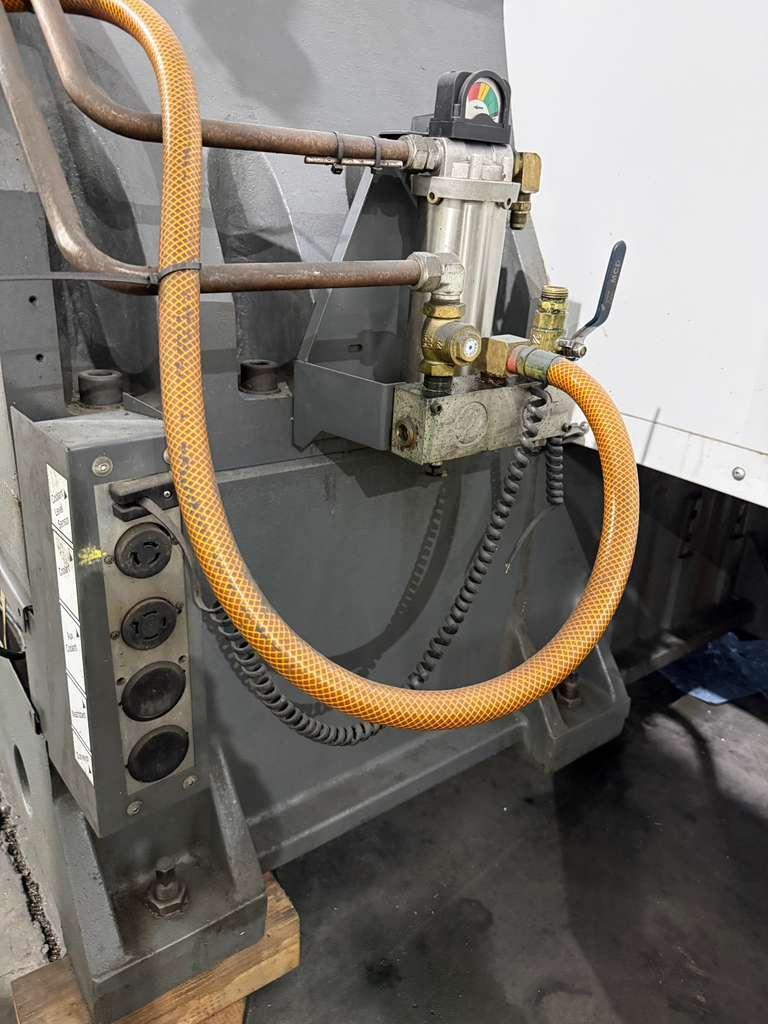

Coolant System
Telescopic Way Covers
Chip Auger

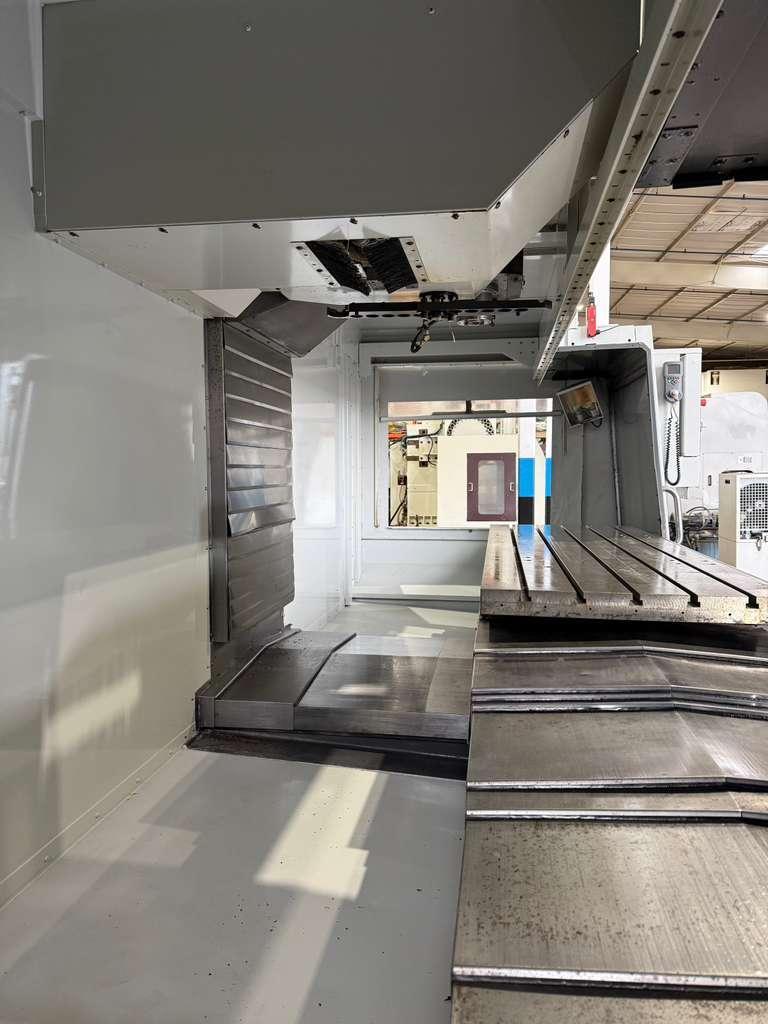

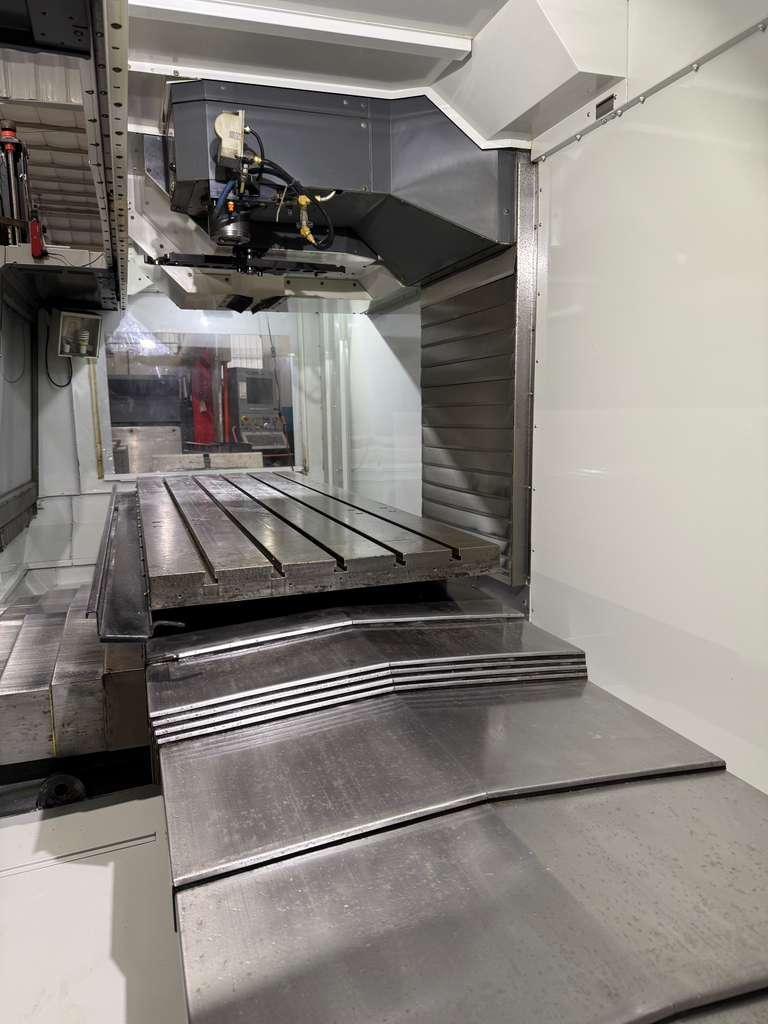

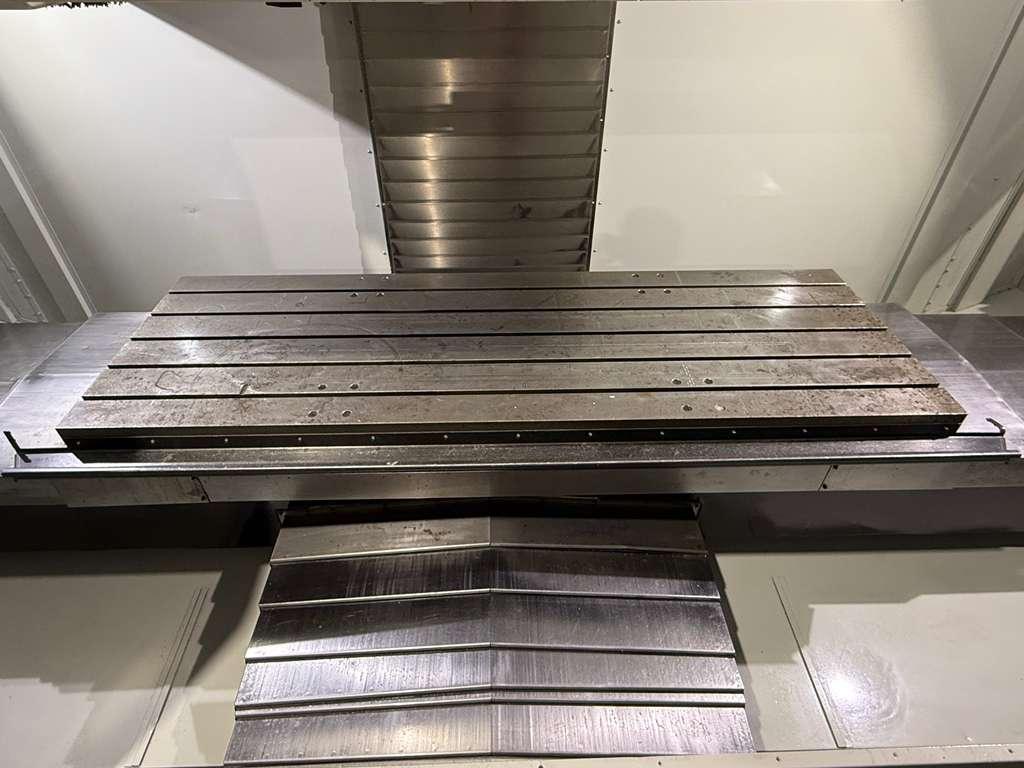

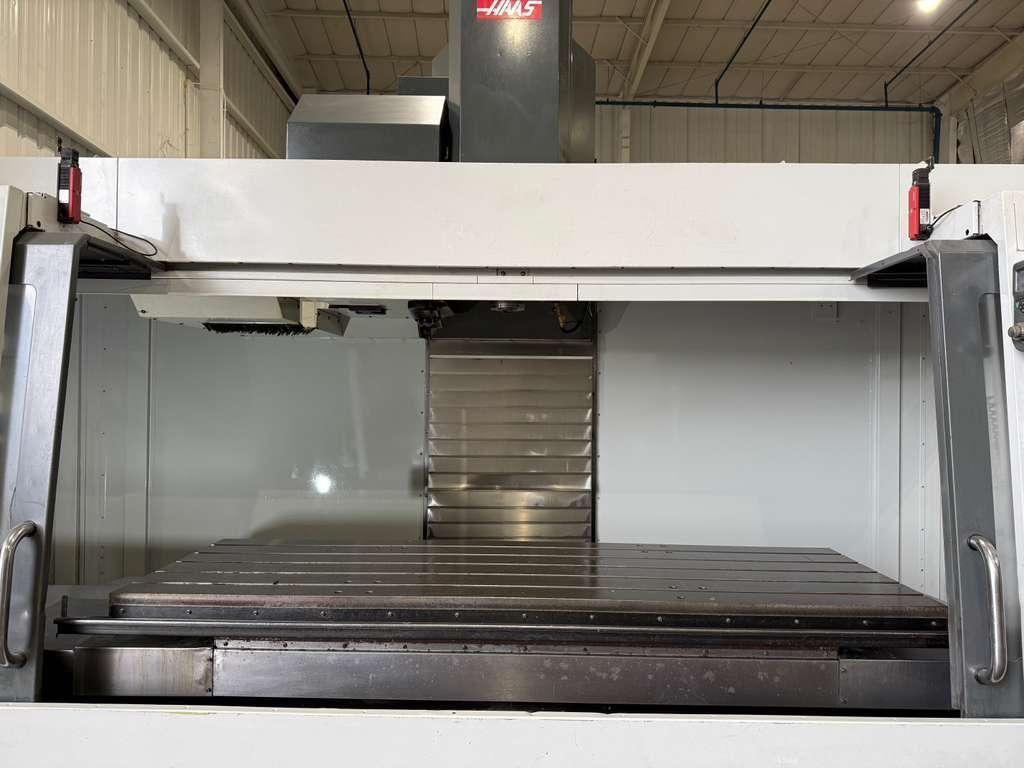

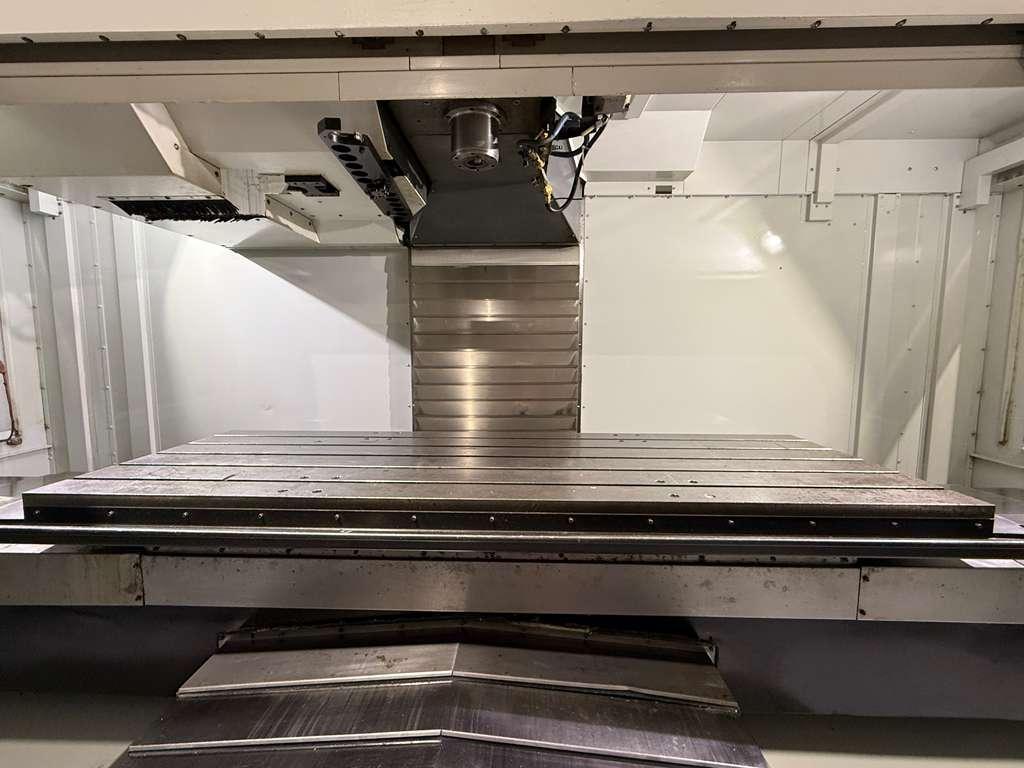

Table:
Length: 84″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

Travels:
X-Axis: 84″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5″ – 34″

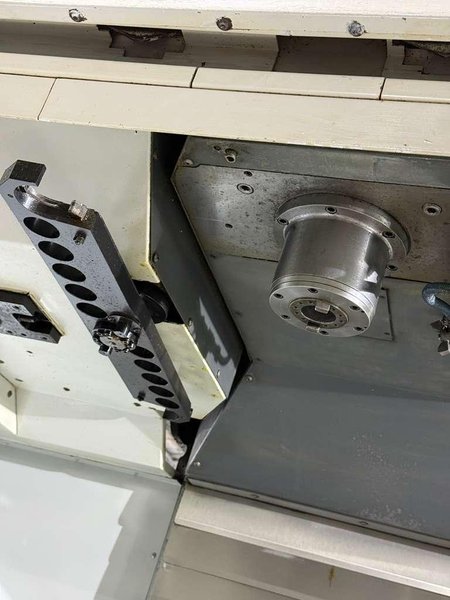

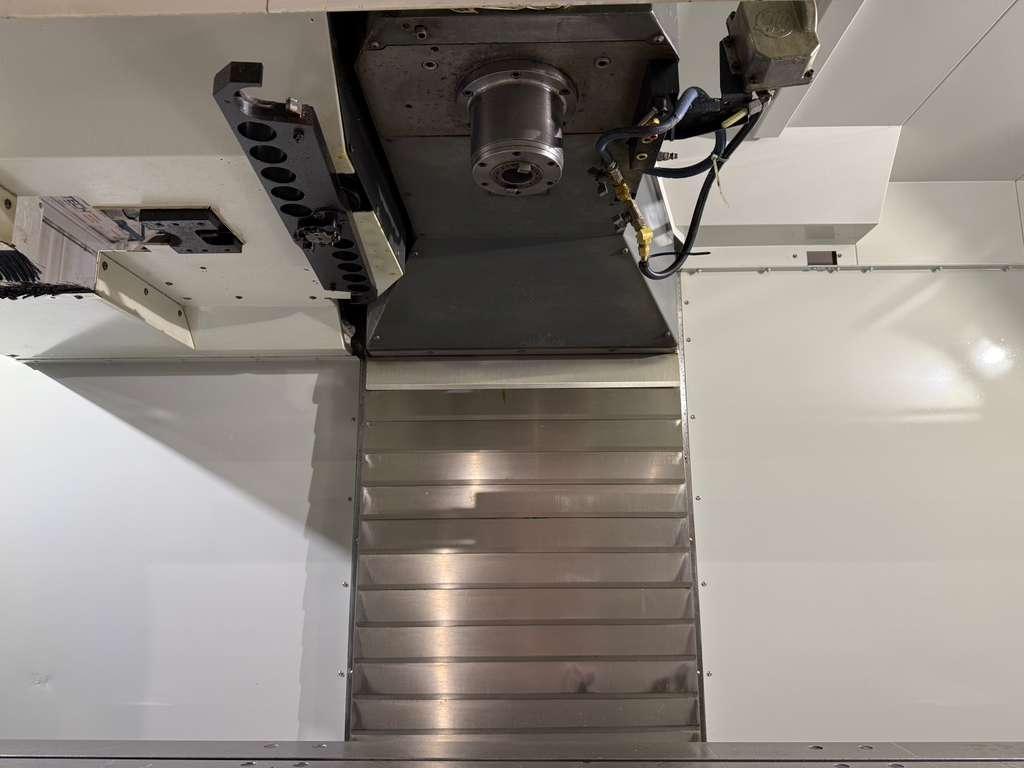

Spindle:
Taper Size: CAT-40
Speed Range: 7500 RPM
Spindle Power: 20 HP

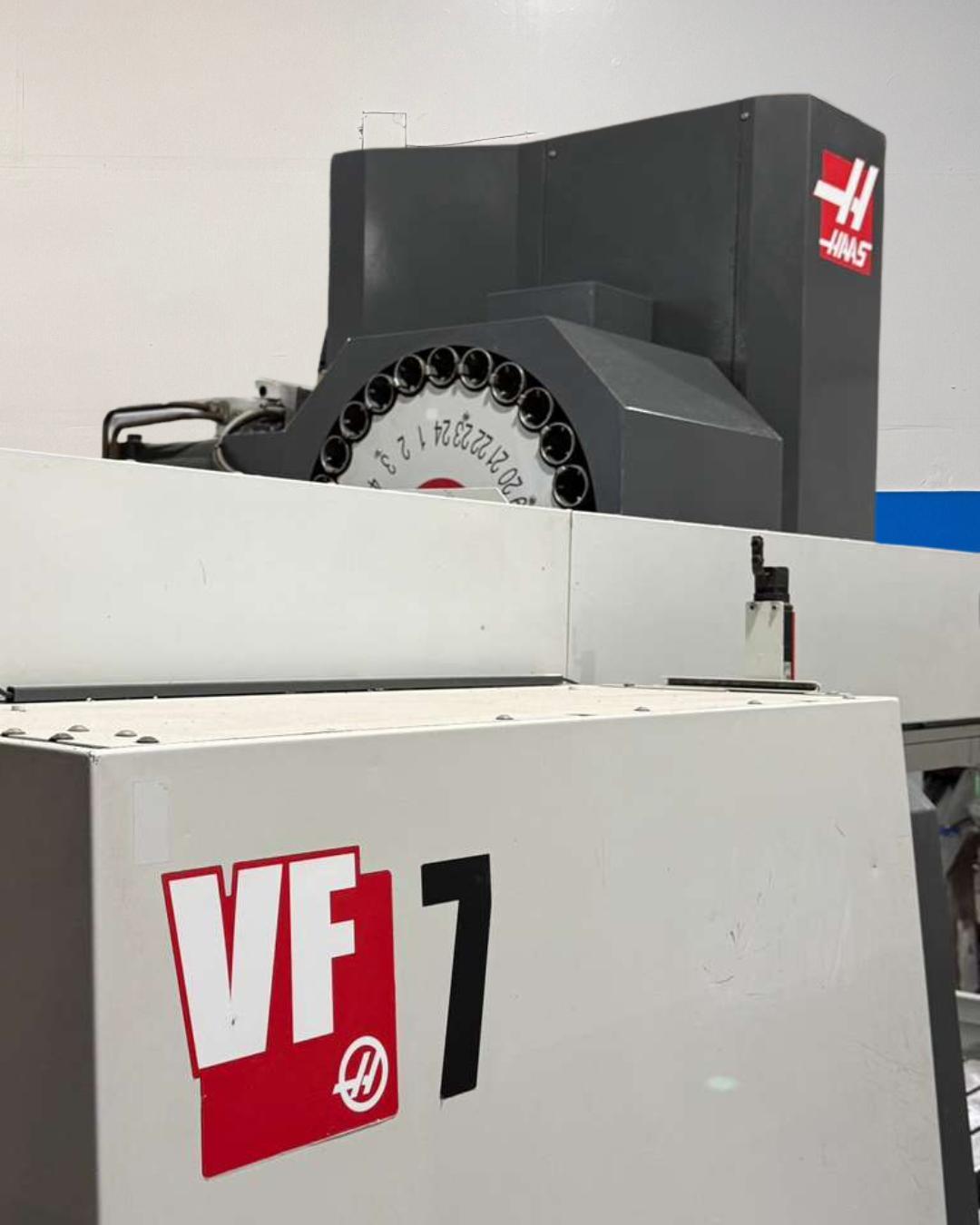

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 6″
Max Tool Length: 16″
Tool Changing Time: 3.6 Seconds
