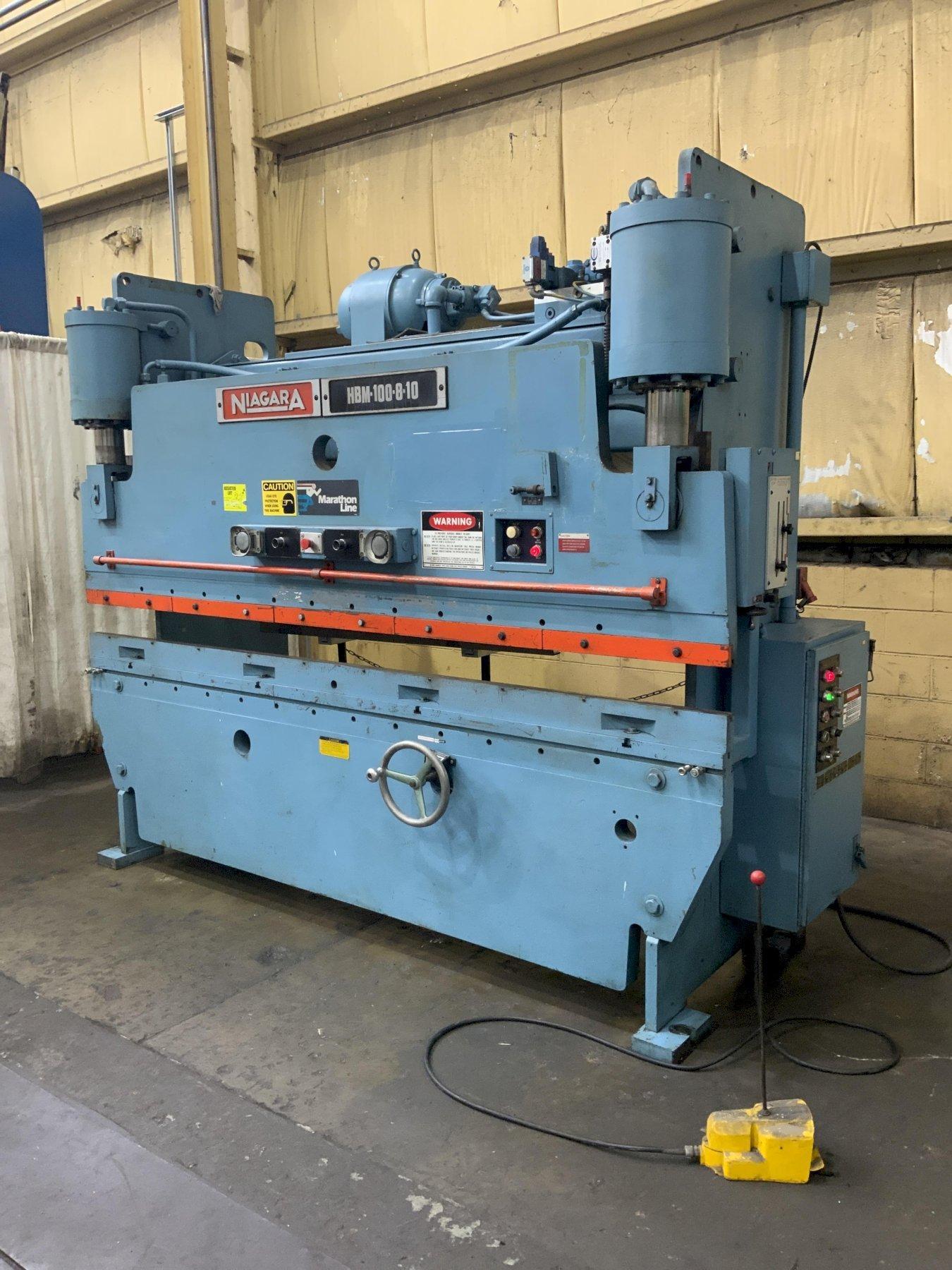

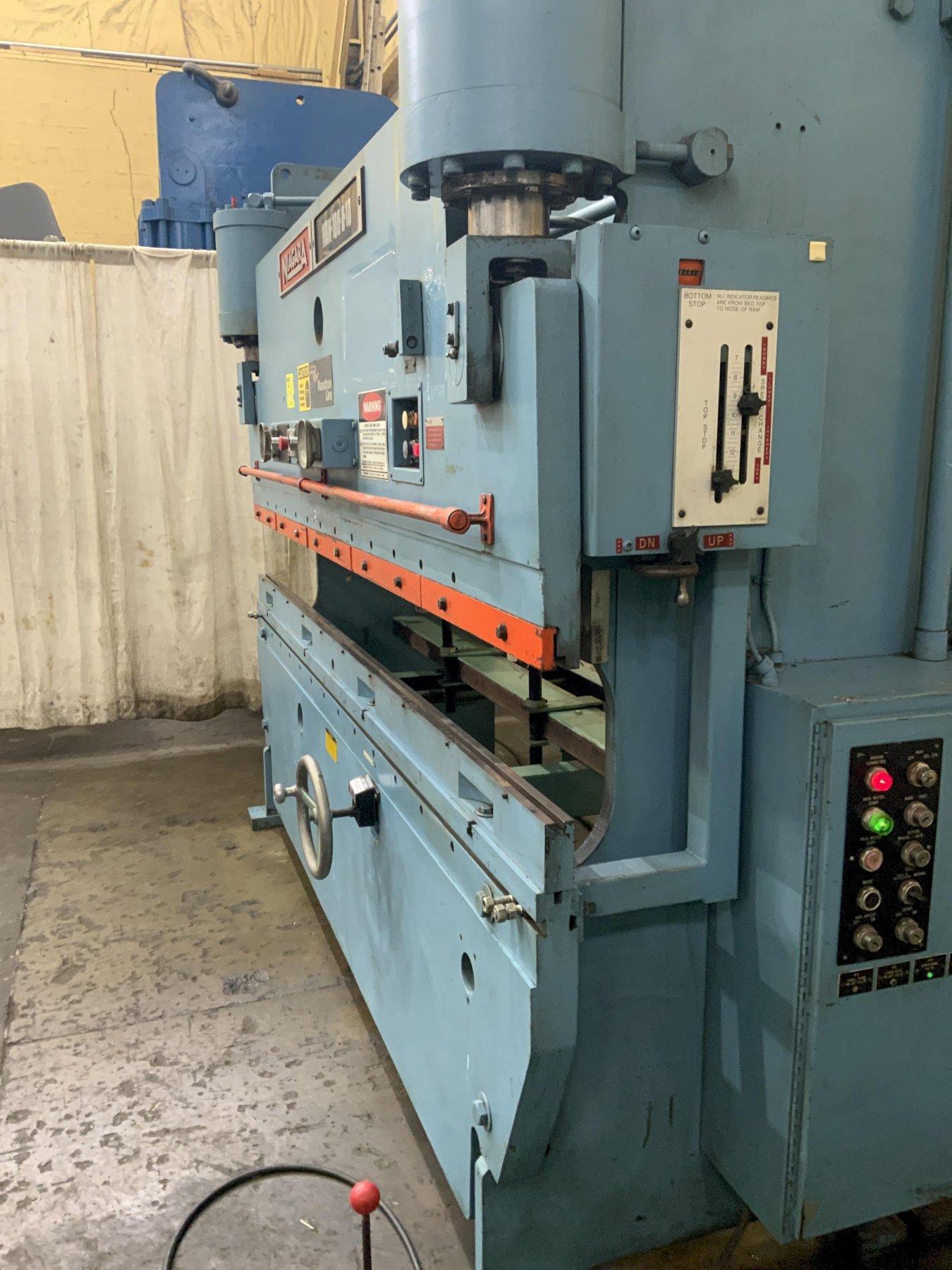

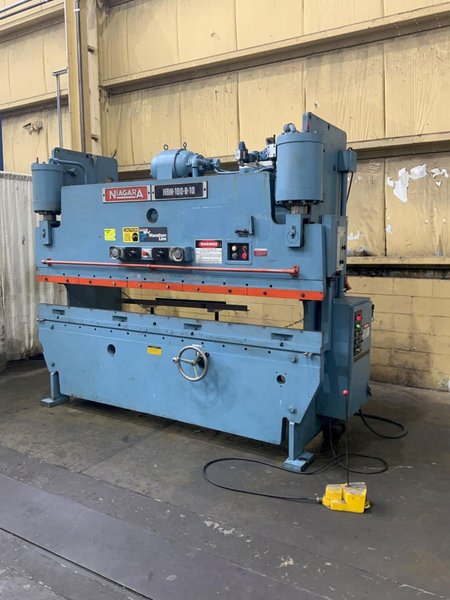

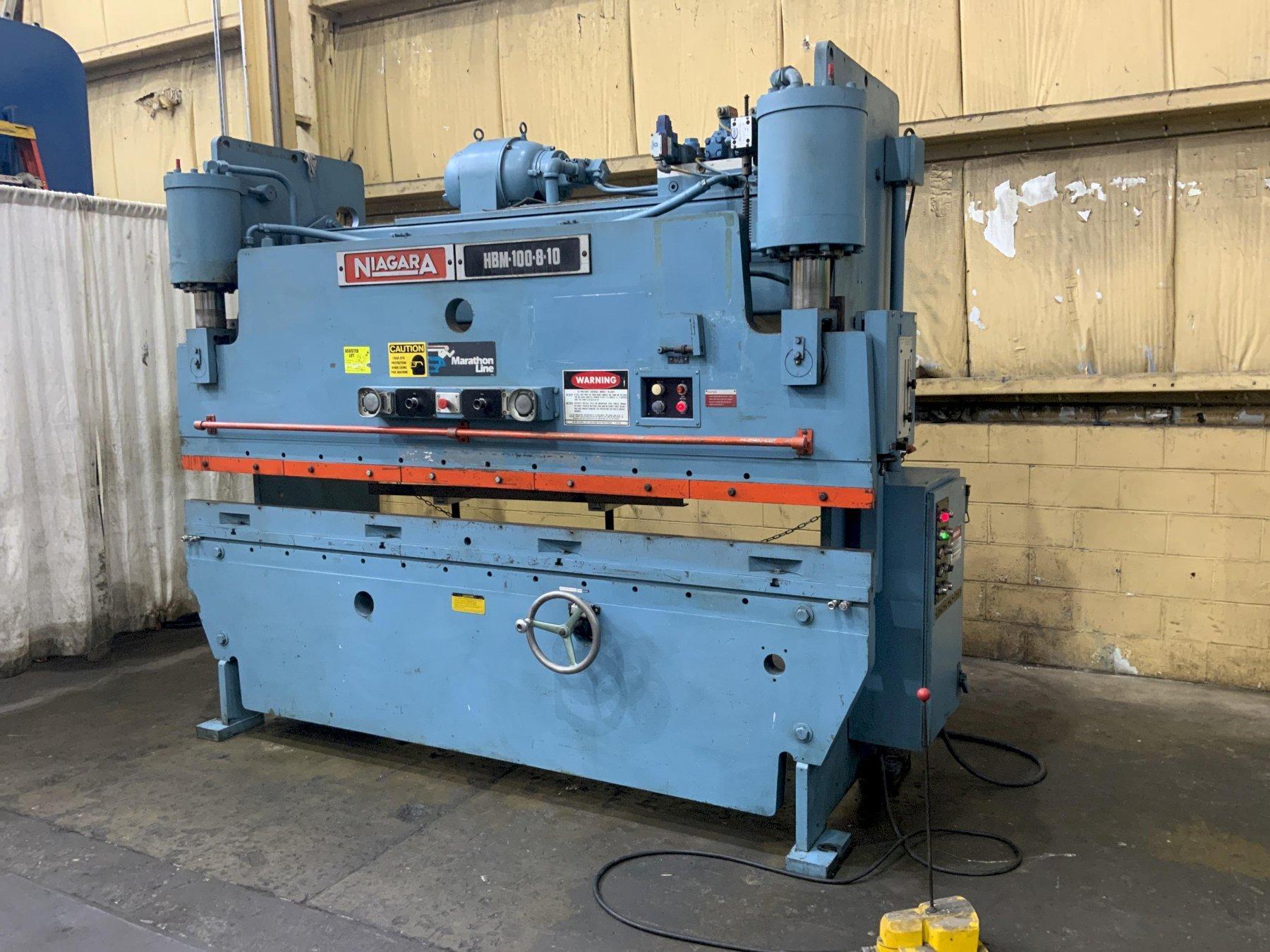

100 TON X 10' NIAGARA HBM-100-8-10 HYDRAULIC PRESS BRAKE: STOCK #80813

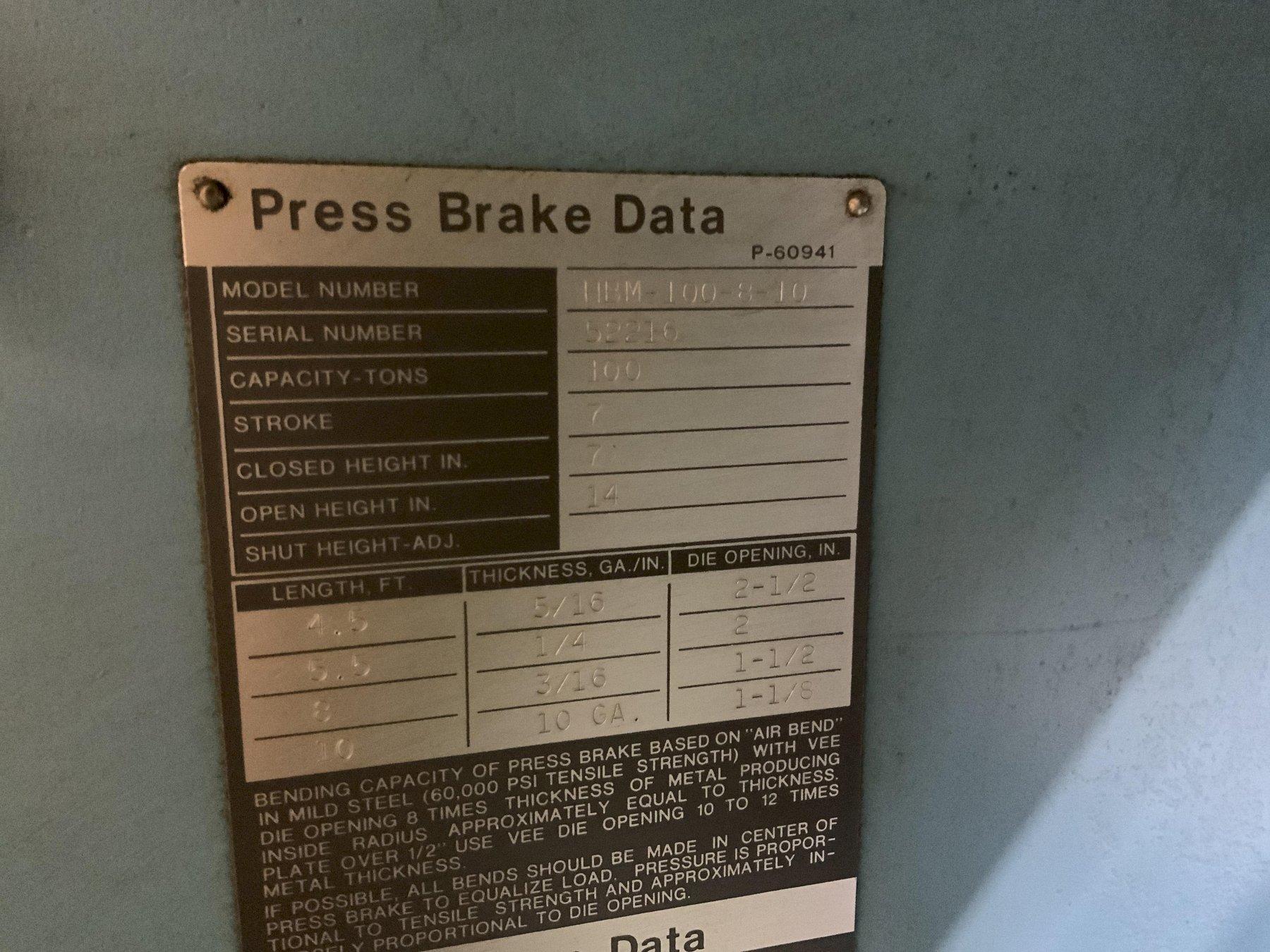

SERIAL .......................... P52216

MODEL ........................... HBM-100-8-10

YEAR NEW ........................ 1987

CAPACITY ........................ 100 TON

OVERALL LENGTH OF BED ........... 10'

DISTANCE BETWEEN HOUSINGS ....... 8'6"

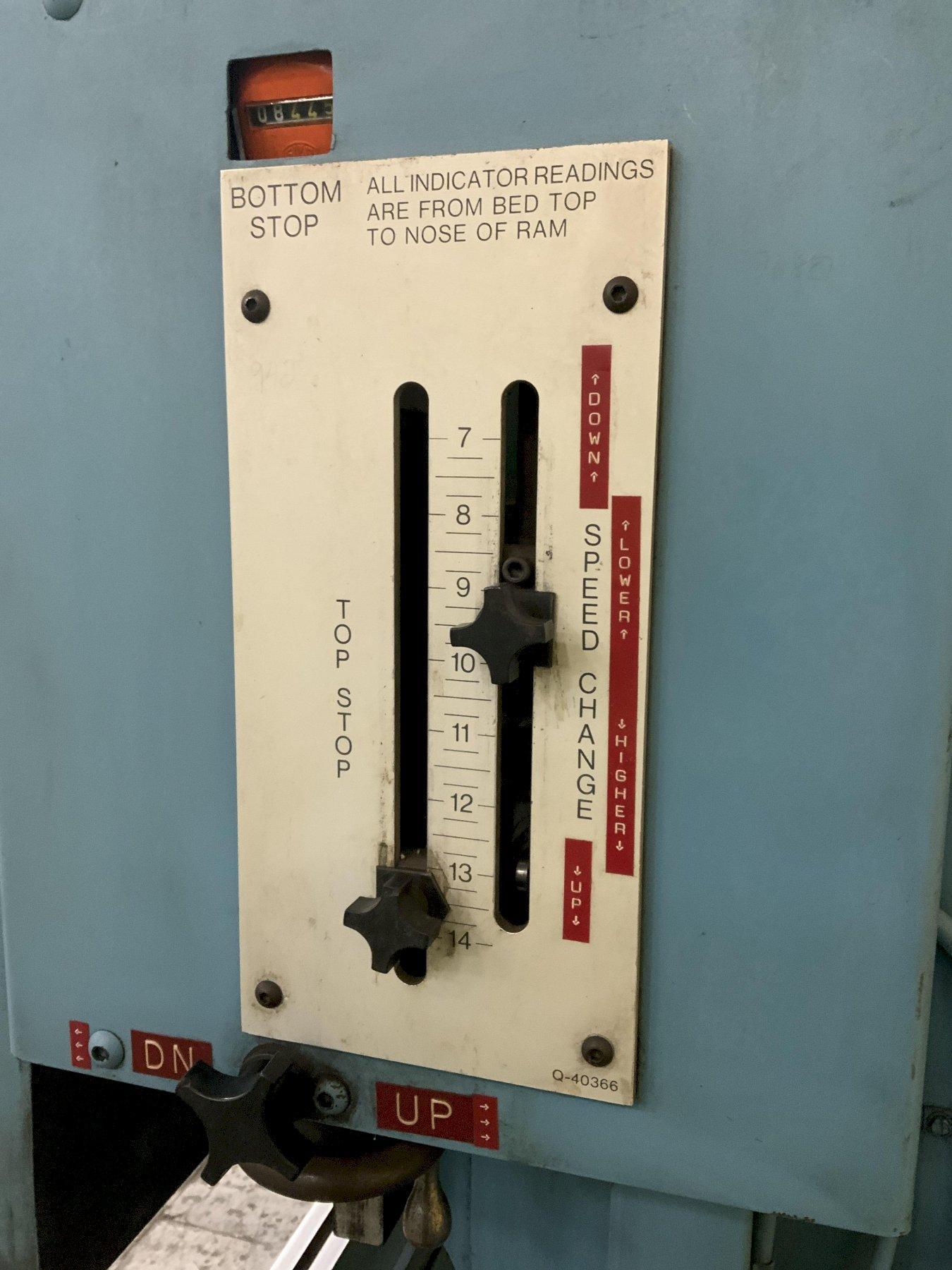

STROKE .......................... 7"

OPEN HEIGHT ..................... 14"

CLOSED HEIGHT ................... 7"

DEPTH OF THROAT ................. 7"

RAM SPEED RAPID ADVANCE ......... 127 IPM

RAM SPEED NORMAL PRESS .......... 64 IPM

RAM SPEED ANTI BACK BEND ........ 20 IPM

RAM SPEED RETURN ................ 127 IPM

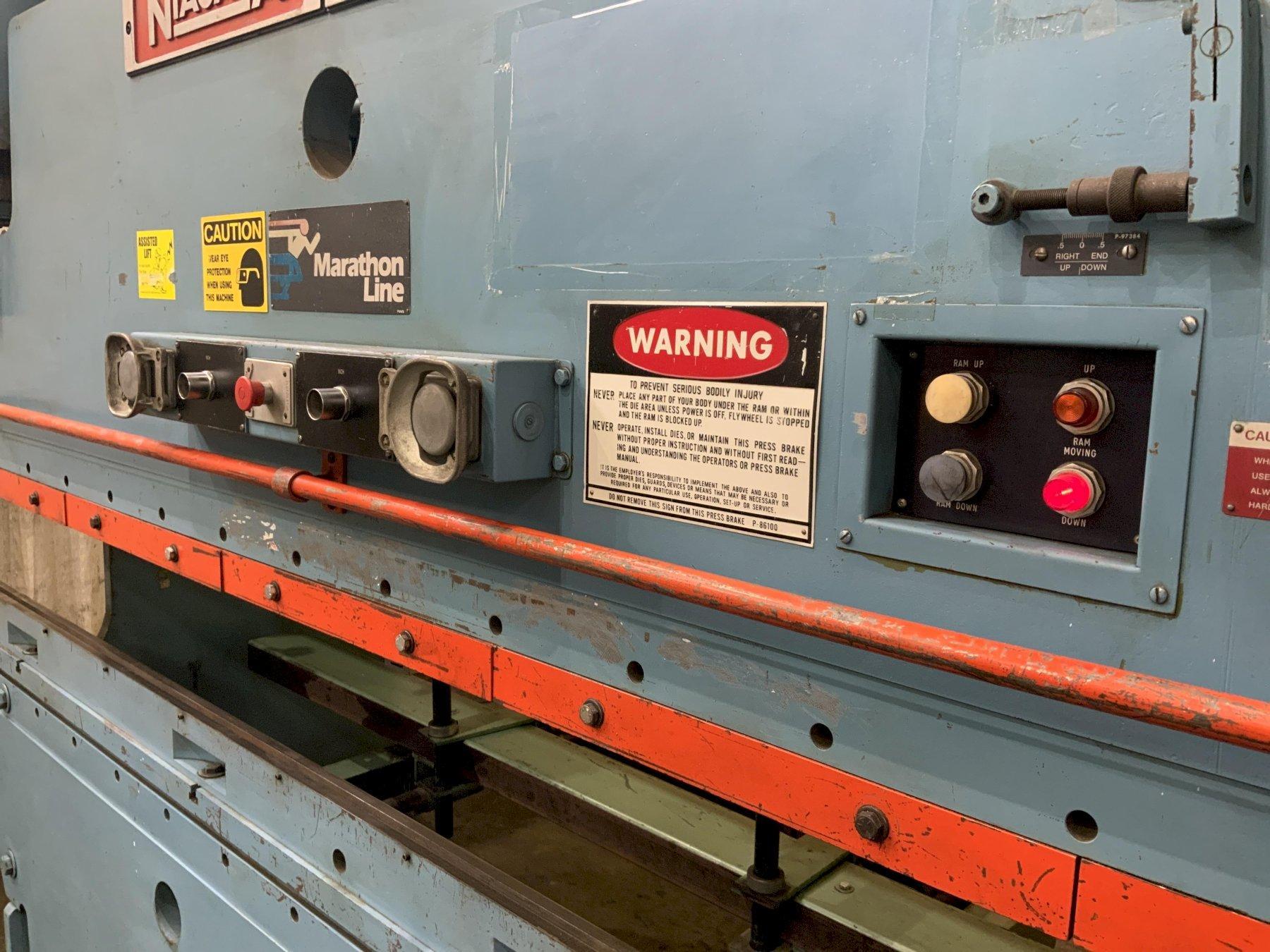

DUAL PALM BUTTONS ............... YES

ELECTRIC FOOT PEDAL ............. YES

FILLER BLOCK .................... 2" HIGH

PASS LINE HEIGHT ................ 36-1/2

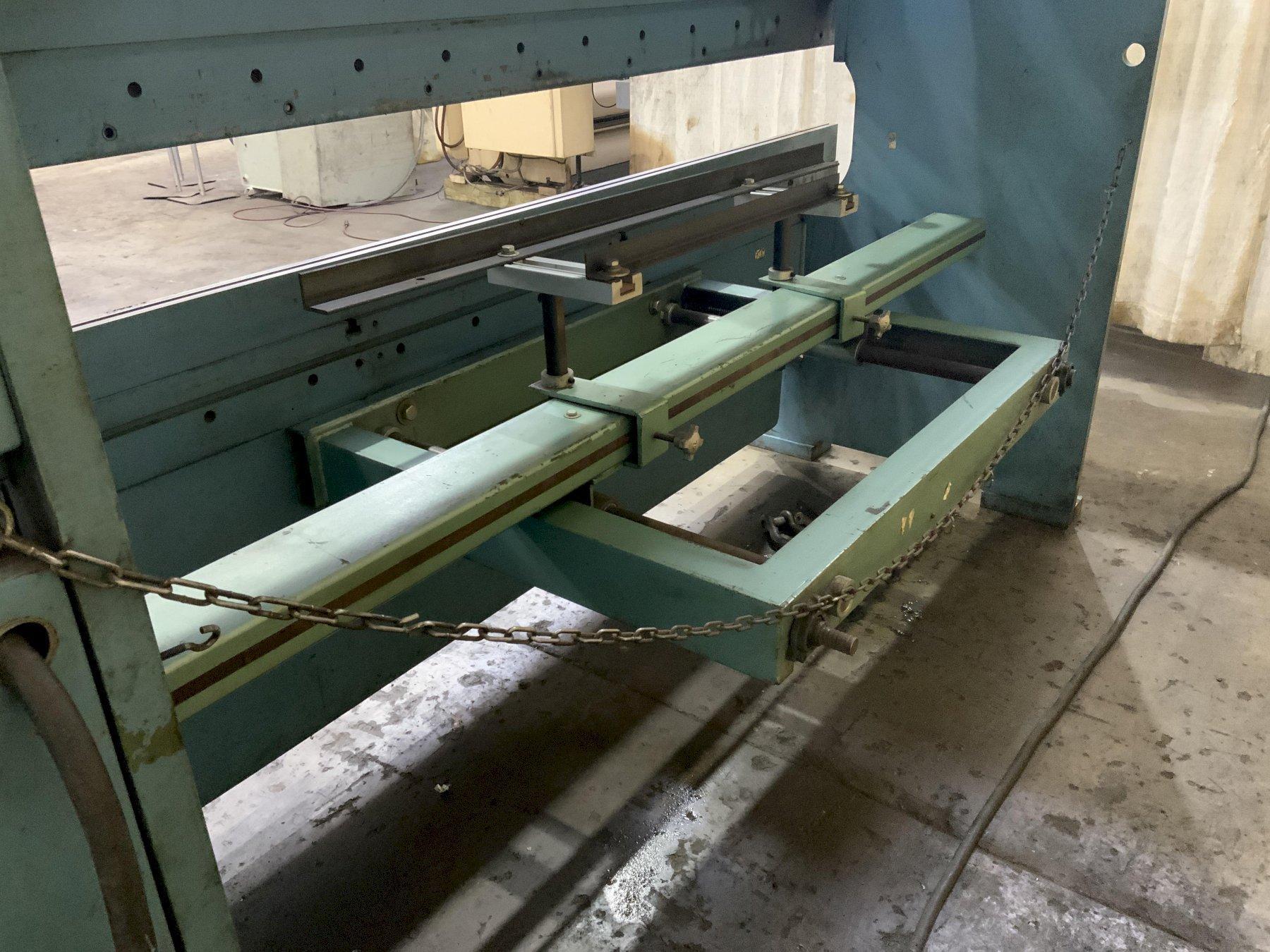

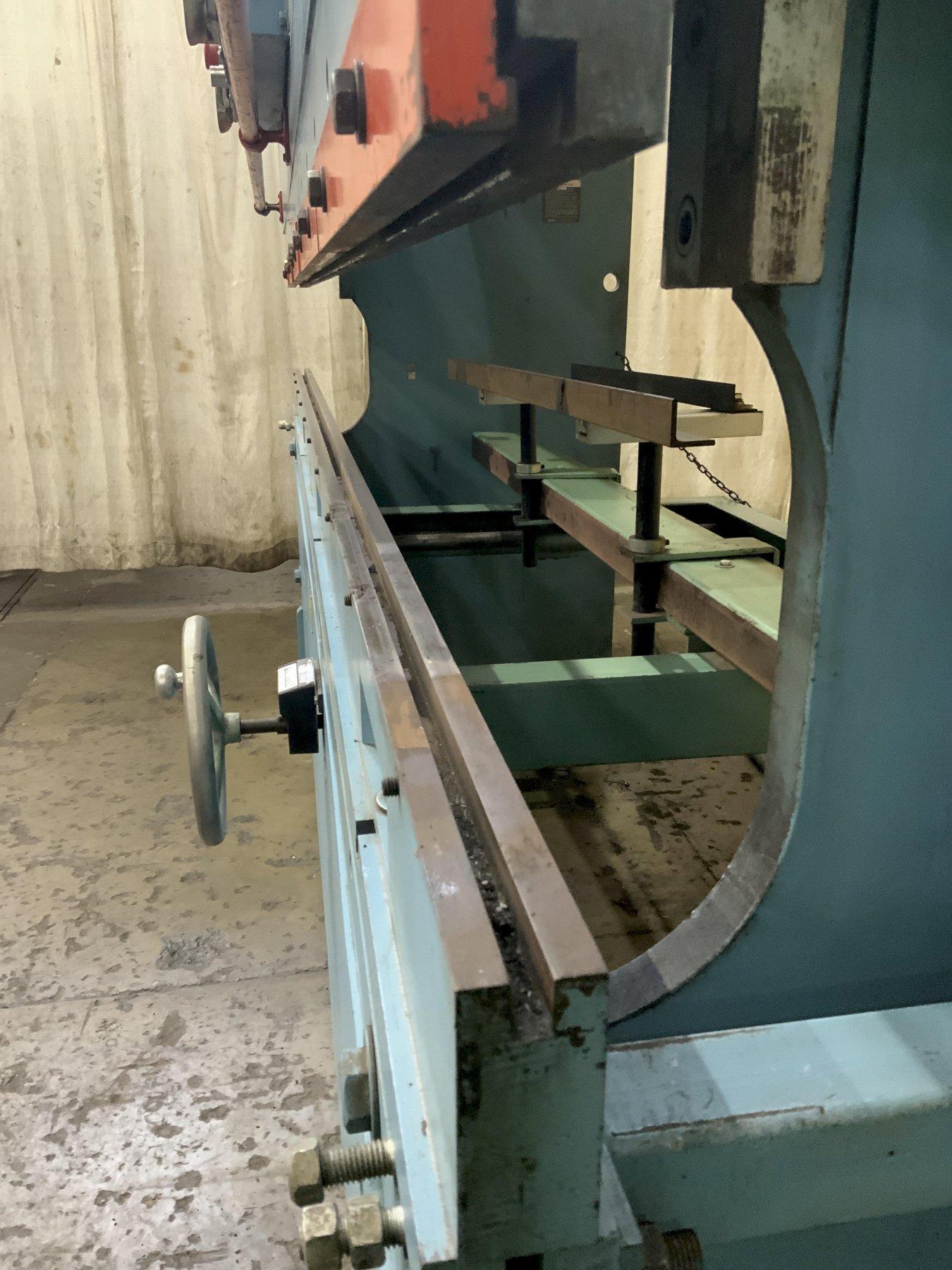

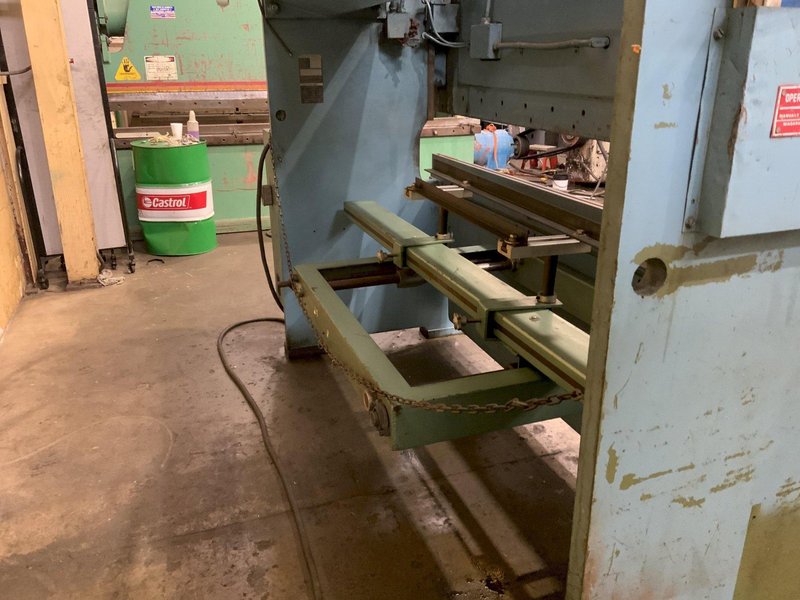

BACK GAUGE ...................... MANUAL FRONT OPERATED

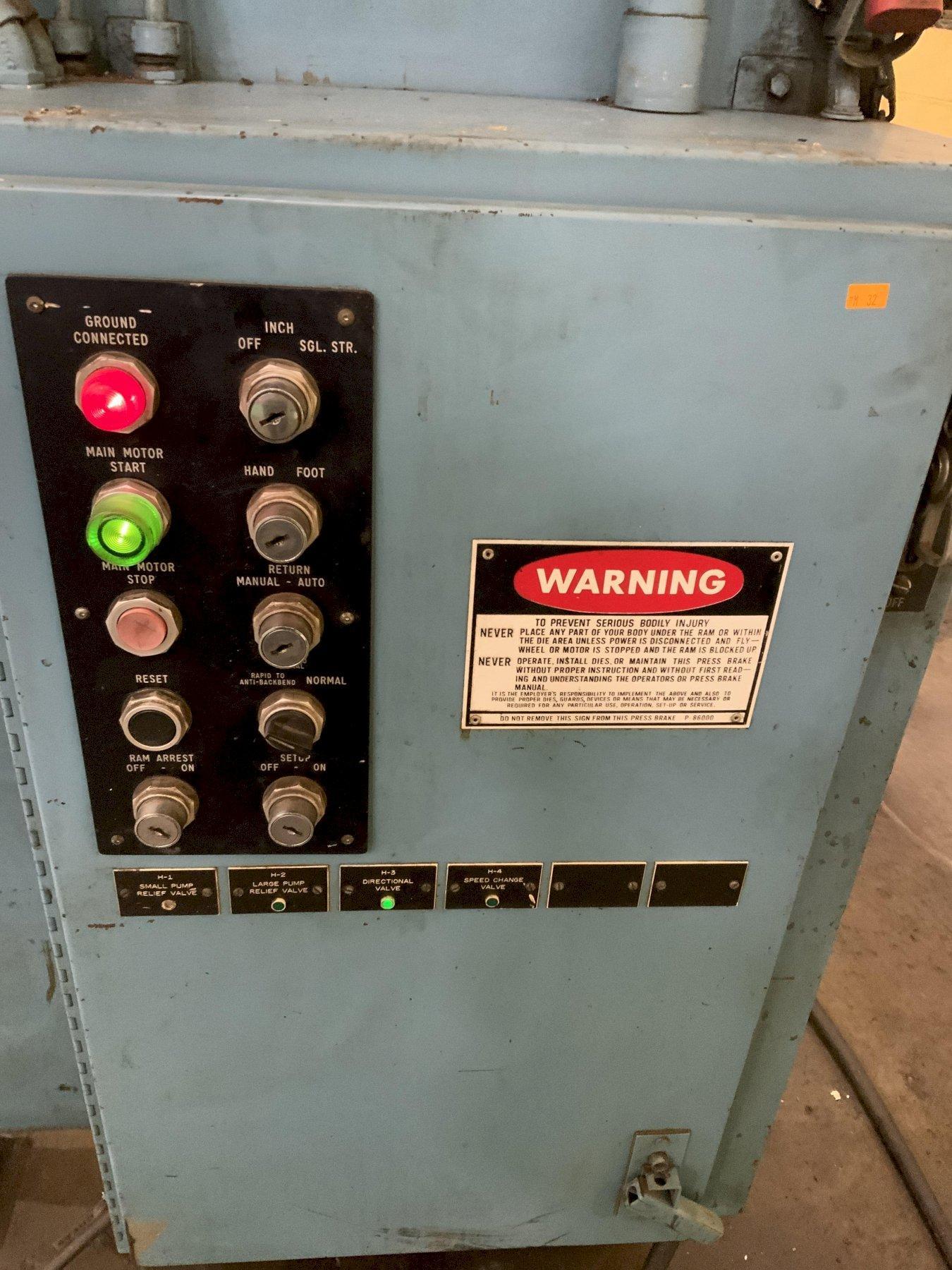

INCHING AND SINGLE STROKE ....... YES

MOTOR ........................... 20 HORSEPOWER
