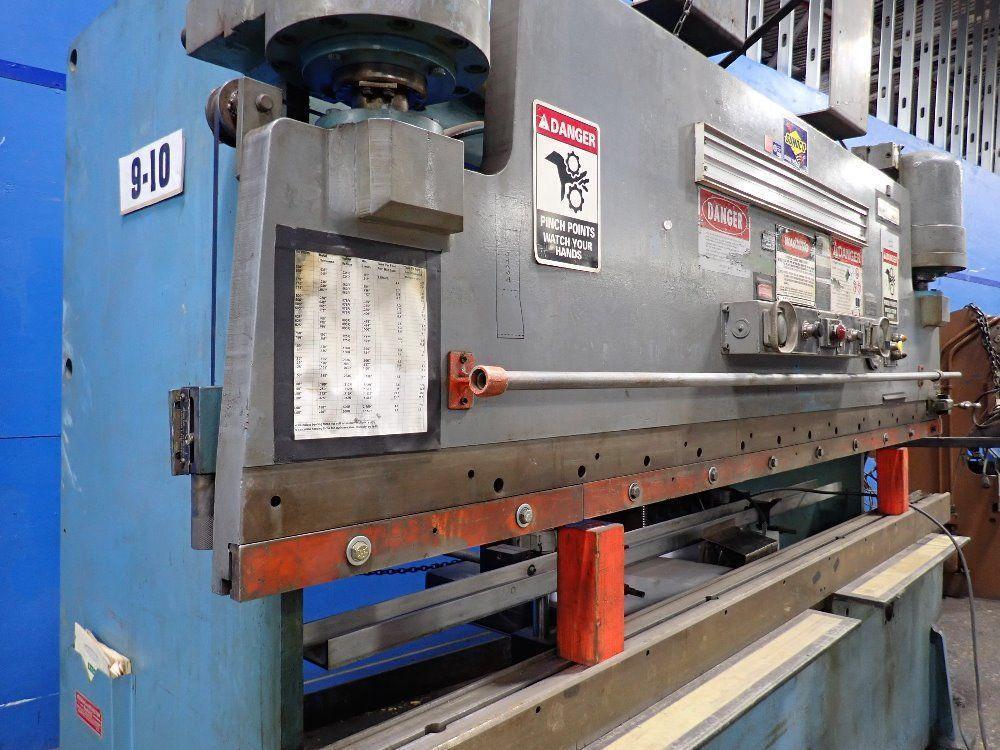

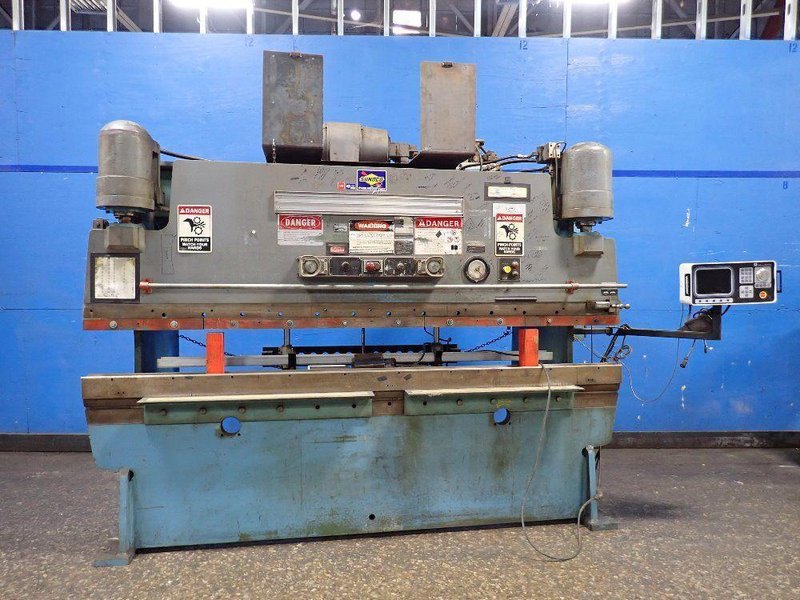

100 TON X 10' NIAGARA HYDRAULIC PRESS BRAKE: STOCK #78264

SERIAL .......................... P50192

MODEL ........................... HBM-100-8-10

CAPACITY ........................ 100 TON

OVERALL LENGTH OF BED ........... 10'

DISTANCE BETWEEN HOUSINGS ....... 8'6"

STROKE .......................... 7"

OPEN HEIGHT ..................... 14"

CLOSED HEIGHT ................... 7"

DEPTH OF THROAT ................. 7"

RAM SPEED RAPID ADVANCE ......... 127 IPM

RAM SPEED NORMAL PRESS .......... 64 IPM

RAM SPEED ANTI BACK BEND ........ 20 IPM

RAM SPEED RETURN ................ 127 IPM

DUAL PALM BUTTONS ............... YES

ELECTRIC FOOT PEDAL ............. YES

FILLER BLOCK .................... 2" HIGH

PASS LINE HEIGHT ................ 36-1/2

CNC BACK GAUGE .......... COMP U BEND 61000

INCHING AND SINGLE STROKE ....... YES

MOTOR ........................... 20 HORSEPOWER
