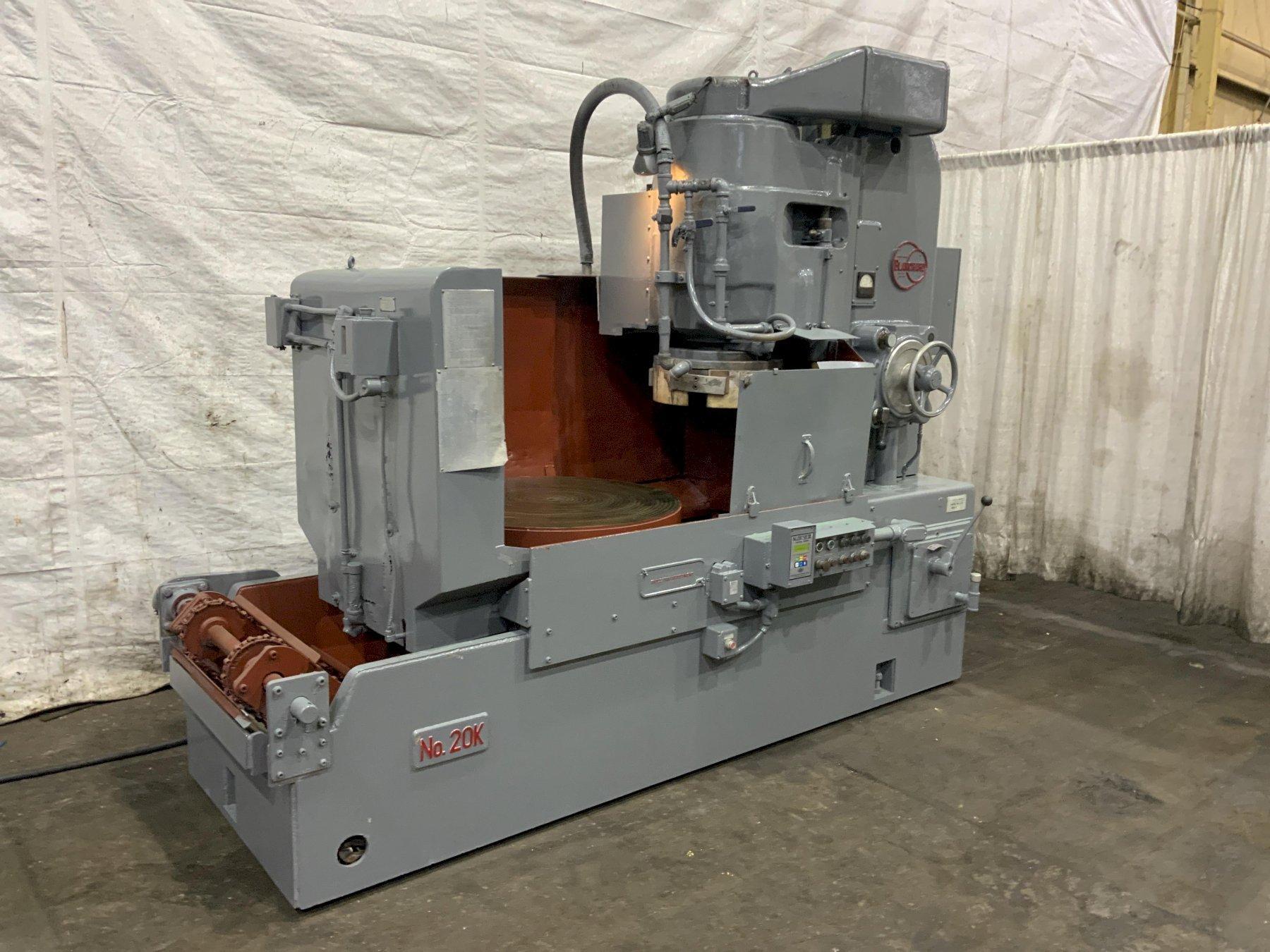

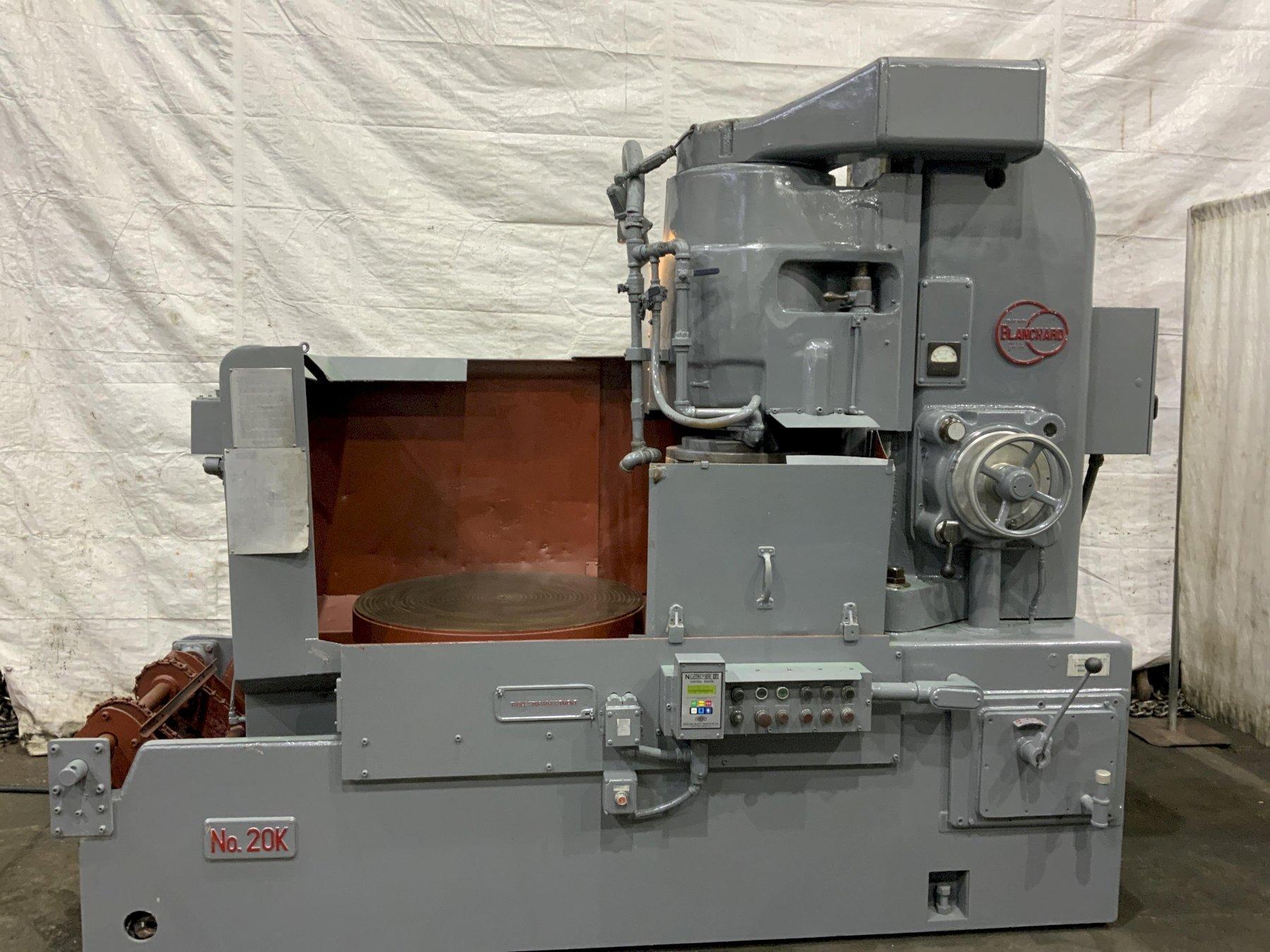

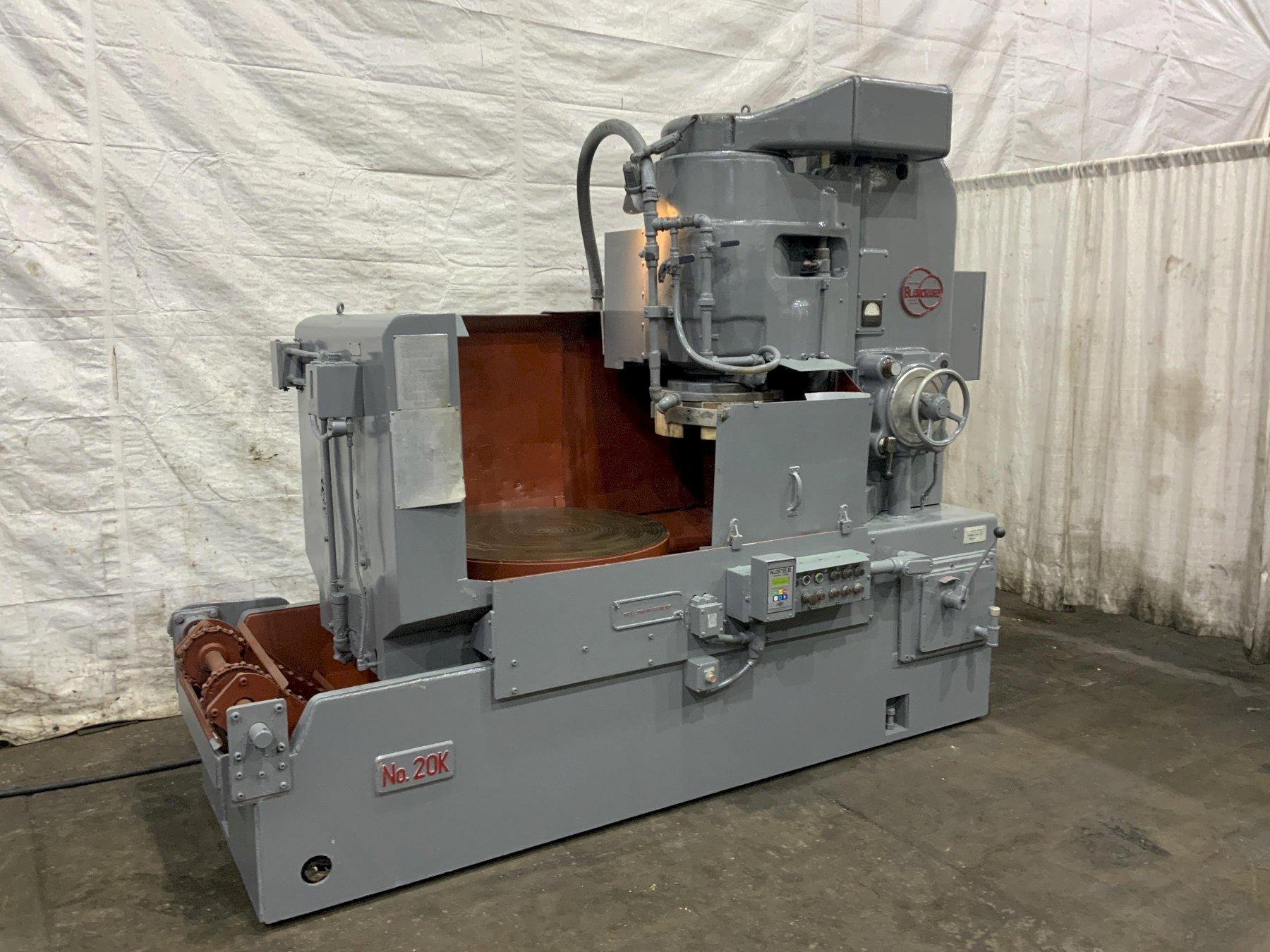

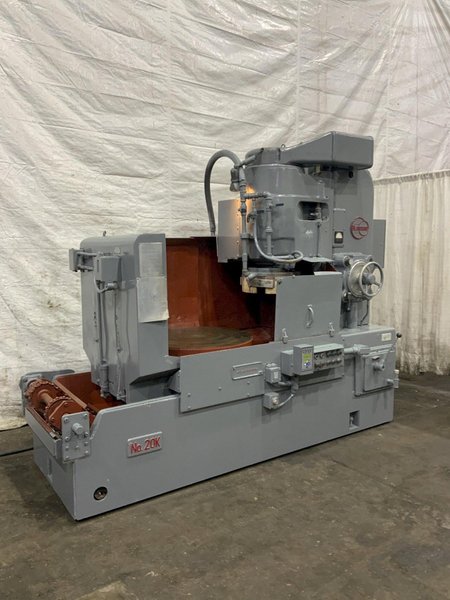

36" BLANCHARD ROTARY SURFACE GRINDER: STOCK #80803

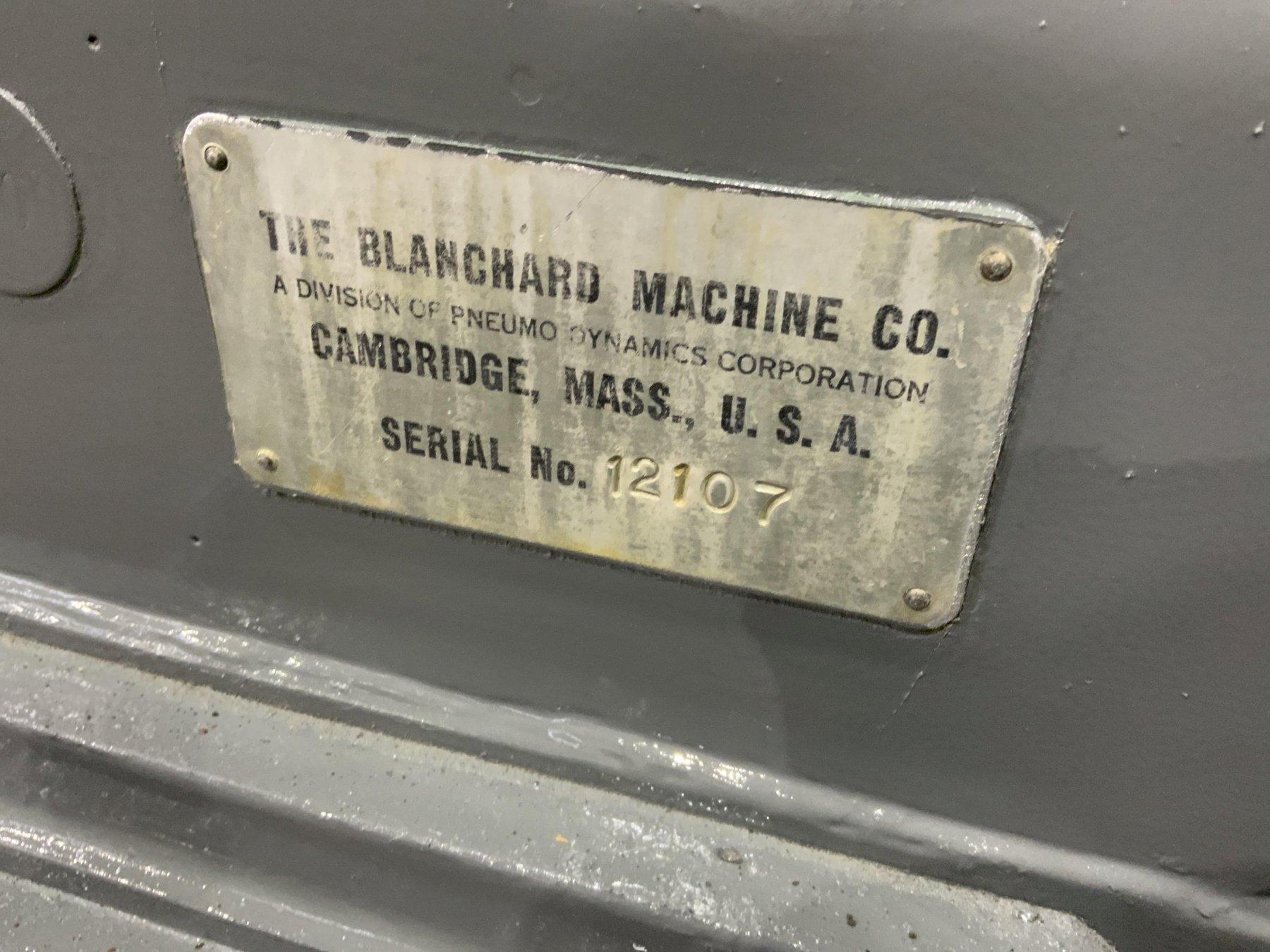

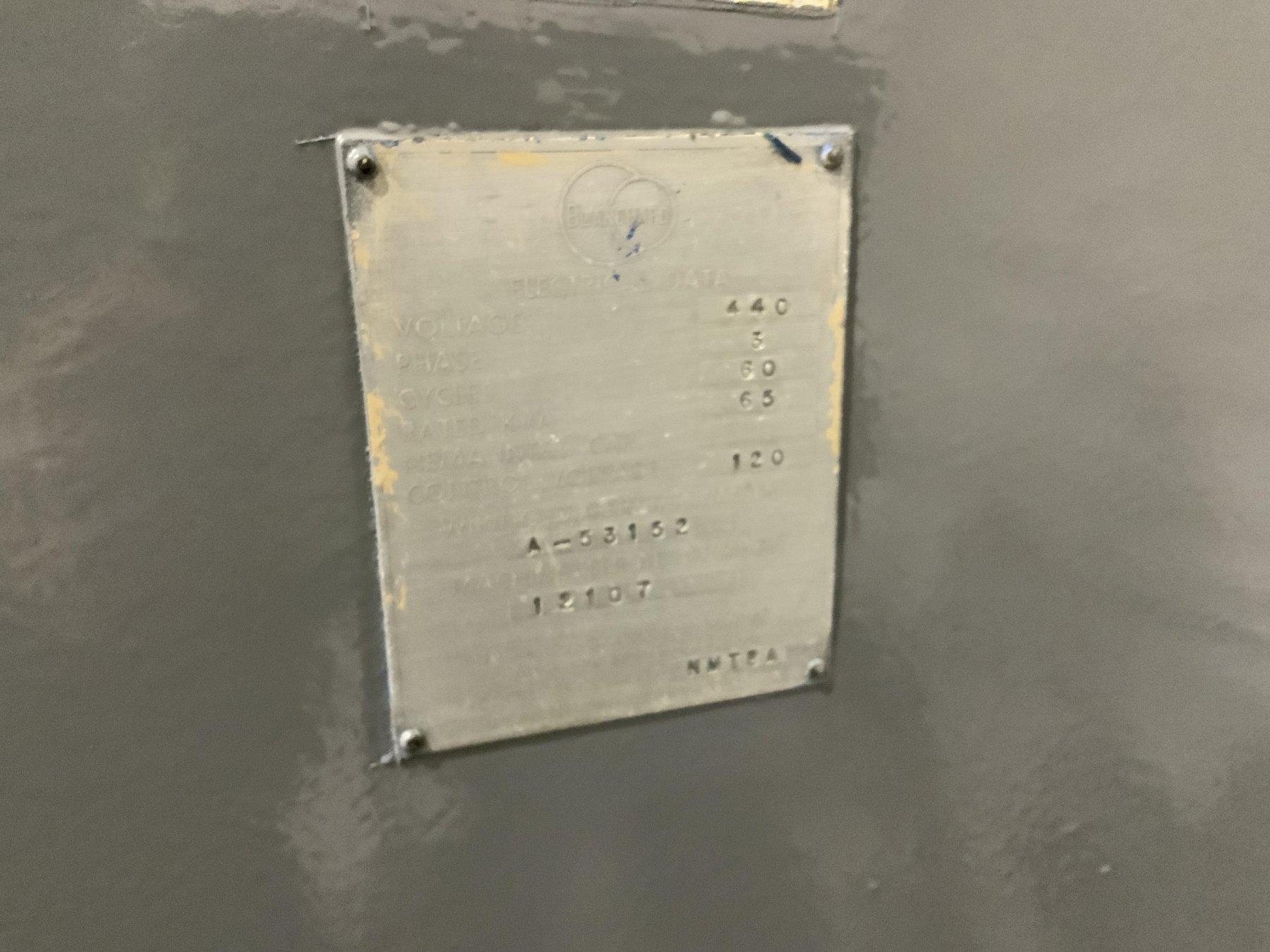

SERIAL .................................12107

MODEL .................................. 20K

NEW IN ................................. 1967

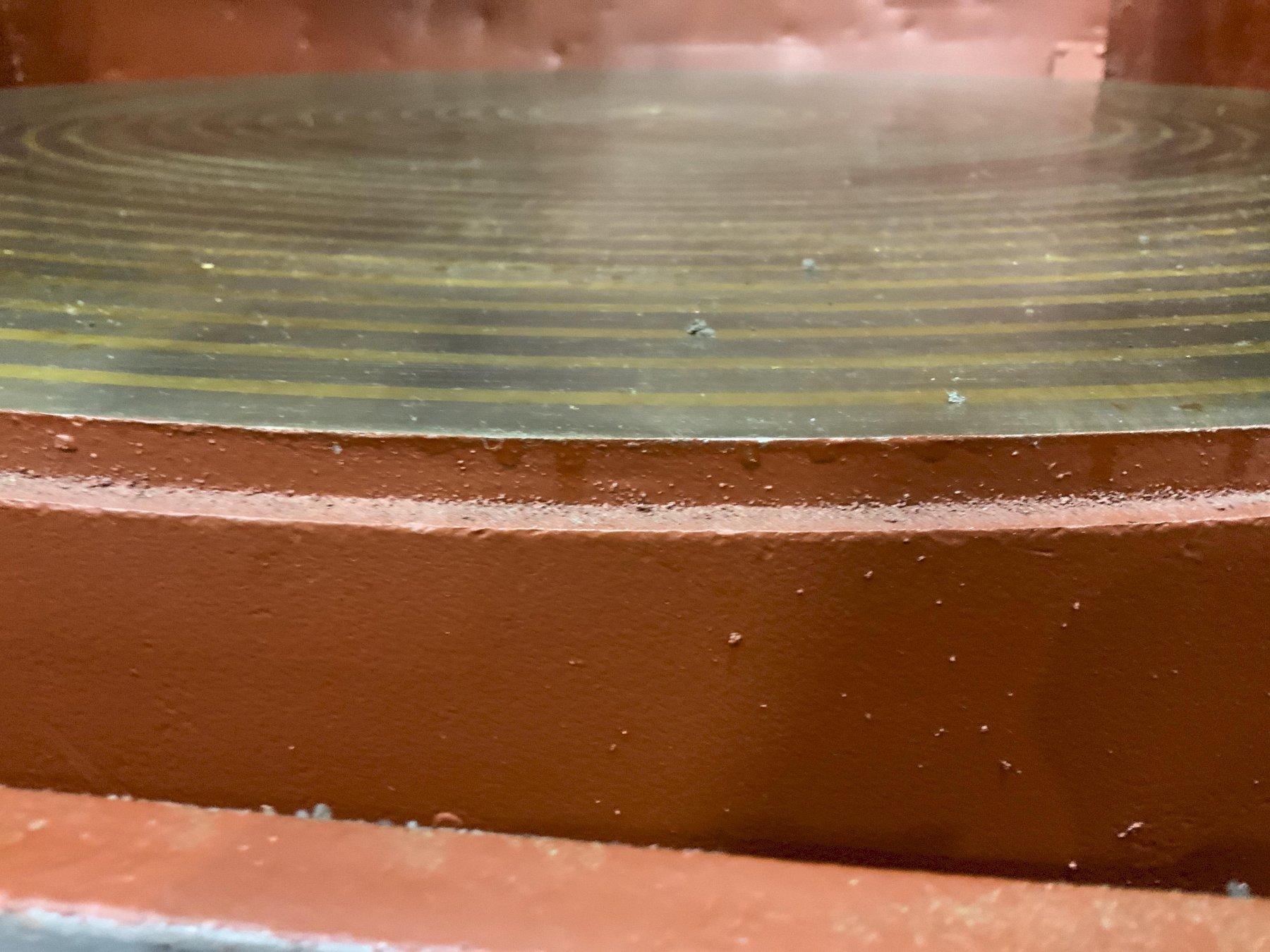

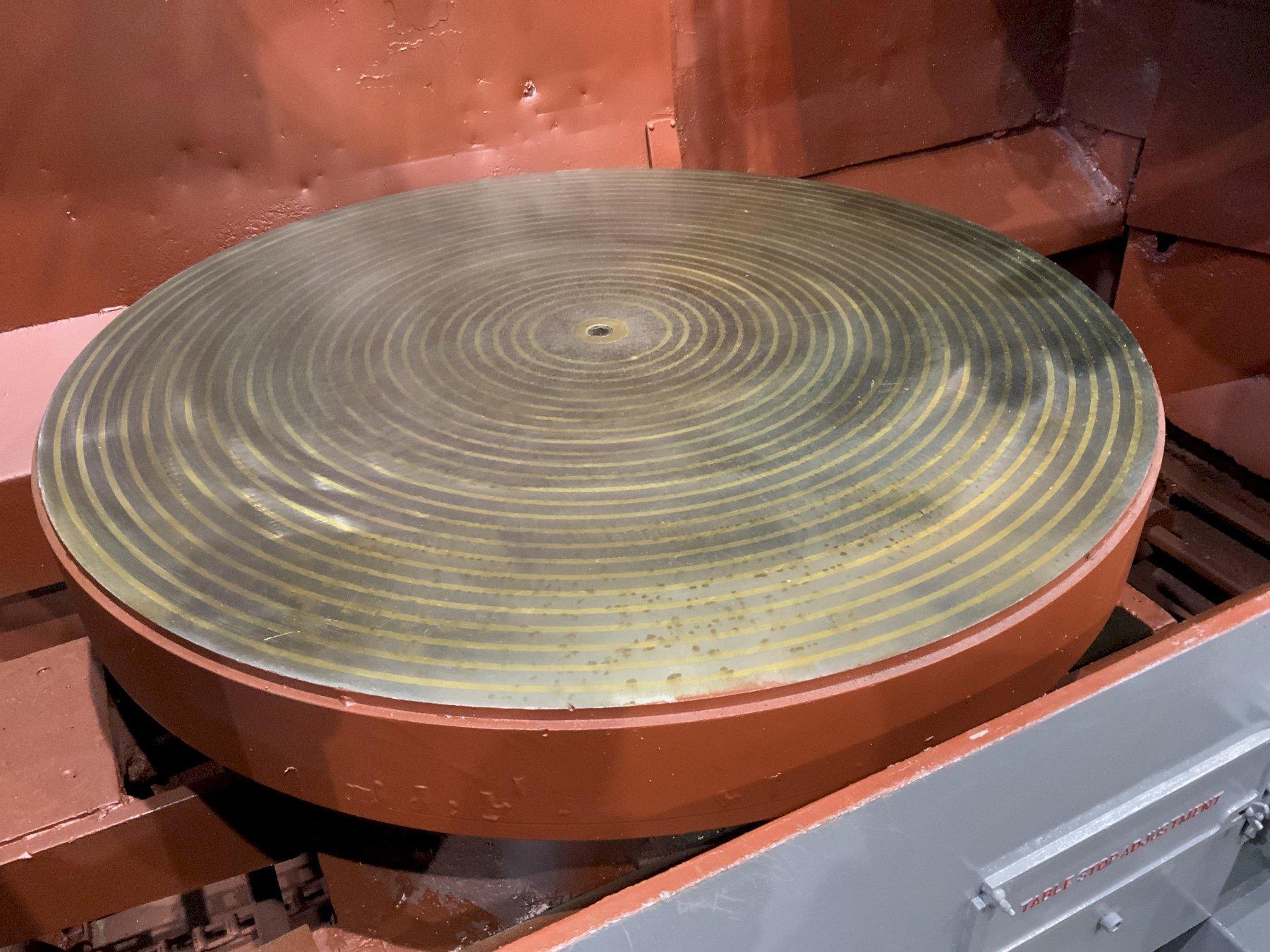

DIAMETER OF MAGNETIC CHUCK ............. 36"

MAXIMUM SWING INSIDE WATER GUARDS ...... 42"

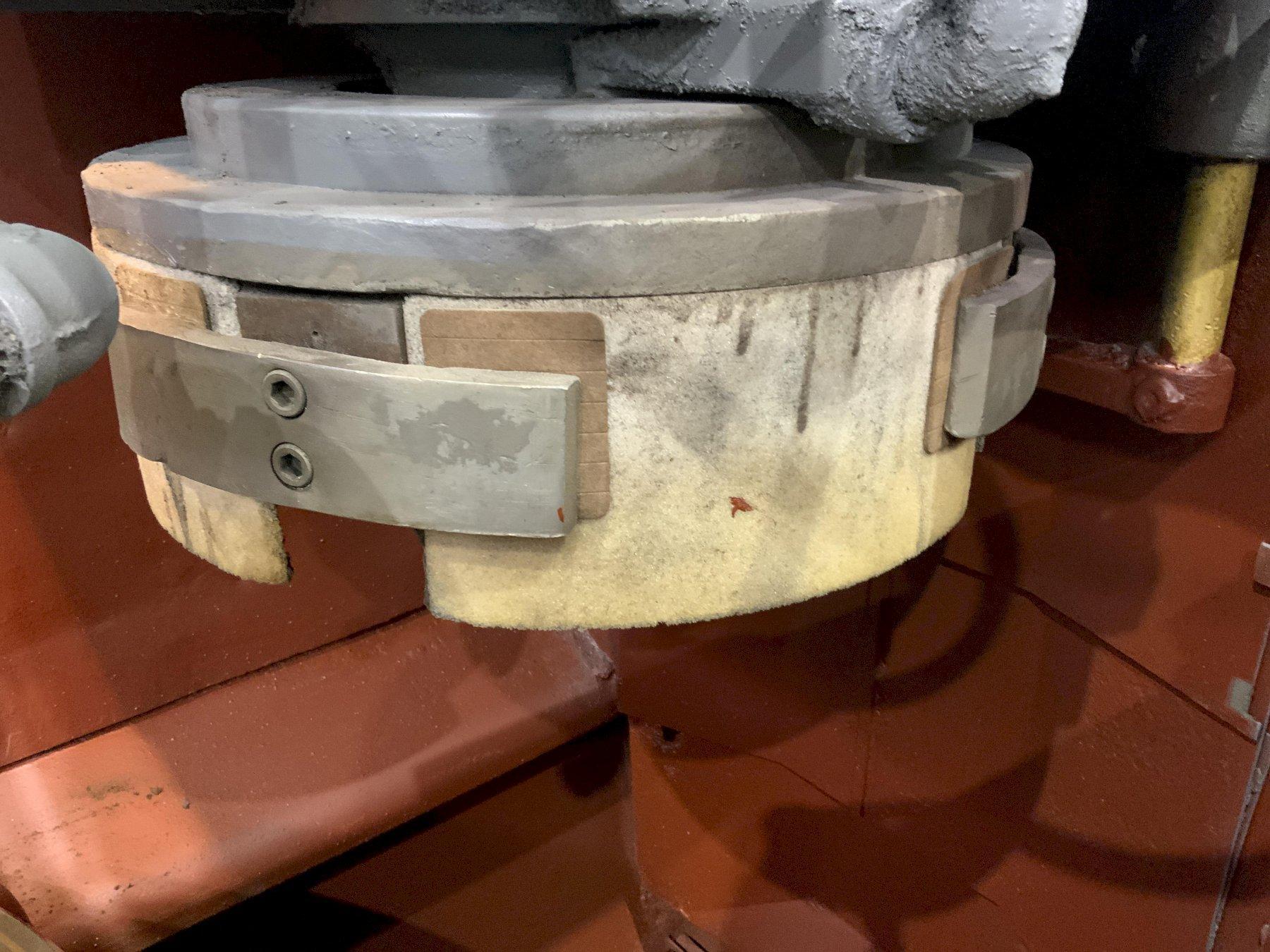

DIAMETER OF SEGMENTED WHEEL ............ 20"

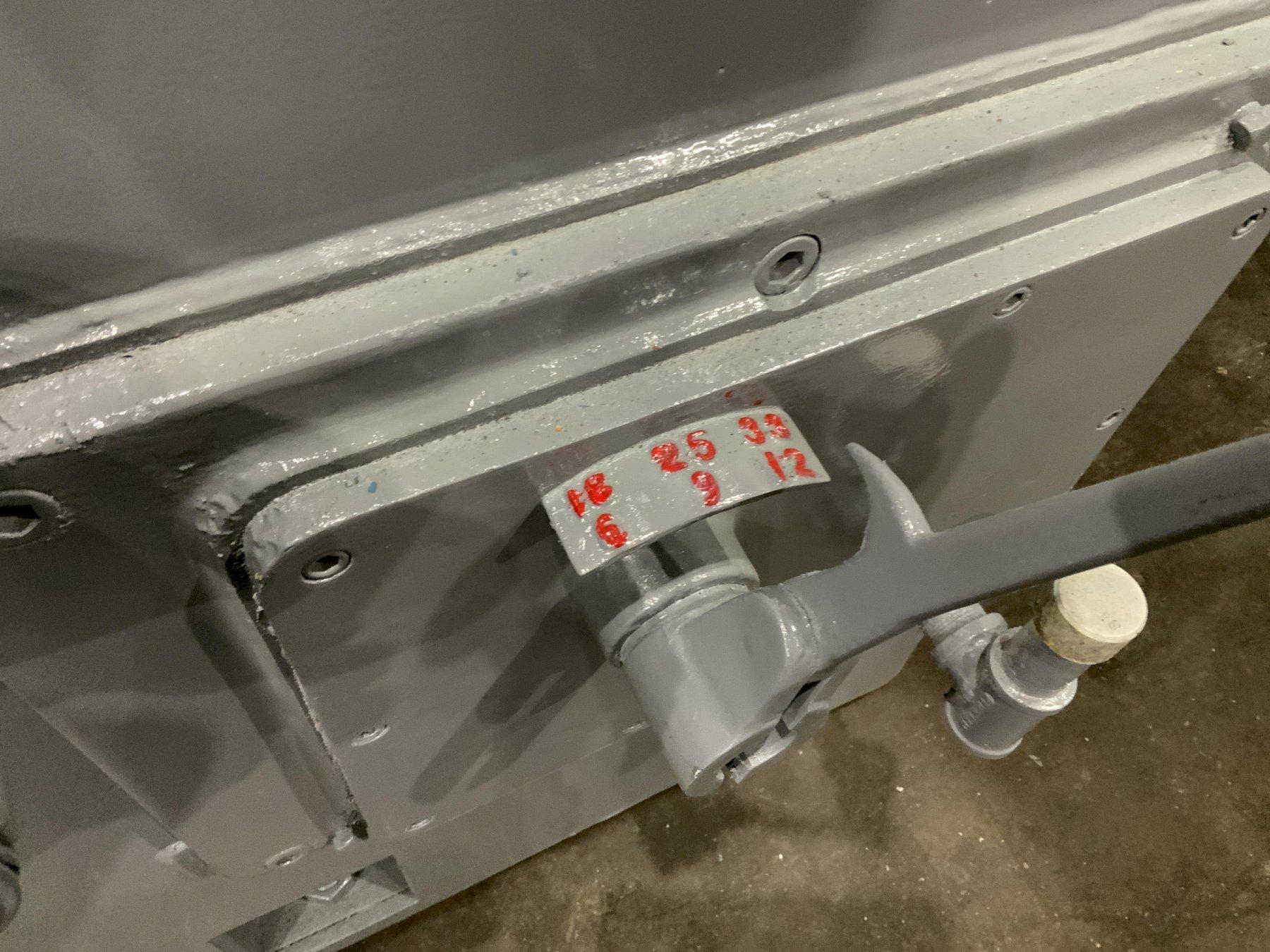

TABLE SPEEDS ........................... (6) 6,9,12,18,25 & 33 RPM

MAXIMUM UNDER WHEEL .................... 18"

AUTOMATIC DOWN FEED .................... .004 TO .080 IPM

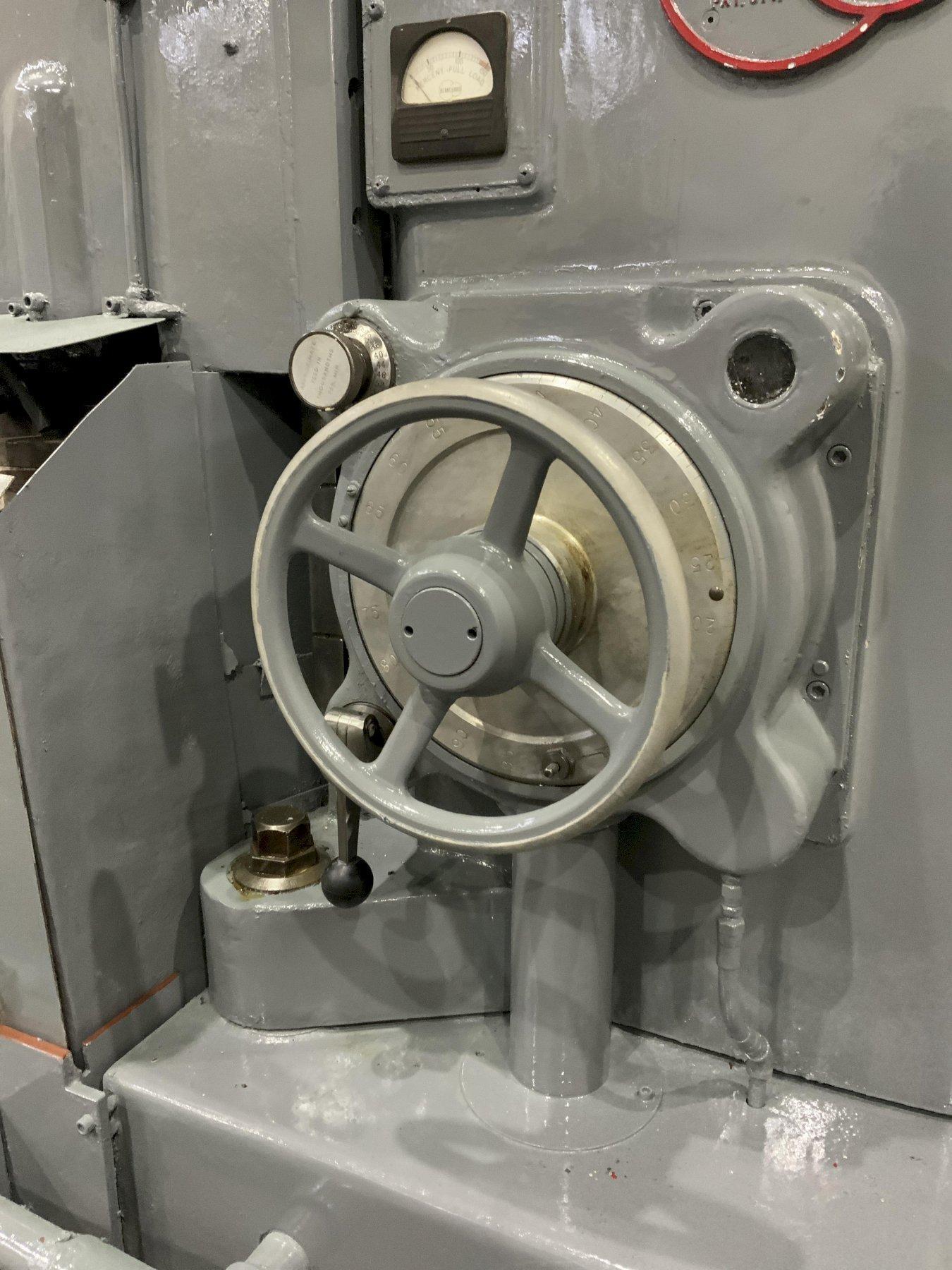

POWER HEAD ELEVATION ................... YES

POWER TABLE TRAVEL ..................... YES

WHEEL DRESSER .......................... YES

HARDEN WAYS ............................ YES

TRABON LUBE SYSTEM ..................... YES

COOLANT SYSTEM ......................... YES

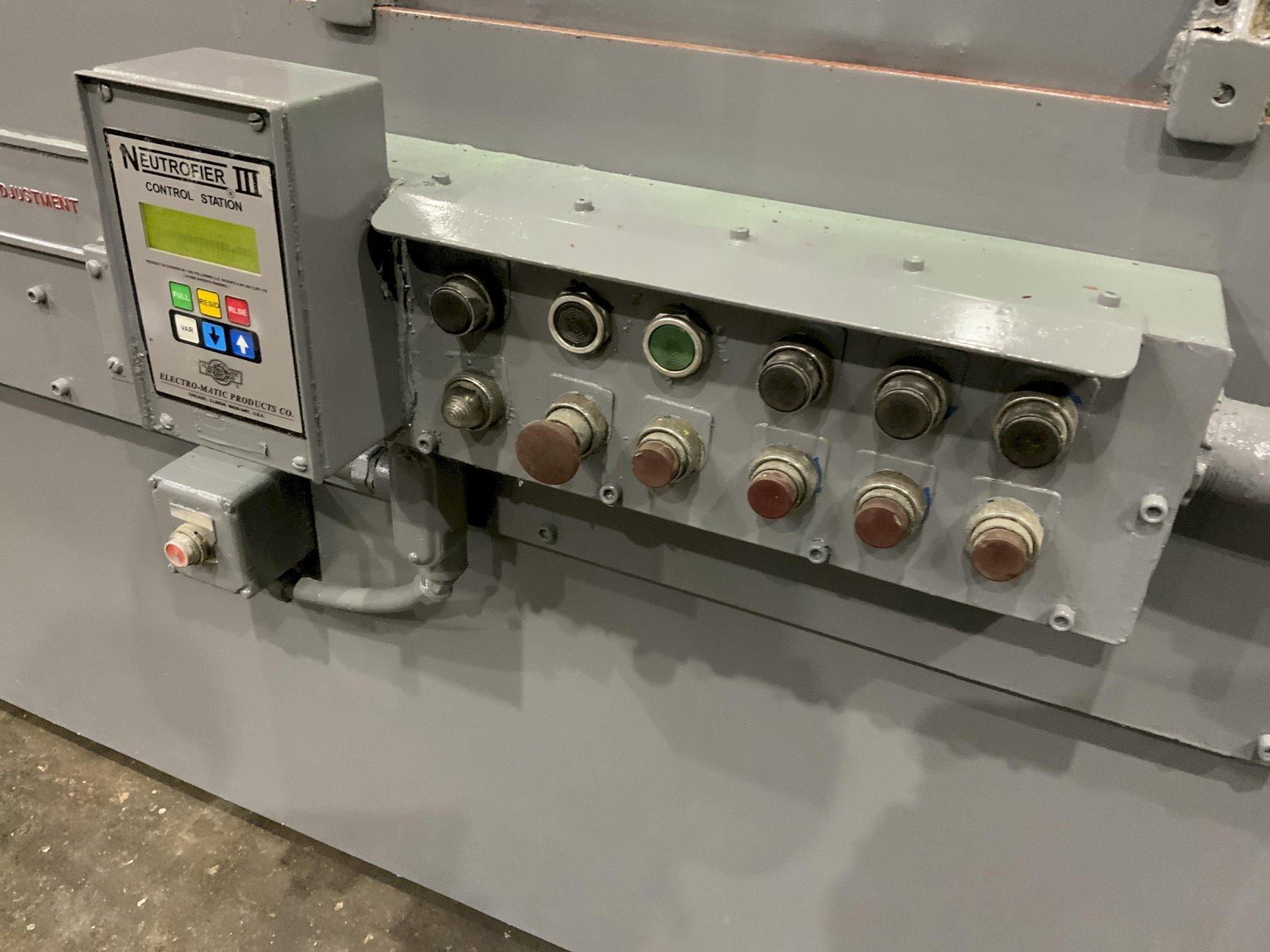

NUTRIFIER & RECTIFIER CHUCK ............ VARIABLE HOLD

SPINDLE MOTOR .......................... 30 HORSEPOWER

ROTATION MOTOR ......................... 2 HORSEPOWER
