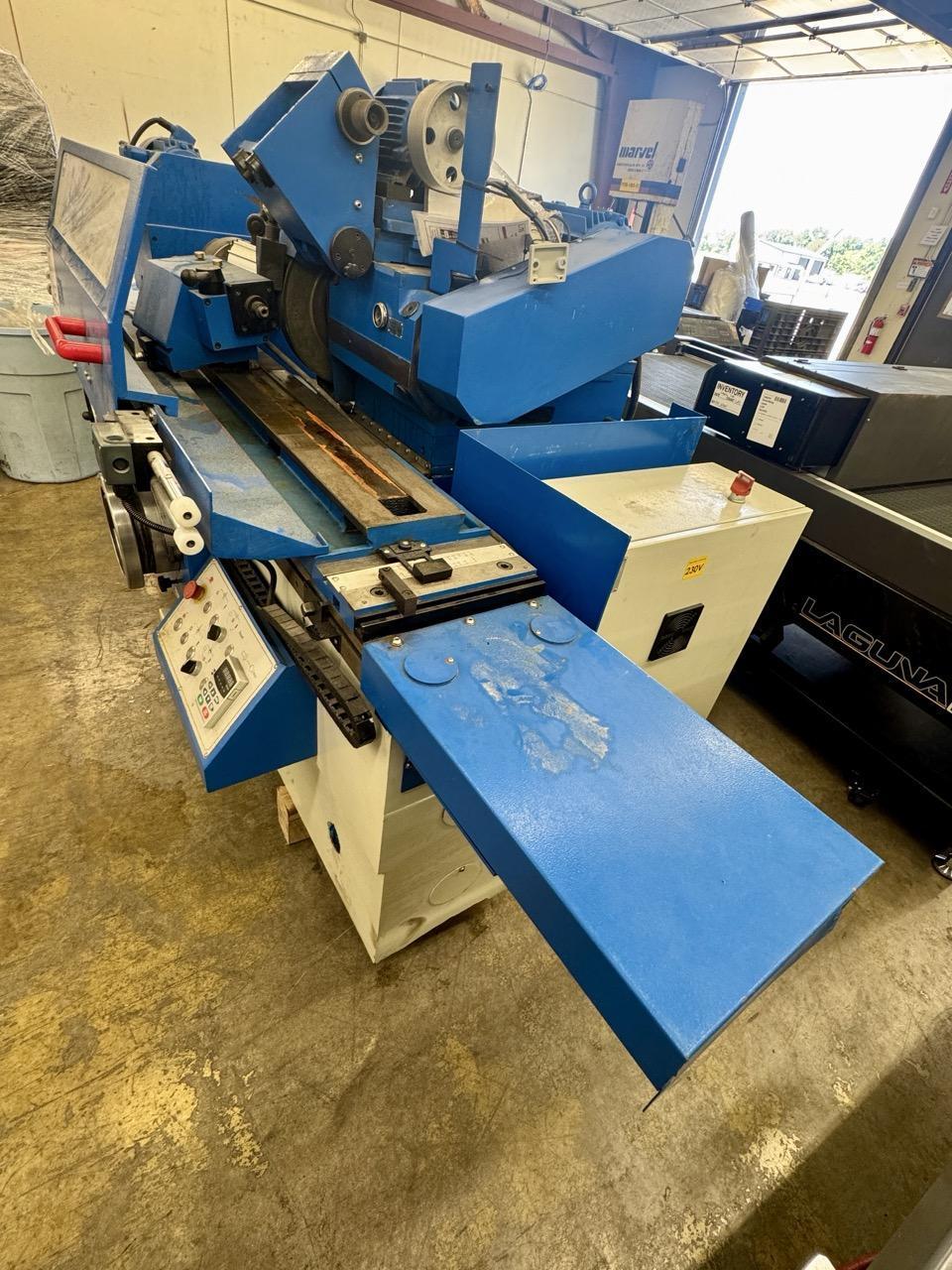

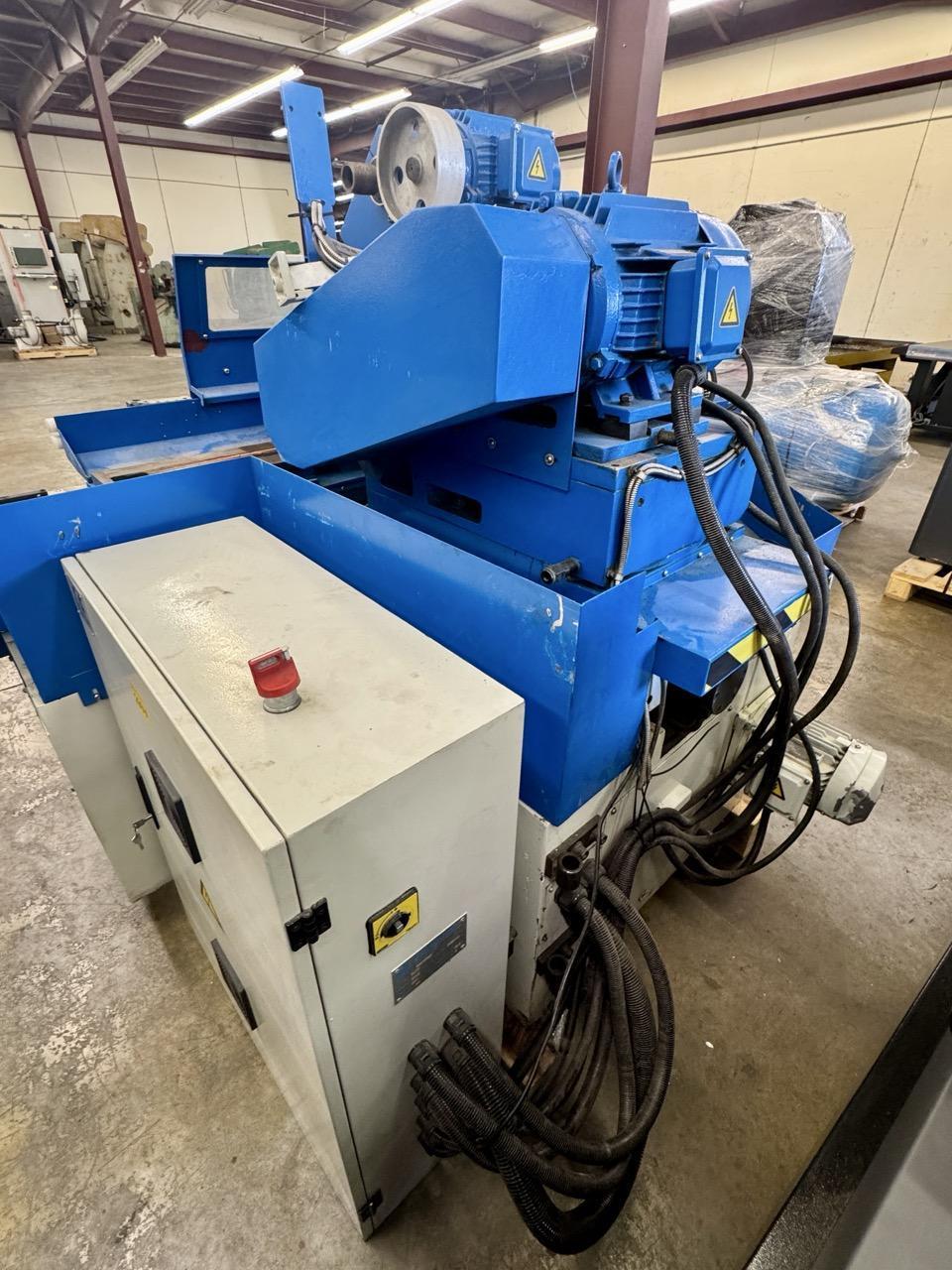

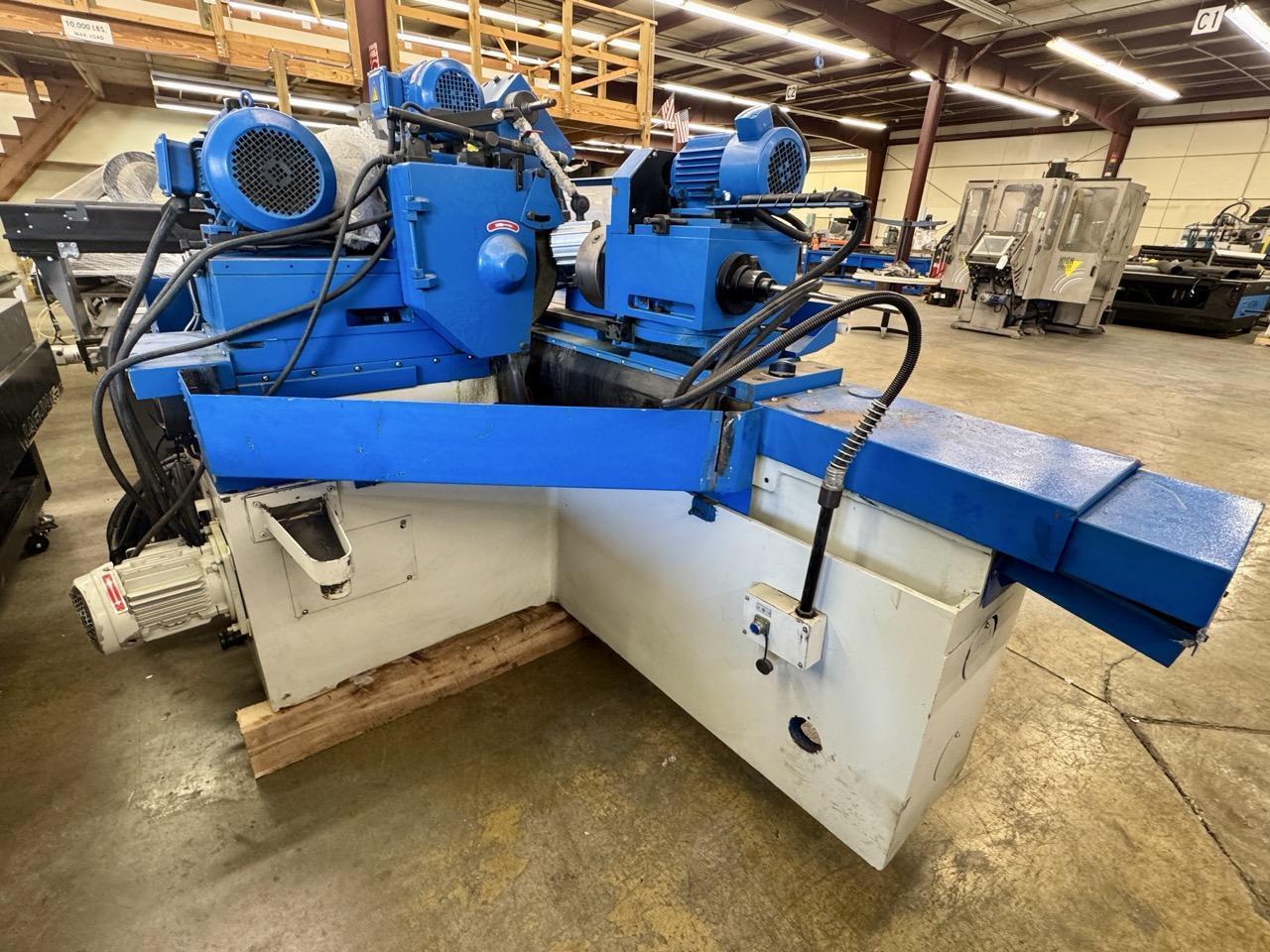

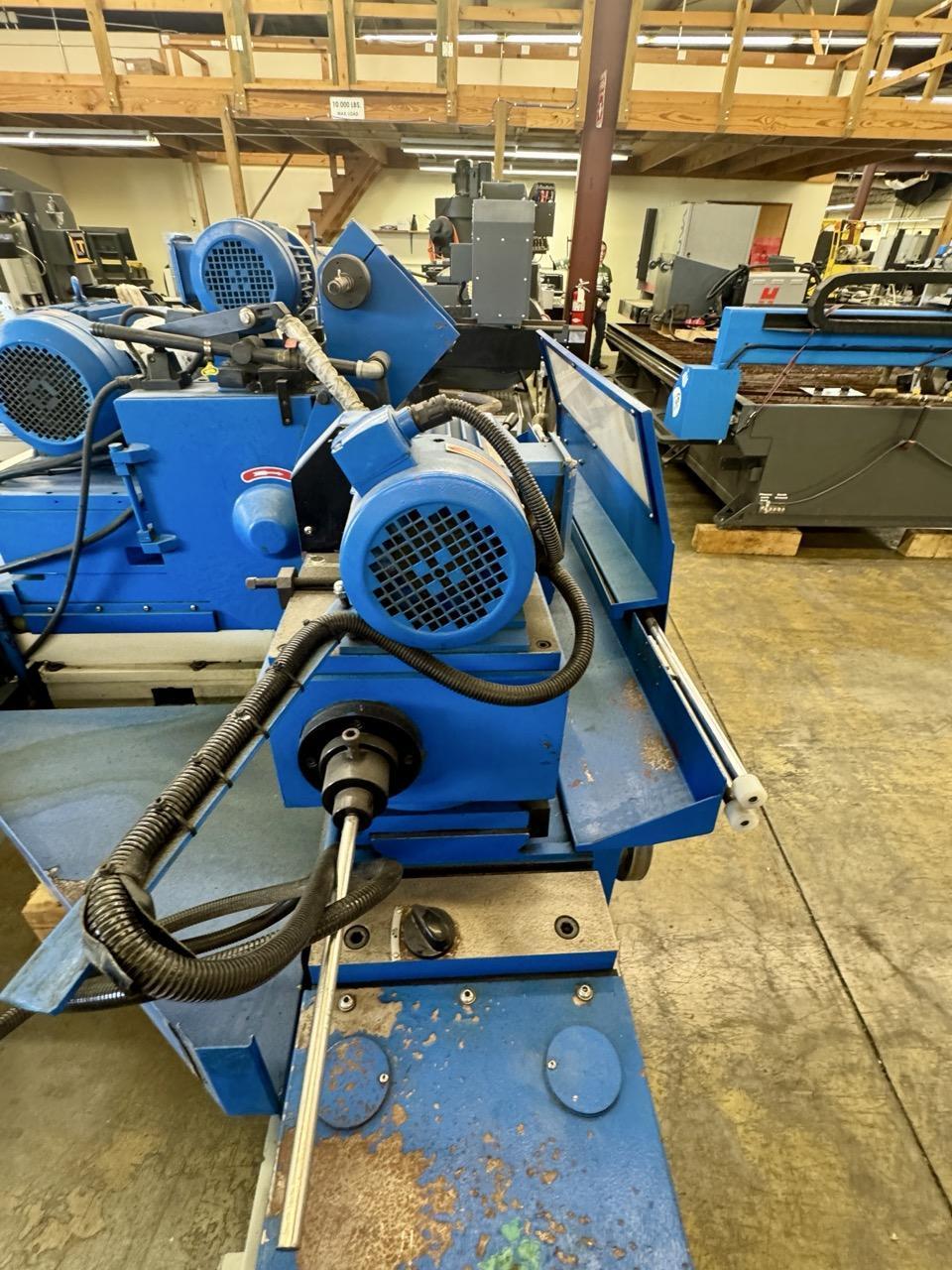

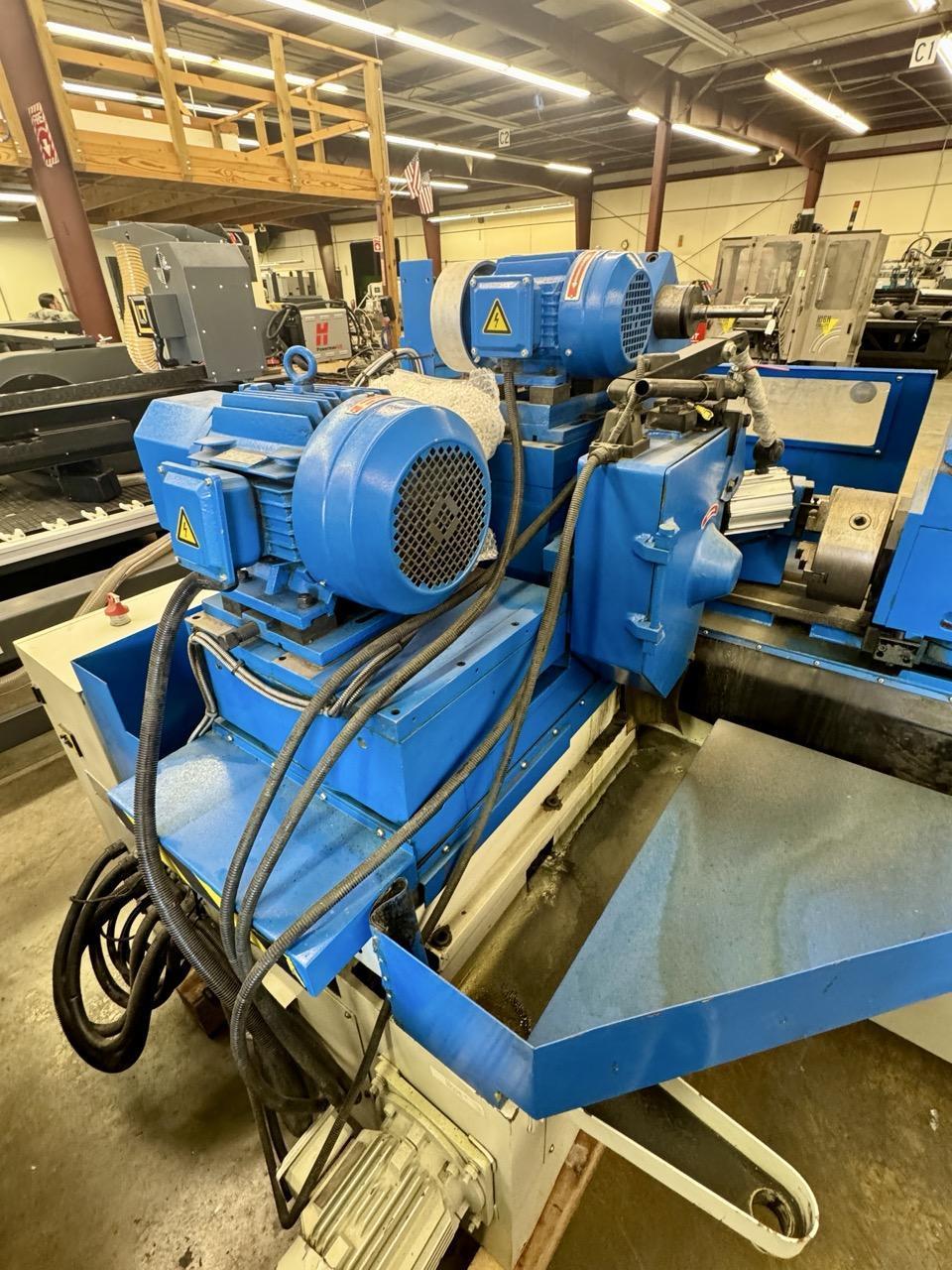

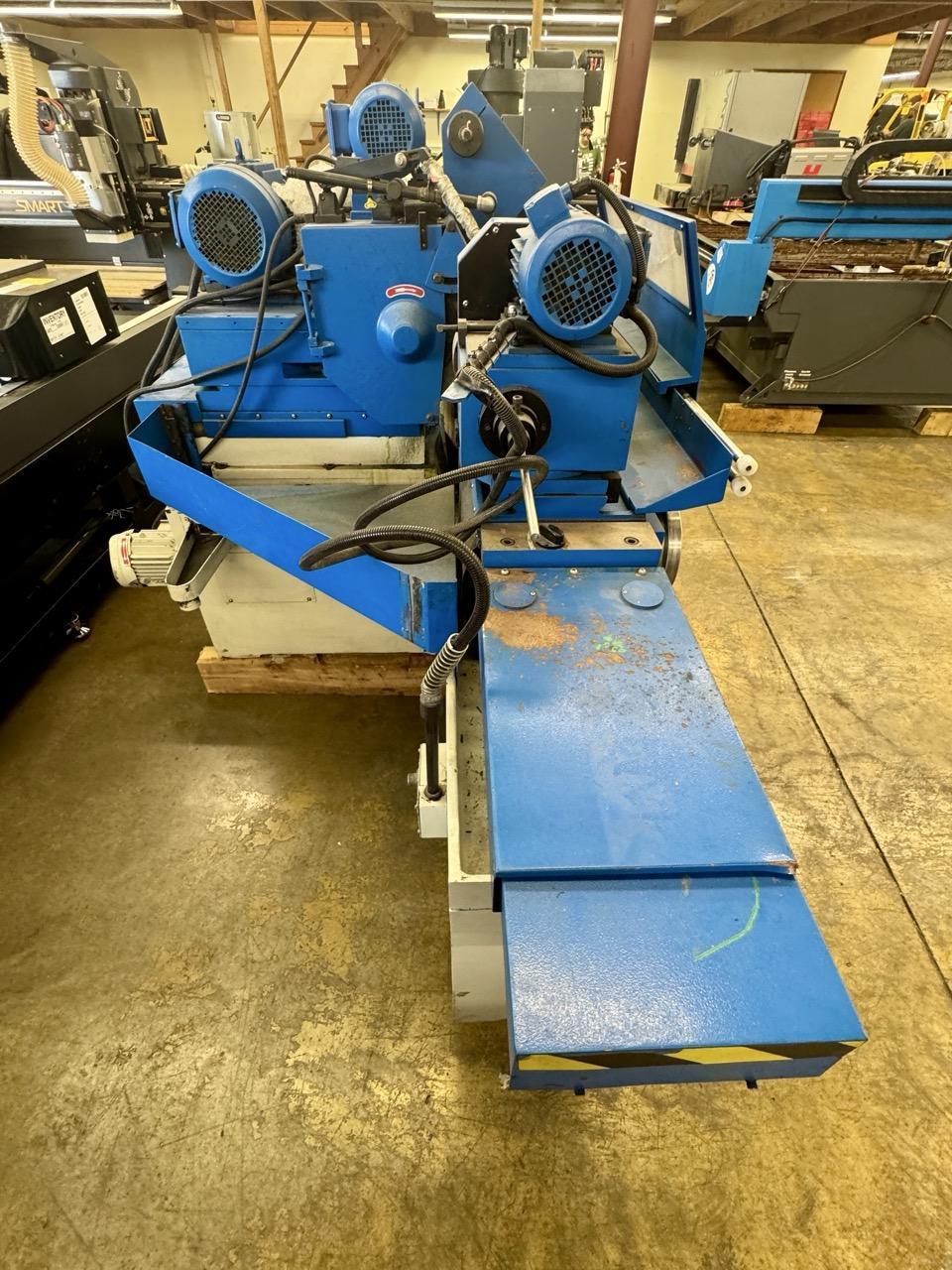

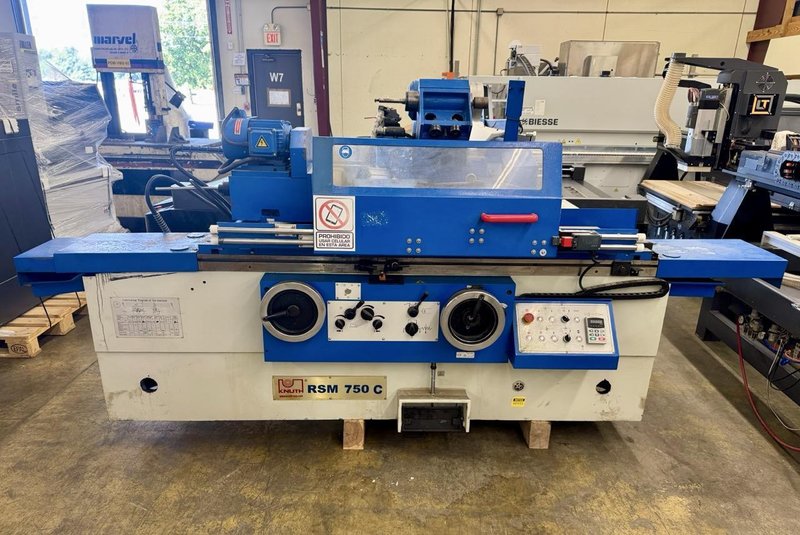

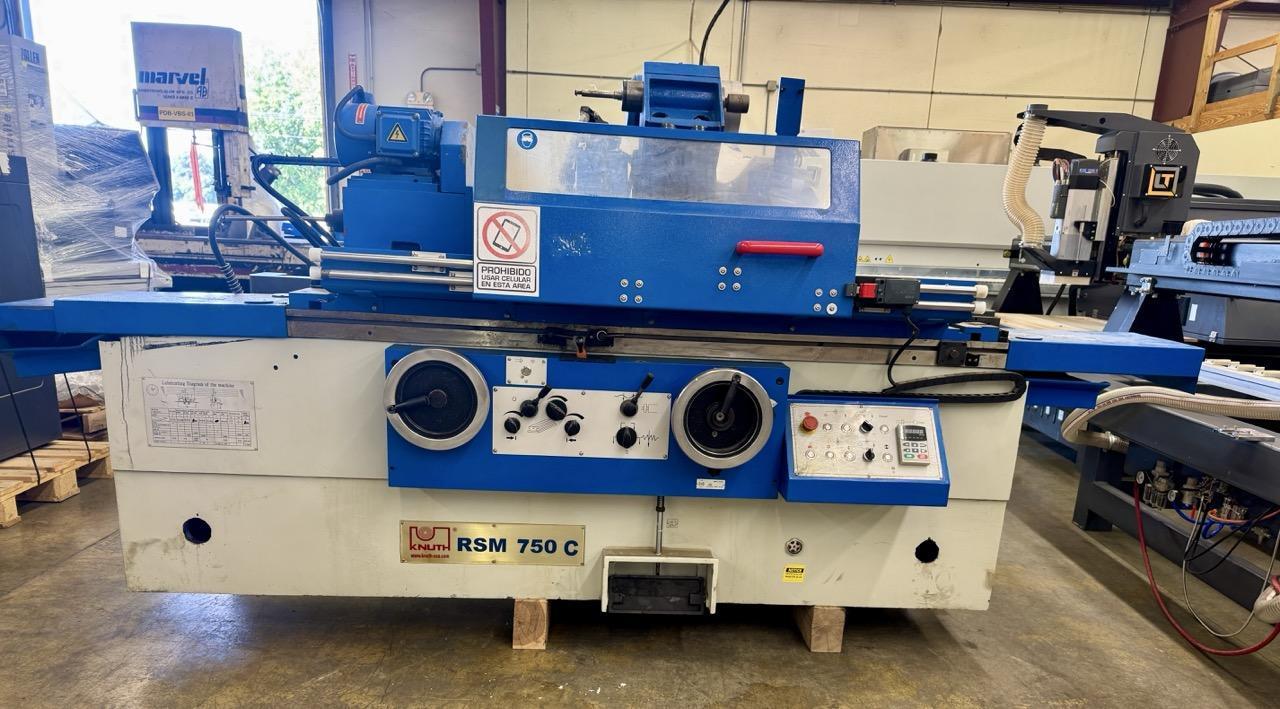

KNUTH RSM 750 C Precision Cylindrical Grinder w/ Internal Grinding, 2022 – 30″ Capacity

2022 KNUTH RSM 750 C precision ID/OD cylindrical grinder featuring 7.9″ maximum grinding diameter, 30″ grinding length, hydrostatic grinding-spindle bearings, hydraulic table feed and integrated internal grinding equipment for high-accuracy shaft and cylindrical component finishing.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer KNUTH Machine Tools Model RSM 750 C SKU 302444 Year 2022 Machine Type Conventional Cylindrical Grinder Grinding Capability ID / OD Cylindrical Grinding Center Height 5″ / 135 mm Grinding Diameter 0.3″–7.9″ Maximum Grinding Length 30″ / 750 mm Maximum Workpiece Weight Between Centers 176 lb Chuck Diameter 8″ Internal Grinding Diameter w/ Rest 1.4″–3.9″ Internal Grinding Diameter w/o Rest 1.0″–3.9″ Internal Grinding Depth 4.9″ Grinding Head Travel 8″ Table Feed 0.33–13.08 FPM, infinitely variable Table Swivel Range -2° / +6° Headstock Swivel 0°–45° Grinding Head Swivel Approx. ±10° / 30° total depending specification convention Working Spindle Taper MT4 Work Spindle Speed 25–380 RPM at 50 Hz Grinding Spindle Speed 1,670 RPM Internal Grinding Spindle Speed 10,000 RPM Tailstock Taper MT4 Tailstock Quill Stroke 1″ Grinding Wheel Size 15.75″ x 1.97″ x 7.99″ Grinding Wheel Feed – Minimum 0.0001″ Grinding Spindle Motor Approx. 5.36 HP Hydraulic Pump Motor 1 HP Internal Grinding Motor 1.5 HP Headstock Motor Approx. 1 HP Coolant Pump Motor Approx. 0.17 HP Overall Dimensions 119″ L x 71″ W x 65″ H Machine Weight Approx. 7,700 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
