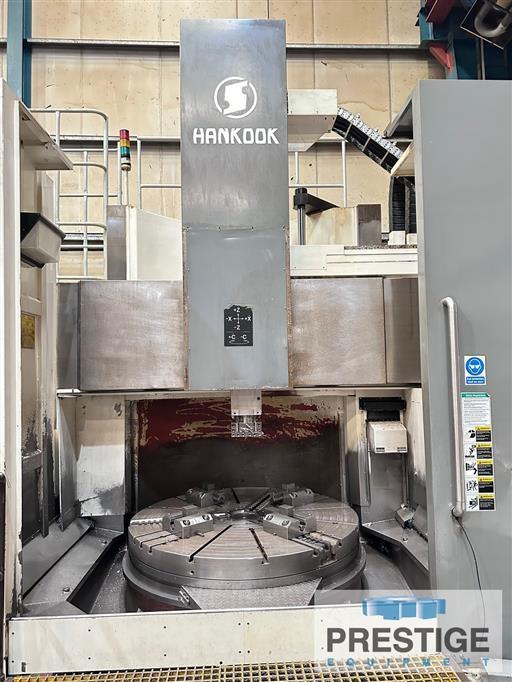

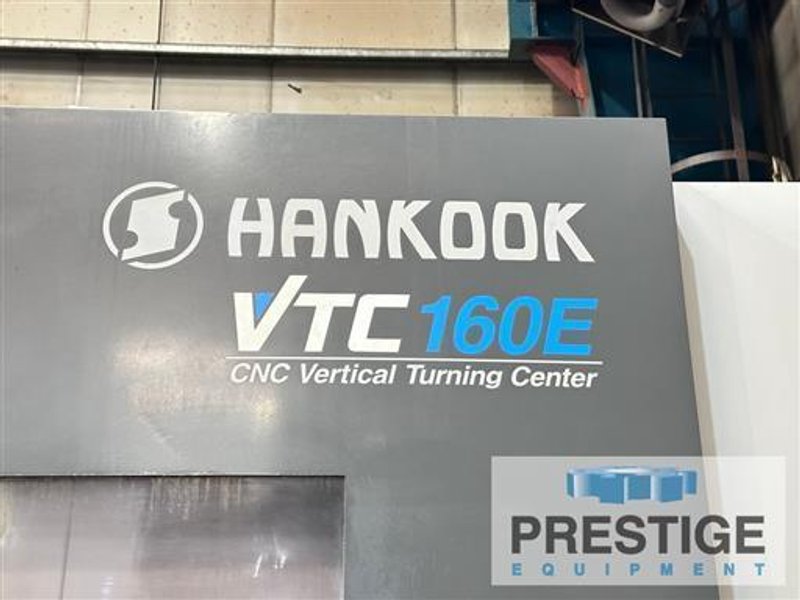

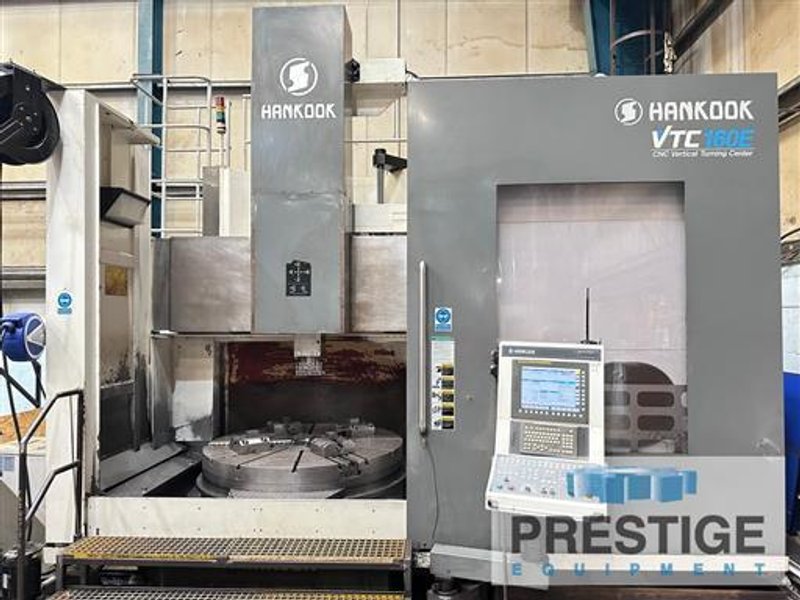

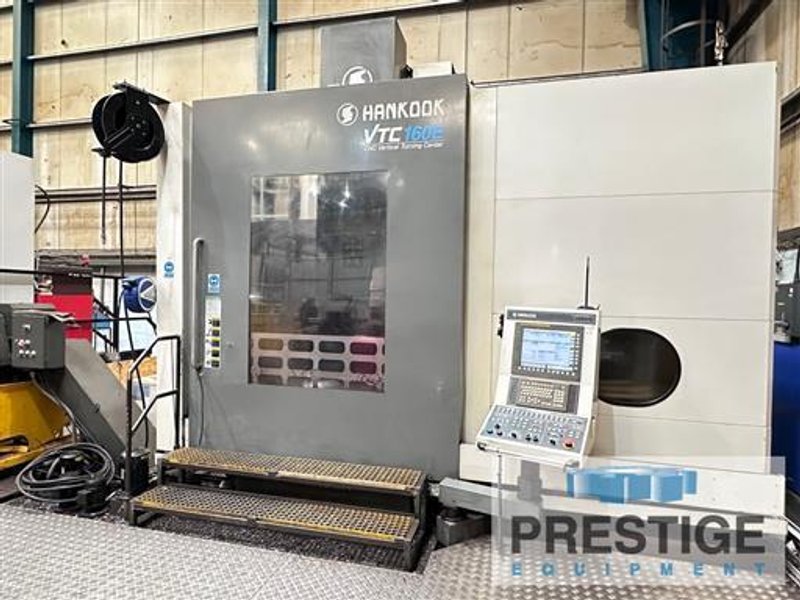

Hankook VTC-160E 63"/78" CNC Vertical Turning Center w/Milling

SPECIFICATIONS:
Table Diameter 62.99"
Maximum Swing 78.74"
Maximum Turning Diameter 78.74"
Maximum Turning Height 55.11"
Vertical Stroke of Ram Head............ 35.43" 35.43"
X-Axis Horizontal Ram Travel 75"
Z-Axis Vertical Ram Travel 35.43"
Vertical Travel of Cross Rail 27.8"
Live Spindle Milling Speeds 3000 RPM
Live Spindle Milling Motor 25 HP
Spindle Taper BT #50
Size of Ram 8.66" x 8.66"
Table Speeds .7-280 RPM
Number of Table Speeds 2
C-Axis, Table Indexing .000 degrees
Table Weight Capacity 22,100 Lbs
Floor Space 208" x 178"
Overall Height 204"
Approximate Machine Weight 74,900 Lbs



Equipped With:

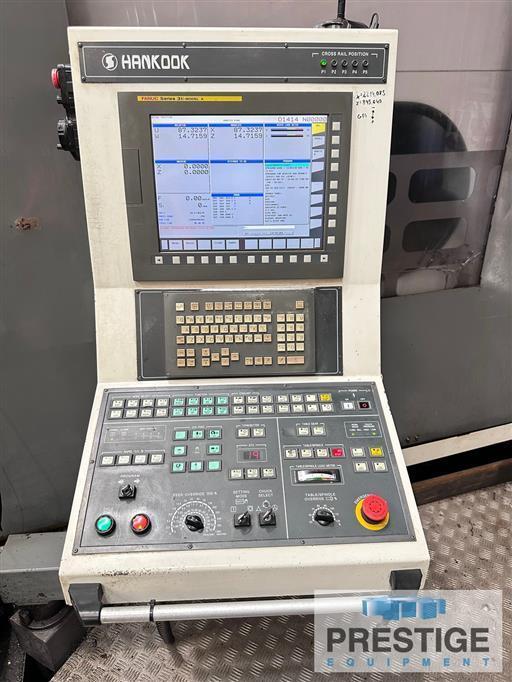

Fanuc System 31i-A with 10.4" Color LCD Display
Fanuc Digital AC Table and Servo Drives

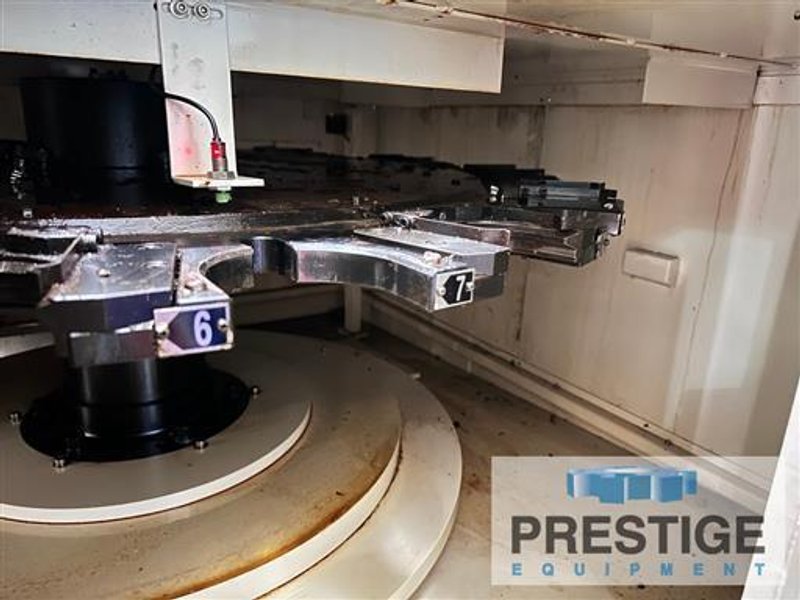

24-Station Automatic Tool Changer

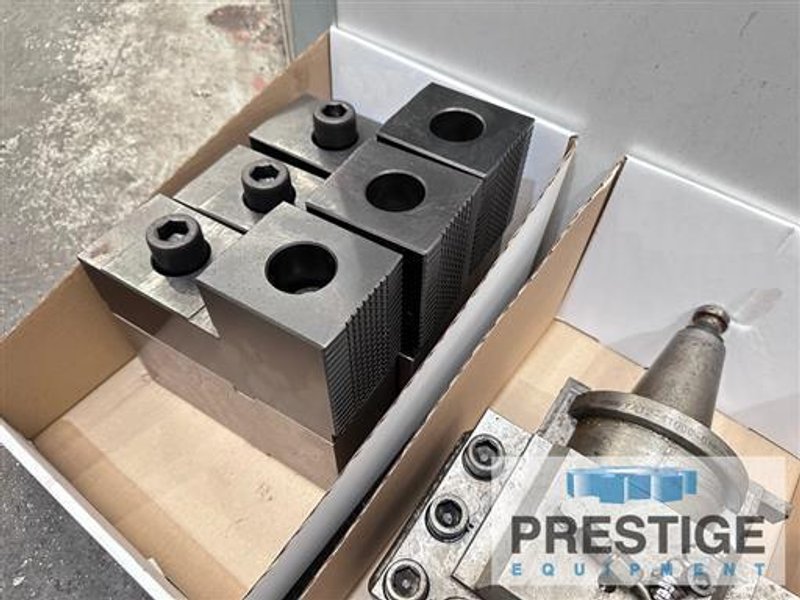

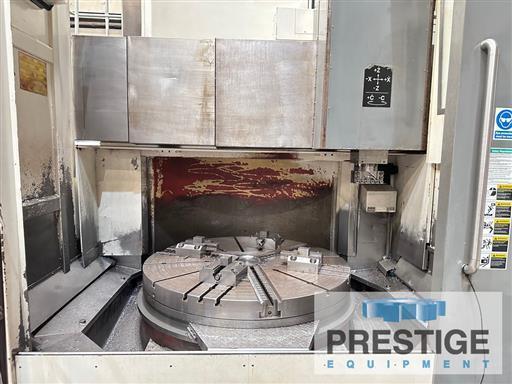

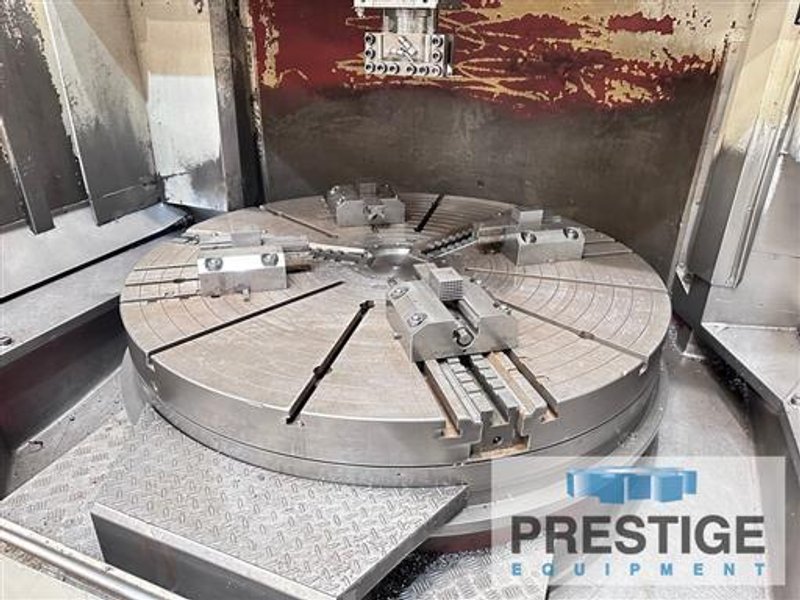

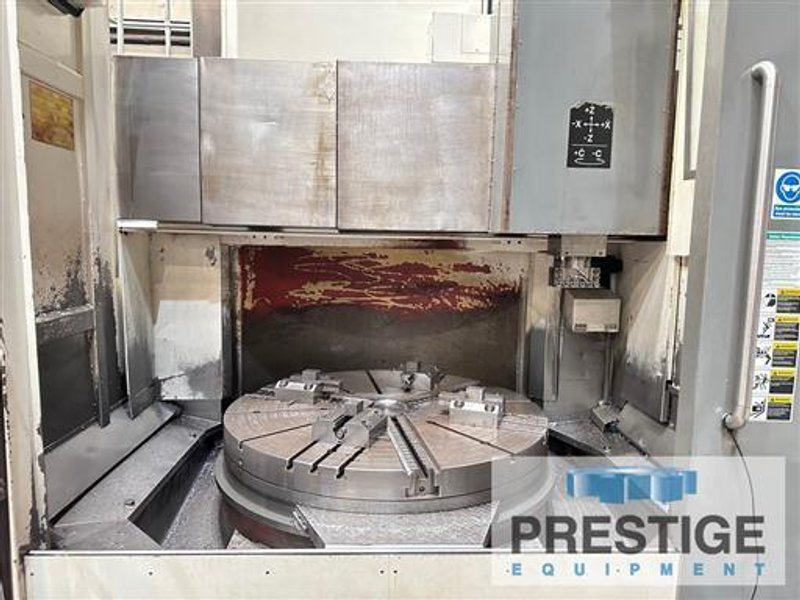

63" 3-Jaw Hydraulic & 4-Jaw Manual Combination Chuck
C-Axis for Milling & Drilling Operations

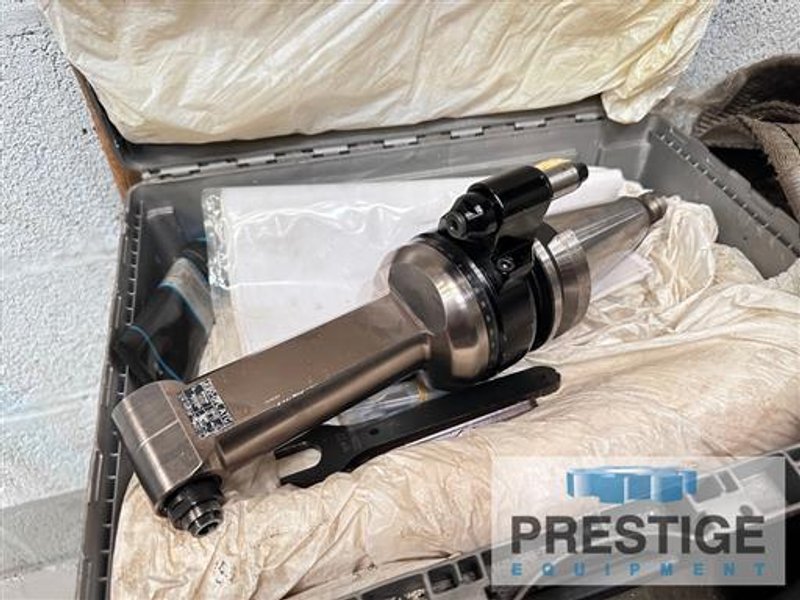

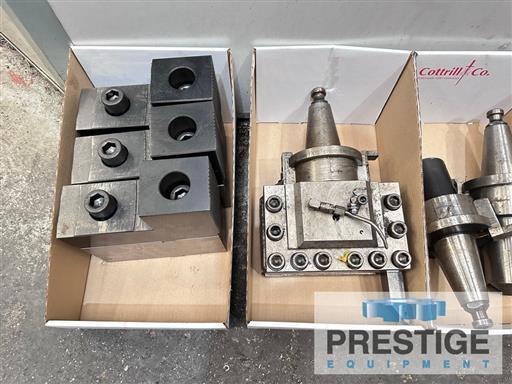

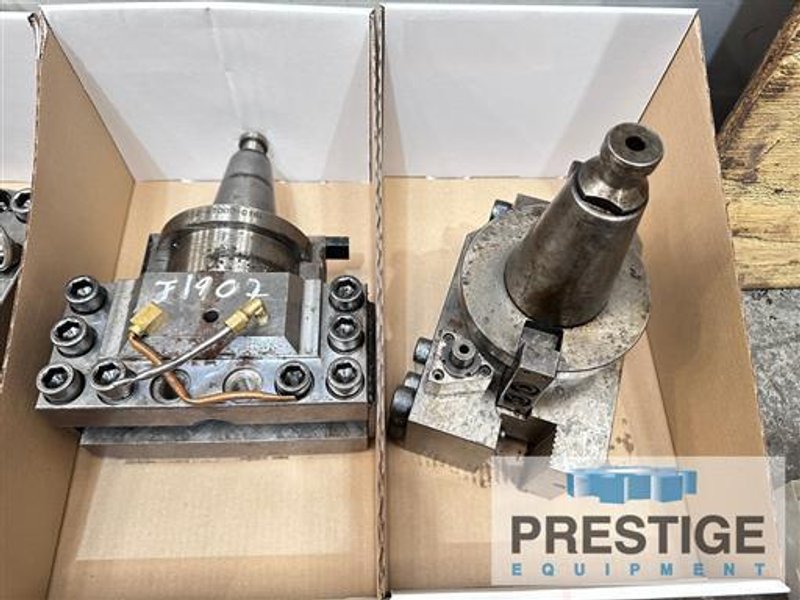

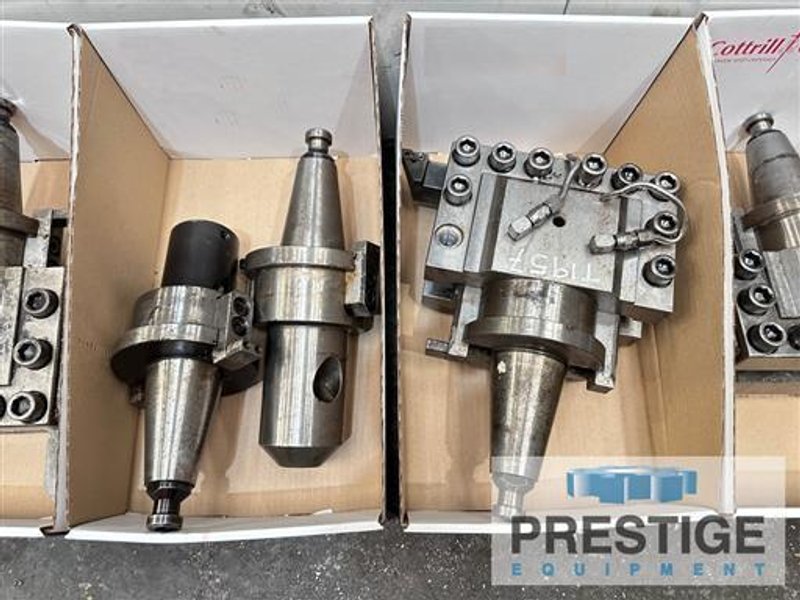

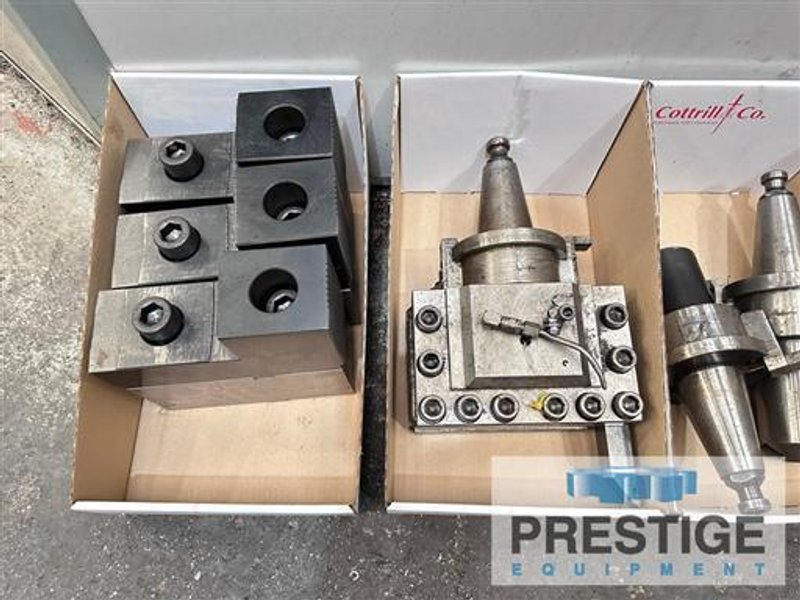

Miscellaneous Turning and Milling Tools
Chip Conveyor
60 HP AC Main Table Drive Motor
Glass Scale Feedback on All Axes
Through Spindle Coolant
