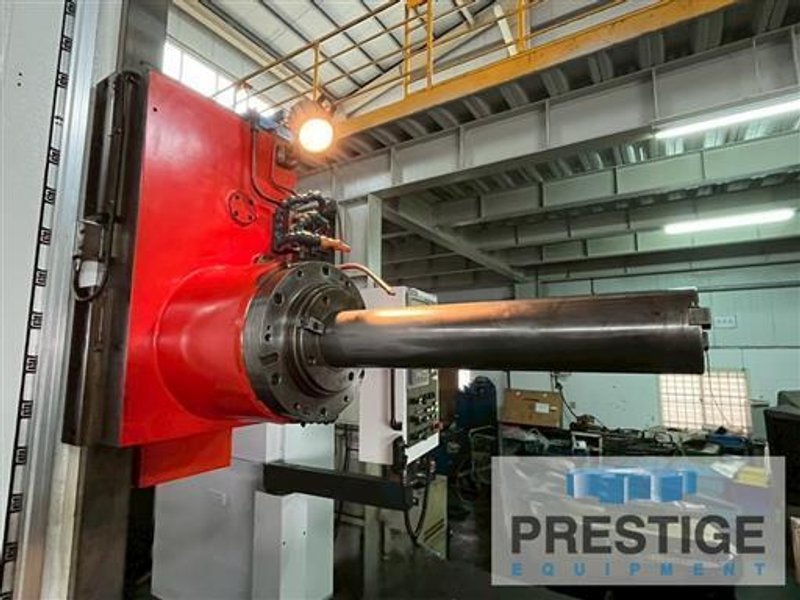

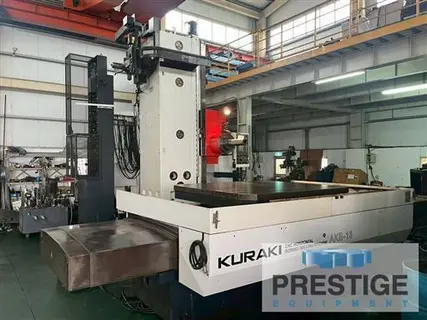

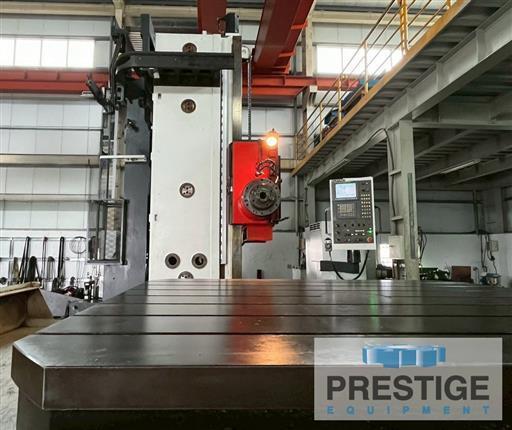

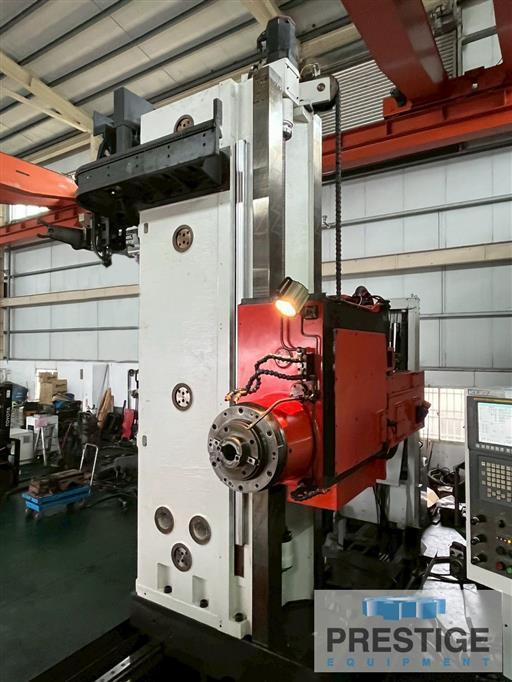

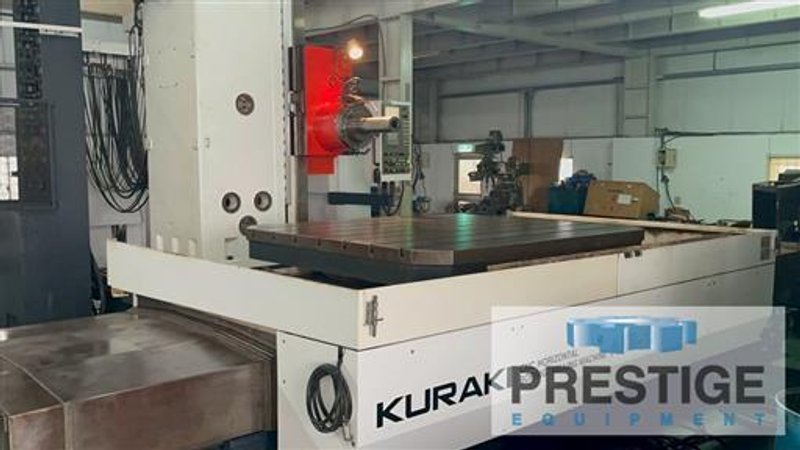

Kuraki AKB-13 5.12" CNC Table Type Horizontal Boring Mill

SPECIFICATIONS:

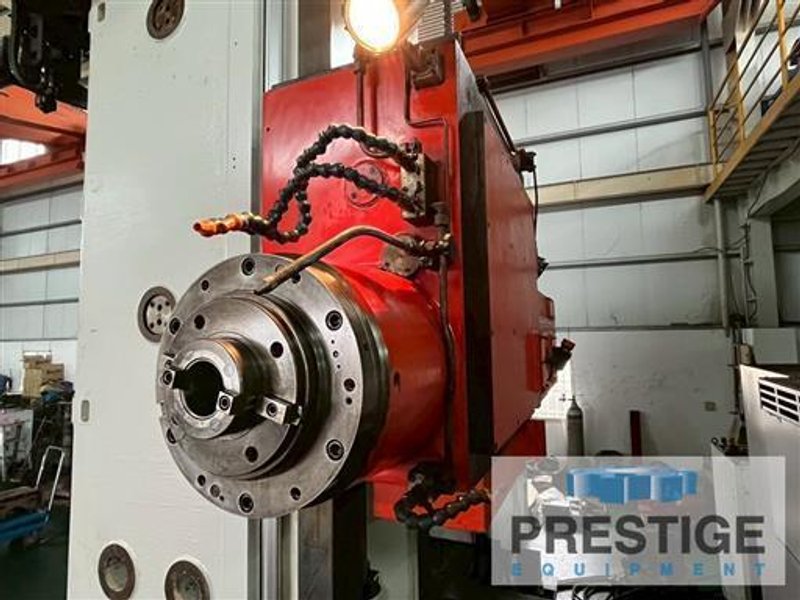

Spindle Diameter 5.12"
Spindle Taper BBT50 Big Plus

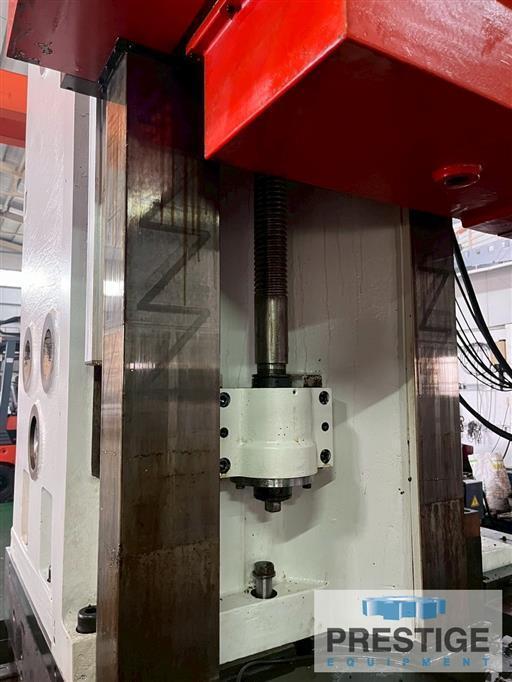

Vertical Travel, Y-Axis 78.74"
Table Travel, X-Axis 118.11"
Column Infeed Travel, Z-Axis 62.99"

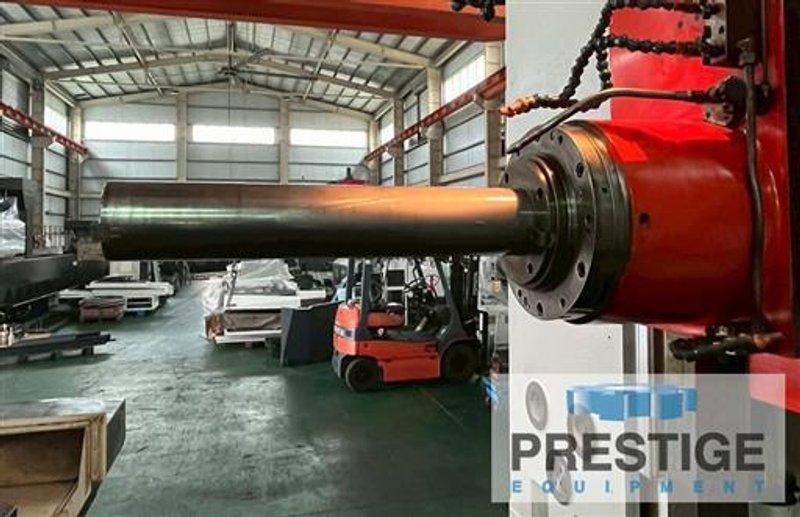

Spindle Axial Travel, W-Axis 27.56"
Built in Rotary Table 70.87" x 78.74"
Table Loading Capacity 26,400 Lbs.
Table Indexing 0.001 Deg.
Distance from Spindle to Table 0-78.74"
Distance from Table Center to Spindle . 31.50"-94.49"
Spindle Speeds 9-3000 RPM
Rapid Traverse, X,Y,Z Axes 393.70 IPM
Feed Rate 0.04-157.48 IPM
Approximate Machine Weight 77,000 Lbs.



Equipped With:

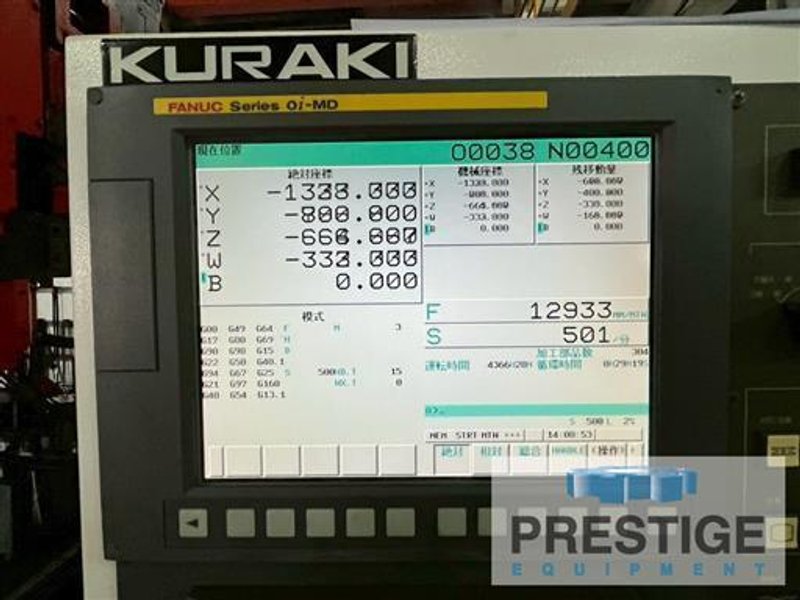

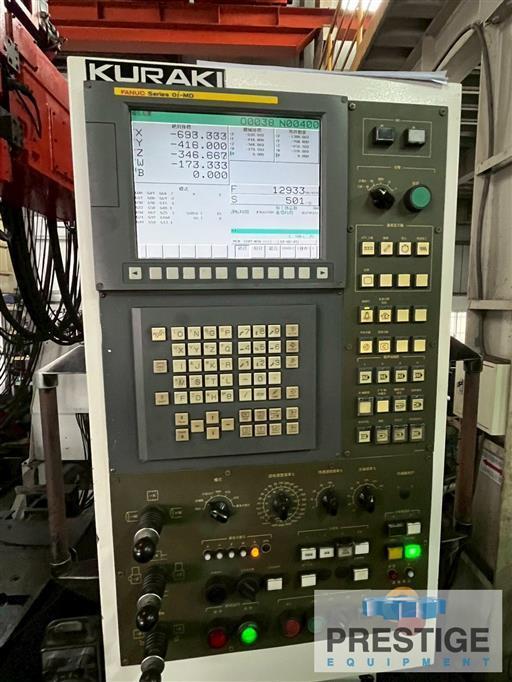

Fanuc Oi-MD CNC Controls

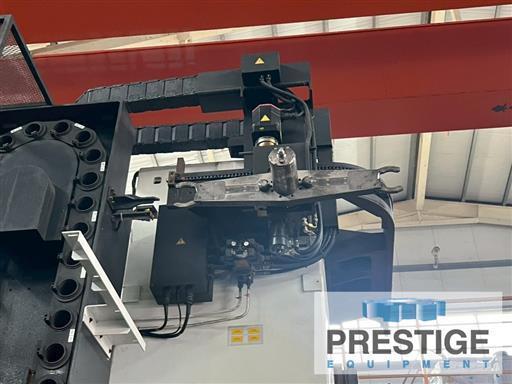

40 Station Automatic Tool Changer

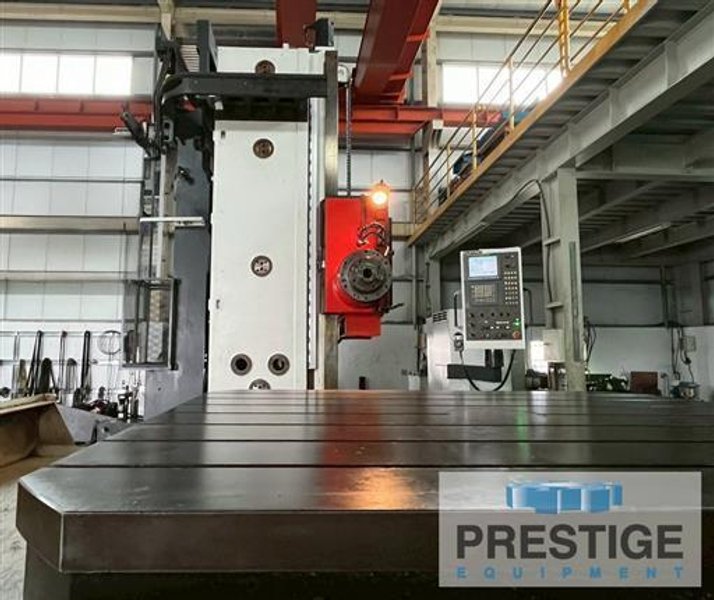

70.87" x 78.74" Built in B-Axis Rotary Table

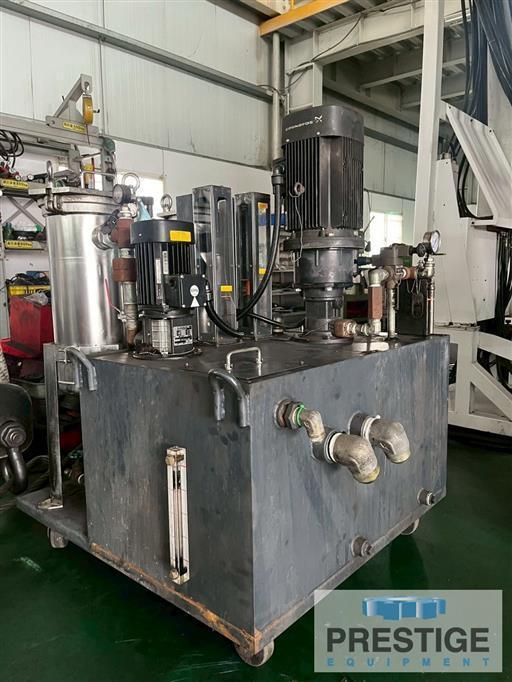

Thru Spindle Coolant

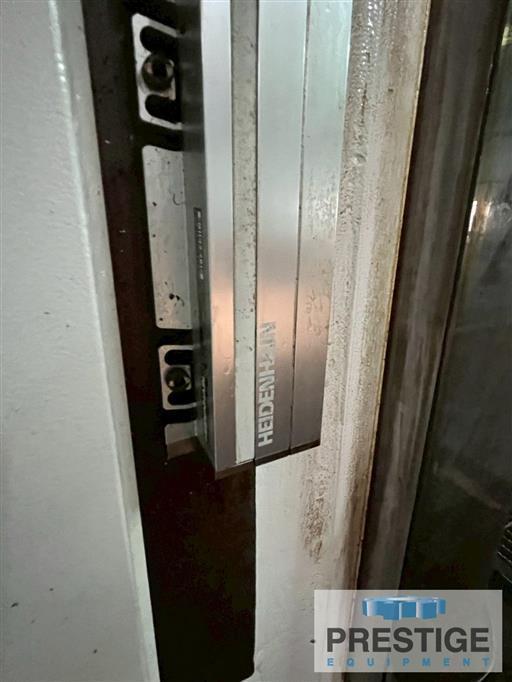

X/Y/Z/B Linear Scales
Spindle Oil Cooler

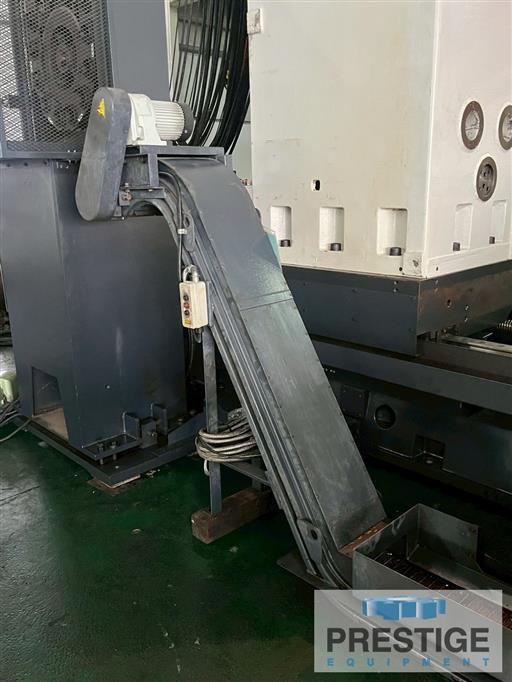

Chip Conveyor
50 HP Main Spindle Motor
