CAPACITY:

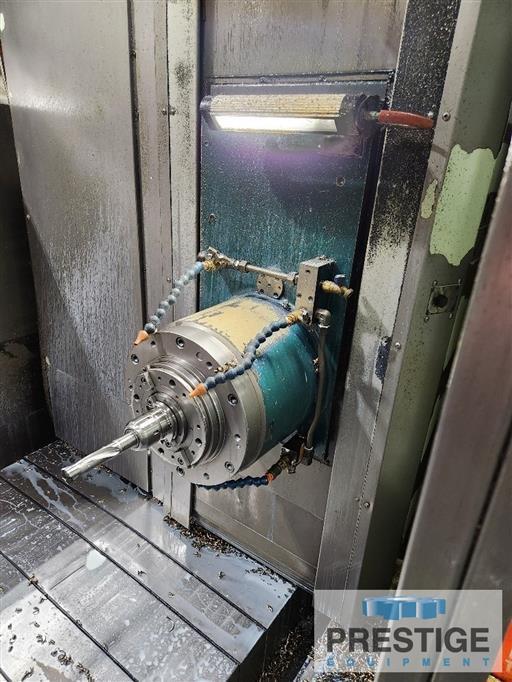

Spindle Diameter 5.12"
Spindle Taper BT-50
Vertical Head Travel, Y-Axis 90.55"
Table Travel, X-Axis 157.48"
Spindle Travel, W-Axis 25.59"
Column Cross Travel, Z-Axis 51.18"
Table Size 70.87" x 86.61"
Table Load Capacity 44,000 LBS
Rotary Table, B-Axis 0.001 Degrees
Spindle Speeds 5-4000 RPM
Speed Motor 60 HP
Feeds .04 - 157.48 IPM
Rapid Traverse, X,Y,Z, Axes 393.70 IPM
Rapid Traverse, W-Axis 236.22 IPM
Floor Space 268.9" x 267.72"
Machine Height 188.9"
Machine Weight 81,400 lbs

Equipped With:

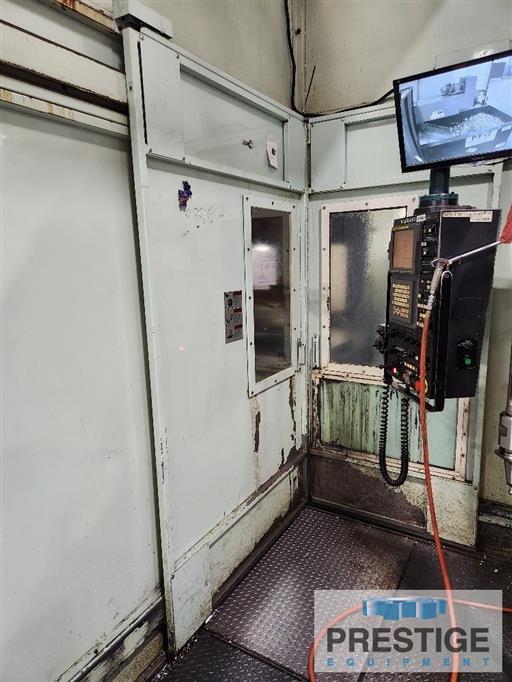

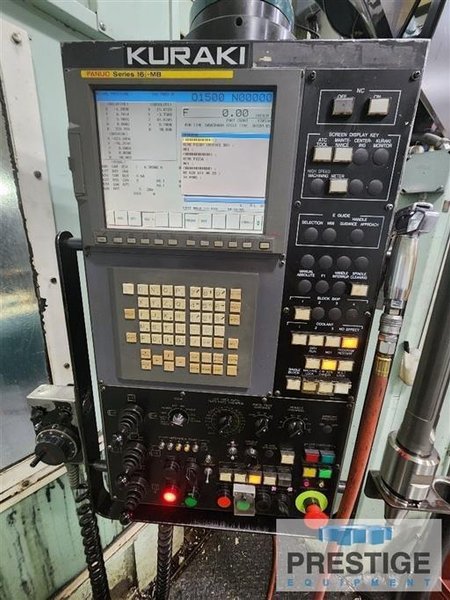

Fanuc 16i-MB CNC Control

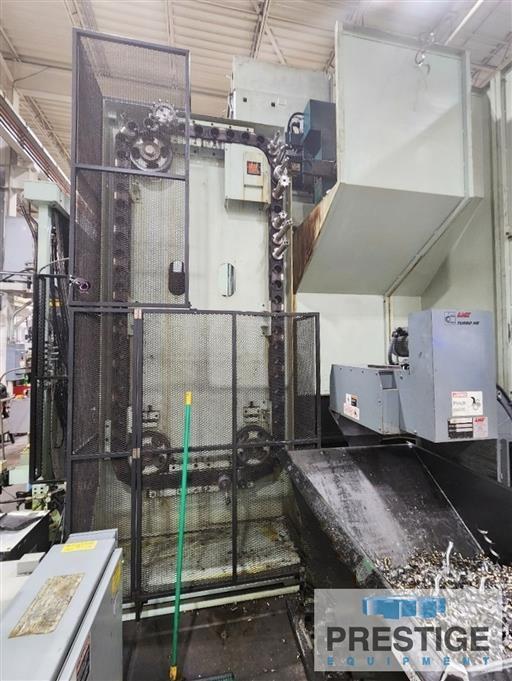

60-Station Automatic Tool Changer

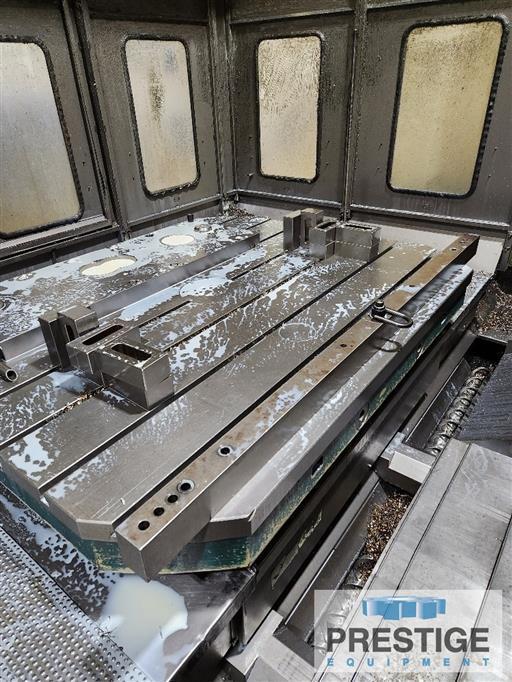

70.87" x 86.61" Built In B-Axis Rotary Table
Chip Blaster coolant through the spindle

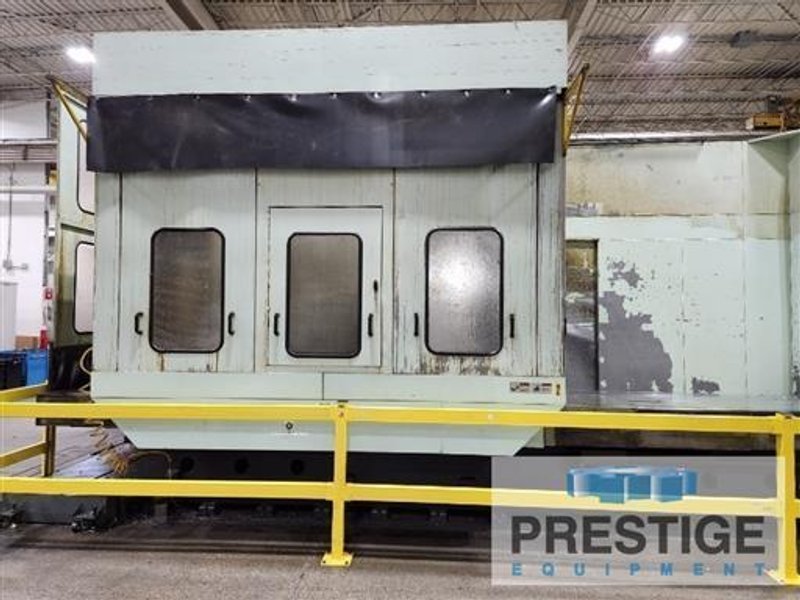

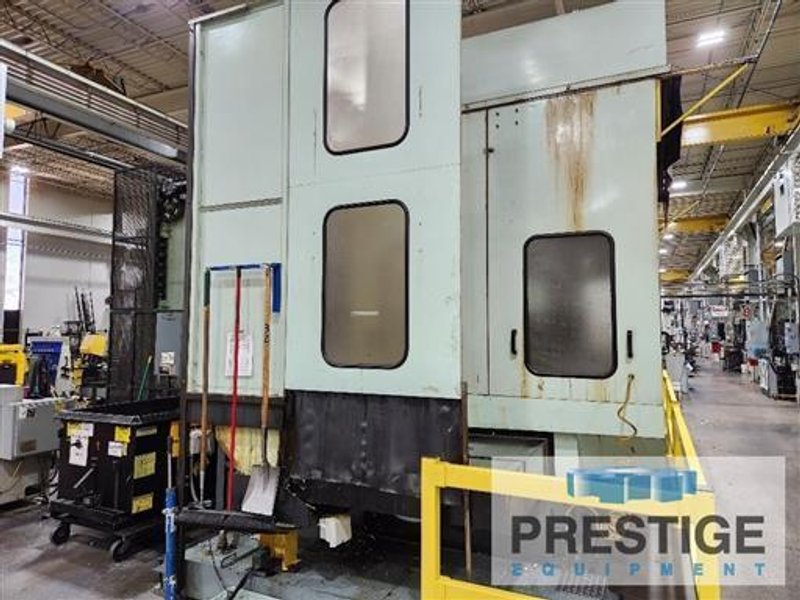

Full Chip & Splash Enclosure
Telescoping Steel Way Covers

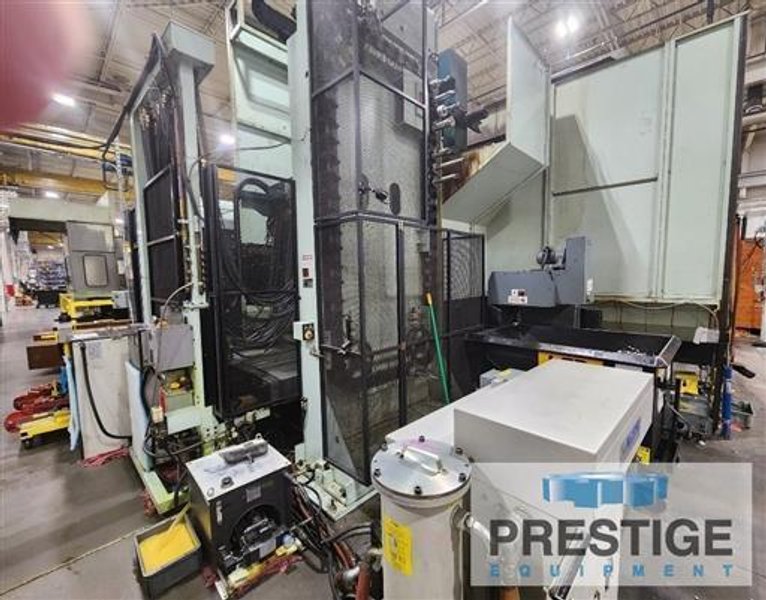

Chip Conveyor
Inspect under power in Midwest plant..
