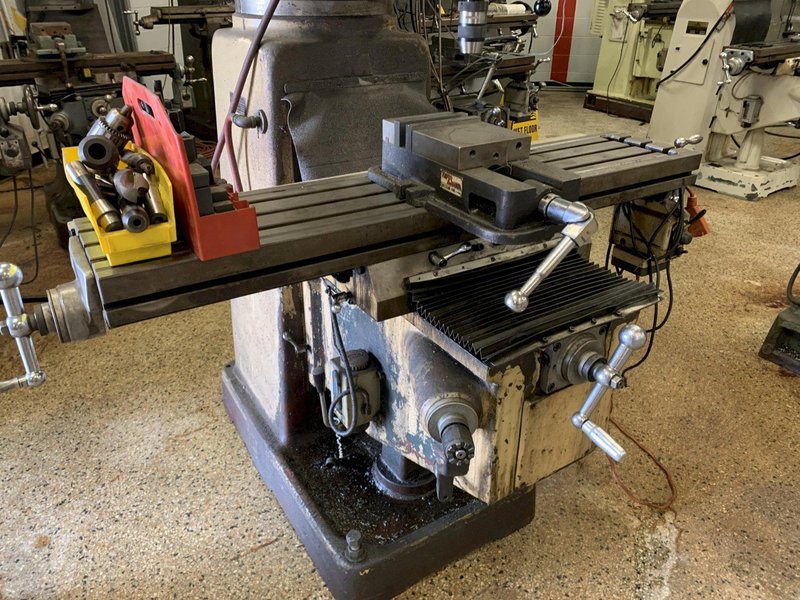

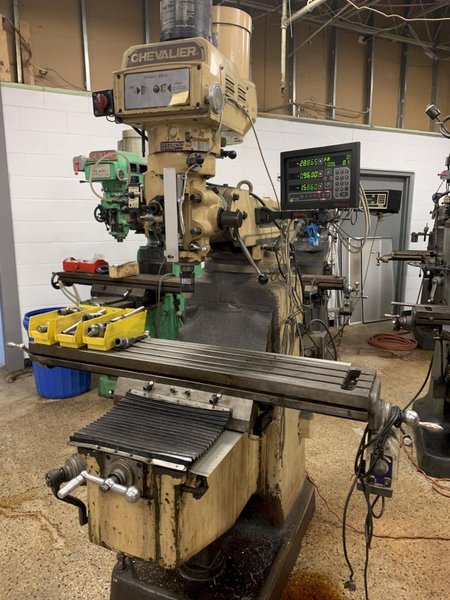

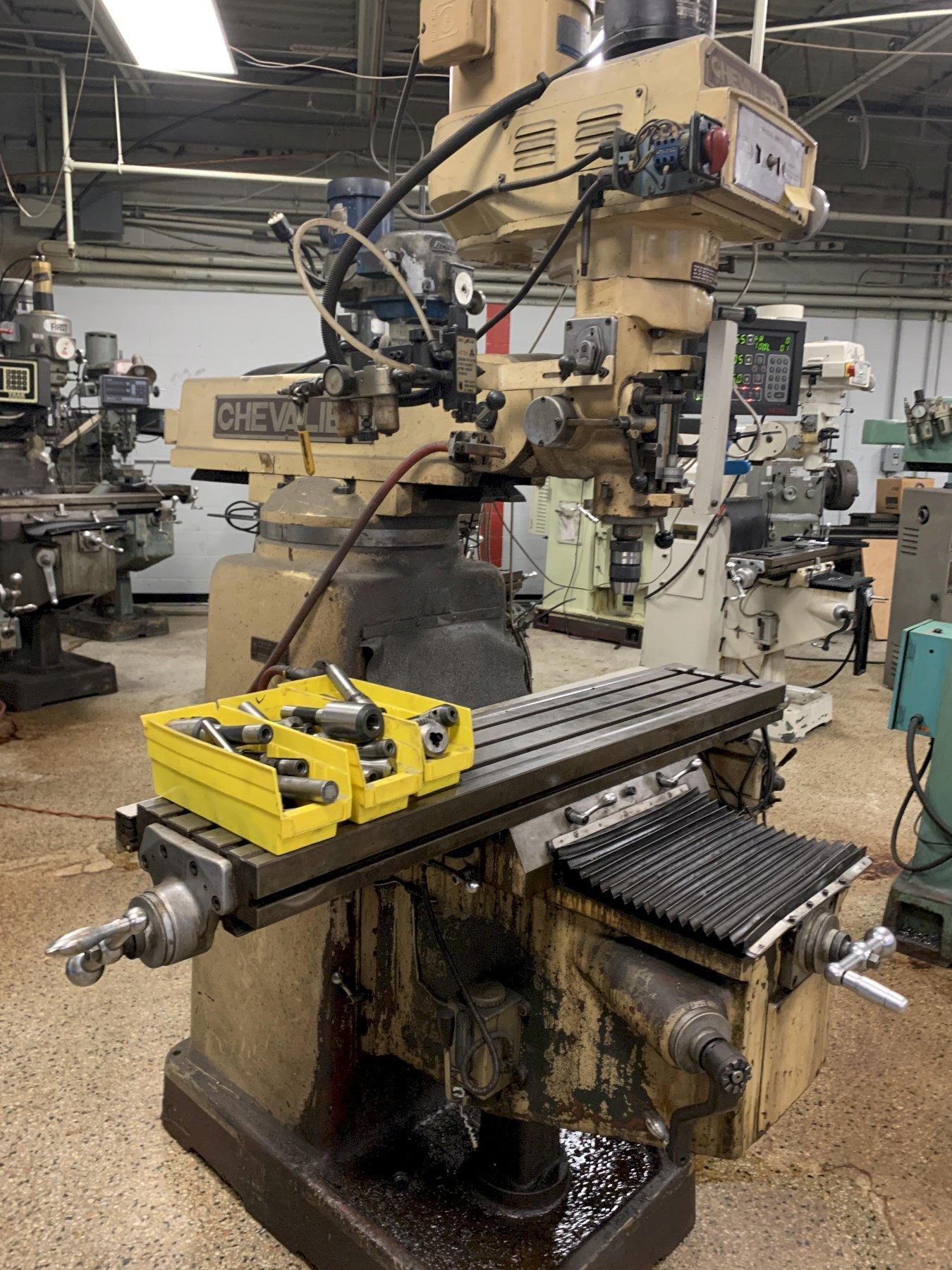

Chevalier FM-3VK Variable Speed Vertical Milling Machine

Chevalier FM-3VK Variable Speed Vertical Milling Machine

Name: Chevalier FM-3VK Variable Speed Vertical Milling Machine
Brand: CHEVALIER
SKU: 34942
Availability: InStock

Brand

CHEVALIER

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Specifications:

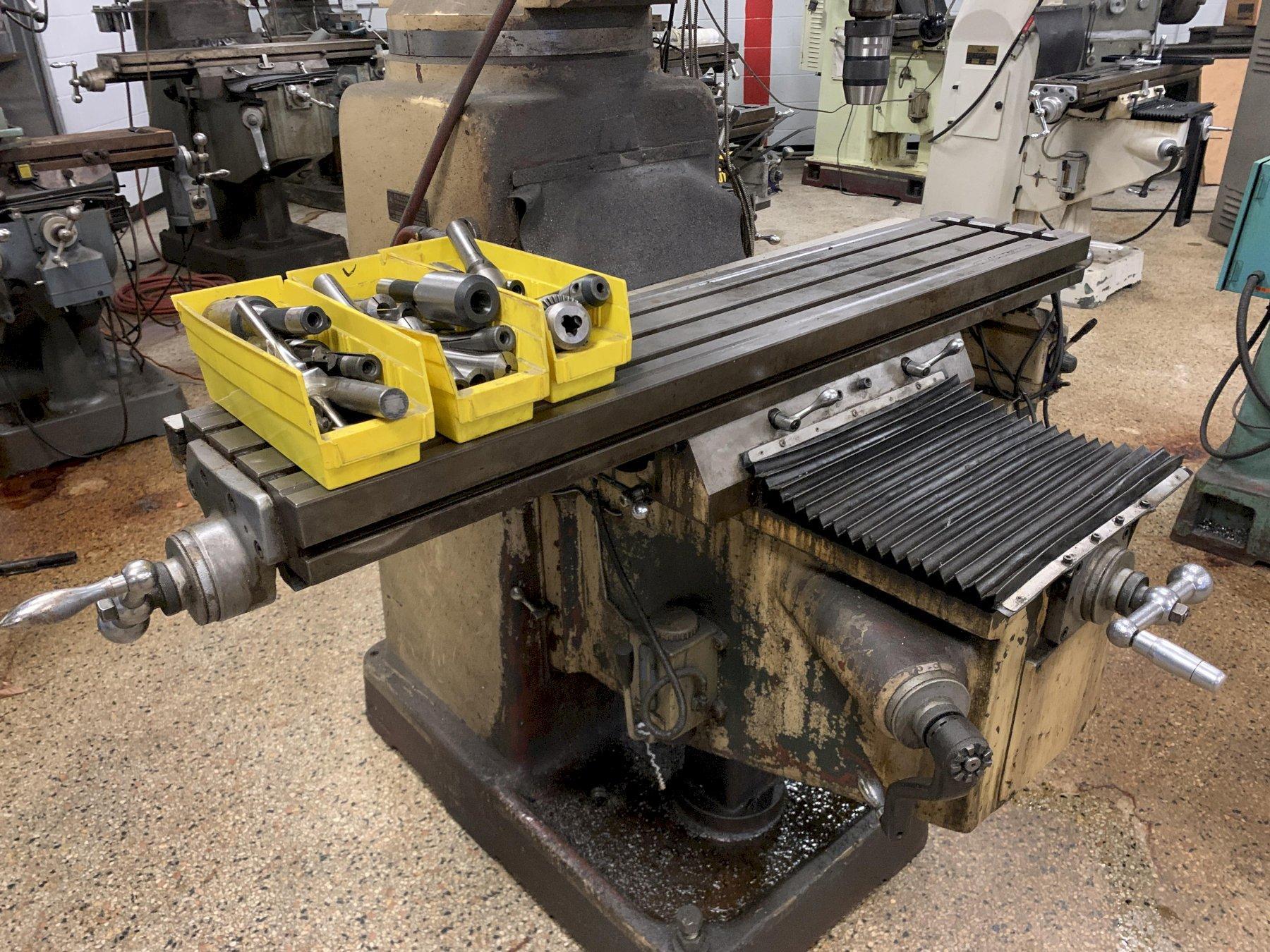

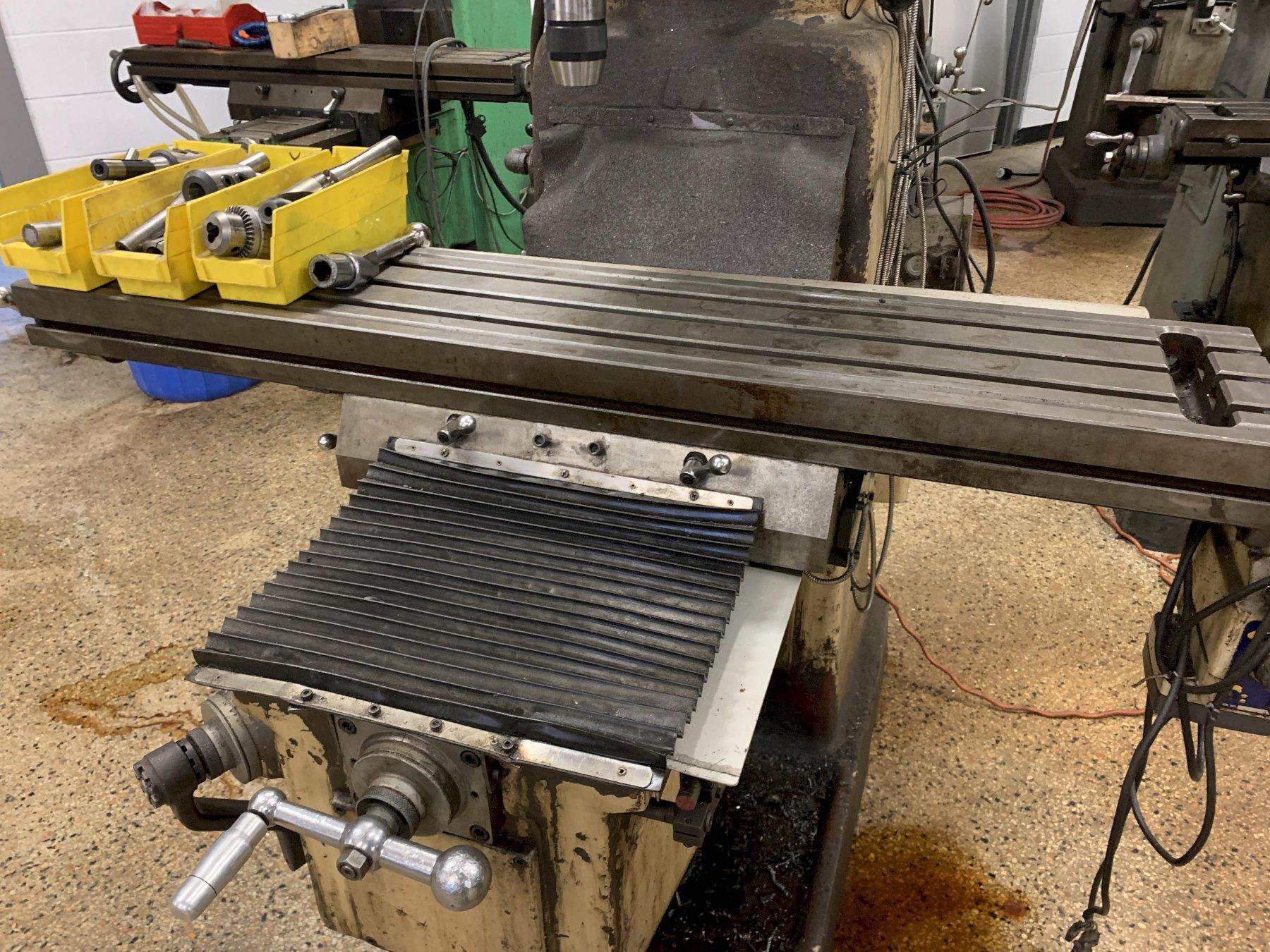

Table Size - 10" x 50"
Longitudinal Table Travel - 30"
Cross Travel - 15-3/8"
Vertical Travel (Knee) - 15"
Table T-Slots - 3
T-Slot Size - 5/8"
Maximum Workpiece Weight - 946 Lbs.
Spindle Motor - 3 HP
Spindle Taper - R8

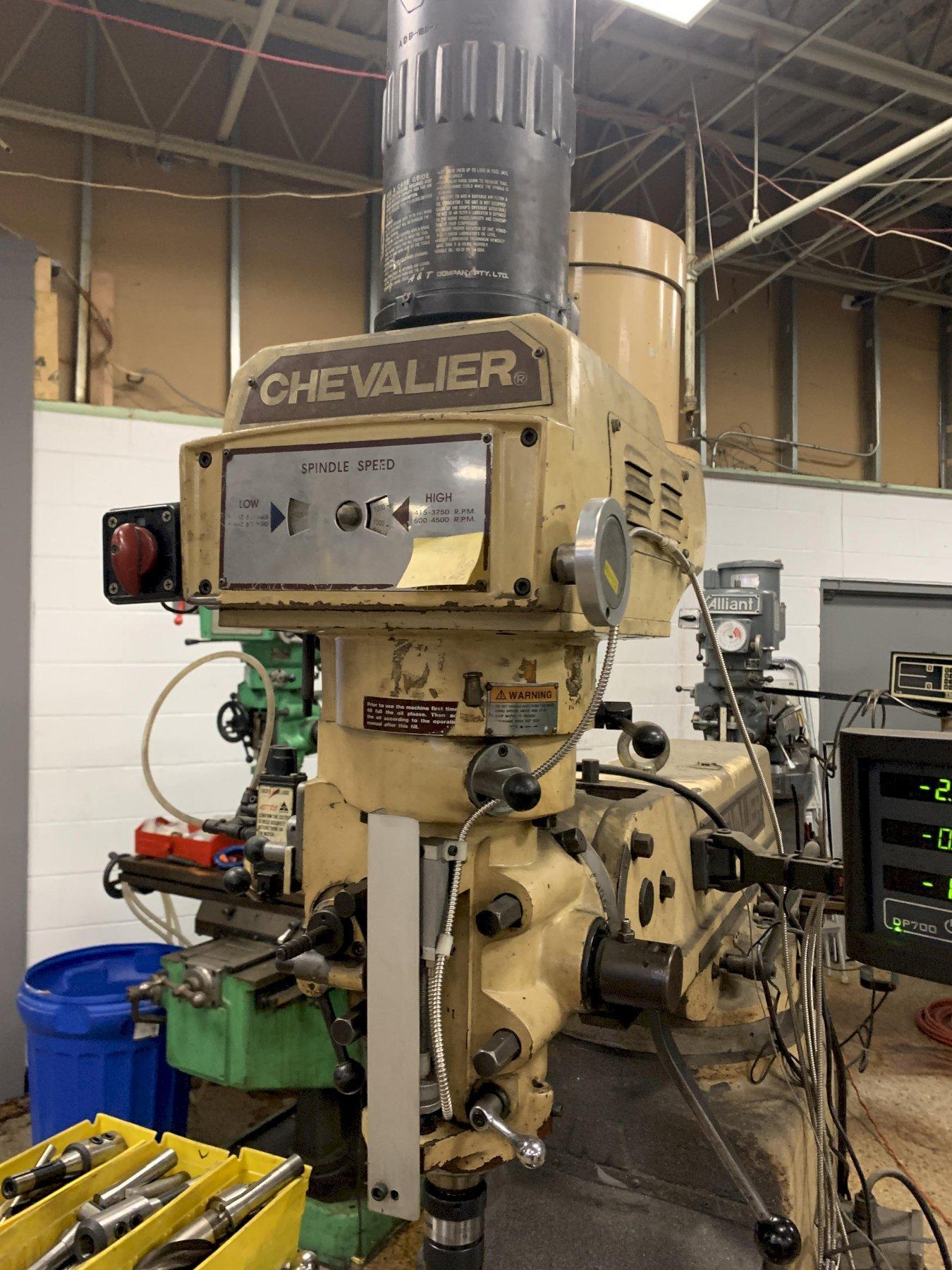

Spindle Speeds, Infiinitely Variable - 60 to 4200 RPM
Spindle Nose to Table - 1-5/8" to 16-1/2"
Spindle Centerline to Column Surface - 4" - 25-5/8"
Quill Travel - 5"
Automatic Vertical Feeds - .0015, .003, .006 IPR
Head Swivel - 90º L-R, 45º F-B
Overarm Travel - 21-5/8"
Overarm Swivel - 360º
Floor Space (L x W x H) - 101" x 79" x 91"
Weight, Approx 3350 Lbs.

Equipped with:

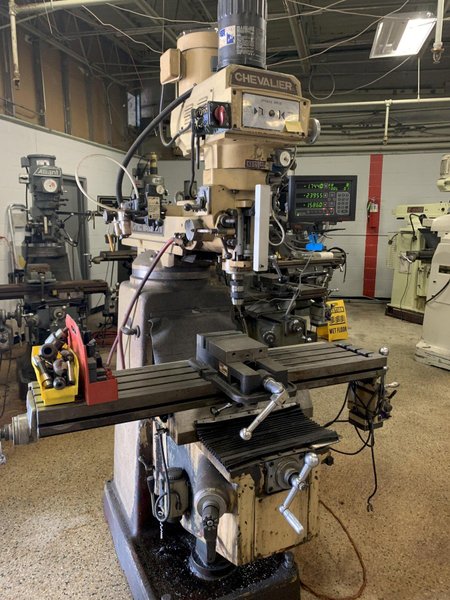

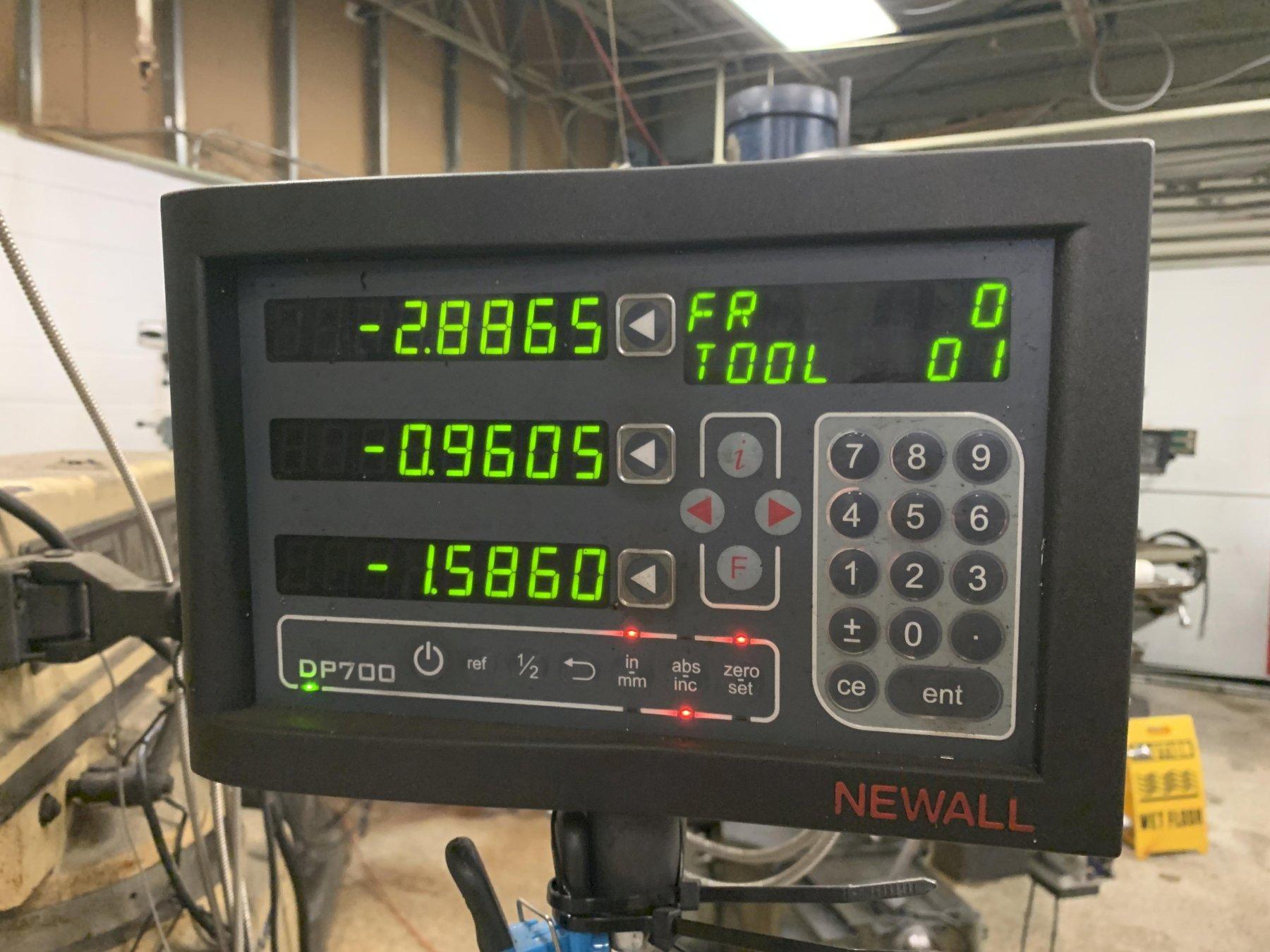

Newall DP700 3-Axis Digital Readout

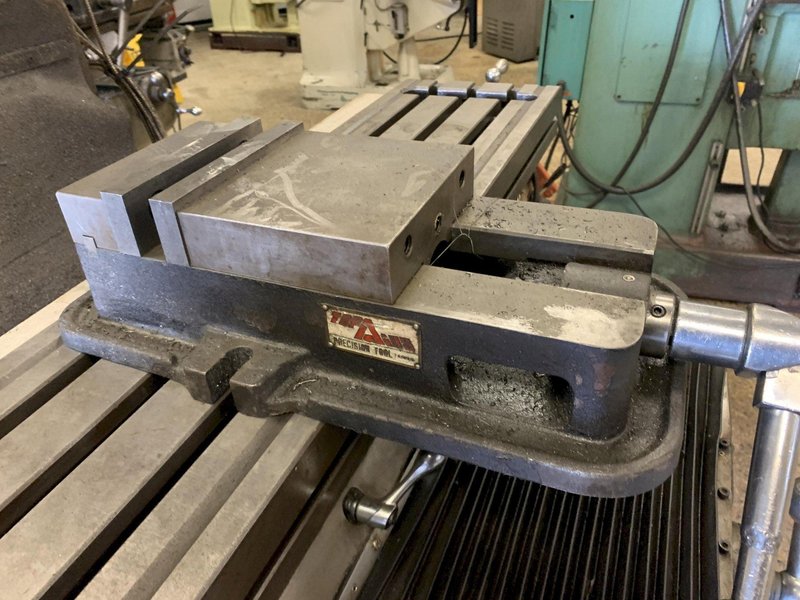

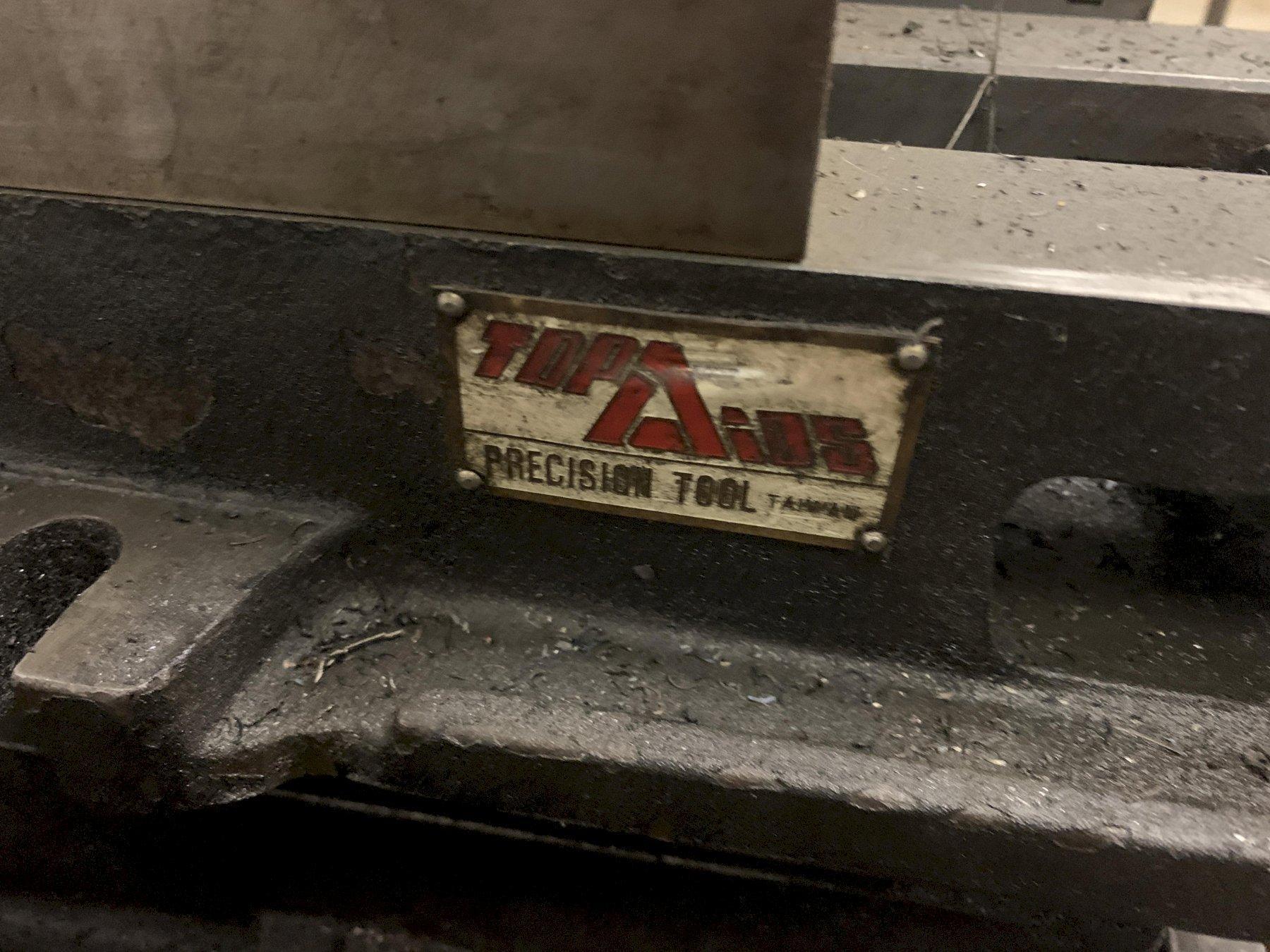

Mill Vise

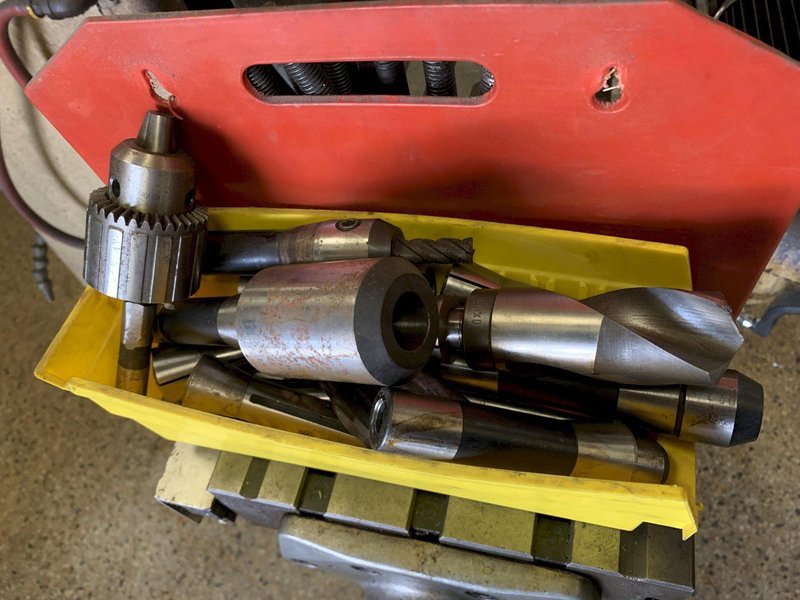

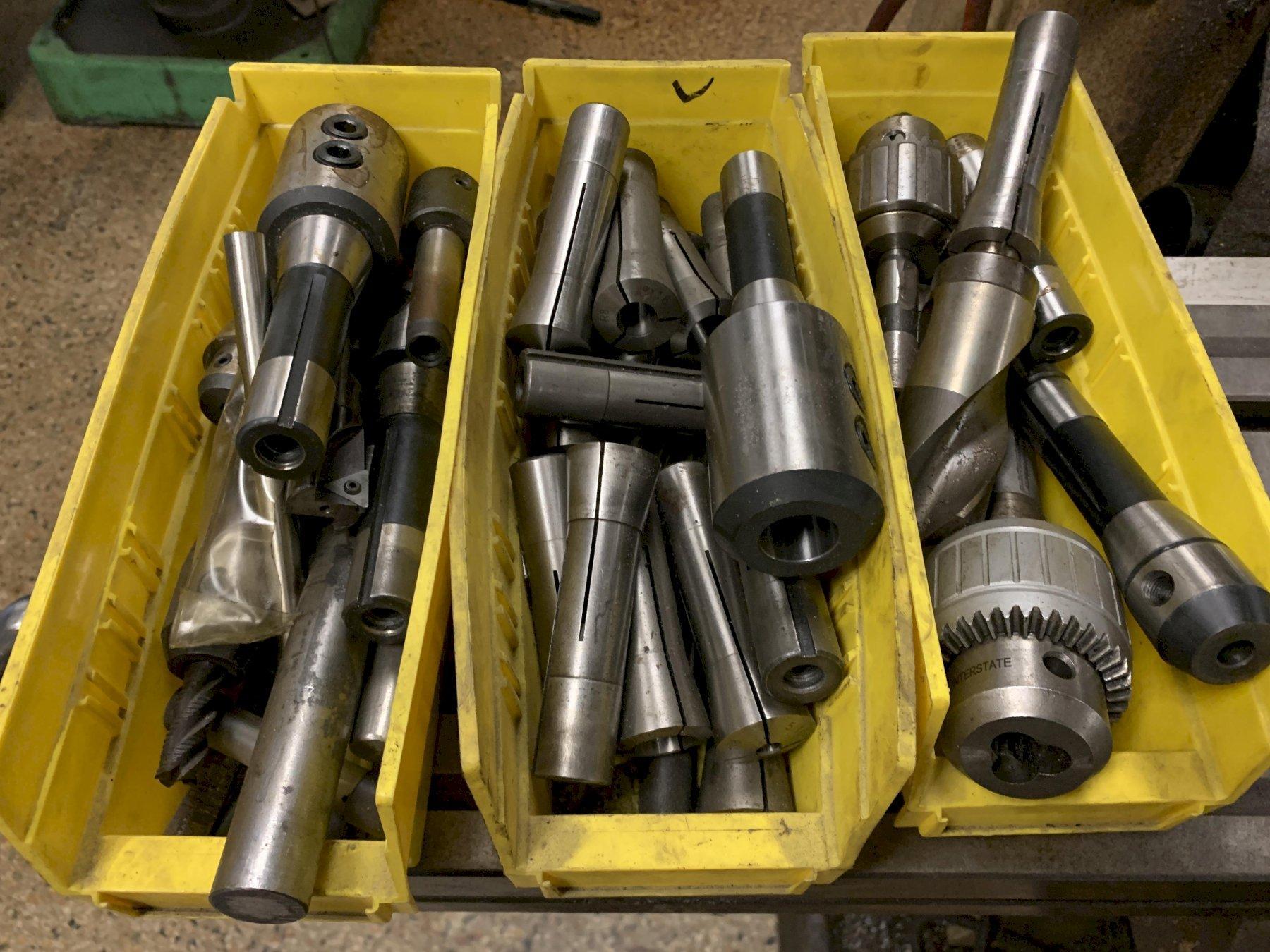

Assorted R8 Collets and Holders

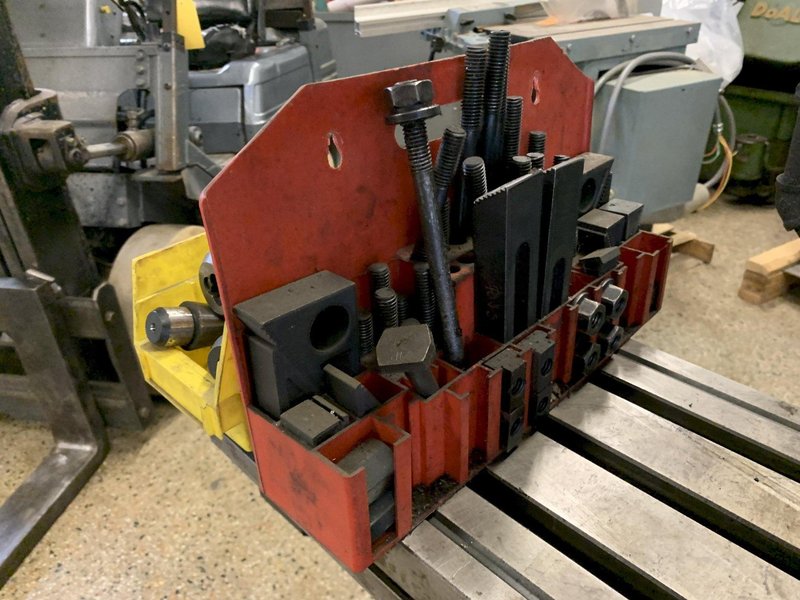

Clamp Kit
Import Power Table Feed

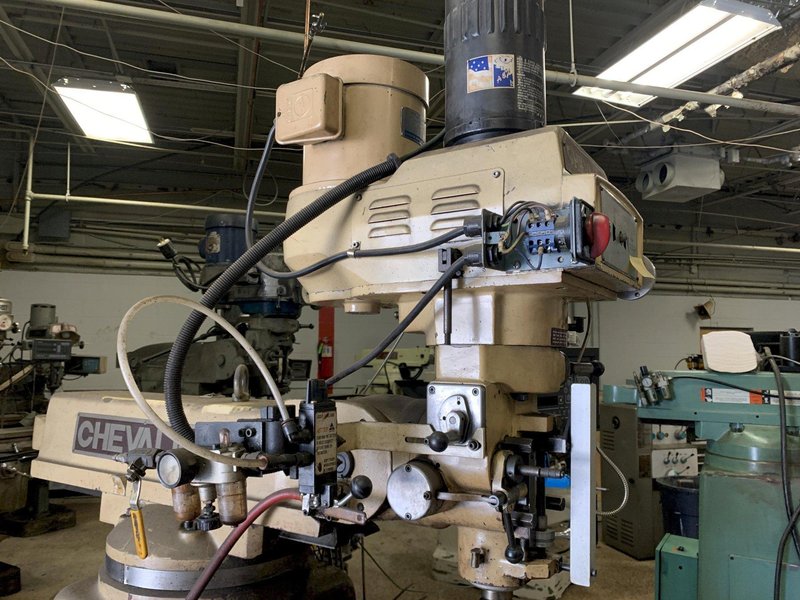

Power Drawbar
1-Shot Lubrication

Currently untested but will test run prior to loadout or on request. (reportedly some head noise)
Specifications subject to independent verification by the buyer.
Seller can load on to buyers truck.
