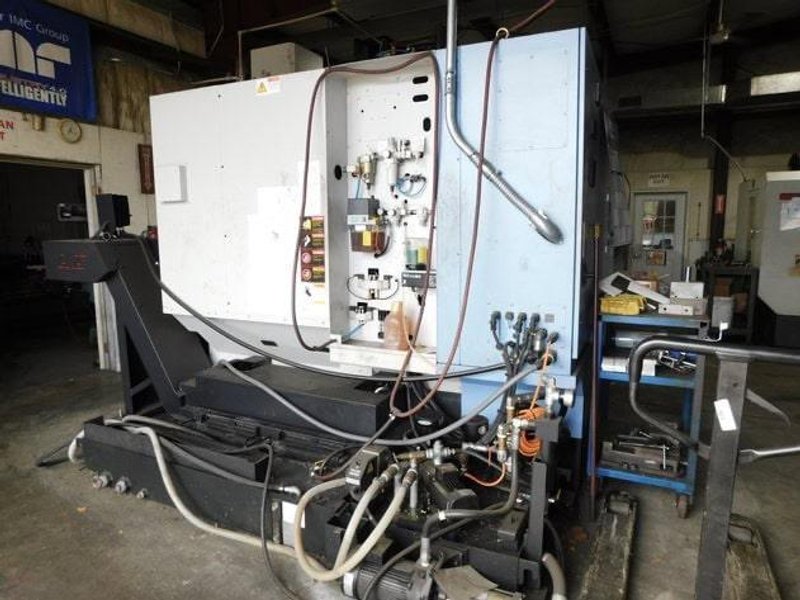

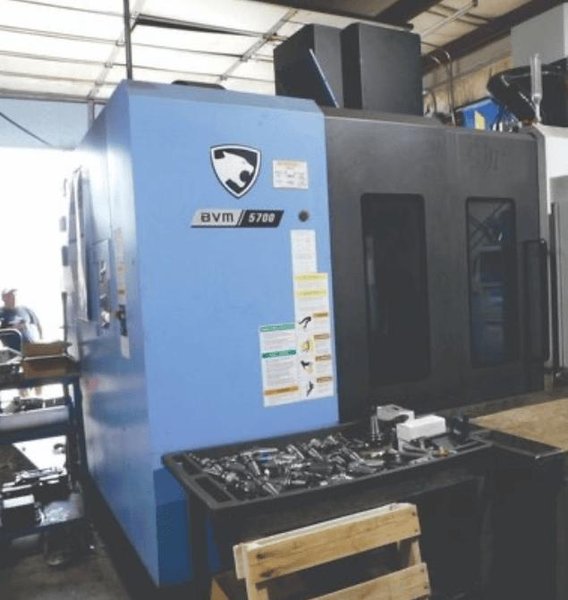

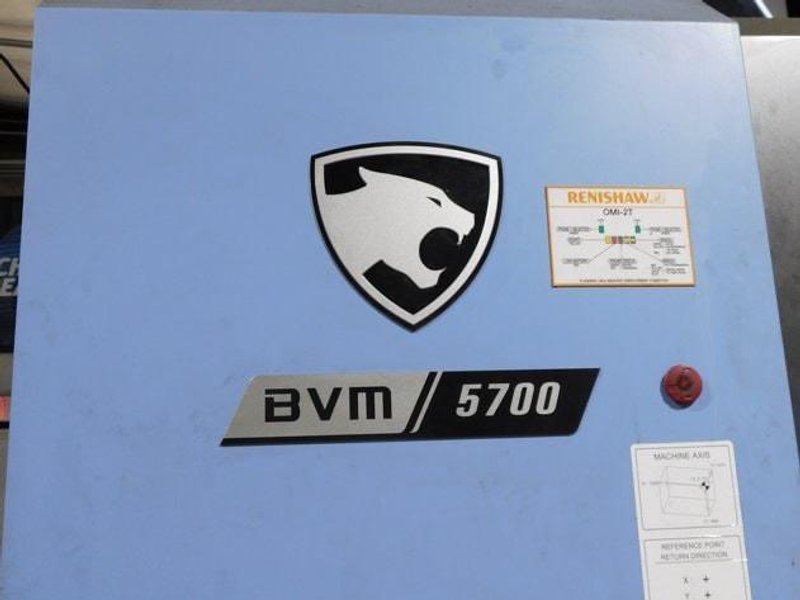

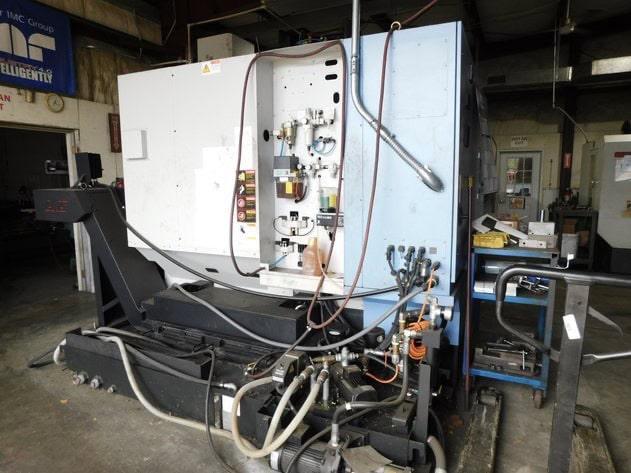

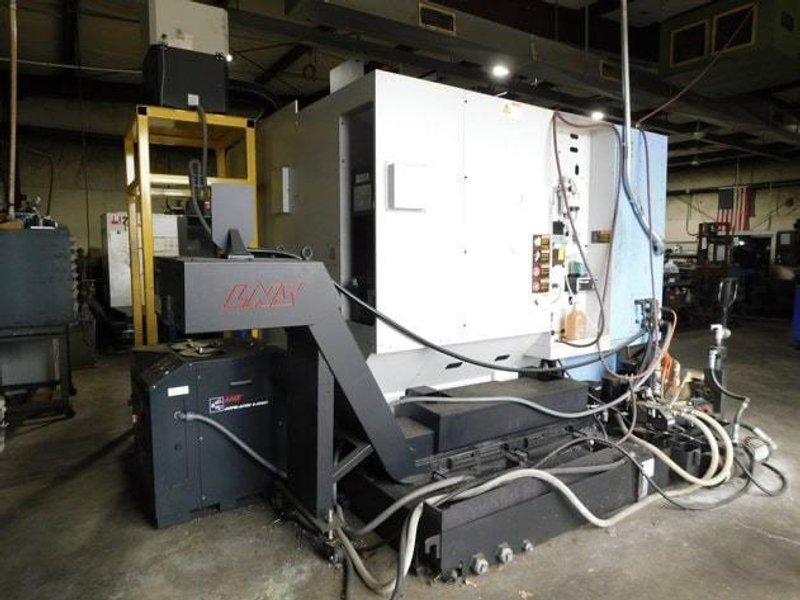

Doosan BVM 5700 VMC, 2022 – LNS Chip Conveyor & Chip Blaster

Axis Travel X-Axis 1,050 mm / 41.3″ Y-Axis 570 mm / 22.4″ Z-Axis 460 mm / 18.1″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Feedrates X / Y 42 m/min (approx. 1,653 IPM) Z 36 m/min (approx. 1,417 IPM)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Max Spindle Speed 15,000 RPM Max Spindle Power ~37 kW (~50 hp) Max Torque ~214 Nm (158 ft-lb) Taper / Tool Interface BT-40 / ISO #40

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table/Work Envelope Table Size (L × W) 1,300 × 570 mm (51.2″ × 22.4″) Max Workpiece Weight ~1,000 kg (2,205 lb) Table to Spindle Nose ~610 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine FootPrint Length ~3,080 mm (121.3″) Width ~2,560 mm (100.8″) Height ~2,890 mm (113.8″) Weight ~7,500 kg (16,535 lb)

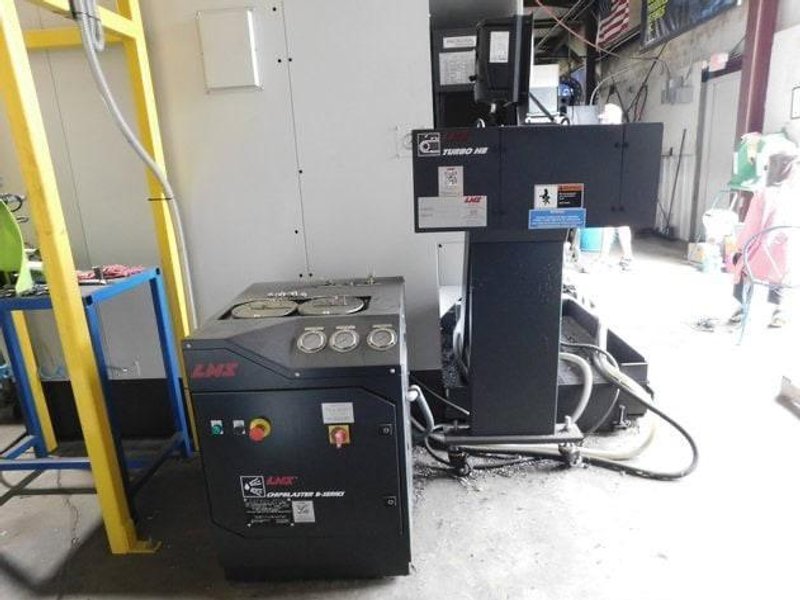

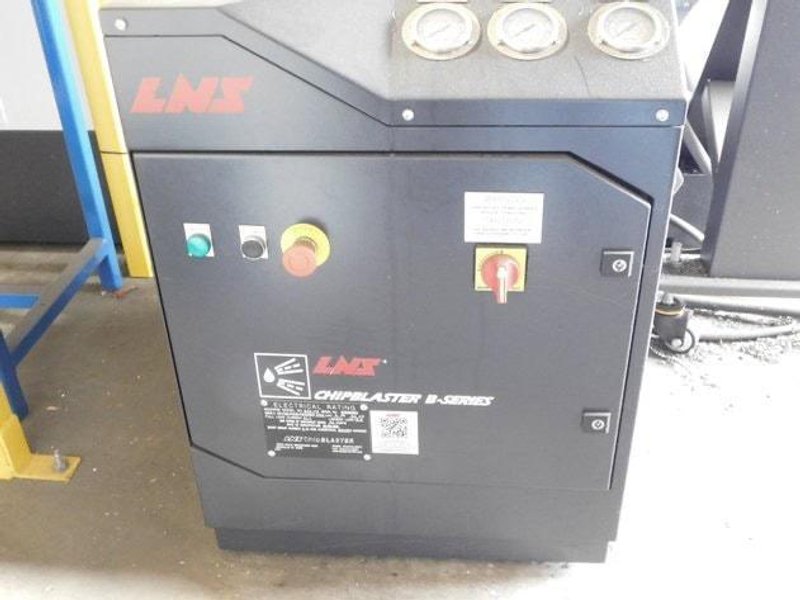

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turbo LNS HB Barfeeder Tubo Chip Blaster

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
