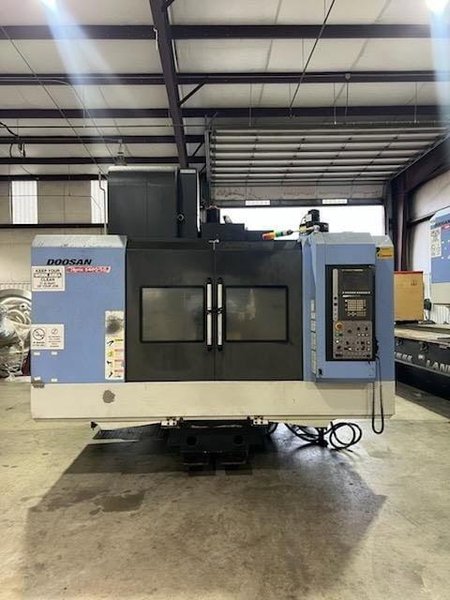

Doosan MYNX 5400/50 CNC Vertical Machining Center, 2012 — 40″ X 21″ X 20.8″ Travels, BT-50 Spindle, 24-Tool ATC

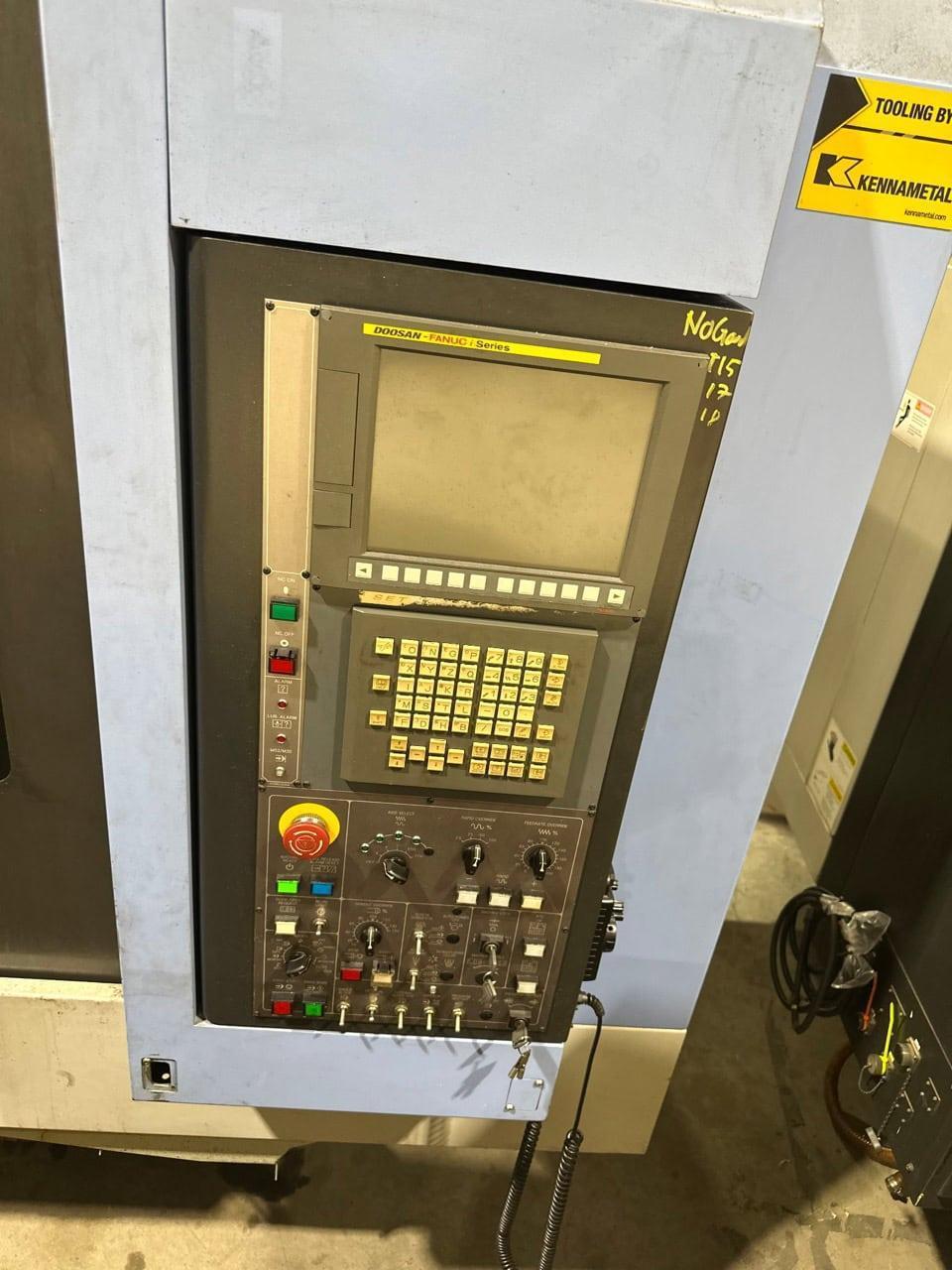

Control: Typically Fanuc CNC (e.g., 0i-MD / i-Series depending on specific unit) Axes: 3-axis CNC + optional fourth (depending on setup)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travel & Table X-Axis Travel: ~40.2″ (~1020 mm) Y-Axis Travel: ~21.3″ (~540 mm) Z-Axis Travel: ~20.9″ (~530 mm) Table Size: ~47.2″ × 21.3″ (~1200 × 540 mm) Max Table Load: ~1000 kg (~2200 lbs)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Spindle Taper: BT-50 Spindle Speed: 8,000 RPM Motor Power: Typically ~15 kW (20+ HP) class Coolant: Through-spindle coolant available on many units

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tooling Tool Changer: ~24-station ATC (CAM / chain type)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed & Performance Rapid Traverse: Typically ~30 m/min (~1,181 in/min) axes depending on configuration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Overall Machine Size & Weight (approx.) Length: ~208″ (~5,300 mm) Mach4Metal Width: ~134″ (~3,400 mm) Mach4Metal Height: ~118″ (~3,000 mm) Mach4Metal Weight: ~7,000 kg (~15,400 lbs)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
