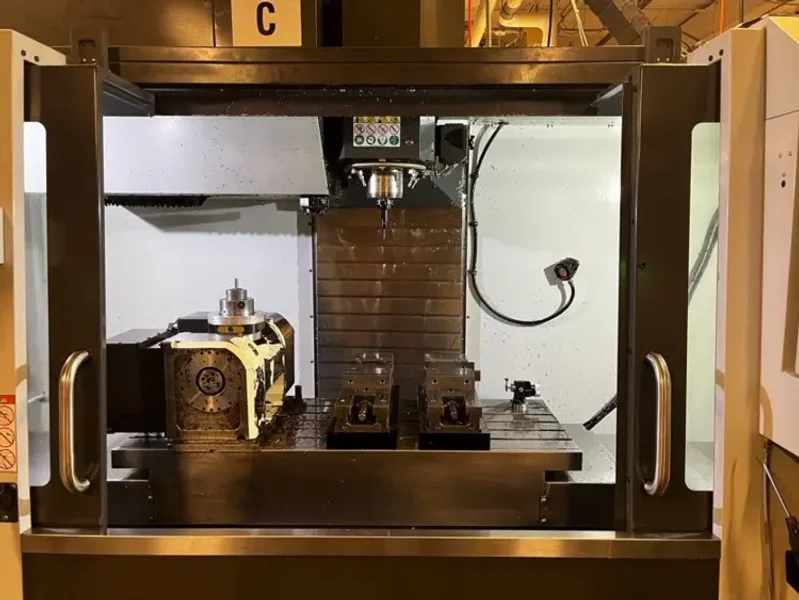

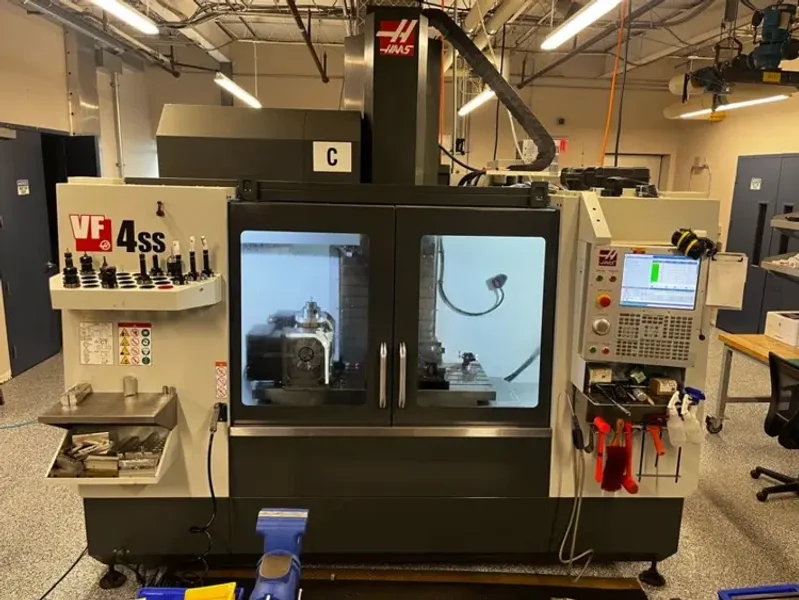

2019 Haas VF-4SS w/ 5th Axis Rotary Table

2019 Haas VF-4SS w/ 5th Axis Rotary Table

Name: 2019 Haas VF-4SS w/ 5th Axis Rotary Table
Brand: HAAS
SKU: 34090
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Machining Centers, Vertical

Manufacturer:

HAAS

Model:

VF-4SS

Year:

2019

Stock #:

34090

Status:

For Sale

Description

2019 Haas VF-4SS; 50" x 20" x 25". 15K RPM, 5th Axis Tudakoma Rotary Available, WIPS, TCP, Dynamic Work Offsets

ImperialMetric

X-Axis	50"	1,270 mm
Y-Axis	20"	508 mm
Z-Axis	25"	635 mm
Power	30 hp	22.4 kW
RPM	15,000 RPM	15,000 RPM
# ATC	30	30
Taper	CT or BT 40	CT or BT 40
Table-W	18"	457.2 mm
Table-L	52"	1,320.8 mm
# Axis	5	5

Haas VF-4SS CNC High Speed Vertical Machining Center
New: 03/2019

Specifications:
Travels:
X-Axis: 50"
Y-Axis: 20"
Z-Axis: 25"
Table Size: 52" x 18"
Max Table Weight: 1,750 Lbs
Spindle Motor:
Spindle Speed: 15,000 RPM
Rapid Traverse Rate: 1,400 IPM

Equipped With::
Haas CNC Control
Upgraded 15,000 RPM Spindle
4th and 5th Axis Drives and Wiring
Wireless Intuitive Probing System
Programmable Coolant Nozzle
High Speed Machining
Tool Center Point Control and Dynamic Work Offsets
Custom Rotaries Enabled

Available: Tsudakoma TBS-16H 5-Axis Rotary Table

Hours:
Power On Time: 24777 Hours
Cycle Start Time: 3853 Hours
Feed Cutting Time: 2933 Hours

Replacement Price: $144,860 (Machine), over $200k with Rotary

No files or videos to display
