2019 Haas VF-2SS w/ 5th Axis Rotary Table

2019 Haas VF-2SS w/ 5th Axis Rotary Table

Name: 2019 Haas VF-2SS w/ 5th Axis Rotary Table
Brand: HAAS
SKU: 34091
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Machining Centers, Vertical

Manufacturer:

HAAS

Model:

VF-2SS

Year:

2019

Stock #:

34091

Status:

For Sale

Description

2019 Haas VF-42S; 30" x 16" x 20", 15K RPM, 5th Axis Tudakoma Rotary Available, WIPS

ImperialMetric

X-Axis	30"	762 mm
Y-Axis	16"	406.4 mm
Z-Axis	20"	508 mm
Power	30 hp	22.4 kW
RPM	15,000 RPM	15,000 RPM
# ATC	30	30
Taper	CT or BT 40	CT or BT 40
Table-W	14"	355.6 mm
Table-L	36"	914.4 mm

Haas VF-2SS CNC High Speed Vertical Machining Center
New: 03/2019

Specifications:
Travels:
X-Axis: 30"
Y-Axis: 16"
Z-Axis: 20"
Table Size: 36" x 14"
Max Table Weight: 1,500 Lbs
Spindle Motor:
Spindle Speed: 15,000 RPM
Rapid Traverse Rate: 1,400 IPM

Equipped With::
Haas CNC Control
Upgraded 15,000 RPM Spindle
4th and 5th Axis Drives and Wiring
Wireless Intuitive Probing System
Programmable Coolant Nozzle
High Speed Machining

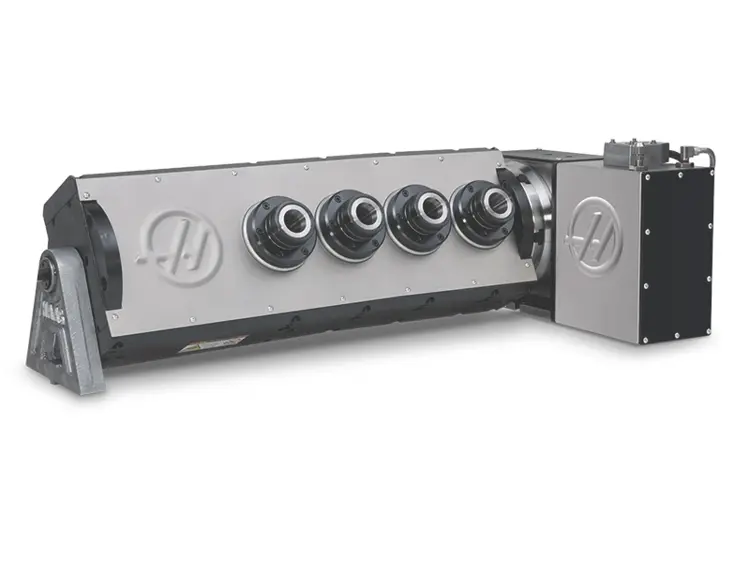

Available: Haas T5C4 5-Axis Rotary Table

Hours:
Power On Time: 30042 Hours
Cycle Start Time: 5725 Hours
Feed Cutting Time: 4479 Hours

Replacement Price: $115,665 (Machine), $165k with Rotary.
