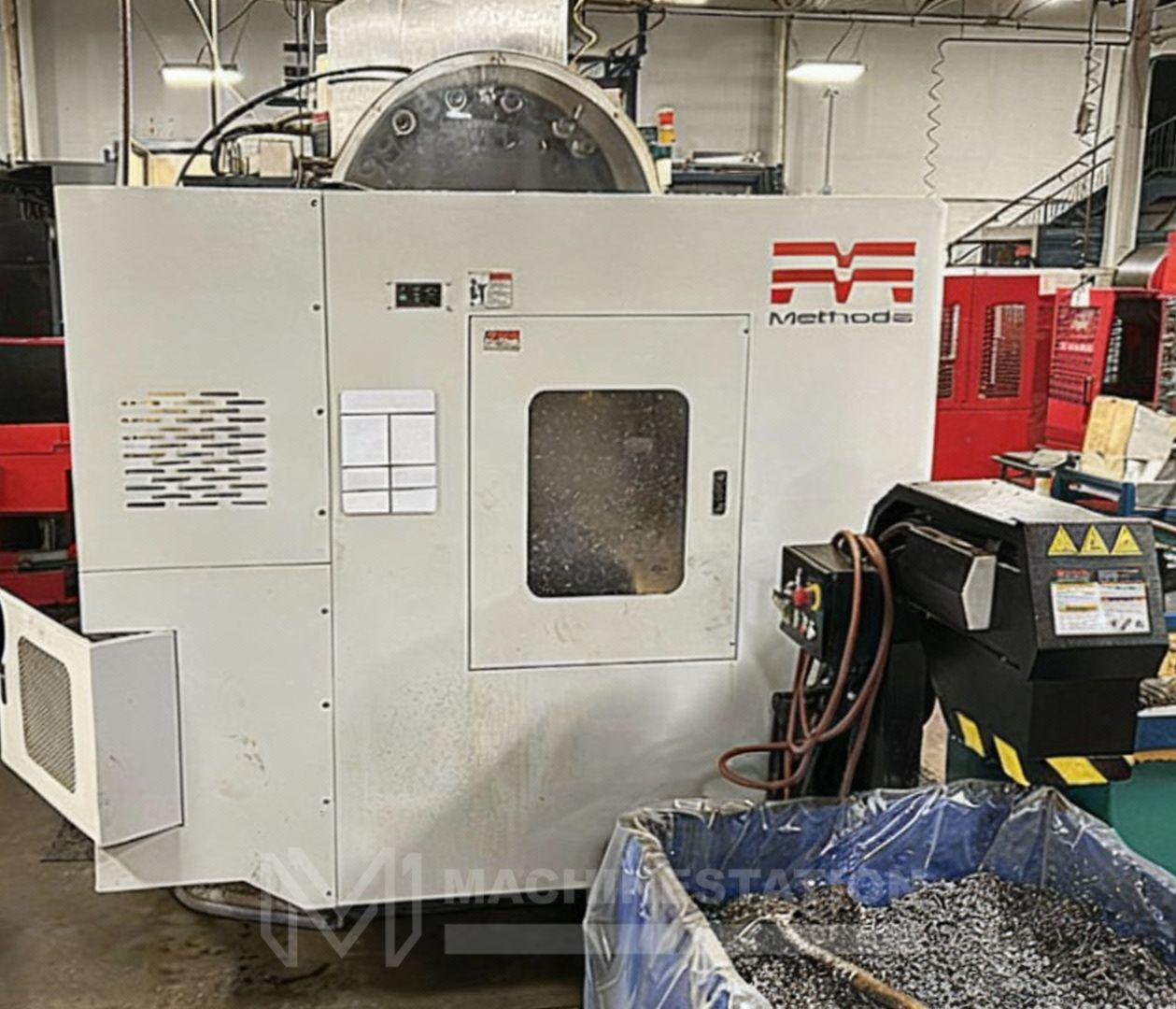

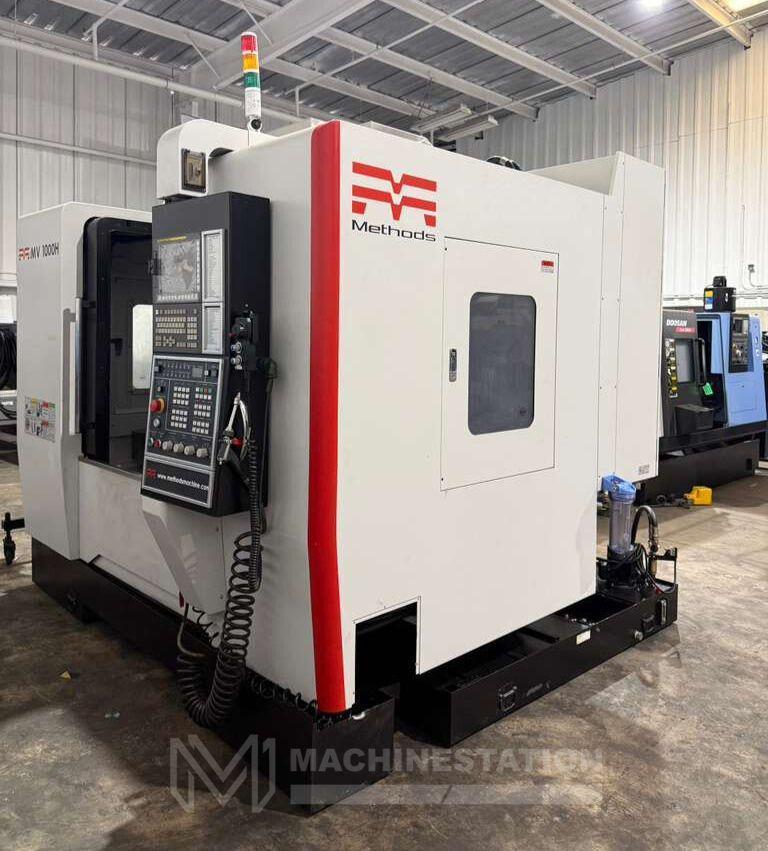

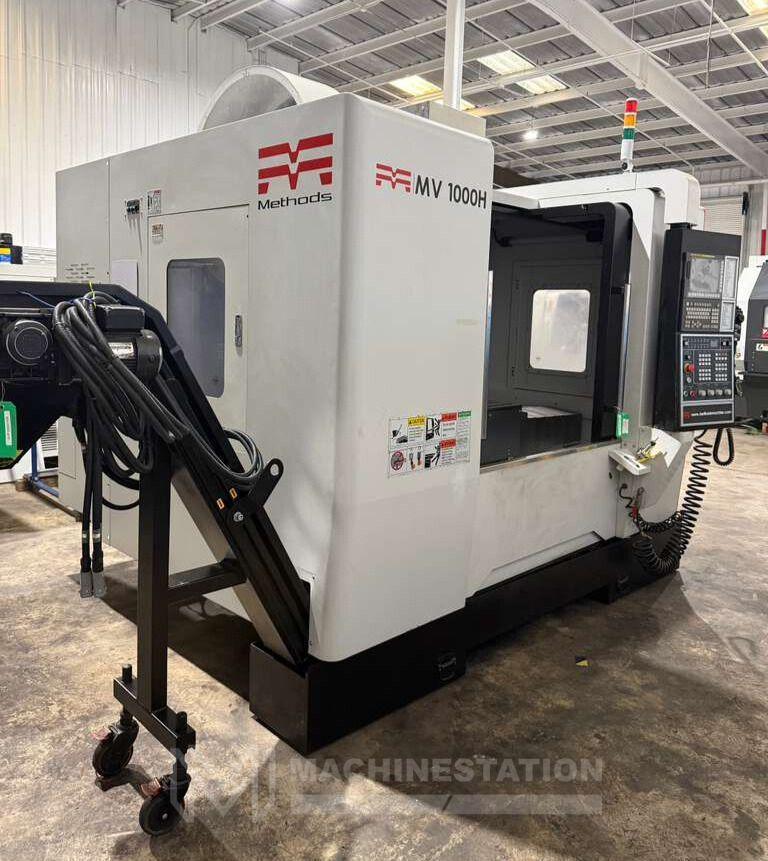

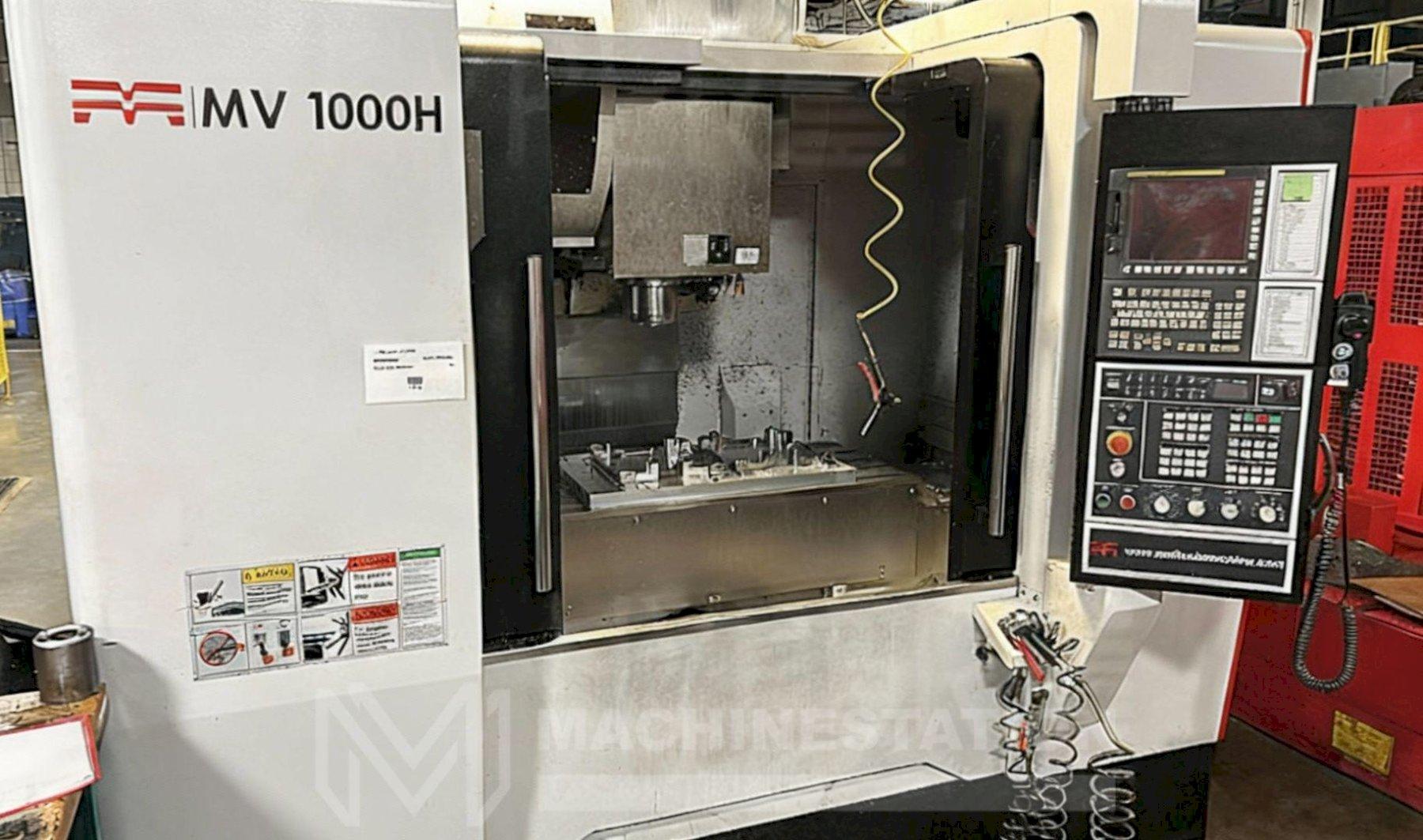

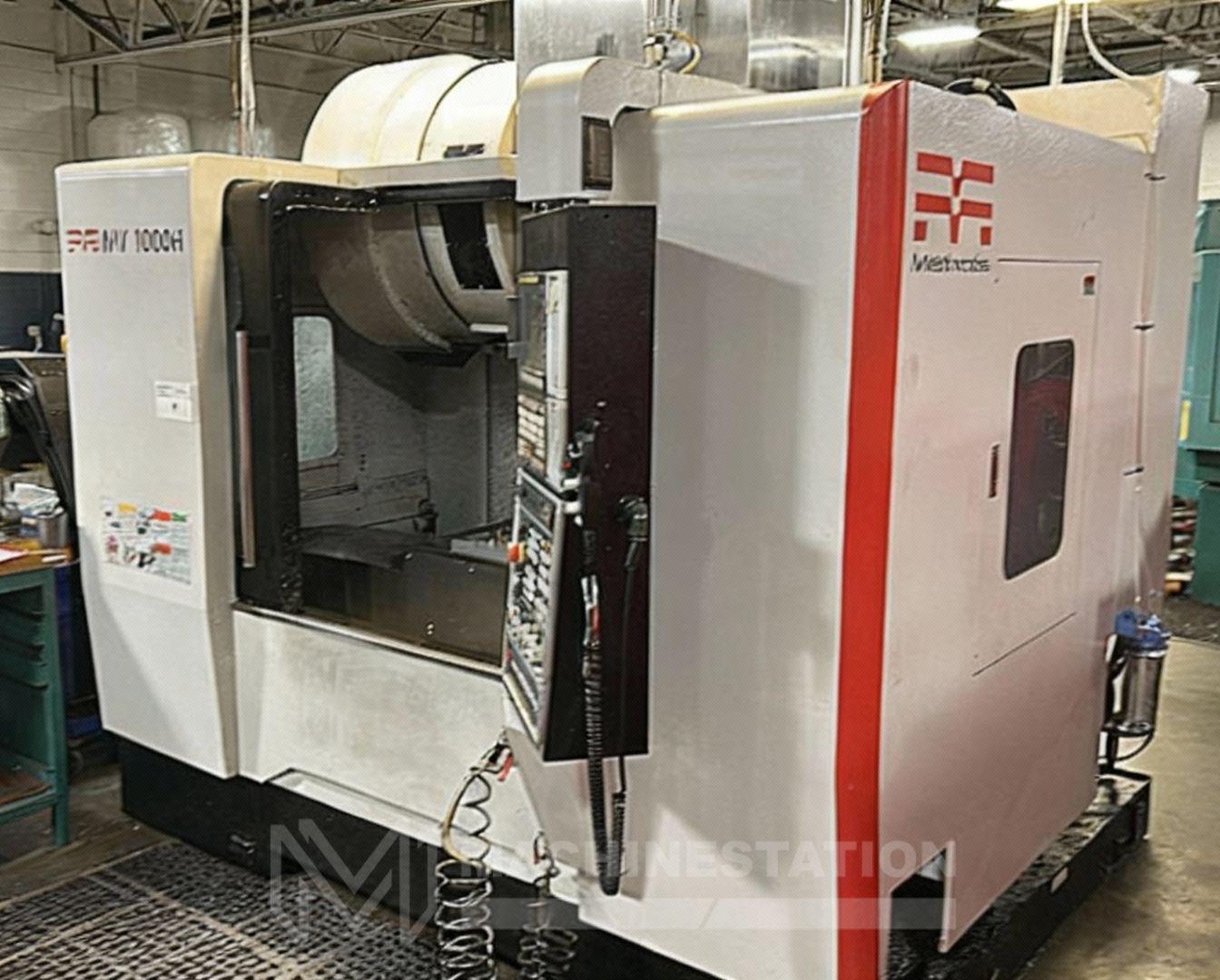

Name: Methods MV-1000H CNC Vertical Machining Center – 2019 Mill
Brand: METHODS
SKU: 113517
Availability: PreOrder

Brand

METHODS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	113517
Make:	Methods
Model:	MV-1000H

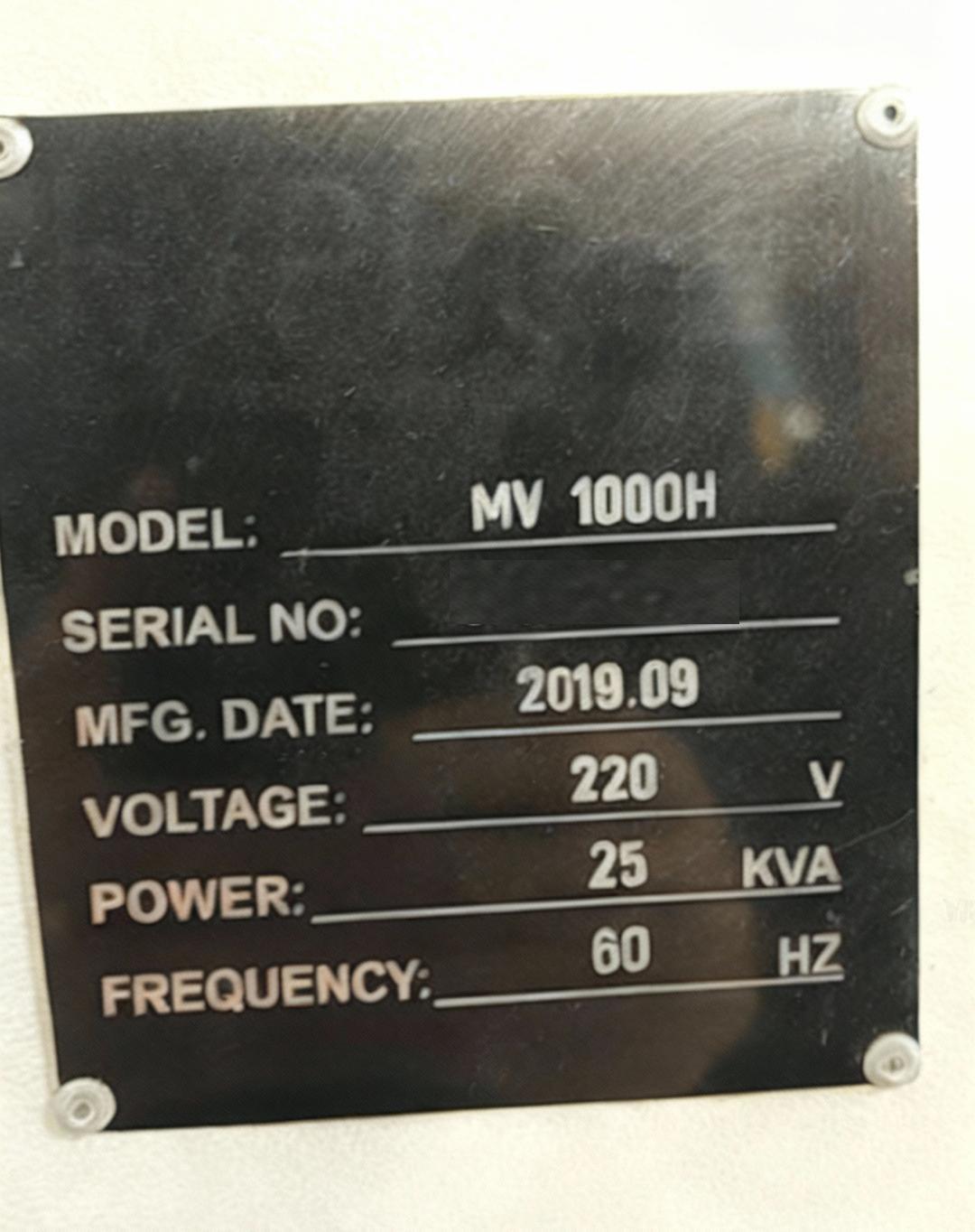

Year:	2019 (Sold & Installed in 2022)
Condition:	Used – Excellent

Features:

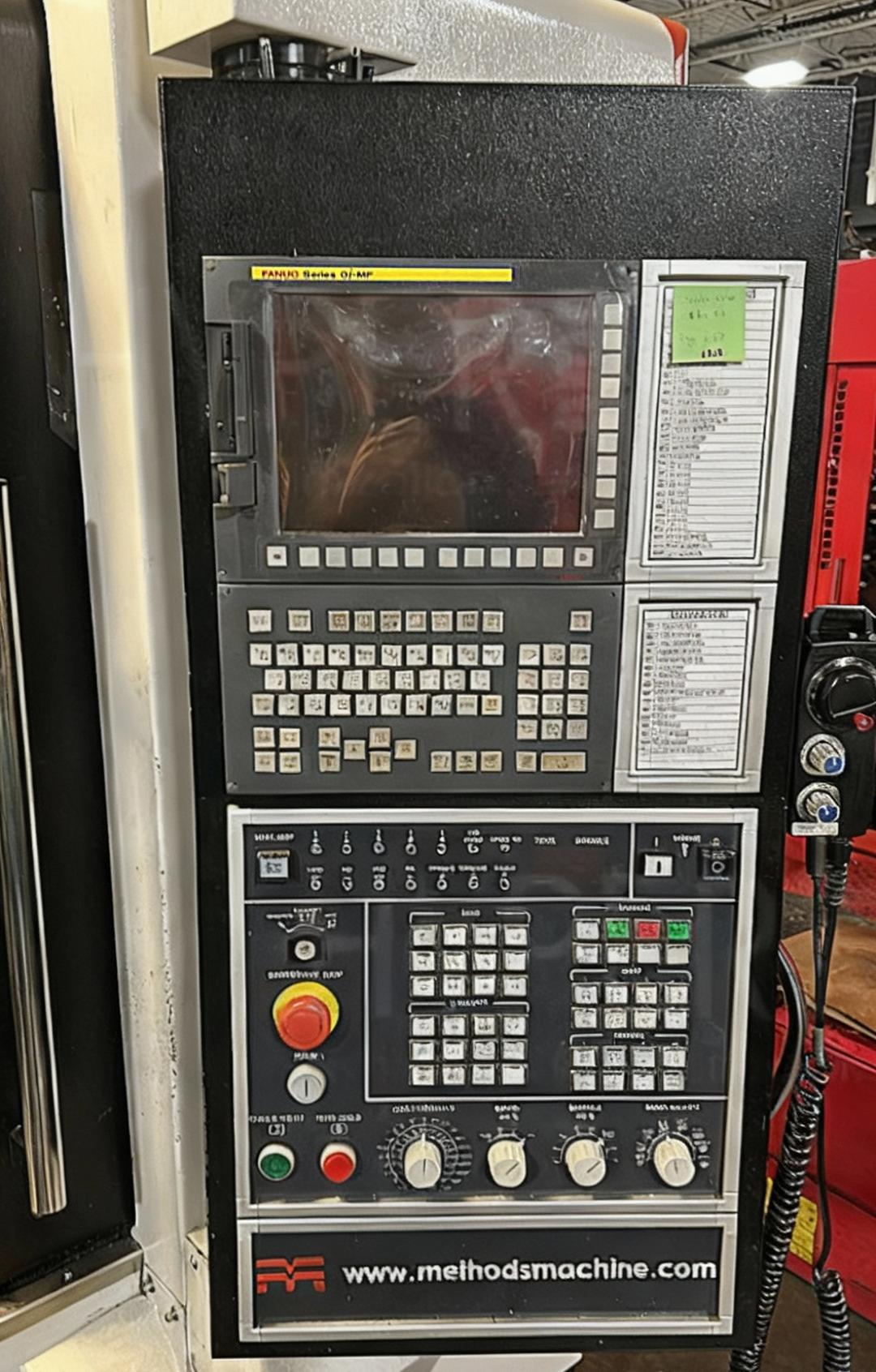

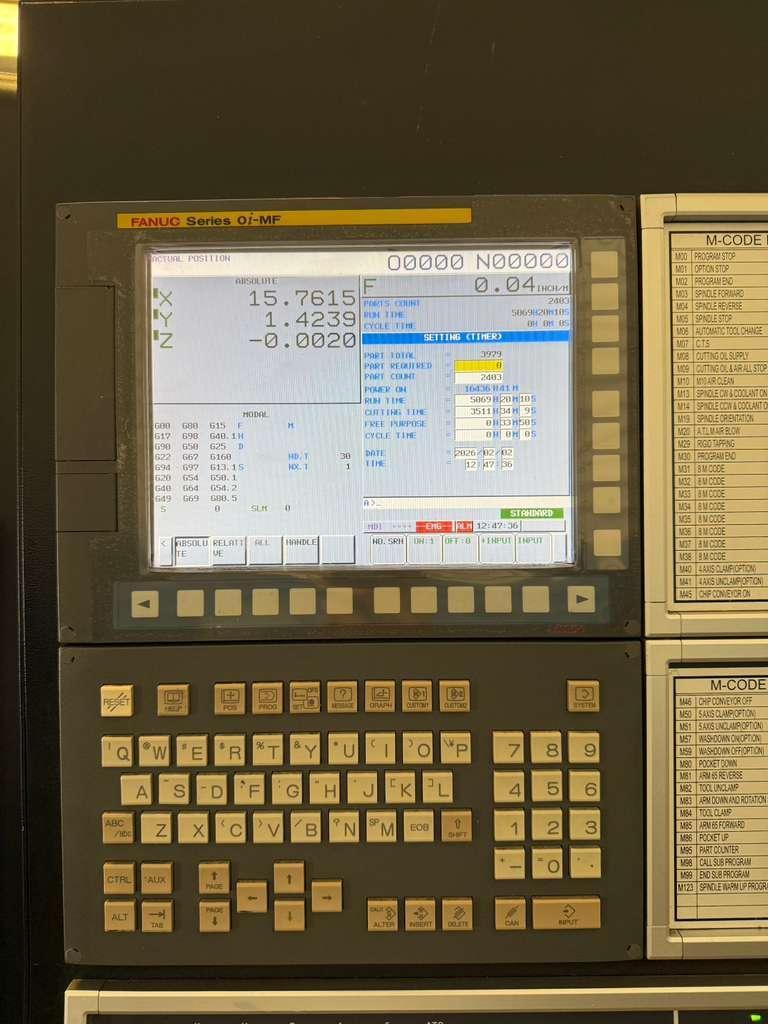

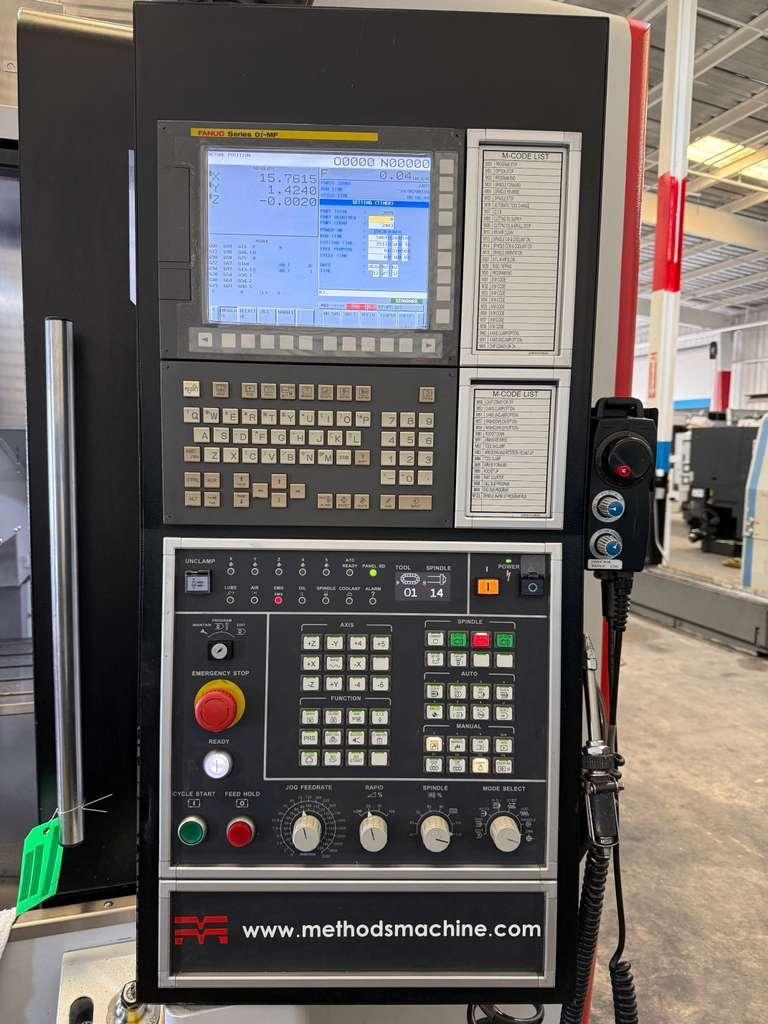

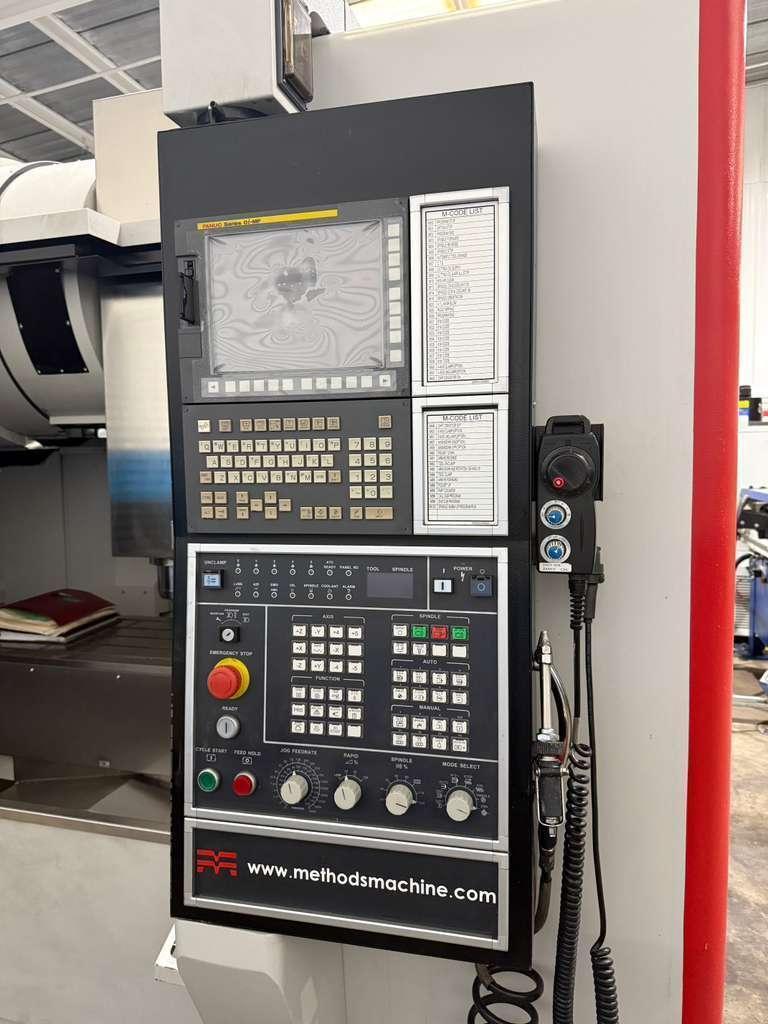

Fanuc Oi-MF Series CNC Control
X, Y Axis Roller Guidways Z Axis Box Way

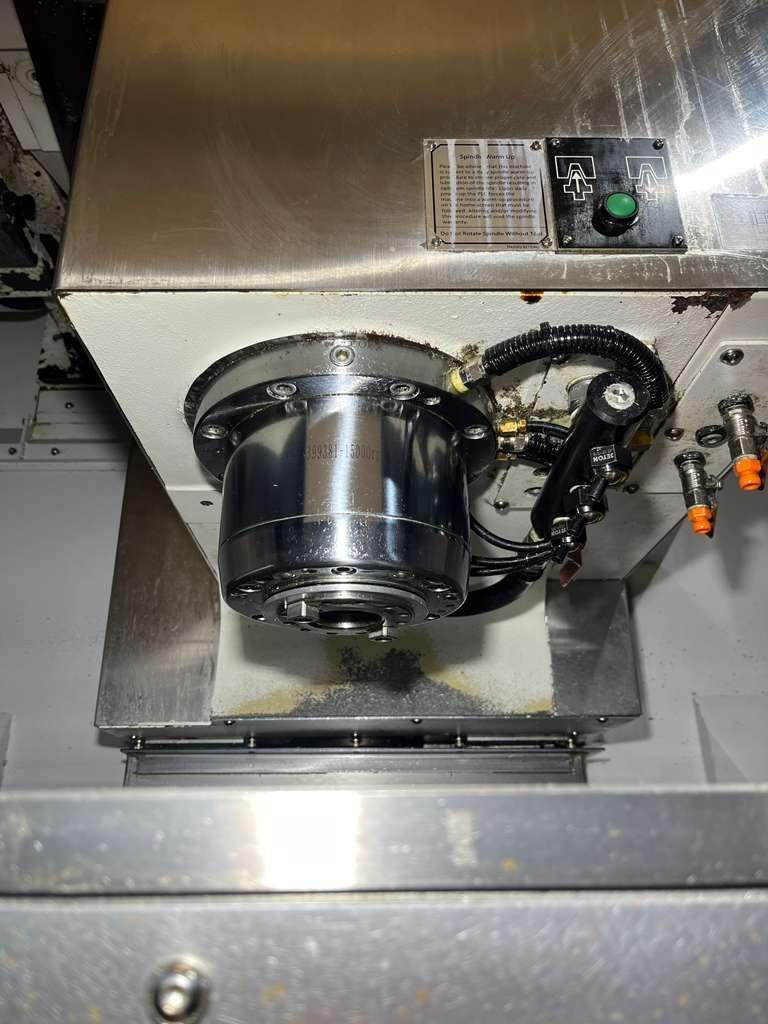

15,000 RPM High Speed Spindle
Through Spindle Coolant – 300 psi

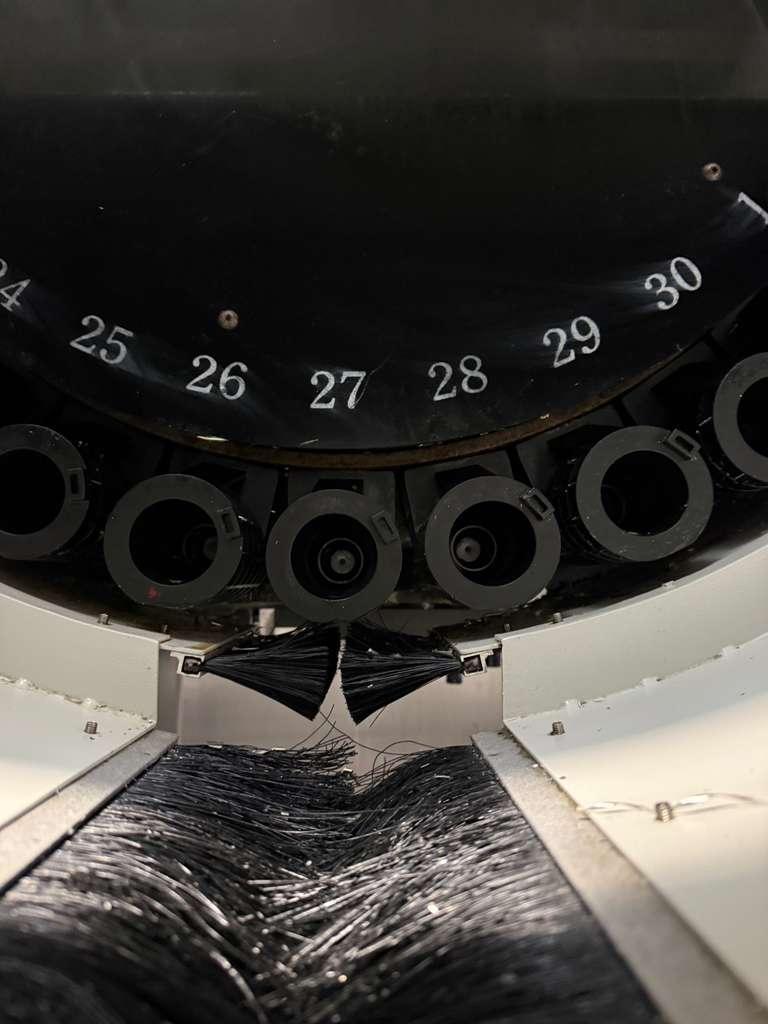

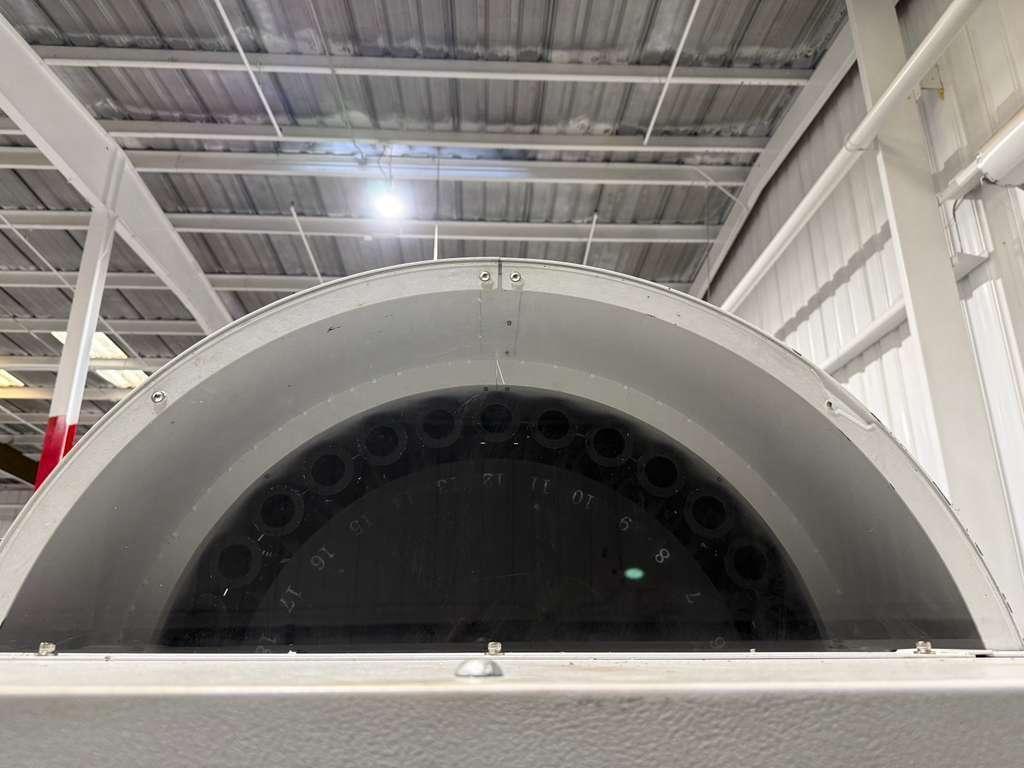

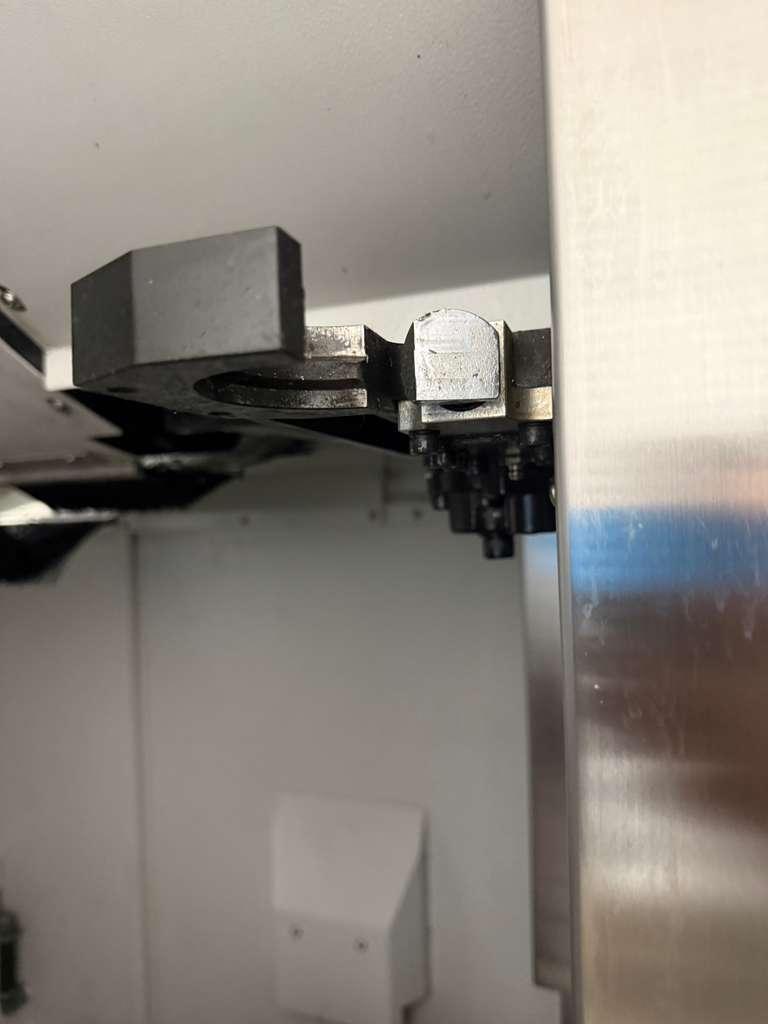

30 Station Side Mounted Automatic Tool changer
BT-40 Big Plus Taper Spindle
MPG Handwheel Control
USB, PCMCIA, RS232C
Spindle Chiller Unit
Rigid Tapping
Coolant System
Chip Conveyor
Levelling Pads

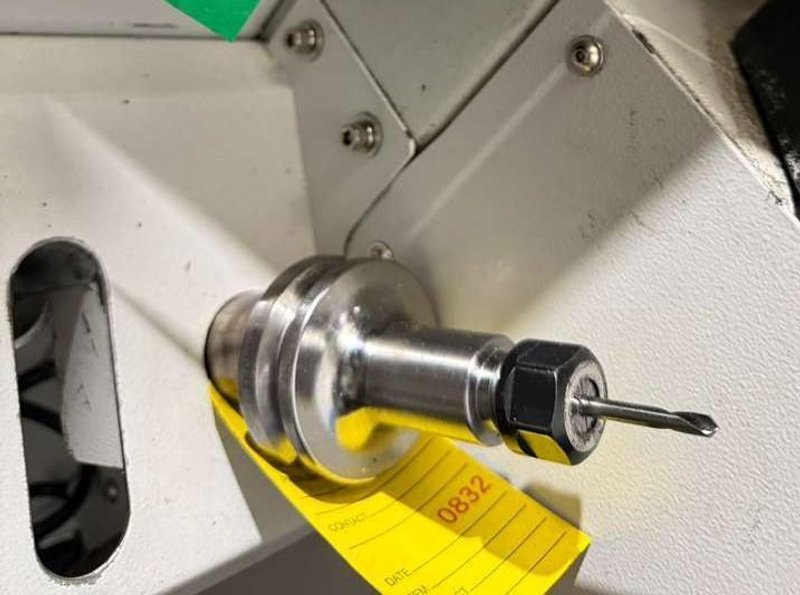

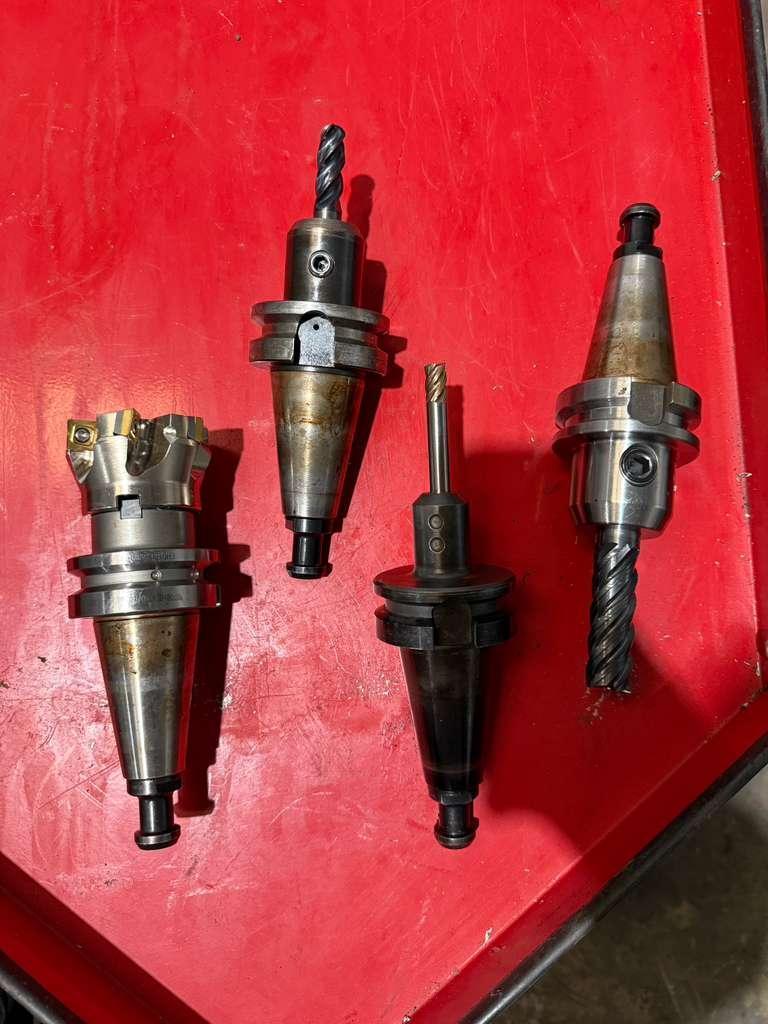

(5) Tool Holders are Included with the Machine

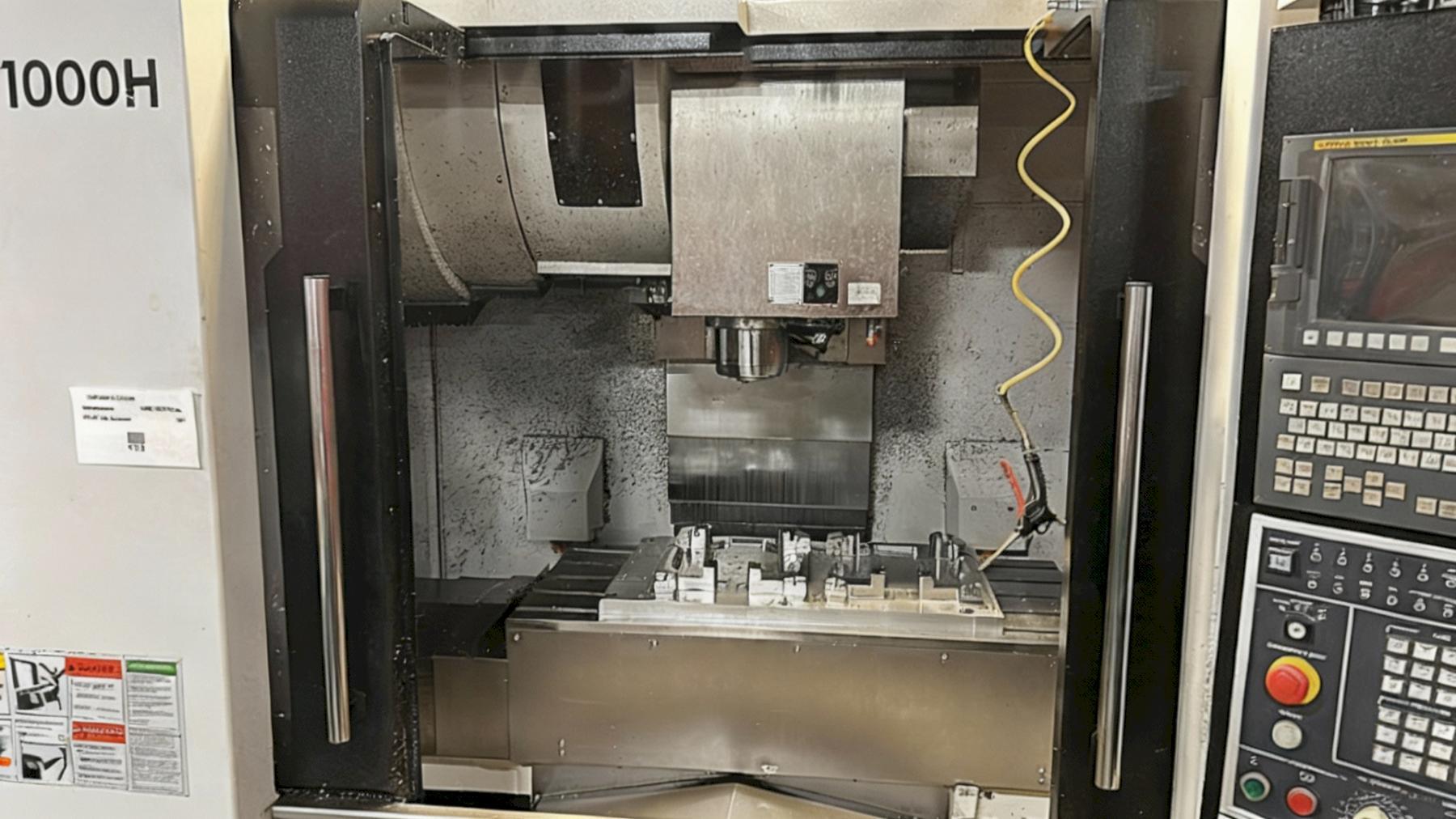

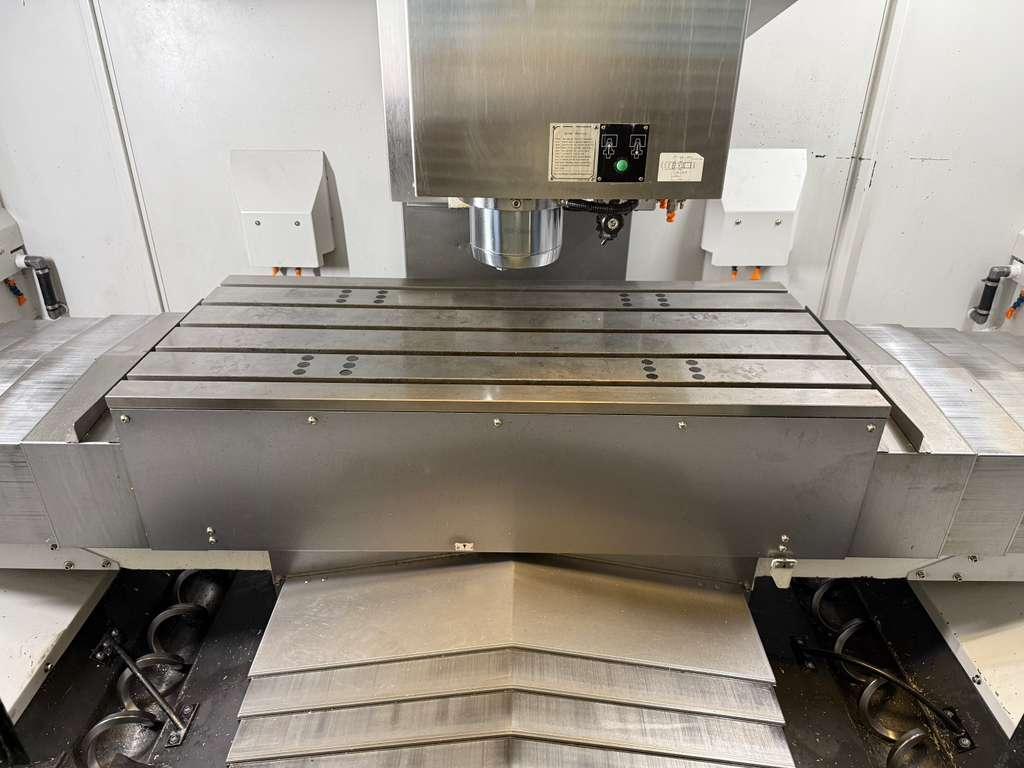

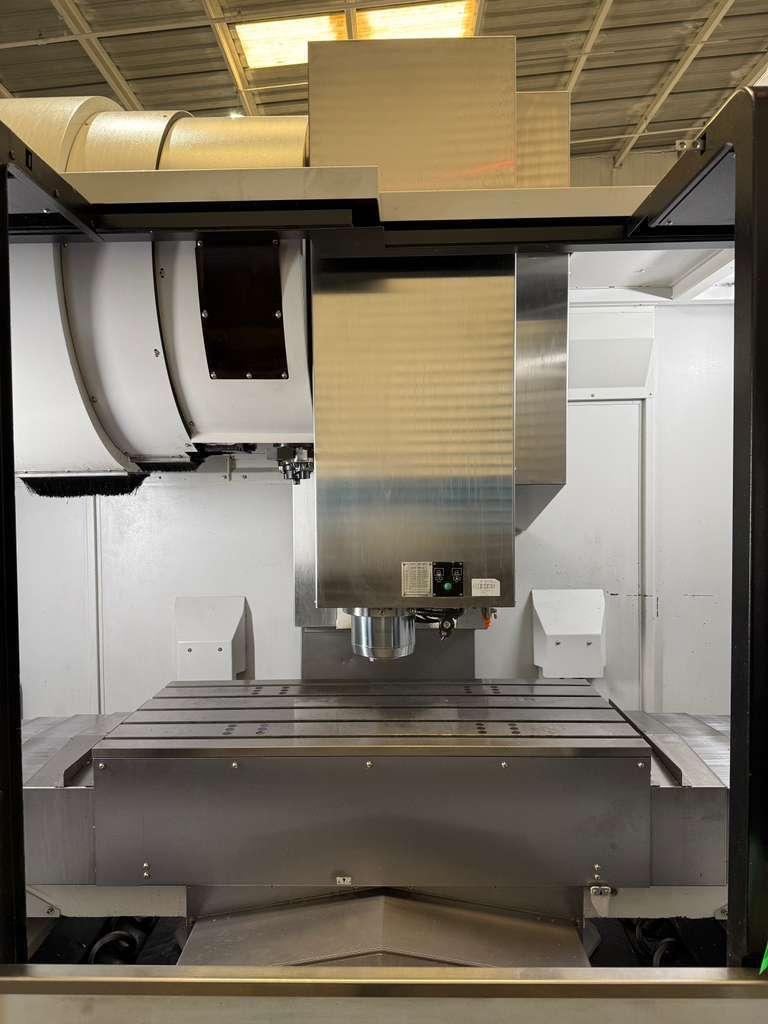

Table:
Length: 42.2″
Width: 20.5″
Number of Std T-Slots: 5
T-Slot Width: 0.70″ X 3.93″
Max Weight on Table: 1102 lbs

Travels:
X-Axis: 39.40″
Y-Axis: 20.47″
Z-Axis: 20.70″
Rapid Traverse Rates X & Y Axis: 2362 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates X & Y Axis: 1181 IPM
Cutting Feed Rates Z Axis: 787 IPM
Spindle Nose to Table (Min.- Max.): 3.94″ – 24.60″

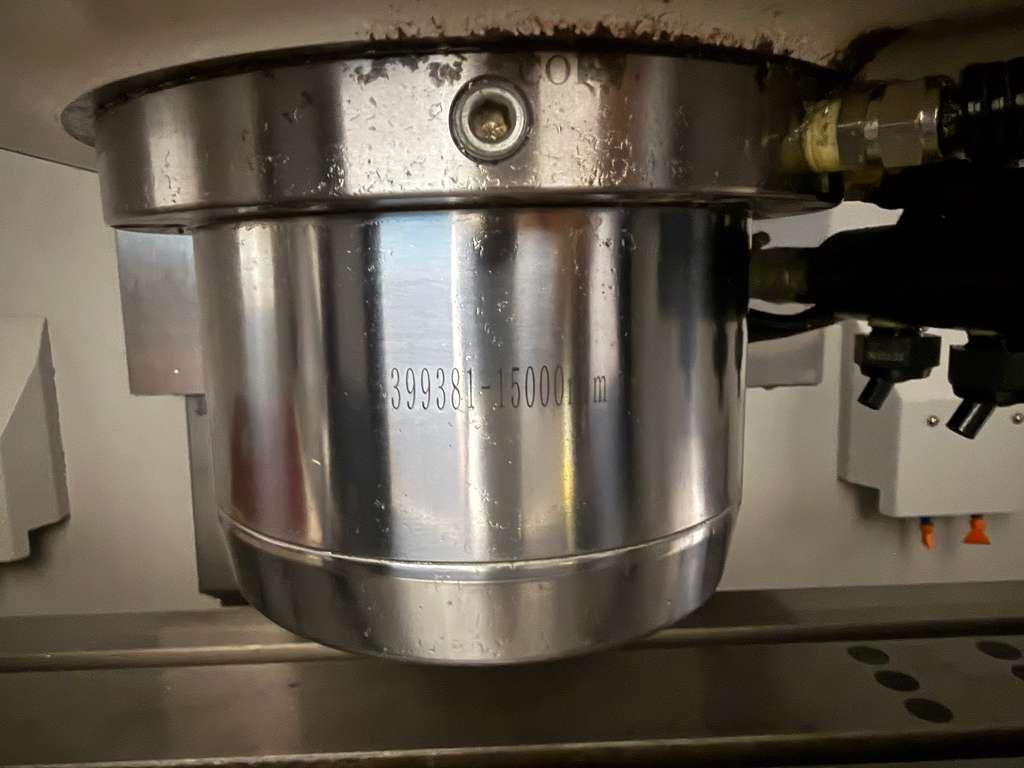

Spindle:
Taper Size: BT-40 Big Plus
Speed Range: 15,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15.43 lbs
Max Tool Dia: 3.10″ – 5.90″
Max Tool Length: 11.81″
Tool Changing Time (Tool to Tool): 1.5 Seconds
