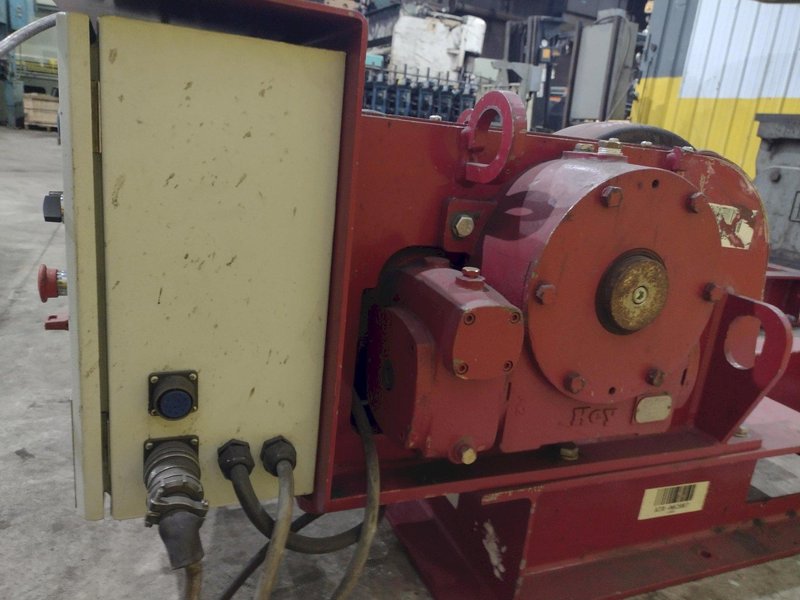

10,000 LB 5 TON RED-D-ARC MODEL #CR5 TANK TURNING ROLLS, POWER & IDLER 110V POWER: YOBRO #24746

10,000 LB 5 TON RED-D-ARC MODEL #CR5 TANK TURNING ROLLS, POWER & IDLER 110V POWER: YOBRO #24746

Name: 10,000 LB 5 TON RED-D-ARC MODEL #CR5 TANK TURNING ROLLS, POWER & IDLER 110V POWER: YOBRO #24746
Brand: RED-D-ARC
SKU: 24746
Price: 8950.00 USD
Availability: InStock

Brand

RED-D-ARC

Location

Ohio

Price

$8,950.00

REQUEST FINANCING

Specifications
Files & Videos

Capacity (Set): 5 Ton
Rotation Capacity: 7.5 Ton
Vessel Diameter: 7.8 – 137.7 in
Rotation Speed: 5.5 – 59 in/min
Tyre Type: Rubber Tyres
Wheel Size: 15 in × 3 in
Motors: 1 × 0.55 kW AC
Input Power: 110V, 1 Phase

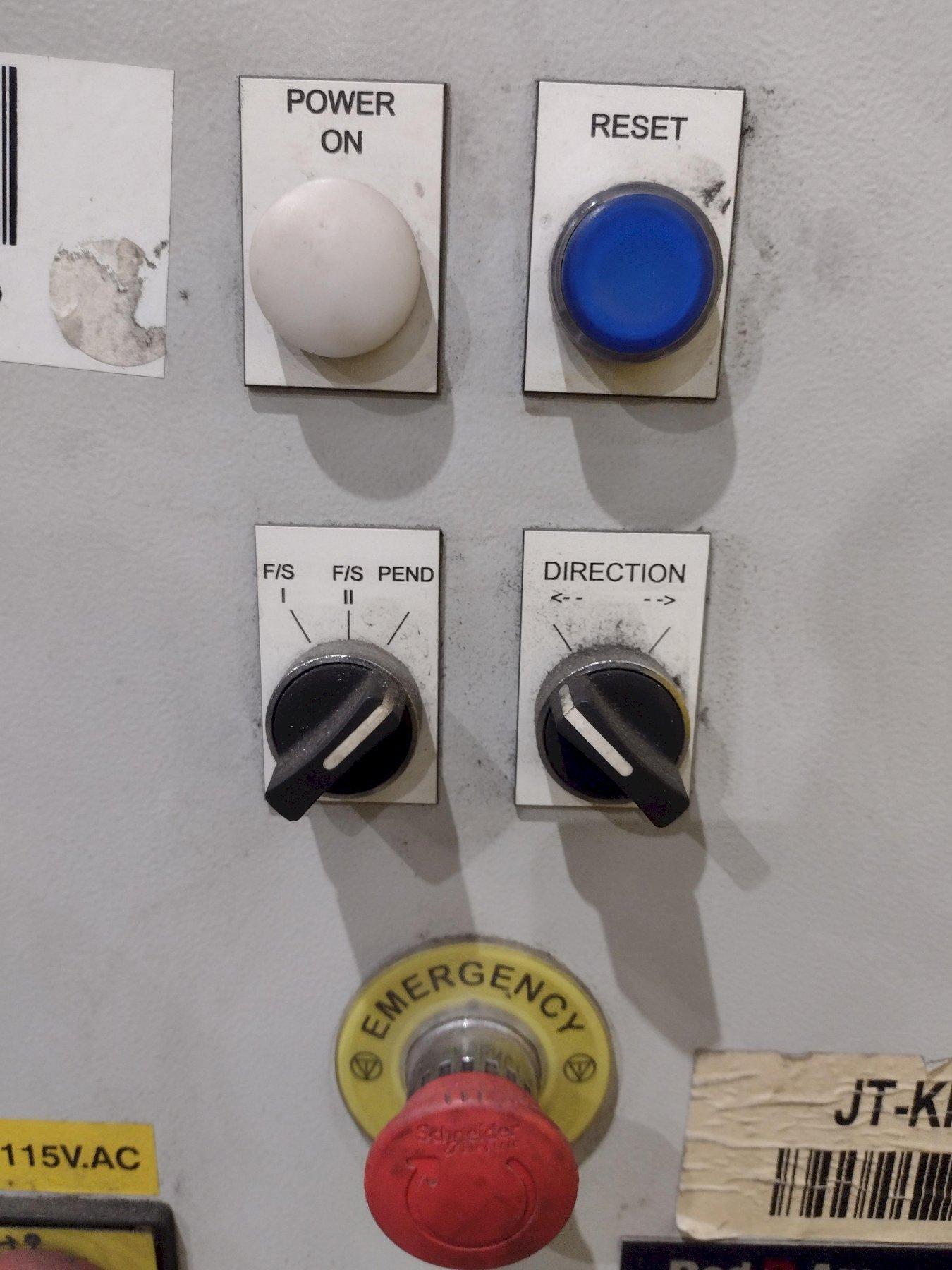

Control: 5-function pendant + E-stop

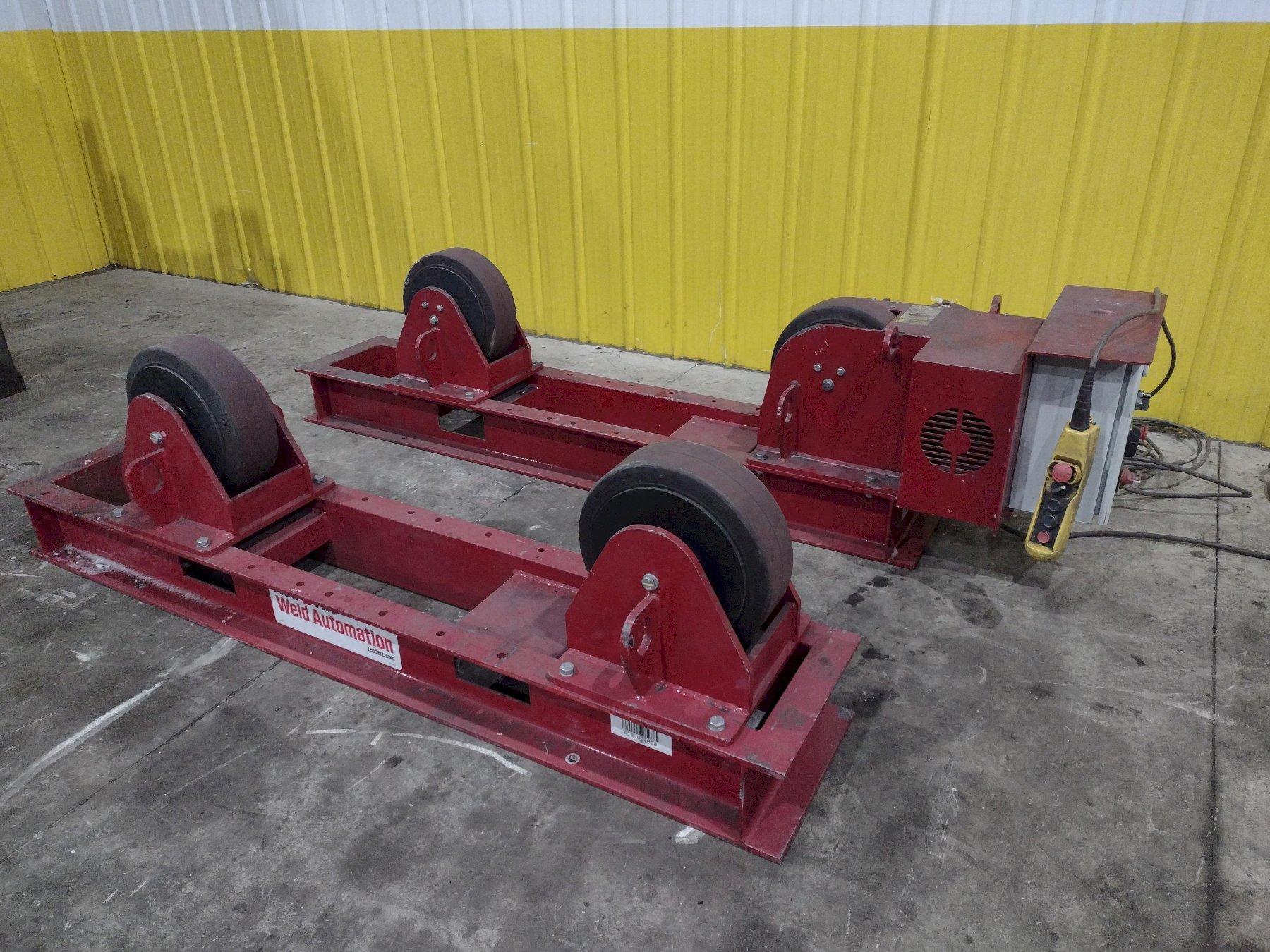

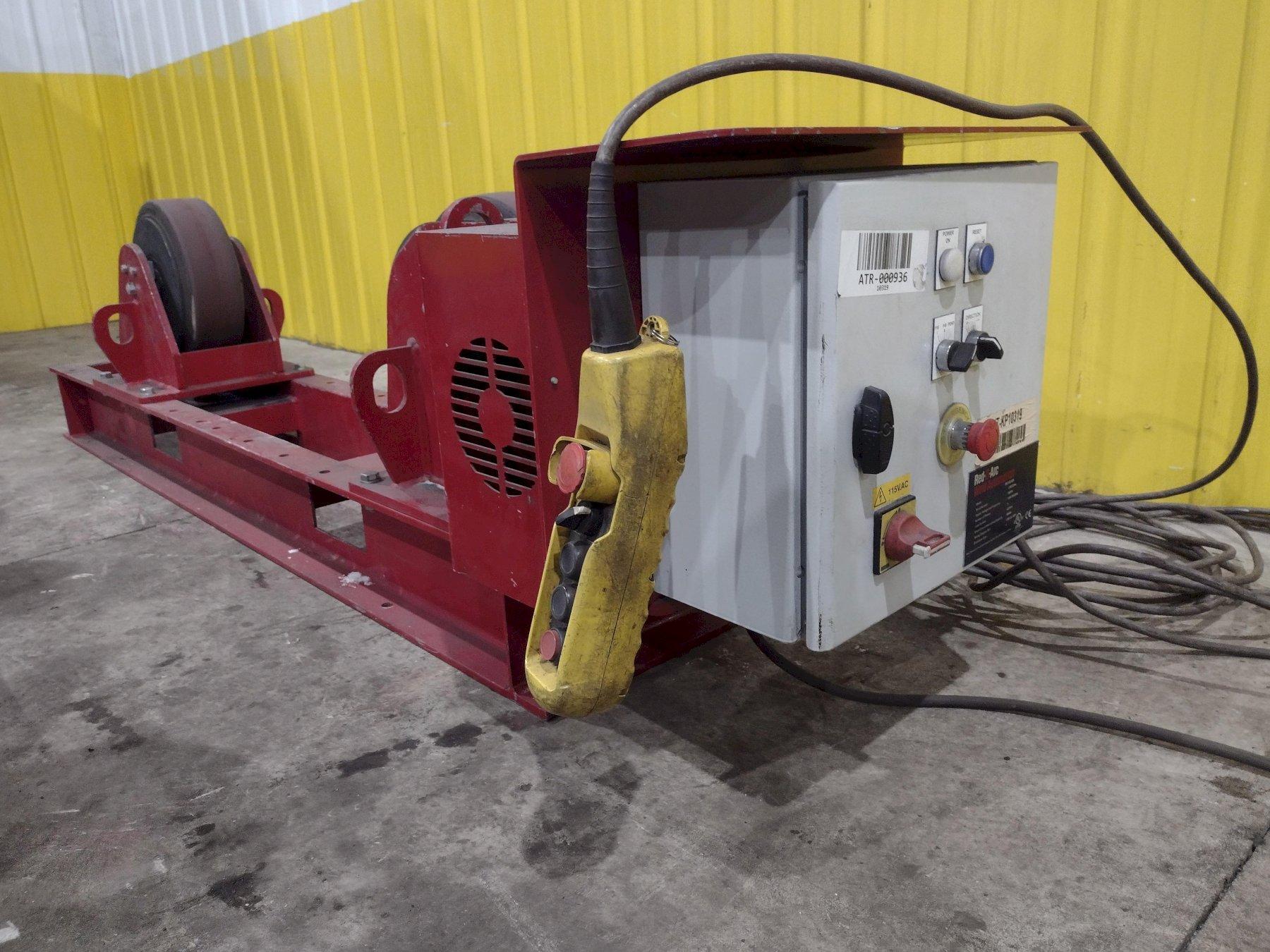

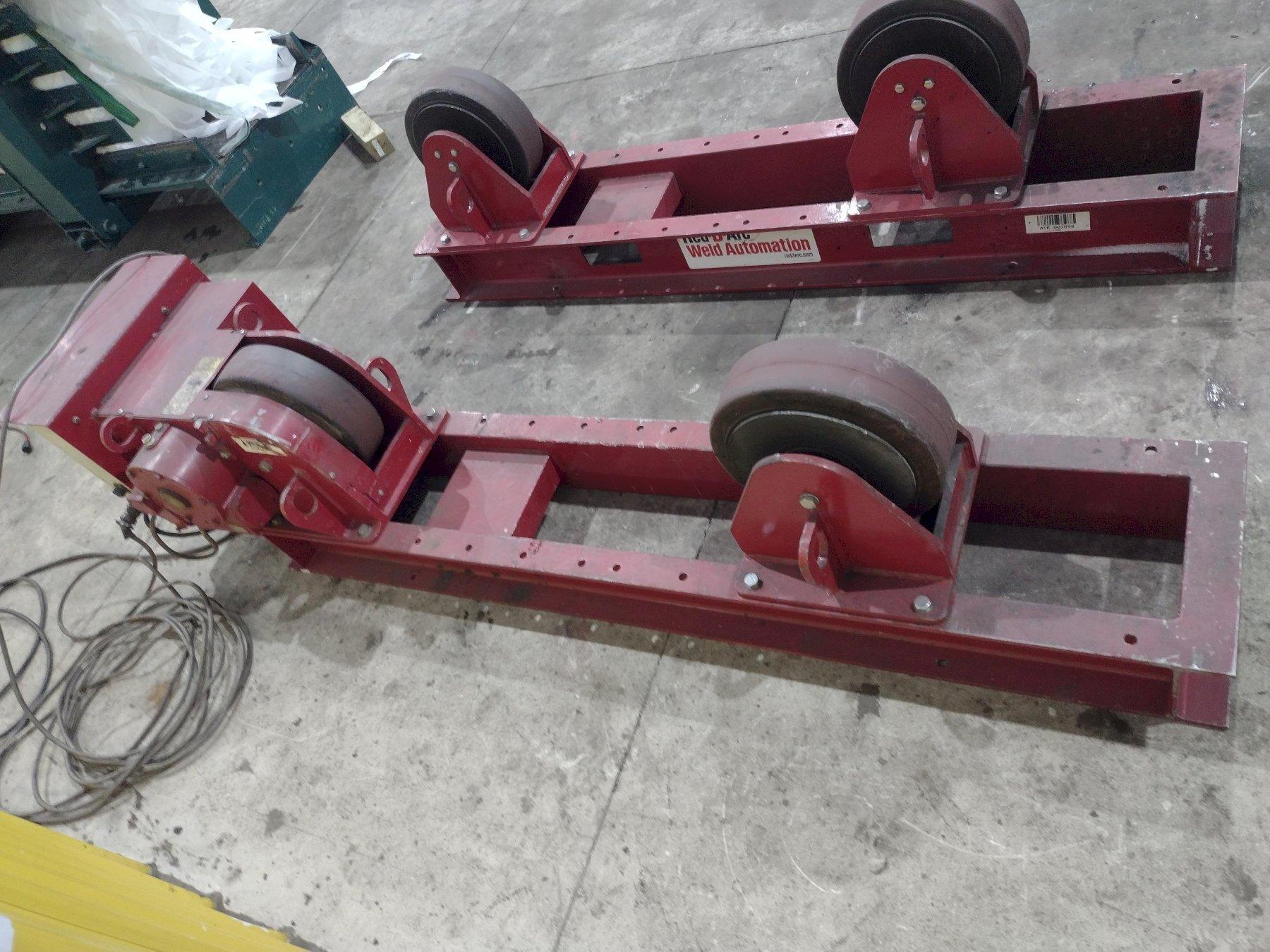

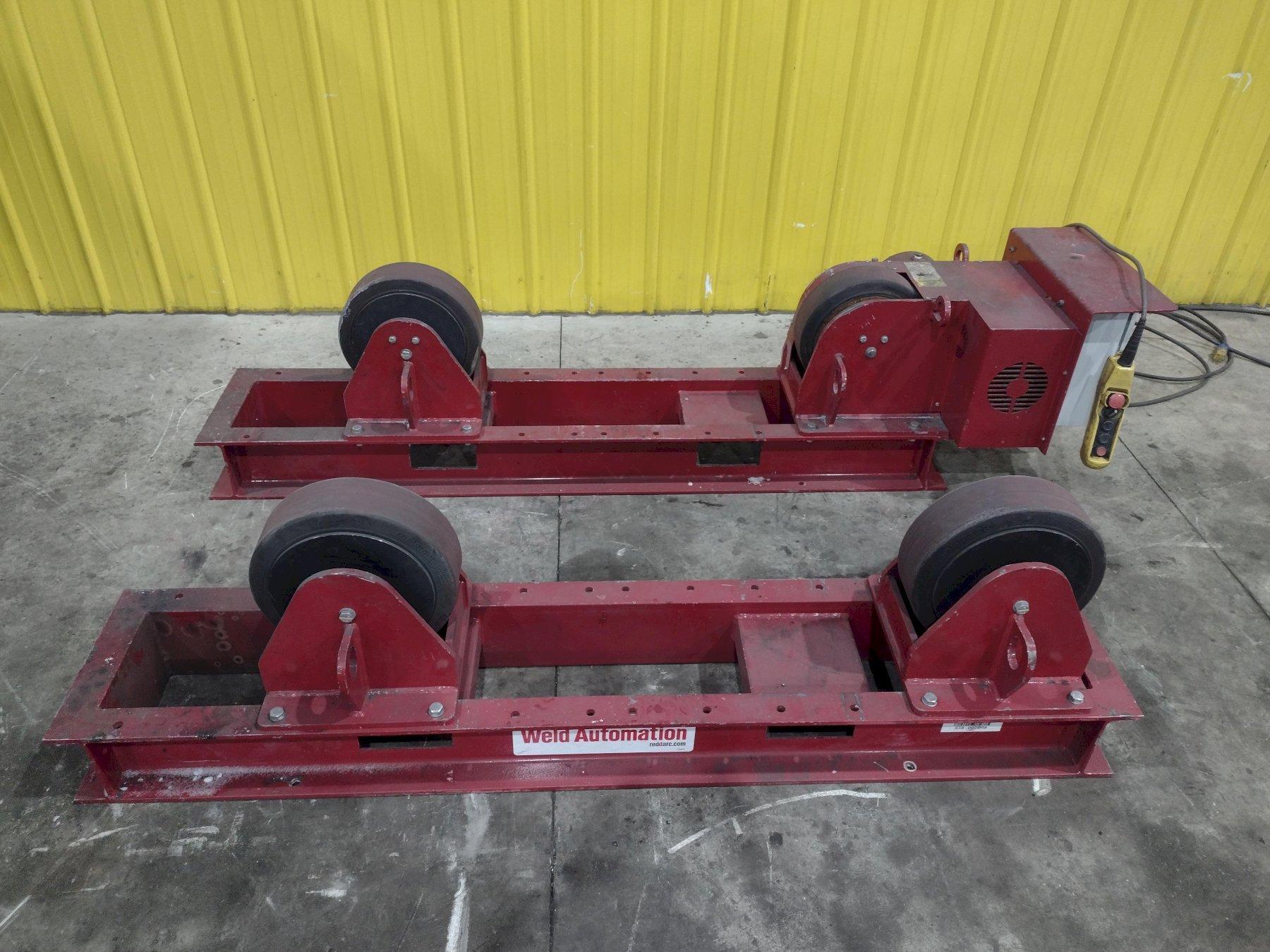

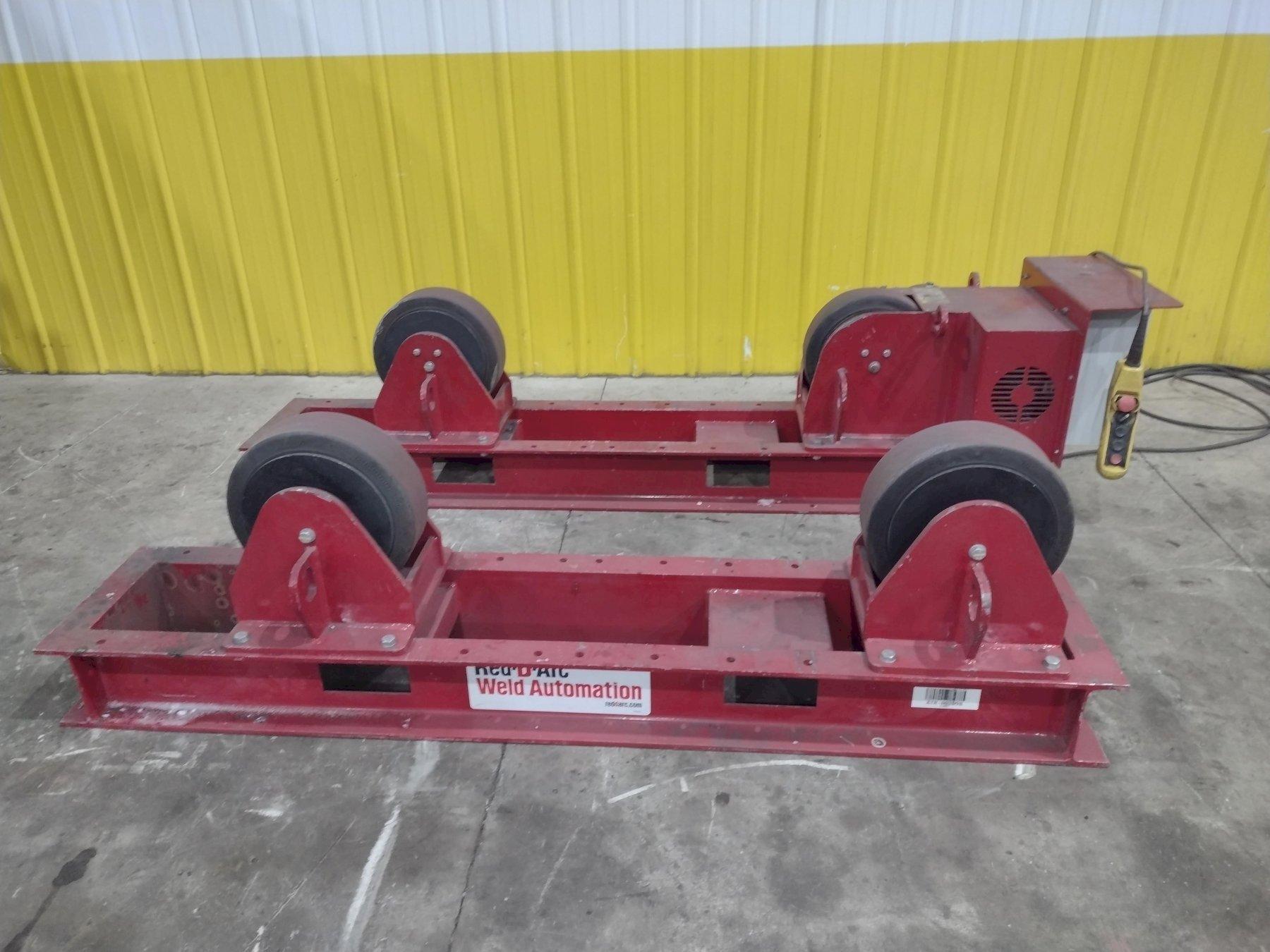

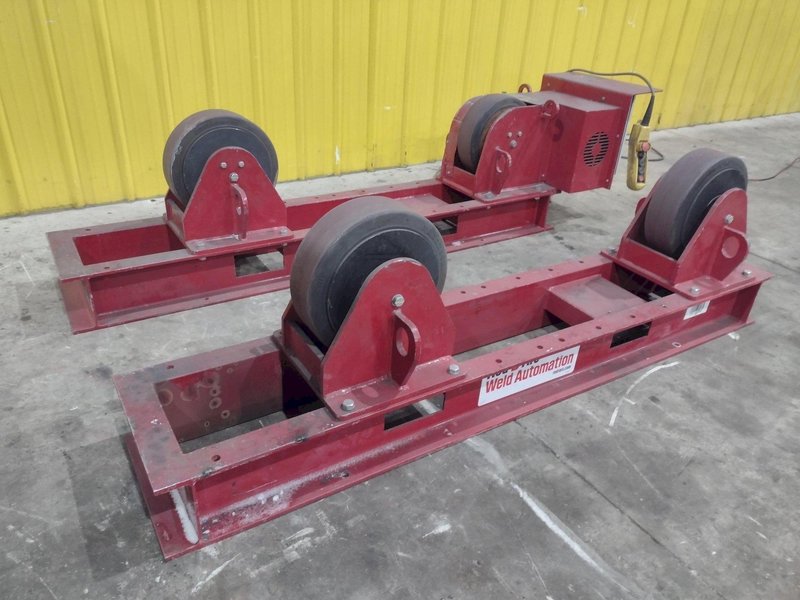

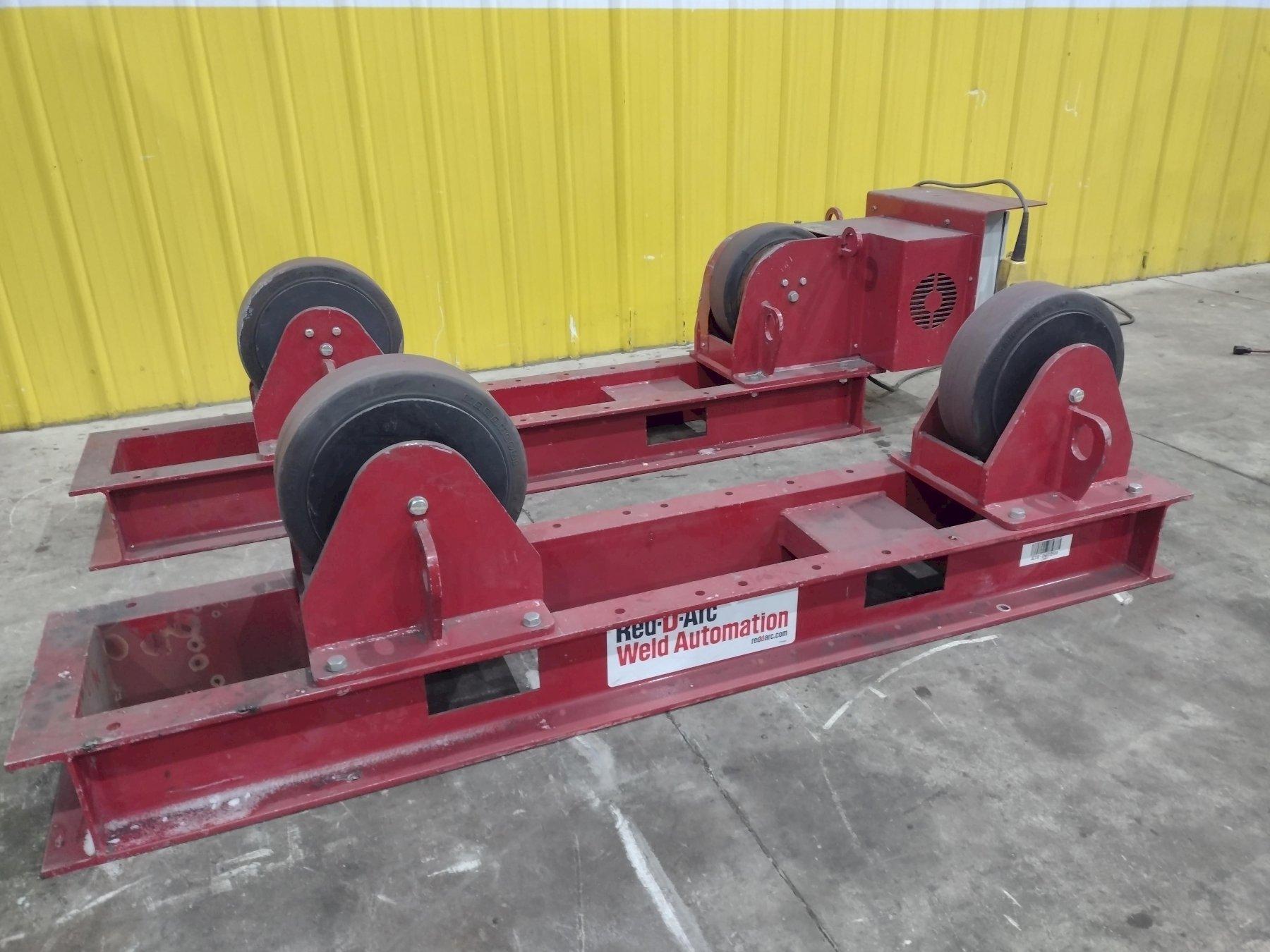

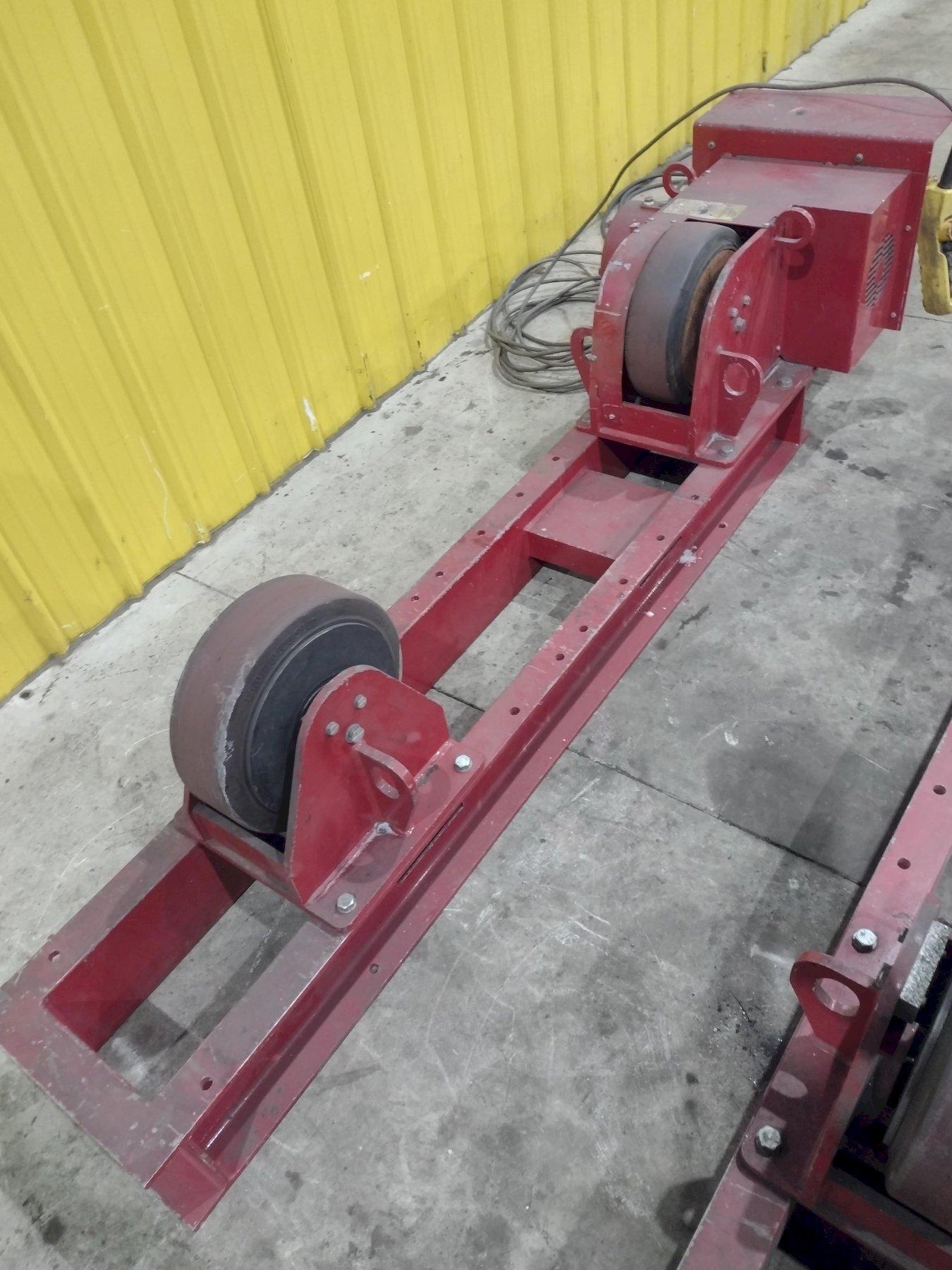

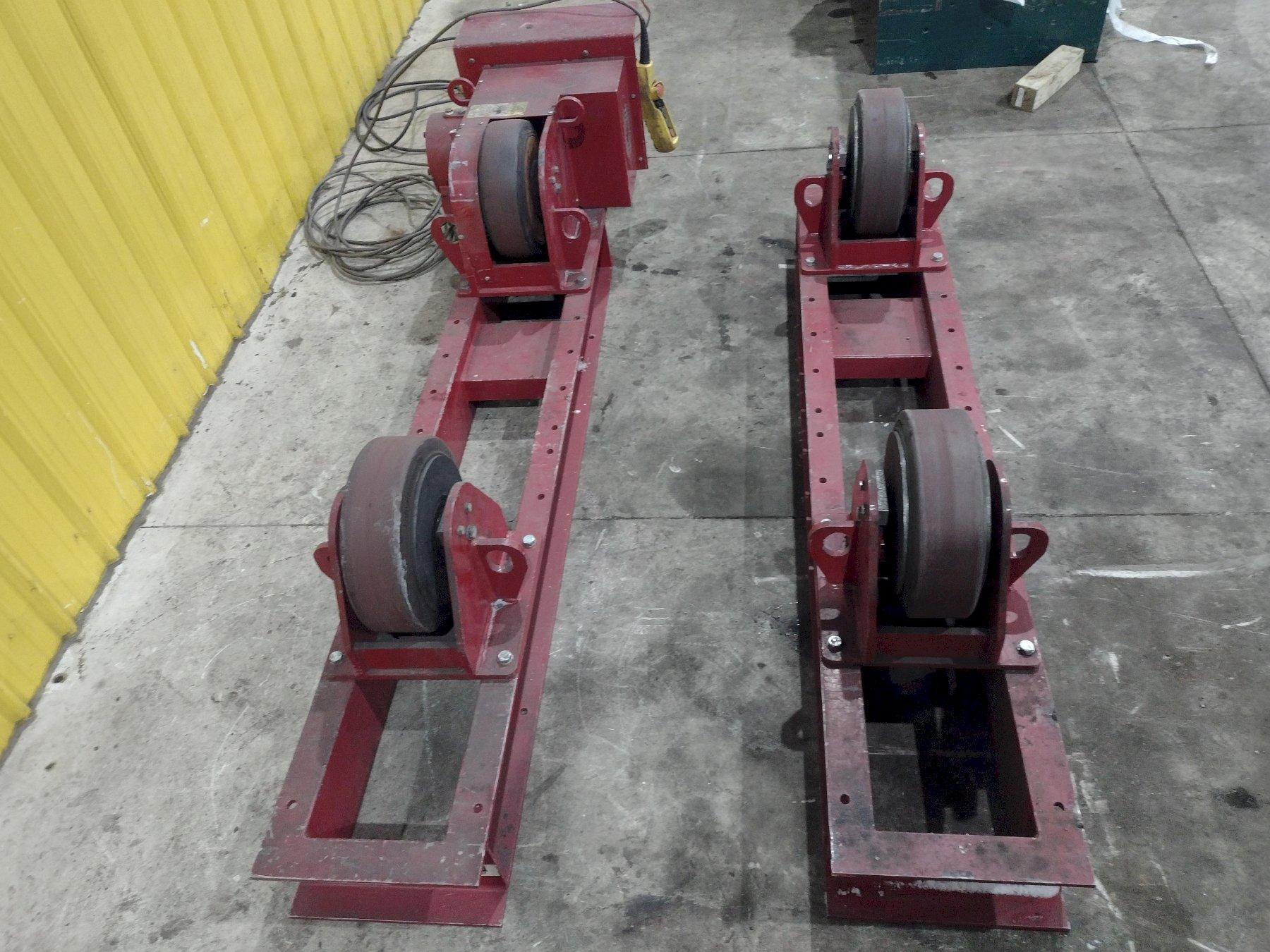

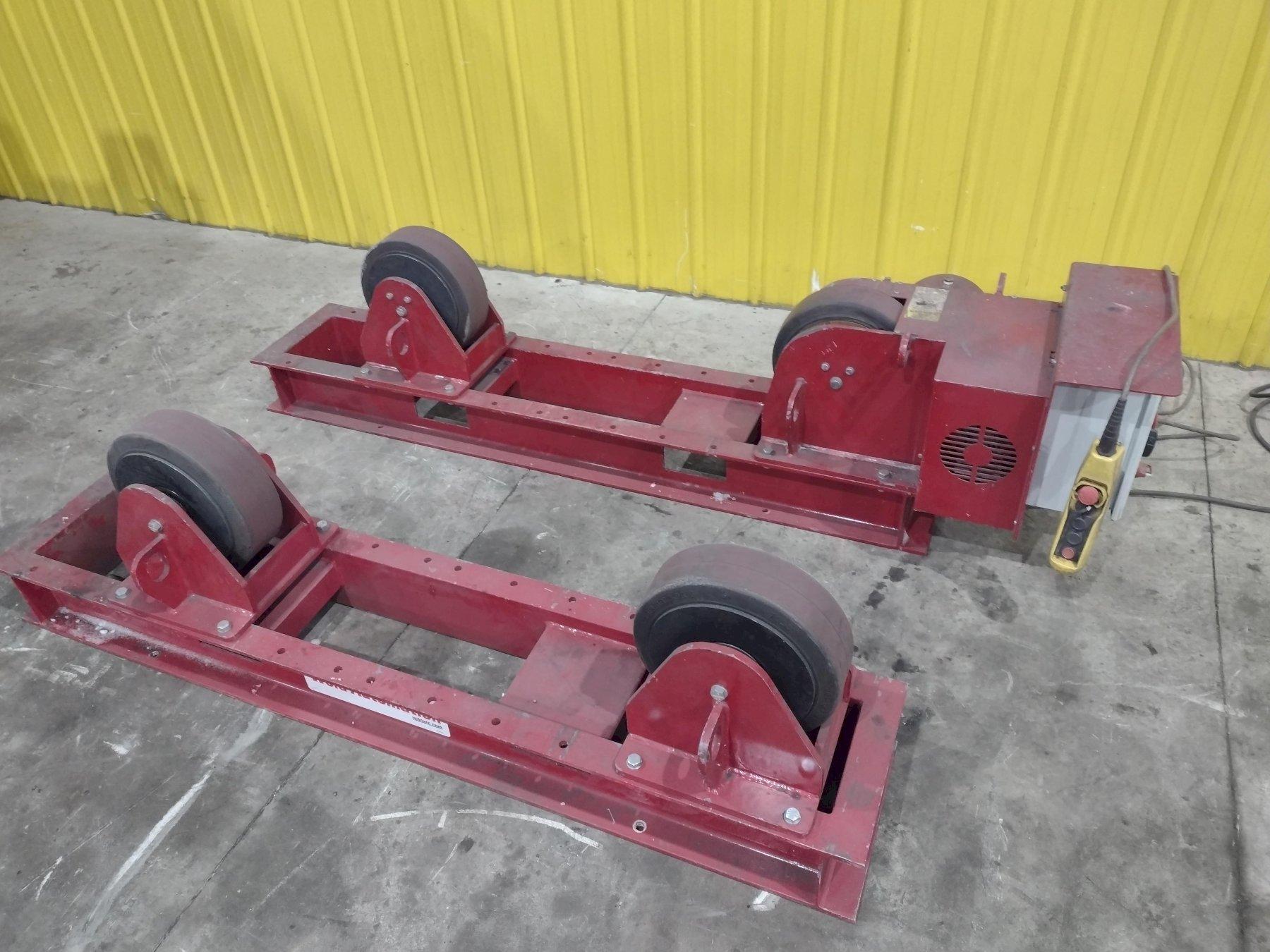

Model	KP-CR5 Conventional Turning Roll Set (Drive & Idler)
Safe Working Load – Drive Unit	2.5 ton (2500 kg) maximum

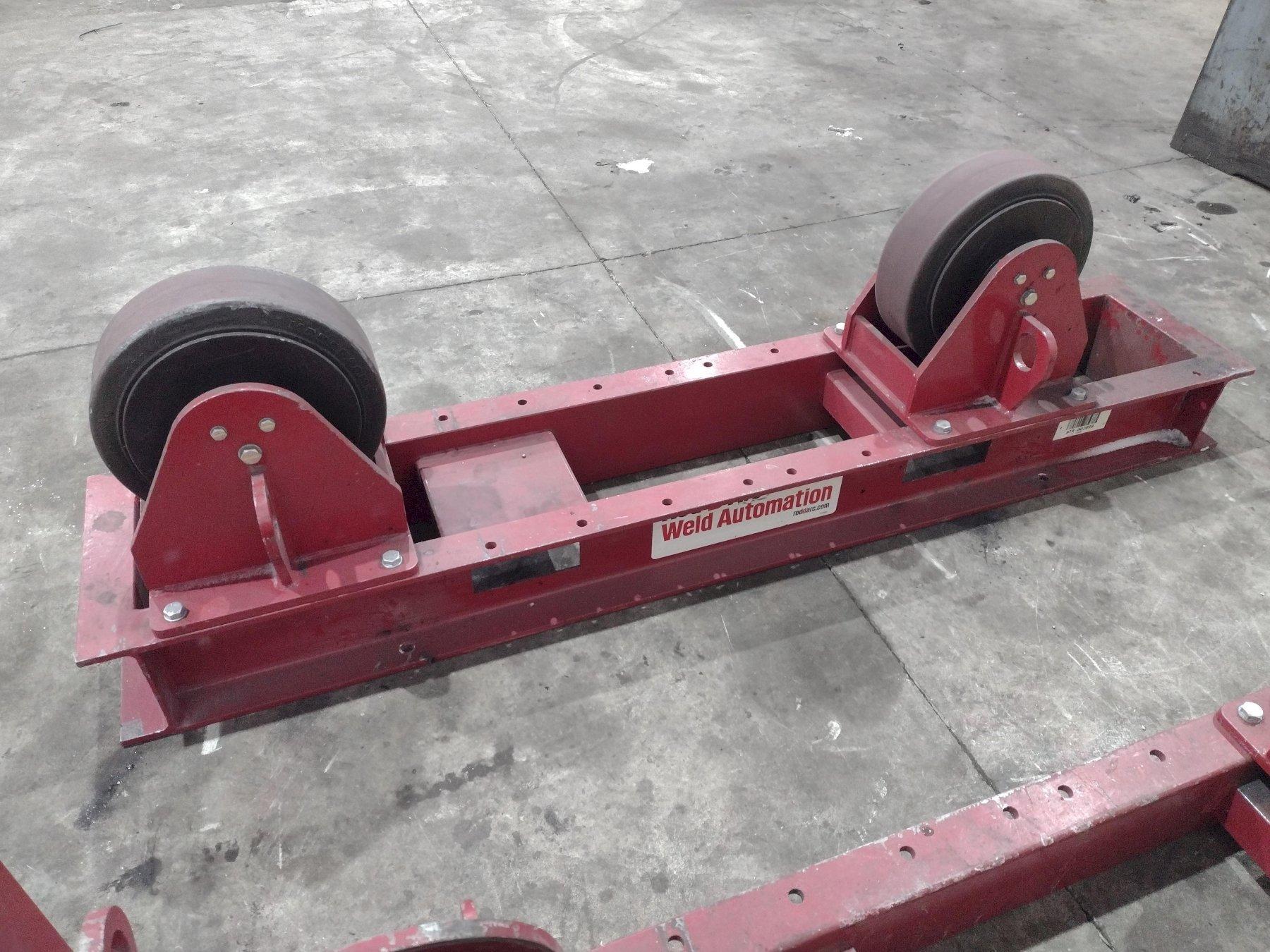

Safe Working Load – Idler Unit	2.5 ton (2500 kg) maximum
Maximum Load Carrying Capacity – Set	5 ton (5000 kg) maximum
Rotation Capacity, Drive Unit	7.5 ton (7500 kg) maximum
Wheel Centre Distance	15.1, 26.9, 38.7, 62.3 in
Vessel Diameter Capacity	7.8 in to 137.7 in
Rotation Speed Range	5.5 to 59 in/min

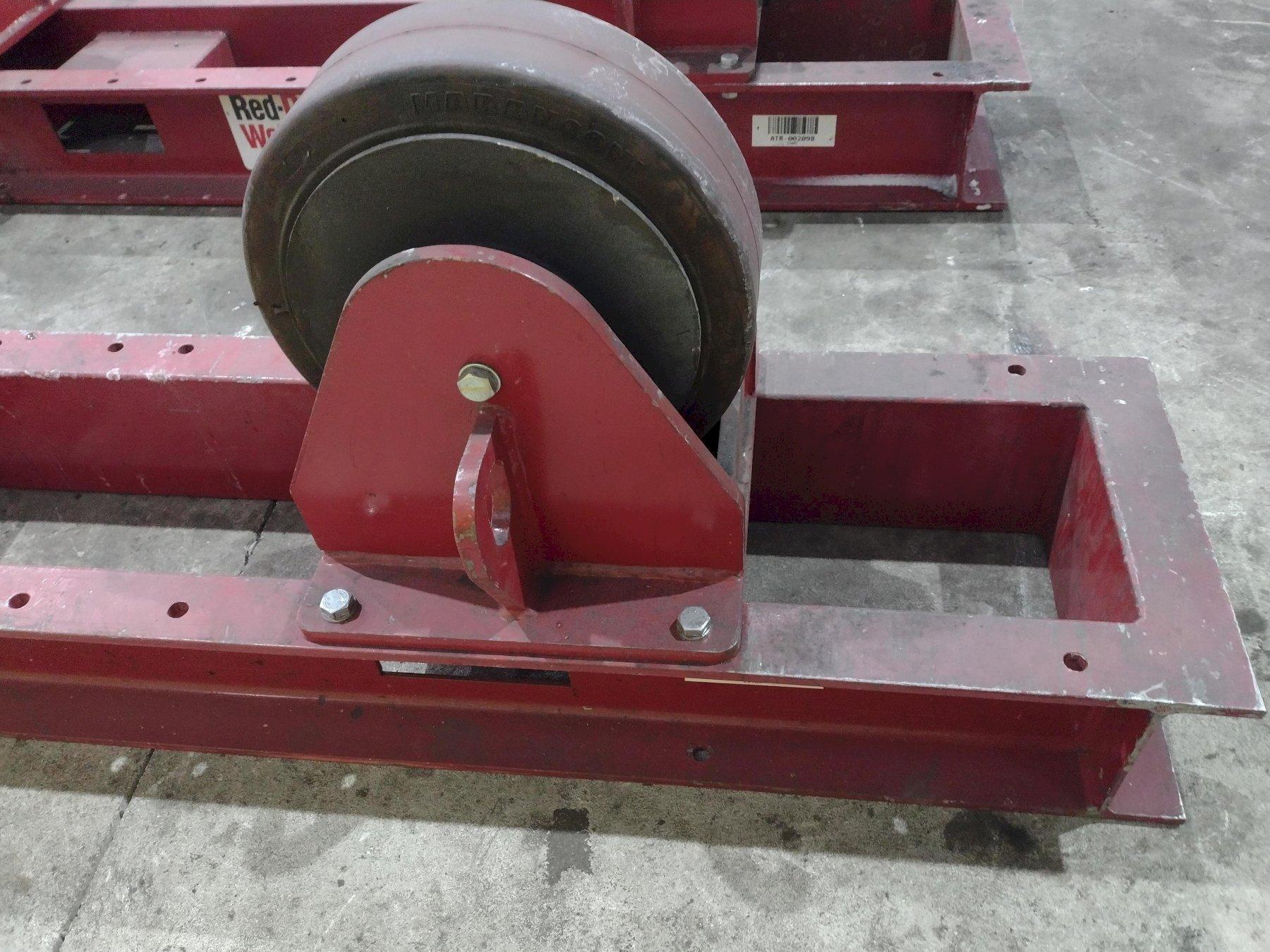

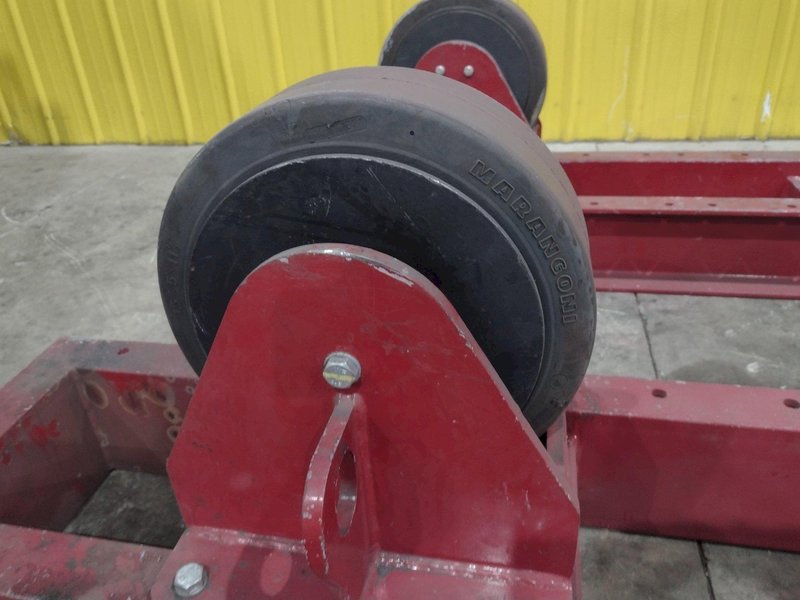

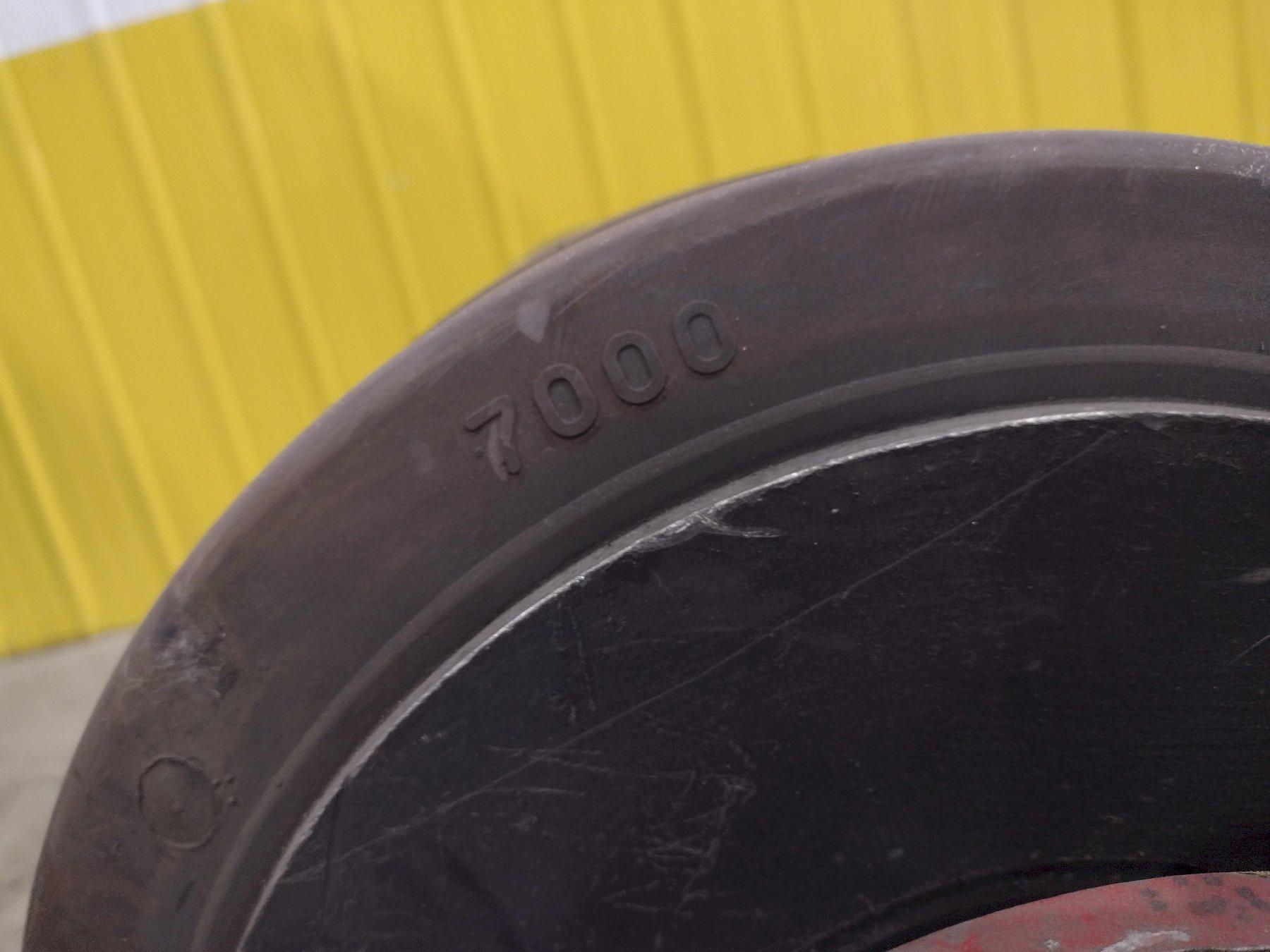

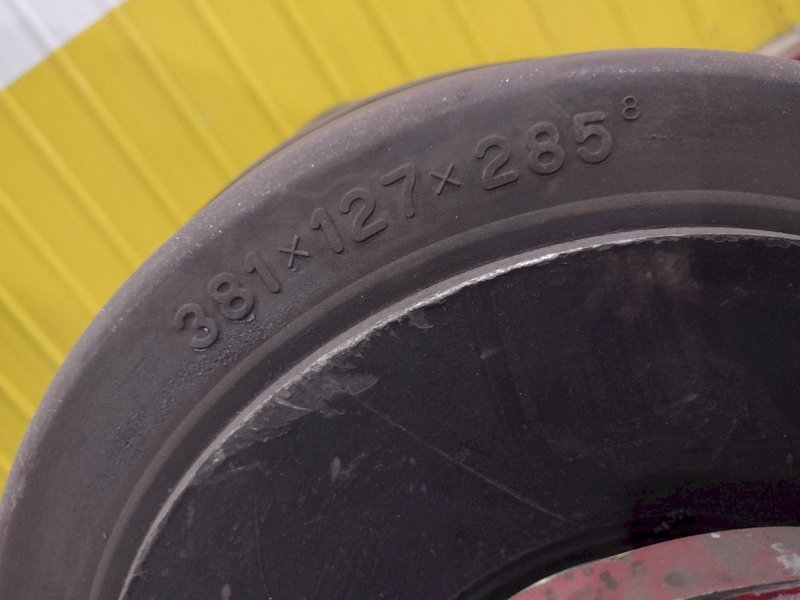

Tyre Type	Rubber, 85A durometer shore rating

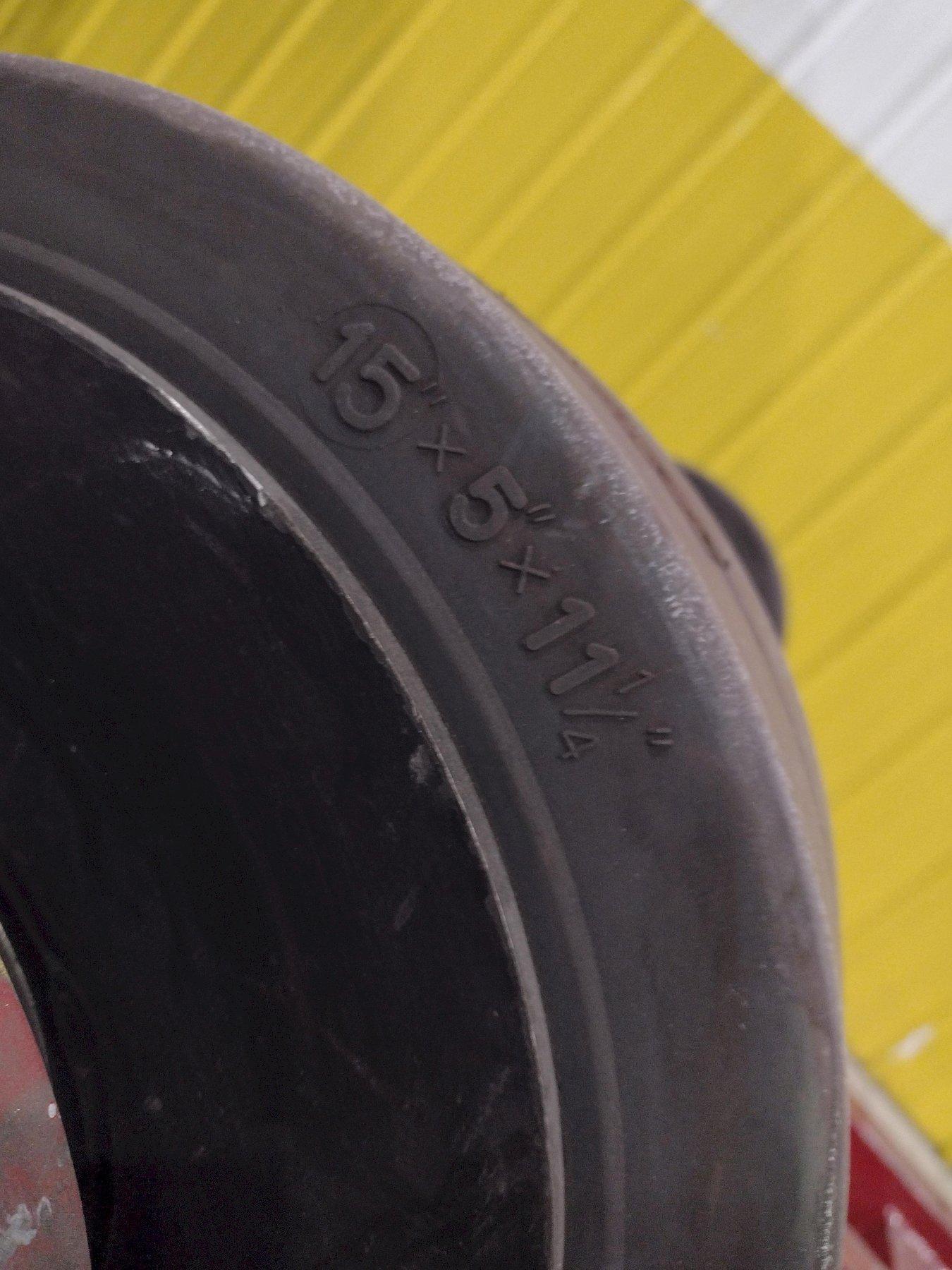

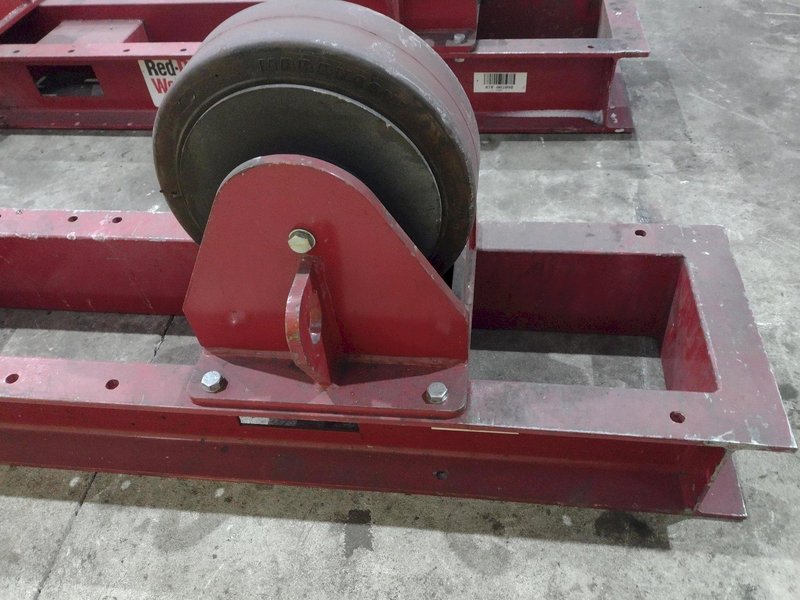

Wheel Size	15 in diameter x 3 in wide
Overall Height to Top of Tyre	24.4in

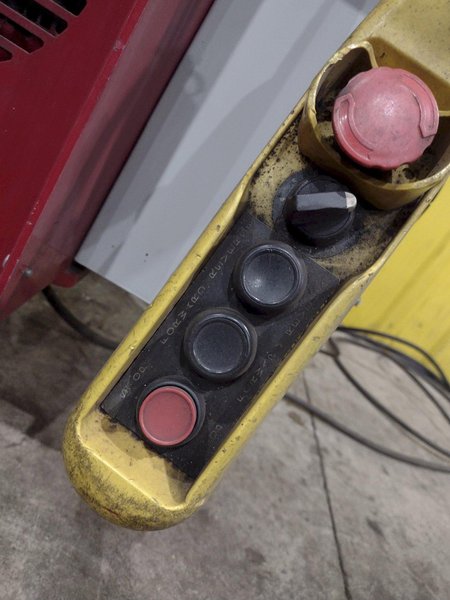

Five Function Hand Control	Push Button Pendant, 50 ft control cable (forward/stop/reverse/speed control/emergency stop)

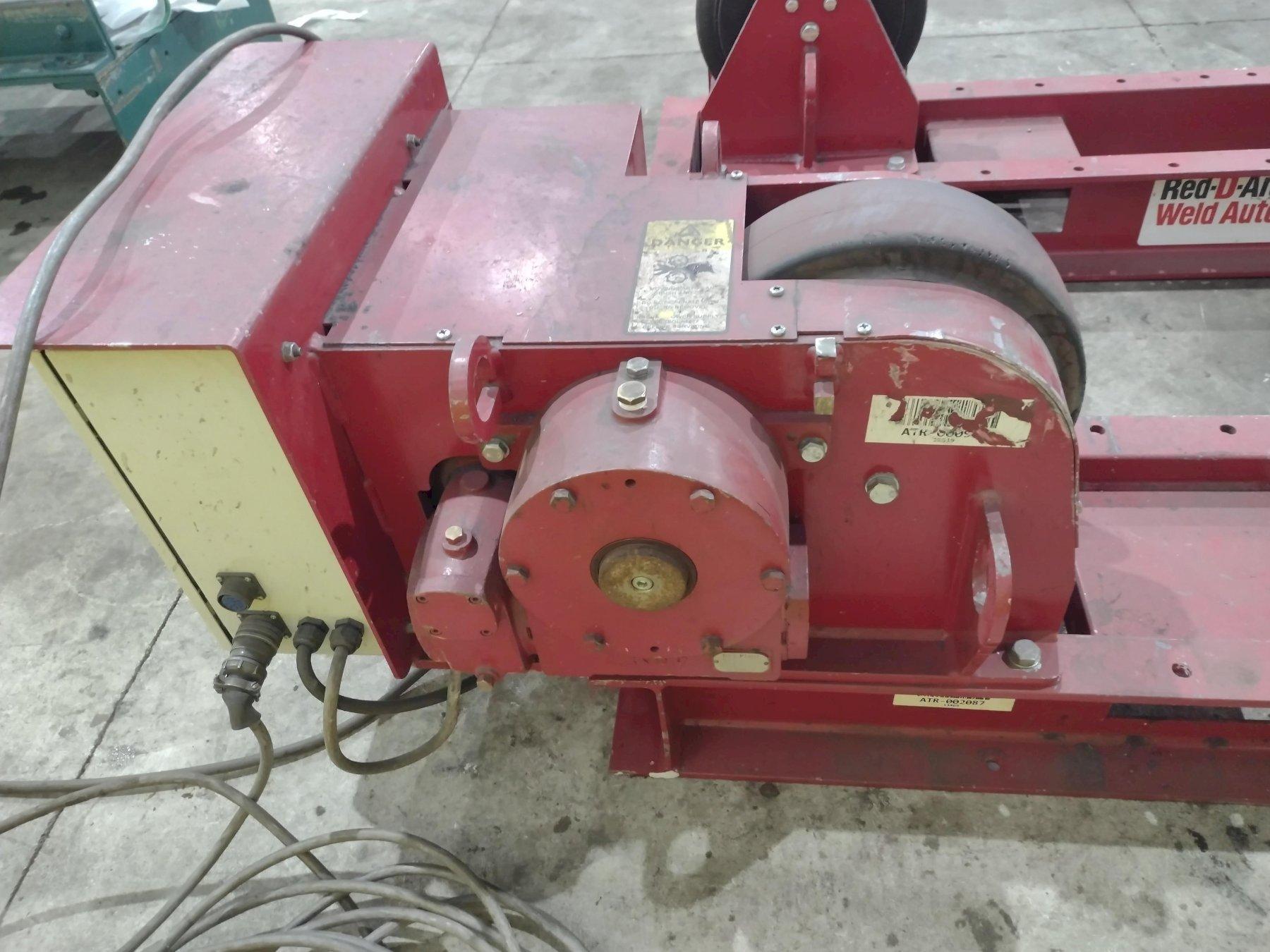

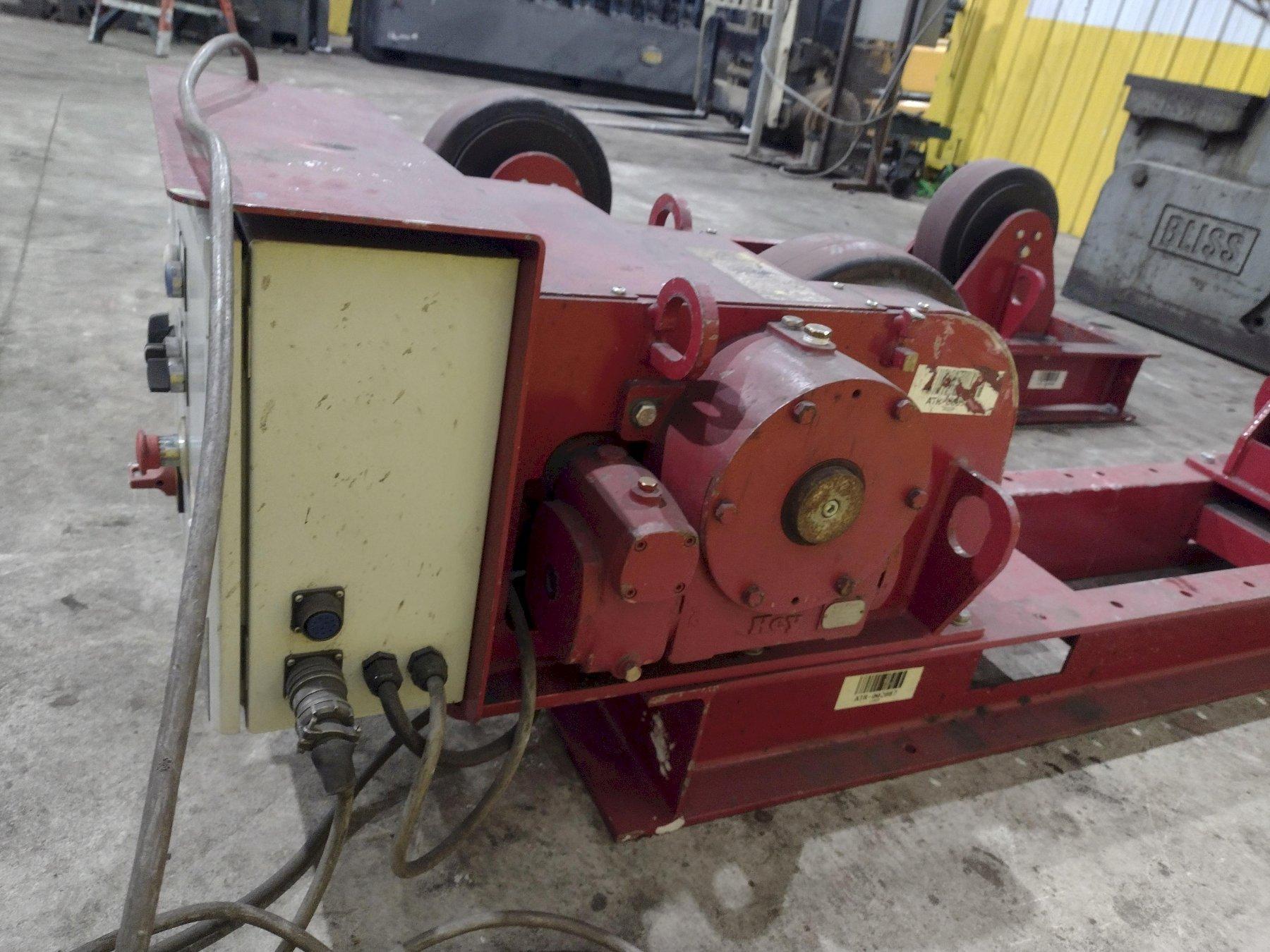

Rotation Drive Motor	1 x 0.55kW with fan cooling

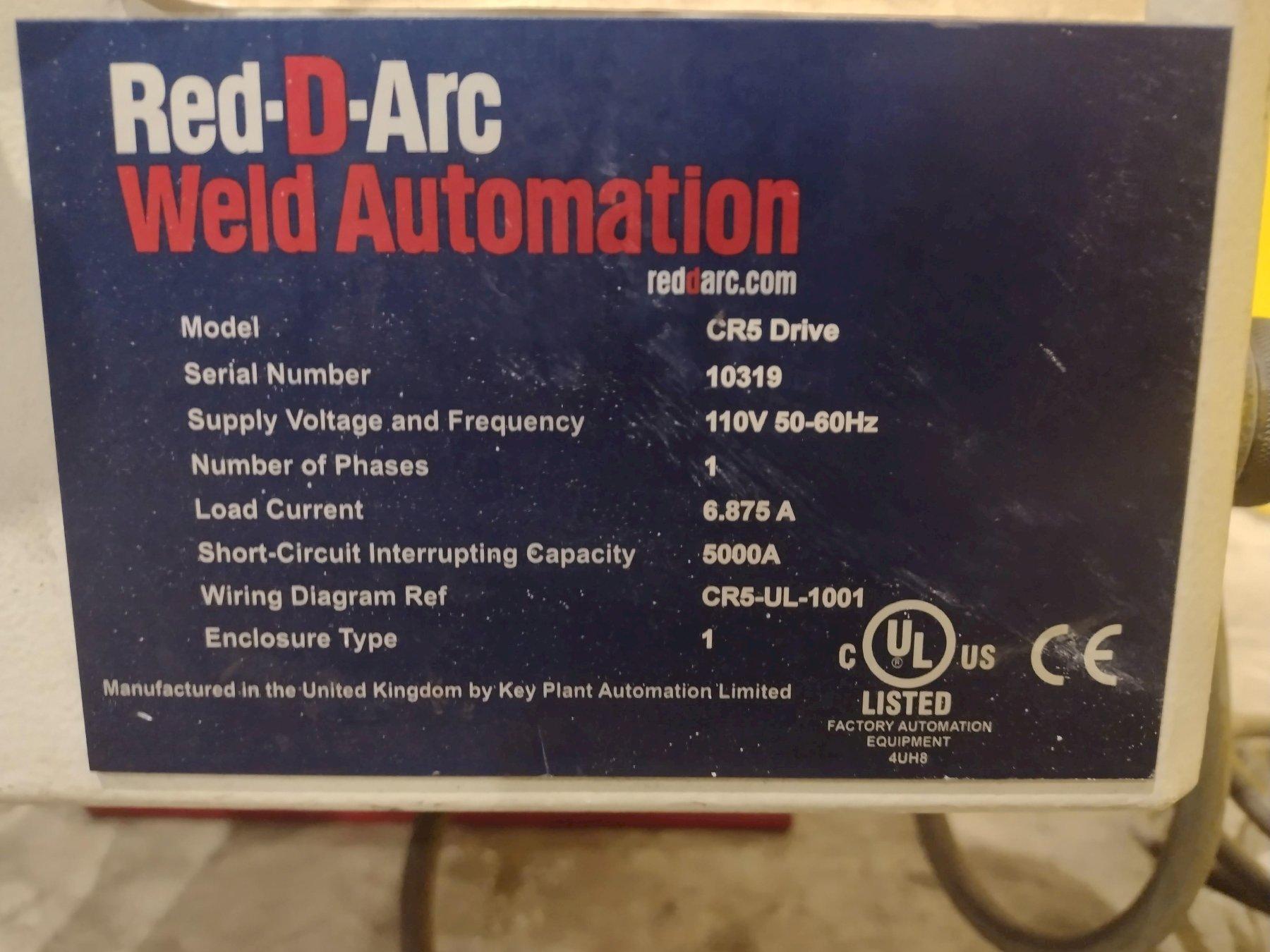

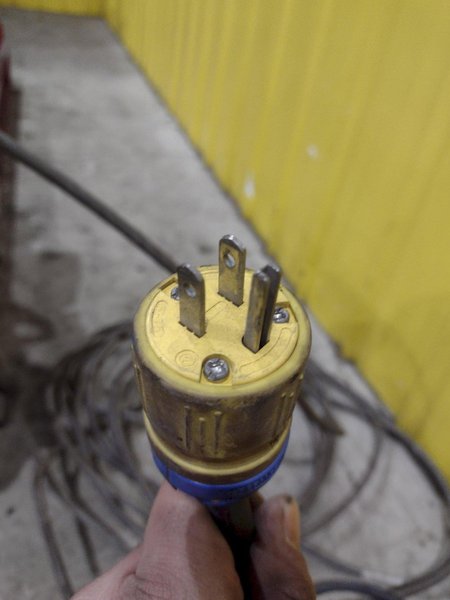

Primary Input Power	110 V, 1 phase, 60 Hz
Input Current at Rated Load	6.8 A
Overall Length & Width – Drive Unit	84.6 in x 24 in

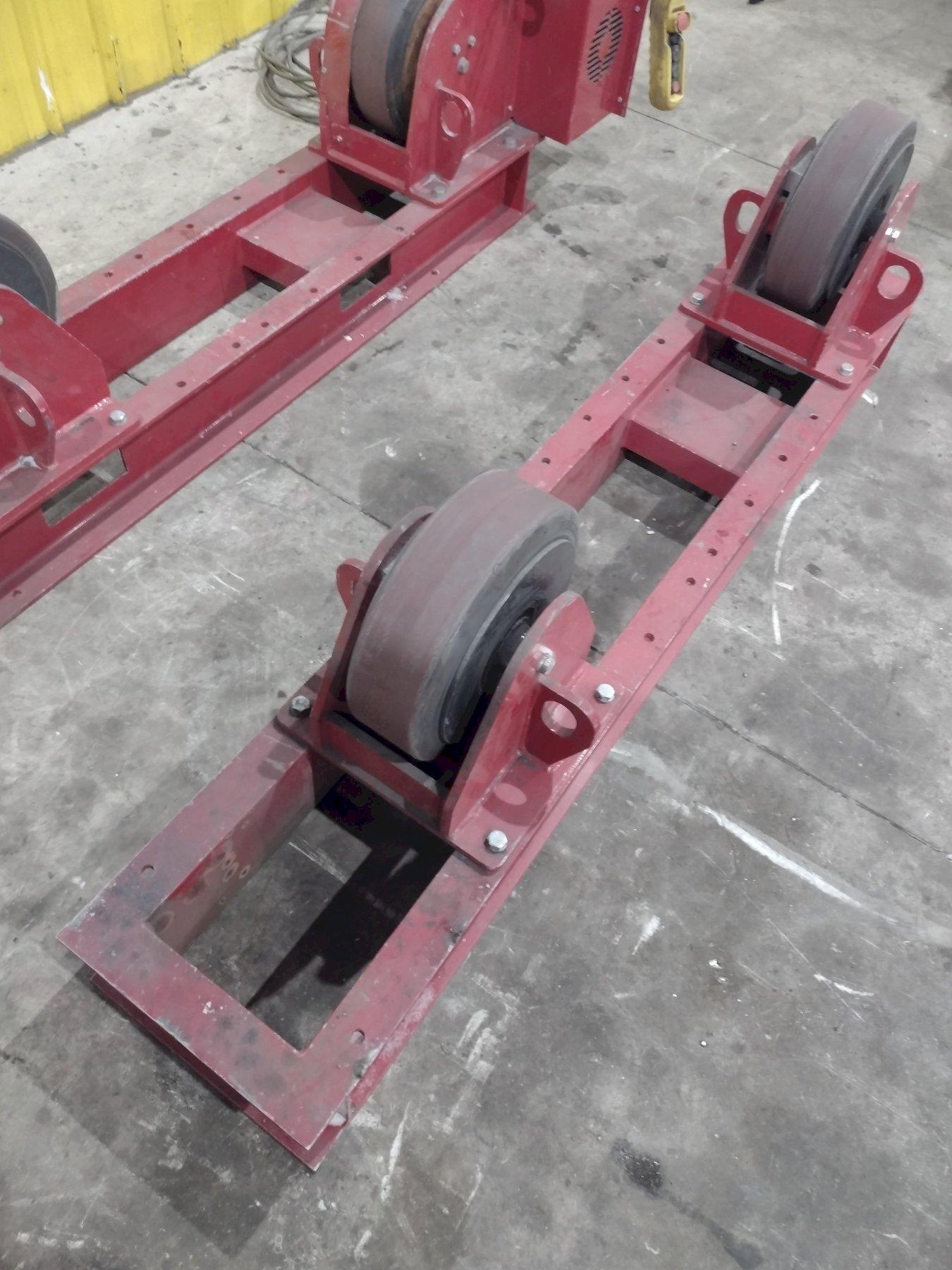

Overall Length & Width – Idler Unit	84.6 in x 16.1 in
Weight – Drive Unit	1091 lb
Weight – Idler Unit	673 lb

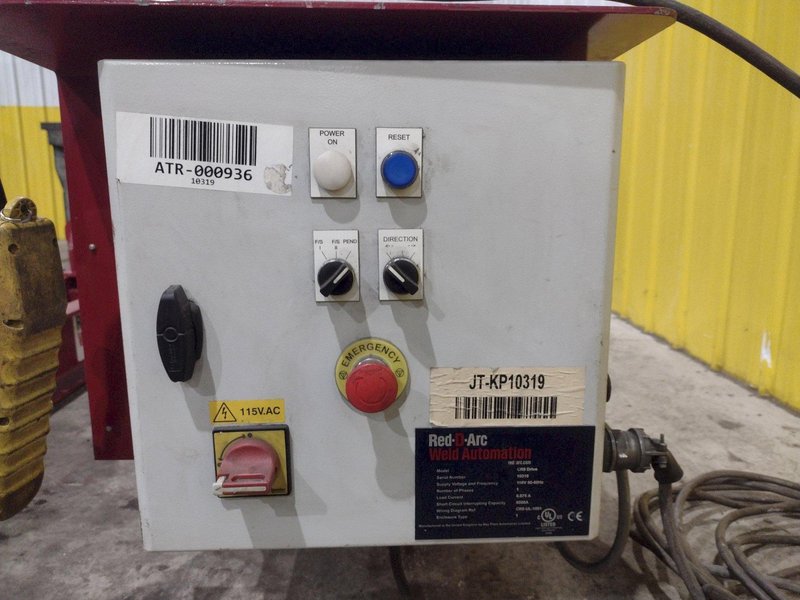

Ingress Protection	IP65 Control Box Rating
Electrical Certification	UL508 Certified Control Box
Loading Certification	UL2011 Certified Safe Working Load
