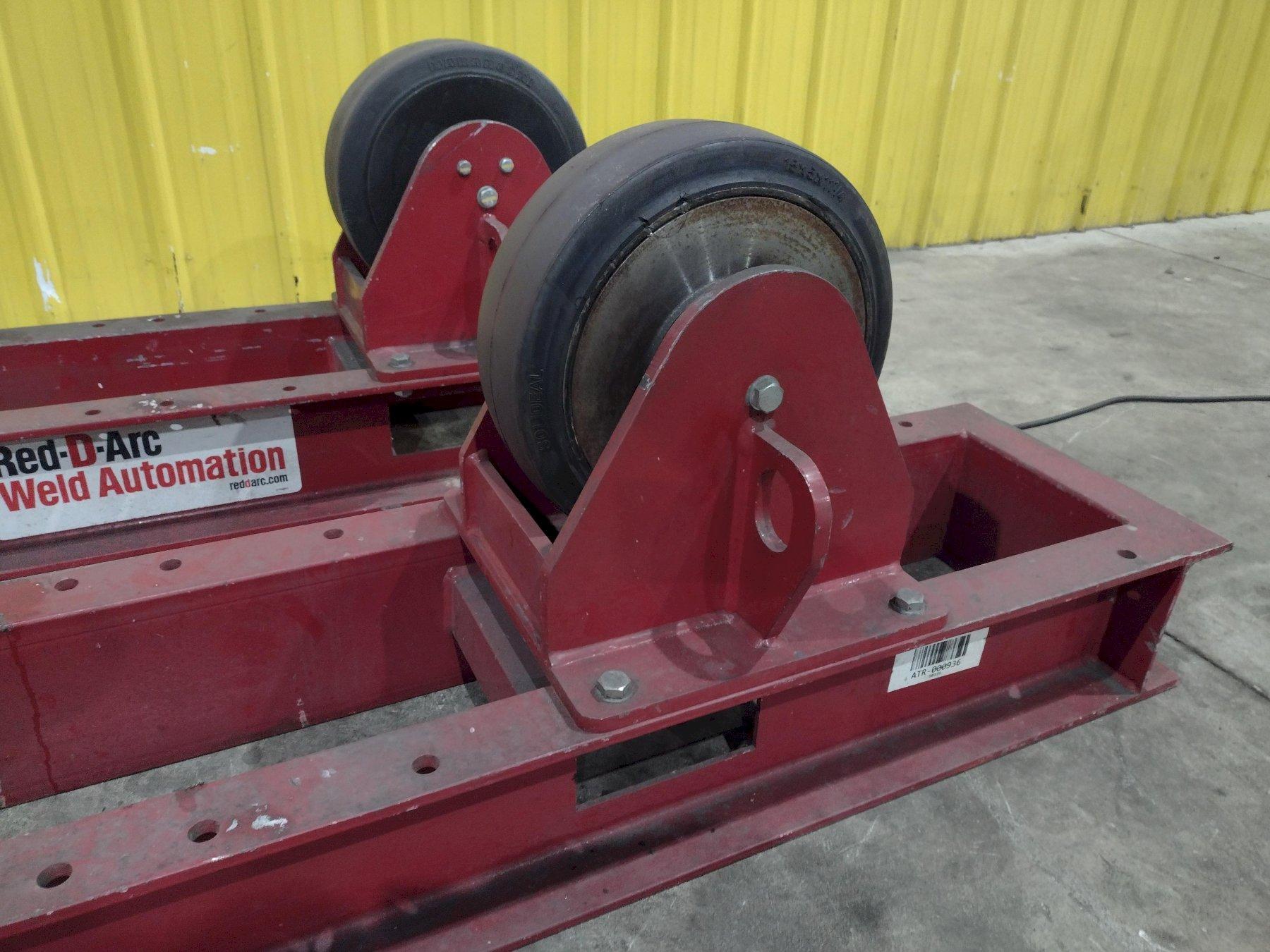

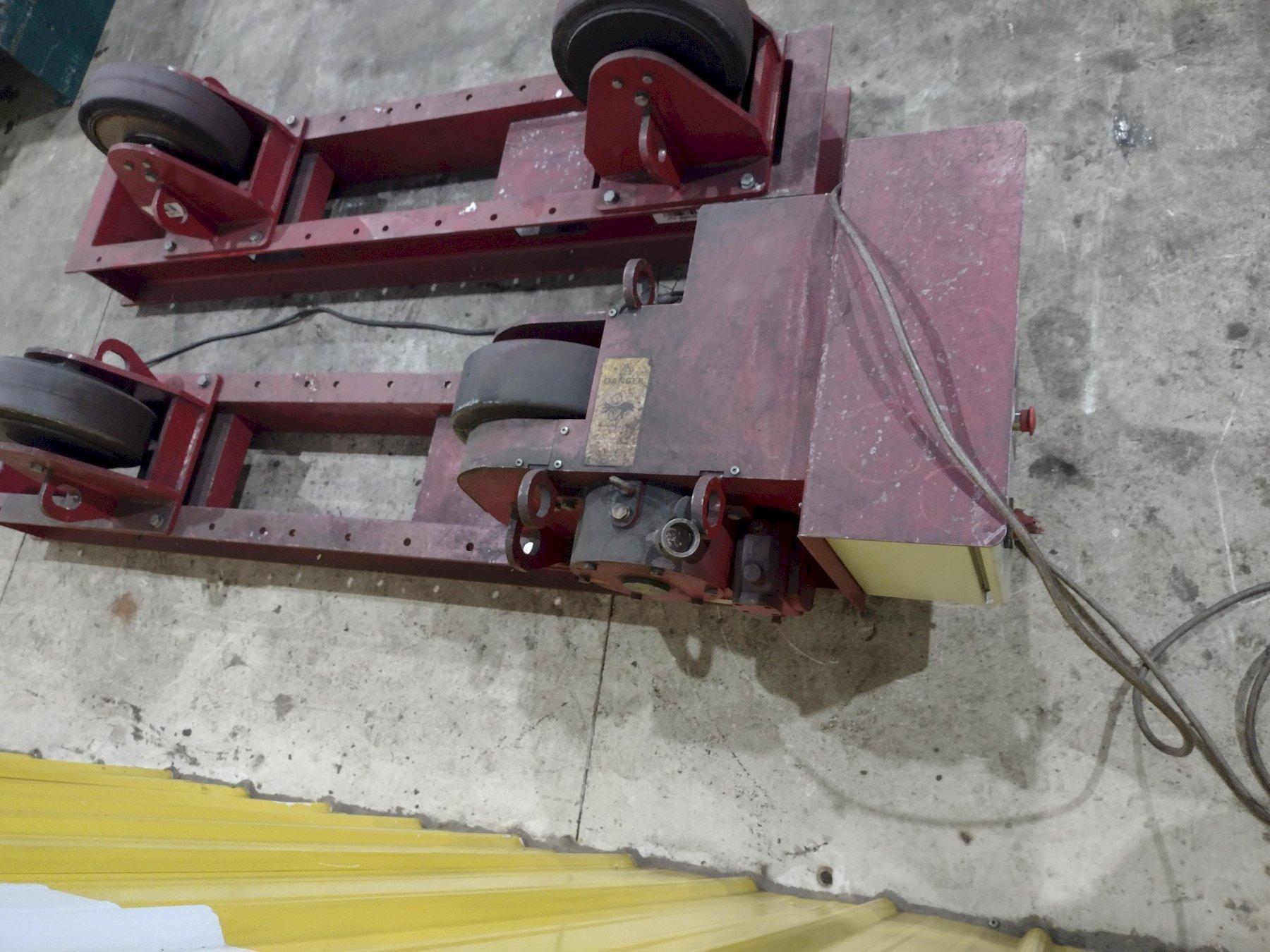

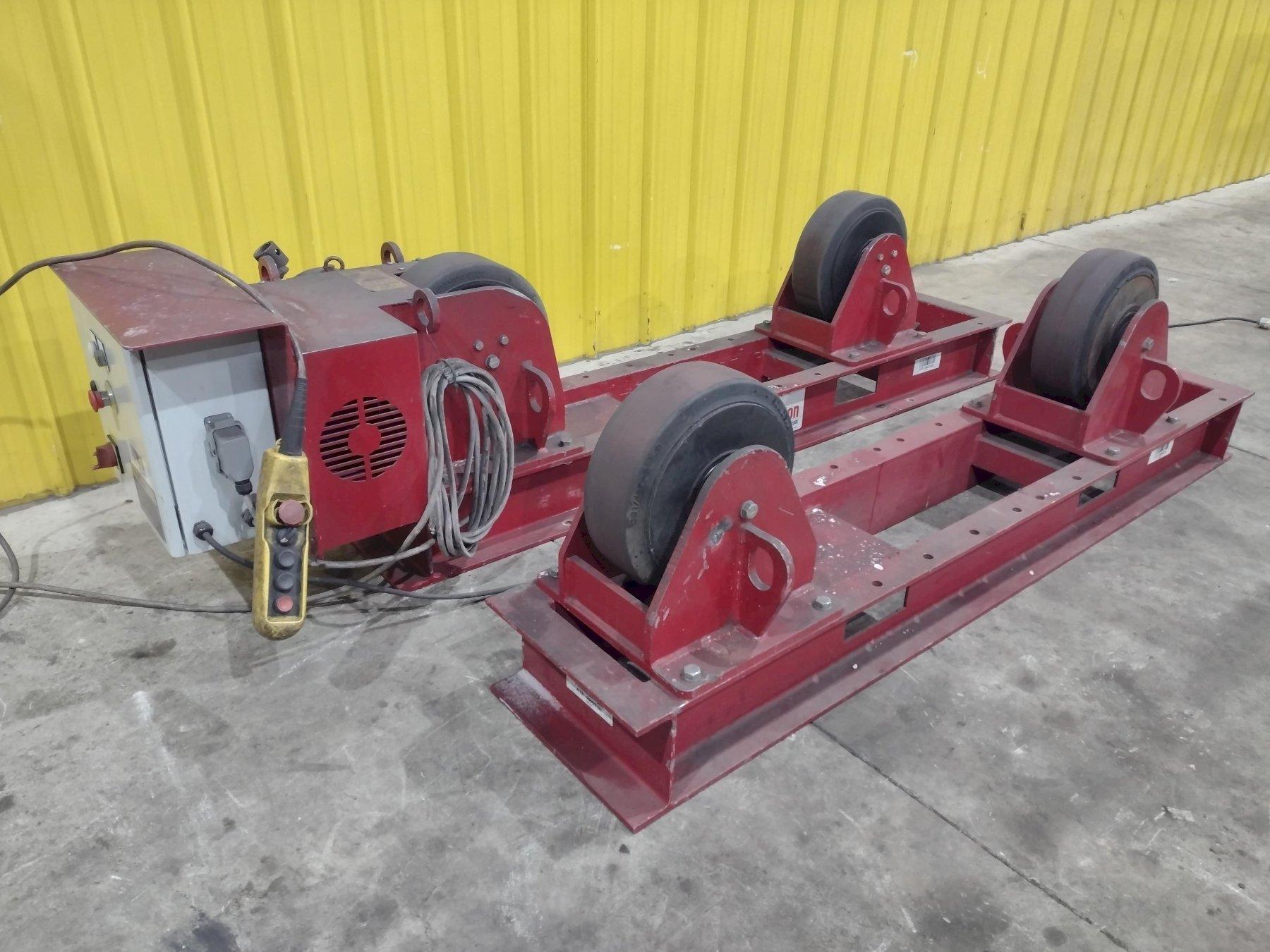

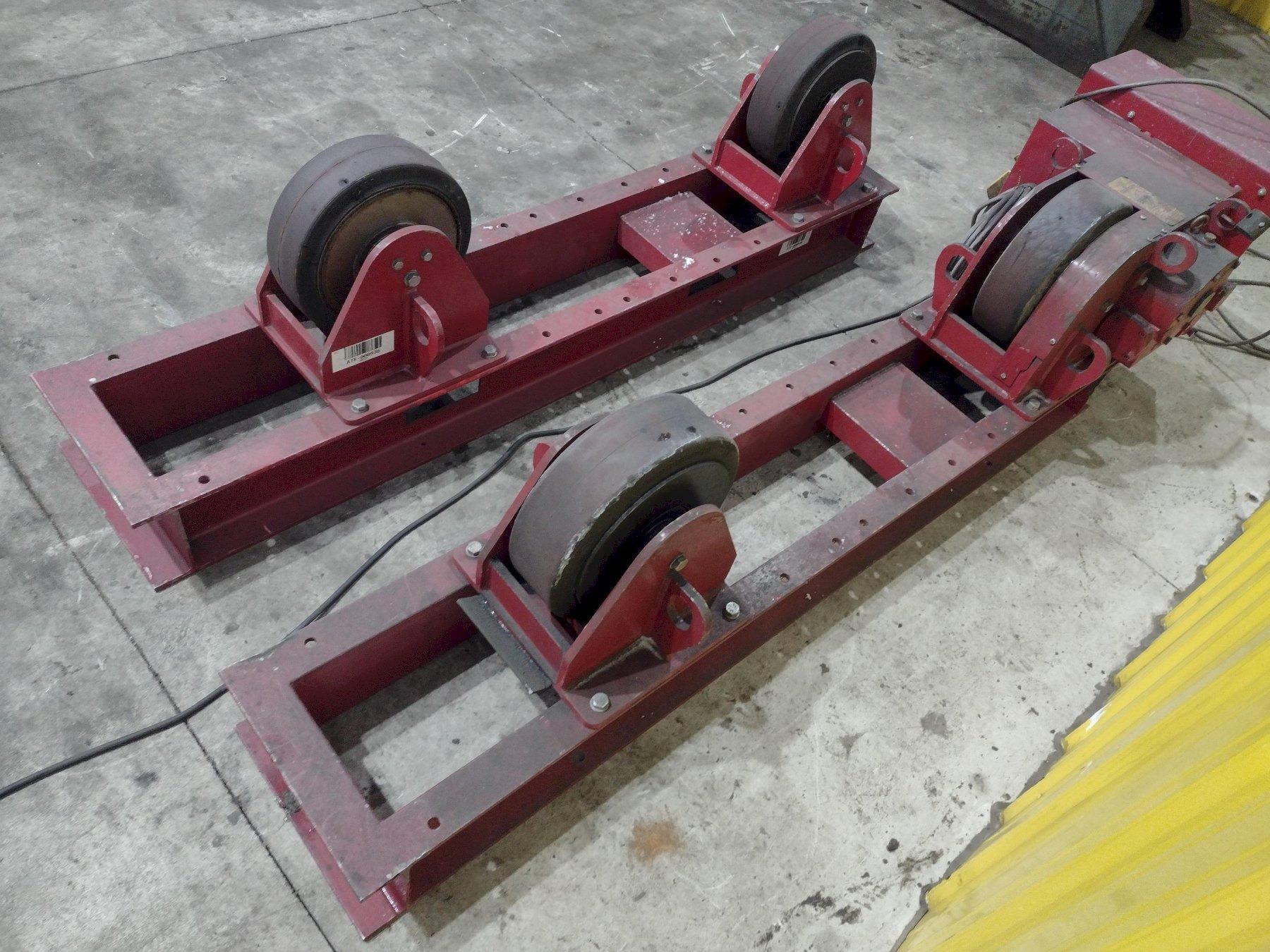

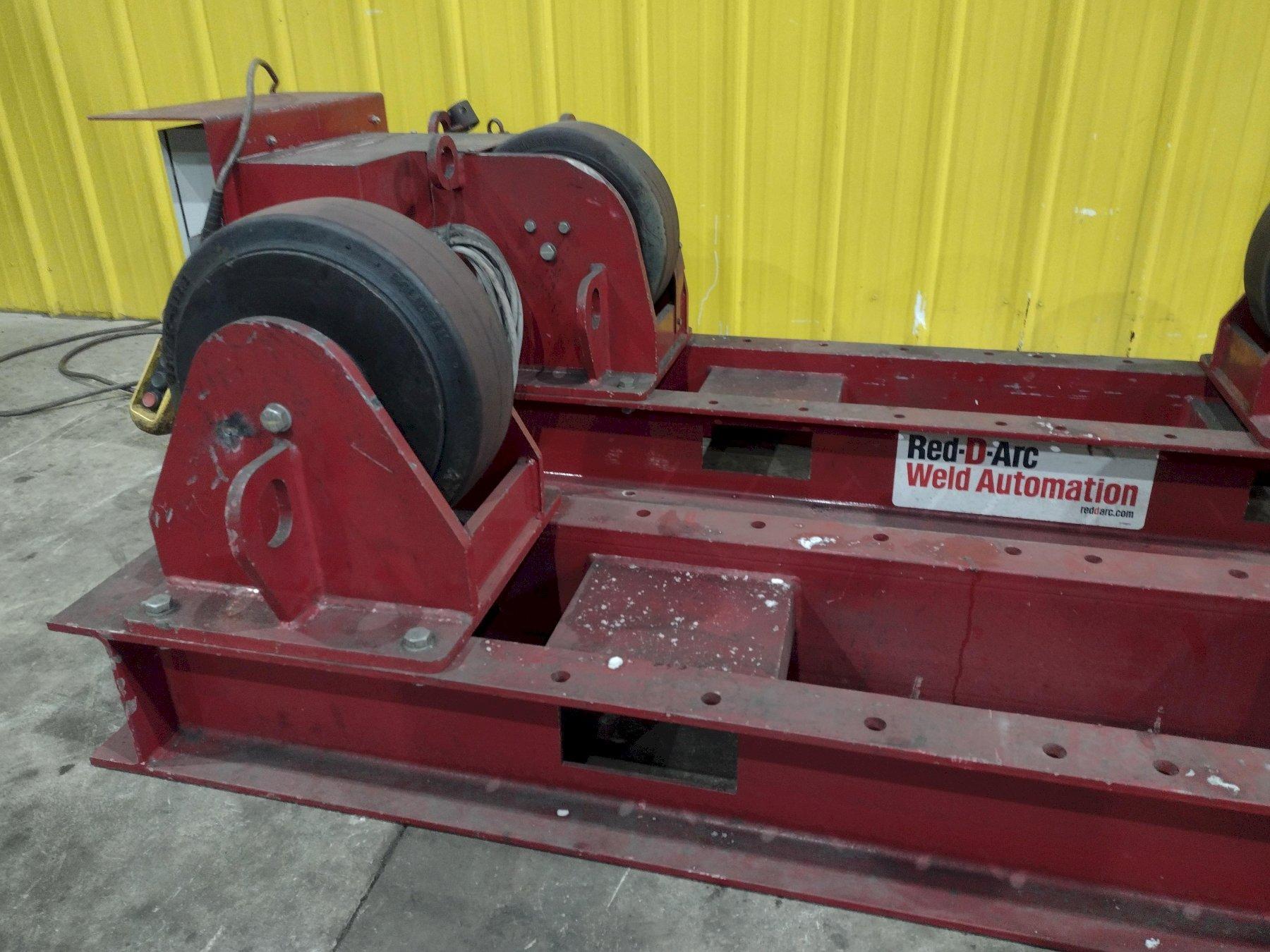

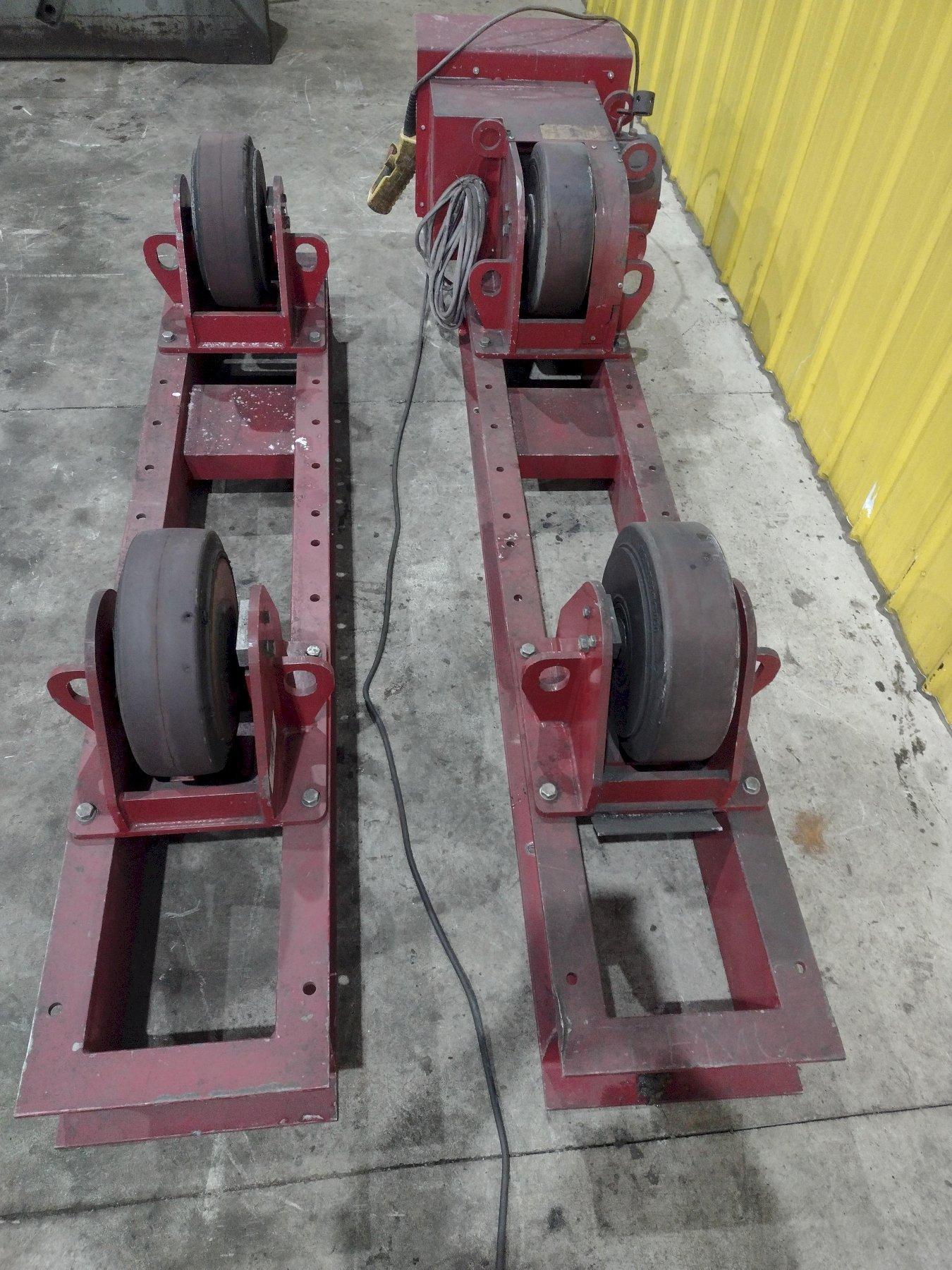

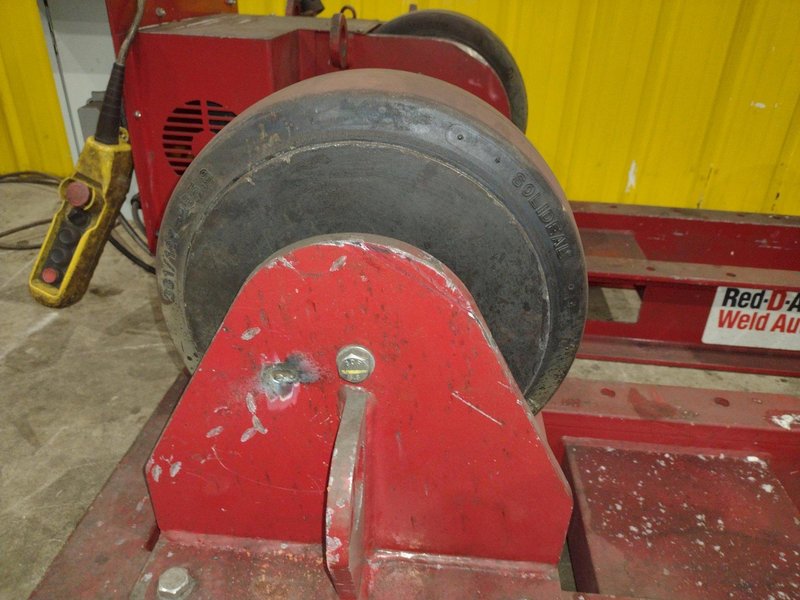

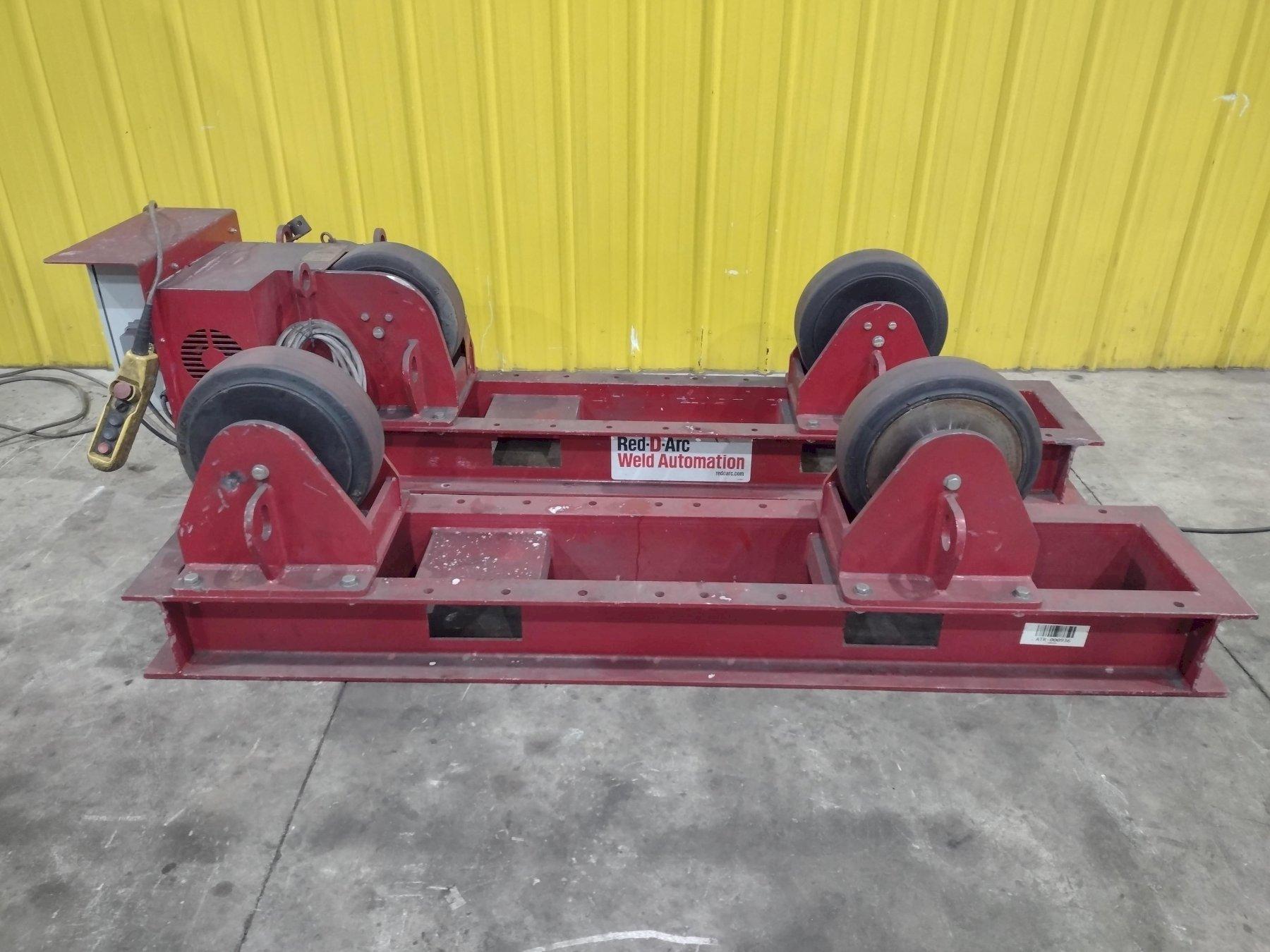

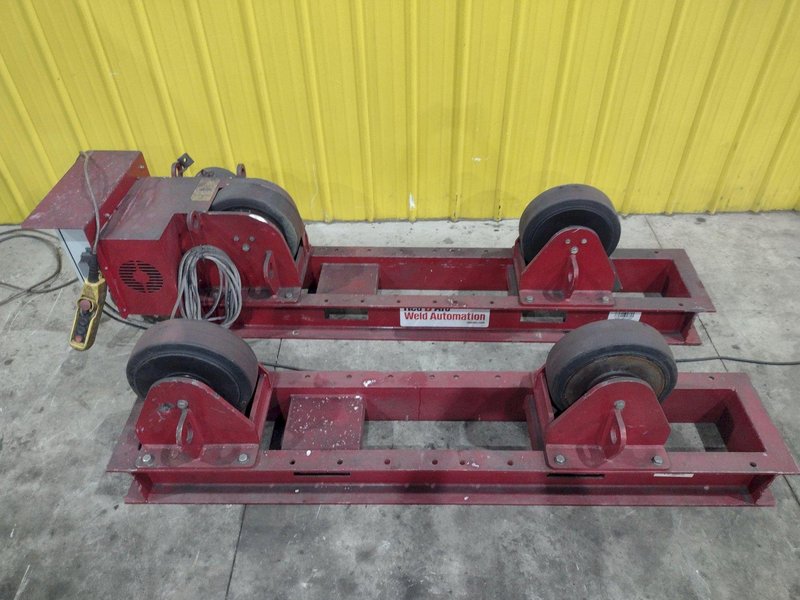

10,000 LB 5 TON RED-D-ARC MODEL #CR5 TANK TURNING ROLLS, POWER & IDLER 110V POWER : YOBRO #24747

10,000 LB 5 TON RED-D-ARC MODEL #CR5 TANK TURNING ROLLS, POWER & IDLER 110V POWER : YOBRO #24747

Name: 10,000 LB 5 TON RED-D-ARC MODEL #CR5 TANK TURNING ROLLS, POWER & IDLER 110V POWER : YOBRO #24747
Brand: RED-D-ARC
SKU: 24747
Price: 8950.00 USD
Availability: InStock

Brand

RED-D-ARC

Location

Ohio

Price

$8,950.00

REQUEST FINANCING

Specifications
Files & Videos

Features

5 Ton Drive/Idler Roll Set Load-Carrying Capacity
7.5 Ton Drive Roll Load-Turning Capacity
8" to 137" Vessel Diameter Capacity

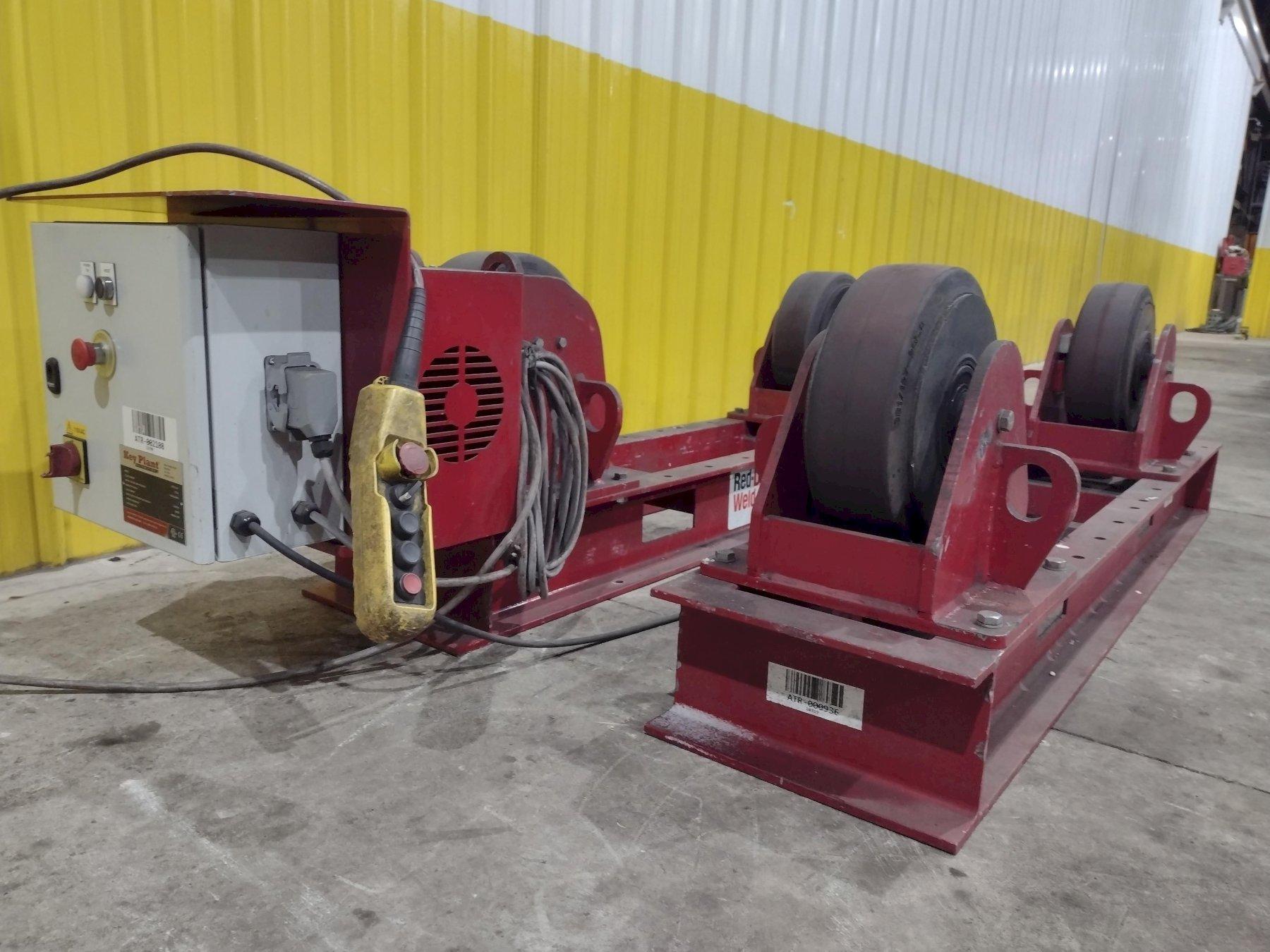

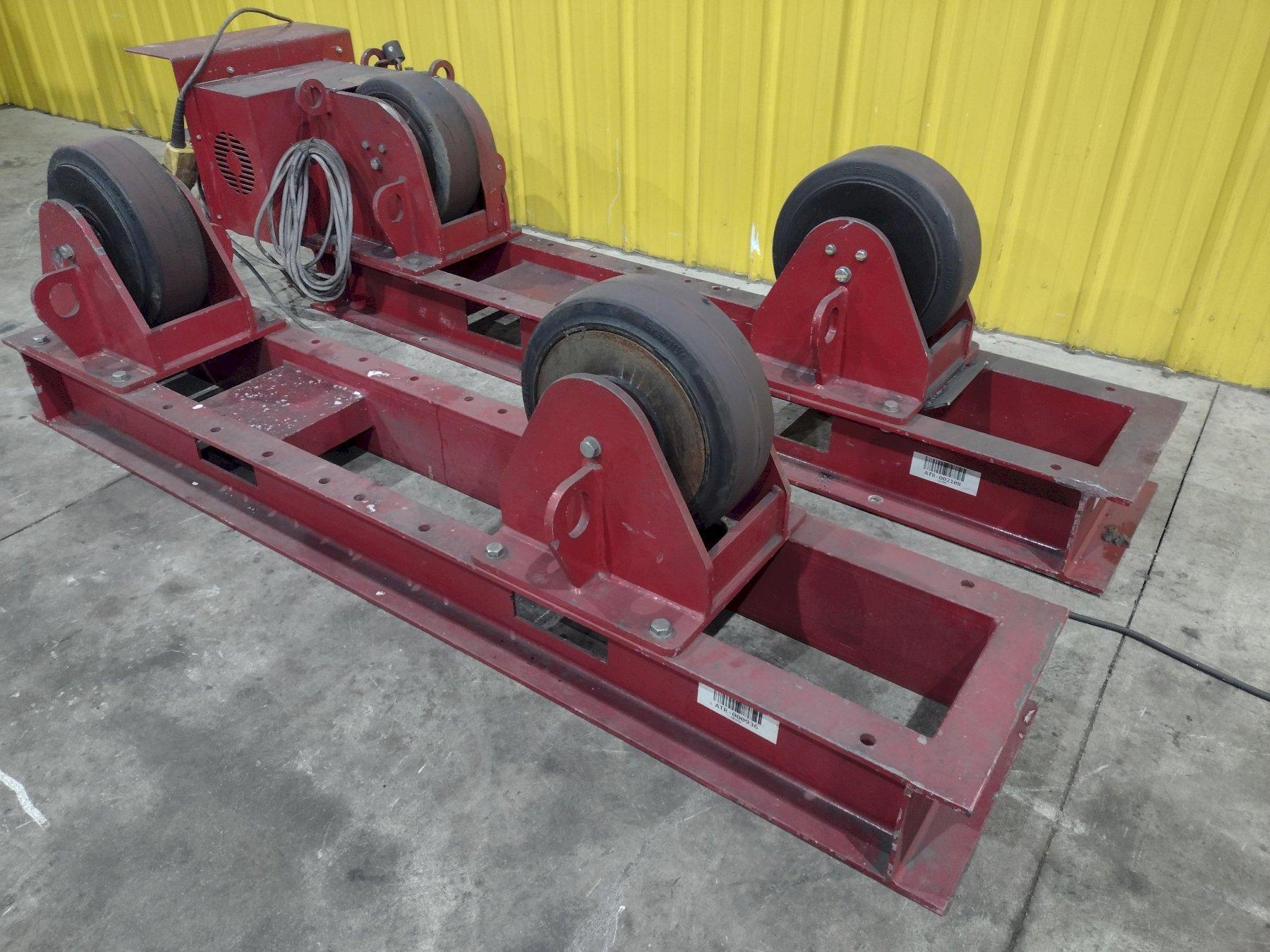

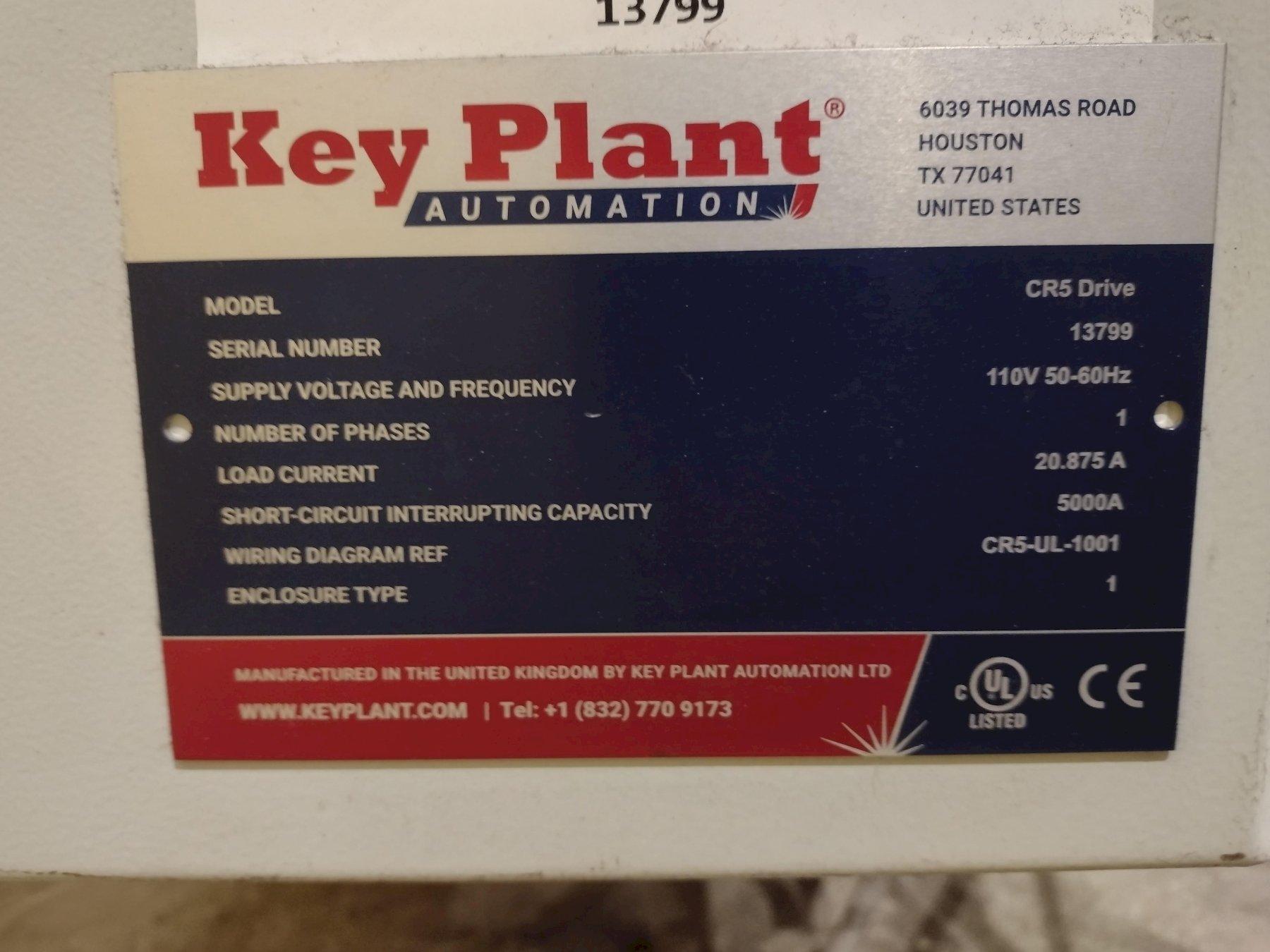

Model:	RDA CR5 NA turning roll set (drive and idler)
Manufacturer Part Number:	Drive: CRD5, Idler: CRI5
Load Carrying Capacity:	Drive: 2.5 ton maximum Idler: 2.5 ton maximum Set: 5 ton maximum
Rotation Capacity:	Drive Roll: 7.5 ton maximum
Wheel Centre Distance:	15.1, 26.9, 38.7, 62.4 in
Vessel Diameter Capacity:	7.9 in to 137.8 in
Rotation Speed Range:	5.5 to 59 in/min
Tire Type:	Rubber, A90-95 durometer rating

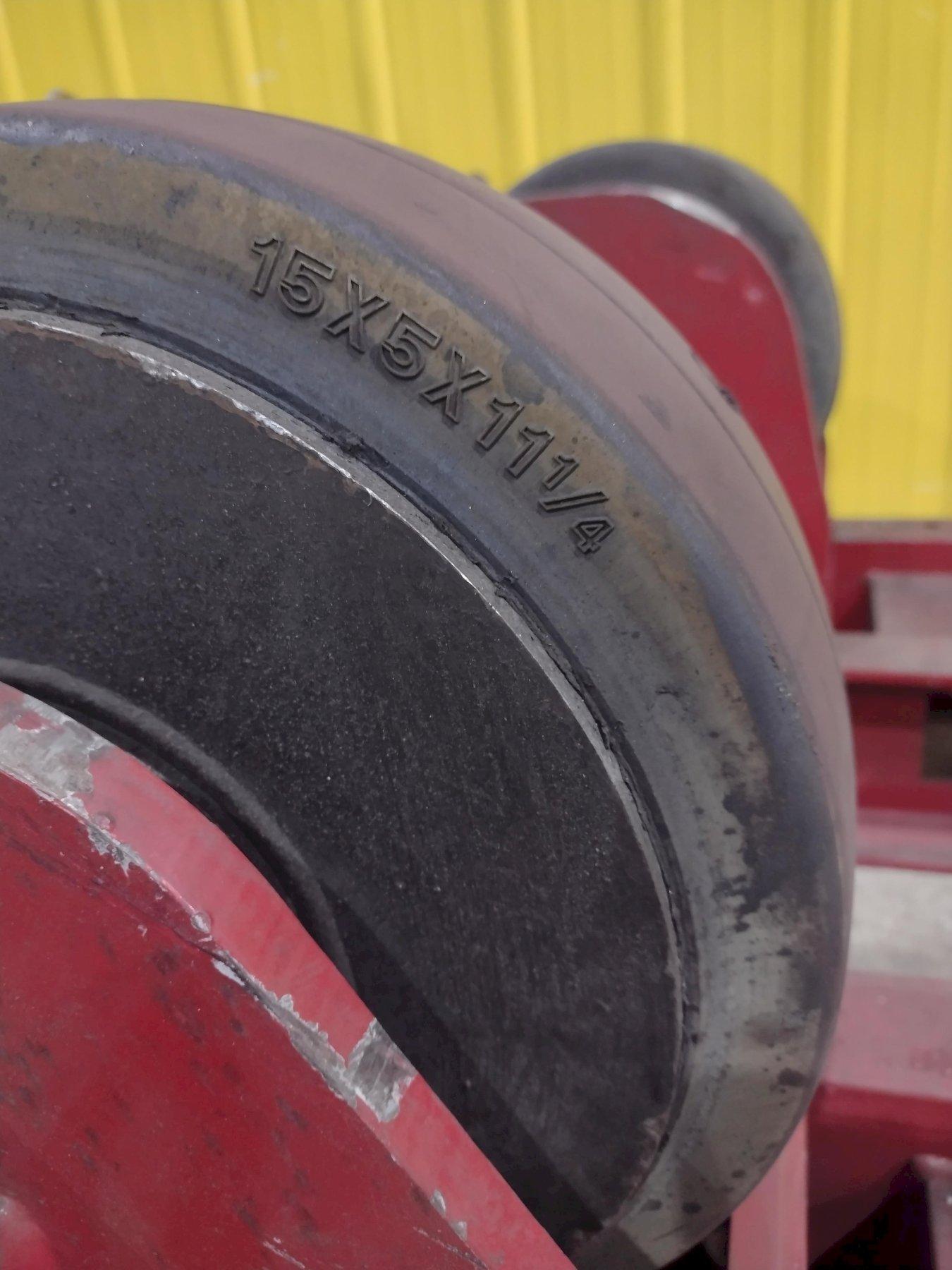

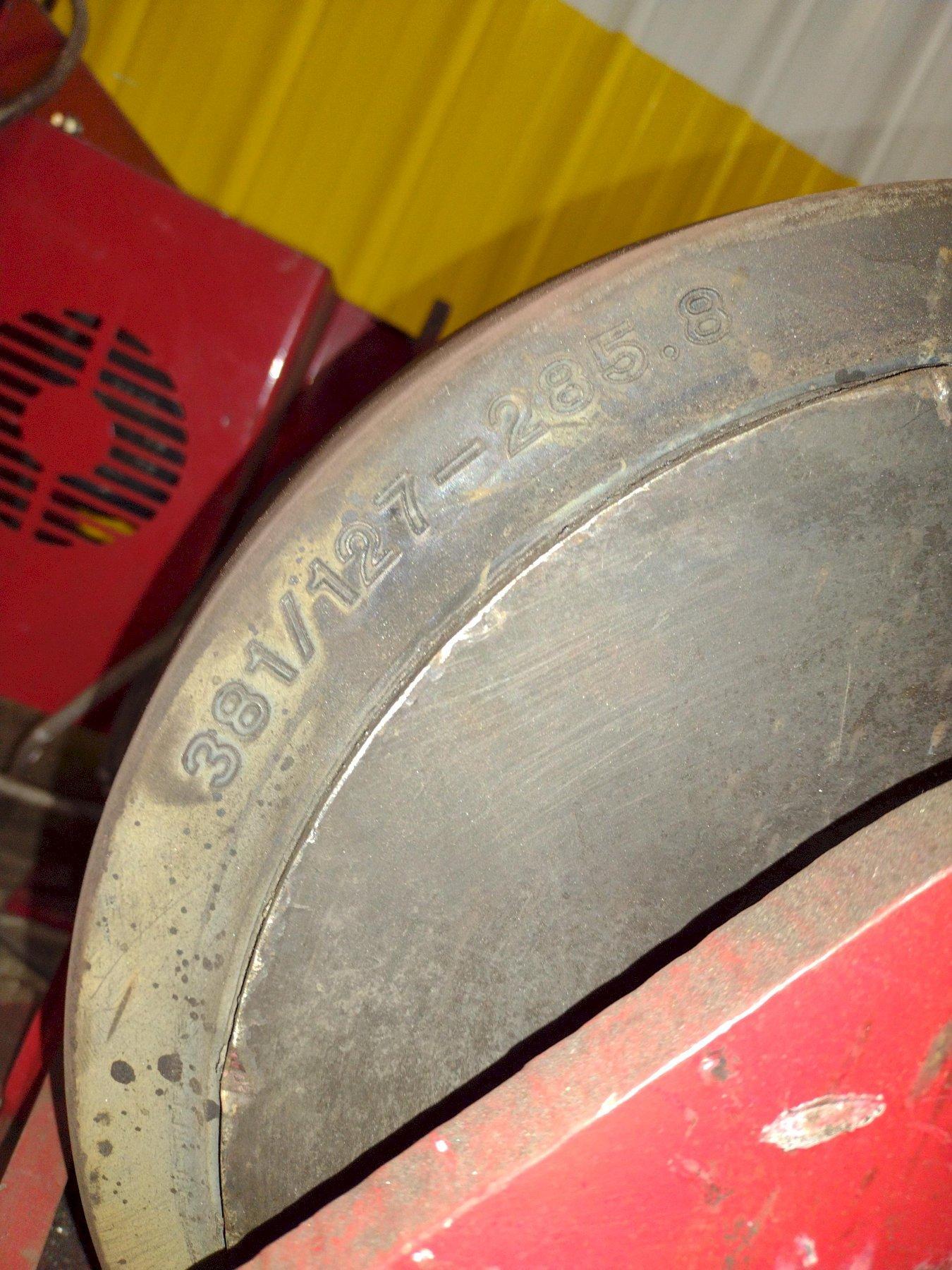

Wheel Size:	15 in diameter x 3 in wide

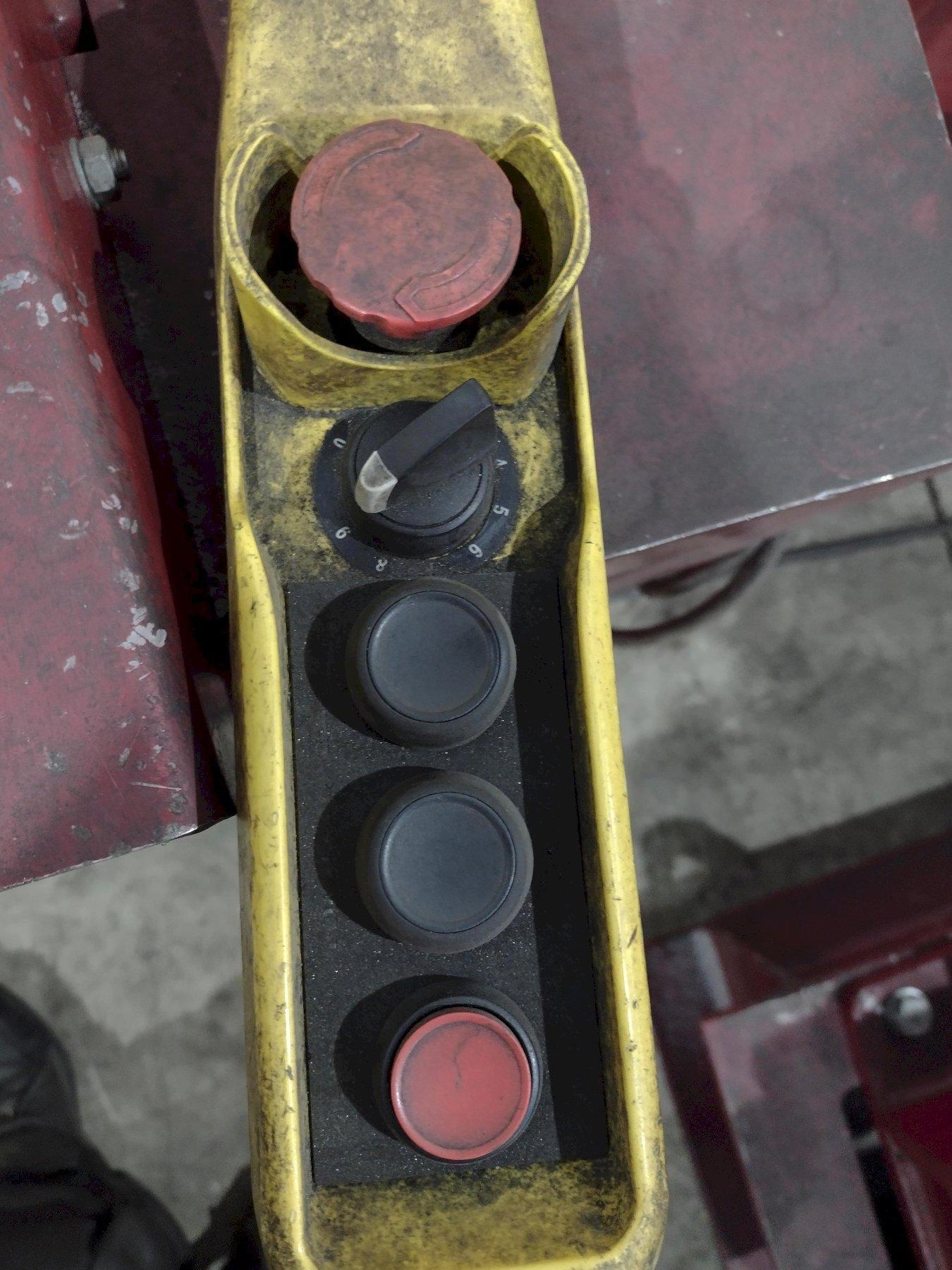

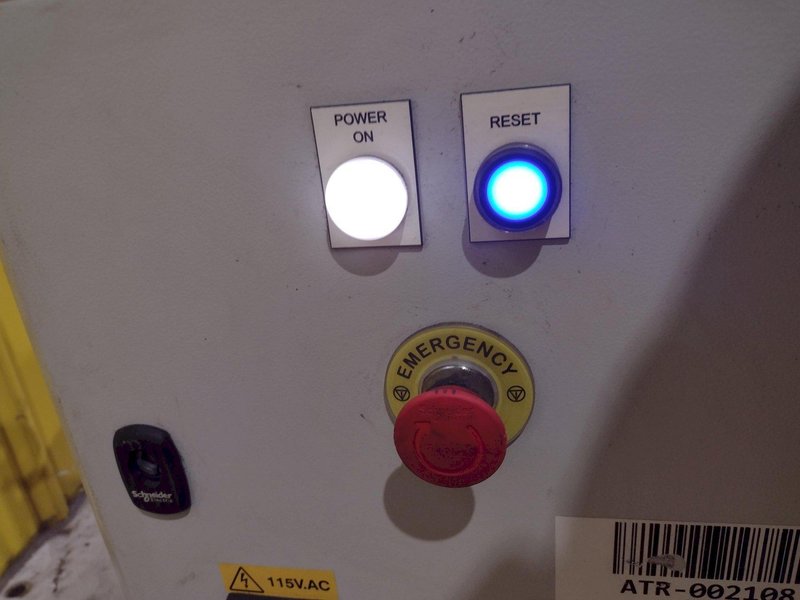

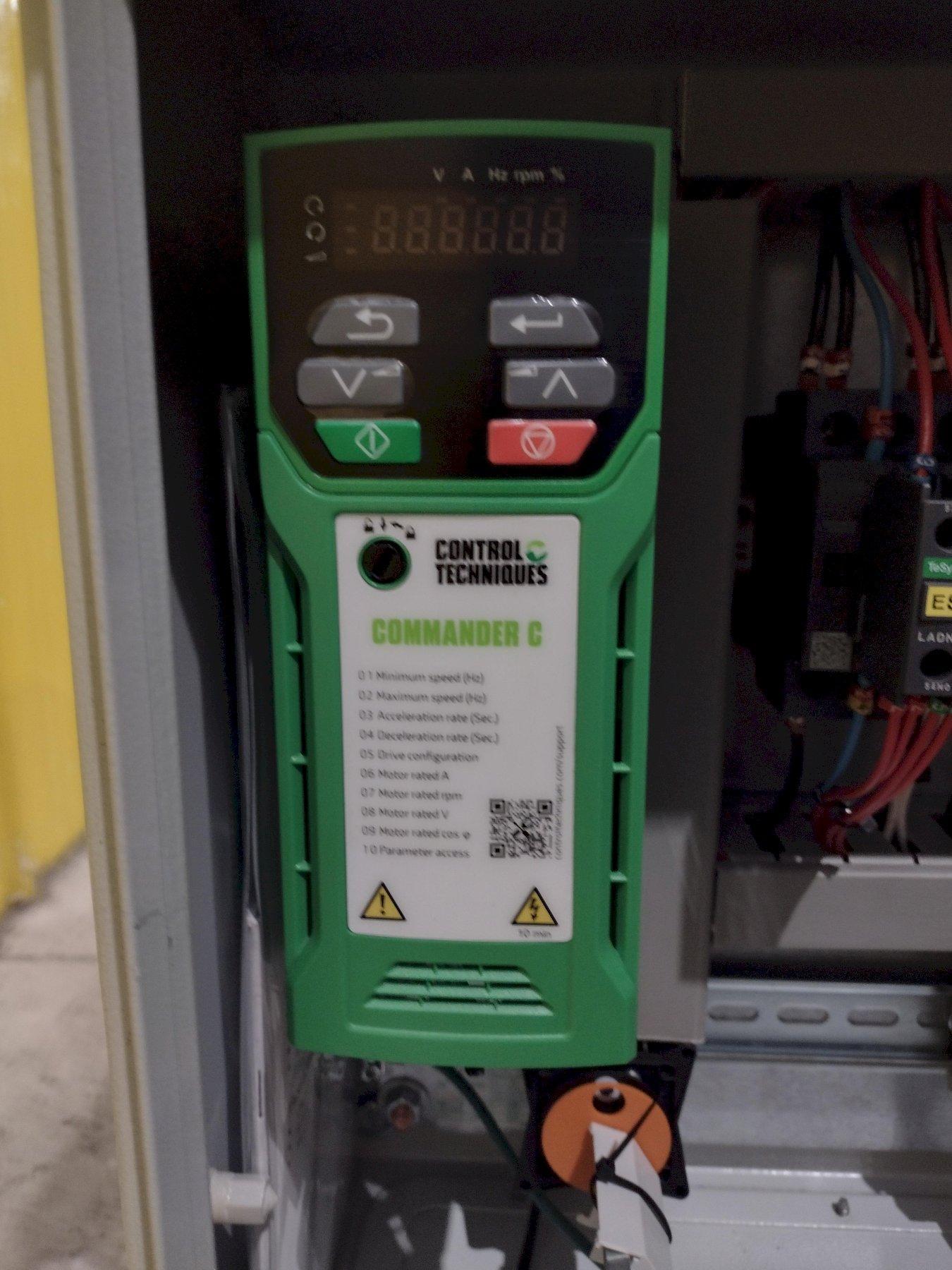

Five Function Hand Control:	Push Button Pendant, 50 ft control cable (forward/stop/reverse/speed control/emergency stop)

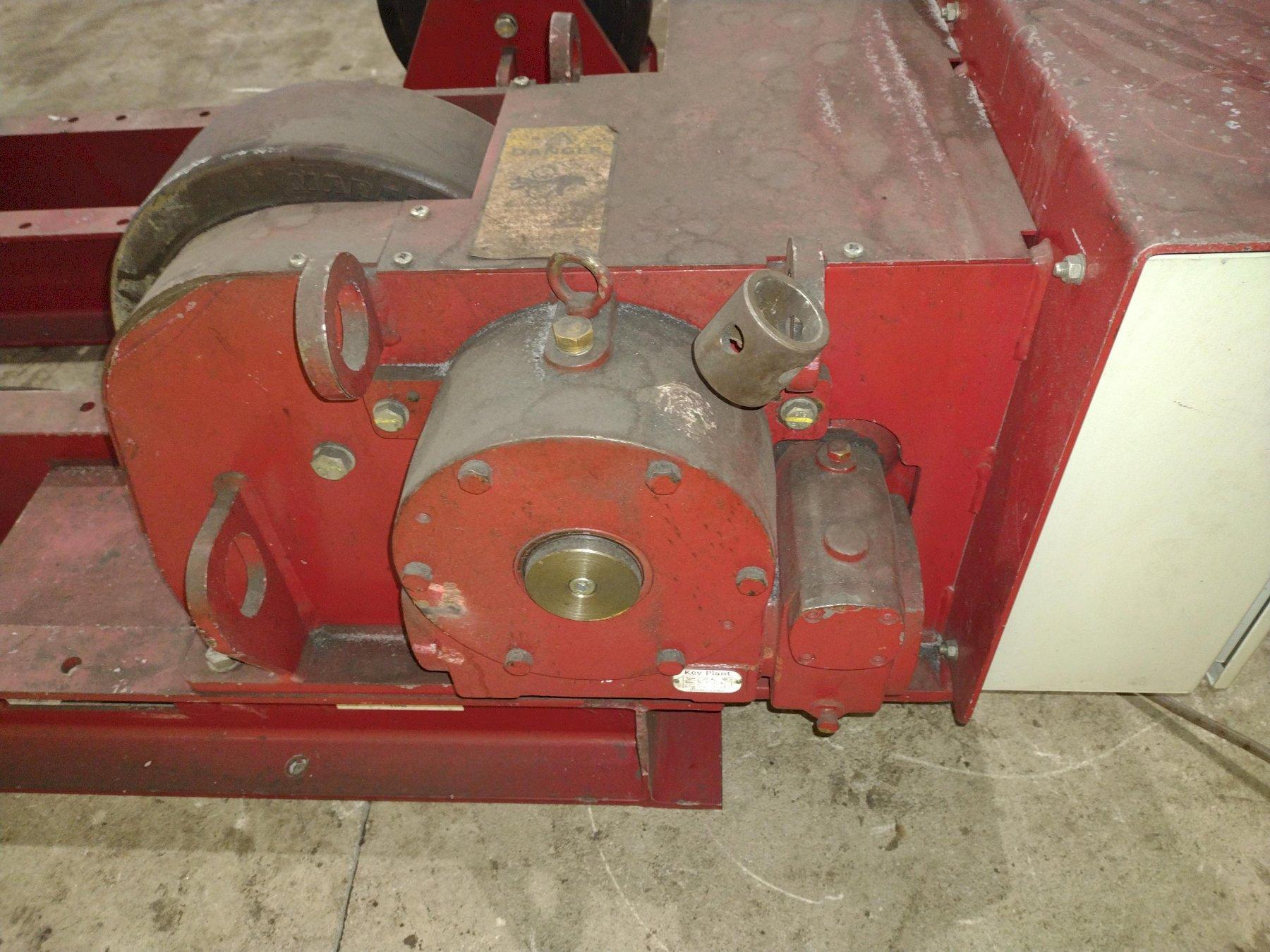

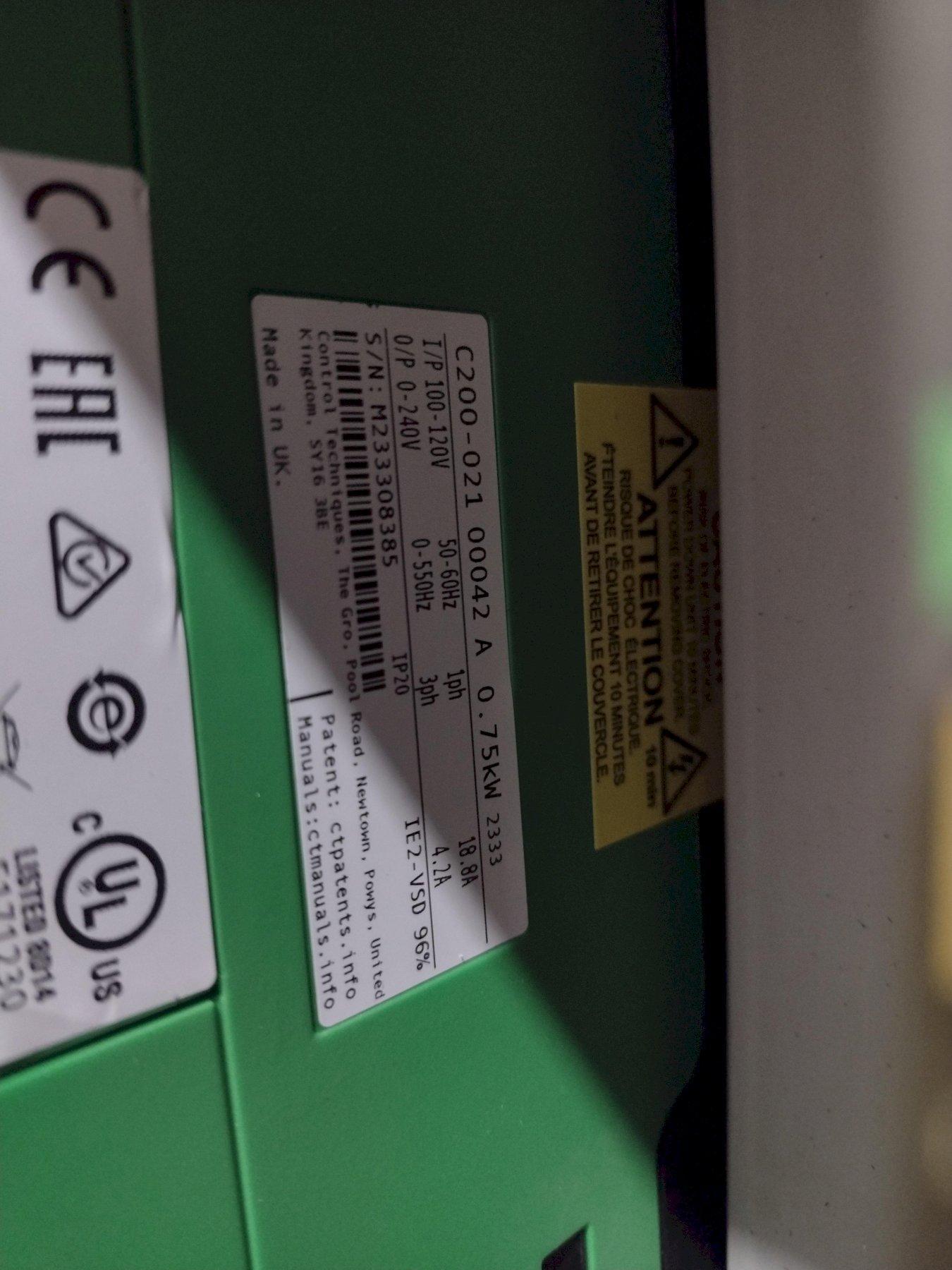

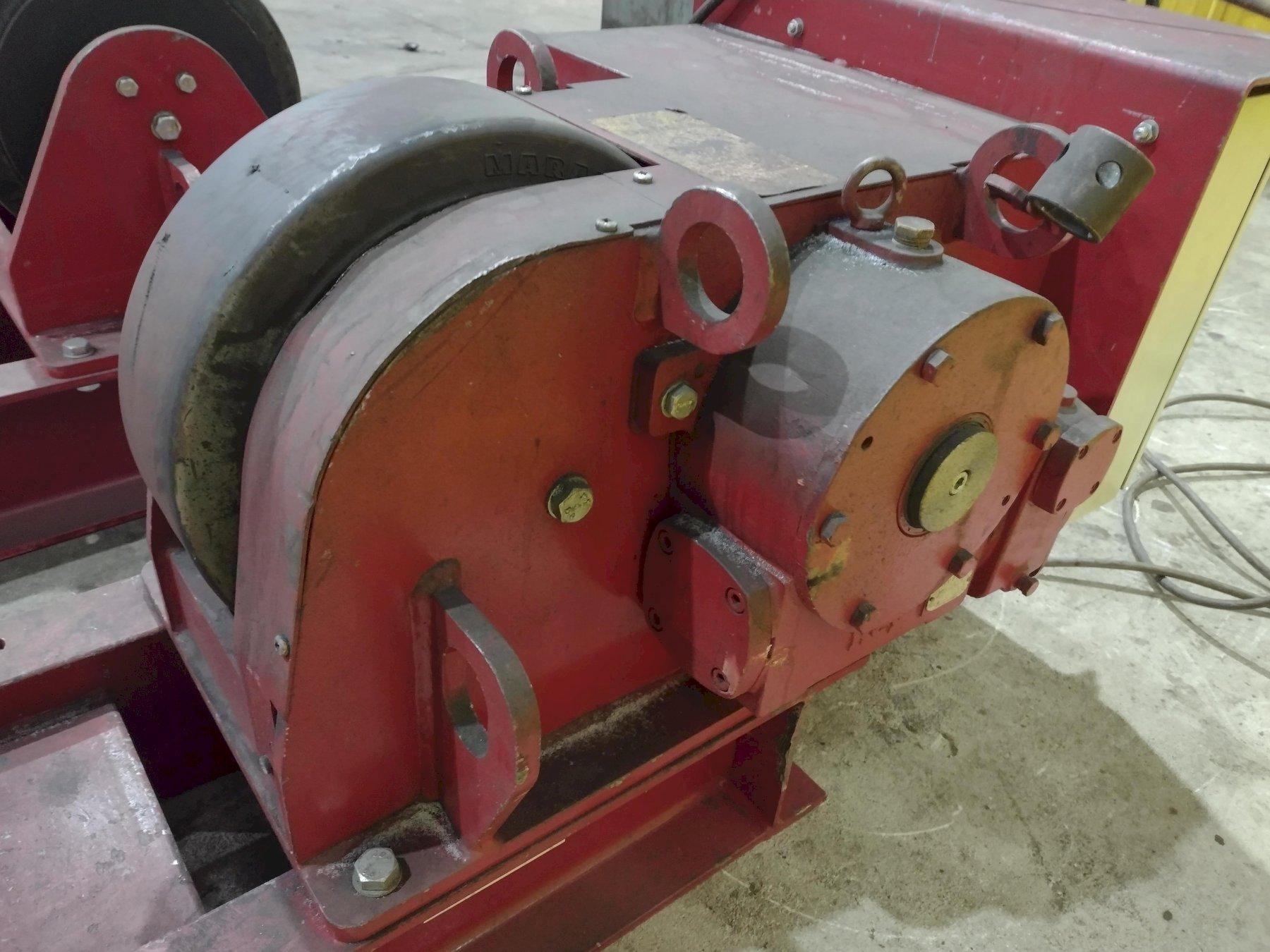

Rotation Drive Motor:	0.55 kW with fan cooling

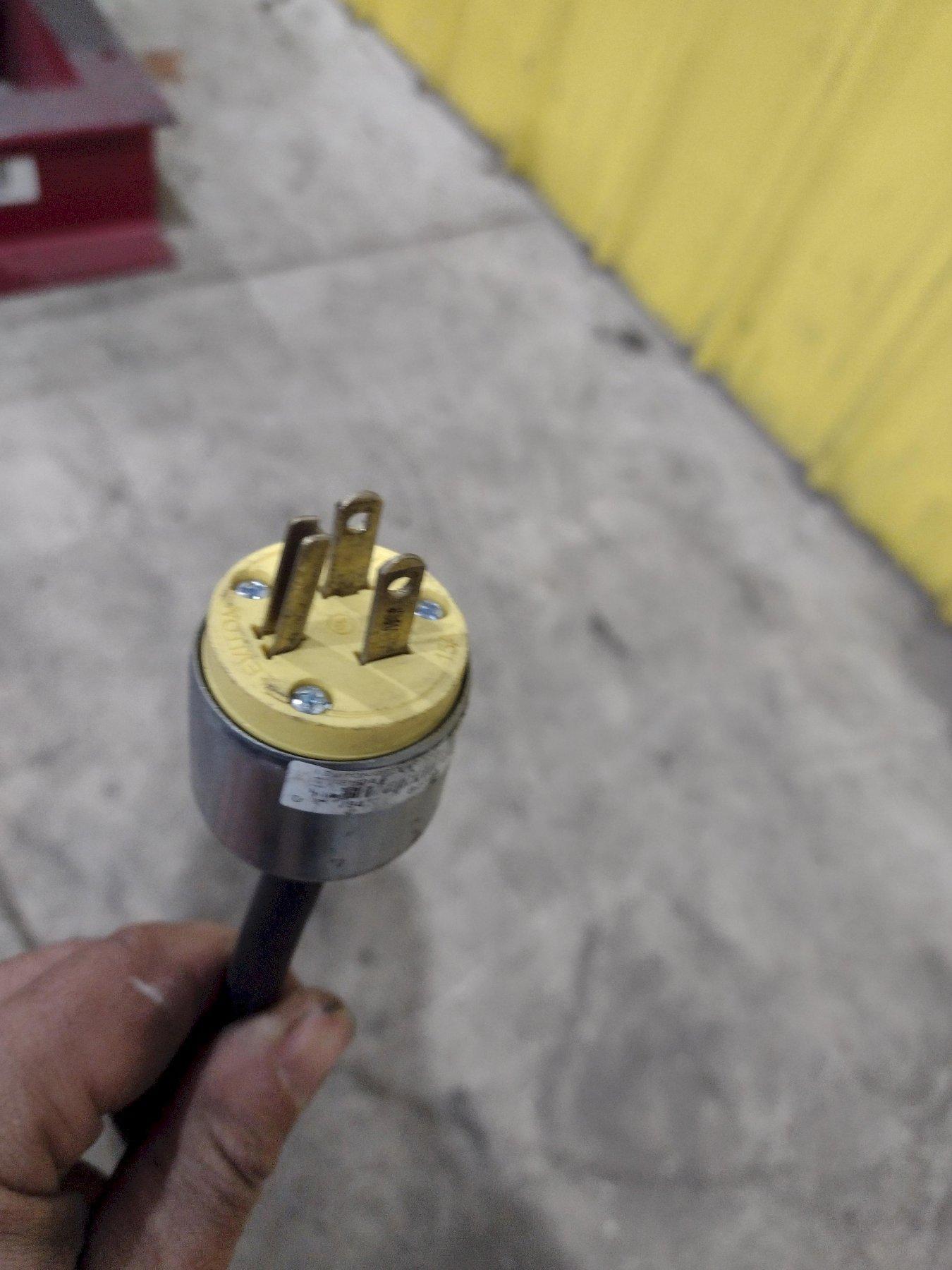

Primary Input Power:	110 V, 1 phase, 60 Hz
Input Current at Rated Load:	6.9 A
Weight:	Drive: 1300 lb Idler: 1036 lb
Control Box Ingress Protection Rating: IP65
Control Box Electrical Certification: UL508
Loading Capacity Certification: UL2011
