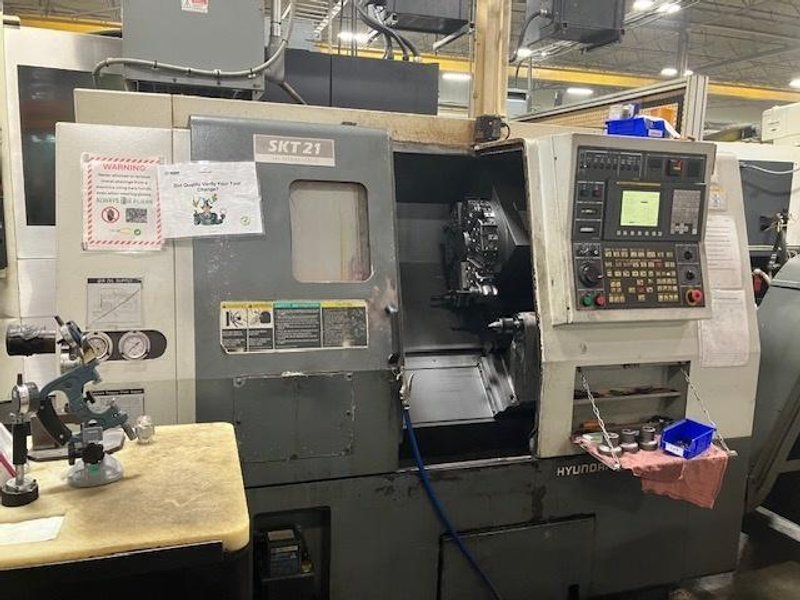

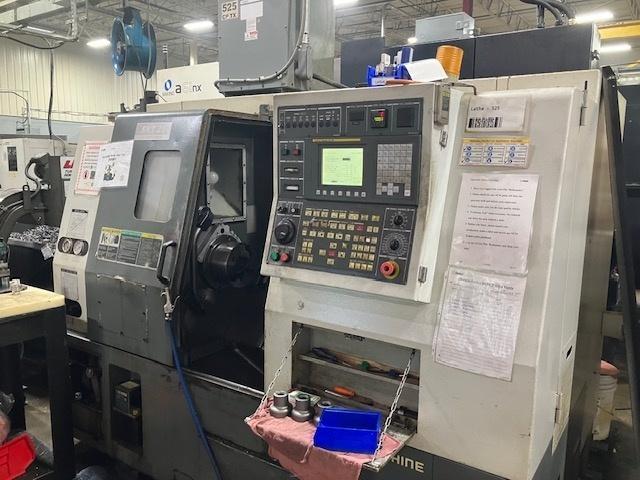

Hyundai Kia SKT -21 Universal Lathe

Name: Hyundai Kia SKT -21 Universal Lathe
Brand: HYUNDAI KIA
Availability: PreOrder

Brand

HYUNDAI KIA

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Capacity:

Max Turning Diameter: 13.80"
Max Turning Length: 16.14"
Max Bar Capacity: 2.56"
Swing Over Bed: 21.65"
Max Swing Over Slide: 13.80"
Travels:
X Axis Travel: 8.70"
Z Axis Travel: 16.92"
Rapid Traverse X Axis: 1417 IPM
Rapid Traverse Z Axis: 1417 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.90"
Spindle Speed: 4000 RPM
Spindle Motor: 20 hp
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.75"
Tailstock Quill Travel: 3.15"
General:
Power: 25 kva, 220v / 3-Phase
Overall Dimensions: 94.68" x 64.96" x 73.62" High
Weight: 8,600 lbs

Equipped With:

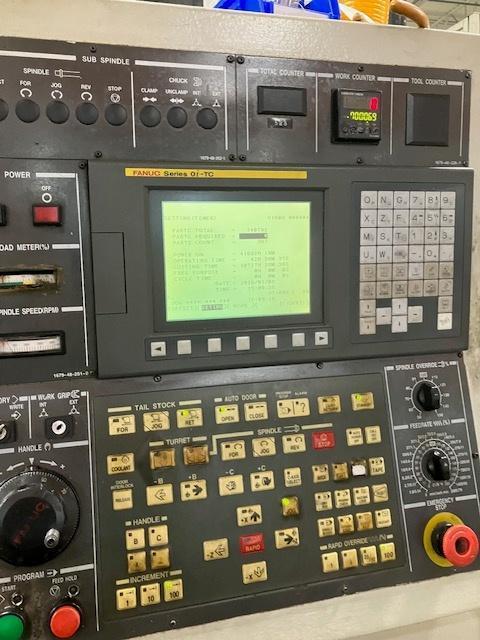

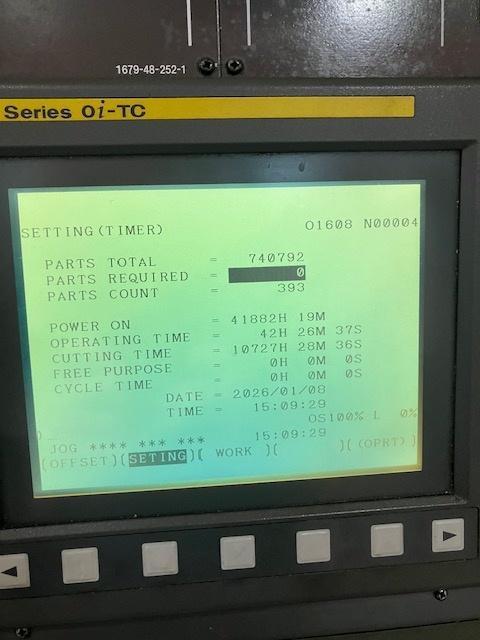

Fanuc 0i-TC CNC Control

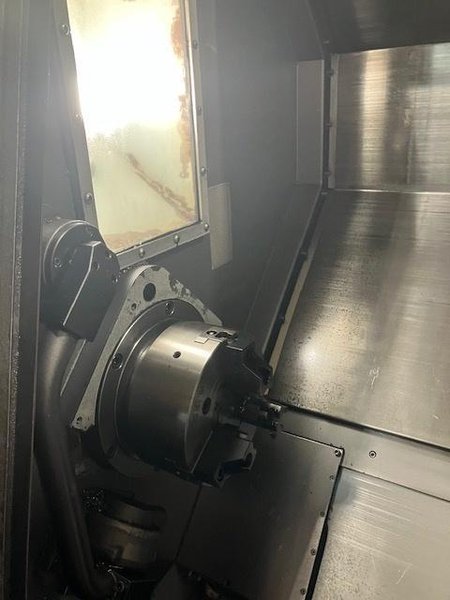

8" Dia 3-Jaw Chuck
A2-6, 4000 RPM Spindle

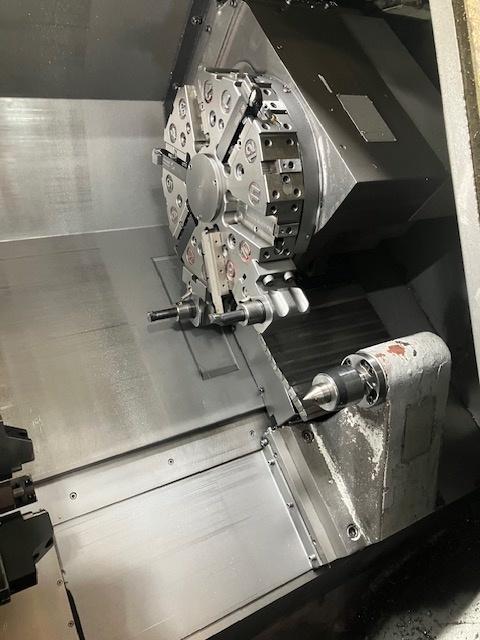

12 Station Automatic Turret
Tool Presetter Arm
Rigid Tapping
Spindle Orientation
Hydraulic Programmable Tailstock
PCMCIA Card Interface
USB Port
Foot Switch

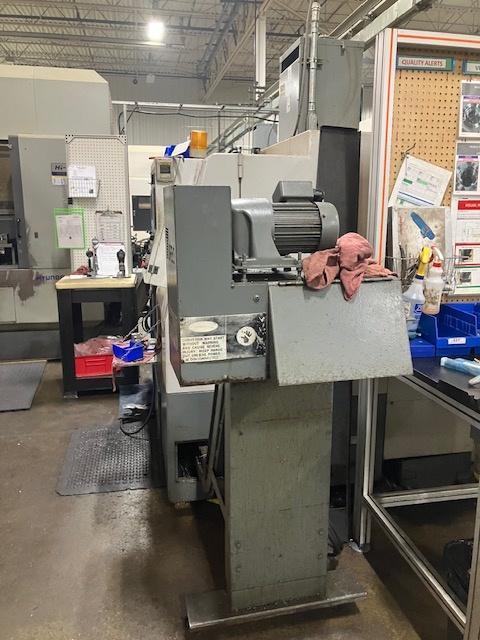

Coolant System
Chip conveyor
Automatic Lubrication System
Books & Manuals
Levelling Pads
