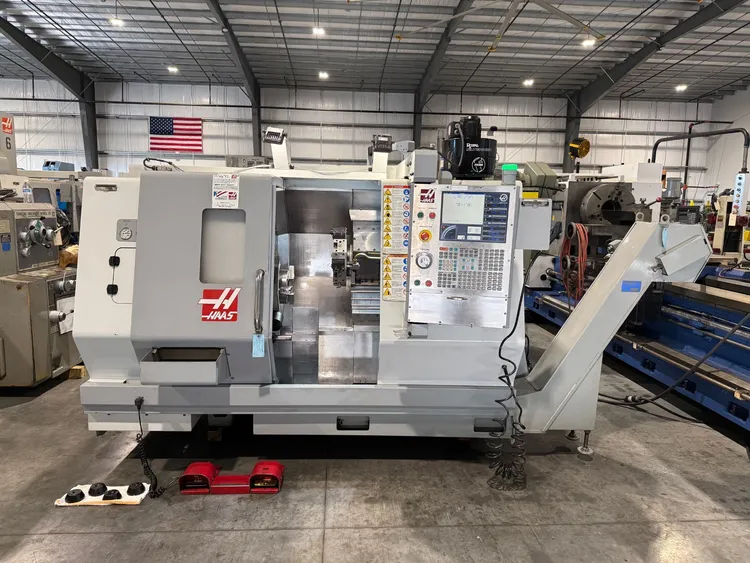

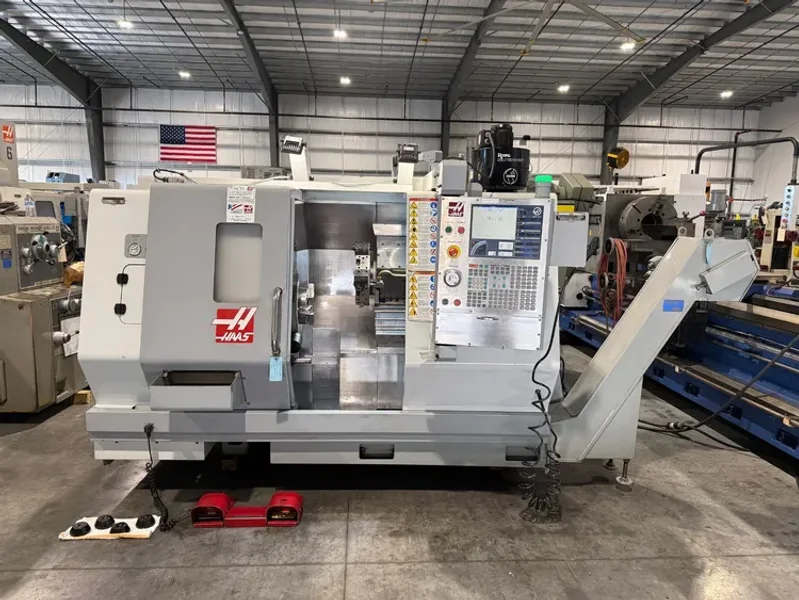

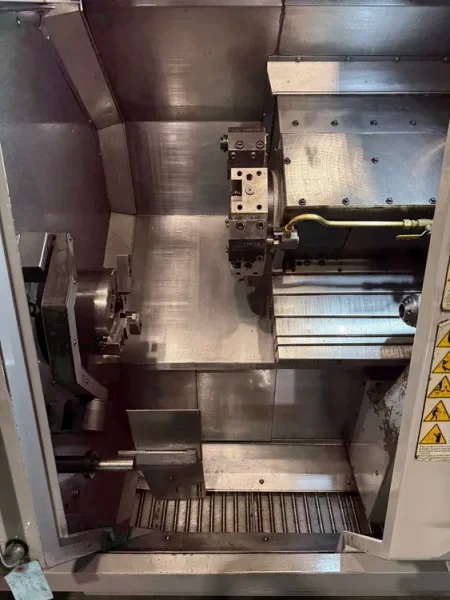

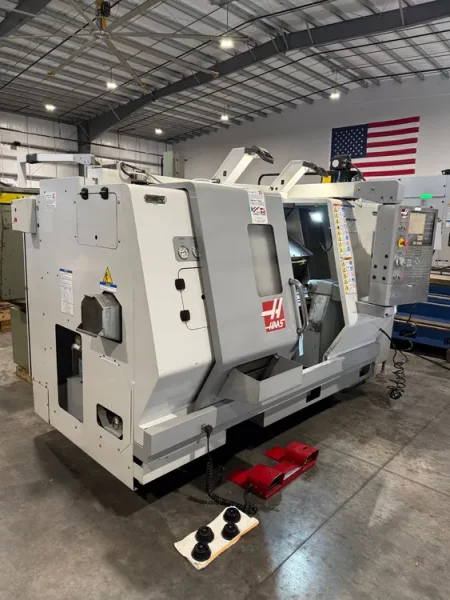

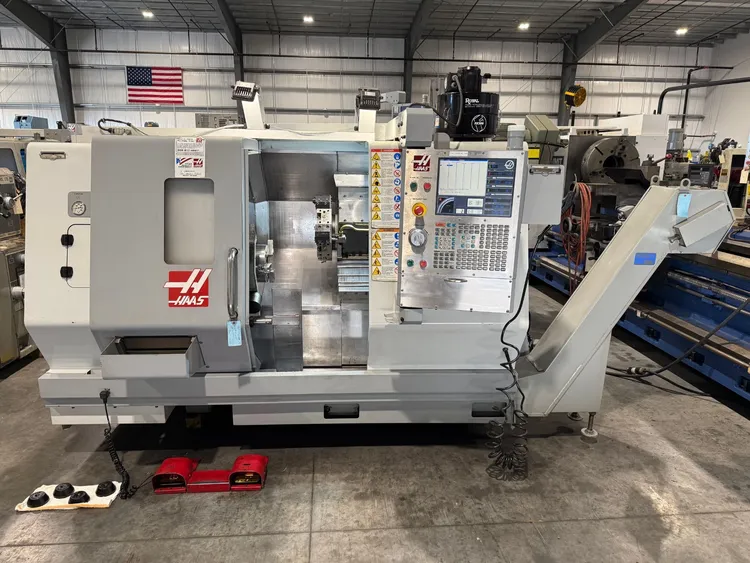

HAAS SL-20 CNC Lathe Turning Center 2007’ USA #8091
Brand
Not specified
Category
Type
Model
SL-20T
Stock #
8091
Year
Not specified
Condition
Not specified
Location
Florida
|
HAAS SL-20 CNC Lathe Turning Center 2007’ USA #8091

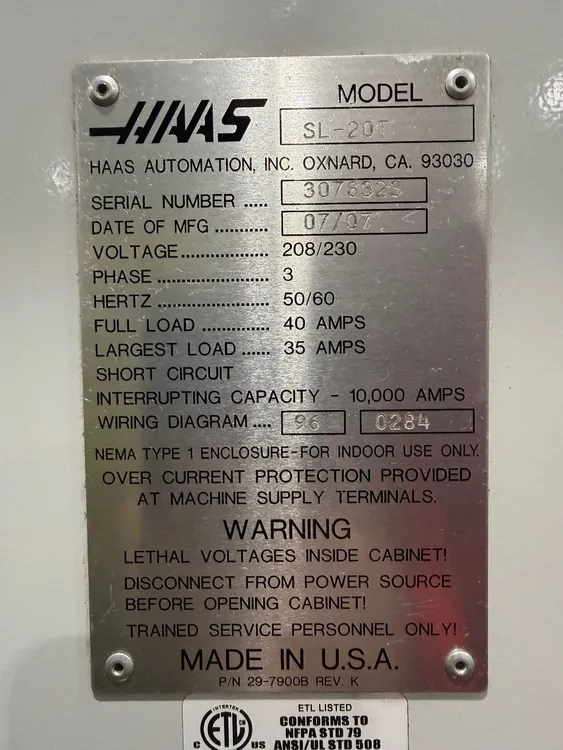

Reference #8091 Model # SL-20T Serial # 3078323 Year of manufacture- 7/2007’ Swing over front apron- 23” Swing over cross slide- 9.5” Chuck size- 8.3” Standard bar capacity- 2” Maximum cutting diameter- 10.3” Maximum cutting length- 20” Maximum cutting length with standard workholding- 19” Maximum spindle speed- 4,000 R.P.M. Peak horsepower- 20 H.P. Spindle nose- A2-6 Spindle bore- 3” Draw tube bore- 2.06” X-axis travel- 8.45” Z-axis travel- 20’’ Rapid traverse rate- 1,200 I.P.M. Number of stations in turret- 10 Tool size (OD turning)- 1” Boring bar rear clearance (from turret face)- 4.37” Index time (one tool)- 1 sec |
